Power Development and Nature Conservation-Two scenarios

1. Power Development and Nature Conservation-Two scenarios Gabriel Wetangula☨1,2 & Joseph Ajayi‡1 Faculty of Science, University of Iceland1 Olkaria Geothermal Power Project, Naivasha, Kenya2 Email: joseph@hi.is‡, gawe@hi.is☨

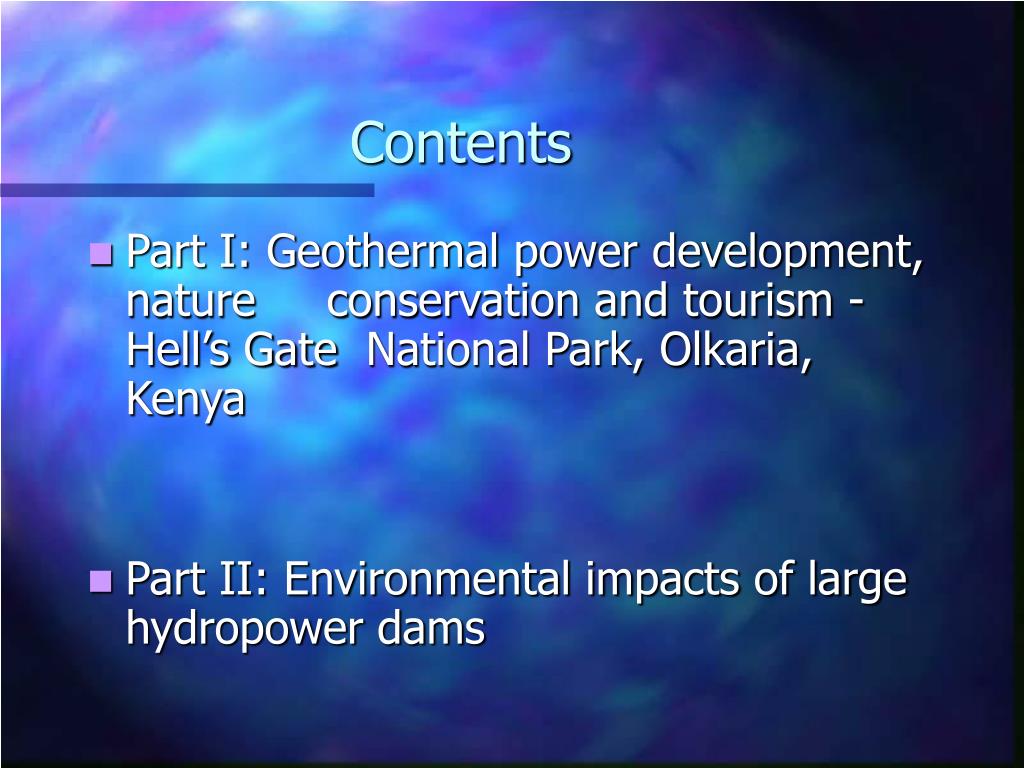

2. Contents • Part I: Geothermal power development, nature conservation and tourism - Hell’s Gate National Park, Olkaria, Kenya • Part II: Environmental impacts of large hydropower dams

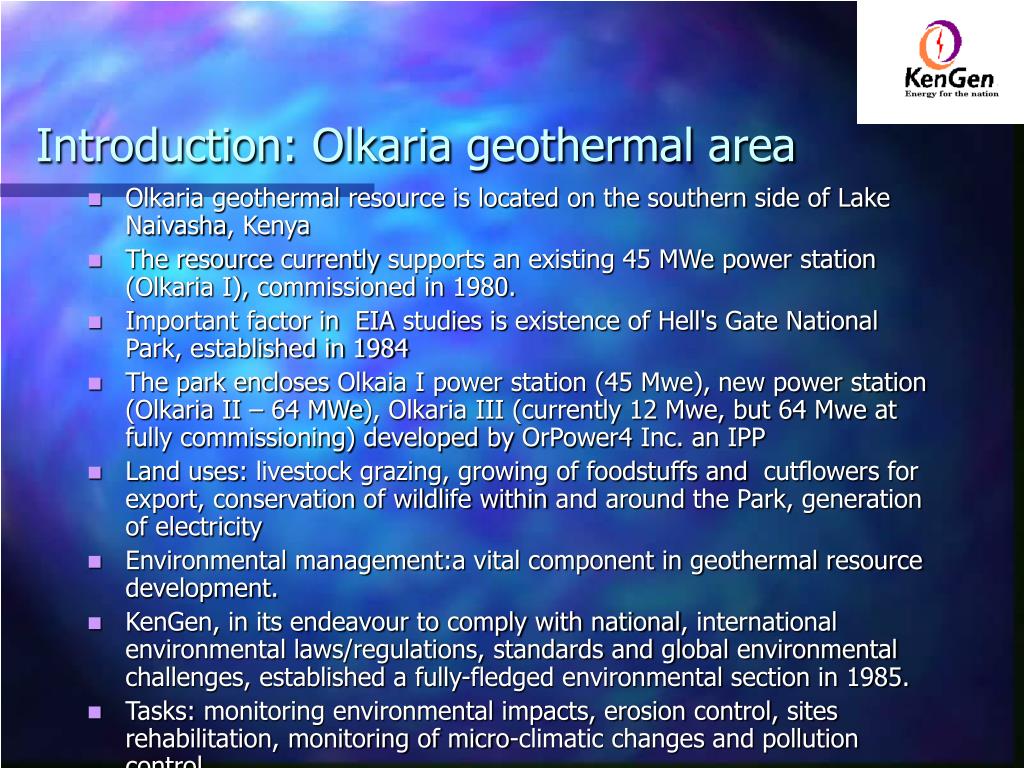

3. Introduction: Olkaria geothermal area • Olkaria geothermal resource is located on the southern side of Lake Naivasha, Kenya • The resource currently supports an existing 45 MWe power station (Olkaria I), commissioned in 1980. • Important factor in EIA studies is existence of Hell's Gate National Park, established in 1984 • The park encloses Olkaia I power station (45 Mwe), new power station (Olkaria II – 64 MWe), Olkaria III (currently 12 Mwe, but 64 Mwe at fully commissioning) developed by OrPower4 Inc. an IPP • Land uses: livestock grazing, growing of foodstuffs and cutflowers for export, conservation of wildlife within and around the Park, generation of electricity • Environmental management:a vital component in geothermal resource development. • KenGen, in its endeavour to comply with national, international environmental laws/regulations, standards and global environmental challenges, established a fully-fledged environmental section in 1985. • Tasks: monitoring environmental impacts, erosion control, sites rehabilitation, monitoring of micro-climatic changes and pollution control.

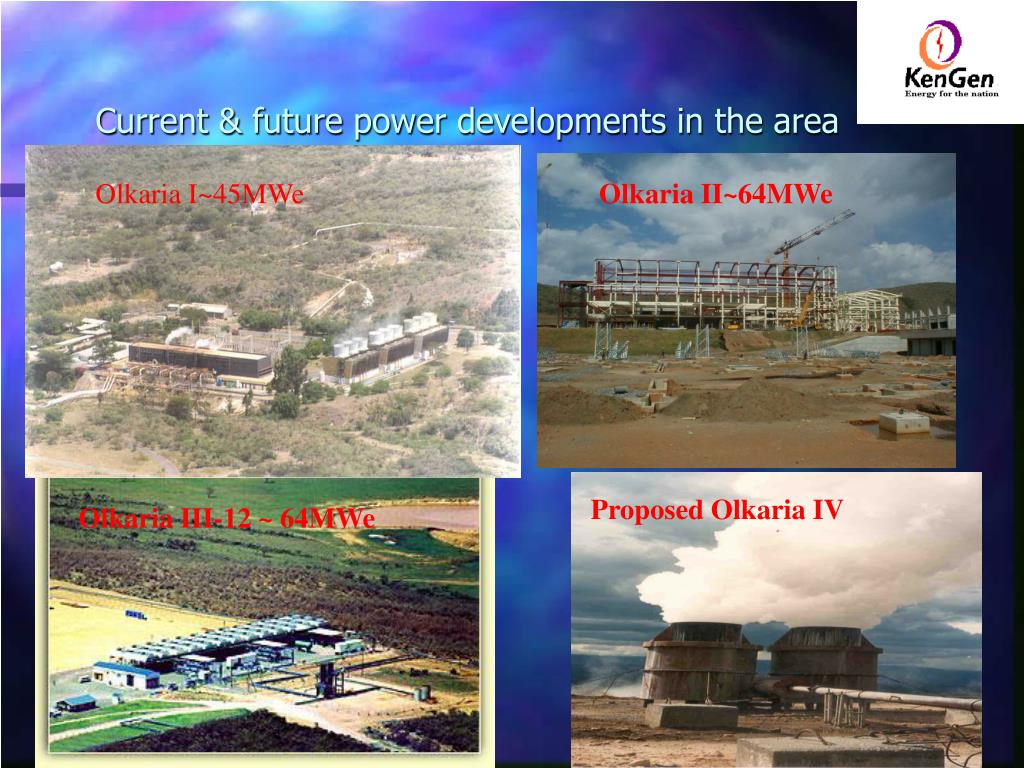

4. Current & future power developments in the area Olkaria I~45MWe Olkaria II~64MWe Proposed Olkaria IV Olkaria III-12 ~ 64MWe

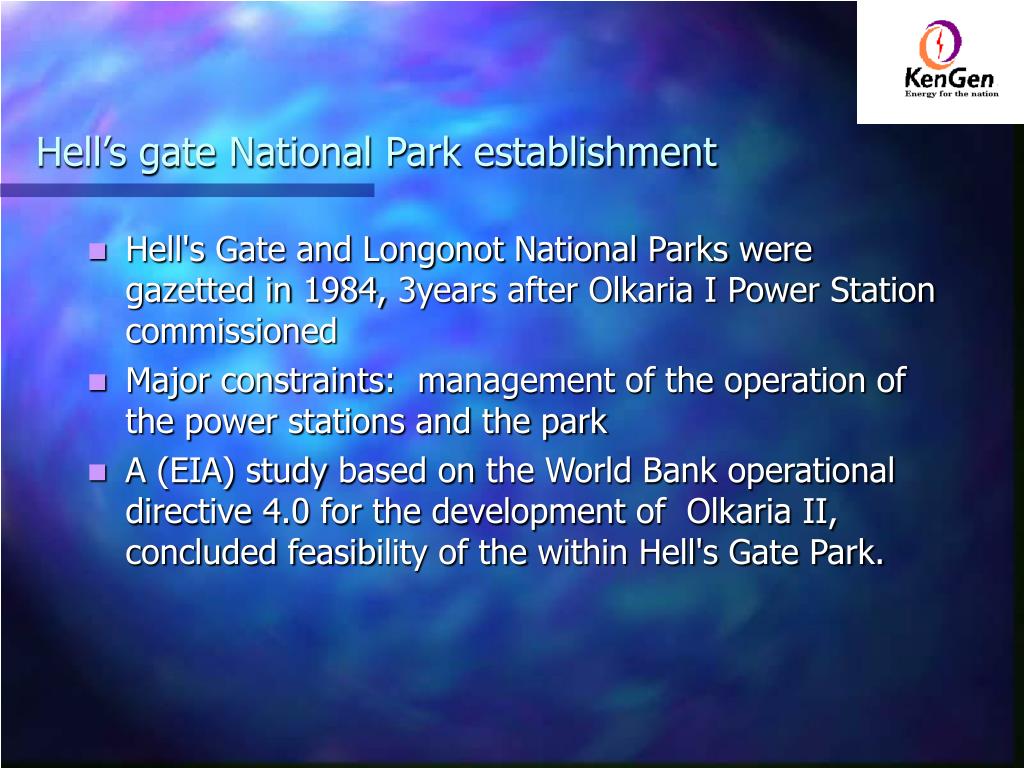

5. Hell’s gate National Park establishment • Hell's Gate and Longonot National Parks were gazetted in 1984, 3years after Olkaria I Power Station commissioned • Major constraints: management of the operation of the power stations and the park • A (EIA) study based on the World Bank operational directive 4.0 for the development of Olkaria II, concluded feasibility of the within Hell's Gate Park.

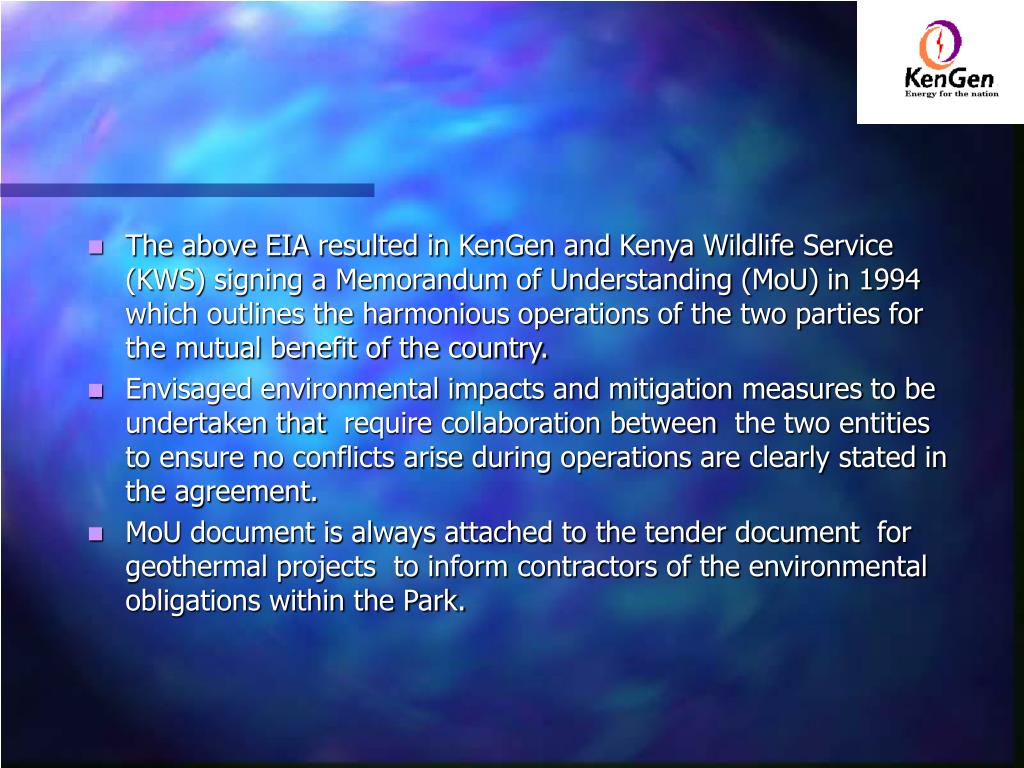

6. The above EIA resulted in KenGen and Kenya Wildlife Service (KWS) signing a Memorandum of Understanding (MoU) in 1994 which outlines the harmonious operations of the two parties for the mutual benefit of the country. • Envisaged environmental impacts and mitigation measures to be undertaken that require collaboration between the two entities to ensure no conflicts arise during operations are clearly stated in the agreement. • MoU document is always attached to the tender document for geothermal projects to inform contractors of the environmental obligations within the Park.

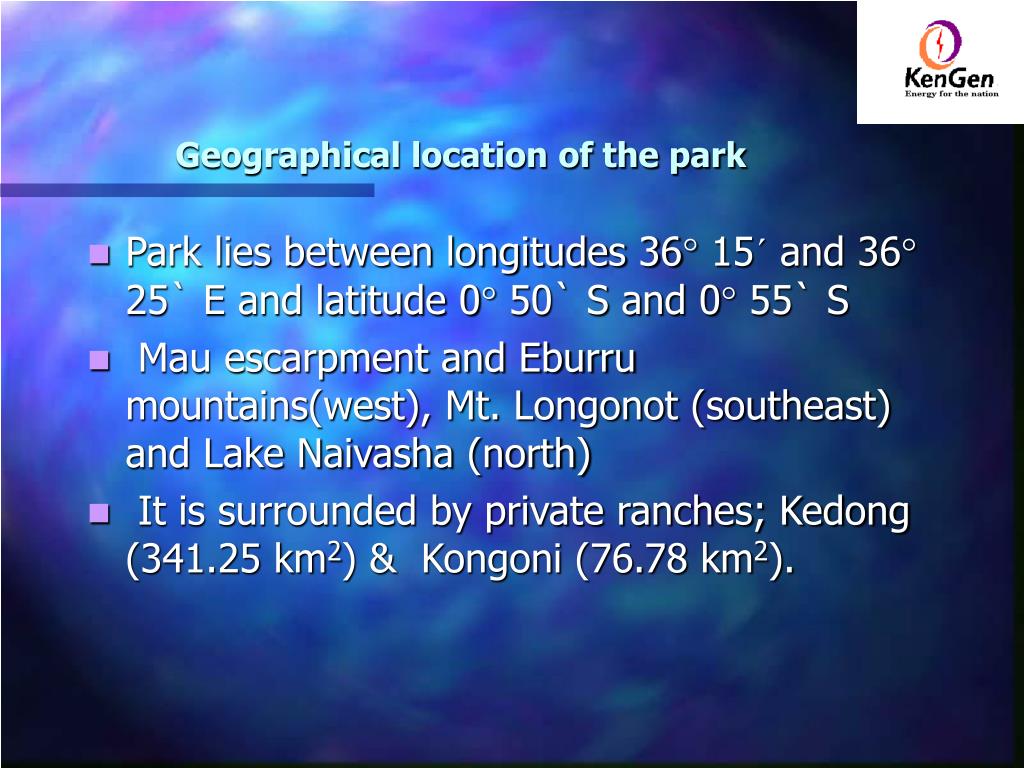

7. Geographical location of the park • Park lies between longitudes 36 15´ and 36 25` E and latitude 0 50` S and 0 55` S • Mau escarpment and Eburru mountains(west), Mt. Longonot (southeast) and Lake Naivasha (north) • It is surrounded by private ranches; Kedong (341.25 km2) & Kongoni (76.78 km2).

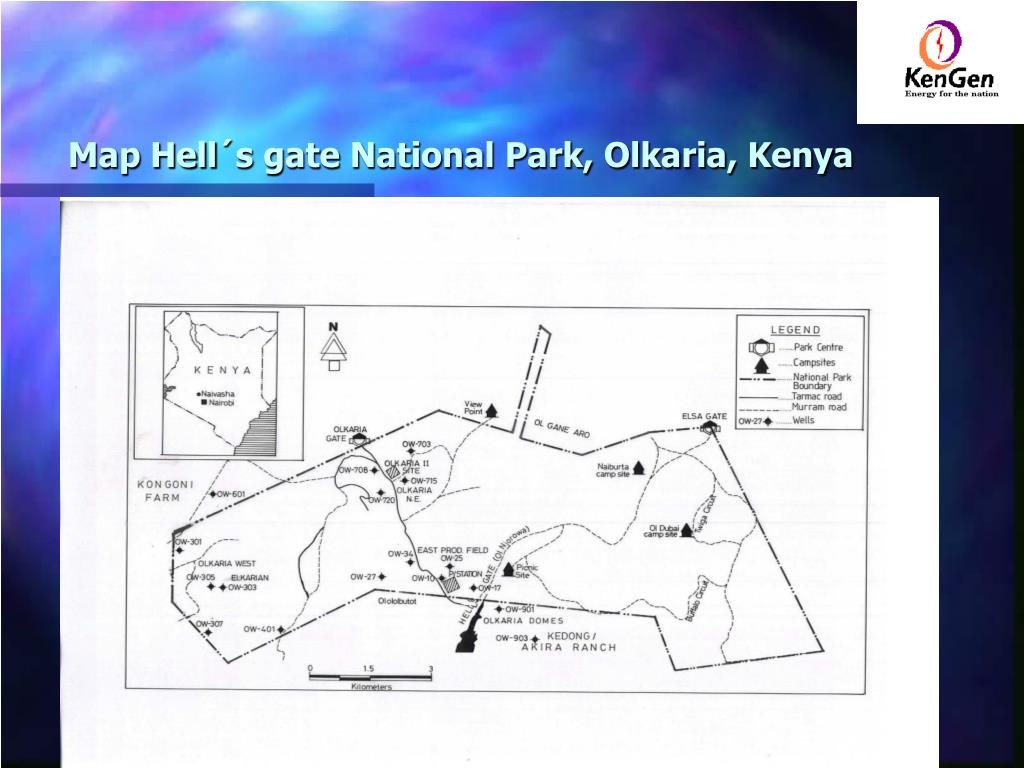

8. Map Hell´s gate National Park, Olkaria, Kenya

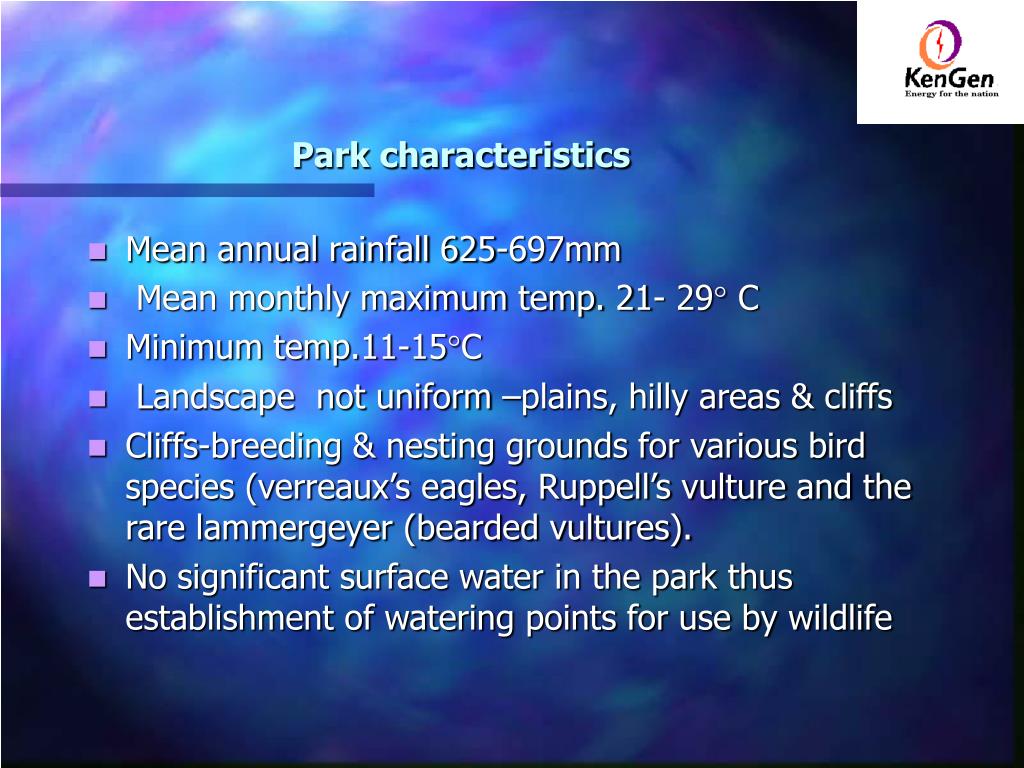

9. Park characteristics • Mean annual rainfall 625-697mm • Mean monthly maximum temp. 21- 29 C • Minimum temp.11-15C • Landscape not uniform –plains, hilly areas & cliffs • Cliffs-breeding & nesting grounds for various bird species (verreaux’s eagles, Ruppell’s vulture and the rare lammergeyer (bearded vultures). • No significant surface water in the park thus establishment of watering points for use by wildlife

10. Fauna in the park and adjacent areas Topi Rock hyrax Zebras Leopard Antelope Warthog

11. Hyena African jackal Thomson’s gazelle Buffaloes Zebras Giraffee Waterbuck Baboon

12. Avifauna in the park and around the lake White pelicans Ostrich White stork Grey heron

13. African jacan Fish eagle Fly catcher Hemakop Rupell vulture Twany eagle Bearded vulture Yellow billed stork

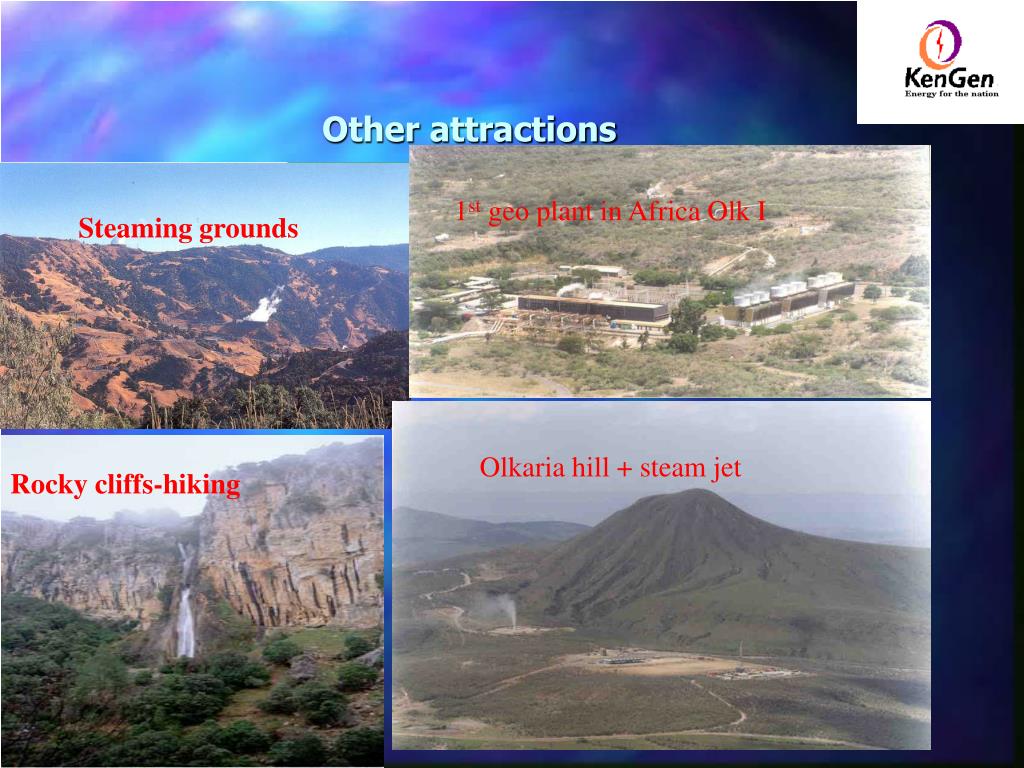

14. Other attractions 1st geo plant in Africa Olk I Steaming grounds Olkaria hill + steam jet Rocky cliffs-hiking

15. Fischer´s tower crater

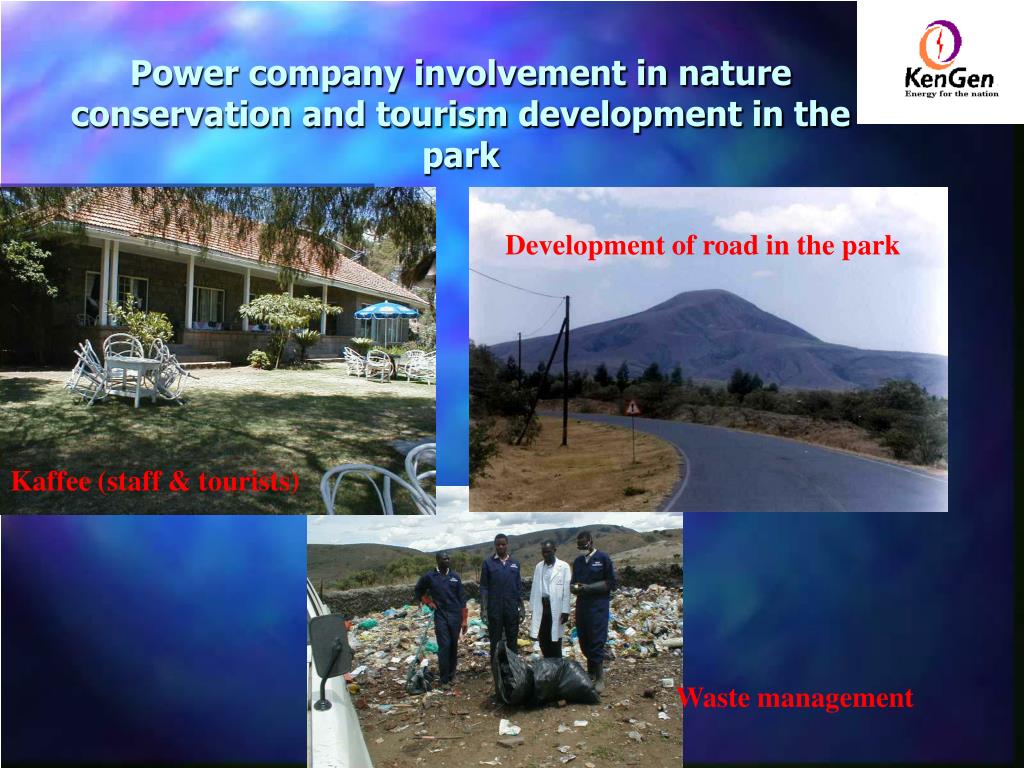

16. Power company involvement in nature conservation and tourism development in the park Development of road in the park Kaffee (staff & tourists) Waste management

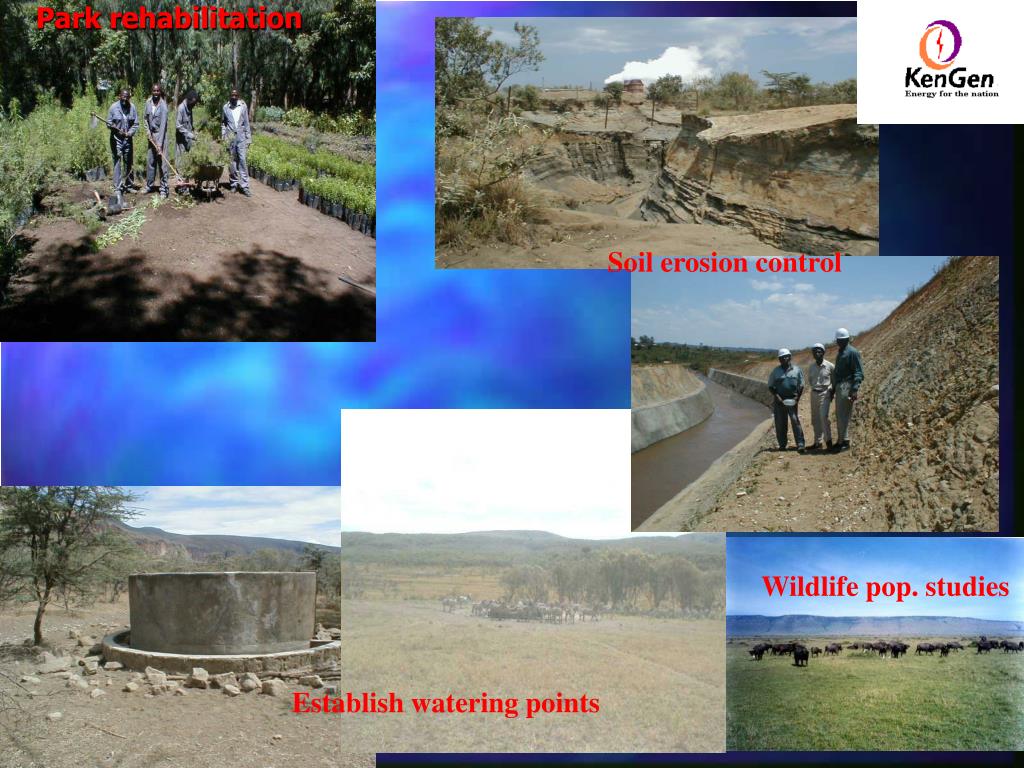

17. Park rehabilitation Soil erosion control Wildlife pop. studies Establish watering points

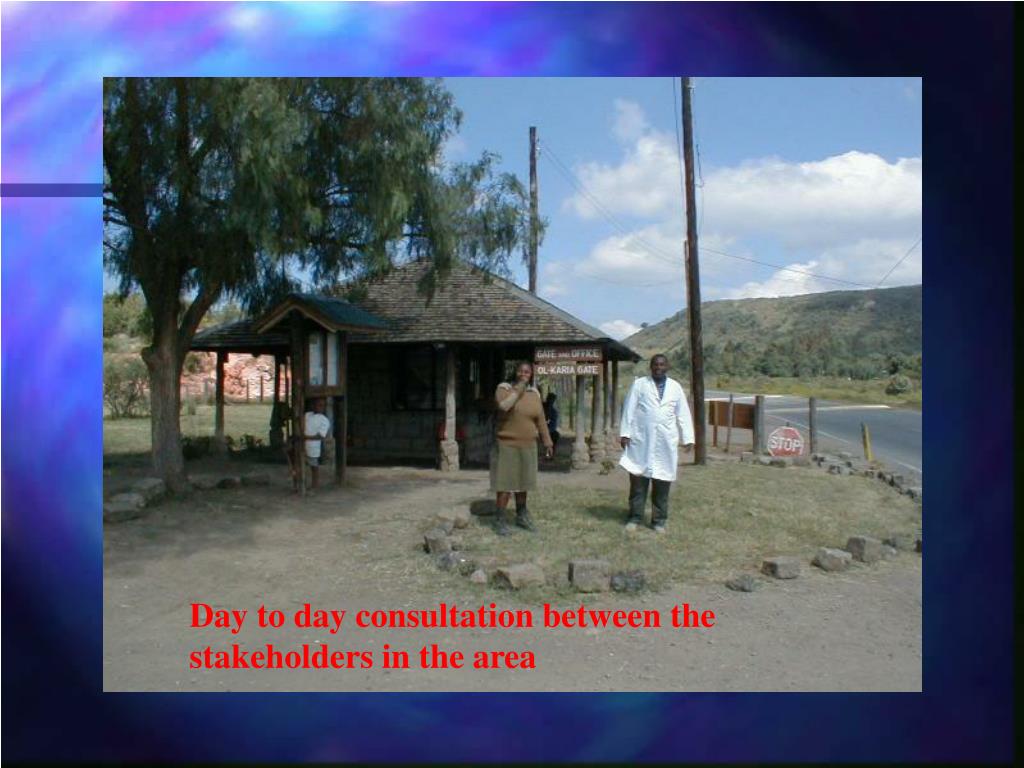

18. Day to day consultation between the stakeholders in the area

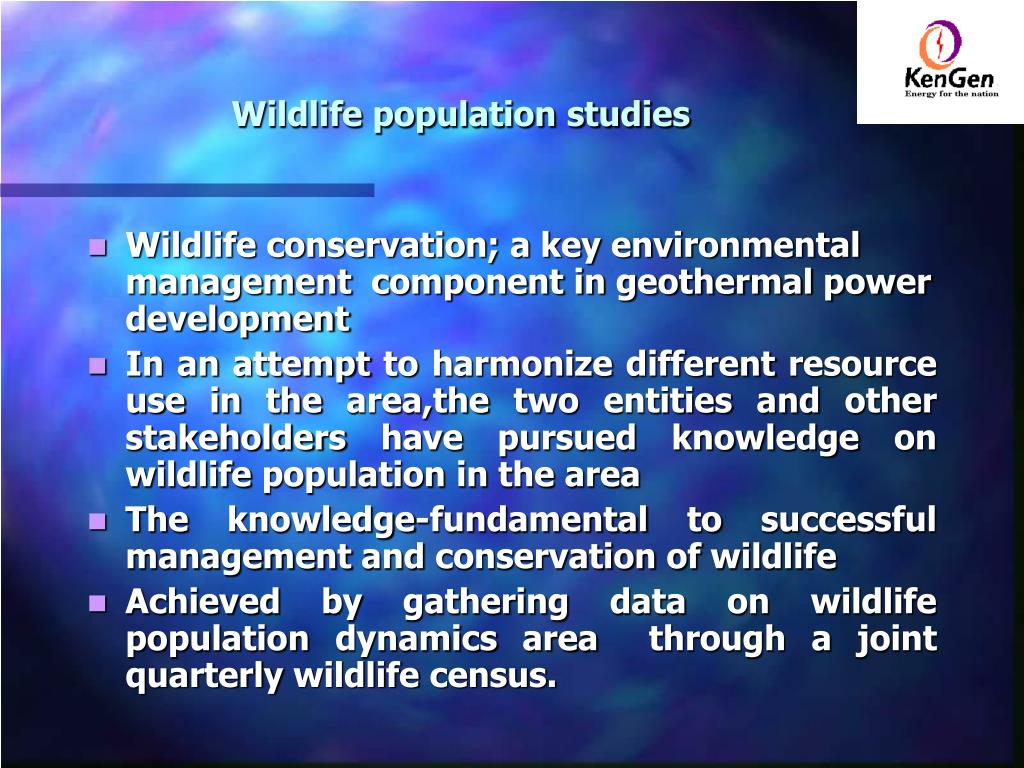

19. Wildlife population studies • Wildlife conservation; a key environmental management component in geothermal power development • In an attempt to harmonize different resource use in the area,the two entities and other stakeholders have pursued knowledge on wildlife population in the area • The knowledge-fundamental to successful management and conservation of wildlife • Achieved by gathering data on wildlife population dynamics area through a joint quarterly wildlife census.

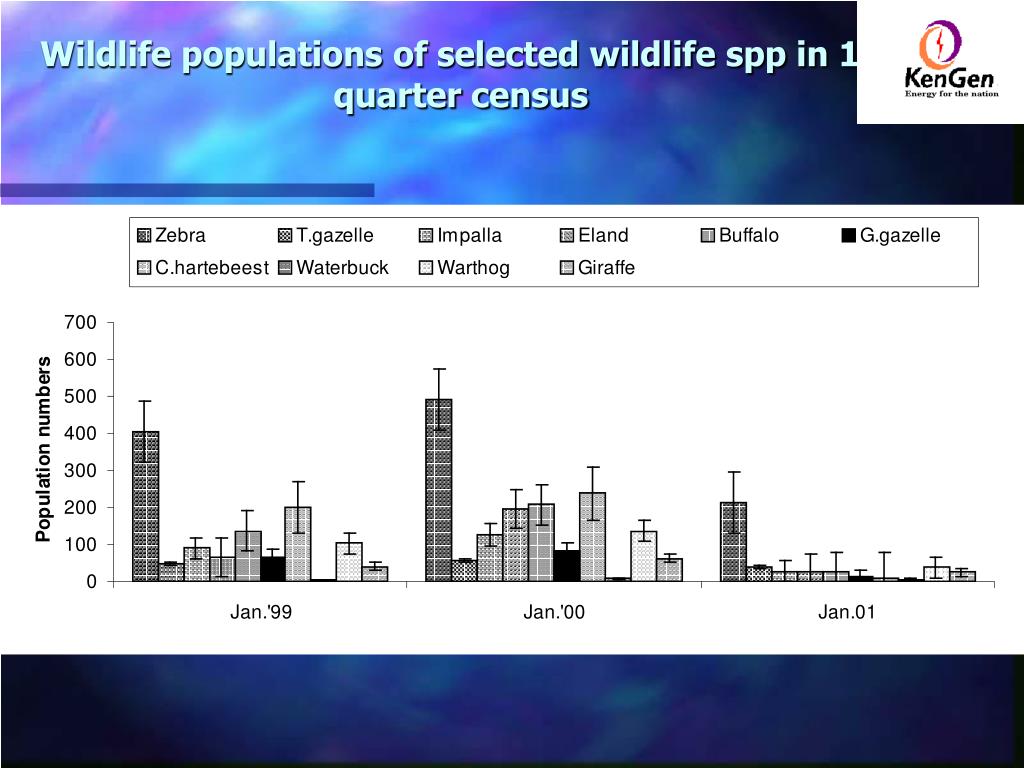

20. Wildlife populations of selected wildlife spp in 1st quarter census

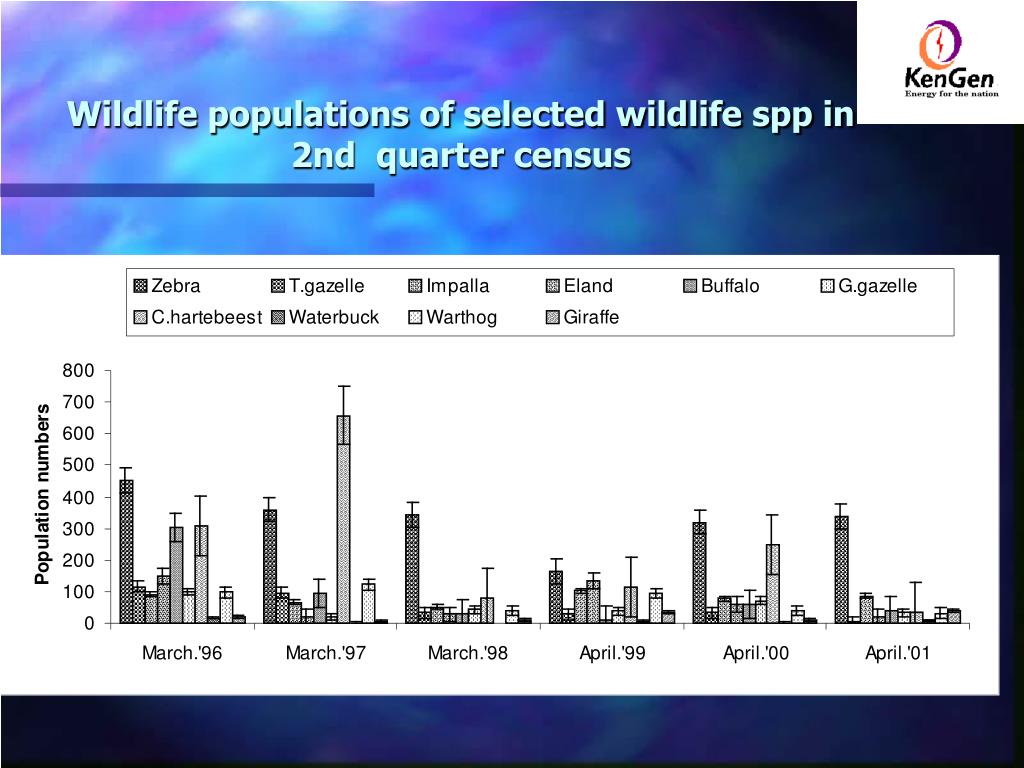

21. Wildlife populations of selected wildlife spp in 2nd quarter census

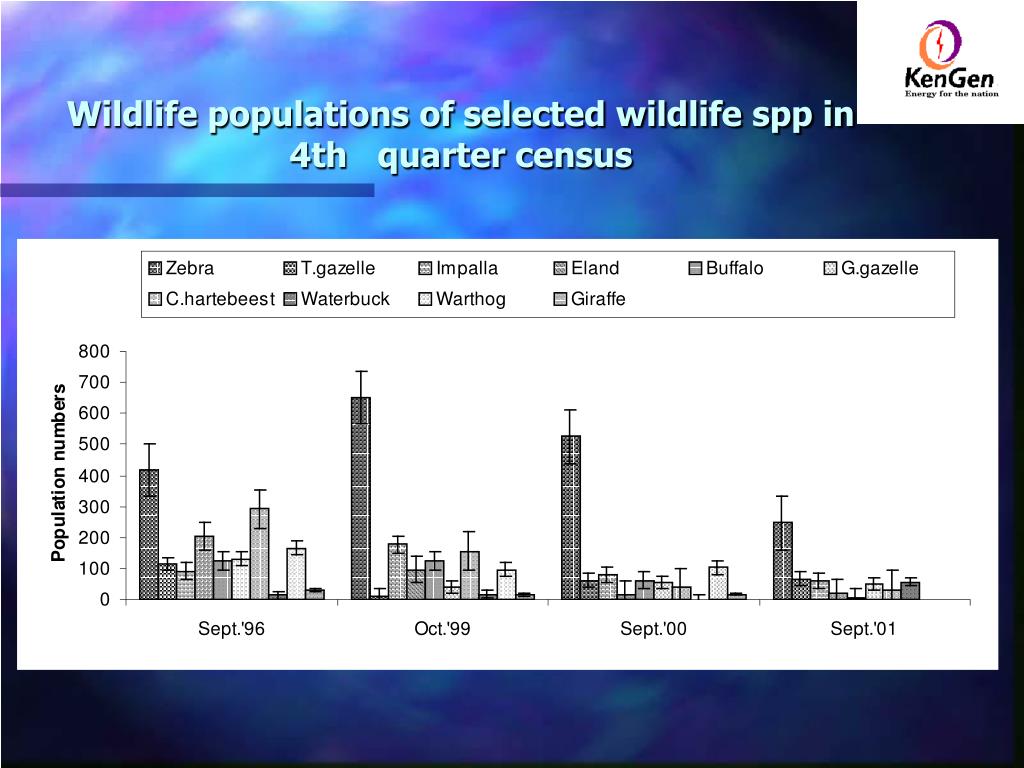

22. Wildlife populations of selected wildlife spp in 4th quarter census

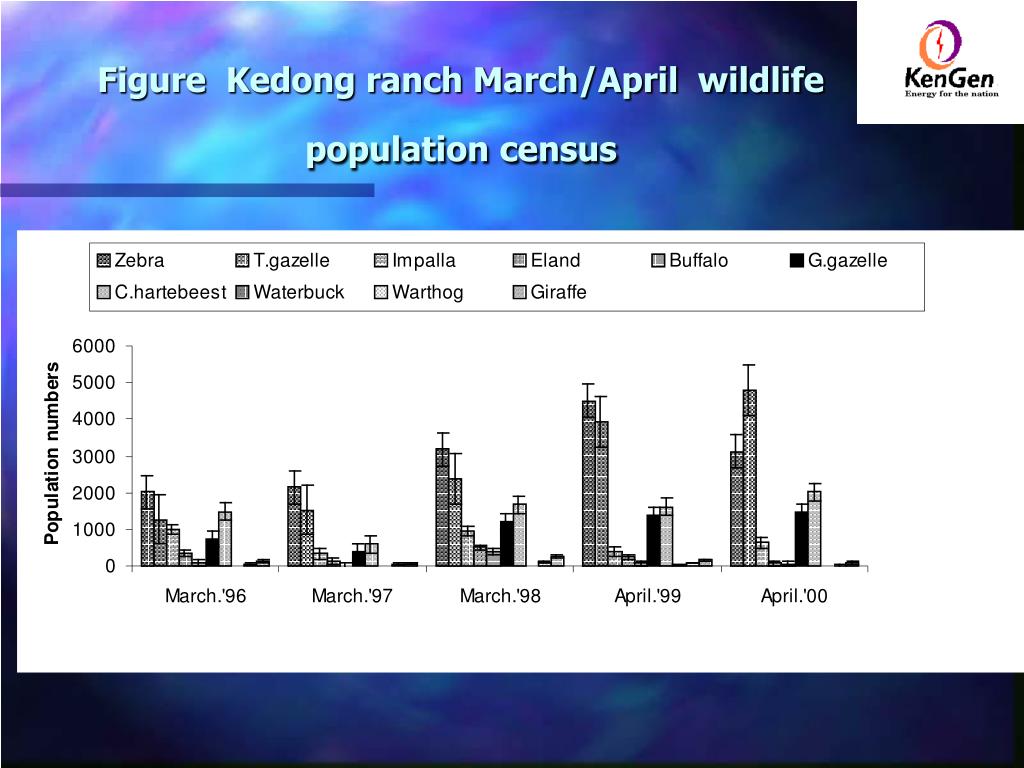

23. Figure Kedong ranch March/April wildlife population census

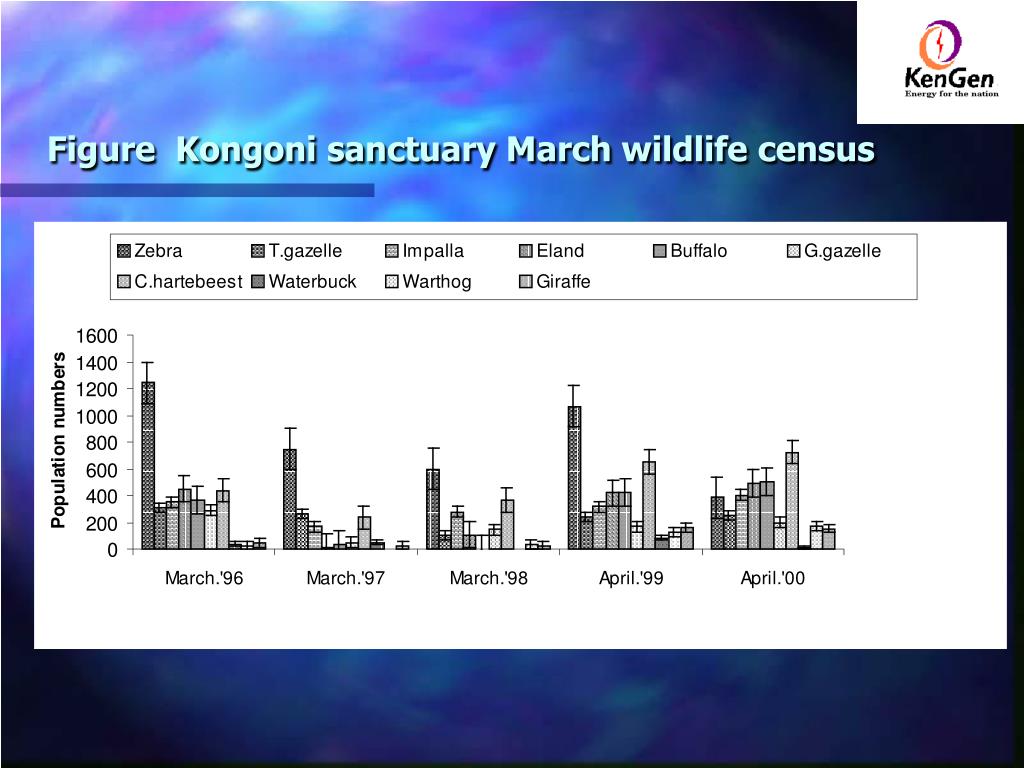

24. Figure Kongoni sanctuary March wildlife census

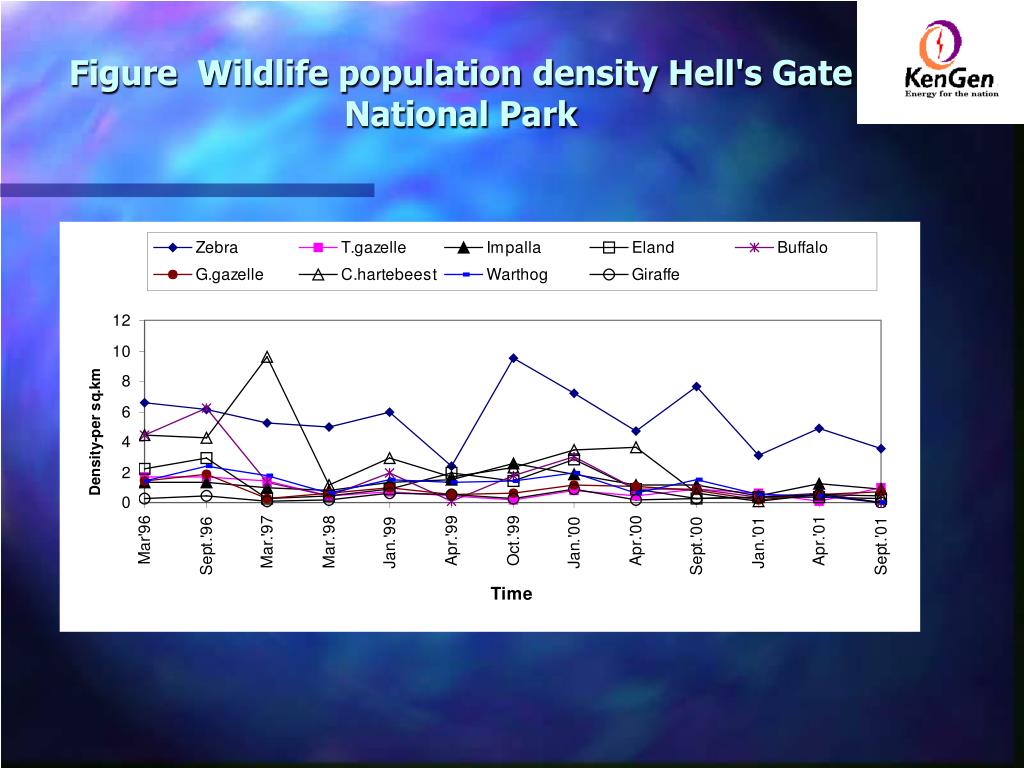

25. Figure Wildlife population density Hell's Gate National Park

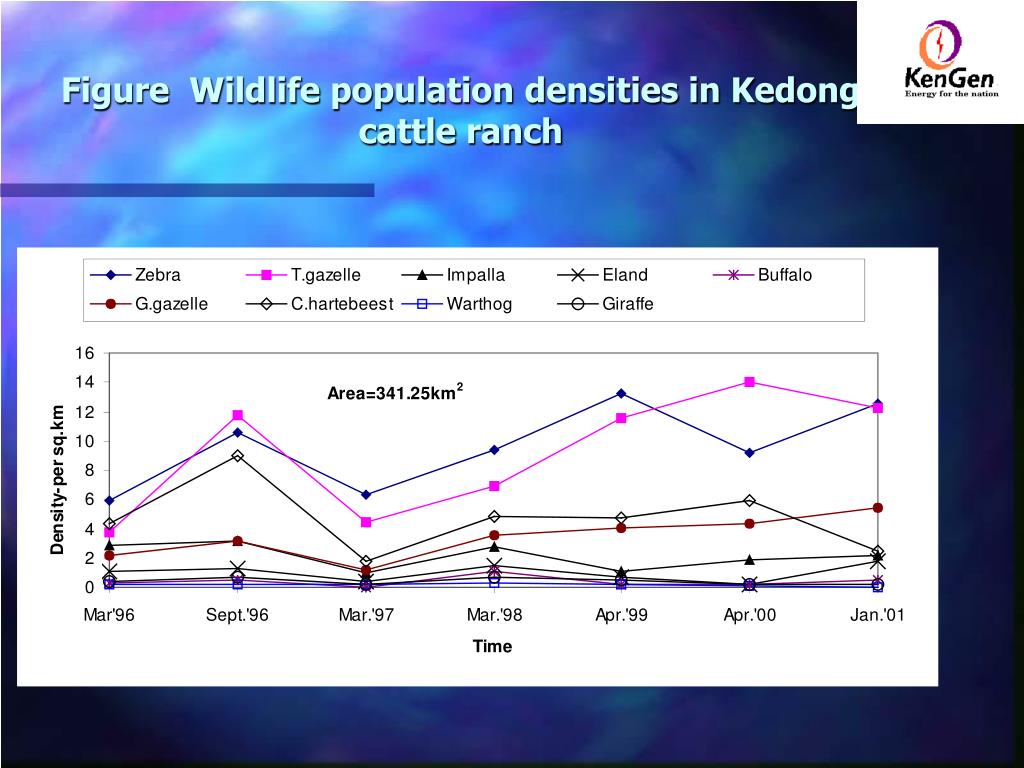

26. Figure Wildlife population densities in Kedong cattle ranch

27. Figure Wildlife population densities in Kongoni game sanctuary

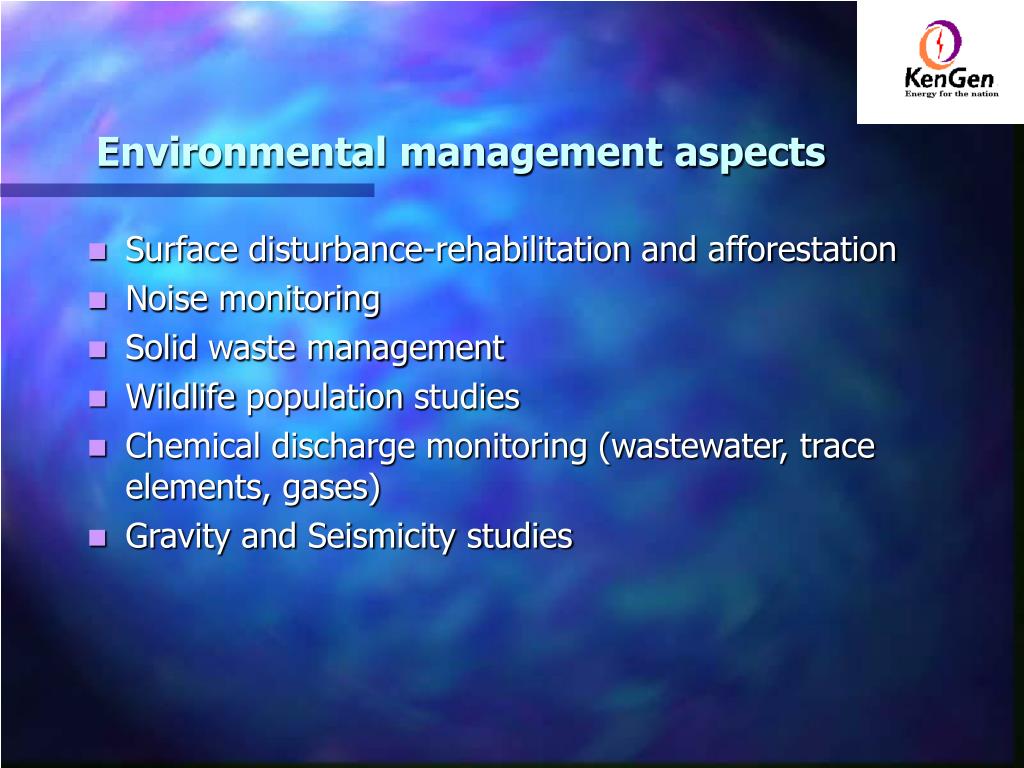

28. Environmental management aspects • Surface disturbance-rehabilitation and afforestation • Noise monitoring • Solid waste management • Wildlife population studies • Chemical discharge monitoring (wastewater, trace elements, gases) • Gravity and Seismicity studies

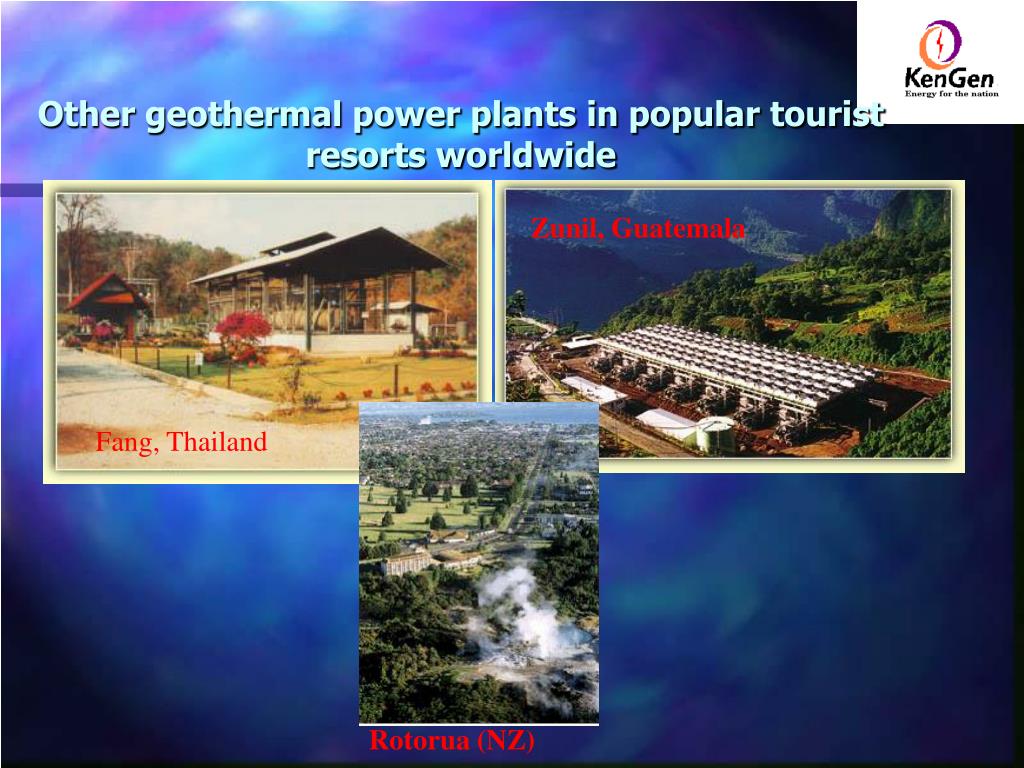

29. Other geothermal power plants in popular tourist resorts worldwide Zunil, Guatemala Fang, Thailand Rotorua (NZ)

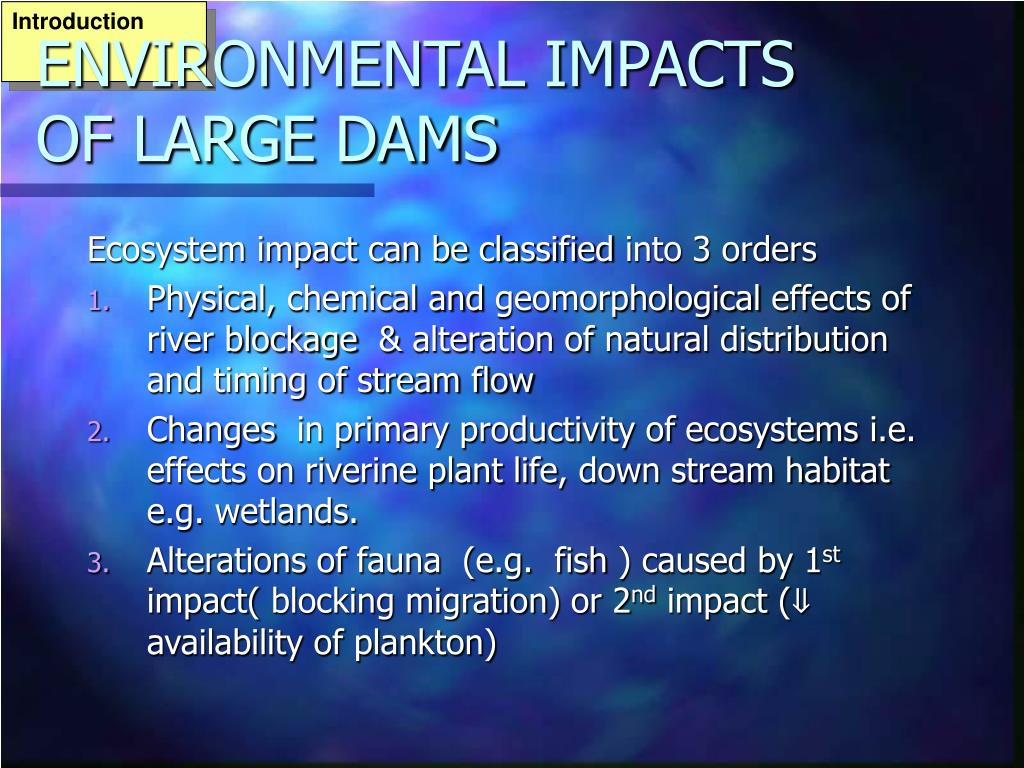

30. Introduction ENVIRONMENTAL IMPACTS OF LARGE DAMS Ecosystem impact can be classified into 3 orders • Physical,chemical and geomorphologicaleffects of river blockage & alteration of natural distribution and timing of stream flow • Changes in primary productivity of ecosystems i.e. effects on riverine plant life, down stream habitat e.g. wetlands. • Alterations of fauna (e.g. fish ) caused by 1st impact( blocking migration) or 2nd impact (⇓ availability of plankton)

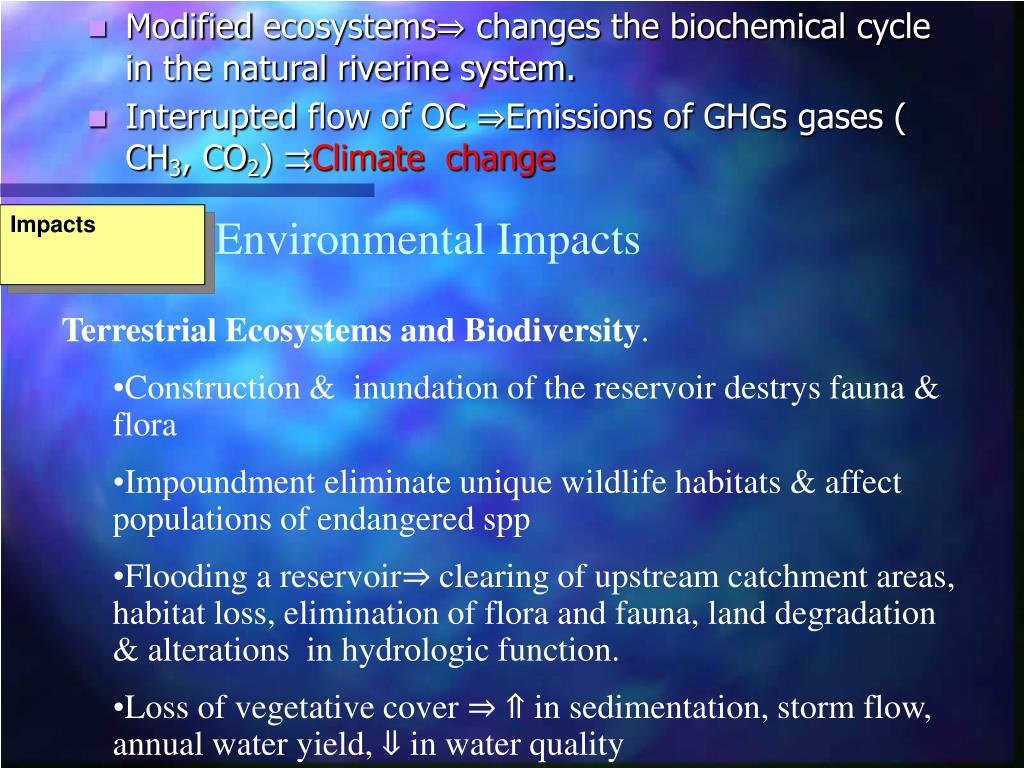

31. Impacts Environmental Impacts • Modified ecosystems⇒ changes the biochemical cycle in the natural riverine system. • Interrupted flow of OC⇒Emissions of GHGs gases ( CH3, CO2)⇉Climate change • Terrestrial Ecosystems and Biodiversity. • Construction & inundation of the reservoir destrys fauna & flora • Impoundment eliminate unique wildlife habitats & affect populations of endangered spp • Flooding a reservoir⇒ clearing of upstream catchment areas, habitat loss, elimination of flora and fauna, land degradation & alterations in hydrologic function. • Loss of vegetative cover ⇒⇑ in sedimentation, storm flow, annual water yield, ⇓ in water quality

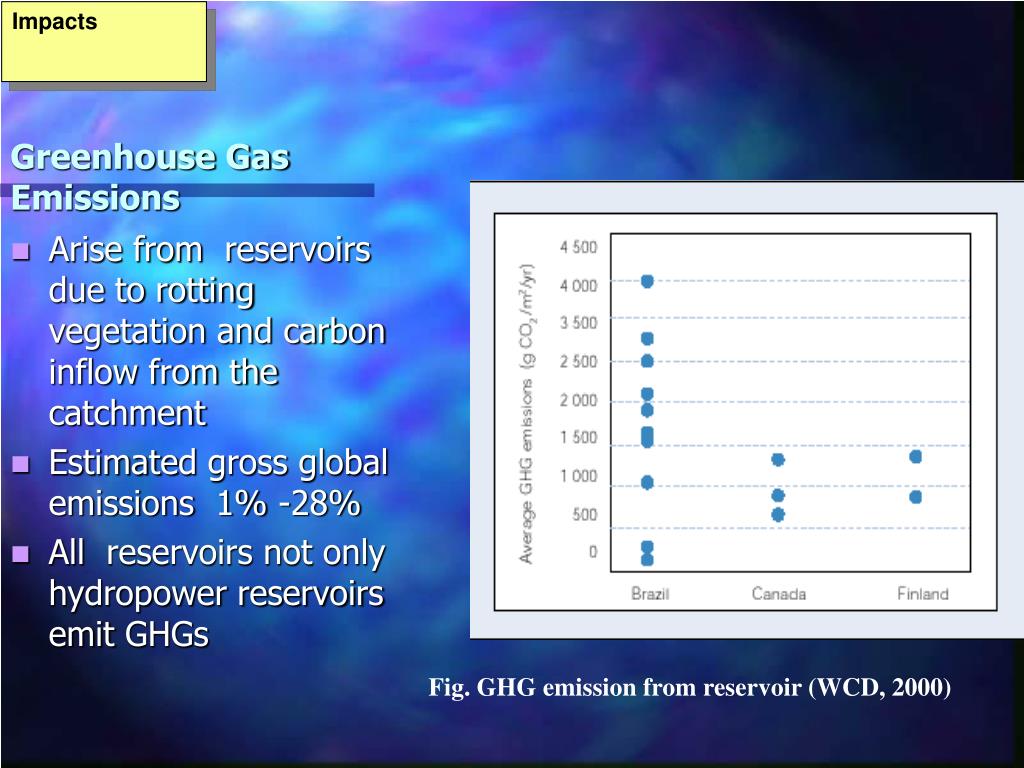

32. Greenhouse Gas Emissions Arise from reservoirs due to rotting vegetation and carbon inflow from the catchment Estimated gross global emissions 1% -28% All reservoirs not only hydropower reservoirs emit GHGs Impacts Fig. GHG emission from reservoir (WCD, 2000)

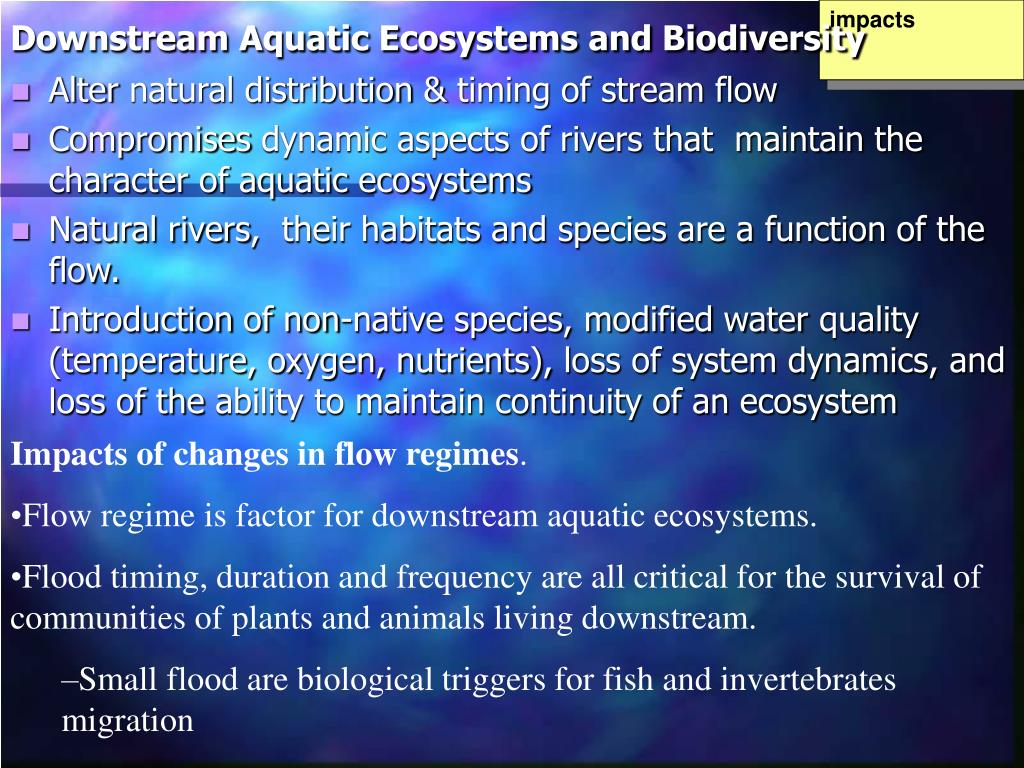

33. impacts Downstream Aquatic Ecosystems and Biodiversity • Alter natural distribution & timing of stream flow • Compromises dynamic aspects of rivers that maintain the character of aquatic ecosystems • Natural rivers, their habitats and species are a function of the flow. • Introductionof non-native species, modified waterquality (temperature, oxygen, nutrients),loss of system dynamics, and loss of theability to maintain continuity of an ecosystem • Impacts of changes in flow regimes. • Flow regime is factor for downstream aquaticecosystems. • Flood timing, duration and frequency are all critical for the survival of communities of plants and animals living downstream. • Small flood are biological triggers for fish and invertebrates migration • major floods maintain habitats transporting sediments.

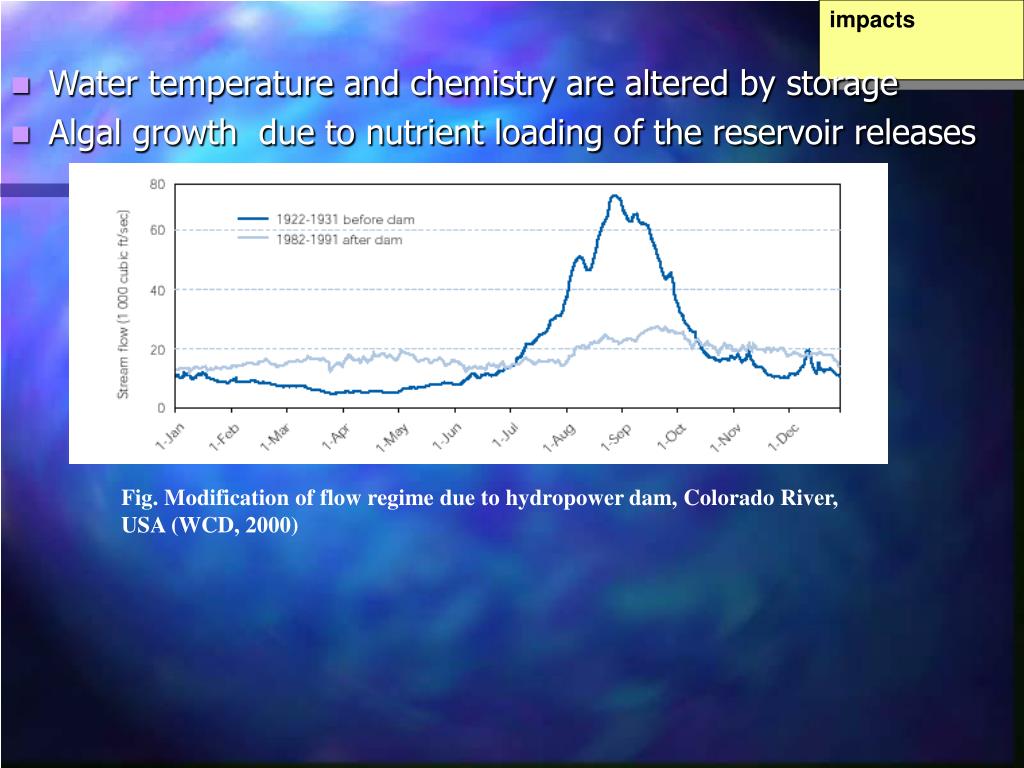

34. impacts • Water temperature and chemistry are altered by storage • Algal growth due to nutrient loading of the reservoir releases Fig. Modification of flow regime due to hydropower dam, Colorado River, USA (WCD, 2000)

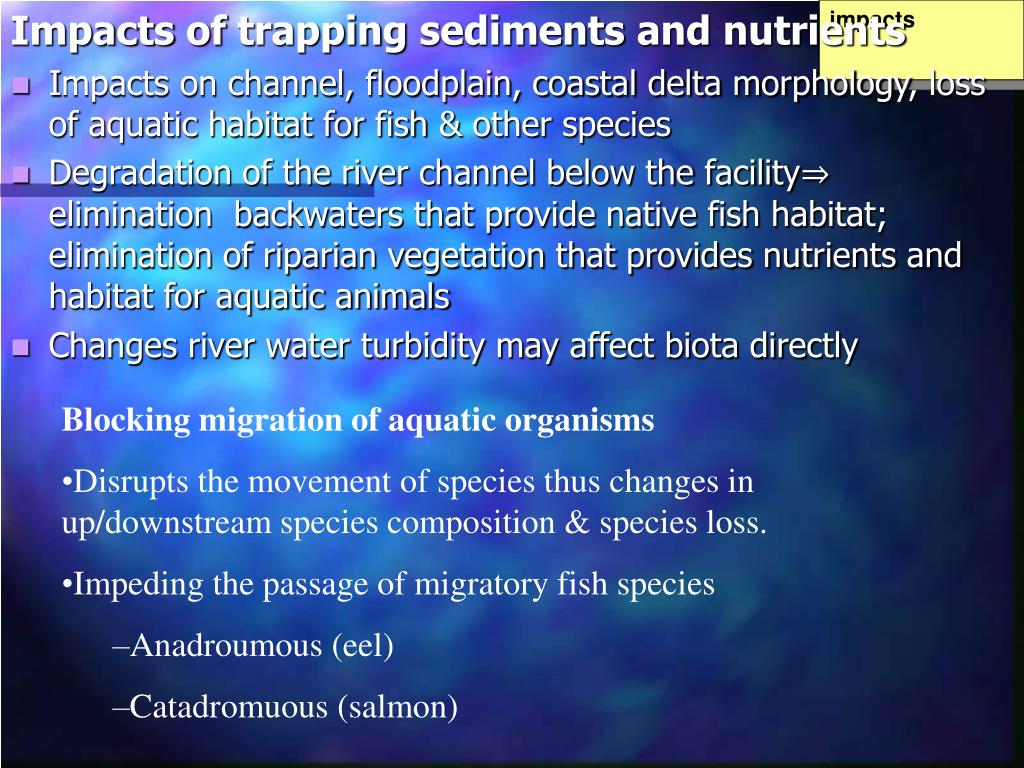

35. impacts Impacts of trapping sediments and nutrients • Impacts on channel, floodplain, coastal delta morphology, loss of aquatic habitat for fish & other species • Degradation of the river channel below the facility⇒ elimination backwaters that provide native fish habitat; elimination of riparian vegetation that provides nutrients and habitat for aquatic animals • Changes river water turbidity may affect biota directly • Blocking migration of aquatic organisms • Disrupts the movement of species thus changes in up/downstream species composition & species loss. • Impeding the passage of migratory fish species • Anadroumous (eel) • Catadromuous (salmon)

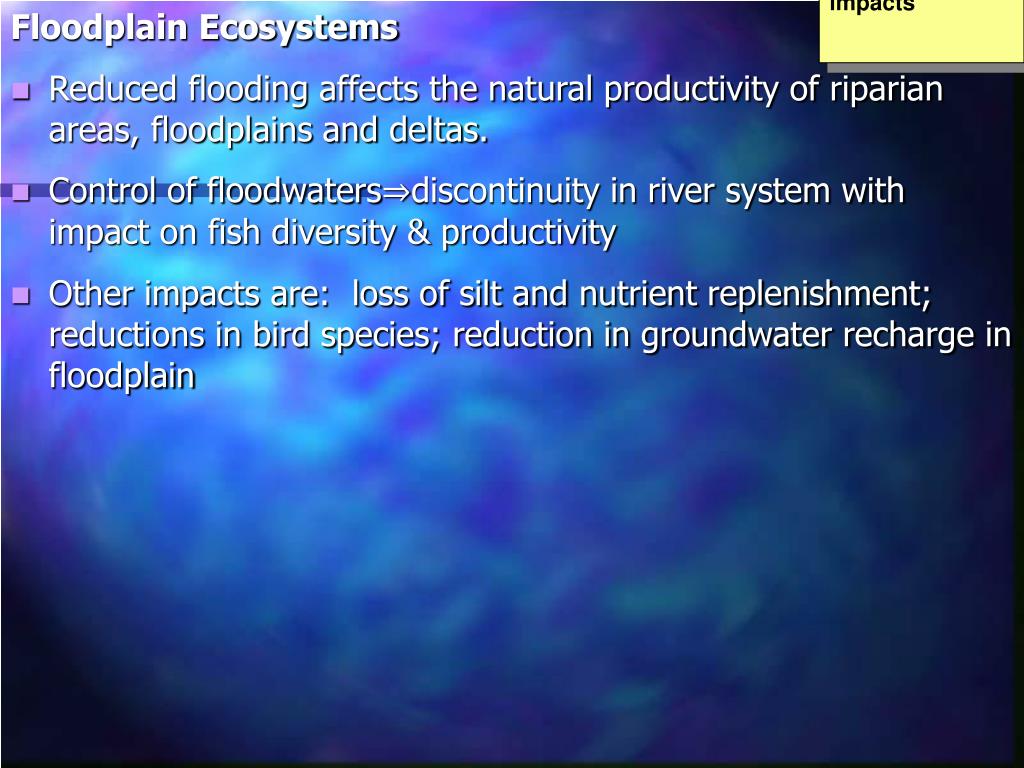

36. impacts Floodplain Ecosystems • Reduced flooding affects the natural productivity of riparian areas, floodplains and deltas. • Control of floodwaters⇒discontinuity in river system with impact on fish diversity & productivity • Other impacts are: loss of silt and nutrient replenishment; reductions in bird species; reduction in groundwater recharge in floodplain

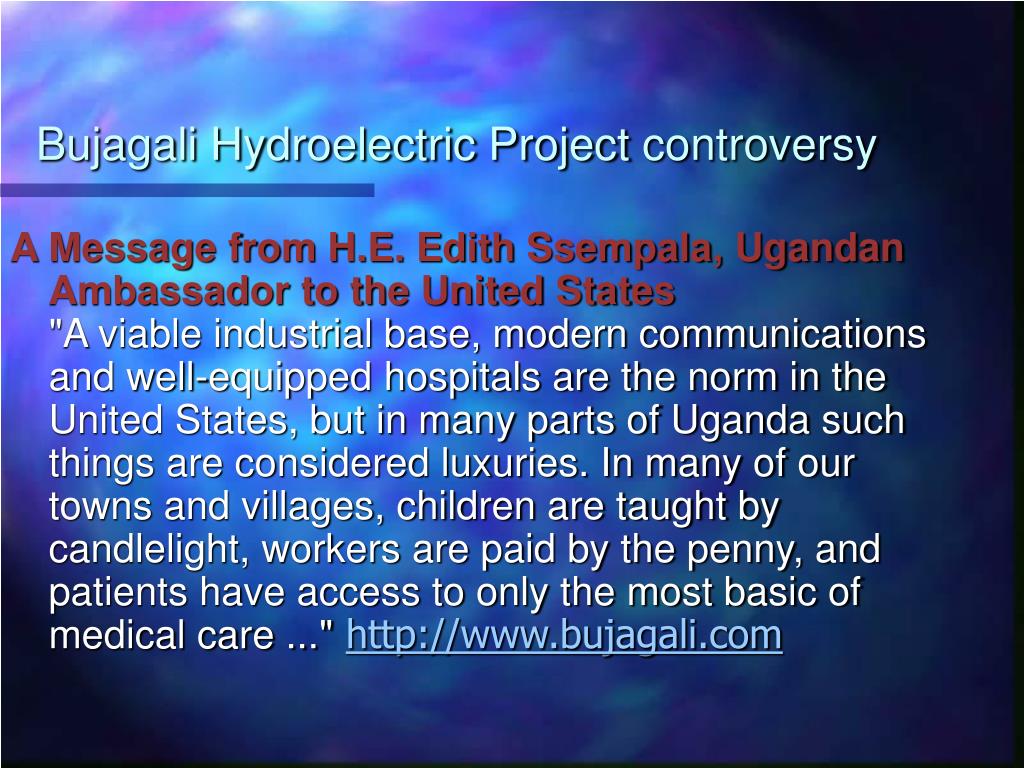

37. Bujagali Hydroelectric Project controversy A Message from H.E. Edith Ssempala, Ugandan Ambassador to the United States"A viable industrial base, modern communications and well-equipped hospitals are the norm in the United States, but in many parts of Uganda such things are considered luxuries. In many of our towns and villages, children are taught by candlelight, workers are paid by the penny, and patients have access to only the most basic of medical care ..."http://www.bujagali.com

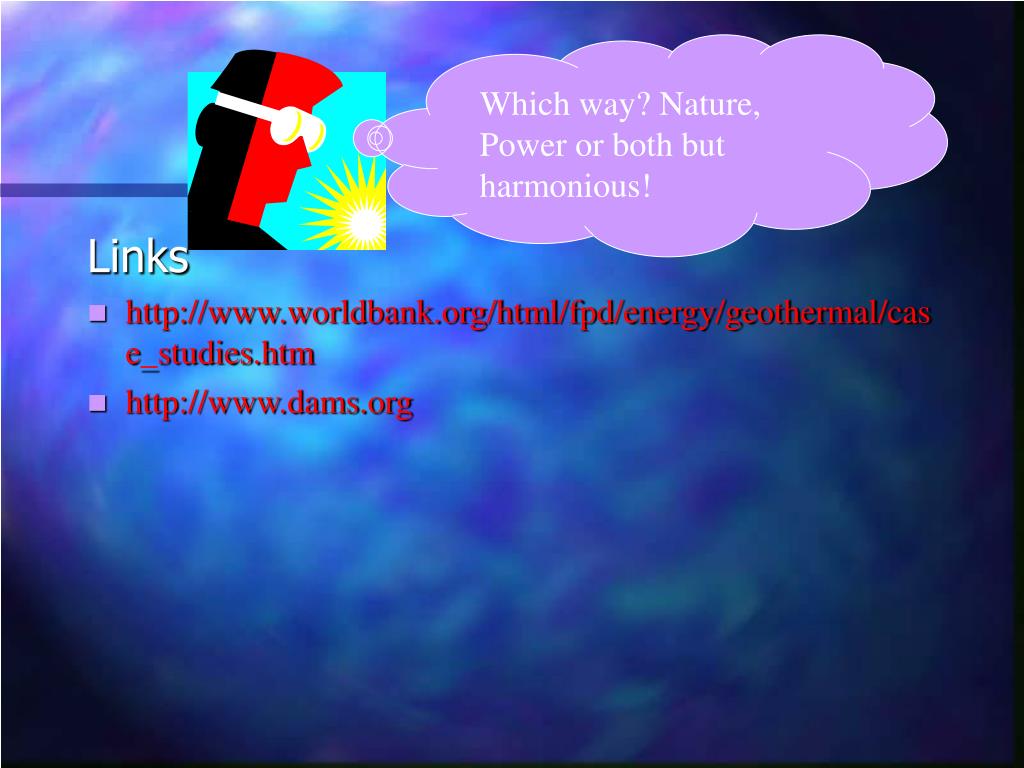

38. Which way? Nature, Power or both but harmonious! Links • http://www.worldbank.org/html/fpd/energy/geothermal/case_studies.htm • http://www.dams.org
