  1. How a Tiling Machine Works Pat Dumoulin

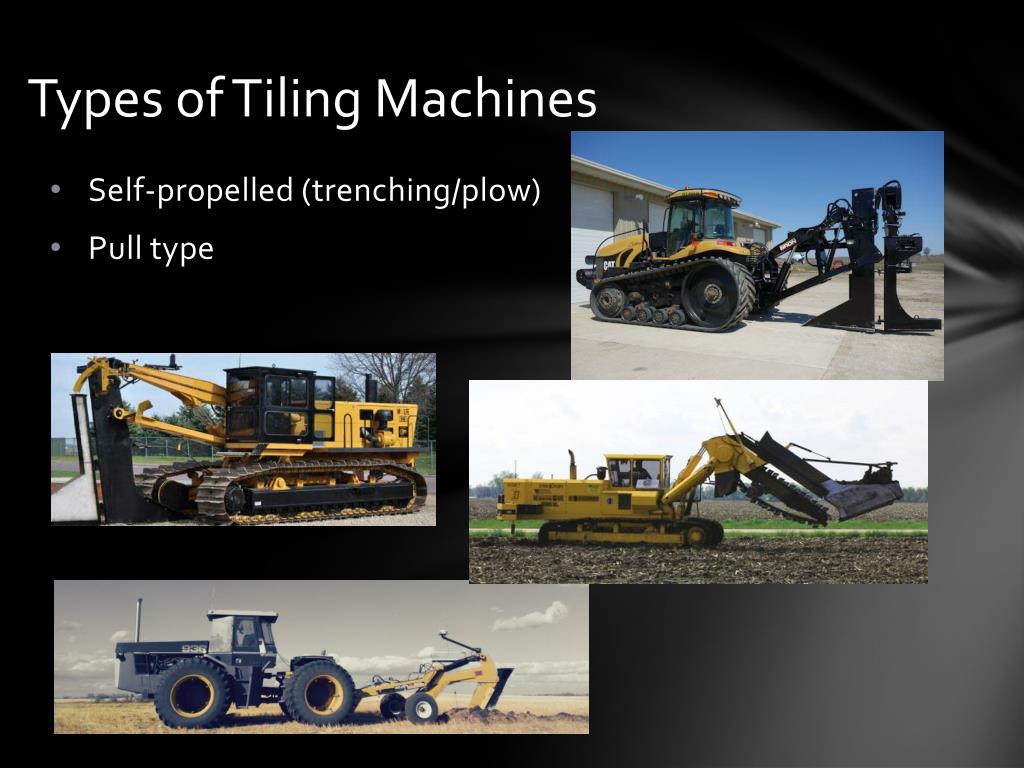

  2. Types of Tiling Machines • Self-propelled (trenching/plow) • Pull type

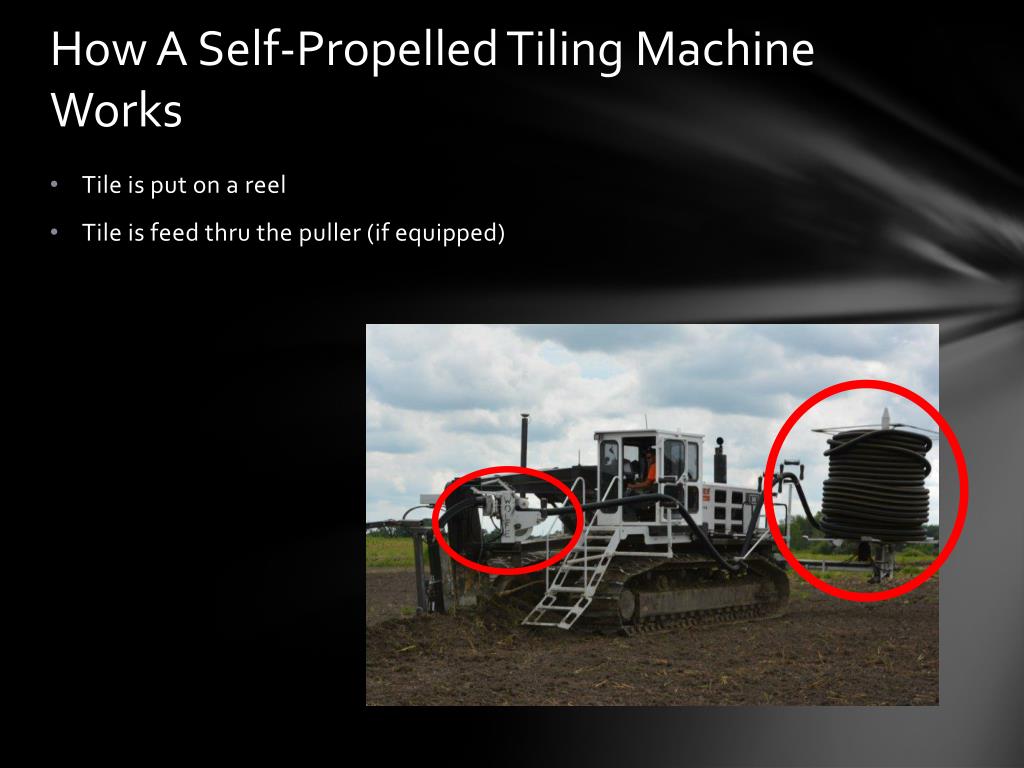

  3. How A Self-Propelled Tiling Machine Works • Tile is put on a reel • Tile is feed thru the puller (if equipped)

  4. Tiling machine is engaged and begins driving backwards, pulling the plow • Tile is then forced thru the power feeder to the chute • Tile goes down the chute and into the ground

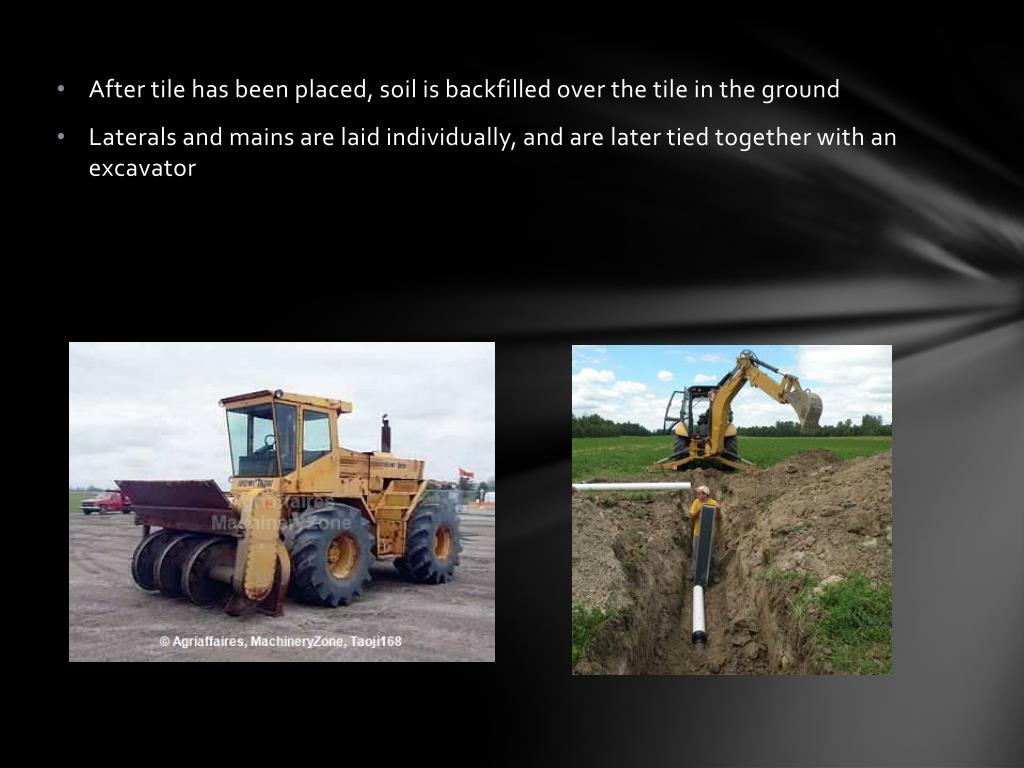

  5. After tile has been placed, soil is backfilled over the tile in the ground • Laterals and mains are laid individually, and are later tied together with an excavator

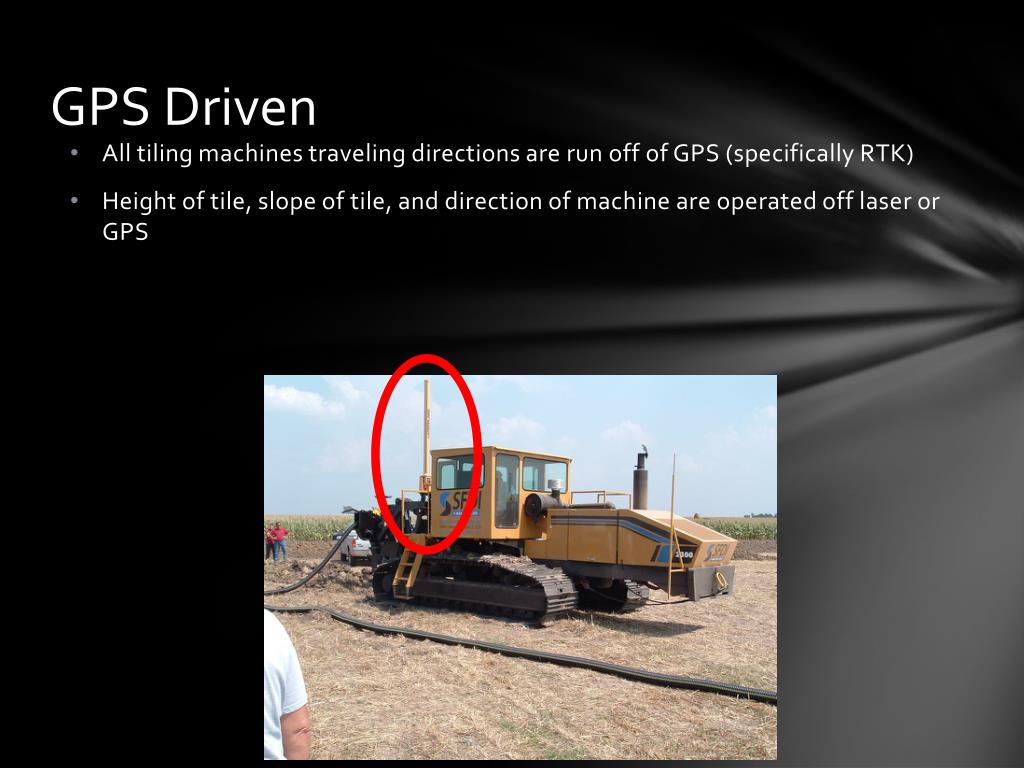

  6. GPS Driven • All tiling machines traveling directions are run off of GPS (specifically RTK) • Height of tile, slope of tile, and direction of machine are operated off laser or GPS

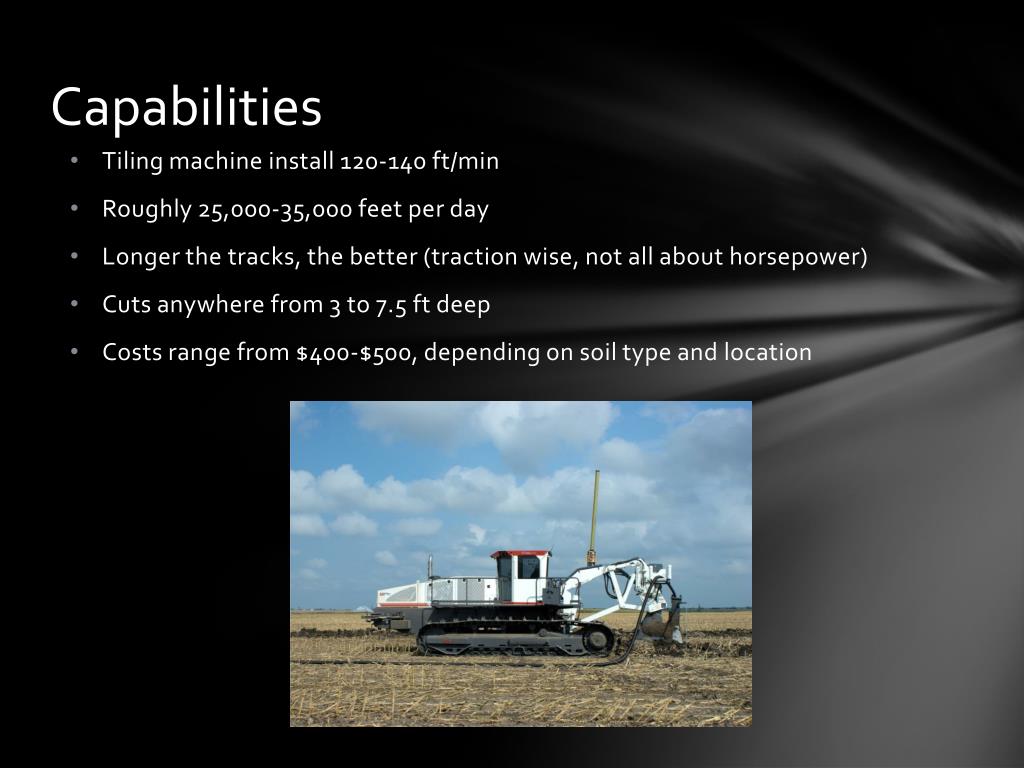

  7. Capabilities • Tiling machine install 120-140 ft/min • Roughly 25,000-35,000 feet per day • Longer the tracks, the better (traction wise, not all about horsepower) • Cuts anywhere from 3 to 7.5 ft deep • Costs range from $400-$500, depending on soil type and location
