  1. Device Management • OS as a resource manager • Applications request services of devices • Generic device manager as framework • Specific device drivers plug into framework • Device driver code on CPU talks to bus • Messages over bus hit device controller • Device controller talks to actual device

  2. Layers of Responsibility application Systemcalls device manager device driver messagesoverbus device controller device

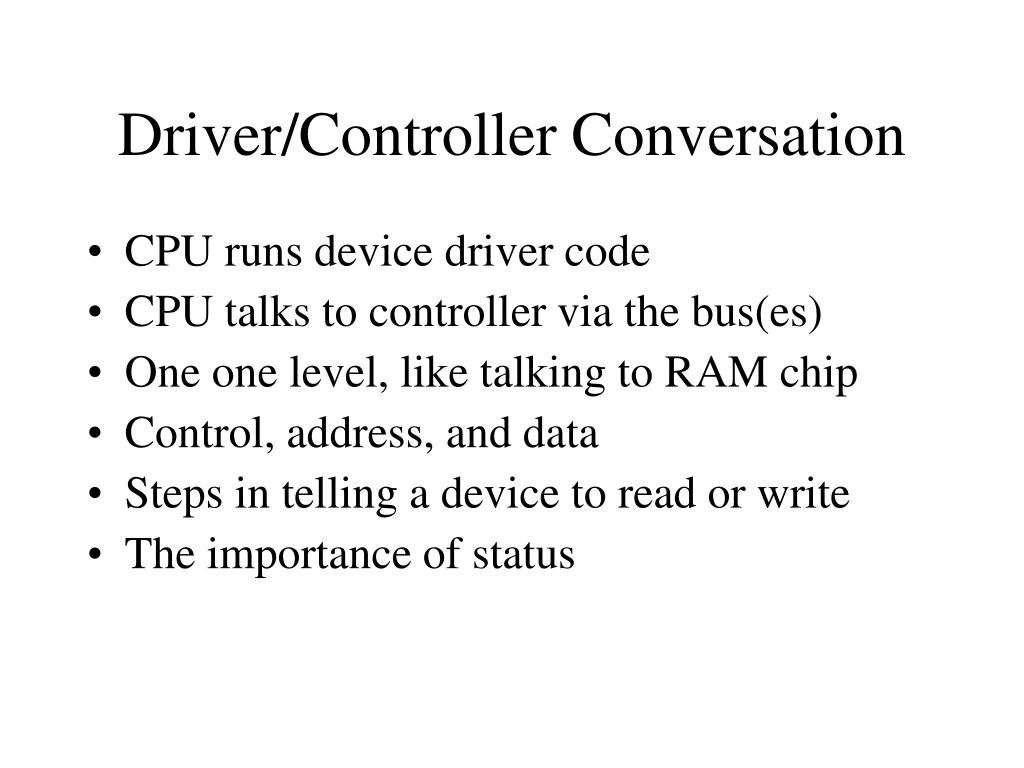

  3. Driver/Controller Conversation • CPU runs device driver code • CPU talks to controller via the bus(es) • One one level, like talking to RAM chip • Control, address, and data • Steps in telling a device to read or write • The importance of status

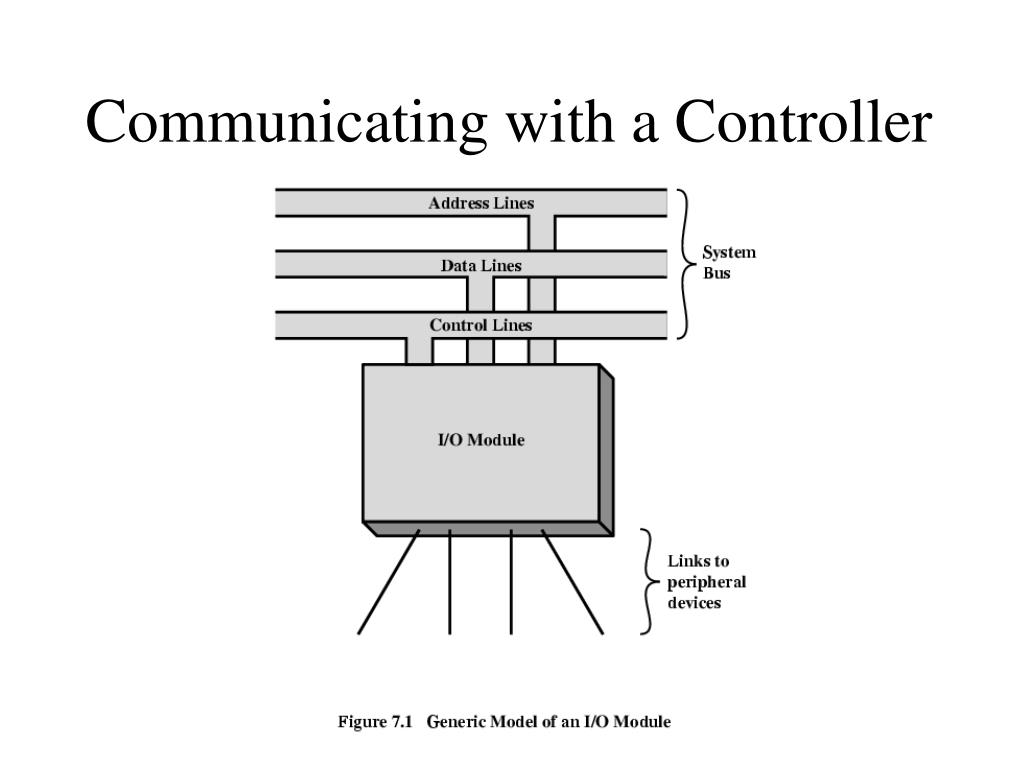

  4. Communicating with a Controller

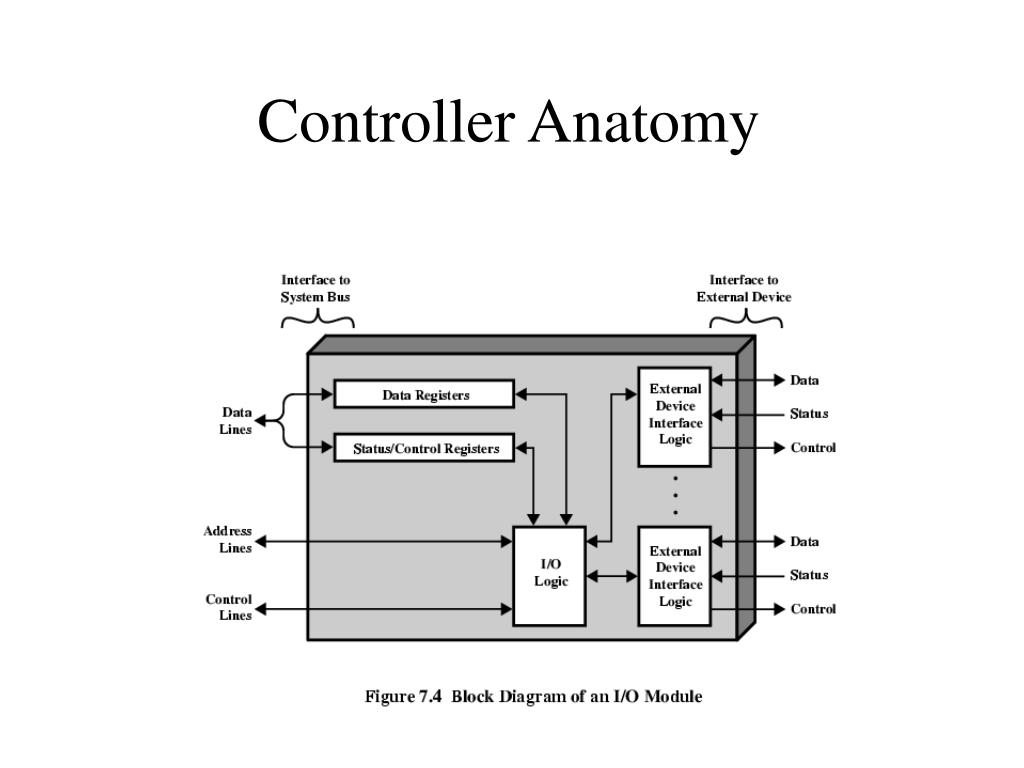

  5. Controller Anatomy

  6. Handling I/O

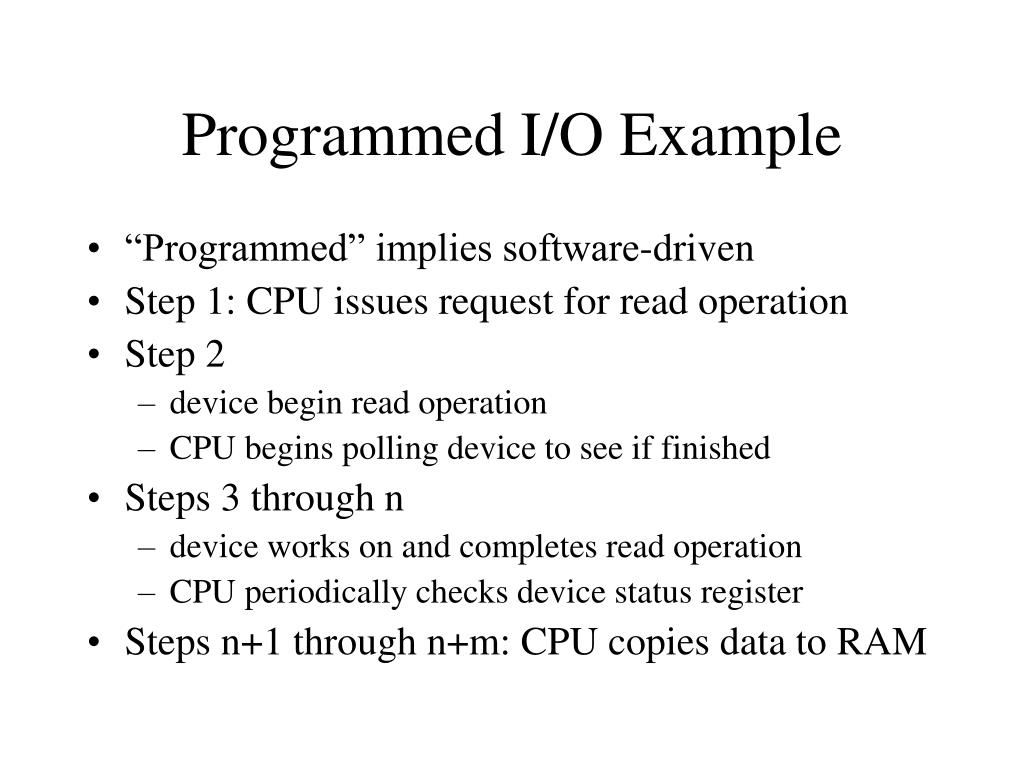

  7. Programmed I/O Example • “Programmed” implies software-driven • Step 1: CPU issues request for read operation • Step 2 • device begin read operation • CPU begins polling device to see if finished • Steps 3 through n • device works on and completes read operation • CPU periodically checks device status register • Steps n+1 through n+m: CPU copies data to RAM

  8. Interrupt-Driven I/O Example • Interrupt “informs” CPU of I/O completion • CPU has interrupt status register • checks status register at end of each instruction cycle • better than running an instruction to check status • Step 1: CPU issues request for read operation • Step 2: CPU changes tasks; I/O device begins read • Steps 3 through n: device does read operation • Step n: device sends interrupt • Step n+1: CPU changes tasks to handle interrupt • Steps n+1 through n+m: CPU copies data to RAM

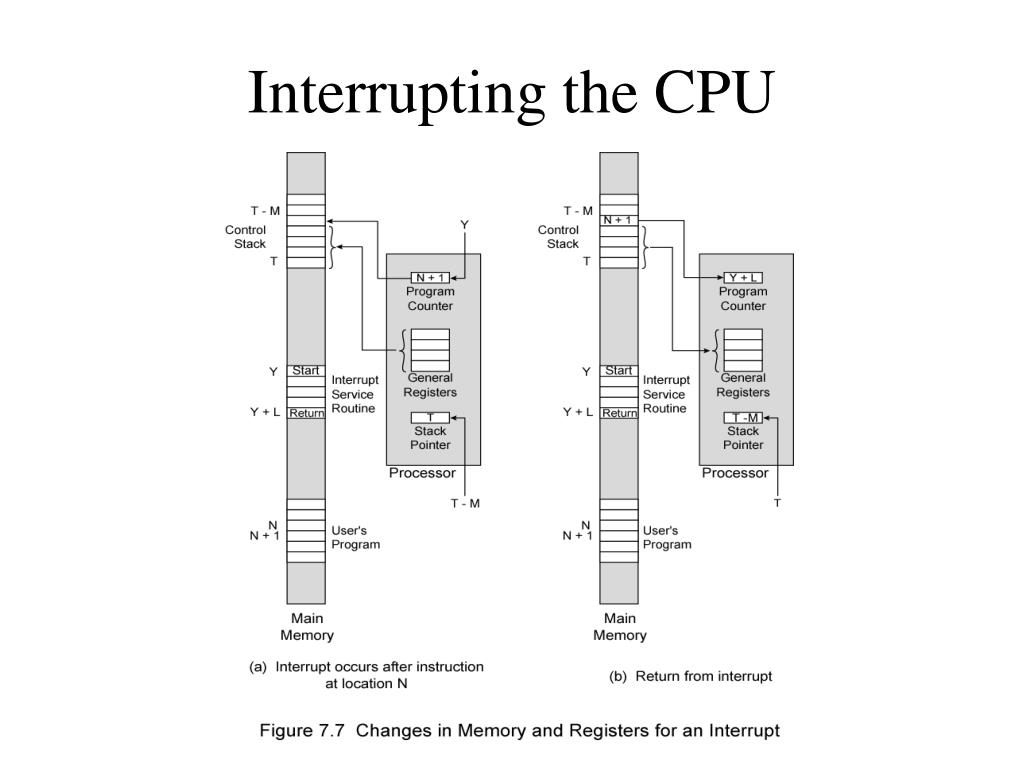

  9. Interrupting the CPU

  10. Interrupt Handlers

  11. A Family of Helpers

  12. Interrupt Masks • Chooses which interrupts can be serviced • Mask changes based on current situation • Mask typically enforced as AND gates to enable/disable interrupt signal

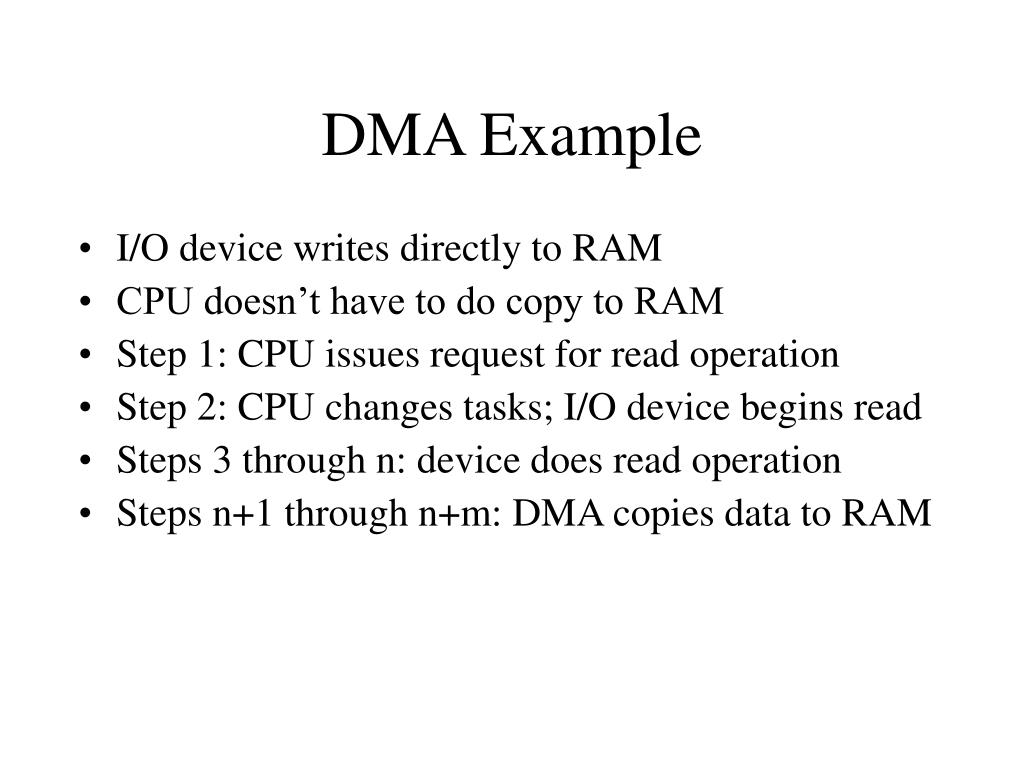

  13. DMA Example • I/O device writes directly to RAM • CPU doesn’t have to do copy to RAM • Step 1: CPU issues request for read operation • Step 2: CPU changes tasks; I/O device begins read • Steps 3 through n: device does read operation • Steps n+1 through n+m: DMA copies data to RAM

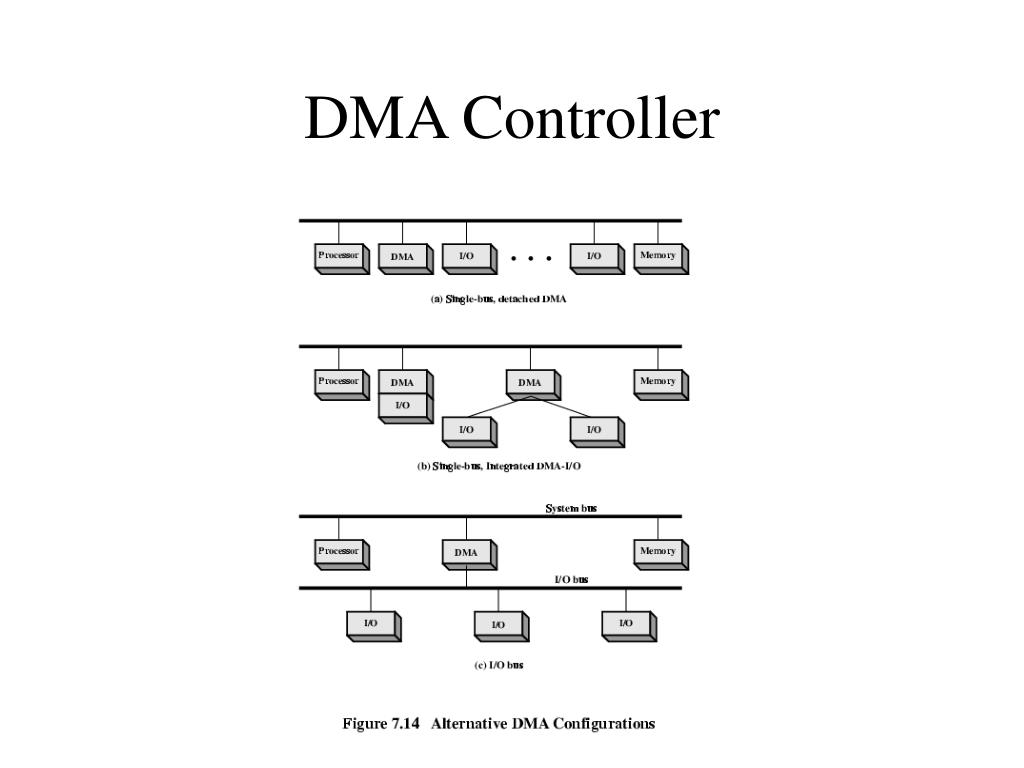

  14. DMA Controller

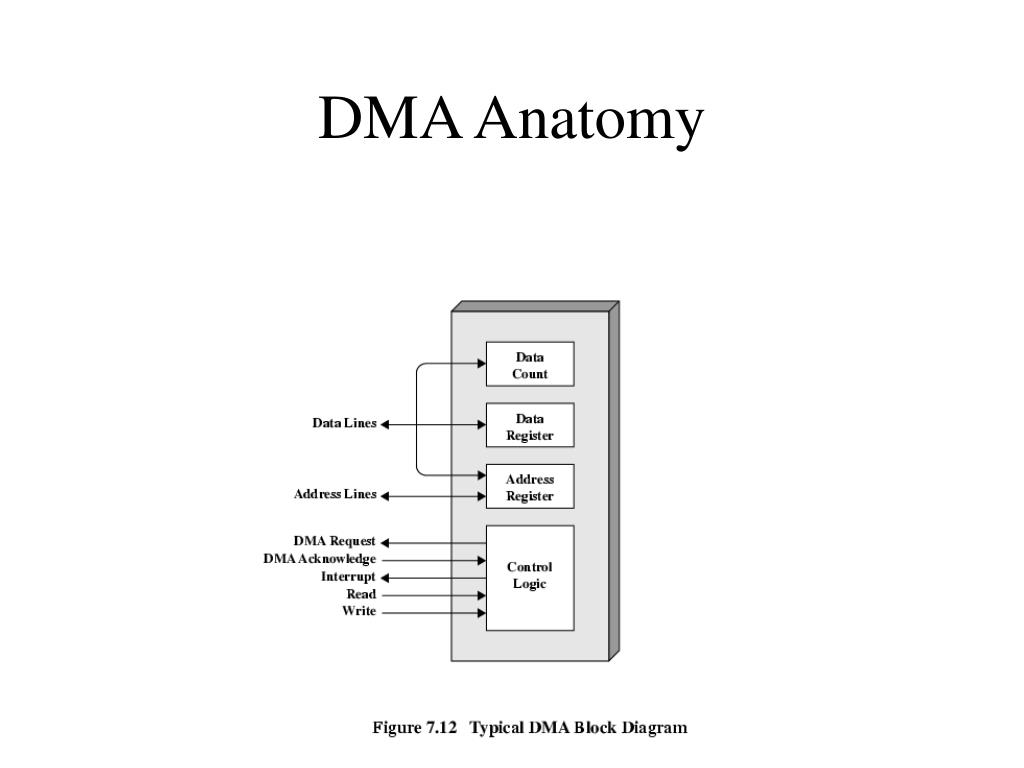

  15. DMA Anatomy

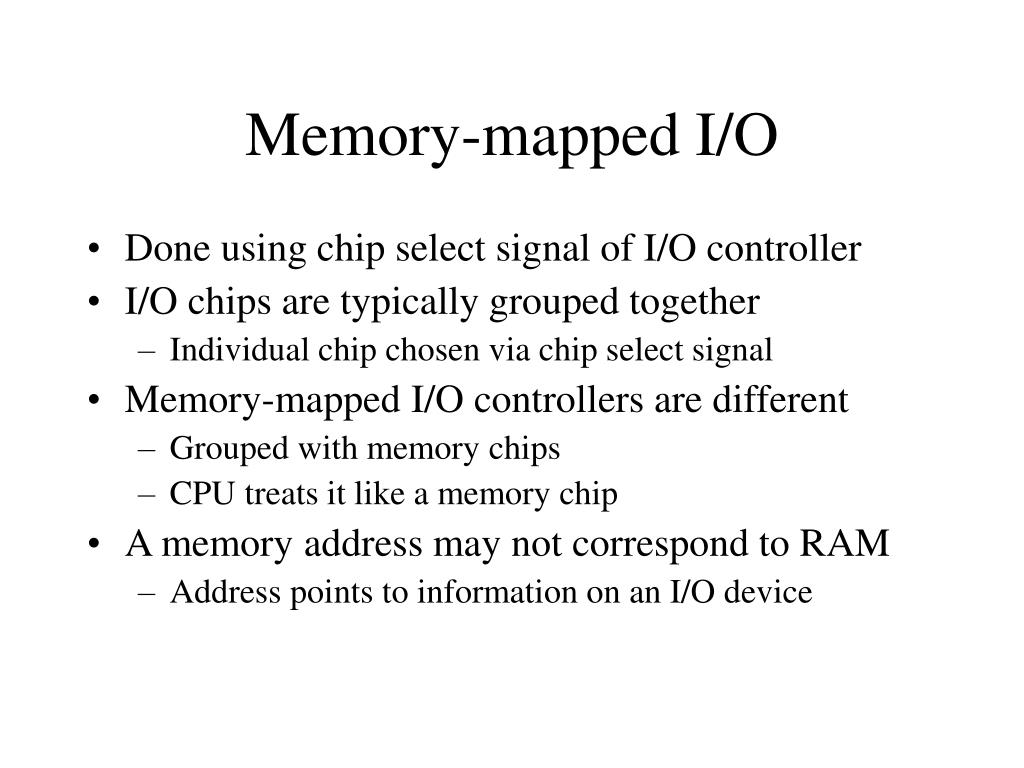

  16. Memory-mapped I/O • Done using chip select signal of I/O controller • I/O chips are typically grouped together • Individual chip chosen via chip select signal • Memory-mapped I/O controllers are different • Grouped with memory chips • CPU treats it like a memory chip • A memory address may not correspond to RAM • Address points to information on an I/O device

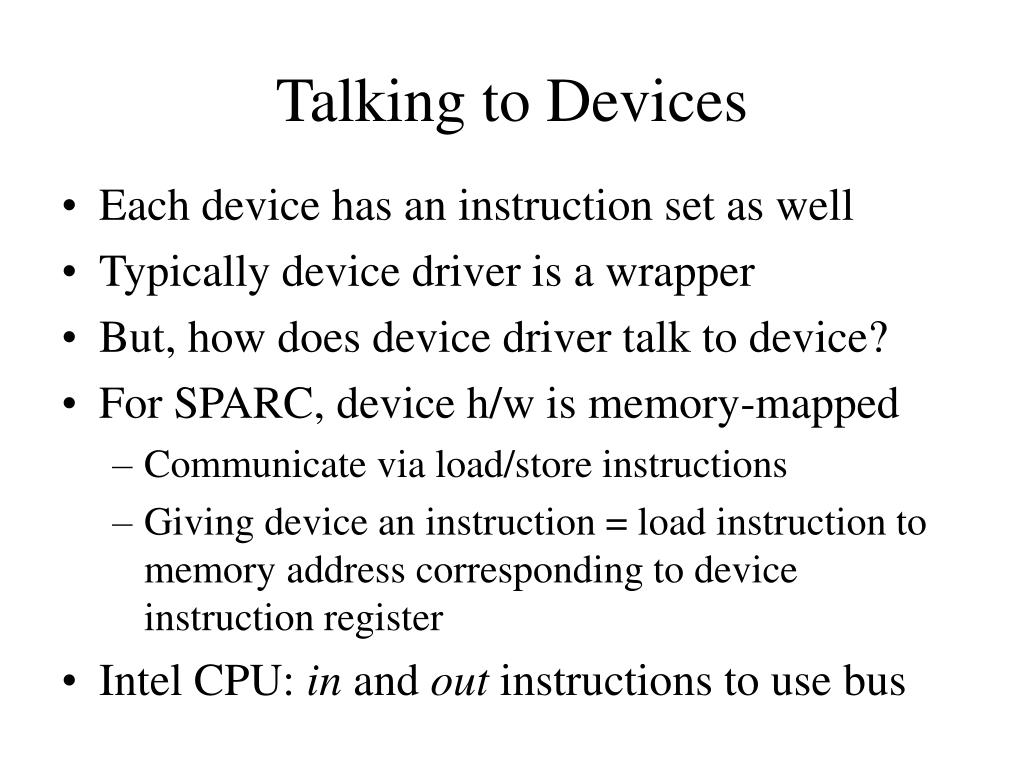

  17. Talking to Devices • Each device has an instruction set as well • Typically device driver is a wrapper • But, how does device driver talk to device? • For SPARC, device h/w is memory-mapped • Communicate via load/store instructions • Giving device an instruction = load instruction to memory address corresponding to device instruction register • Intel CPU: in and out instructions to use bus

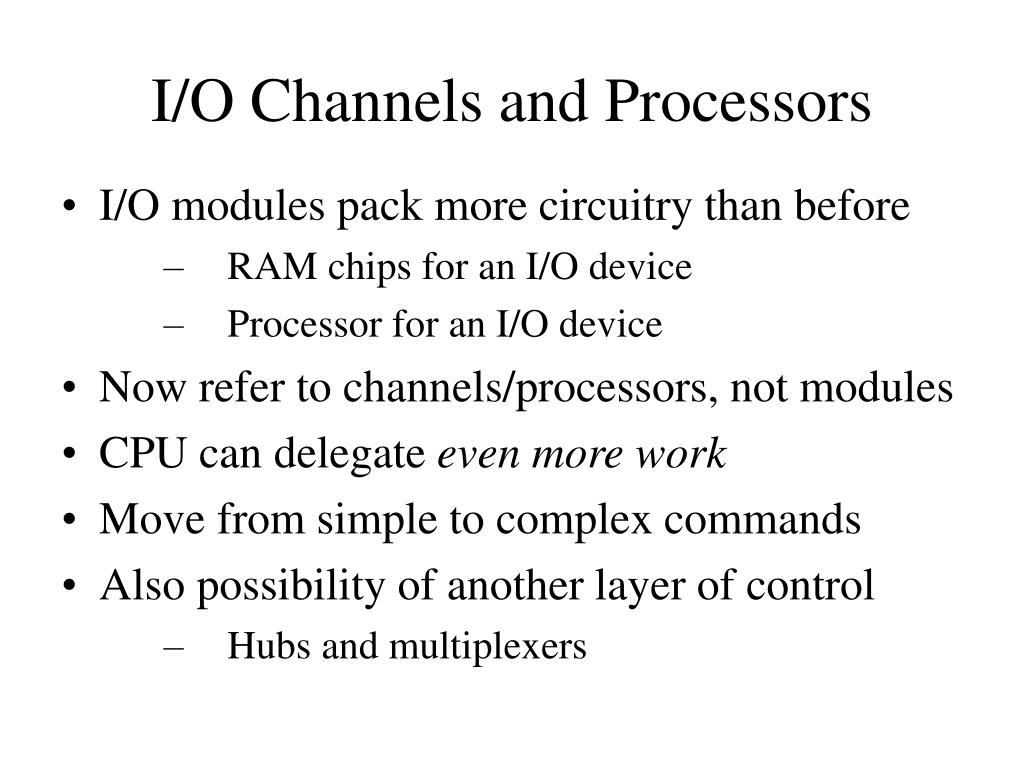

  18. I/O Channels and Processors • I/O modules pack more circuitry than before • RAM chips for an I/O device • Processor for an I/O device • Now refer to channels/processors, not modules • CPU can delegate even more work • Move from simple to complex commands • Also possibility of another layer of control • Hubs and multiplexers

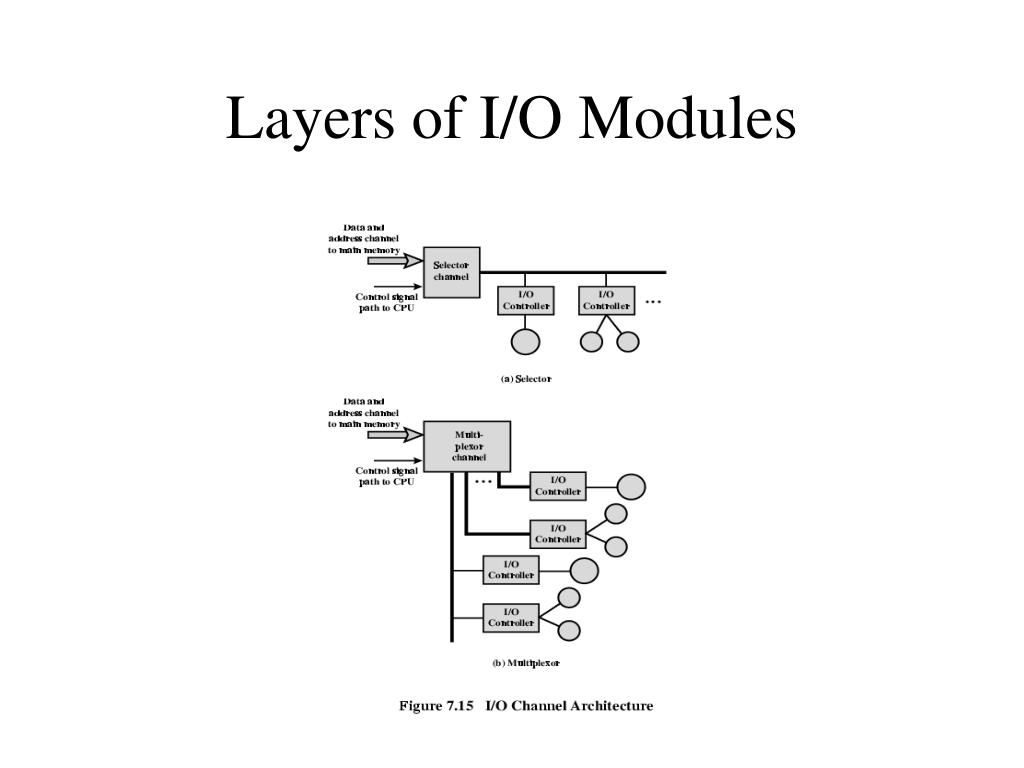

  19. Layers of I/O Modules
