  1. ® Tuning with Optimization Service Center Part I Patrick Bossman IBM Silicon Valley Lab Columbia, MD September 12, 2007

  2. Agenda • Overview of Optimization Service Center • Connect and configure OSC • Workload (application) Tuning • Query tuning (Part II)

  3. Overview • Optimization Service Center (OSC) • New no charge product supported for connections to DB2 9. • Support for DB2 for z/OS V8 connections in open beta • Workstation tool for monitoring and tuning of queries • Facilitates the identification and tuning of workloads (sets of queries) as well as individual queries • New powerful query diagnostic tools enable faster deep analysis of queries

  4. Overview • OSC feature list • Support for workload tuning • Stand-alone workload creation • Push-out model (monitoring) • Visual Explain query graphing capabilities • Query formatting and annotation • Query report • Visual Plan Hint • Statistics Advisor - query and workload

  5. Connect and configure • Launch OSC • Initial screen is connection and configuration • Review look and feel • Review layout of screen

  6. Launch OSC

  7. Project navigator area

  8. Project navigator • Navigate through open projects

  9. Top navigation tabs

  10. Top navigator tabs close-up

  11. Connection / configuration

  12. Connection close-up • Connection • Subsystems cataloged in DB2 Connect listed • Use subsystem menu option to add / remove subsystems

  13. Add Subsystem • Add DB2 subsystem connection • Select subsystem button • Choose Add

  14. Connection information • Add DB2 subsystem connection • Subsystem alias is a meaningful name to you • Location, hostname, port • Can be found in <ssid>MSTR address space DDF startup message DSNL004I

  15. DSNL004I • DSNL004I message • Location = location • Domain = hostname • TCPPORT = port

  16. Jeez Pat, Connect already! • Connect to subsystem • Choose Connection, connect • You can connect to more than one subsystem and perform activities on more than one subsystem at a time.

  17. Login information…

  18. Bind packages

  19. Create explain tables

  20. Create explain tables

  21. Create explain tables

  22. Create alias to explain tables • Create aliases • You can use OSC to create ALIASes to the explain tables also.

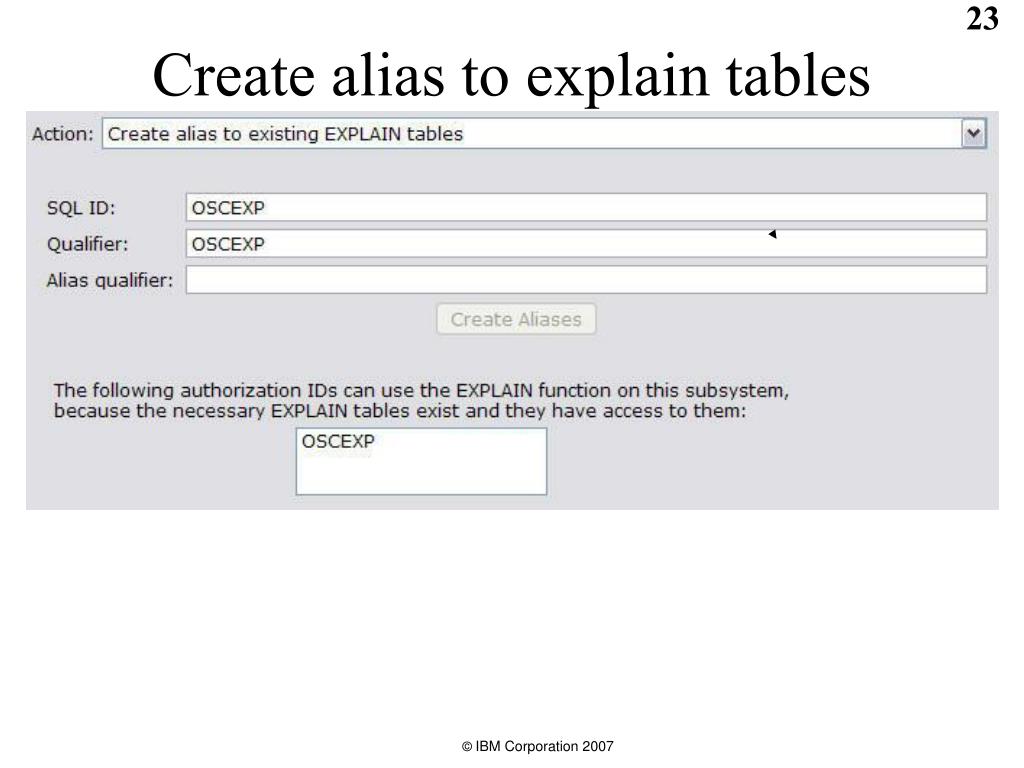

  23. Create alias to explain tables

  24. Subsystem status

  25. Subsystem status

  26. Explain-enabled Authid’s

  27. EXPLAIN enabled authid’s

  28. Connection complete.Now what?(Welcome menu…)

  29. Go to welcome page…

  30. Welcome page

  31. Welcome page close-ups

  32. Welcome page close-ups

  33. Welcome page close-ups

  34. Application tuning • Application tuning • Creating workloads • Workload options • Workload tuning features

  35. Application tuning process • What is application tuning? • Identify what the application workload is • Individual SQL statements • Get an understanding of the applications behavior • How often are individual SQL statements executing? • What is the performance of individual SQL statements? • Determine statistics for workload • Workload statistics advisor • More workload analysis features coming… (?) • Remeasure workload • Identify top tuning candidates • Use query based tools to further analyze (next session)

  36. Creating workloads • Creating a workload • Tune a workload • View workloads • Monitoring functions

  37. Tune a workload

  38. Workload sources • Workload sources • Snap statement cache • Catalog (static SQL) • QMF / QMF HPO • File • Categories • Other workloads

  39. Workload sources

  40. Catalog source…

  41. Catalog source

  42. Package filter options • Package filter options • Collection id, name, owner, … • Can use equals, like, in, etc.

  43. Package filter options

  44. Plan filter options • Plan filter options • Plan name, plan creator, etc. • Can use equals, like, in, etc.

  45. Plan filter options

  46. Cost & Object filter options • Cost and Object filters • Filters SQL within package / plan filter • Requires the static SQL be bound with explain yes. • DSN_STATEMNT_TABLE must already be populated. • Show only SQL with PROCSU > … • Show SQL which uses table… • Show SQL which uses index… • Choice to return rows which qualify for ANY or ALL of the cost / object filter conditions

  47. Cost & Object filter options

  48. Access path filters • Access path filters • Filters SQL within package / plan filter • Requires the static SQL be bound with explain yes. • PLAN_TABLE must already be populated. • Show SQL which performs… • Tablespace scan • Sort • Non-matching index scan • List prefetch • Outer join • ….

  49. Cost & Object filter options

  50. Capture the workload • After selecting packages / plans / filters… • Click finish to capture workload • OSC goes about the business of collecting the statements… • Queue Jeopardy music, get some coffee.
