Client Side Programming Using Java Applet

1. Client Side Programming Using Java Applet • Outcomes: You will be expected to know: • Java Applets and HTML file; • bytecode and platform independent programs; • Java basics and java applet basics. • Java applet events and graphics programming.

2. Java basics, development, and applets • Introduction First section of today’s lecture describes the Java language, the development process, and what an applet is. After completing this section, you should be able to: • What is Java? What are Java application and Java Applet? • Describe the syntax of a Java class • Code a simple Java source file • Understand the basic structure of an applet and how it interacts with a Web browser • Code a simple Java applet source file • Write output to the system console • Code HTML to invoke an applet

3. What is Java? • What is Java? • The Java language and companion class libraries provide a portable, interpreted, high-performance, simple, object-oriented, development environment. • There are two types of Java programs: applets and applications. • Applets are Java programs that are usually embedded in an HTML Web page and downloaded from the Web to be run by a browser on the user’s computer system. • Applications are full-fledged programs written in Java. They don’t require a Web browser to run, but they do require the Java VM to be installed on the target platform.

4. The Java Virtual Machine • The high-level programming language such as C, C++, Pascal must first be translated into an executable machine-language program. • Normally, there are two ways for translation: • Using a complier to translate at once, in this case the compiled program can only run on one type of computer with same type of OS. (Such as C, C++, Pascal) • Using a interpreter to translate instruction-by-instruction. (Such as Basic, Perl) • The designer of Java chose to use a combination of compilation and interpretation. • Programs written in Java are compiled into machine language, but it is a machine language for a computer that doesn’t really exist. This so-called “virtual” computer is known as the Java virtual machine . The machine language for the Java VM is called Java bytecode.

5. A different Jave bytecode interpreter is needed for each type of computer, but once a computer has a Java bytecode interpreter, it can run any Java bytecode program. And the same Java bytecode program can be run on any computer that has such an interpreter. This is one of the essential features of Java: the same compiled program can be run on many different types of computers.

6. Anatomy of a Java class Any Java source file (.java) has this physical structure: import statements; class definition { instance variable definitions; method definition (argumentList) { local variable definitions statements; } // end of method definition // more methods ... } // end of class definition A class is used to instantiate specific objects (each with possibly different values) in the heap. For example, the figure right shows help as an instance of class Button.

7. Primitive and object variables • Variables are represented on the stack as either: • A built-in primitive type (byte, short, int, long, char, float, double, or boolean) that uses value semantics int i = 42; /* i holds value (42) */ • An object type (extended from java.lang.Object) that uses reference semantics (like a pointer) Button helpButton = new Button("Help"); /* helpButton is an object ref */

8. Primitive Data Types

9. Lifetime of a variable A variable has a storage class, which sets its lifetime. • Local variables are local to a block of code, that is, allocated at entry to a block and discarded at exit. (A block of code can be either a class or a method.) • Instance variables are local to an object, that is, allocated when an object is instantiated and discarded when it is garbage-collected. • Class (static) variables are local to a class, that is, allocated when a class is loaded and discarded when it is unloaded. An object (referred to by a variable) is marked for garbage collection when there are no references to it.

11. C-like Java Most of the C programming language statements are present in the Java language: float sqrt(float value) { /* compute a square root badly! */ float guess; int loops; if (value <= 0) return 0; else guess = value/2; for (loops = 0; loops < 5; loops++) { guess = (guess + value /guess) /2; } return guess; } As well as if/else, for, and return, the Java language has C's while, do/while, and switch/case/default statements.

12. Messages and object communication • Objects use messages to communicate. • Valid messages are represented by a public interface. • Messages in Java correspond to method calls (invocations) in C. • Messages must have a reference to the target object to send a message. /* Send help button a msg */ helpButton.setEnabled(false); • If no object is specified, the current object (this) is assumed, for example, f() implies this.f().

13. Java development process • The javac command compiles Java source code (.java) into bytecode (.class). Syntax: Javac YourJavaProgram.Java • These bytecodes are loaded and executed in the Java virtual machine (JVM), which is embeddable within other environments, such as Web browsers and operating systems. Syntax: Java YourJavaProgram(.class)

14. “Hello world” Java application program(HelloWorlApp.java) /** * The HelloWorldApp class implements an application that simply displays "Hello World!" to the standard output. */ class HelloWorldApp { public static void main(String[] args) { System.out.println("Hello World!"); //Display the string. } } This program has three part: • The enclosing class definition-In this case, it’s named HelloWorldApp • The body of the program, the main() method – for this application. The main() method is the subroutine that is executed when this application is run • The code that produces the actual output of the program.

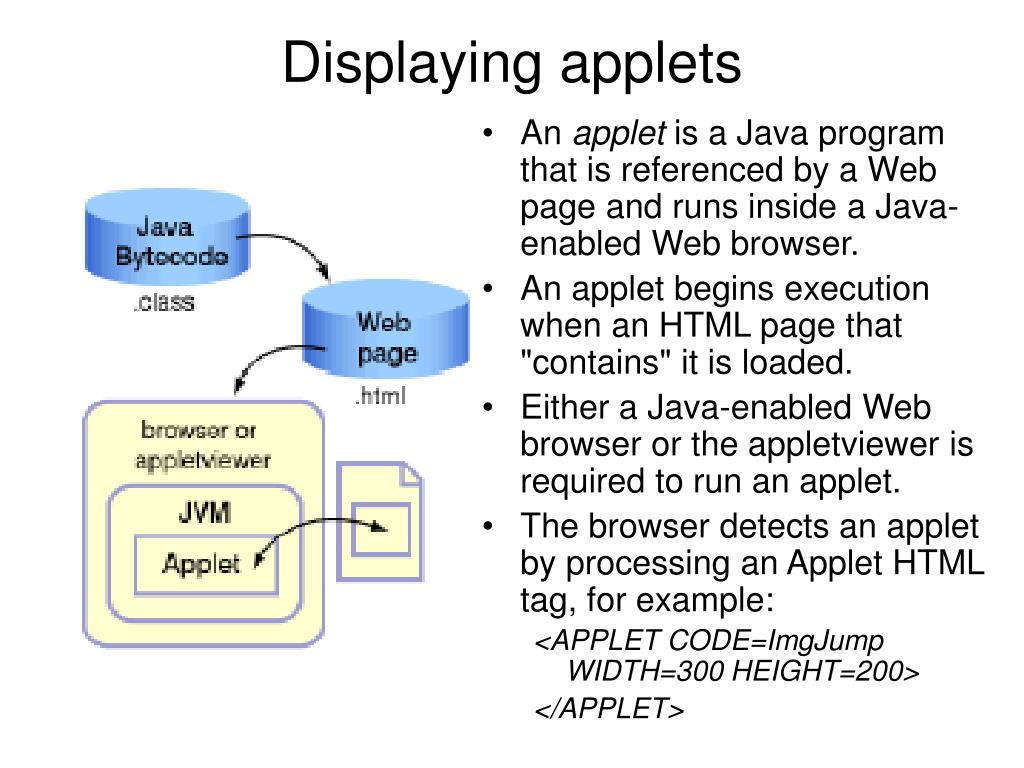

15. Displaying applets • An applet is a Java program that is referenced by a Web page and runs inside a Java-enabled Web browser. • An applet begins execution when an HTML page that "contains" it is loaded. • Either a Java-enabled Web browser or the appletviewer is required to run an applet. • The browser detects an applet by processing an Applet HTML tag, for example: <APPLET CODE=ImgJump WIDTH=300 HEIGHT=200> </APPLET>

16. Web browser-to-applet interface This figure shows the browser-to-applet interface.

17. Structure of a simple applet • By inheriting from java.applet.Applet, the necessary structure is defined to coordinate with a Web browser. Extends is the keyword in the Java language used to inherit classes. public class MyApplet extends java.applet.Applet { public MyApplet( ) { //create applet System.out.println("In ctor"); } public void init( ) { // initialize System.out.println("In init"); } public void start( ) { // display page System.out.println("In start"); } public void stop( ) { // leave page System.out.println("In stop"); } public void destroy( ) {// clean up System.out.println("In destroy"); } } • Note that standard out (or output for the println command) is sent to the console window if you are running within a browser or to a DOS window if you are running your applet from appletviewer via a DOS window.

18. The applet methods • The init() method is run only when the applet first starts. • start() is executed when the applet is displayed or refreshed. • destroy() method will Dispose of any behind the scenes resources this entire Applet is using (e.g. inside the native GUI). This does not delete the current application object, but it does dispose of all the children. This is required because the Java garbage collection scheme only can work on its own objects, not those inside the native GUI. • stop() method will temporarily shut down your Applet

19. The “Hello World” applet example • HelloWorld.java: Import java.applet.Applet; Import java.awt.Graphics; Public class HelloWorld extends Applet{ public void paint(Graphics g){ g.DrawString(“Hello world!”, 50,25); } } • Hello.html: <html><head> <title> A Simple Program <title> </head> <body> Here is the output of my program: <applet code=“HelloWorld.class” width=150 height=25> </applet> </body></html>

20. Java applet basics, loading & displaying images After the second section of today’s lecture, you should be able to : • Use the applet tag and applet parameters • Describe what a Java package is • Import a package containing additional Java types • Describe what the paint method do • Understand the function of Graphics class • Declare a reference to an image object • Load an image in an applet • Code a paint method • Draw an image into a Graphics object

21. The Applet tag and Applet Parameters • The <APPLET> tag is used to add a Java applet to a Web page <APPLET CODE="HelloWorldApplet.class" HEIGHT=50 WIDTH=150> </APPLET> • Applets use applet parameters to customize their behaviour. Applet parameters are specified by using <PARAM> tags, which can only occur between an <APPLET> tag and the closing </APPLET>. The PARAM tag has required modifiers named NAME and VALUE, and it takes the form <PARAM  NAME="param-name"  VALUE="param-value">

22. An example of an Applet tag with PARAMs <APPLET code="ShowMessage.class" WIDTH=200 HEIGHT=50> <PARAM NAME="message" VALUE="Goodbye World!"> <PARAM NAME="font" VALUE="Serif"> <PARAM NAME="size" VALUE="36"> <p align=center>Sorry, but your browser doesn't support Java!</p> </APPLET> String display; // Instance variable: message to be displayed. String fontName; // Instance variable: font to use for display. public void init() { String value; value = getParameter("message"); // Get message PARAM, if any. if (value == null) display = "Hello World!"; // default value else display = value; // Value from PARAM tag. value = getParameter("font"); if (value == null) fontName = "SansSerif" else fontName = value; ……………………}

23. Packages A package is a named group of classes for a common domain: java.lang, java.awt, java.util, java.io. Packages can be imported by other source files making the names available: import java.awt.*; // All classes import java.awt.Image; // One class Explicit type name: java.awt.Image i1; Implicit type name: import java.awt.*; Image i2; The java.lang package is automatically imported by the compiler.

25. The java.lang package The java.lang package contains more than 20 classes, of which the most useful are System, String, and Math. It also contains the Thread class, the Runnable interface, and the various wrapping classes (such as Integer). • java.lang.System class provides the standard streams in, out, and err as public class variables. • java.lang.String class contains methods that provide functions similar to C's strxxx functions, including charAt, compareTo, concat, endsWith equals, length, replace, startsWith, subString, toLowerCase, and trim. • java.lang.Math class contains a number of mathematical methods such as abs, sin, cos, atan, max, min, log, random, and sqrt. It also contains E and PI as class constants (static final).

26. Applet class • The Applet class, defined in the package java.applet, is really only useful as a basis for making subclasses. • An object of type Applet has certain basic behaviours, but doesn't actually do anything useful. It's just a blank area on the screen that doesn't respond to any events. To create a useful applet, a programmer must define a subclass that extends the Applet class. • There are several methods in the Applet class that are defined to do nothing at all. The programmer must override at least some of these methods and give them something to do.

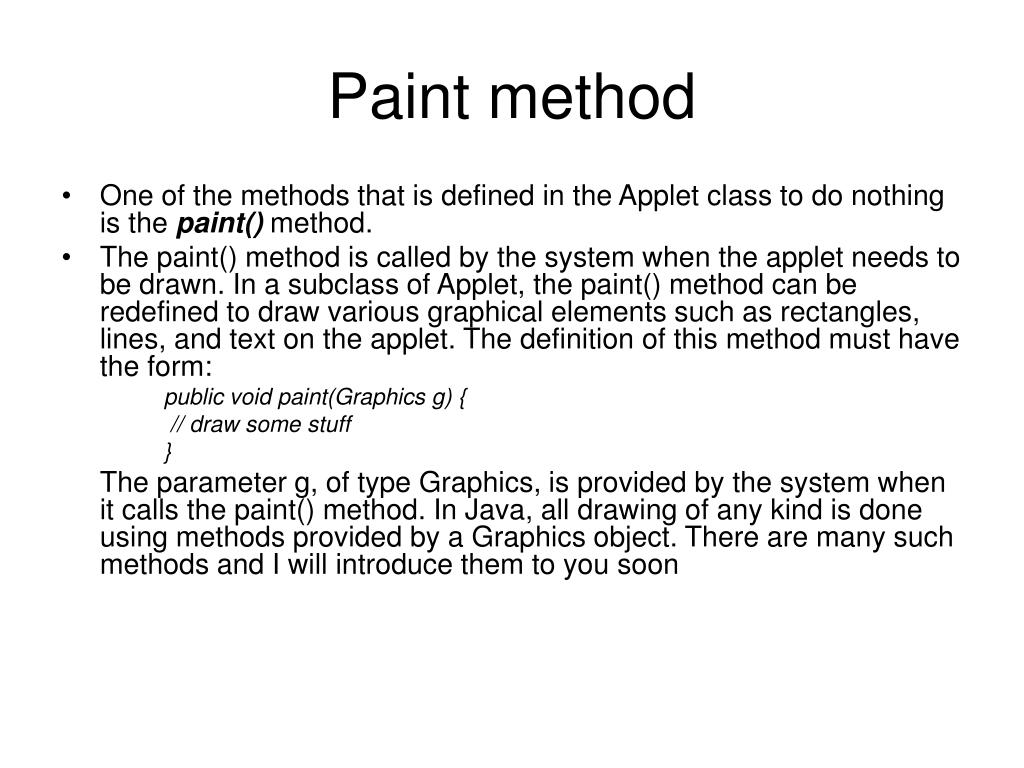

27. Paint method • One of the methods that is defined in the Applet class to do nothing is the paint() method. • The paint() method is called by the system when the applet needs to be drawn. In a subclass of Applet, the paint() method can be redefined to draw various graphical elements such as rectangles, lines, and text on the applet. The definition of this method must have the form: public void paint(Graphics g) { // draw some stuff } The parameter g, of type Graphics, is provided by the system when it calls the paint() method. In Java, all drawing of any kind is done using methods provided by a Graphics object. There are many such methods and I will introduce them to you soon

28. Something paint cannot do • The paint() method of an applet does not draw GUI components such as buttons and text input boxes that the applet might contain. Such GUI components are objects in their own right, defined by other classes. All component objects, not just applets, have paint() methods. Each component is responsible for drawing itself, in its own paint() method.

29. Graphics class • A Graphics object is usually only obtained as an argument to update and paint methods: public void update(Graphics g) {...} public void paint(Graphics g) {...} • The Graphics class provides a set of drawing tools that include methods to draw: • rectangles (drawRect, fillRect) • ovals (drawOval, fillOval) • arcs (drawArc, fillArc) • polygons (drawPolygon, fillPolygon) • rounded rectangles (drawRoundRect, fillRoundRect) • strings (drawString) • images (drawImage) For example: g.drawImage(i, 0, 0, this);

30. “Hello World” applet example import java.awt.*; import java.applet.*; public class HelloWorldApplet extends Applet { // An applet that simply displays the string Hello World! public void paint(Graphics g) { g.drawString("Hello World!", 10, 30); } } // end of class HelloWorldApplet

31. Another “Hello World” applet example // An applet that says "Hello World" in a big bold font, // with a button to change the color of the message. import java.awt.*; // Defines basic classes for GUI programming. import java.awt.event.*; // Defines classes for working with events. import java.applet.*; // Defines the applet class. public class ColoredHelloWorldApplet extends Applet implements ActionListener { // Defines a subclass of Applet. The "implements ActionListener" // part says that objects of type ColoredHelloApplet are // capable of listening for ActionEvents. This is necessary // if the applet is to respond to events from the button. int colorNum; // Keeps track of which color is displayed; // 1 for red, 2 for blue, 3 for green. Font textFont; // The font in which the message is displayed. // A font object represent a certain size and // style of text drawn on the screen.

32. public void init() { // This routine is called by the system to initialize // the applet. It sets up the font and initial colors // the applet. It adds a button to the applet for // changing the message color. setBackground(Color.lightGray); // The applet is filled with the background color before // the paint method is called. The button and the message // in this applet will appear on a light gray background. colorNum = 1;// The color of the message is set to red. textFont = new Font("Serif",Font.BOLD,24); // Create a font object representing a big, bold font. Button bttn = new Button("Change Color"); // Create a new button. "ChangeColor" is the text // displayed on the button. bttn.addActionListener(this); // Set up bttn to send an "action event" to this applet // when the user clicks the button. The parameter, this, // is a name for the applet object that we are creating. add(bttn); // Add the button to the applet, so that it // will appear on the screen. } // end init()

33. public void paint(Graphics g) { // This routine is called by the system whenever the content // of the applet needs to be drawn or redrawn. It displays // the message "Hello World" in the proper color and font. switch (colorNum) { // Set the color. case 1: g.setColor(Color.red); break; case 2: g.setColor(Color.blue); break; case 3: g.setColor(Color.green); break; } g.setFont(textFont); // Set the font. g.drawString("Hello World!", 20,70); // Draw the message. } // end paint()

34. public void actionPerformed(ActionEvent evt) { // This routine is called by the system when the user clicks // on the button. The response is to change the colorNum // which determines the color of the message, and to call // repaint() to see that the applet is redrawn with the // new color. if (colorNum == 1) // Change colorNum. colorNum = 2; else if (colorNum == 2) colorNum = 3; else colorNum = 1; repaint(); // Tell system that this applet needs to be redrawn } // end init() } // end class ColoredHelloWorldApplet

36. Loading and drawing images The typical way to load images in Applets is via the getImage() method. Image getImage(URL) // Absolute URL Image getImage(URL, String) // Relative URL For example: Image img = getImage(getDocumentBase(), "x.gif"); This example returns a reference to an image object that is being asynchronously loaded. The getDocumentBase() method returns the address of the current Web site where the applet is being executed. The x.gif is the actual image being loaded After the image is loaded, you would typically render it to the screen in the Applet's paint method using the Graphics method. For example: g.drawImage(img, 0, 0, this); // img is the image that is drawn on the // screen in the 0, 0 position.

37. Simple applet that loads and draws Image <applet code=ImgLoad width=300 height=200> </applet> import java.awt.*; public class ImgLoad extends java.applet.Applet { Image i; public void init() { System.out.println("In init"); i = getImage(getDocumentBase(), "Test.gif"); } public void paint(Graphics g) { System.out.println("In paint"); int x = (int)(Math.random() * size().width); int y = (int)(Math.random() * size().height); g.drawImage(i, x, y, this); } }
