6113 EDGE Base Station Test Set

6113 EDGE Base Station Test Set. GSM I & C testing. What is the 6113?. GSM, GPRS and EDGE BTS tester Verifies base station installation and commissioning Provides maintenance/fault-finding capability Verifies performance to GSM recommendations (11.21)

maxine-day
Download Presentation

6113 EDGE Base Station Test Set

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 6113 EDGEBase Station Test Set

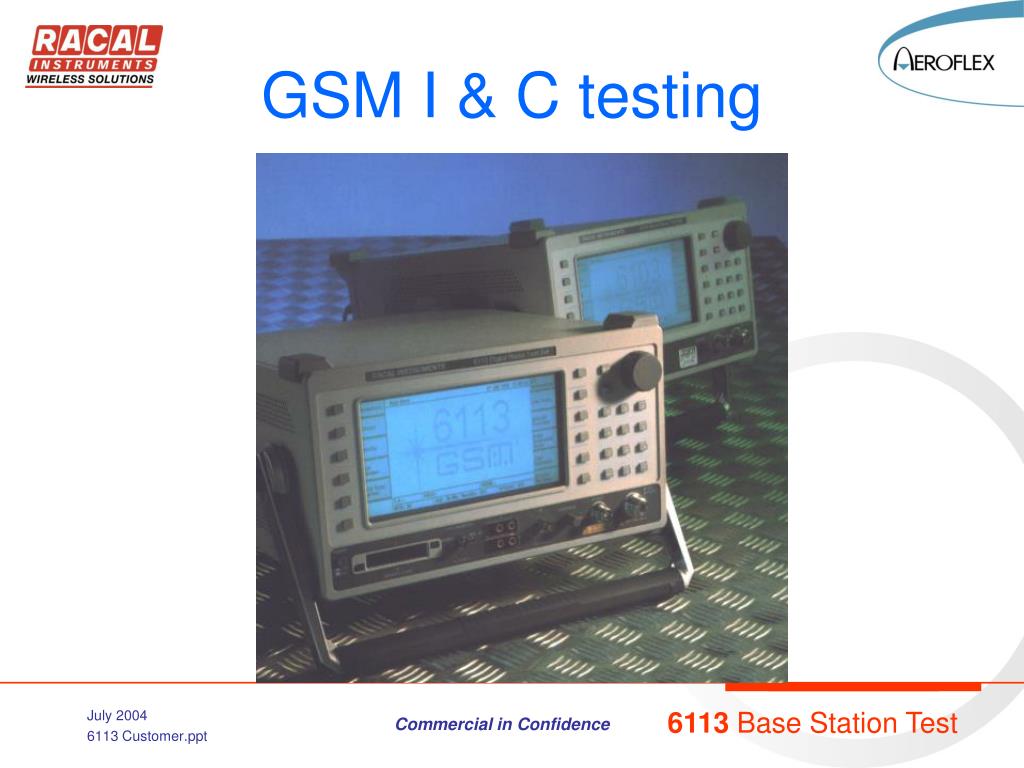

  2. GSM I & C testing

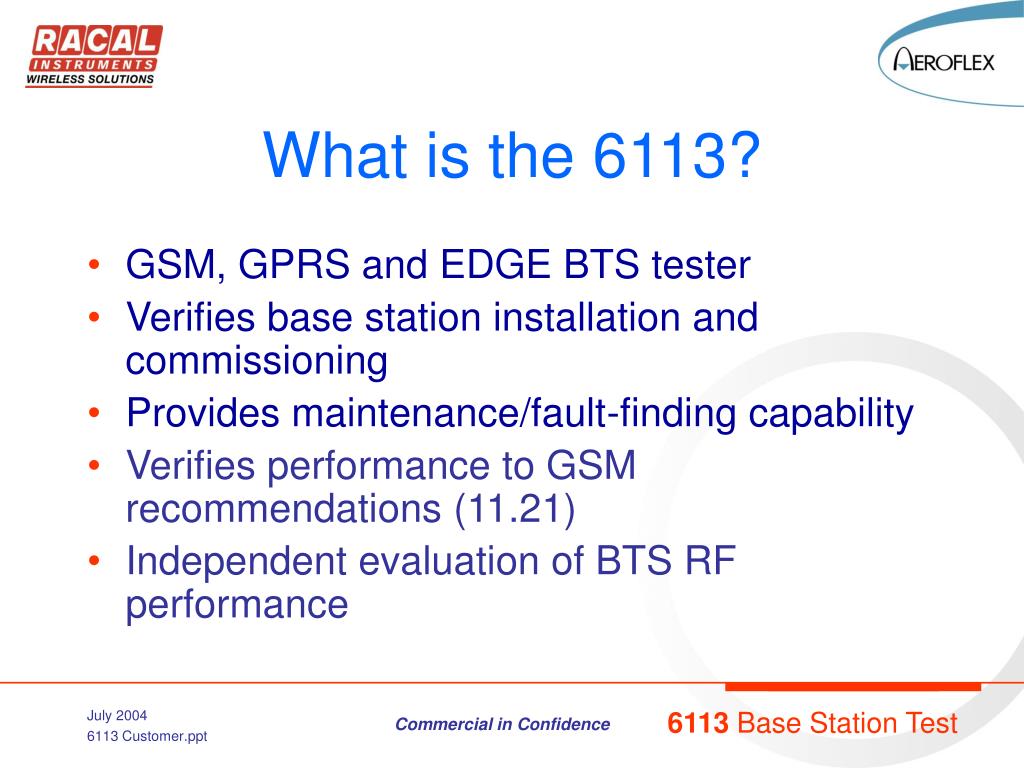

  3. What is the 6113? • GSM, GPRS and EDGE BTS tester • Verifies base station installation and commissioning • Provides maintenance/fault-finding capability • Verifies performance to GSM recommendations (11.21) • Independent evaluation of BTS RF performance

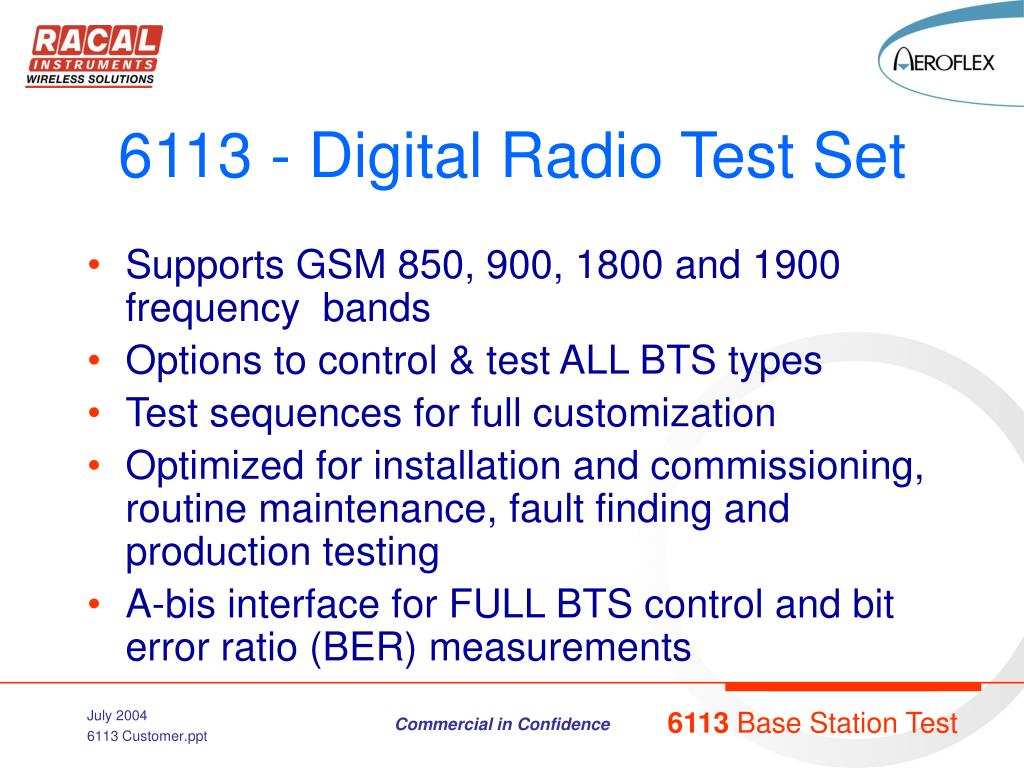

  4. 6113 - Digital Radio Test Set • Supports GSM 850, 900, 1800 and 1900 frequency bands • Options to control & test ALL BTS types • Test sequences for full customization • Optimized for installation and commissioning, routine maintenance, fault finding and production testing • A-bis interface for FULL BTS control and bit error ratio (BER) measurements

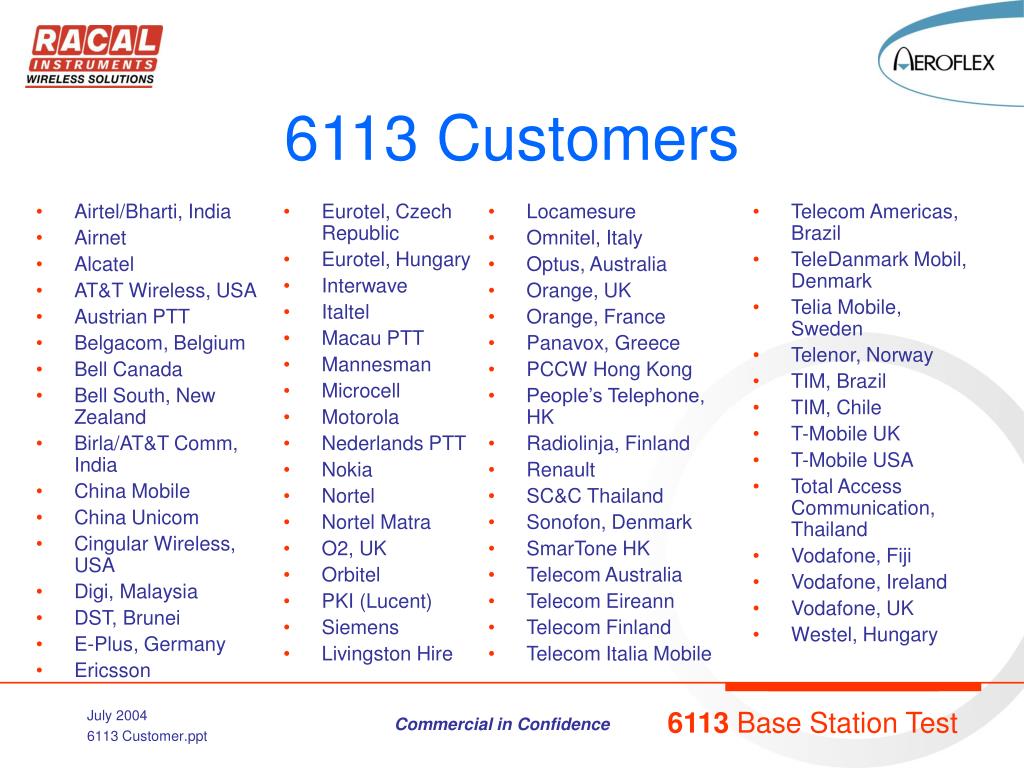

  5. Airtel/Bharti, India Airnet Alcatel AT&T Wireless, USA Austrian PTT Belgacom, Belgium Bell Canada Bell South, New Zealand Birla/AT&T Comm, India China Mobile China Unicom Cingular Wireless, USA Digi, Malaysia DST, Brunei E-Plus, Germany Ericsson Locamesure Omnitel, Italy Optus, Australia Orange, UK Orange, France Panavox, Greece PCCW Hong Kong People’s Telephone, HK Radiolinja, Finland Renault SC&C Thailand Sonofon, Denmark SmarTone HK Telecom Australia Telecom Eireann Telecom Finland Telecom Italia Mobile 6113 Customers • Eurotel, Czech Republic • Eurotel, Hungary • Interwave • Italtel • Macau PTT • Mannesman • Microcell • Motorola • Nederlands PTT • Nokia • Nortel • Nortel Matra • O2, UK • Orbitel • PKI (Lucent) • Siemens • Livingston Hire • Telecom Americas, Brazil • TeleDanmark Mobil, Denmark • Telia Mobile, Sweden • Telenor, Norway • TIM, Brazil • TIM, Chile • T-Mobile UK • T-Mobile USA • Total Access Communication, Thailand • Vodafone, Fiji • Vodafone, Ireland • Vodafone, UK • Westel, Hungary

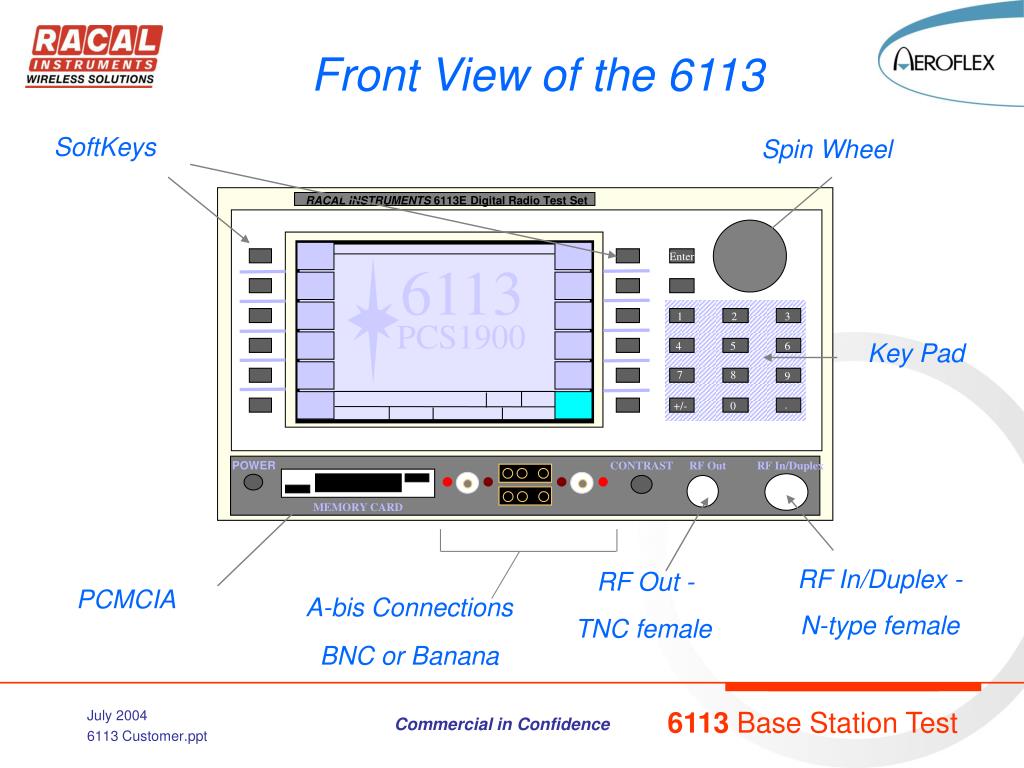

  6. RACAL INSTRUMENTS 6113E Digital Radio Test Set Enter 6113 1 2 3 PCS1900 4 5 6 7 8 9 . +/- 0 POWER CONTRAST RF Out RF In/Duplex MEMORY CARD Front View of the 6113 SoftKeys Spin Wheel Key Pad RF Out - TNC female RF In/Duplex - N-type female PCMCIA A-bis Connections BNC or Banana

  7. Rear View of the 6113 Freq Ref Connections 10R BOSS RF IN/Duplex (SMA female) & BOSS RF OUT(TNC female) Encryption Module

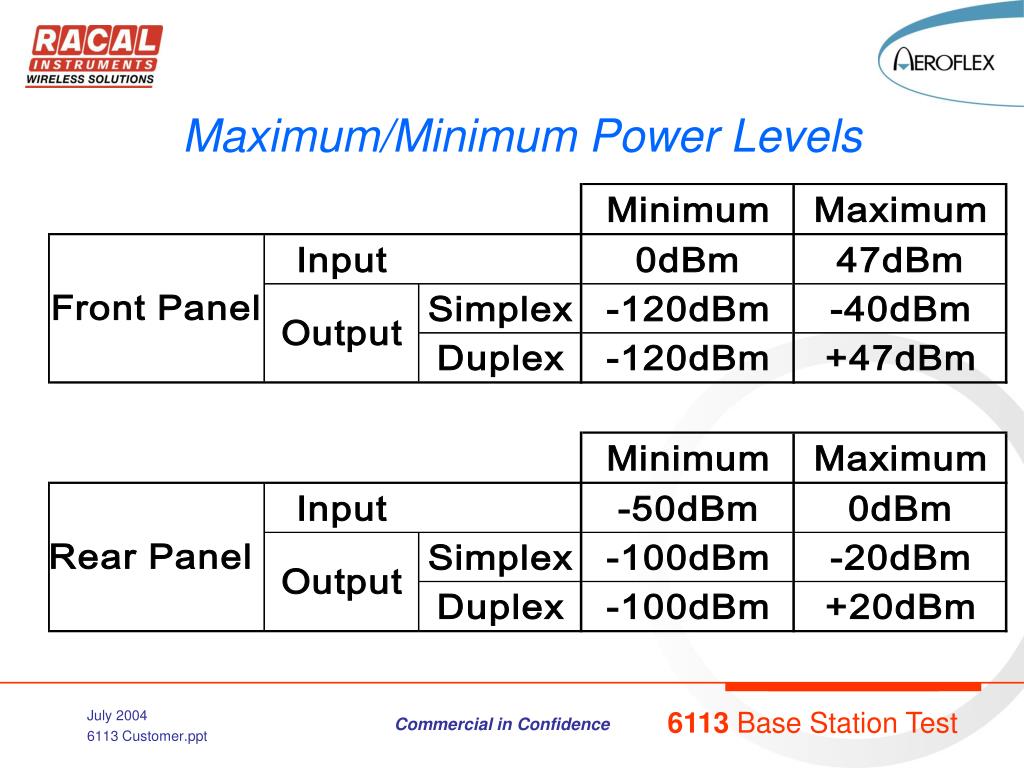

  8. Maximum/Minimum Power Levels

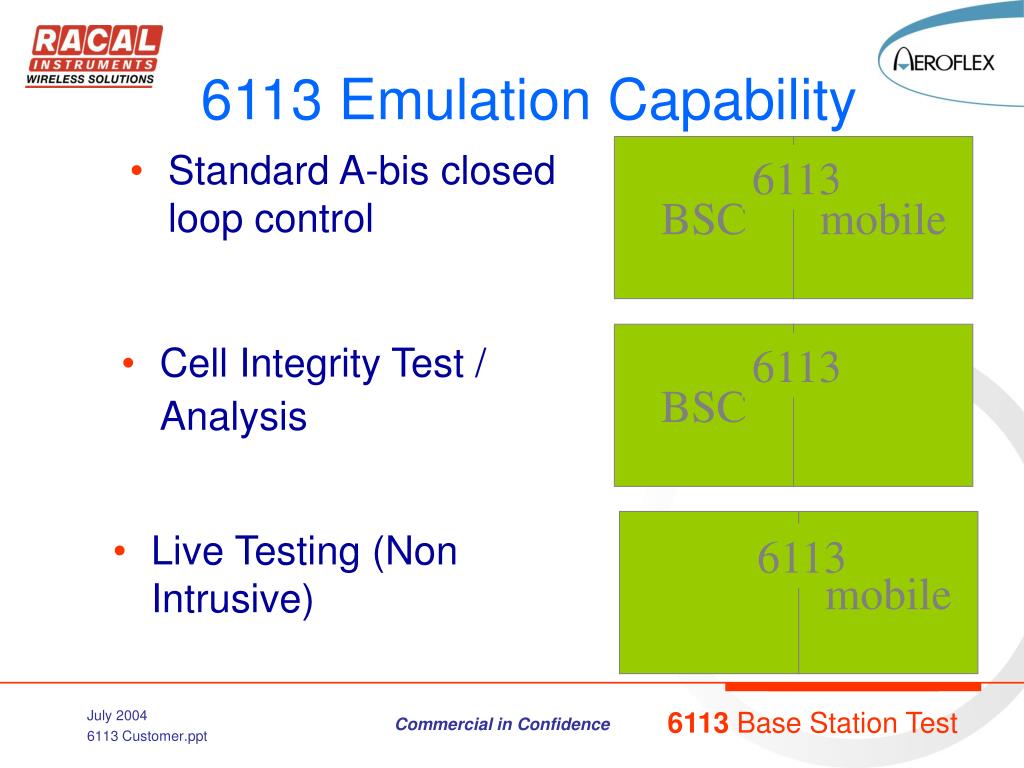

  9. BSC mobile 6113 BSC 6113 mobile 6113 6113 Emulation Capability • Standard A-bis closed loop control • Cell Integrity Test / Analysis • Live Testing (Non Intrusive)

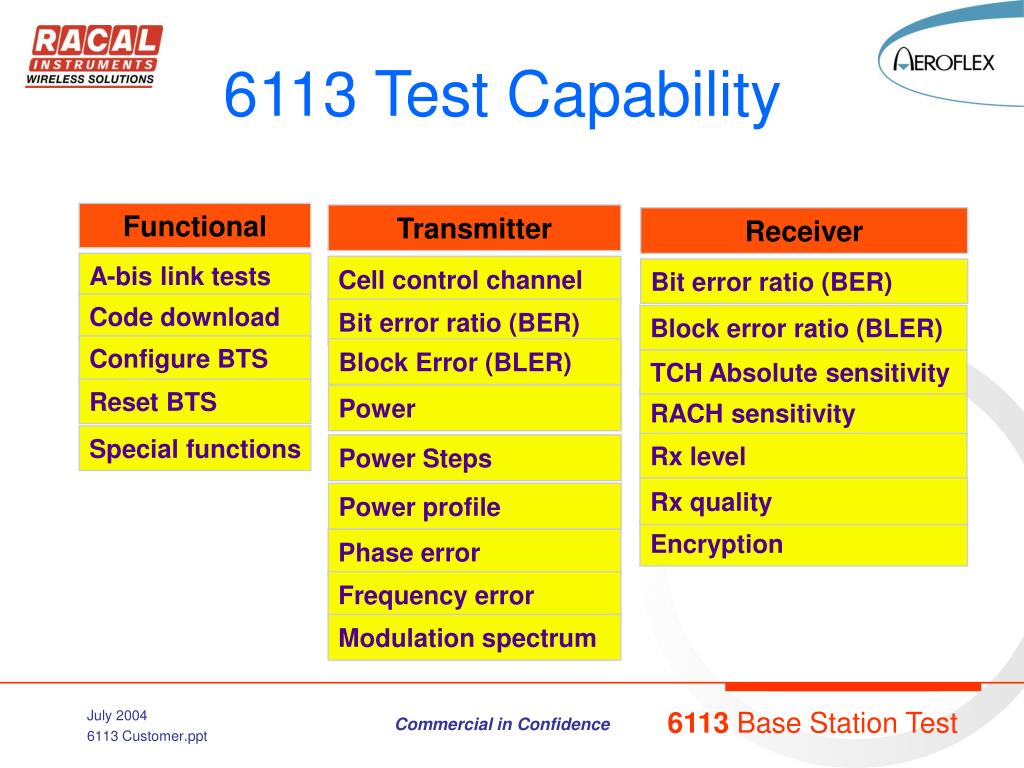

  10. Block Error (BLER) Power Power Steps Power profile Phase error Frequency error 6113 Test Capability Functional Transmitter Receiver A-bis link tests Cell control channel Bit error ratio (BER) Code download Bit error ratio (BER) Block error ratio (BLER) Configure BTS TCH Absolute sensitivity Reset BTS RACH sensitivity Special functions Rx level Rx quality Encryption Modulation spectrum

  11. Abis Controlled

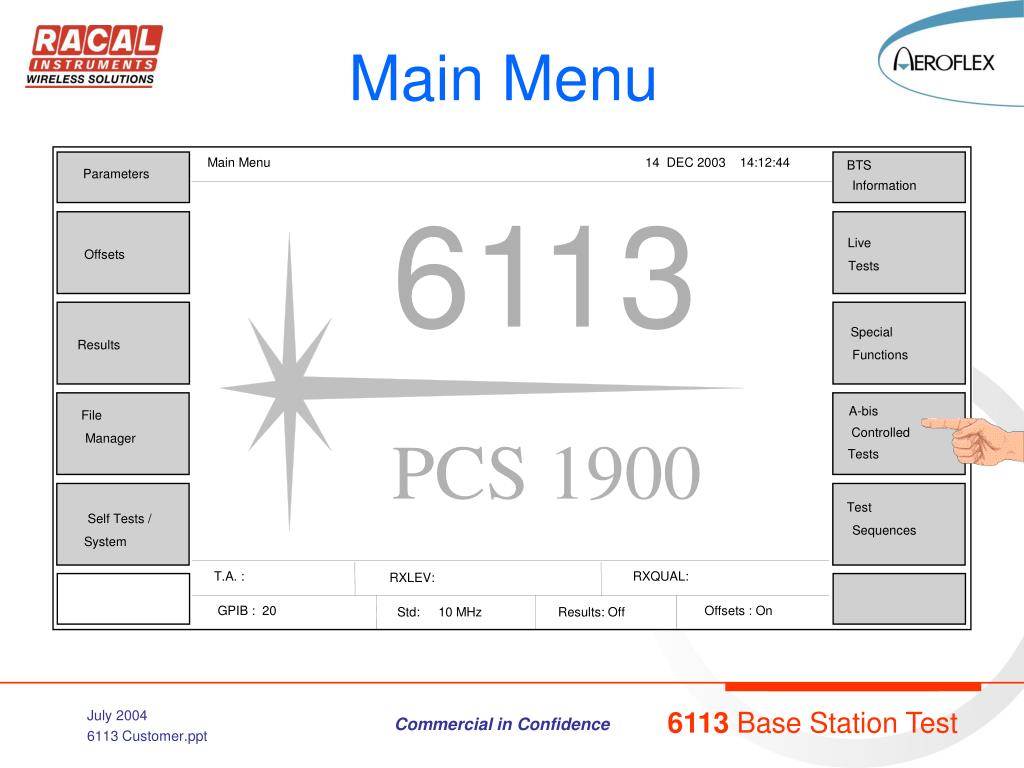

  12. Main Menu Main Menu 14 DEC 2003 14:12:44 BTS Parameters Information 6113 Live Offsets Tests Special Results Functions A-bis File PCS 1900 Controlled Manager Tests Test Self Tests / Sequences System T.A. : RXQUAL: RXLEV: GPIB : 20 Offsets : On Std: 10 MHz Results: Off

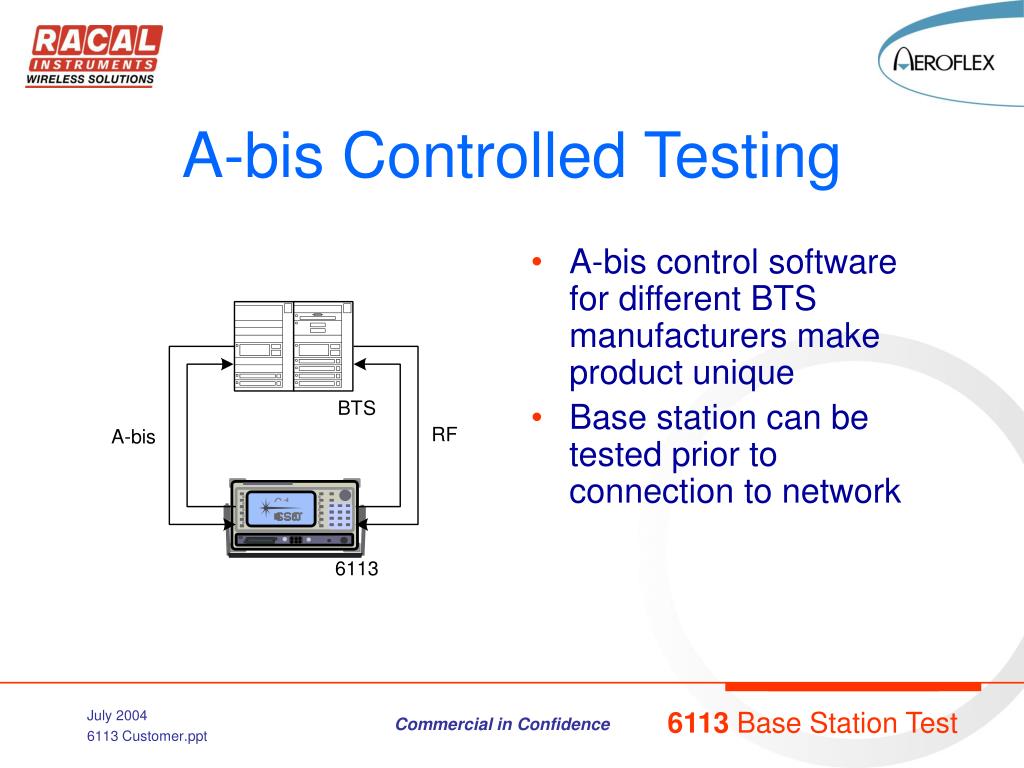

  13. A-bis Controlled Testing • A-bis control software for different BTS manufacturers make product unique • Base station can be tested prior to connection to network

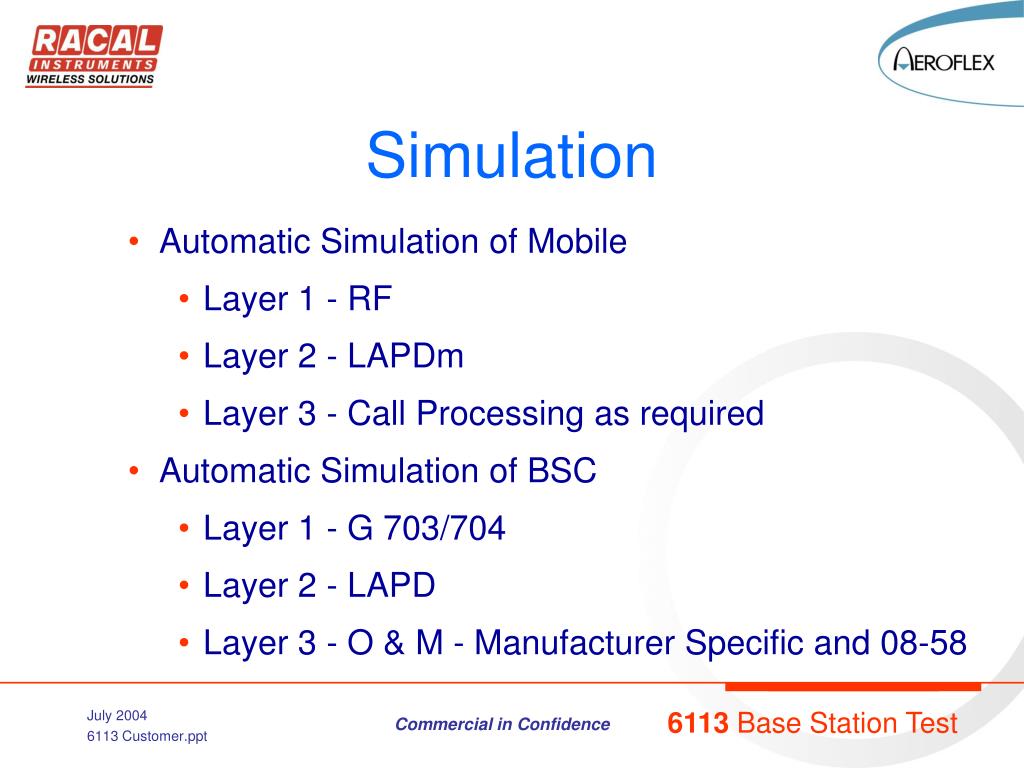

  14. Simulation • Automatic Simulation of Mobile • Layer 1 - RF • Layer 2 - LAPDm • Layer 3 - Call Processing as required • Automatic Simulation of BSC • Layer 1 - G 703/704 • Layer 2 - LAPD • Layer 3 - O & M - Manufacturer Specific and 08-58

  15. Setup of 6113 for Abis Controlled Testing

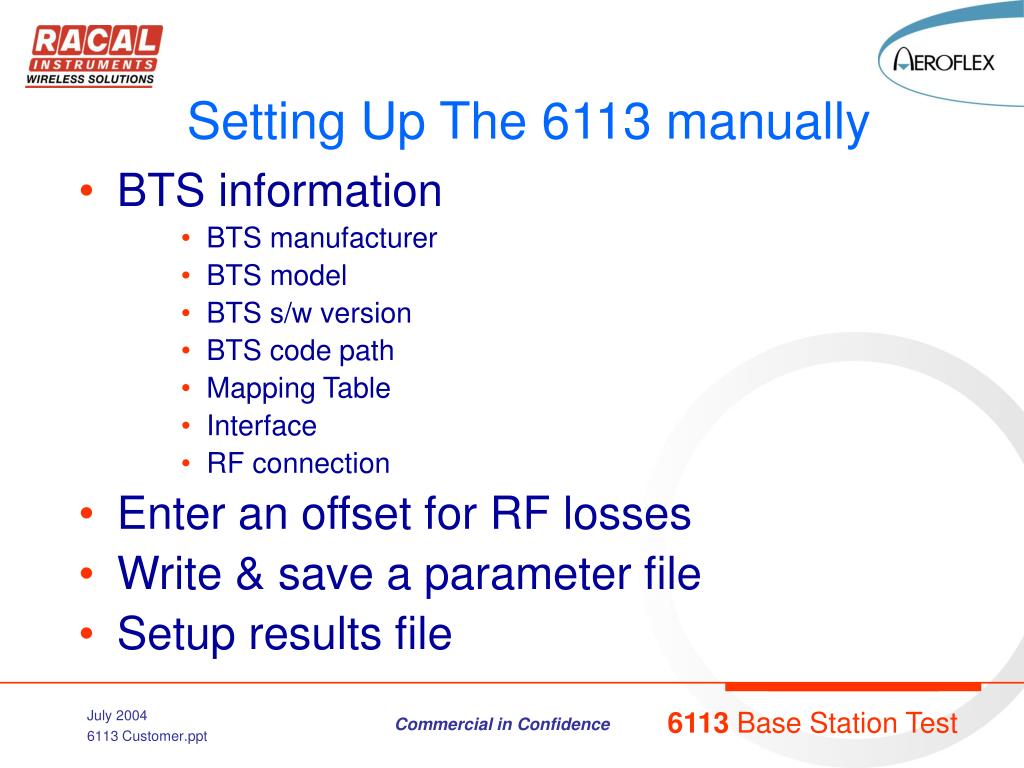

  16. Setting Up The 6113 manually • BTS information • BTS manufacturer • BTS model • BTS s/w version • BTS code path • Mapping Table • Interface • RF connection • Enter an offset for RF losses • Write & save a parameter file • Setup results file

  17. BTS Information T.A. : RXQUAL: RXLEV: GPIB : 20 Offsets : On Std: 10 MHz Results: Off BTS Information 14 DEC 1995 14:12:44 A-bis Radio Settings System BTS Mapping BTS type Manufacturer Table PCS 1900 Radio System : Interface BTS Model Nokia BTS Manufacturer : Balanced BTS Model : Ultrasite RF Connect BTS BTS Software Version : PU1 Software Duplex BTS Software Code Path : A : \ BTS S/W Code Path Exit

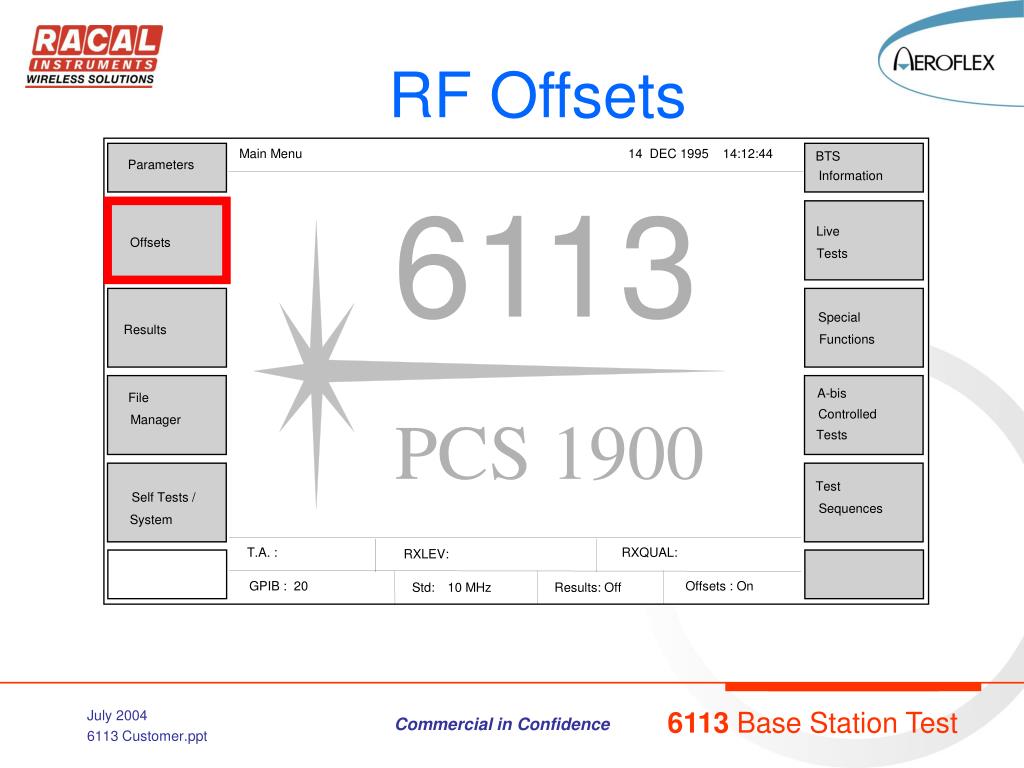

  18. T.A. : RXQUAL: RXLEV: GPIB : 20 Offsets : On Std: 10 MHz Results: Off RF Offsets Main Menu 14 DEC 1995 14:12:44 BTS Parameters Information 6113 Live Offsets Tests Special Results Functions A-bis File PCS 1900 Controlled Manager Tests Test Self Tests / Sequences System

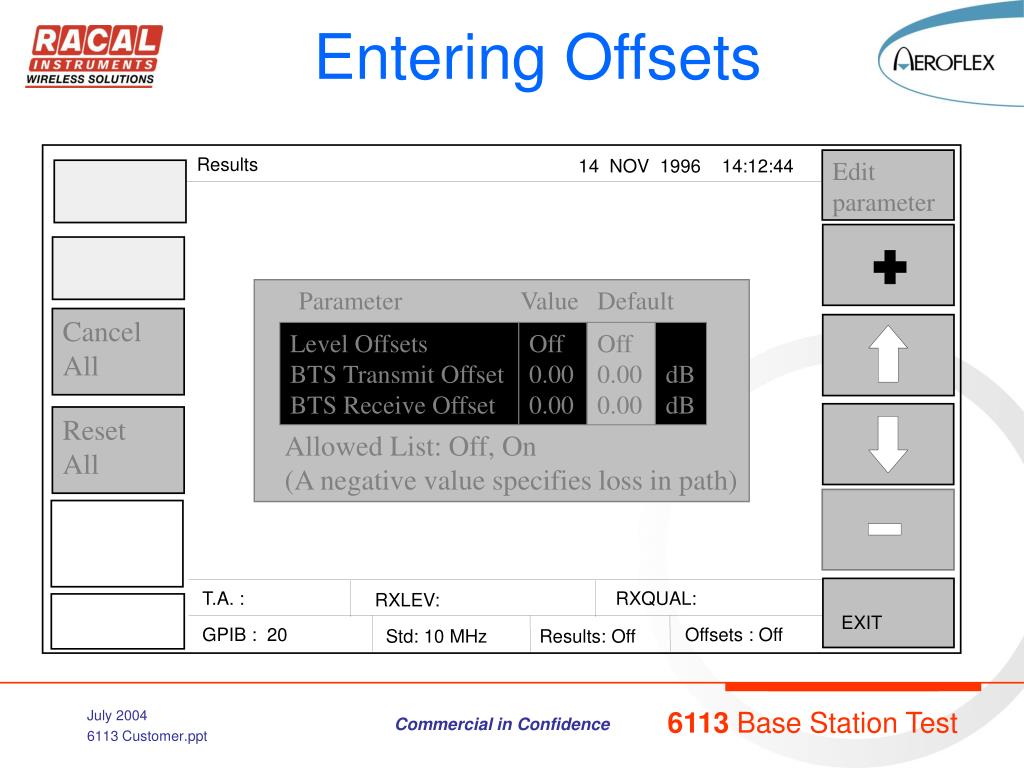

  19. T.A. : RXQUAL: RXLEV: GPIB : 20 Offsets : Off Std: 10 MHz Results: Off Entering Offsets Edit parameter Results 14 NOV 1996 14:12:44 Parameter Value Default Cancel All Level Offsets BTS Transmit Offset BTS Receive Offset Off 0.00 0.00 Off 0.00 0.00 dB dB Reset All Allowed List: Off, On (A negative value specifies loss in path) EXIT

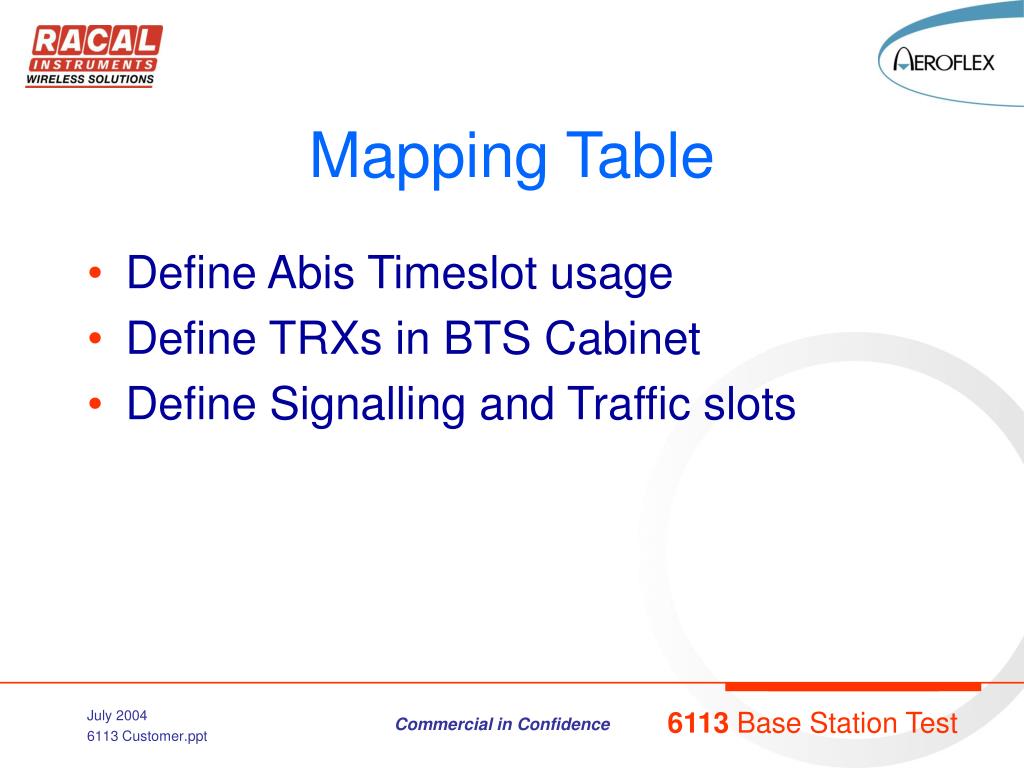

  20. Mapping Table • Define Abis Timeslot usage • Define TRXs in BTS Cabinet • Define Signalling and Traffic slots

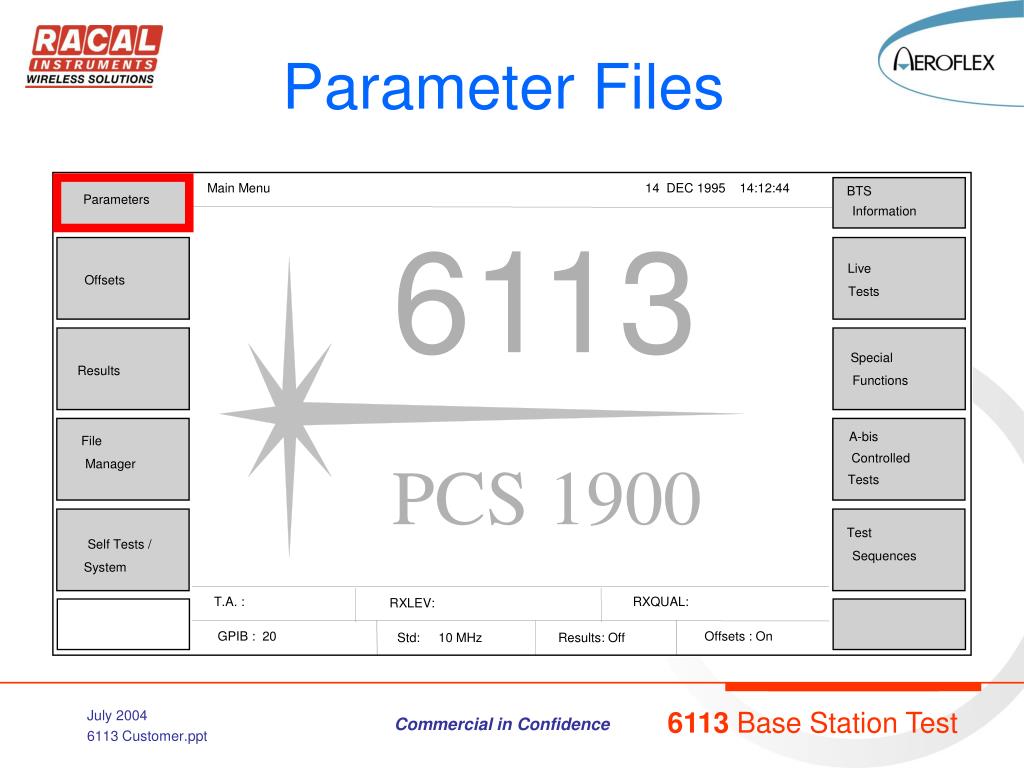

  21. T.A. : RXQUAL: RXLEV: GPIB : 20 Offsets : On Std: 10 MHz Results: Off Parameter Files Main Menu 14 DEC 1995 14:12:44 BTS Parameters Information 6113 Live Offsets Tests Special Results Functions A-bis File PCS 1900 Controlled Manager Tests Test Self Tests / Sequences System

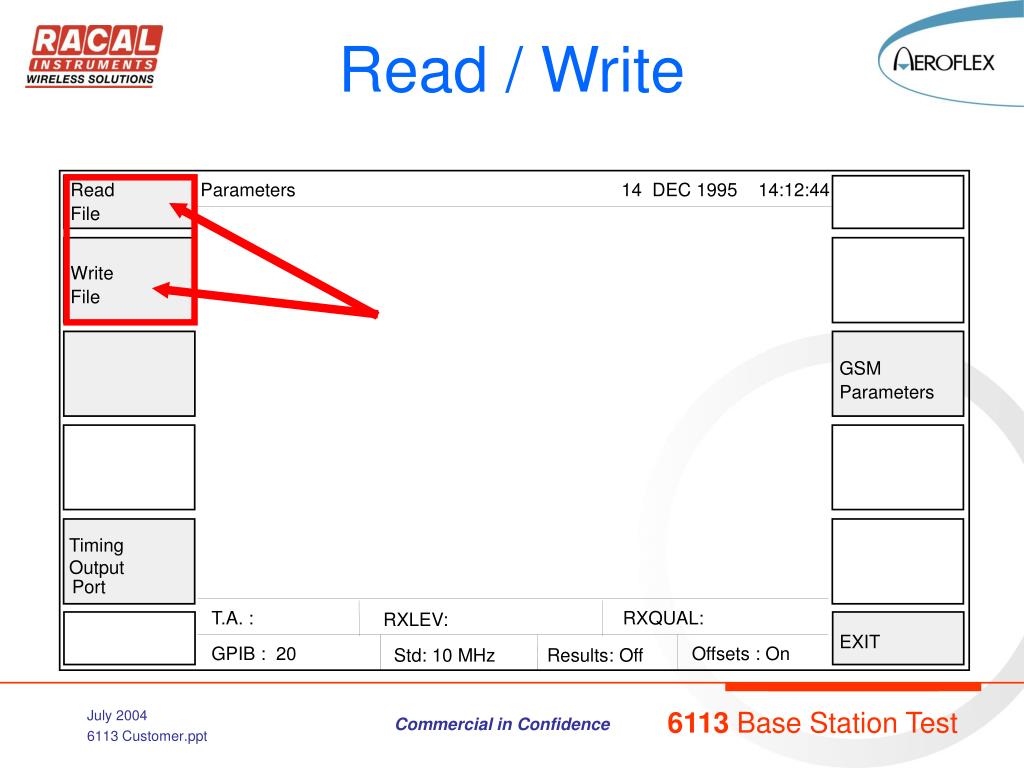

  22. T.A. : RXQUAL: RXLEV: GPIB : 20 Offsets : On Std: 10 MHz Results: Off Read / Write Read Parameters 14 DEC 1995 14:12:44 File Write File GSM Parameters Timing Output Port EXIT

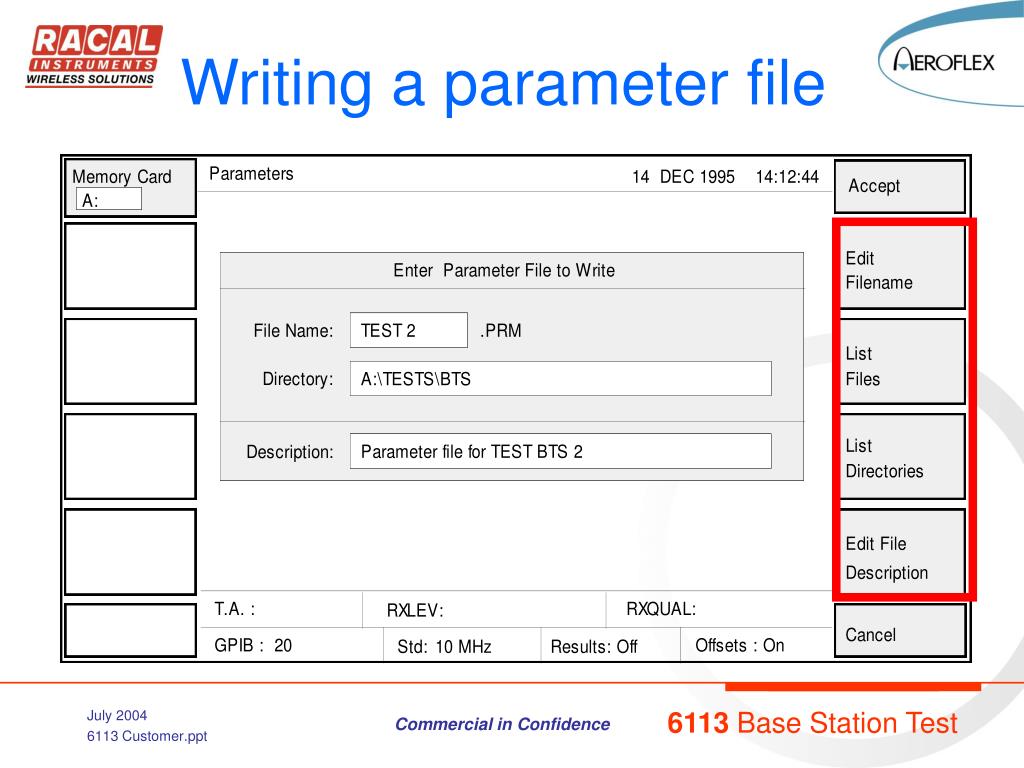

  23. Writing a parameter file

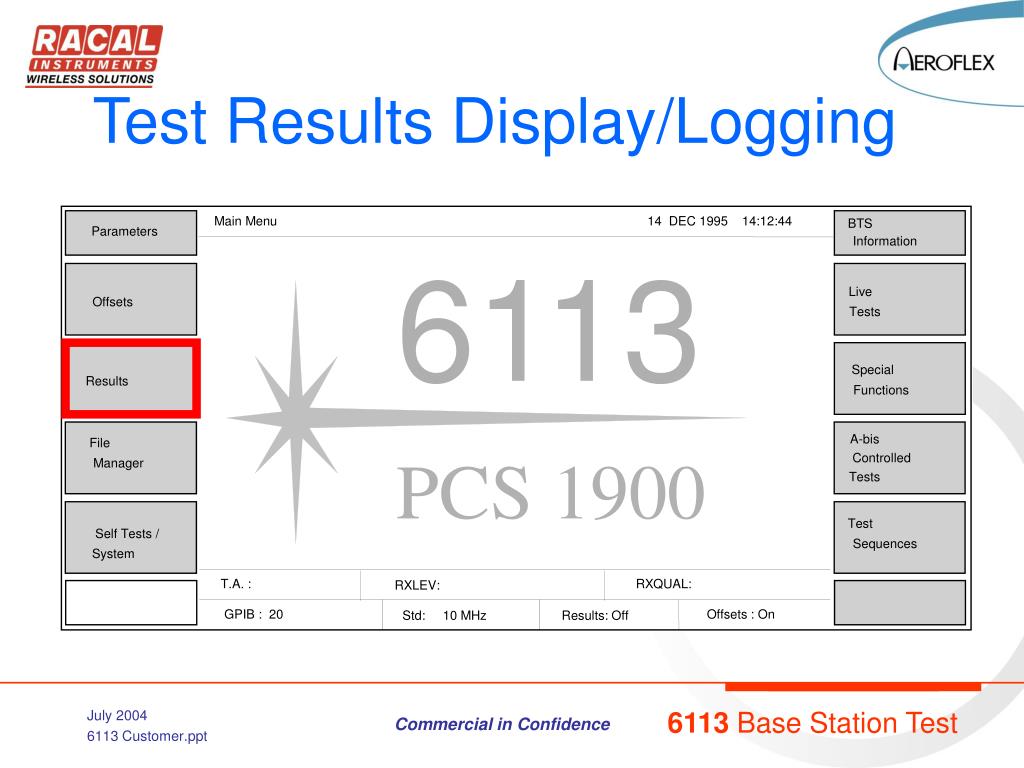

  24. T.A. : RXQUAL: RXLEV: GPIB : 20 Offsets : On Std: 10 MHz Results: Off Test Results Display/Logging Main Menu 14 DEC 1995 14:12:44 BTS Parameters Information 6113 Live Offsets Tests Special Results Functions A-bis File PCS 1900 Controlled Manager Tests Test Self Tests / Sequences System

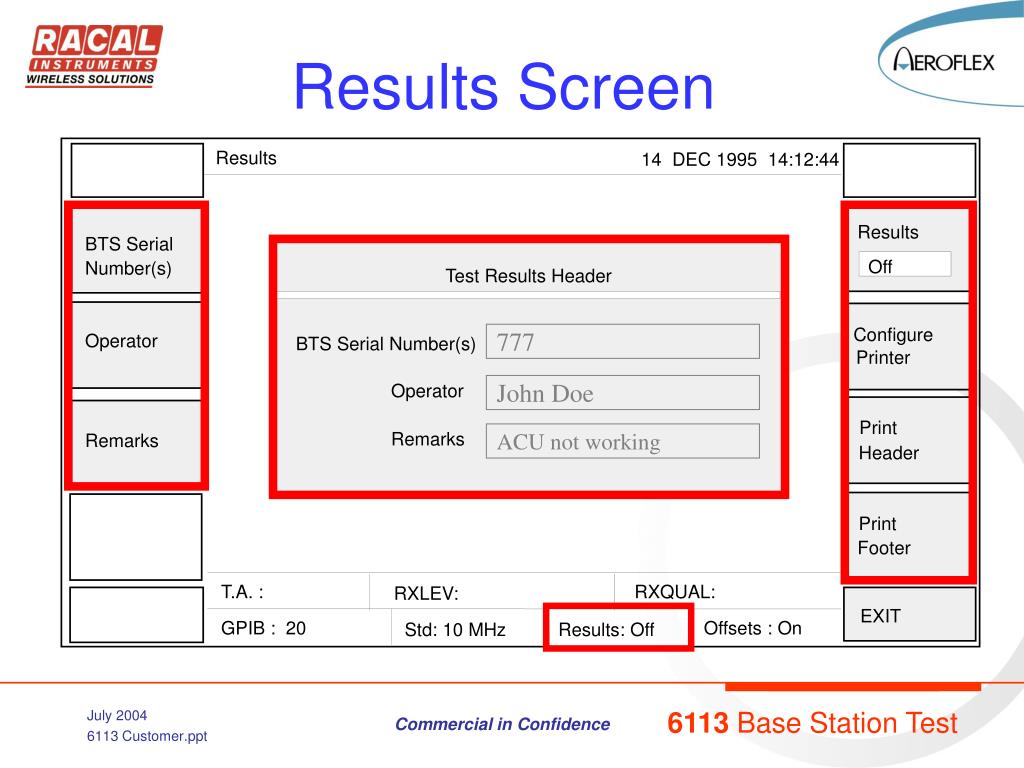

  25. Remarks T.A. : RXQUAL: RXLEV: GPIB : 20 Offsets : On Std: 10 MHz Results: Off Results Screen Results 14 DEC 1995 14:12:44 Results BTS Serial Off Number(s) Test Results Header Configure 777 Operator BTS Serial Number(s) Printer John Doe Operator Print ACU not working Remarks Header Print Footer EXIT

  26. A-bis Control Testing • Three Test Modes • Single Test Mode • Test Sequences • Multimode

  27. Single Test

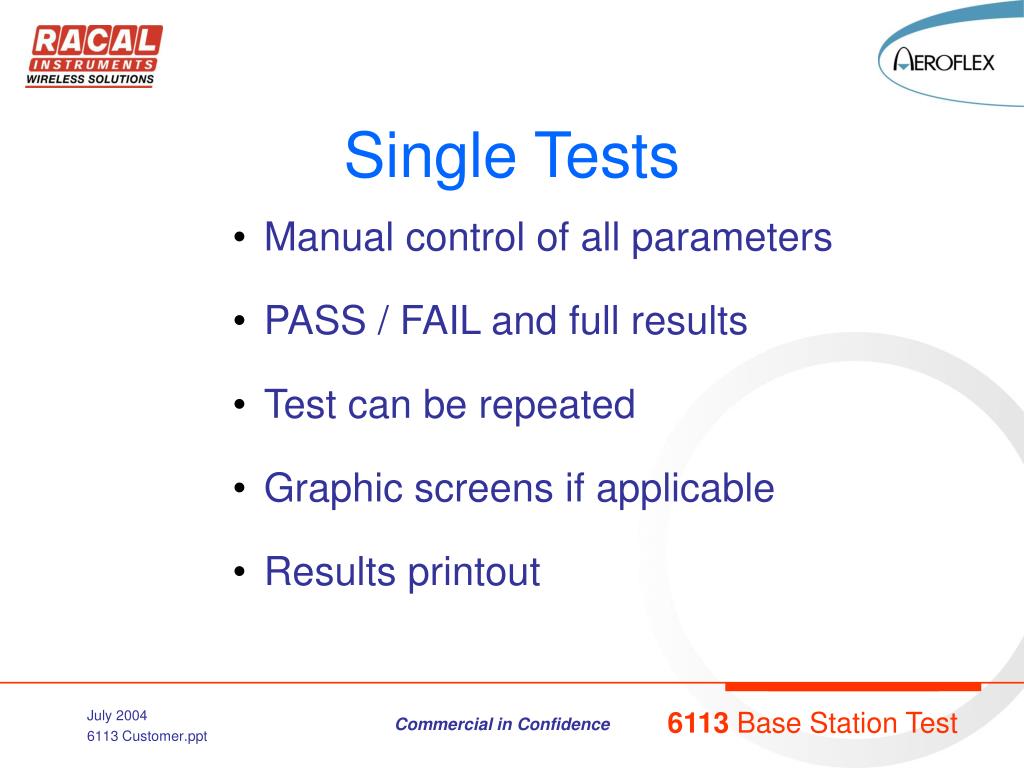

  28. Single Tests • Manual control of all parameters • PASS / FAIL and full results • Test can be repeated • Graphic screens if applicable • Results printout

  29. GSM - Transmitter Tests

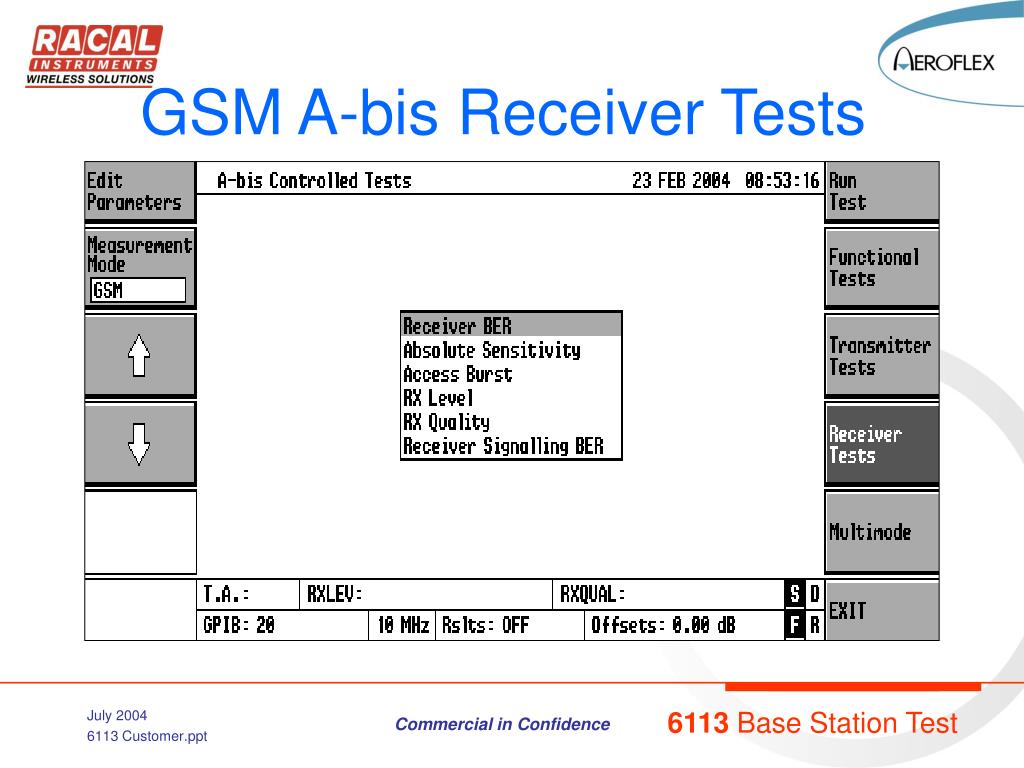

  30. GSM A-bis Receiver Tests

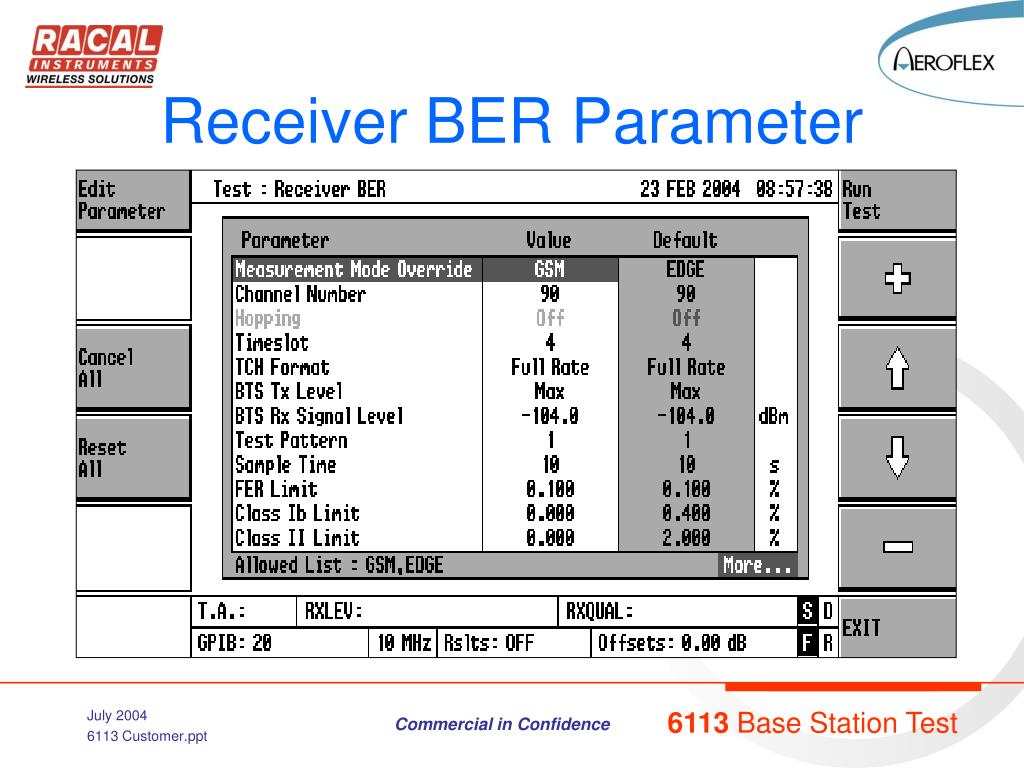

  31. Receiver BER Parameter

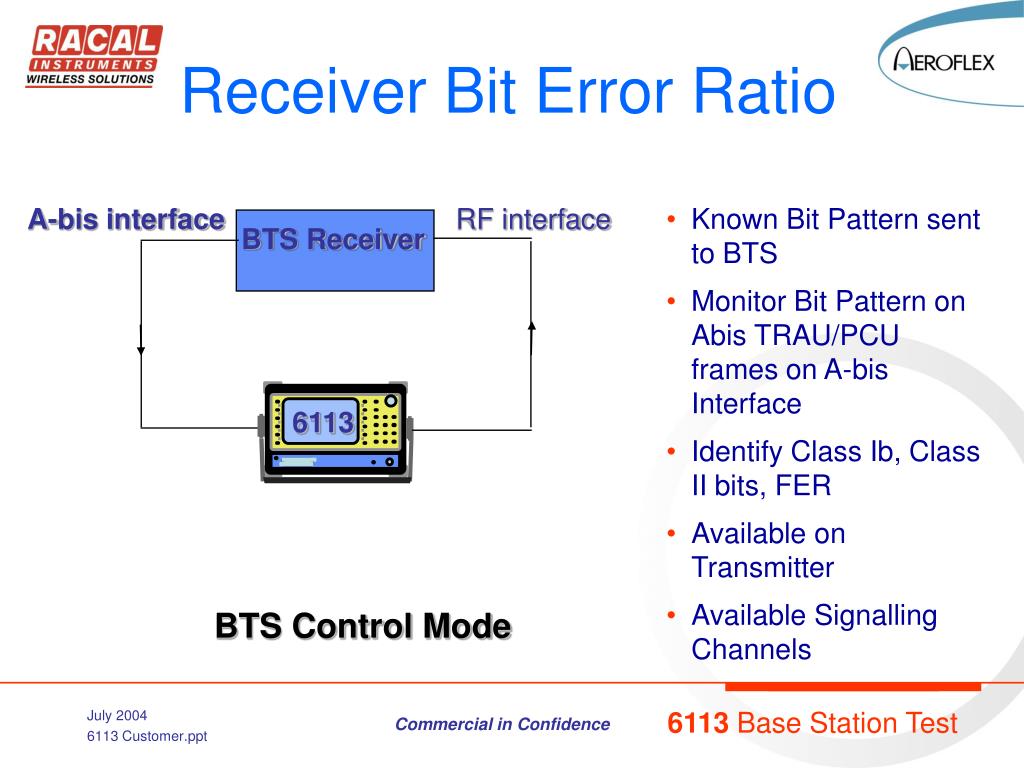

  32. 6113 Receiver Bit Error Ratio A-bis interface RF interface BTS Receiver • Known Bit Pattern sent to BTS • Monitor Bit Pattern on Abis TRAU/PCU frames on A-bis Interface • Identify Class Ib, Class II bits, FER • Available on Transmitter • Available Signalling Channels Receive Transmit BTS Control Mode

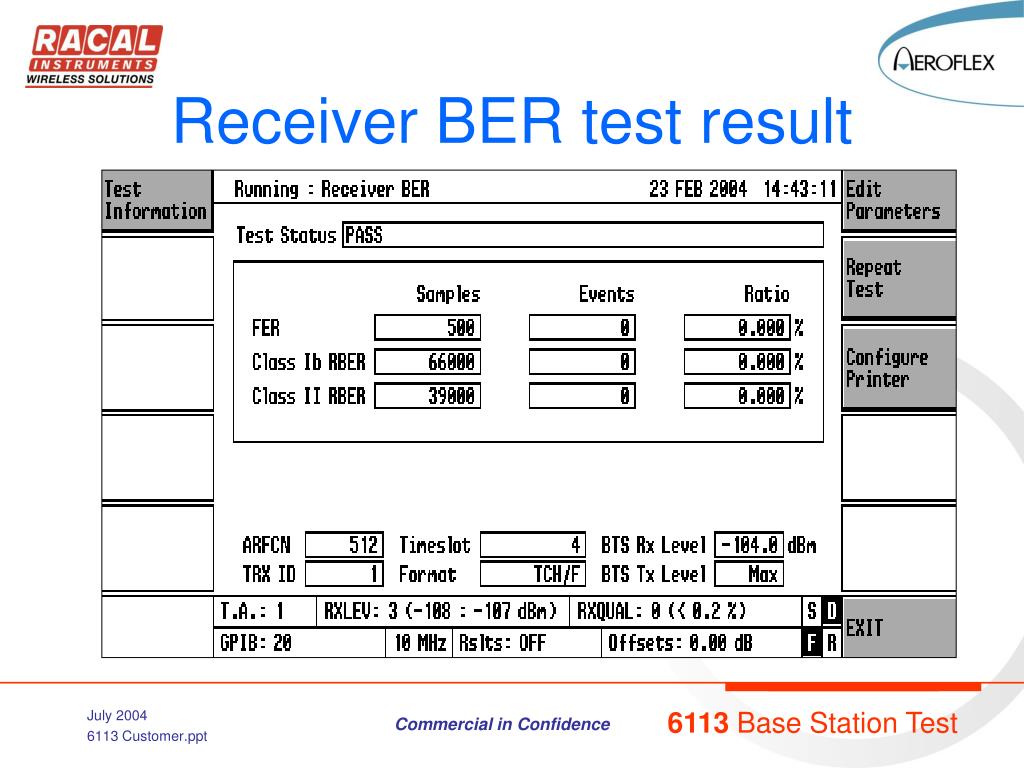

  33. Receiver BER test result

  34. Sequences

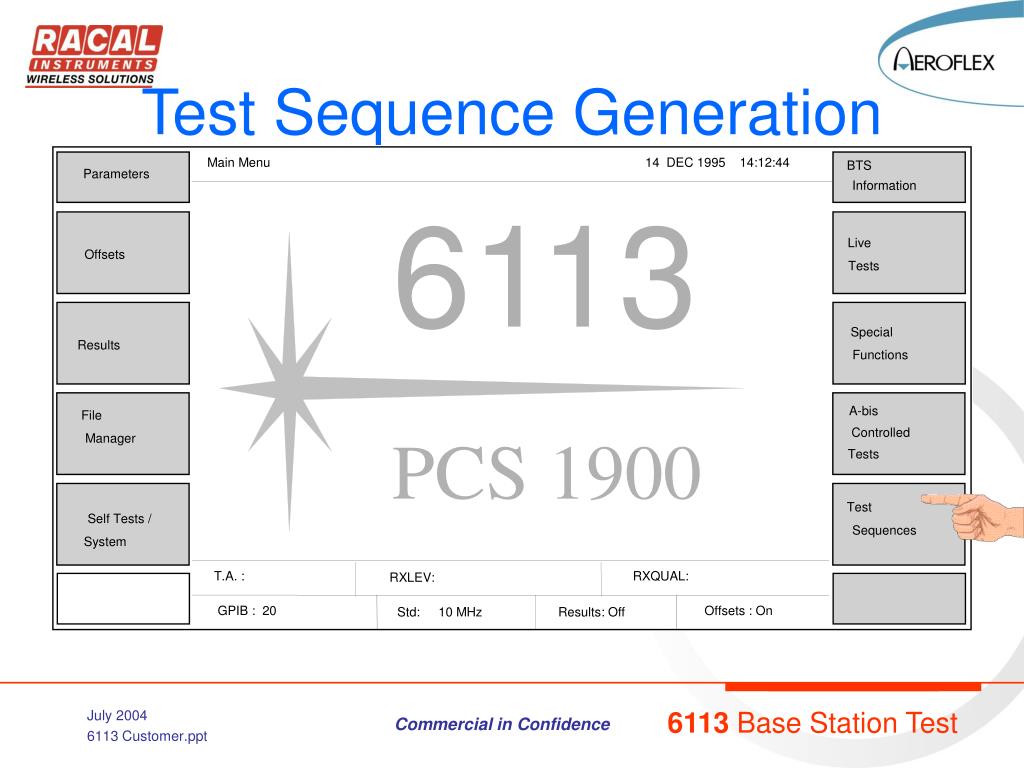

  35. T.A. : RXQUAL: RXLEV: GPIB : 20 Offsets : On Std: 10 MHz Results: Off Test Sequence Generation Main Menu 14 DEC 1995 14:12:44 BTS Parameters Information 6113 Live Offsets Tests Special Results Functions A-bis File PCS 1900 Controlled Manager Tests Test Self Tests / Sequences System

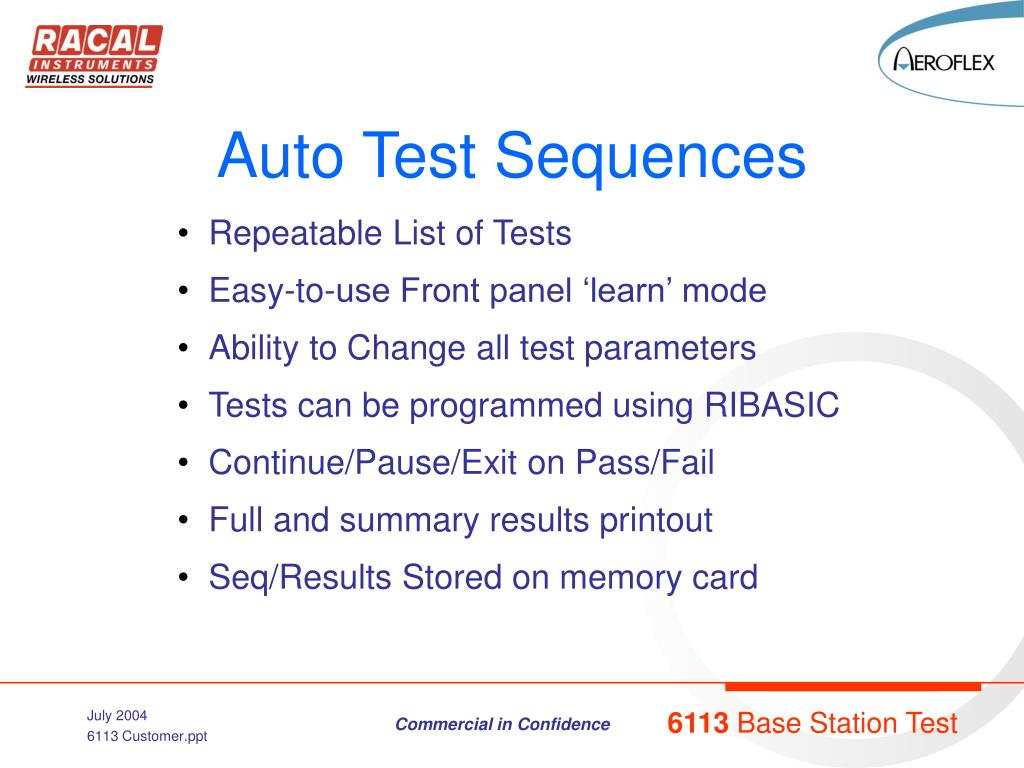

  36. Auto Test Sequences • Repeatable List of Tests • Easy-to-use Front panel ‘learn’ mode • Ability to Change all test parameters • Tests can be programmed using RIBASIC • Continue/Pause/Exit on Pass/Fail • Full and summary results printout • Seq/Results Stored on memory card

  37. Defining a sequence Select in order each test you want

  38. End of test action (each test)

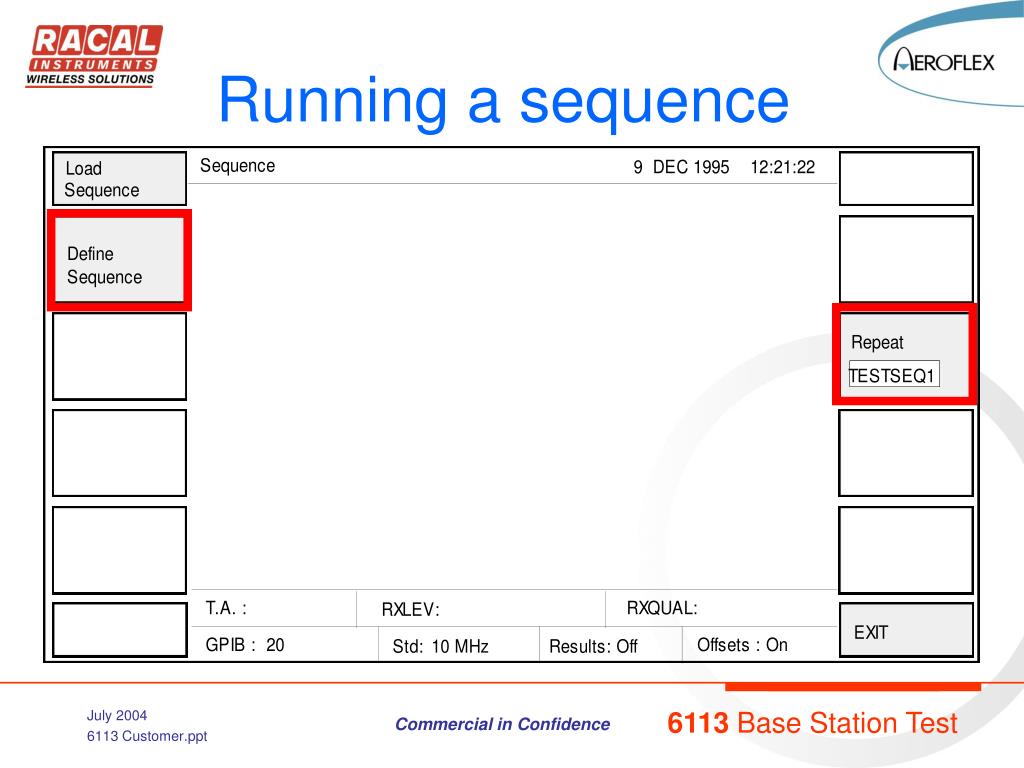

  39. Running a sequence

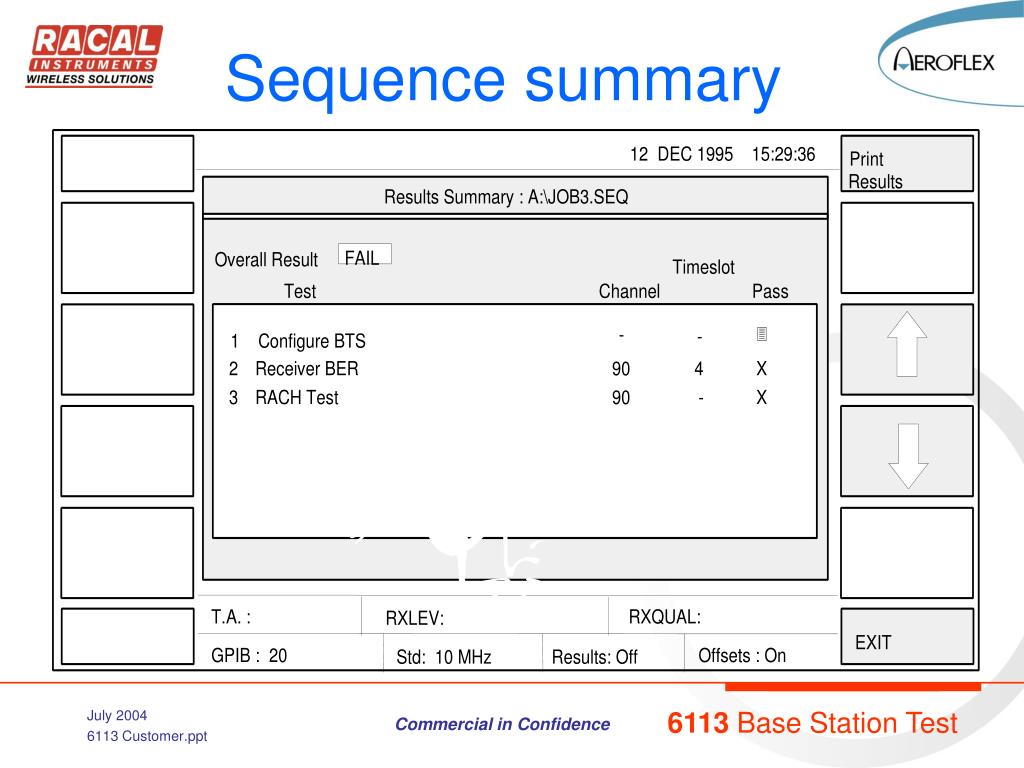

  40. Sequence summary

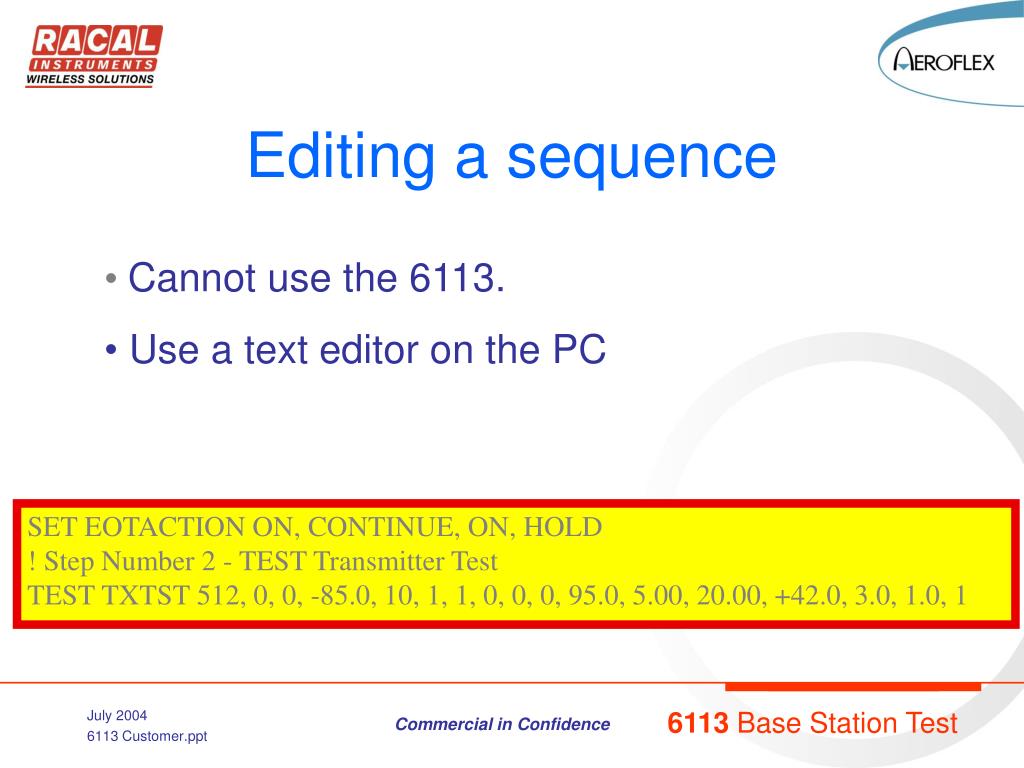

  41. Editing a sequence • Cannot use the 6113. • Use a text editor on the PC SET EOTACTION ON, CONTINUE, ON, HOLD ! Step Number 2 - TEST Transmitter Test TEST TXTST 512, 0, 0, -85.0, 10, 1, 1, 0, 0, 0, 95.0, 5.00, 20.00, +42.0, 3.0, 1.0, 1

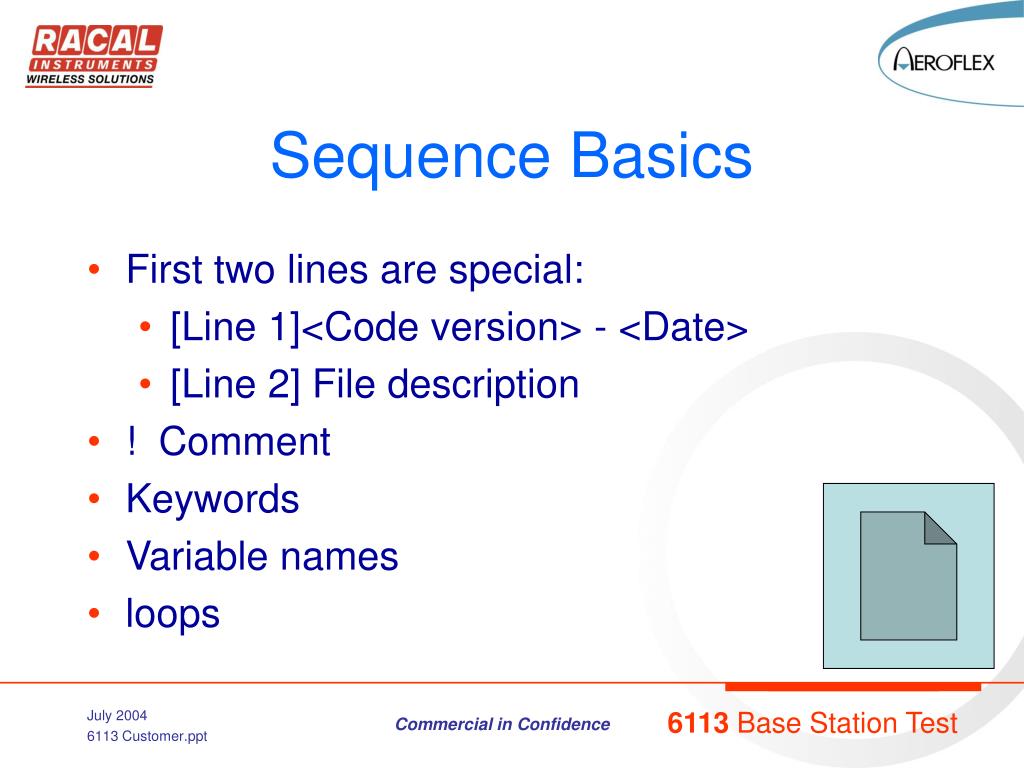

  42. Sequence Basics • First two lines are special: • [Line 1]<Code version> - <Date> • [Line 2] File description • ! Comment • Keywords • Variable names • loops

  43. Multimode

  44. Multimode • Continuous real time readings • Graphics for easy diagnosis • Simple/Dynamic control of settings • Out of limits readings highlighted • Intermittent Fault Finding • Fault Isolation

  45. Multimode Results • Pass/Fail • Samples/Events/Ratio for FER, Class lb and Class II. • Phase Error (graph) • Frequency Error • BTS Power • Power Profile (graph) • Modulation Spectrum (graph).

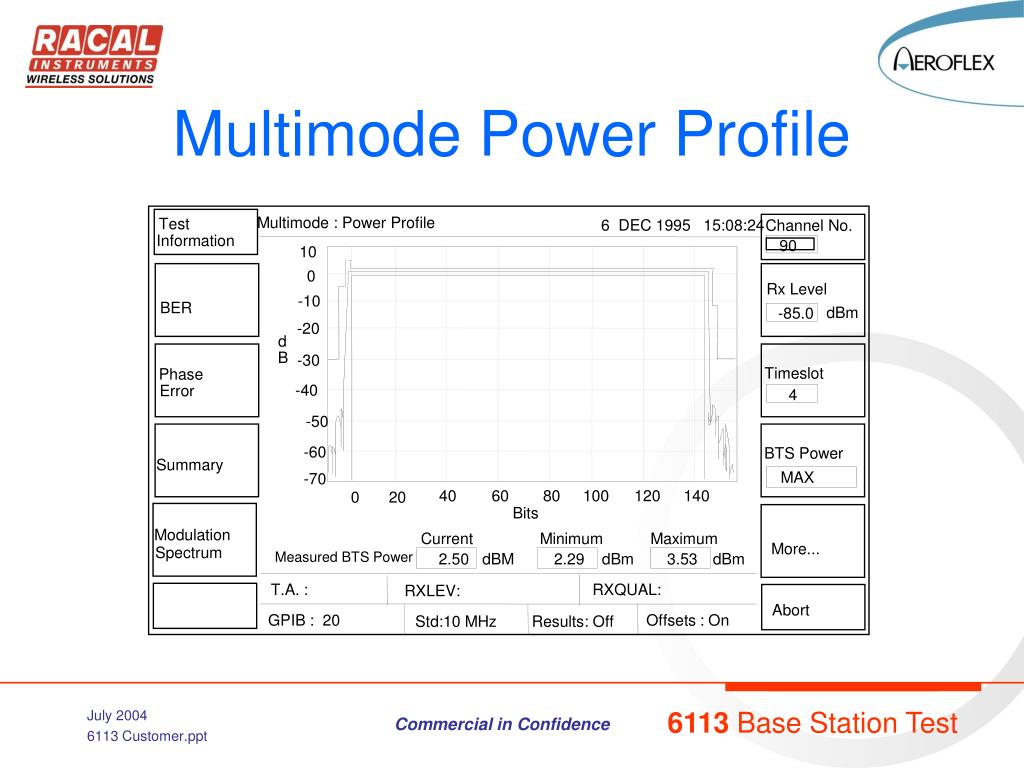

  46. Multimode : Power Profile Test 6 DEC 1995 15:08:24 Channel No. Information 90 10 0 Rx Level -10 BER dBm -85.0 -20 d B -30 Timeslot Phase -40 Error 4 -50 -60 BTS Power Summary MAX -70 40 60 80 100 120 140 0 20 Bits Modulation Current Minimum Maximum More... Spectrum Measured BTS Power 2.50 dBM 2.29 dBm 3.53 dBm T.A. : RXQUAL: RXLEV: Abort GPIB : 20 Offsets : On Std: 10 MHz Results: Off Multimode Power Profile

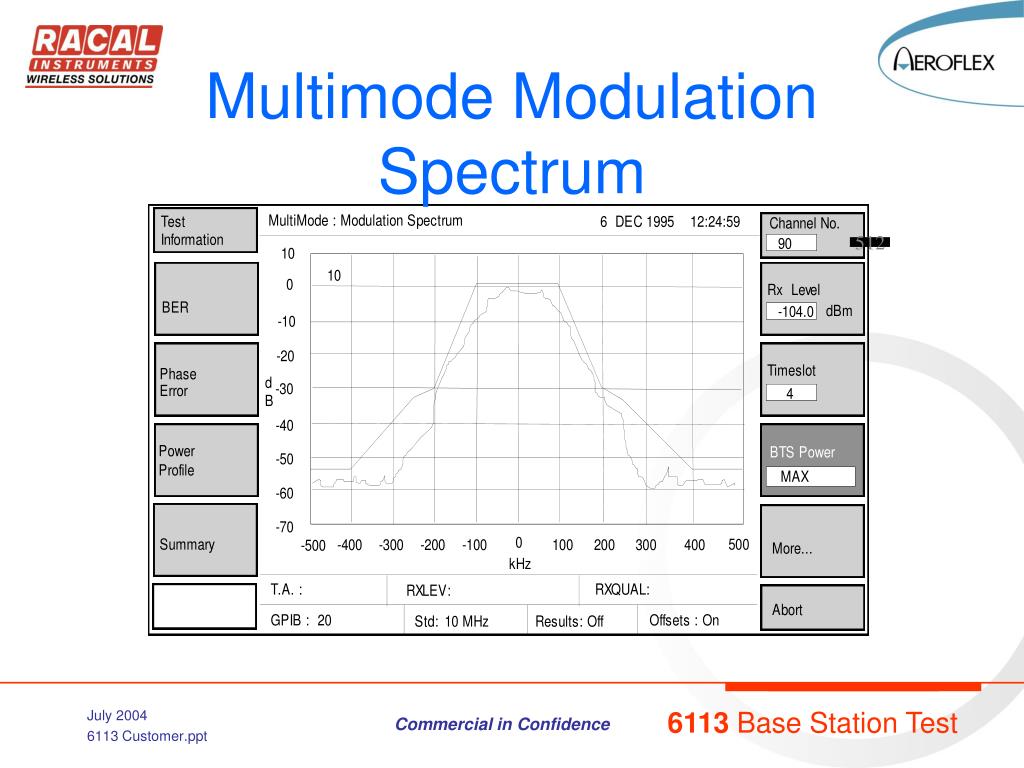

  47. Multimode Modulation Spectrum 512

  48. 6113 CITA

  49. What is CiTA? • Cell Integrity Test • Tests the whole cell – antennas as well as BTS RF performance • Used to assess the quality of the radio channel between a BTS and a mobile anywhere in the cell

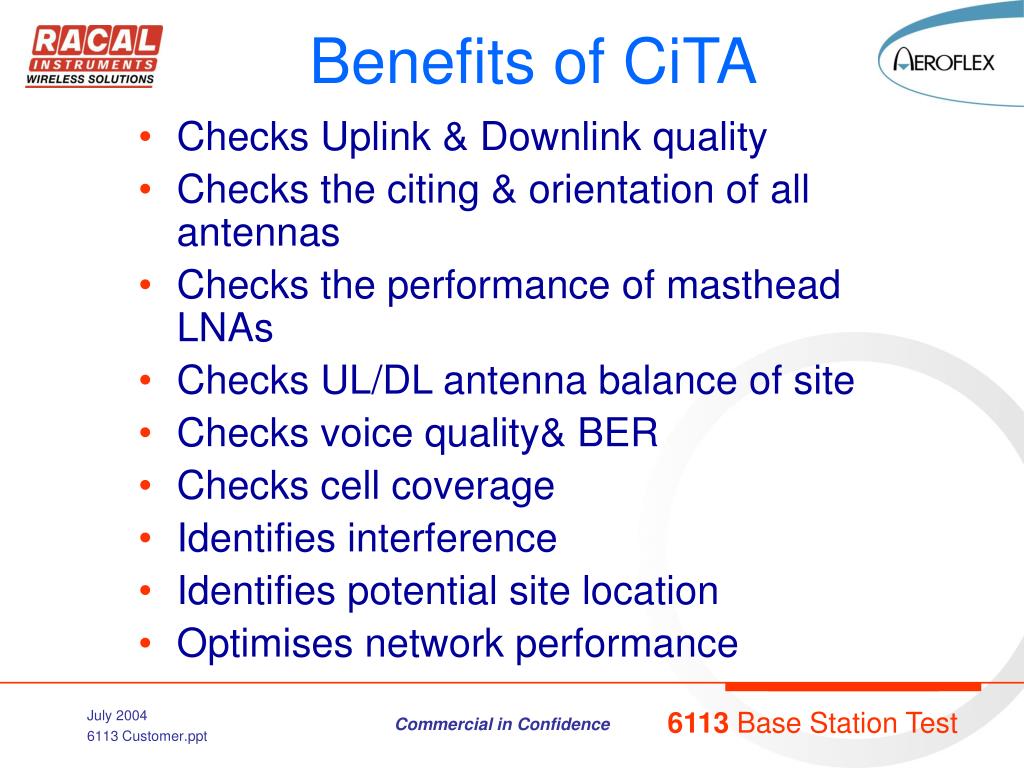

  50. Benefits of CiTA • Checks Uplink & Downlink quality • Checks the citing & orientation of all antennas • Checks the performance of masthead LNAs • Checks UL/DL antenna balance of site • Checks voice quality& BER • Checks cell coverage • Identifies interference • Identifies potential site location • Optimises network performance
