  1. ETX Product Presentation Shoval Bolotin Senior Product Line Manager Carrier Ethernet Access Solutions Shoval_b@rad.com

  2. Branch ETX 10BT Branch Branch Branch 10BT 100Fx/ GbE RIC-622 RIC Branch GbE EoPDH Branch RIC EoPDH Metro Ethernet 100BT LA EoSDH SDH STM-1/ OC-3 10BT RIC nxEoPDH Bonding GbE GbE RIC-622 GbE nxEoCU Bonding Egate Branch GbE DSLAM 10BT EoCU LA GbE Branch Leased E3/T3 EoPDH 100Fx Leased Ethernet 100BT RIC Branch 100Fx 100BT ETX RAD’s Ethernet Access Portfolio • Extending the reach of the provider’s network over a variety of access technologies • Consistent Ethernet service across different access technology Head Quarters Service Provider Packet Switched Network GbE 1000Sx ETX

  3. Product Introduction

  4. ETX Application and Product Definition ETX CPE EVC A • Clear demarcation between provider’s and Customer’s networks – quickly determine responsibility of service affecting problems • Operations Administration & Maintenance (OAM)Allow for end-to-end fault management and performance monitoring • Traffic management starting at customer premises • Service Level Agreement MonitoringCustomers demand proof of the SLA contract CPE ETX-A Customer Premises Operator B Operator A Customer Premises ETX CPE EVC B Customer Premises End-to-end OAM between demarcation points

  5. Supported Service Topologies:Network view • EPL and EPLAN are supported by current ETX products • EVPL and EVPLAN are supported with ETX A series

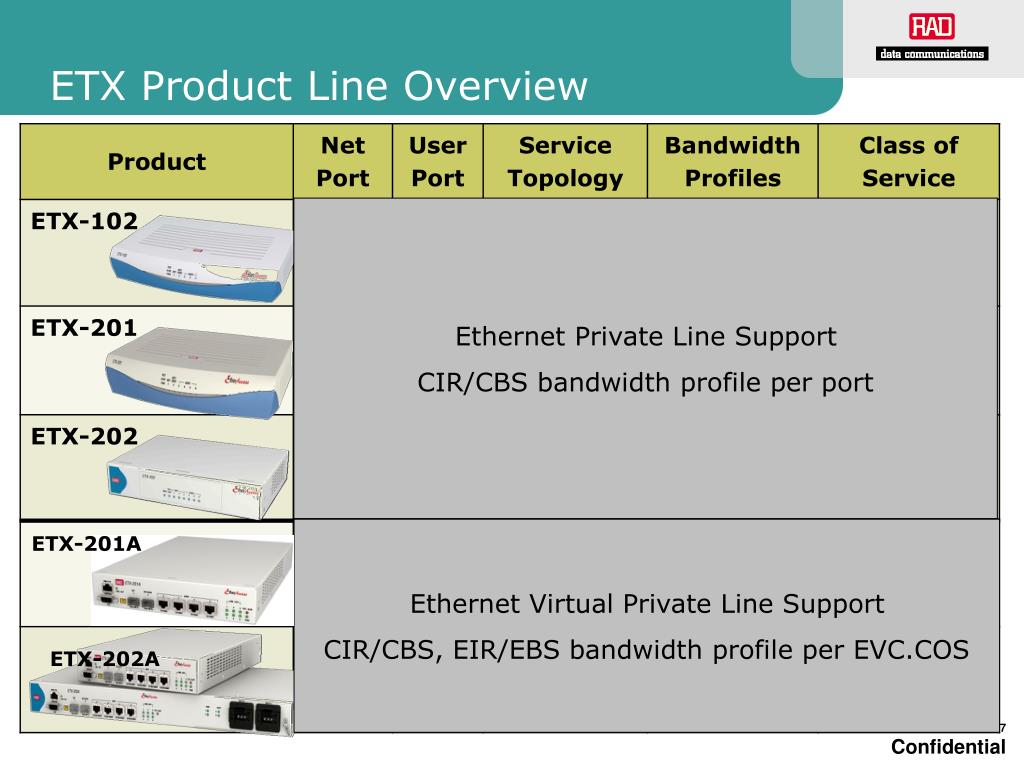

  6. ETX Product Line Overview Ethernet Private Line Support CIR/CBS bandwidth profile per port Ethernet Virtual Private Line Support CIR/CBS, EIR/EBS bandwidth profile per EVC.COS ETX-201A ETX-202A

  7. Ethernet NTU Description ETX-201A • Physical Description • Half 19” 1U • AC/DC Power Supply • 2-4 user interfaces • 2 network interfaces • Electrical • 10/100BaseT • 10/100/1000BaseT • All fiber interfaces – SFP based • MEF 9 & 14 Certified for EPL/EVPL • Temperature Hardened with dual power supply option Gigabit Ethernet Fast Ethernet CPE Ethernet 1 or 2 4 ETX-202A Gigabit Ethernet Gigabit Ethernet CPE Ethernet 1 or 2 4 ETX-102A* Fast Ethernet Fast Ethernet CPE Ethernet 1 or 2 4

  8. Product Physical Description • Compact 1U half 19” metal enclosure • Two network uplinks and single or quad user-port options • Dual use auto-detecting GE or FE SFP • Serial craft port or dedicated Ethernet port for management • Front panel LEDs: Power, Test/Alarm and Ethernet link per port • AC or wide range DC power supply • Wide range of SFP options

  9. Supported Services and Applications

  10. ETX SLA Support The ETX can provision up to 30 EVC with up to 240 bandwidth profiles and 48 SLA instances

  11. Supported Service Topologies:Network view • EPL and EPLAN are supported by current ETX products • EVPL and EVPLAN are supported with ETX A series

  12. 4 Mbps VoIP 16 Mbps Premium data VoIP 4 Mbps Best Effort data 16 Mbps Premium data Best Effort data Supported Service Topologies: NTU view Port based service: Different user ports Customer Premises POP ETX-550/or 3rd party PSN Eth/IP/MPLS ETX- series GE Edge Device E-NTU Ethernet Aggregator Flow based service; MEF: ‘Service multiplexing‘ Same user port Different flows (e.g VLAN) Customer Premises POP ETX-550/or 3rd party PSN Eth/IP/MPLS ETX-A series GE Edge Device E-NTU Ethernet Aggregator

  13. Service Delivery Tools

  14. Ethernet Forwarding Model • Classification - flow is created according to VLAN/pbit/TOS/DSCP/Port • Policing per flow - 2 rate 3 color policer is assigned to the flow • Mapping flows to classes of service – service differentiation • SPVLAN manipulation – Identifies flow and CoS in the network • Scheduling - Strict priority and WFQ combinations • Shaping – Conforms egress traffic to specific rate Forwarding model is not based on bridging but rather on flow assignment (e.g. VLAN xconnect) Bridge will be available in v2.0

  15. Ethernet Forwarding Model II • Flow based forwarding of traffic per service identifier: • CVLAN ID • CVLAN Pbit • Customer DSCP/TOS • Subscriber port • Treatment of control protocols • Peer, Tunnel, Discard • Traffic can be tagged, double tagged or untouched per flow • Marking of pbit on SP tag can preserve CVLAN pbit (copy function) or edit new value • Support of 30 EVC per unit and up to 240 traffic profiles instances (64 distinct profiles)

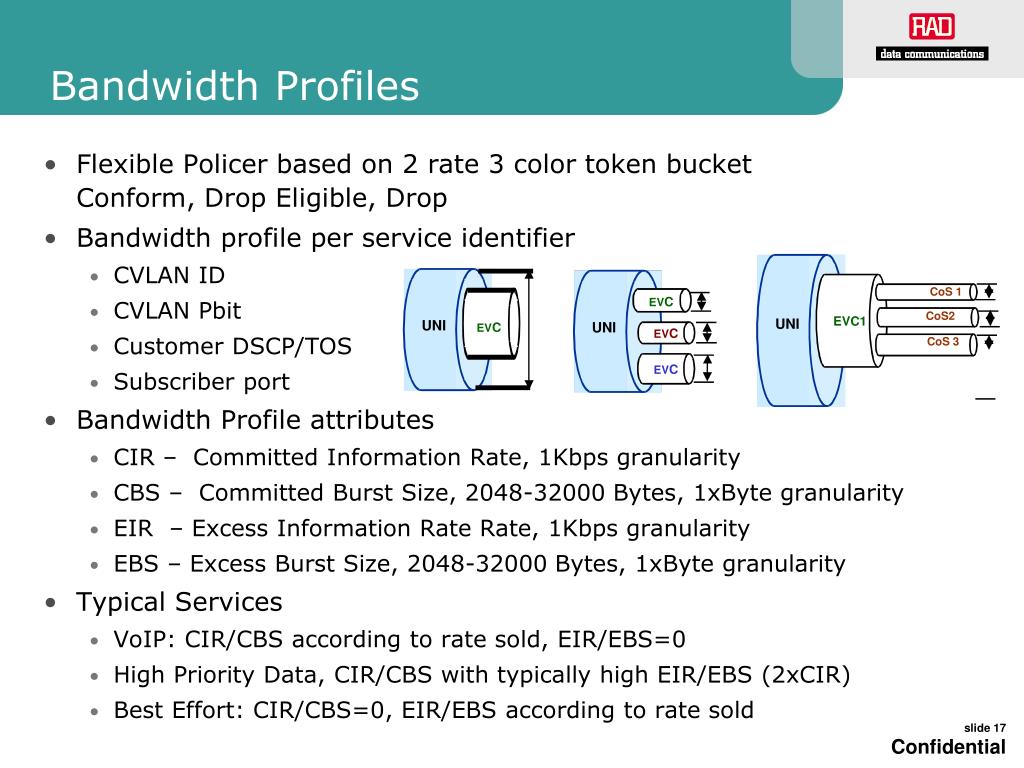

  16. Bandwidth Profiles • Flexible Policer based on 2 rate 3 color token bucket Conform, Drop Eligible, Drop • Bandwidth profile per service identifier • CVLAN ID • CVLAN Pbit • Customer DSCP/TOS • Subscriber port • Bandwidth Profile attributes • CIR – Committed Information Rate, 1Kbps granularity • CBS – Committed Burst Size, 2048-32000 Bytes, 1xByte granularity • EIR – Excess Information Rate Rate, 1Kbps granularity • EBS – Excess Burst Size, 2048-32000 Bytes, 1xByte granularity • Typical Services • VoIP: CIR/CBS according to rate sold, EIR/EBS=0 • High Priority Data, CIR/CBS with typically high EIR/EBS (2xCIR) • Best Effort: CIR/CBS=0, EIR/EBS according to rate sold CoS 1 EVC CoS2 CoS 4 EVC1 UNI UNI UNI EVC EVC CoS 3 EVC

  17. Quality of Service • Class of service management: • Traffic can mapped to eight queues for eight classes of service • Strict priority for low delay low jitter applications such as VoIP • WFQ scheduling for Improving fairness for non critical traffic • Combination of WFQ and Strict Priority • Shaping • Smoothes egress traffic from network port • Based on leaky bucket algorithm with CIR parameter • Queuing • Flexible Combination of WFQ and Strict Priority • Per queue WFQ configurable weight from 1 to 32 • Per queue configurable length 64-32,000 bytes, 1xbyte granularity • Congestion treatment • WRED – Congestion avoidance RT, VoIP service Q1 Strict Priority Q2 Q3 Data Services Q4 WFQ Q5 Q6 Q7 Q8

  18. PSN PSN Resiliency – Link Protection • Link Aggregation (802.3ad) based • Both uplink redundant ports connected to a single upstream device • Both uplinks are considered as a single logical entity • Dual homing • Uplink redundant ports are connected to two different upstream devices • Network switch over is performed by control protocol such as STP (Ethernet) or RSVP-TE (VPLS/MPLS) Single homing Gigabit Ethernet CPE 1 or 4 Dual homing • Switch criteria: • Loss Of Signal (LOS) indication • Manual Gigabit Ethernet CPE 1 or 4

  19. Service Delivery Topologies

  20. Topology/Connectivity Options (1) PtP connection, Single service EVC – Single customer VoIP VoIP EVC1 EVC2 EVC3 NTU NTU Premium Data Premium Data UNI UNI MAN BE Data BE Data • EVC connecting each 2 sites; different EVC per service • Mapping different service to different EVC • Scalability issue • Complexity – operational cost • Muti Fault and PM OAM sessions – per each EVC

  21. Topology/Connectivity Options (2) PtP connection, Multi service per EVC VoIP VoIP EVC1 (EVC1.CoS1/2/3) NTU NTU Premium Data Premium Data UNI UNI MAN BE Data BE Data • EVC connecting each 2 sites; services differentiated by S-Pbits (EVC.CoS) • Requires some mapping function between Customer priority marking to S-Pbit • More scaleable • Single Fault detection OAM session, mutiple PM OAM sessions

  22. Topology/Connectivity Options (3) PtMP Connection, Single service per EVC NTU A VoIP Premium Data BE Data UNI VoIP EVC1, EVC2, EVC3 NTU Premium Data UNI MAN EVC4, EVC5, EVC6 BE Data NTU B VoIP Premium Data BE Data UNI • Each site is connected to the central site with different EVC. • Requires specific mapping criteria for each EVC. • Present Scalability issues OAM scalability (requires MEP ID)

  23. Topology/Connectivity Options (4) PtMP Connection, Multi service per EVC NTU A VoIP Premium Data BE Data UNI VoIP EVC1 (EVC1.Cos1/2/3) NTU Premium Data UNI MAN EVC1 (EVC1.Cos1/2/3) BE Data NTU B VoIP Premium Data BE Data UNI • EVC connecting multiple sites; services differentiated by S-Pbits (EVC.CoS) Requires forwarding function in the PE to determine where each EVC1 frame should be sent to • Requires some mapping function between Customer priority marking to S-Pbit

  24. Ethernet OAM & Diagnostics

  25. ETX Ethernet OAM Tools - Summary * Feature or part of feature is available in upcoming releases

  26. Standards:Operations Admin. & Maintenance 802.3ah (Access Link ME) A summary of available Ethernet OAM Mechanisms CPE E-NTU E-NTU CPE Operator B Operator A Customer Premises Customer Premises 802.1ag/ Y.1731 (UNI-N to UNI-N ME) * Pre-standard support does not provide interoperability with other vendors.

  27. Access Link OAM:Standard IEEE 802.3ah 802.3ah (Access Link ME) • ETX Support Passive mode designed for network termination • Auto Discovery - Discovers if next hop supports 802.3ah • Loopback - Remote layer 1 loopback of all traffic Excludes 802.3ah OAM messages from loopback • MIB retrieval - No IP needed to get MIB parameters • Remote failure indication • Link Fault upon discovery of disconnect, log alarm, send trap • Dying Gasp: Upon a power failure 802.3ah dying gasp message. Additionally, SNMP trap is sent. CPE ETX ETX CPE Operator B Operator A Customer Premises Customer Premises

  28. Fault Propagation Network port failure Failure propagated to user port • ‘Link down’ status on the Network port causes ‘link down’ status on the user port. • In case of multiple user ports cause ‘link down’ status on all user ports or part of them according to parameter • ‘Wait to restore’ parameter - defines the time between network port becoming ‘up’ and restoring user port link up CPE Switches to alternative path Packet Switched Network Eth/IP/MPLS CPE E-NTU X X

  29. Diagnostic Loopbacks • Layer 1 Loopback – ETX loopbacks traffic from Rx to Tx • Out of service – disrupts service • Cannot traverse Ethernet bridge • Supported on any ETX port • Performed on all traffic of the ETX port • Loopback activation is via management not OAM protocol • Layer 2 Loopback – ETX loopbacks traffic and swaps MAC Addresses • ETX replaces Source Address with Destination Address • Can traverse Ethernet bridges • Performed per VLAN (or EVC) Tester No Layer L2 Loopback ETX Tester With Layer L2 Loopback

  30. Performance Monitoring

  31. Management & Security

  32. Management • Remote management • In-band management, SNMP based • Dedicated VLAN • Management traffic can be blocked from user port • Management applications • RADView Lite • Telnet, Web browser • Local management via craft port (RS-232)*and/ or Ethernet out of band port. • Optional use of DHCP to automatically obtain IP address and default gateway • Remote software and configuration download • All local configurations can also be done remotely • Full SNMPv3 agent

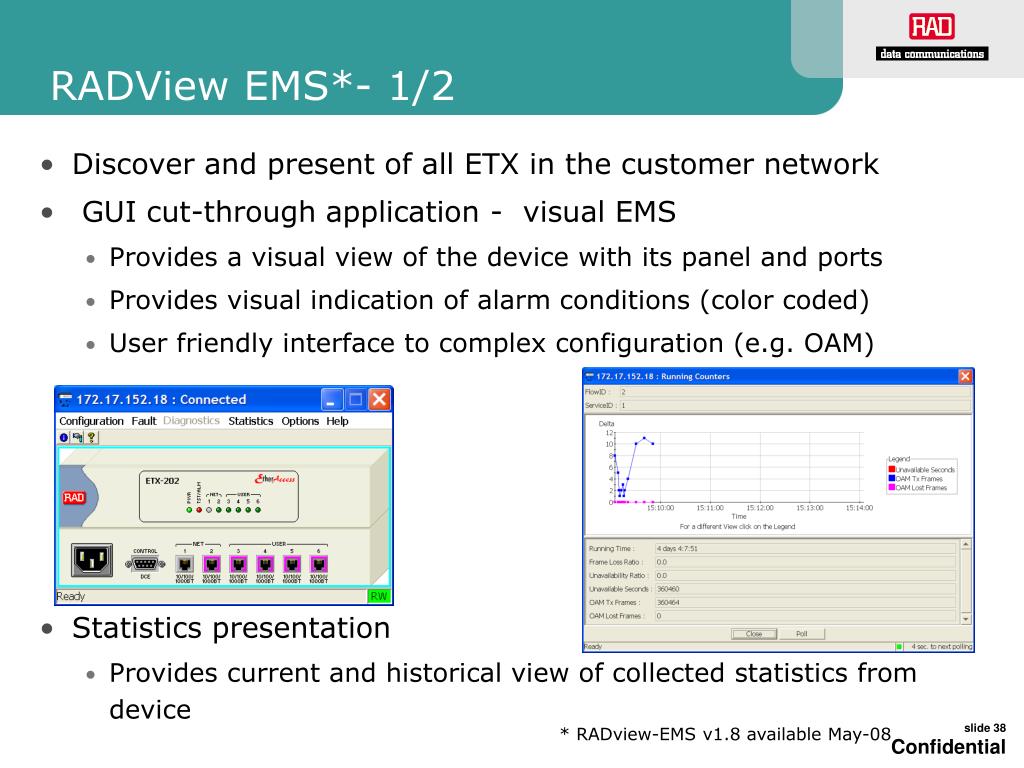

  33. RADView EMS*- 1/2 • Discover and present of all ETX in the customer network • GUI cut-through application - visual EMS • Provides a visual view of the device with its panel and ports • Provides visual indication of alarm conditions (color coded) • User friendly interface to complex configuration (e.g. OAM) • Statistics presentation • Provides current and historical view of collected statistics from device * RADview-EMS v1.8 available May-08

  34. RADView EMS* – 2/2 • Alarm Management • De-duplication – create a single alarm from multiple alarms • Alarm threshold – create new alarms from alarm conditions • Automatic clearing of alarms – Show only active alarms • Forwarding of alarms to pre-configured 3rd party OSS/NMS • Security management • Create profiles with allowed actions and associated users • Associate permitted actions to each profile • Statistics Collection – TFTP • Efficient collection of device statistics into CSV file format • Easily integrates into customer existing NMS • Northbound CORBA interface * RADview-EMS v1.8 available May-08

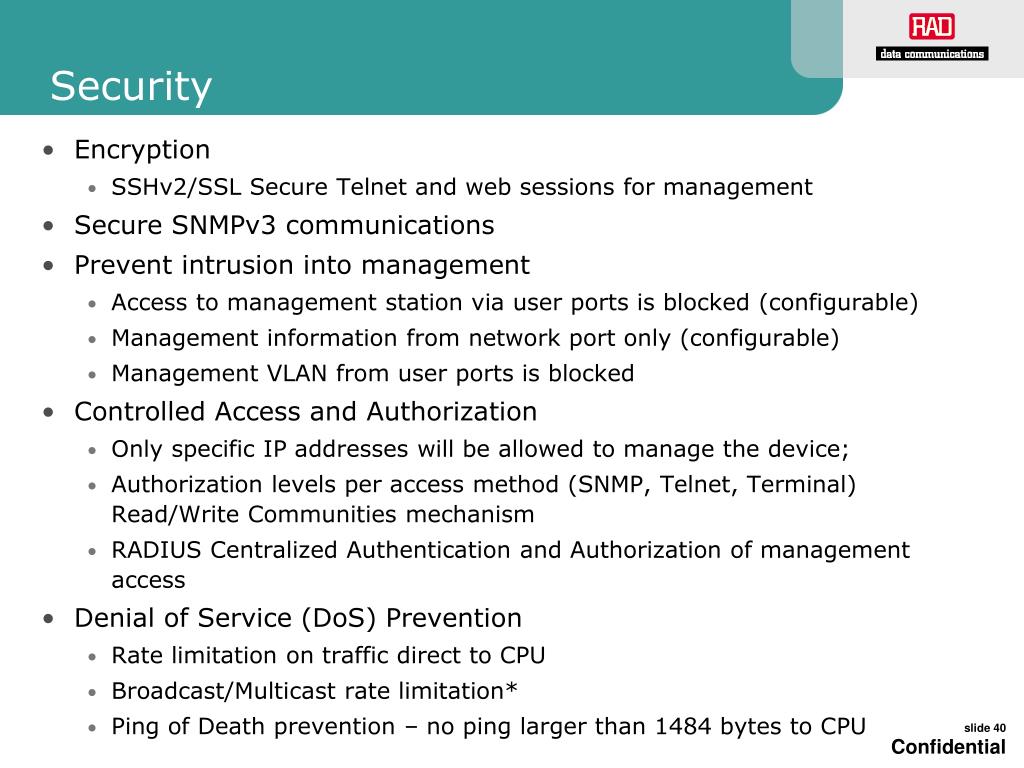

  35. Security • Encryption • SSHv2/SSL Secure Telnet and web sessions for management • Secure SNMPv3 communications • Prevent intrusion into management • Access to management station via user ports is blocked (configurable) • Management information from network port only (configurable) • Management VLAN from user ports is blocked • Controlled Access and Authorization • Only specific IP addresses will be allowed to manage the device; • Authorization levels per access method (SNMP, Telnet, Terminal) Read/Write Communities mechanism • RADIUS Centralized Authentication and Authorization of management access • Denial of Service (DoS) Prevention • Rate limitation on traffic direct to CPU • Broadcast/Multicast rate limitation* • Ping of Death prevention – no ping larger than 1484 bytes to CPU

  36. Summary • Match the optimal Ethernet NTU for the service requirements: ETX for EPL or ETX-A for EVPL • Offer profitable EVC based service and not just port based service • Increase revenue by offering available bandwidth with EIR/EBS traffic profiles • Reduce OpEx with a complete OAM package with standard 802.3ah and pre-standard 802.1ag and Y.1731 • Be competitive by offering SLA reports to your end-customers

  37. ETX-202A Available Configurations By default unit ships with a wide range 110-240 AC power supply, WRDC is optional Temp. Hardened unit (-30 to 65 Celsius) is available in full 19” with dual DC power supplies

  38. Thank you www.rad.com
