  1. Lecture 21XML, SOAP, LDAP CPE 401 / 601Computer Network Systems slides are modified from Dave Hollinger

  2. XML:Extensible Markup Language • Markup Language. • HTML is also a markup language • but it's not extensible! • XML allows you to make up your own tags. • Document Type Definition • Schema XML

  3. Sample XML <?xml version="1.0"?> <student> <rid>660012345</rid> <first>Joe</first> <middle>X.</middle> <last>Smith</last> <courses semester="fall02"> <course> <name>Exploiting the Information World</name> <crn>12345</crn> <num>ITEC-2110</num> </course> </courses> <address>123 main street</address> <phone>555-2929</phone> </student> XML

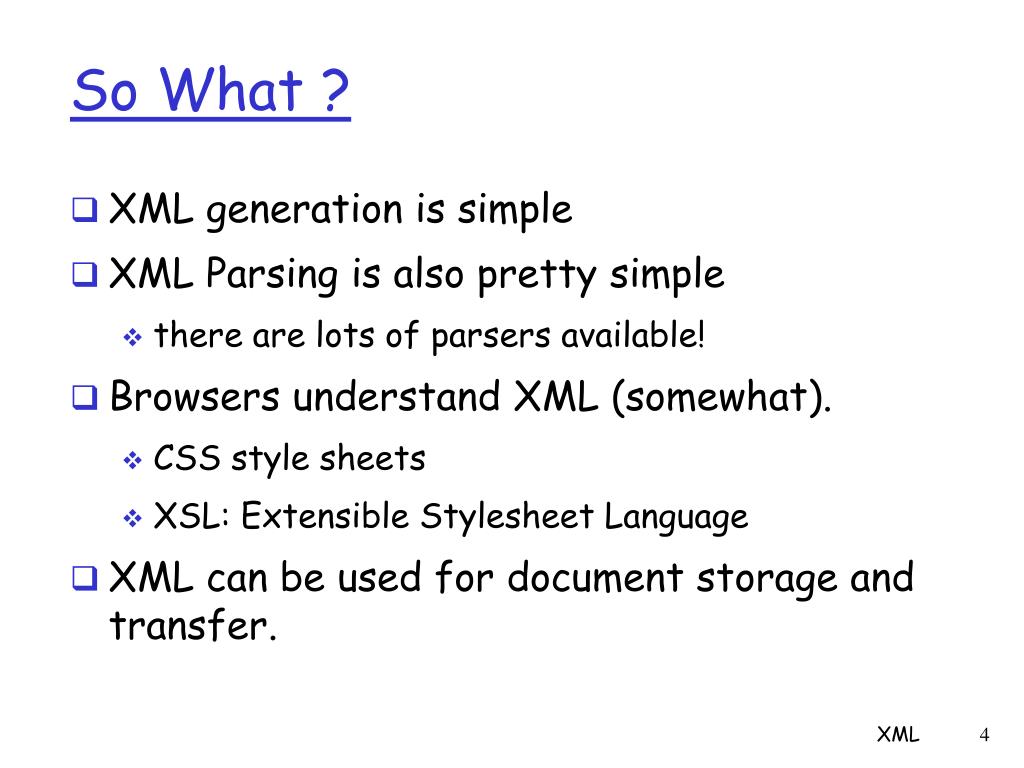

  4. So What ? • XML generation is simple • XML Parsing is also pretty simple • there are lots of parsers available! • Browsers understand XML (somewhat). • CSS style sheets • XSL: Extensible Stylesheet Language • XML can be used for document storage and transfer. XML

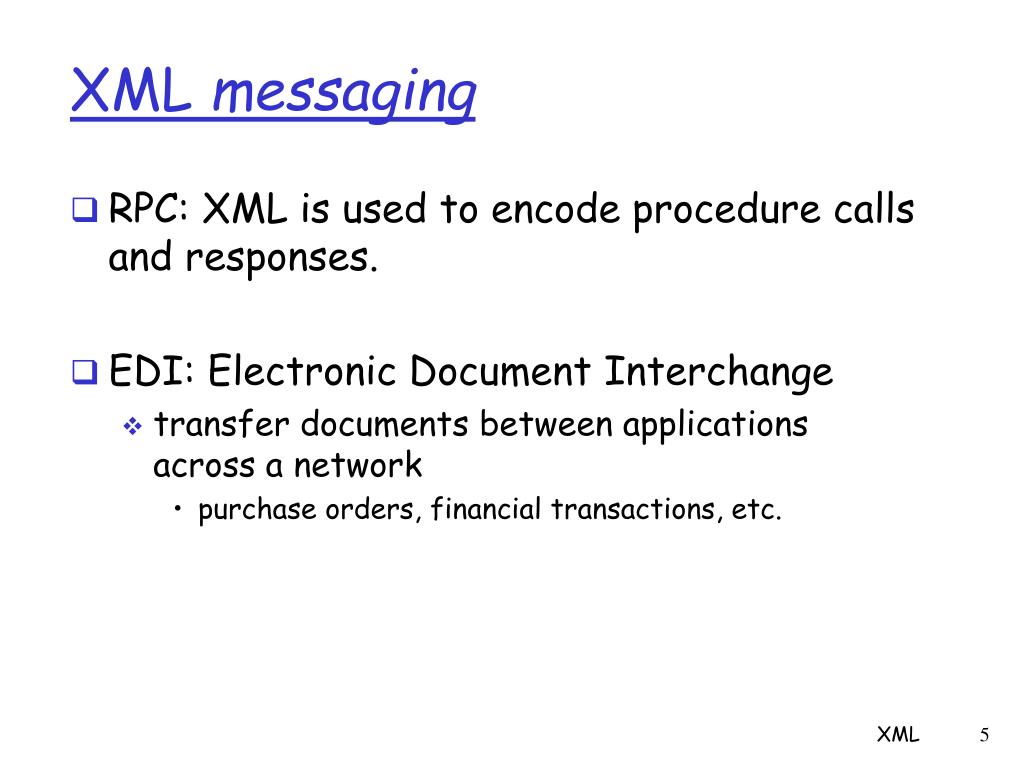

  5. XML messaging • RPC: XML is used to encode procedure calls and responses. • EDI: Electronic Document Interchange • transfer documents between applications across a network • purchase orders, financial transactions, etc. XML

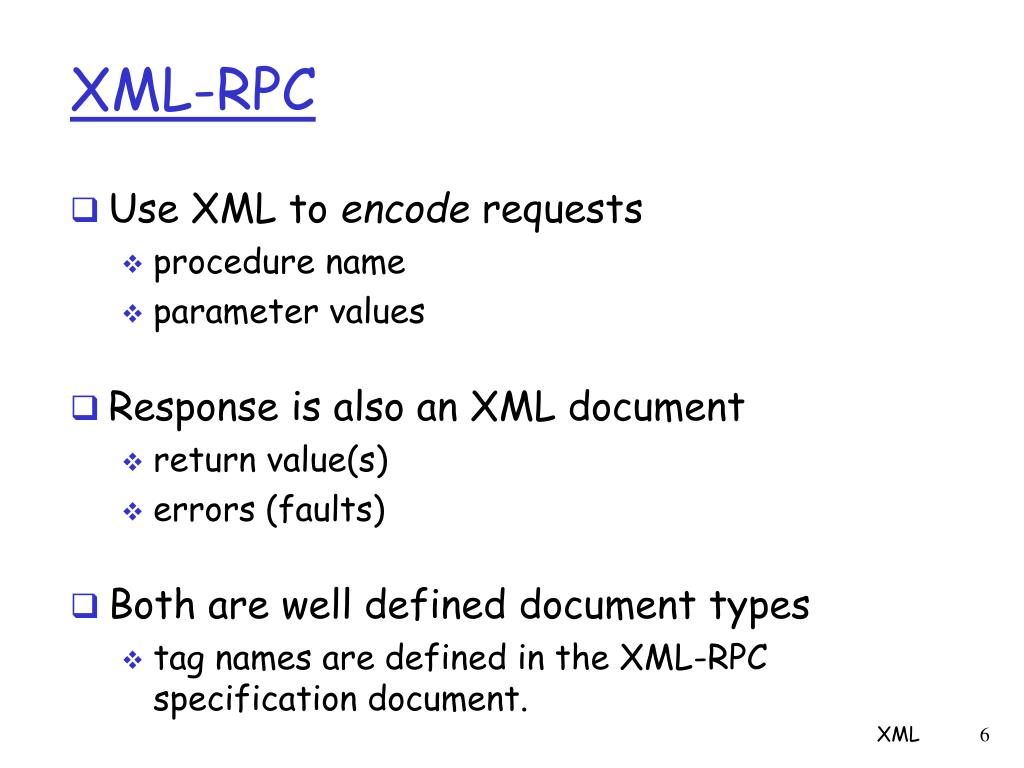

  6. XML-RPC • Use XML to encode requests • procedure name • parameter values • Response is also an XML document • return value(s) • errors (faults) • Both are well defined document types • tag names are defined in the XML-RPC specification document. XML

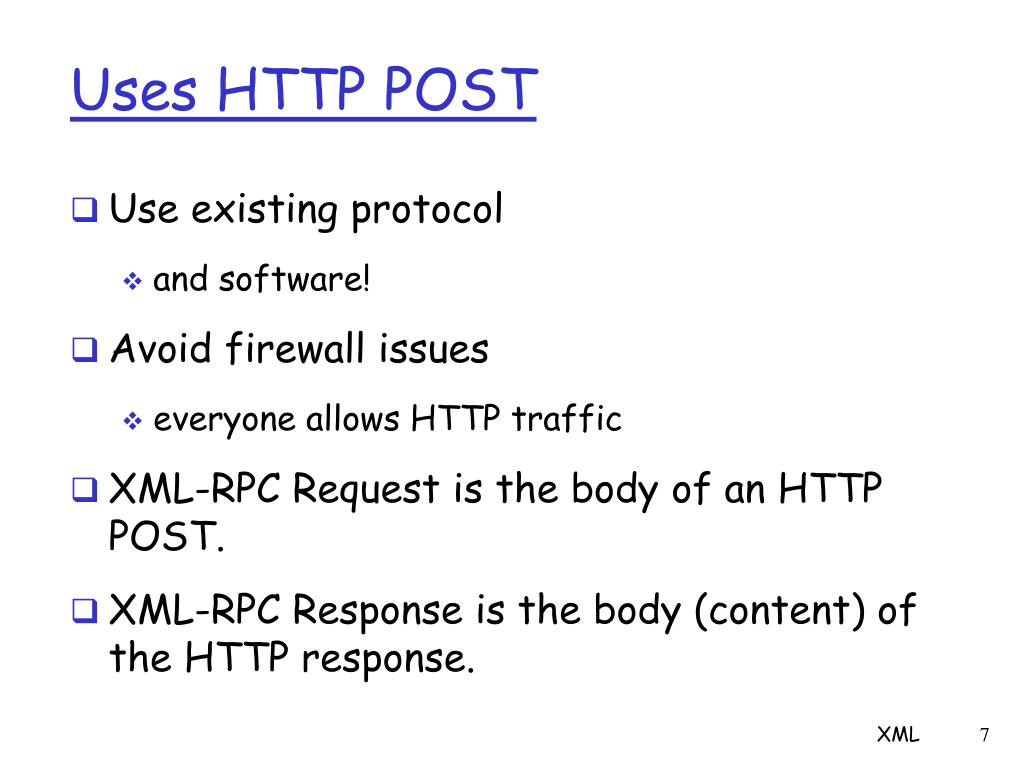

  7. Uses HTTP POST • Use existing protocol • and software! • Avoid firewall issues • everyone allows HTTP traffic • XML-RPC Request is the body of an HTTP POST. • XML-RPC Response is the body (content) of the HTTP response. XML

  8. Example Request(swiped from xml-rpc.com) POST /RPC2 HTTP/1.0 Host: betty.userland.com User-Agent: Frontier/5.1.2 (WinNT) Content-Type: text/xml Content-length: 181 <?xml version="1.0"?> <methodCall> <methodName>examples.getStateName</methodName> <params> <param> <value><i4>41</i4></value> </param> </params> </methodCall> XML

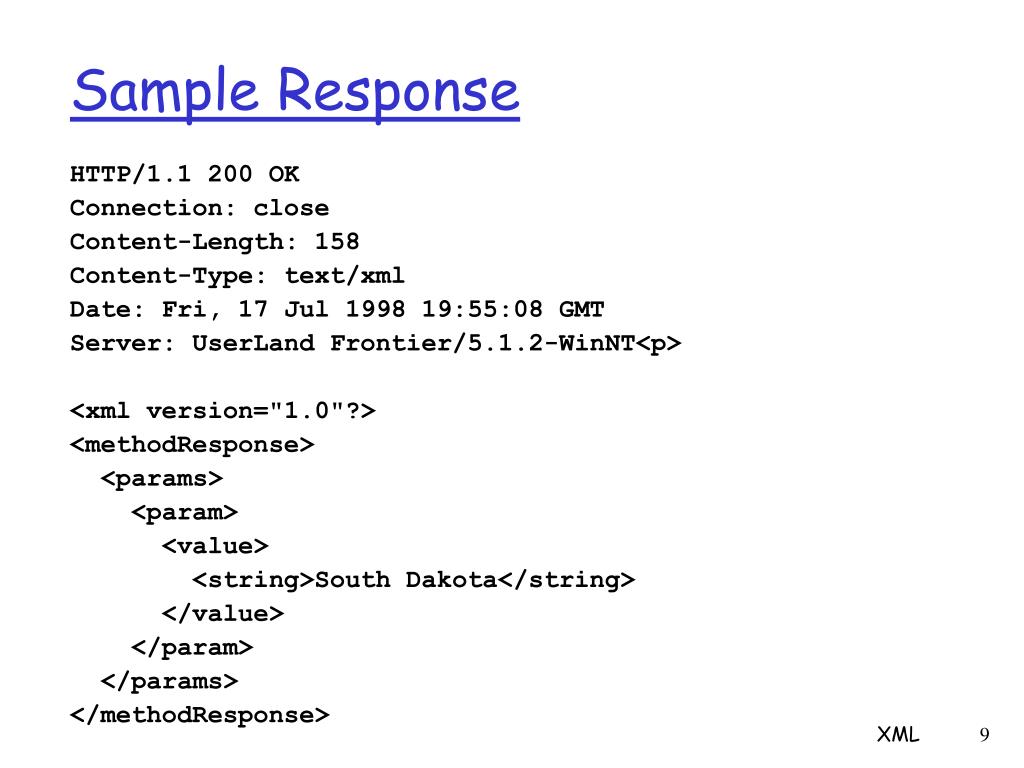

  9. Sample Response HTTP/1.1 200 OK Connection: close Content-Length: 158 Content-Type: text/xml Date: Fri, 17 Jul 1998 19:55:08 GMT Server: UserLand Frontier/5.1.2-WinNT<p> <xml version="1.0"?> <methodResponse> <params> <param> <value> <string>South Dakota</string> </value> </param> </params> </methodResponse> XML

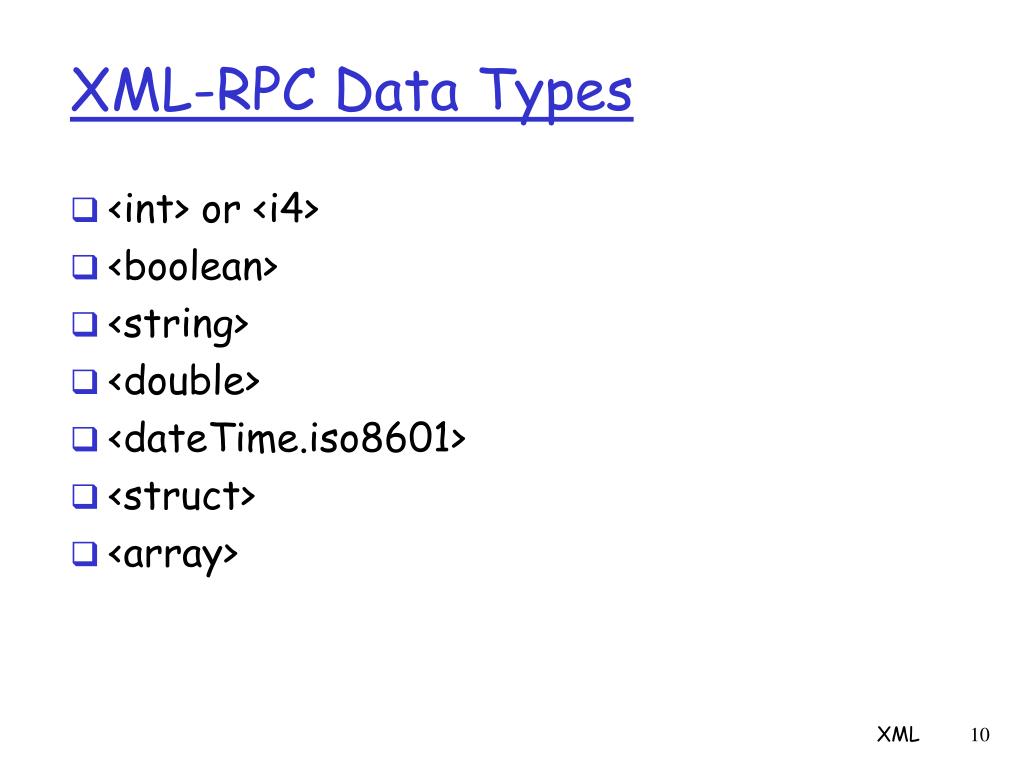

  10. XML-RPC Data Types • <int> or <i4> • <boolean> • <string> • <double> • <dateTime.iso8601> • <struct> • <array> XML

  11. XML-RPC struct <struct> <member> <name>Hostname</name> <value> <string>monte.cs.rpi.edu</string> </value> </member> <member> <name>IPAddress</name> <value> <string>128.213.7.32</string> </value> </member> </struct> XML

  12. XML-RPC array <array> <data> <value><i4>12</i4></value> <value><string>Egypt</string></value> <value><boolean>0</boolean></value> <value><i4>-31</i4></value> </data> </array> XML

  13. XML-RPC Programming • Need to be able to generate HTTP requests (client) and responses(server) • Need to generate XML documents • Need to parse XML documents and extract specific items • Need to handle faults (errors) XML

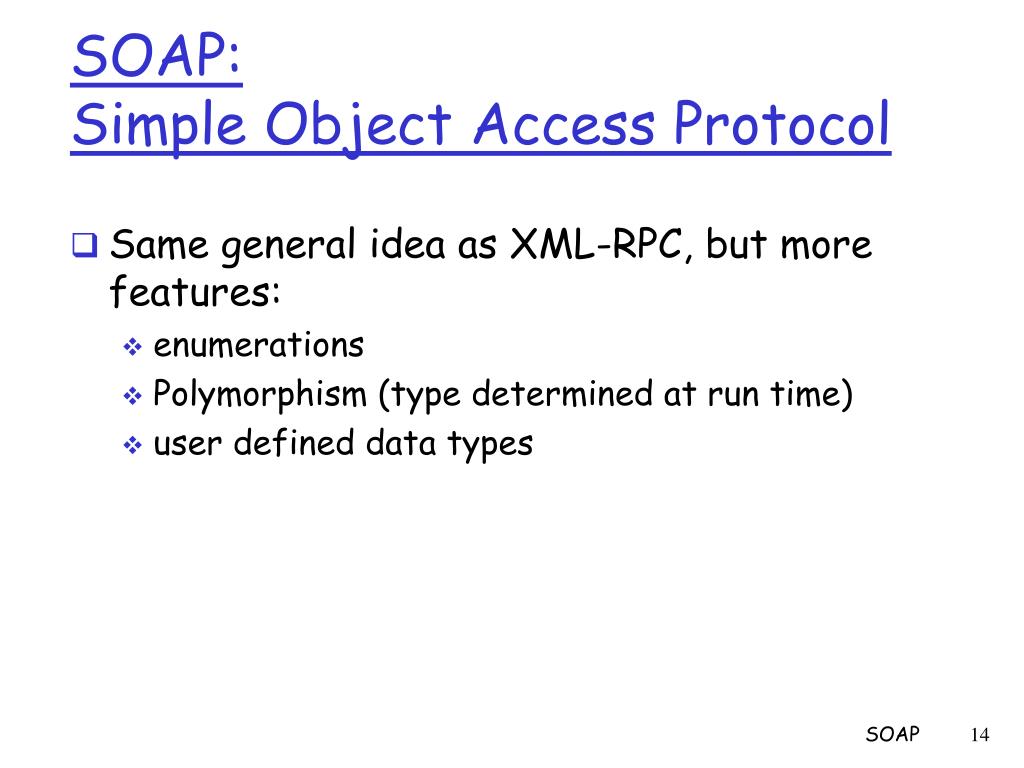

  14. SOAP: Simple Object Access Protocol • Same general idea as XML-RPC, but more features: • enumerations • Polymorphism (type determined at run time) • user defined data types SOAP

  15. SOAP • Documents are more complex • use namespaces • formal "envelope" • Soap Header • Soap Body SOAP

  16. SOAP Request Example POST /StockQuote HTTP/1.1 Host: www.stockquoteserver.com Content-Type: text/xml; charset="utf-8" Content-Length: nnnn SOAPAction: "Some-URI" <SOAP-ENV:Envelope xmlns:SOAP-ENV=http://schemas.xmlsoap.org/soap/envelope/ SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"> <SOAP-ENV:Body> <m:GetLastTradePrice xmlns:m="Some-URI">      <symbol>DIS</symbol>  </m:GetLastTradePrice></SOAP-ENV:Body> </SOAP-ENV:Envelope> SOAP

  17. XML-RPC vs. SOAP • XML-RPC is much simpler • There are lots of web services based on XML-RPC. • SOAP makes it easier to exchange more complex documents. • SOAP runs over many protocols: • HTTP, SMTP, FTP, … SOAP

  18. LDAP: Lightweight Directory Access Protocol • A "directory" service is a network accessible database • Small amount of information in each request/reply. • Limited functionality • as compared to a complete database system • Updates (changes) are much less frequent than queries. LDAP

  19. Directories • Some typical examples include: • telephone directories • lists of addresses (email, network, P.O., etc) • Each record is referenced by a unique key: • given a name, look up a phone number • given a name, look up an email address LDAP

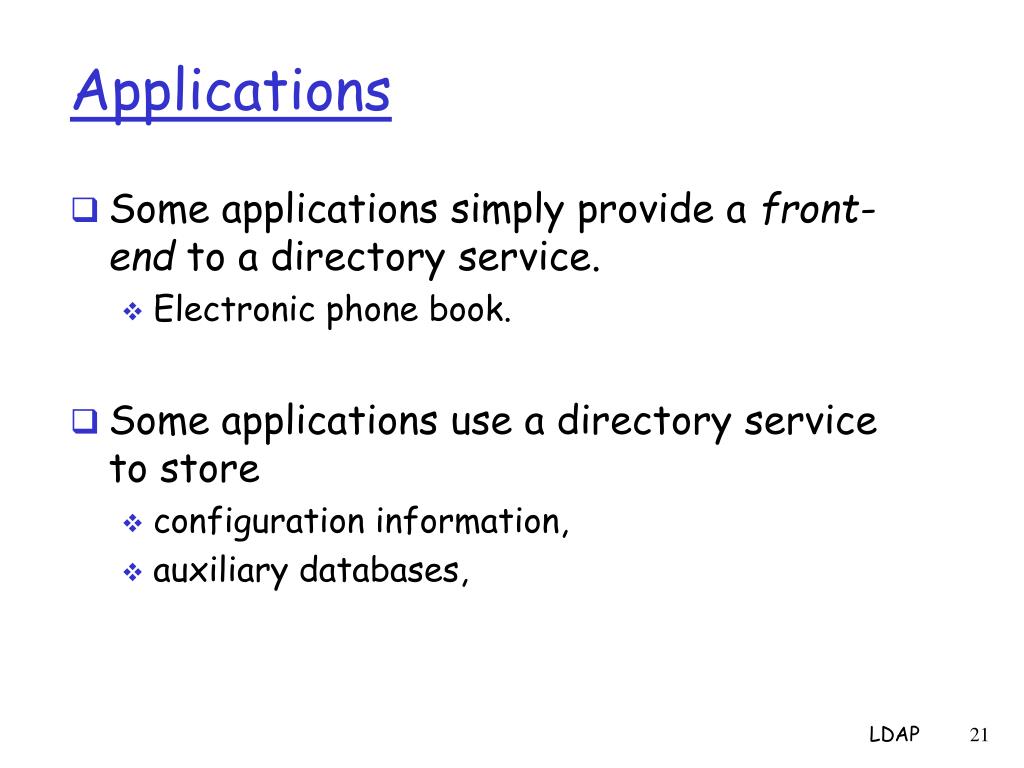

  20. Applications • Some applications simply provide a front-end to a directory service. • Electronic phone book. • Some applications use a directory service to store • configuration information, • auxiliary databases, LDAP

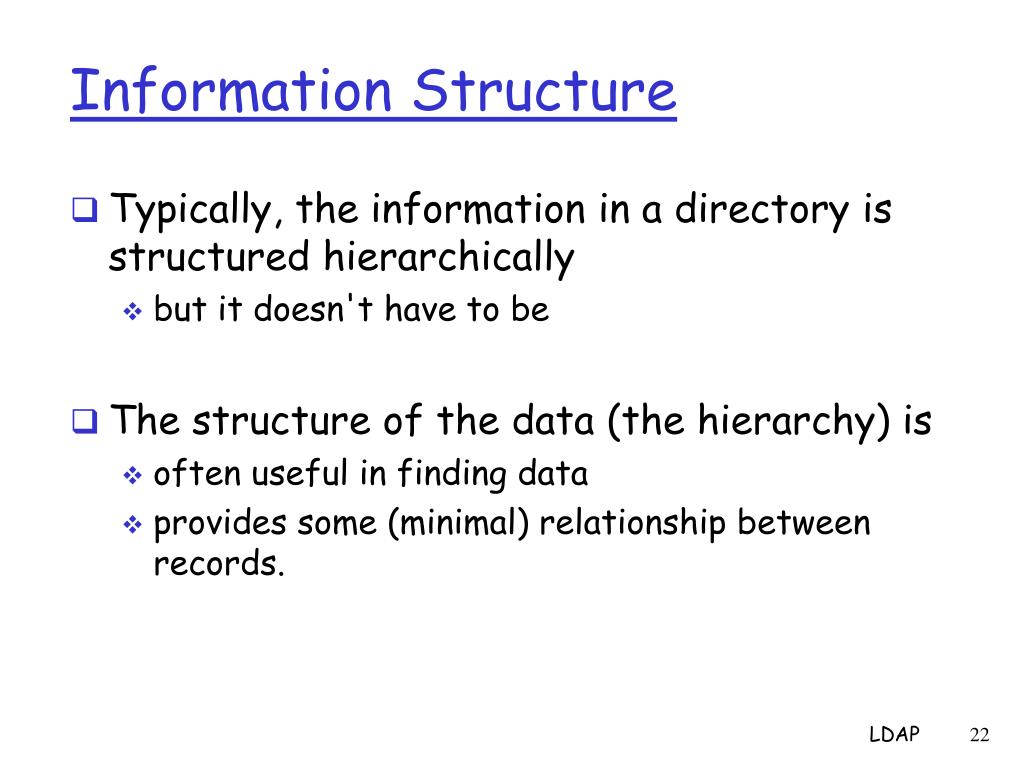

  21. Information Structure • Typically, the information in a directory is structured hierarchically • but it doesn't have to be • The structure of the data (the hierarchy) is • often useful in finding data • provides some (minimal) relationship between records. LDAP

  22. Example: DNS • The Domain Name System is an example of a directory: • hierarchical structure • for each item there is a unique key (the hostname) and a number of attributes: • IP address • Mail exchanger • Host information • etc... LDAP

  23. X.500 • X.500 is a Directory Service that has been used for a while: • Based on O.S.I. Protocol Stack • requires upper layers (above transport) of the OSI Stack • Heavyweight service (protocol). • A number of lightweight front-ends to X.500 have been developed • The most recent is LDAP LDAP

  24. LDAP • Lightweight Directory Access Protocol • Based on TCP • but can be mapped to other protocols • RFC 1777: data representation scheme • defines operations and mapping to requests/response protocol • RFC 1823: API • has become a standard • no sockets programming required! LDAP

  25. LDAP Data Representation • Each record has a unique key called a distinguished name • dn for short • A distinguished name is meant to be used by humans • not just computers • Each dn is a sequence of components. • Each component is a string containing an attribute=value pair. LDAP

  26. Example DN CN=Mehmet Gunes, OU=Computer Science, O=University of Nevada Reno, C=US Typically written all on one line. LDAP

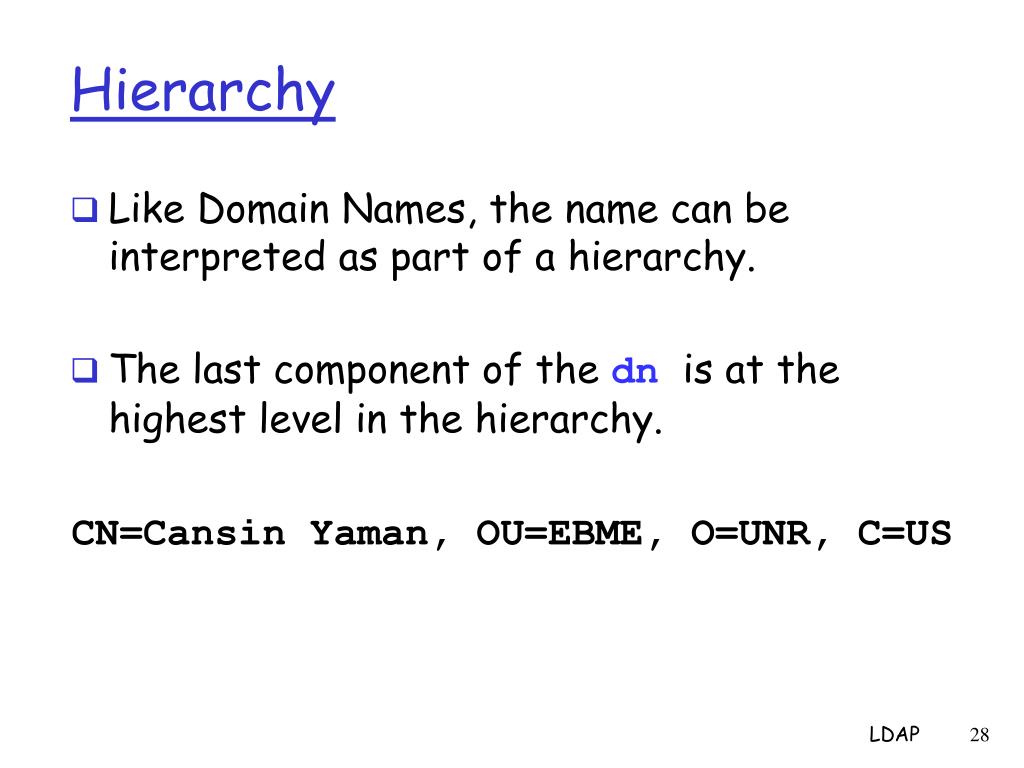

  27. Hierarchy • Like Domain Names, the name can be interpreted as part of a hierarchy. • The last component of the dnis at the highest level in the hierarchy. CN=Cansin Yaman, OU=EBME, O=UNR, C=US LDAP

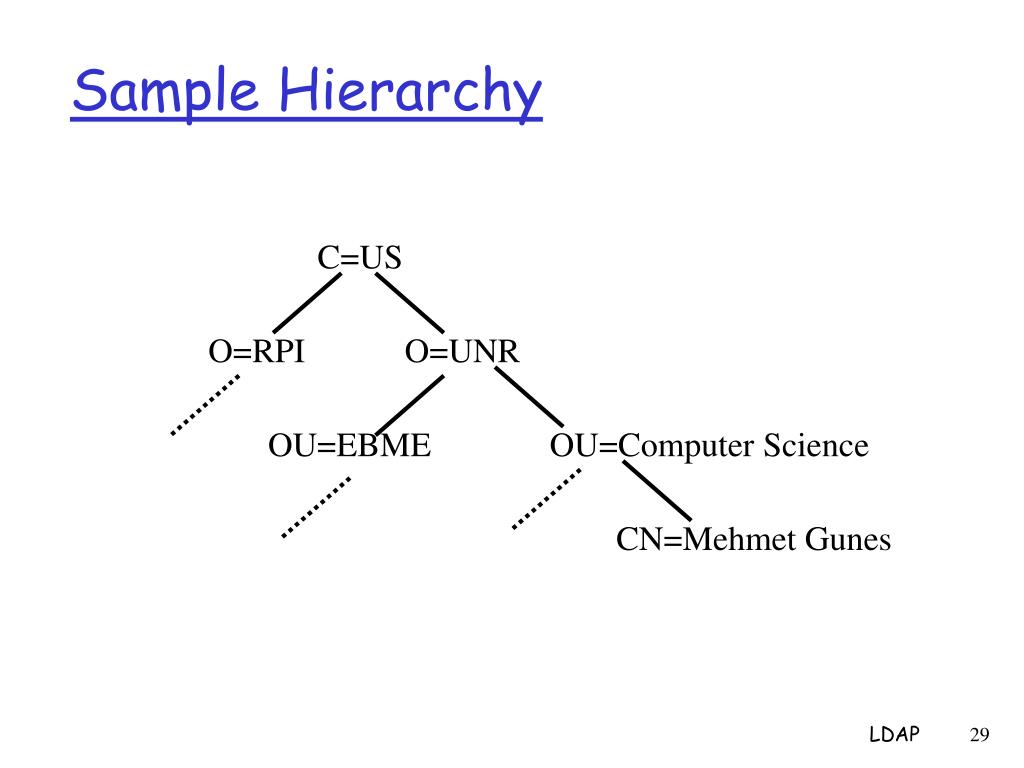

  28. O=RPI O=UNR OU=EBME OU=Computer Science Sample Hierarchy C=US CN=Mehmet Gunes LDAP

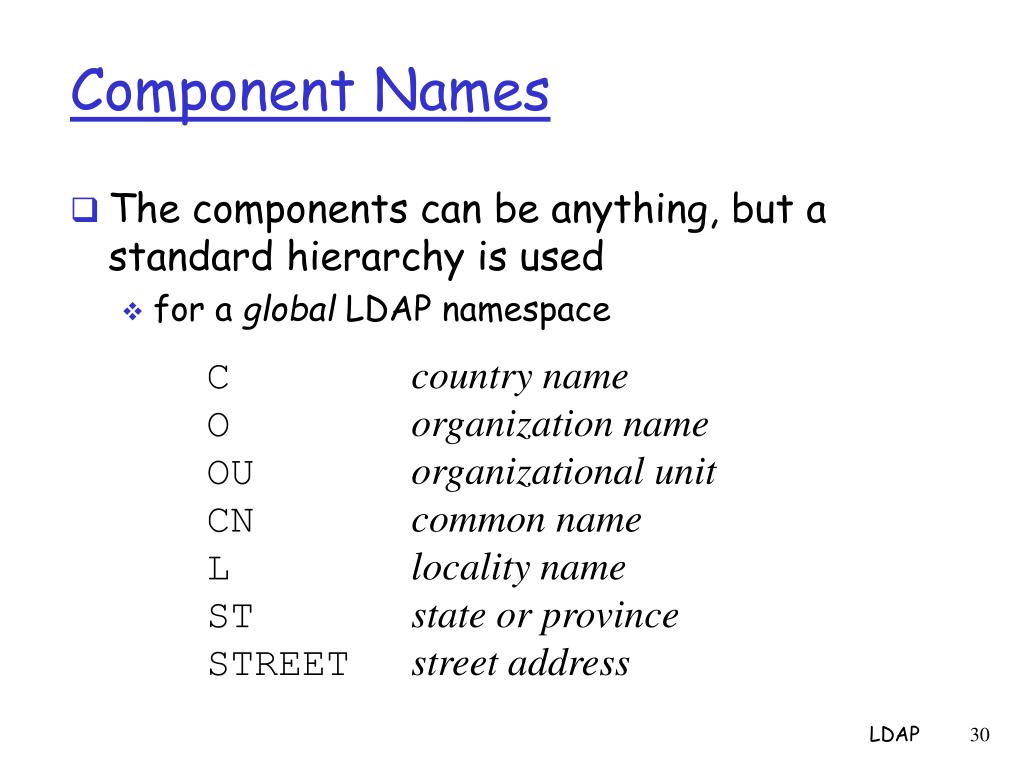

  29. Component Names • The components can be anything, but a standard hierarchy is used • for a global LDAP namespace C country name O organization name OU organizational unit CNcommon name Llocality name STstate or province STREETstreet address LDAP

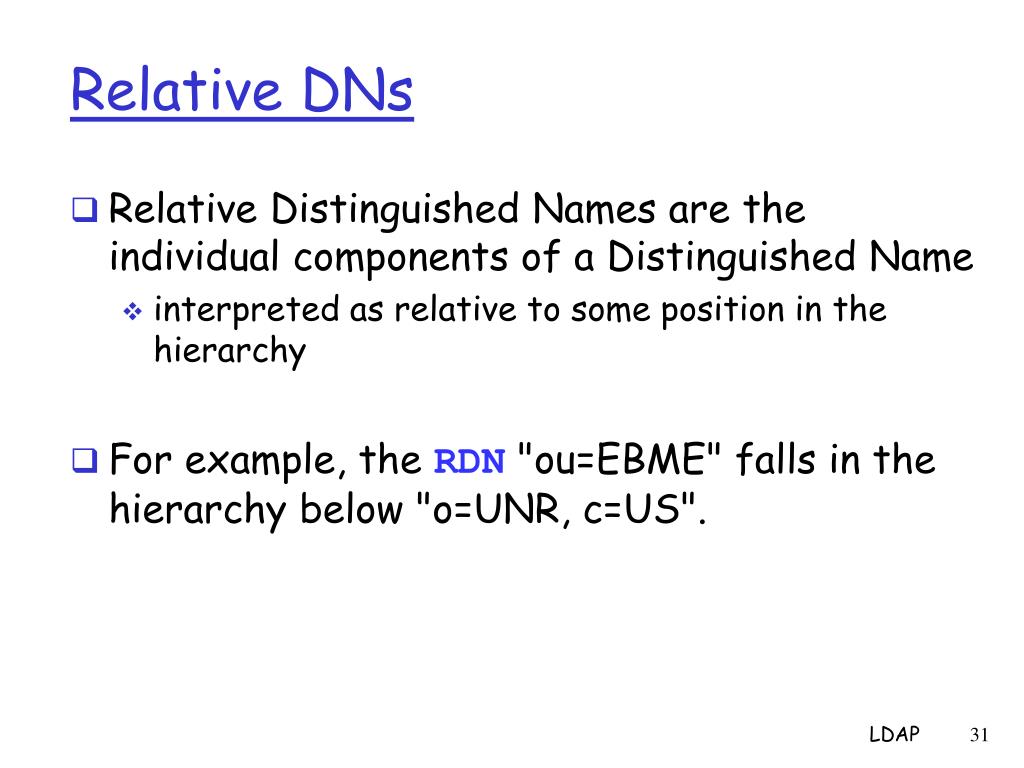

  30. Relative DNs • Relative Distinguished Names are the individual components of a Distinguished Name • interpreted as relative to some position in the hierarchy • For example, the RDN "ou=EBME" falls in the hierarchy below "o=UNR, c=US". LDAP

  31. DN usage • A distinguished name is a key used to access a record. • Each record can contain multiple attribute/value pairs. • Examples of attributes: phone number email address title home page public key project 3 grade LDAP

  32. ObjectClass • A commonly used attribute is "objectClass“ • Each record represents an object, • Attributes associated with each object are defined according to it's objectClass • The value of the objectClass attribute • Examples of objectClass: • organization (needs a name and address) • person (needs name, email, phone & address) • course (needs a number, instructor, room) LDAP

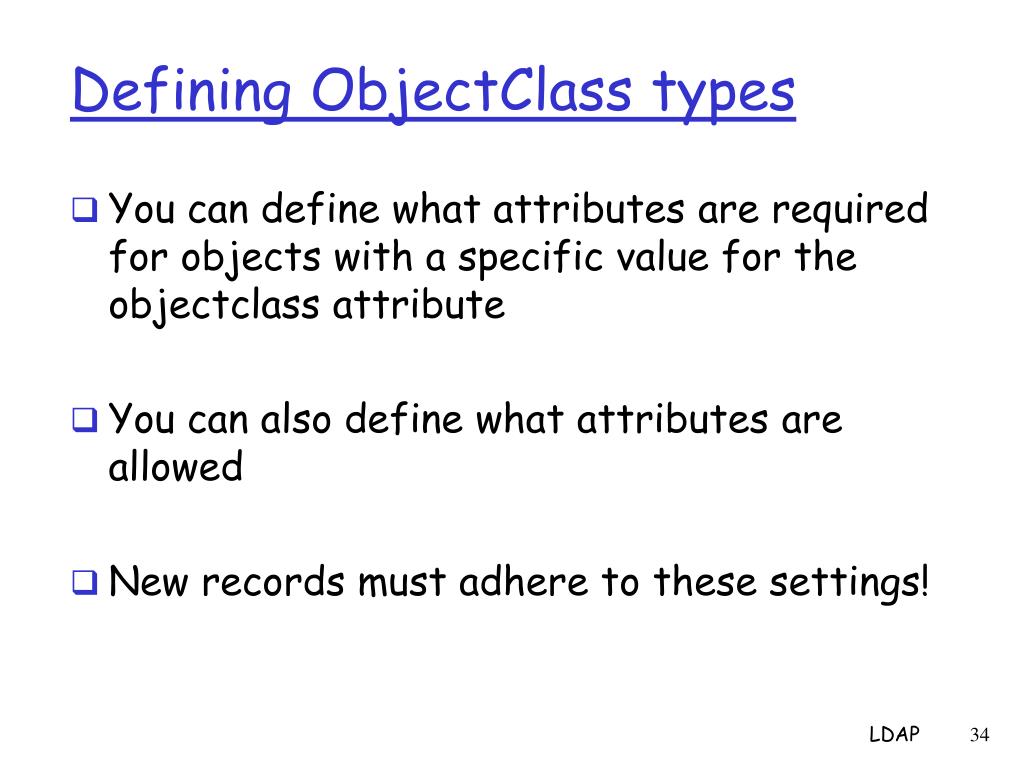

  33. Defining ObjectClass types • You can define what attributes are required for objects with a specific value for the objectclass attribute • You can also define what attributes are allowed • New records must adhere to these settings! LDAP

  34. Multiple Values • Each attribute can have multiple values. • For example, we could have the following record: DN: cn=Mehmet Gunes, O=UNR, C=US CN: Mehmet Hadi Gunes CN: Mehmet H. Gunes Email: mgunes@unr.edu Email: mgunes@cse.unr.edu LDAP

  35. LDAP Services • Add, Delete, Change entry • Change entry name (dn) • Searching (the primary operation) • Search some portion of the directory for entries that match some criteria LDAP

  36. Authentication • LDAP authentication can be based on • simple passwords (cleartext) or • Kerberos • LDAP V3 includes support for other techniques including public keys LDAP

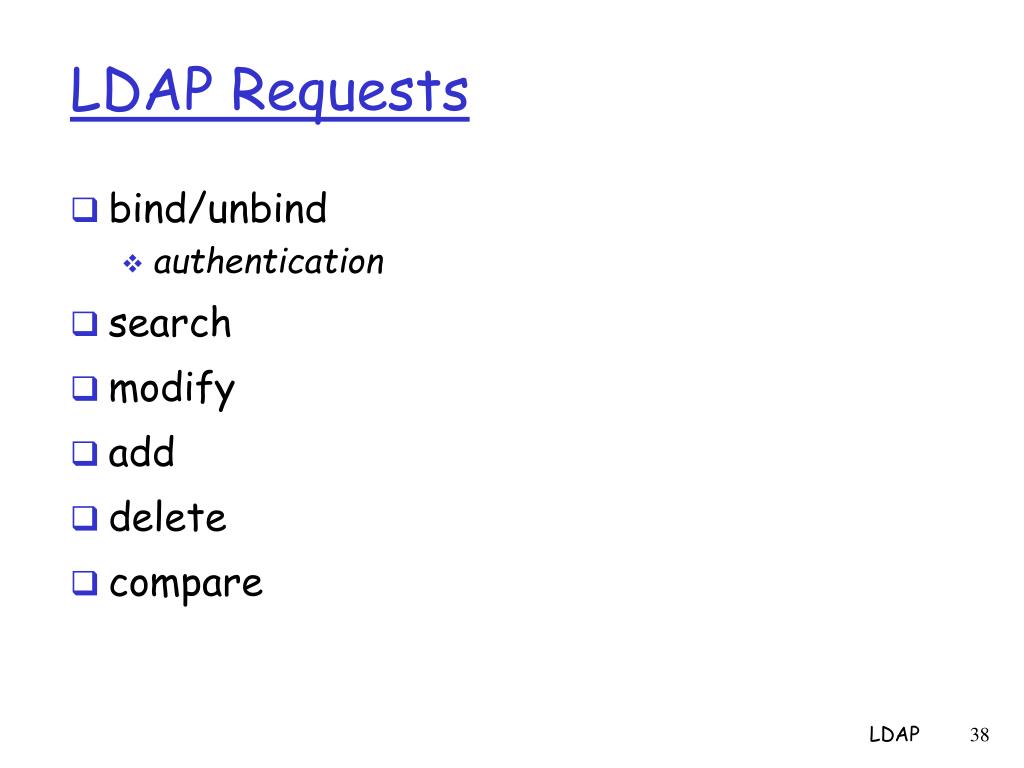

  37. LDAP Requests • bind/unbind • authentication • search • modify • add • delete • compare LDAP

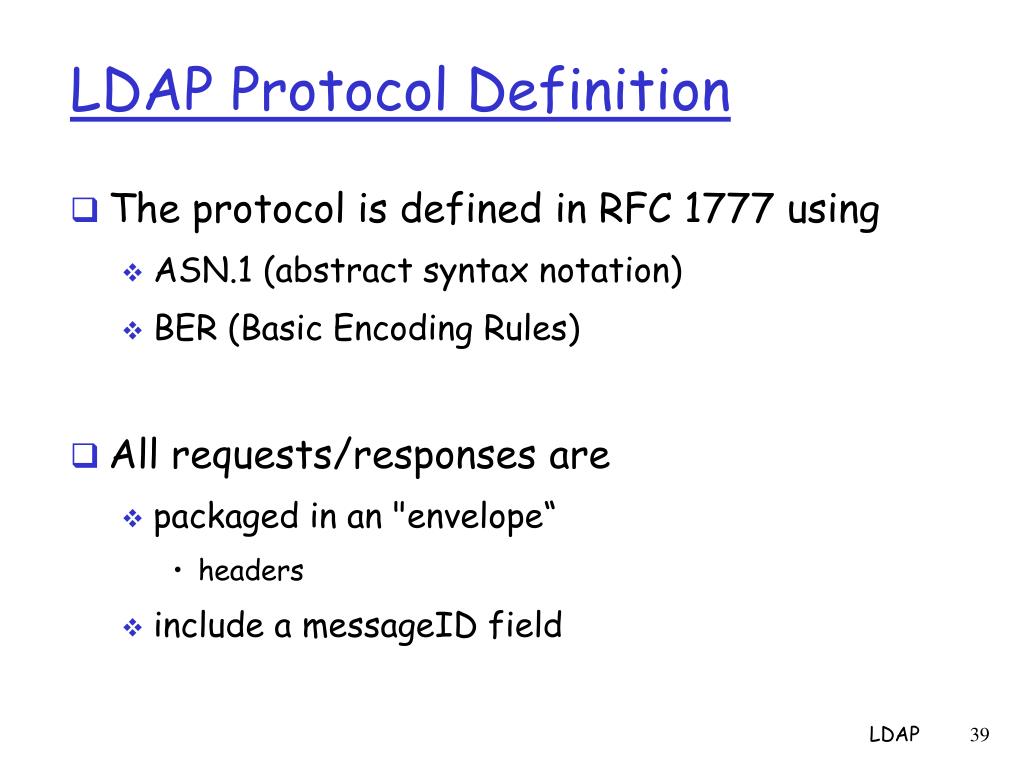

  38. LDAP Protocol Definition • The protocol is defined in RFC 1777 using • ASN.1 (abstract syntax notation) • BER (Basic Encoding Rules) • All requests/responses are • packaged in an "envelope“ • headers • include a messageID field LDAP

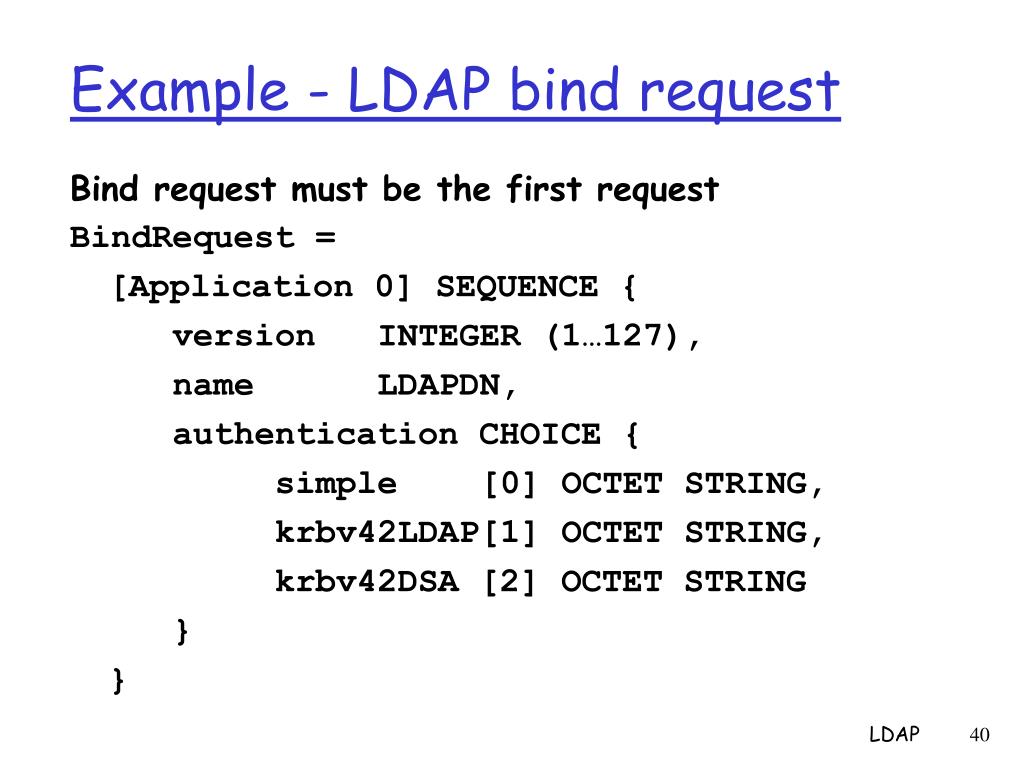

  39. Example - LDAP bind request Bind request must be the first request BindRequest = [Application 0] SEQUENCE { version INTEGER (1…127), name LDAPDN, authentication CHOICE { simple [0] OCTET STRING, krbv42LDAP [1] OCTET STRING, krbv42DSA [2] OCTET STRING } } LDAP

  40. Other Requests • Search/modify/delete/change requests can include maximum time limits • and size limits in the case of search • There can be multiple pending requests • each with unique messageID • Asynchronous replies • each includes messageID of request LDAP

  41. Search Request Parameters base scope size time attributes attrsonly search_filter LDAP

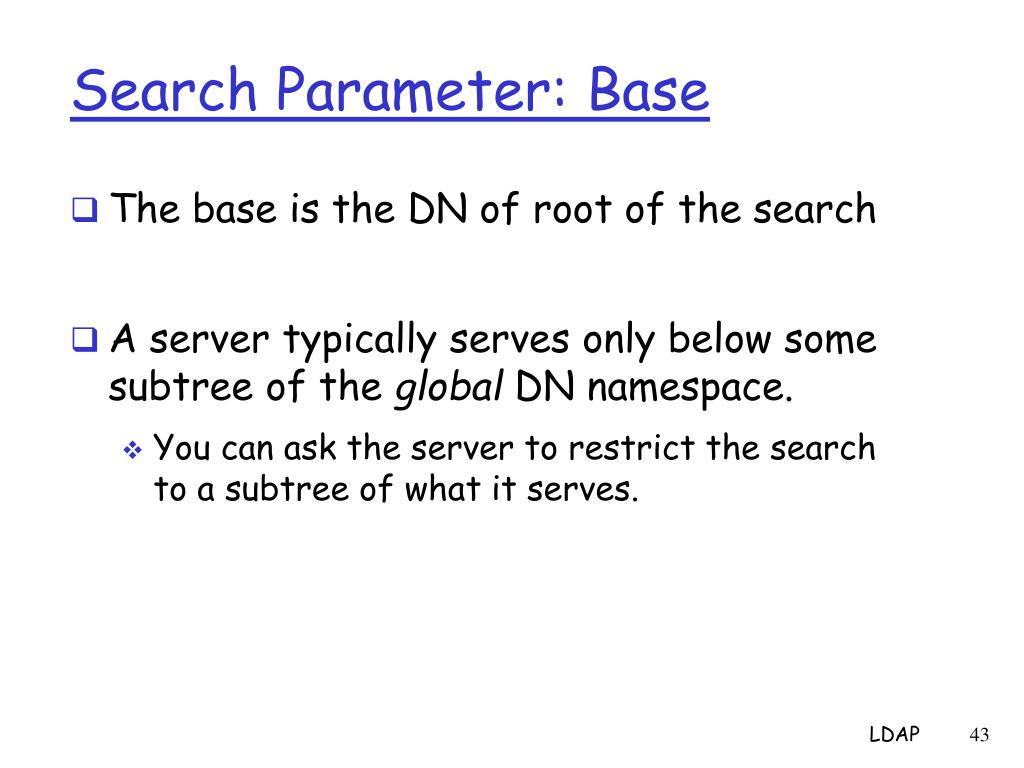

  42. Search Parameter: Base • The base is the DN of root of the search • A server typically serves only below some subtree of the global DN namespace. • You can ask the server to restrict the search to a subtree of what it serves. LDAP

  43. Search Parameter: Scope • base • search only the base element • onelevel • search all elements that are children of the base • subtree • search everything in the subtree base LDAP

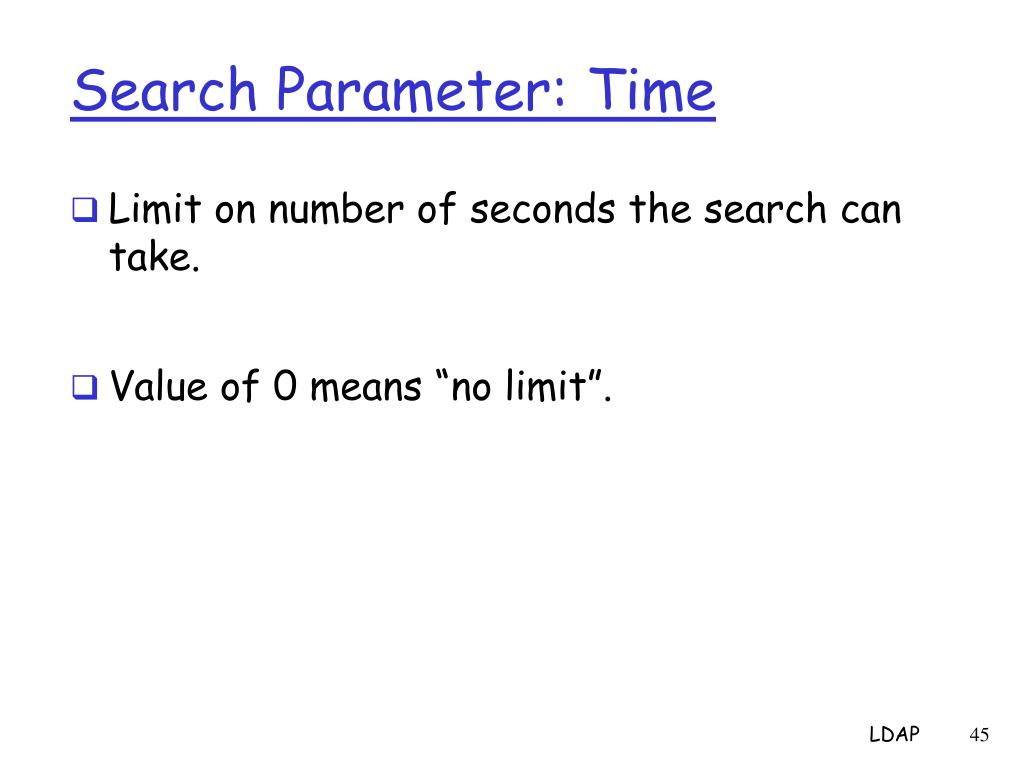

  44. Search Parameter: Time • Limit on number of seconds the search can take. • Value of 0 means “no limit”. LDAP

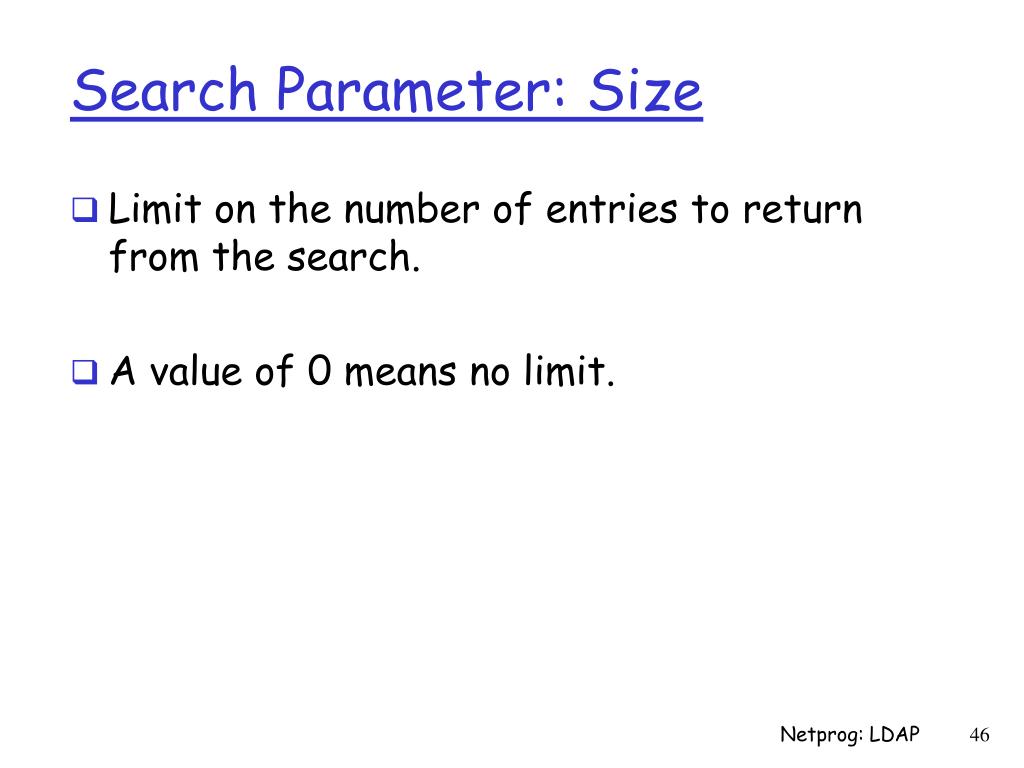

  45. Search Parameter: Size • Limit on the number of entries to return from the search. • A value of 0 means no limit. Netprog: LDAP

  46. Search Parameter: Attributes • A list of attributes that should be returned for each matched entry. • NULL mean “all attributes” • Attribute names are strings. LDAP

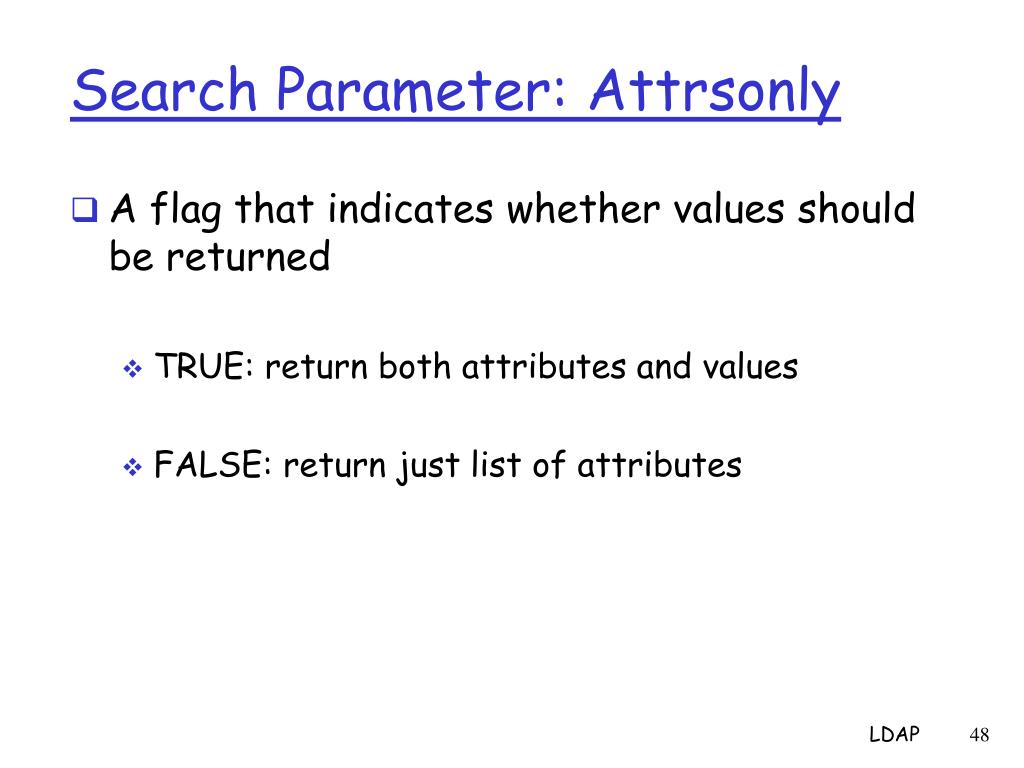

  47. Search Parameter: Attrsonly • A flag that indicates whether values should be returned • TRUE: return both attributes and values • FALSE: return just list of attributes LDAP

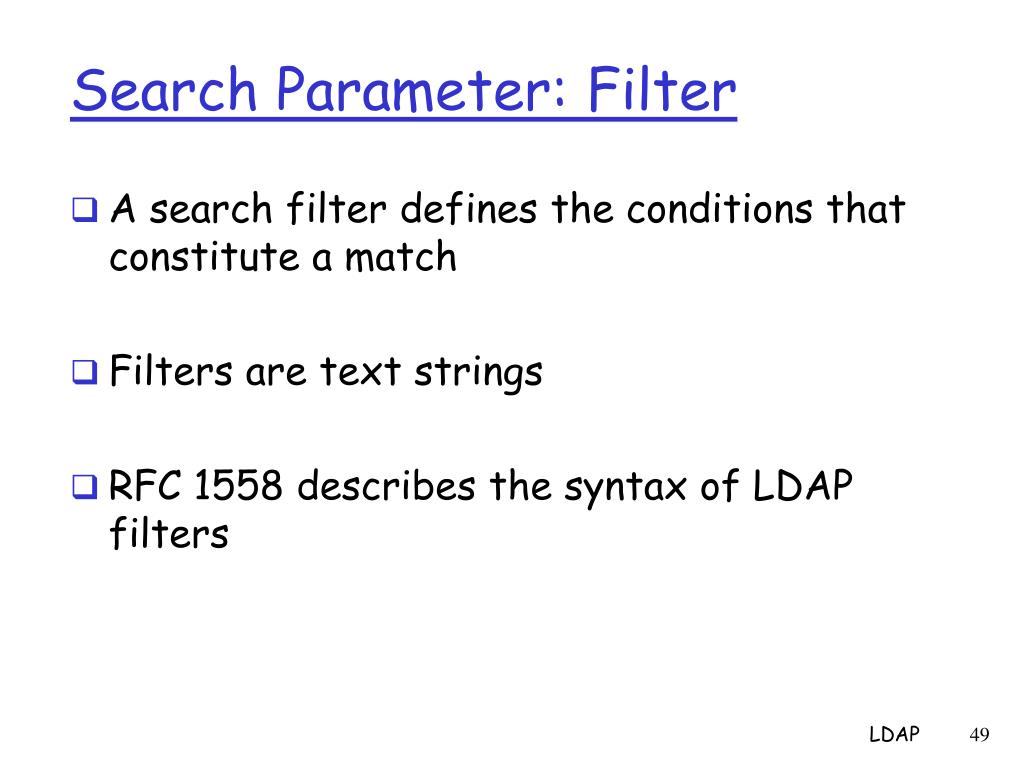

  48. Search Parameter: Filter • A search filter defines the conditions that constitute a match • Filters are text strings • RFC 1558 describes the syntax of LDAP filters LDAP

  49. Search Filters • Restrict the search to those records • that have specific attributes, or • those whose attributes have restricted values "objectclass=*” match all records "cn=*mehmet*“ matches any record with “mehmet" in the value of cn LDAP
