  1. 11-Month Update Hydrogen from Small Wind Turbines

  2. System Design Nebraska Electrical Source Load Application Electrolyzer H2 • Wind Water H2 Storage • Underground • Rivers & Streams • Stored Rainfall • Condensers • Ice • Compressed • Liquefied • Metal Hydrides?

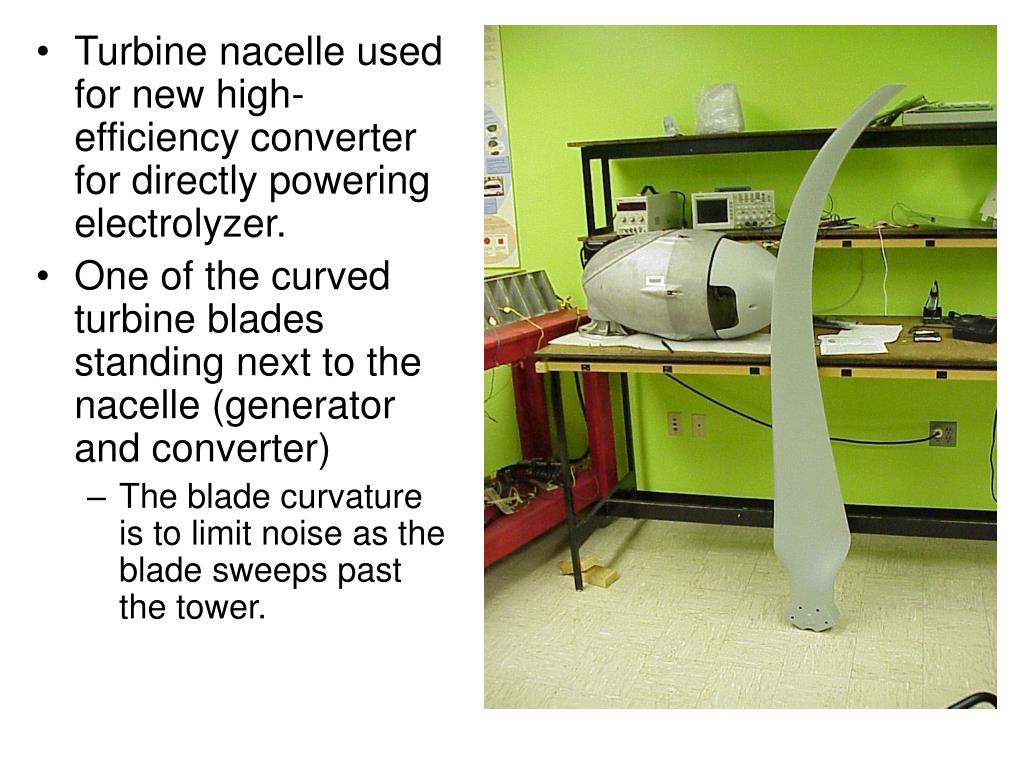

  3. Turbine nacelle used for new high-efficiency converter for directly powering electrolyzer. • One of the curved turbine blades standing next to the nacelle (generator and converter) • The blade curvature is to limit noise as the blade sweeps past the tower.

  4. Close-up view of nacelle with generator exposed (spoked wheel) and soon-to-be removed existing power converter (behind dangling blue wires)

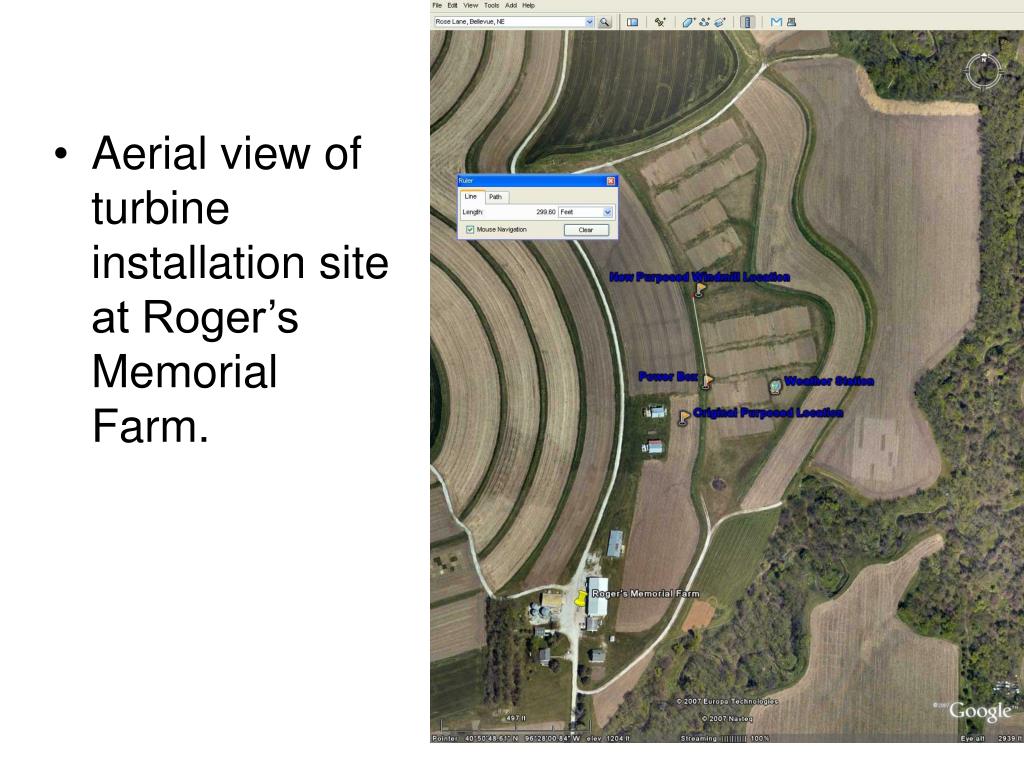

  5. Aerial view of turbine installation site at Roger’s Memorial Farm.

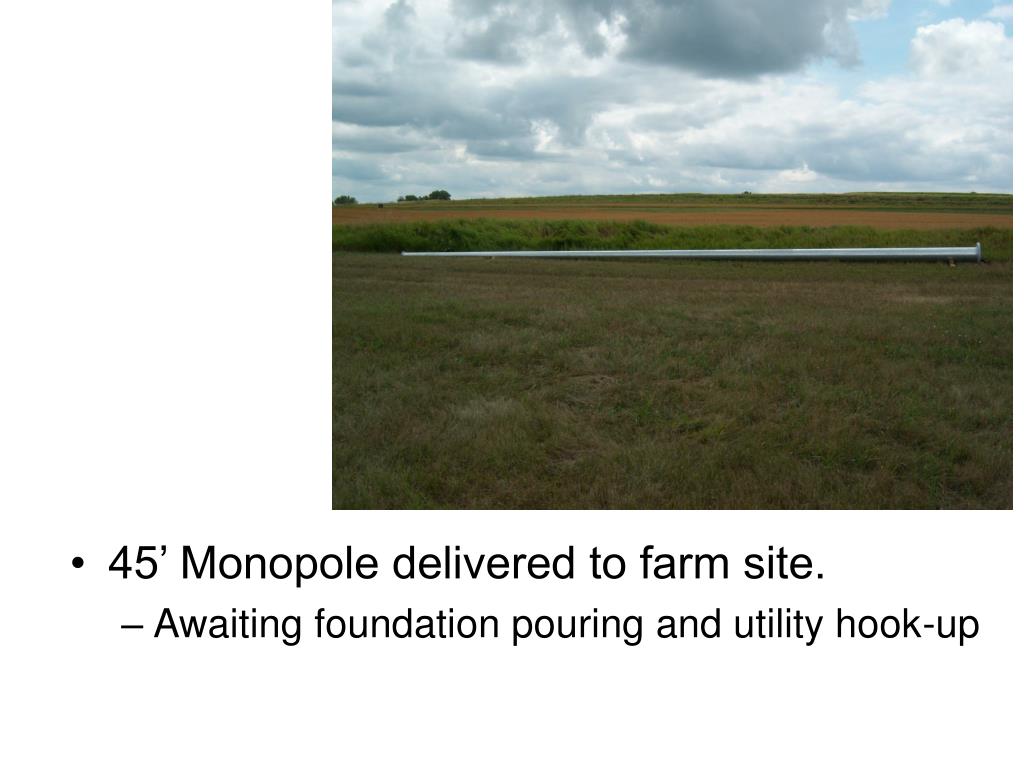

  6. 45’ Monopole delivered to farm site. • Awaiting foundation pouring and utility hook-up

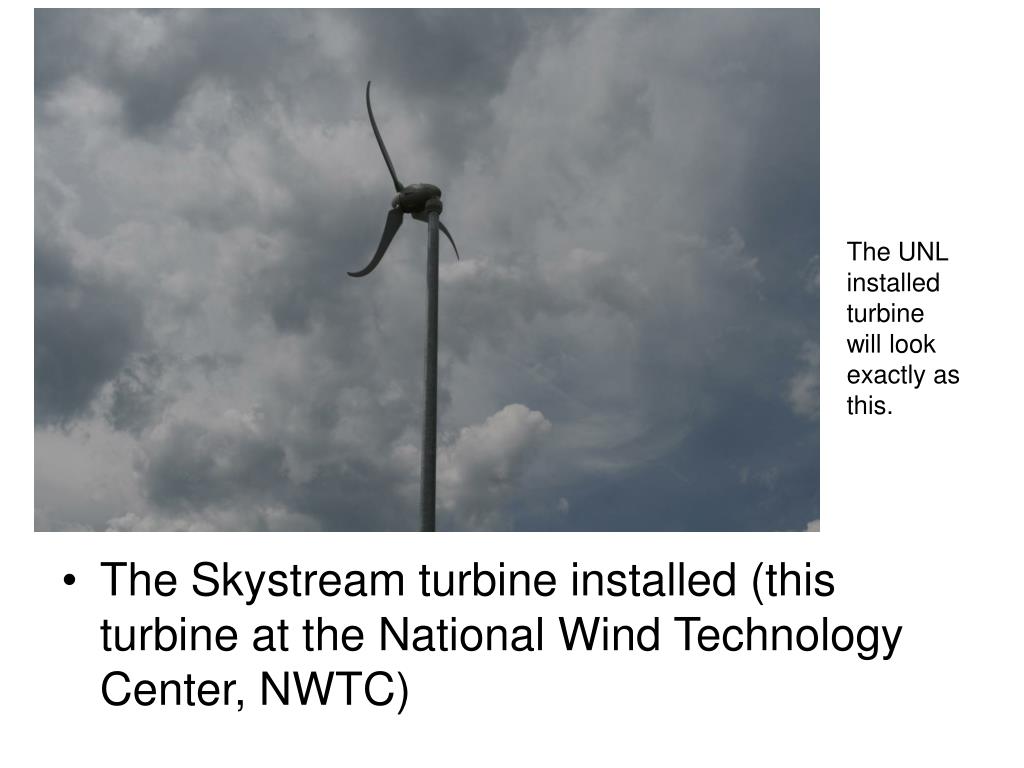

  7. The Skystream turbine installed (this turbine at the National Wind Technology Center, NWTC) The UNL installed turbine will look exactly as this.
