Method evaluation (validation) and method comparison

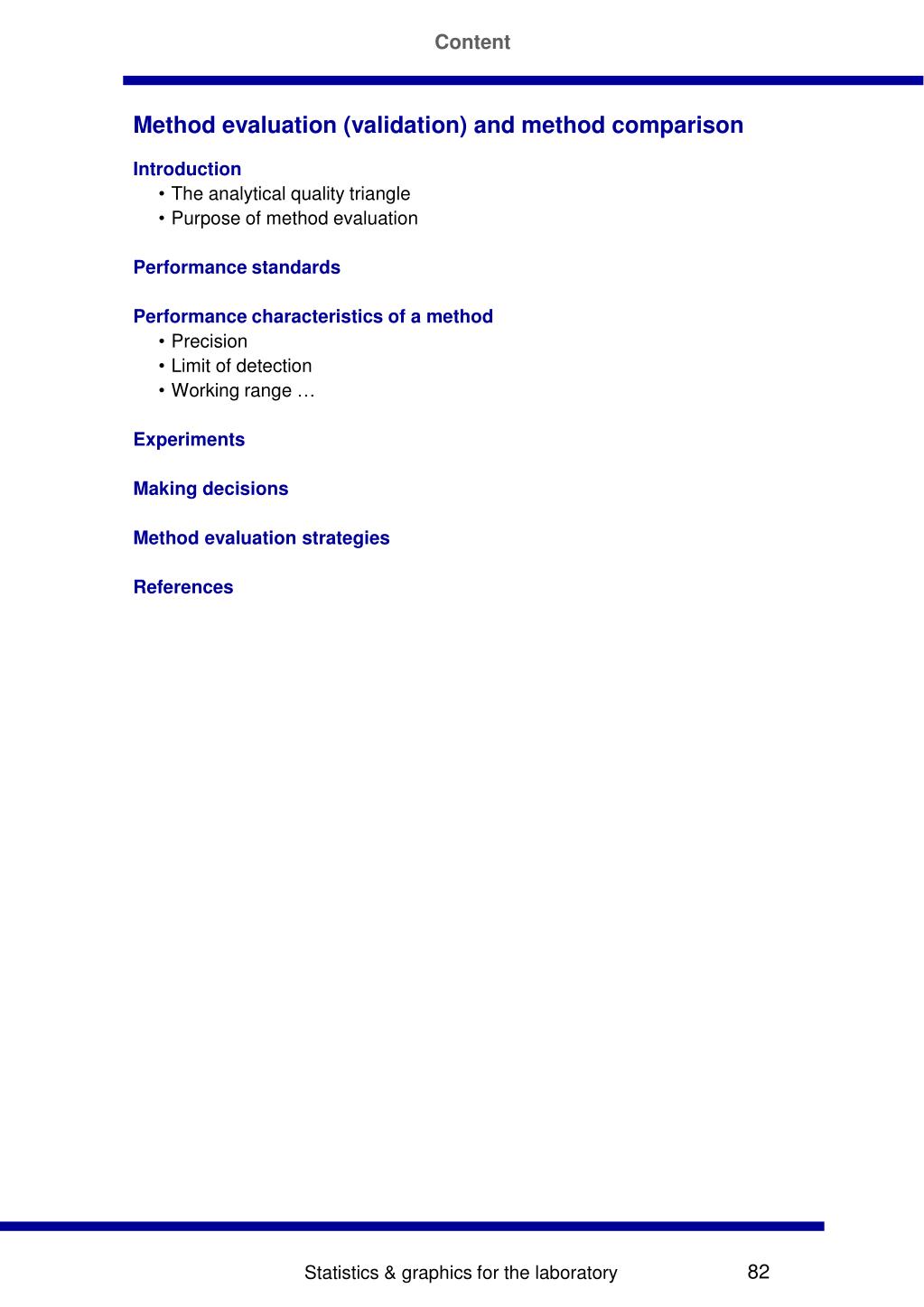

1. Content Method evaluation (validation) and method comparison • Introduction • The analytical quality triangle • Purpose of method evaluation • Performance standards • Performance characteristics of a method • Precision • Limit of detection • Working range … • Experiments • Making decisions • Method evaluation strategies • References Statistics & graphics for the laboratory

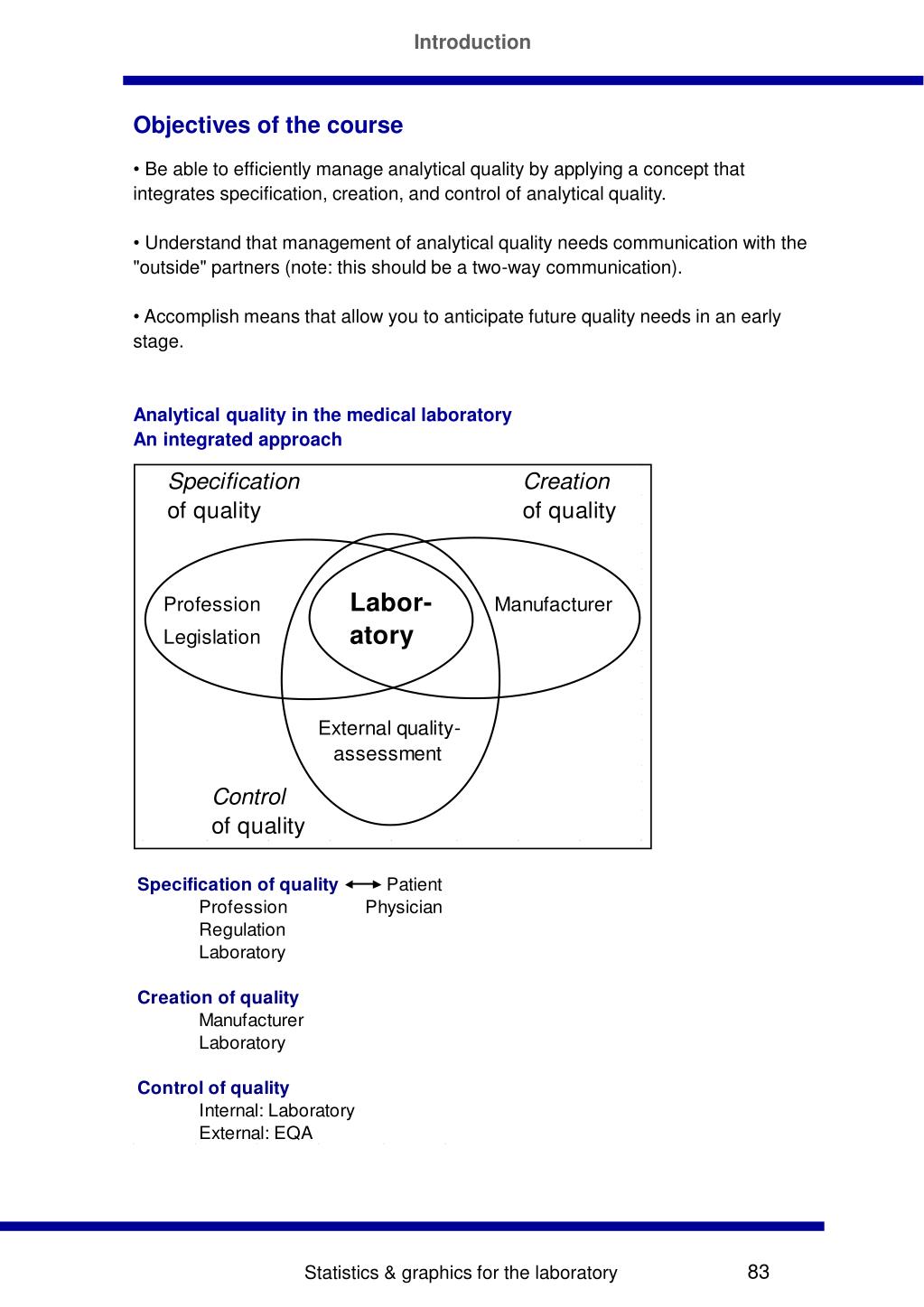

2. Introduction Objectives of the course • Be able to efficiently manage analytical quality by applying a concept that integrates specification, creation, and control of analytical quality. • Understand that management of analytical quality needs communication with the "outside" partners (note: this should be a two-way communication). • Accomplish means that allow you to anticipate future quality needs in an early stage. • Analytical quality in the medical laboratory • An integrated approach Statistics & graphics for the laboratory

3. Introduction Method evaluation – Place in the overall analytical quality • The analytical quality triangle • For valid measurements… • … the analytical quality triangle! • Purpose of method evaluation • J. Westgard • The inner, hidden, deeper, secret meaning of a method evaluation/validation • =ERROR ASSESSMENT • From: J.O. Westgard, Basic method validation, Westgard Quality Corporation 1999, pp 250.www.westgard.com • Carey et al$ • Evaluate performance &make decisions about performance. • Apply a clinical perspective to the whole task! • Requirements • Experimental protocols to estimate performance reliably ("Error assessment") • Standards (specifications, claims) for acceptable performance • Criteria for comparing estimated performance with performance standards • $Carey RN, Garber CC, Koch DD. Concepts and practices in the evaluation of laboratory methods. Workshop, AACC 48th Annual Meeting, Chicago (IL), July 28, 1996. Statistics & graphics for the laboratory

4. Introduction WHAT is validation? • Validation is the confirmation, through the provision of objective evidence, that requirements for a specific intended use or application have been fulfilled (ISO 9000). • We see, from this definition, that we have to • specify the intended use of a method, • define performance requirements, • provide data from validation experiments (objective evidence), and • interprete the validation data (confirmation that requirements have been fulfilled). • WHICH type of performance requirements (specifications) exist? • Performance requirements can be statistical, analytical, or application-driven/regulatory. • Statistical and analytical specifications are most useful for method evaluation. • Application-driven/regulatory specifications are used for validation. Some examples are given in the table below. • WHICH performance characteristics exist? • We have seen that we have to specify performance requirements for a validation. These requirements refer to the following performance charateristics of an analytical method: • Imprecision • Limit of detection • Working range • Linearity • Recovery • Interference/Specificity • Total error (method comparison) • [Robustness/Ruggedness]: will not be addressed in this book. Statistics & graphics for the laboratory

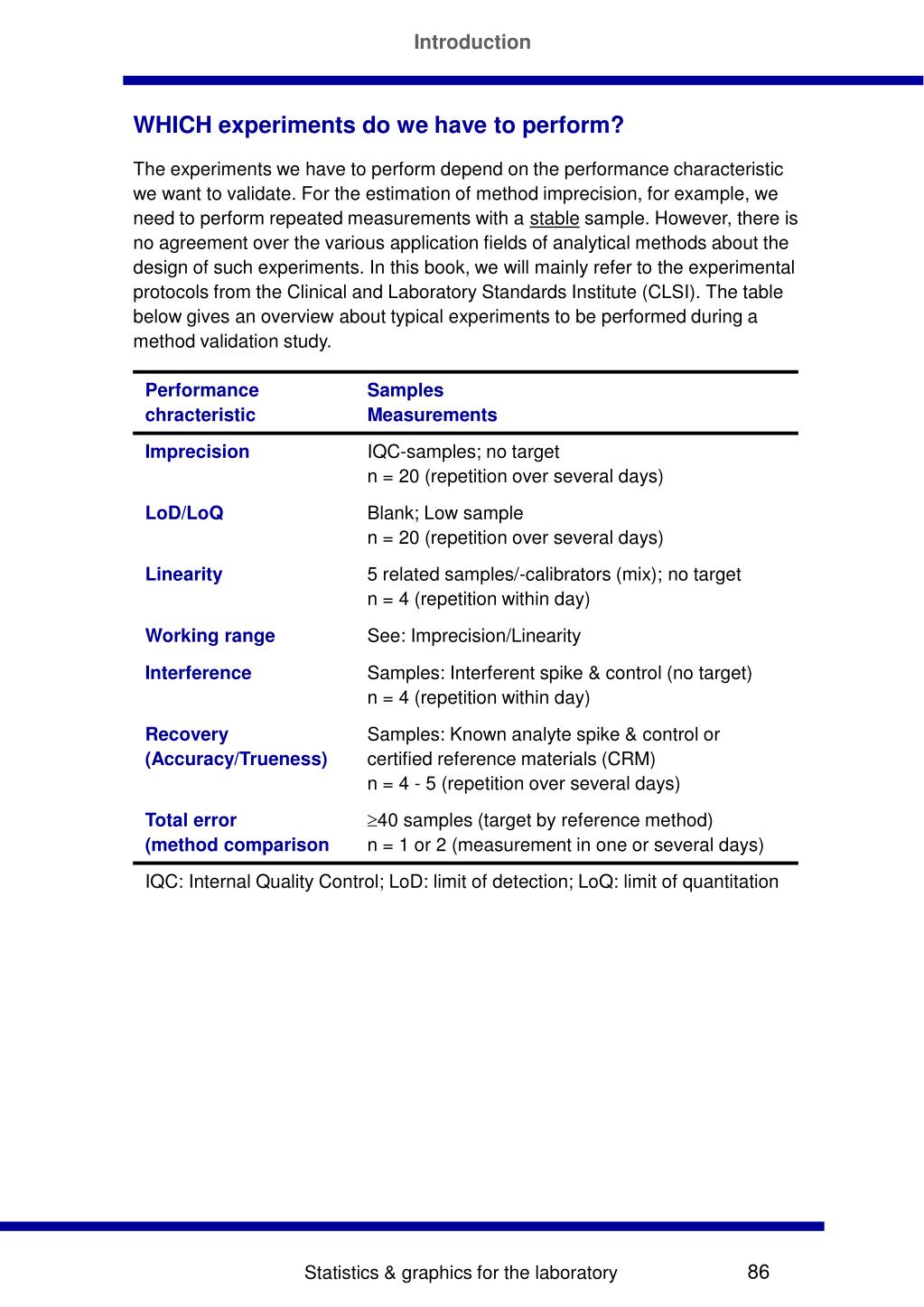

5. Introduction WHICH experiments do we have to perform? • The experiments we have to perform depend on the performance characteristic we want to validate. For the estimation of method imprecision, for example, we need to perform repeated measurements with a stable sample. However, there is no agreement over the various application fields of analytical methods about the design of such experiments. In this book, we will mainly refer to the experimental protocols from the Clinical and Laboratory Standards Institute (CLSI). The table below gives an overview about typical experiments to be performed during a method validation study. Statistics & graphics for the laboratory

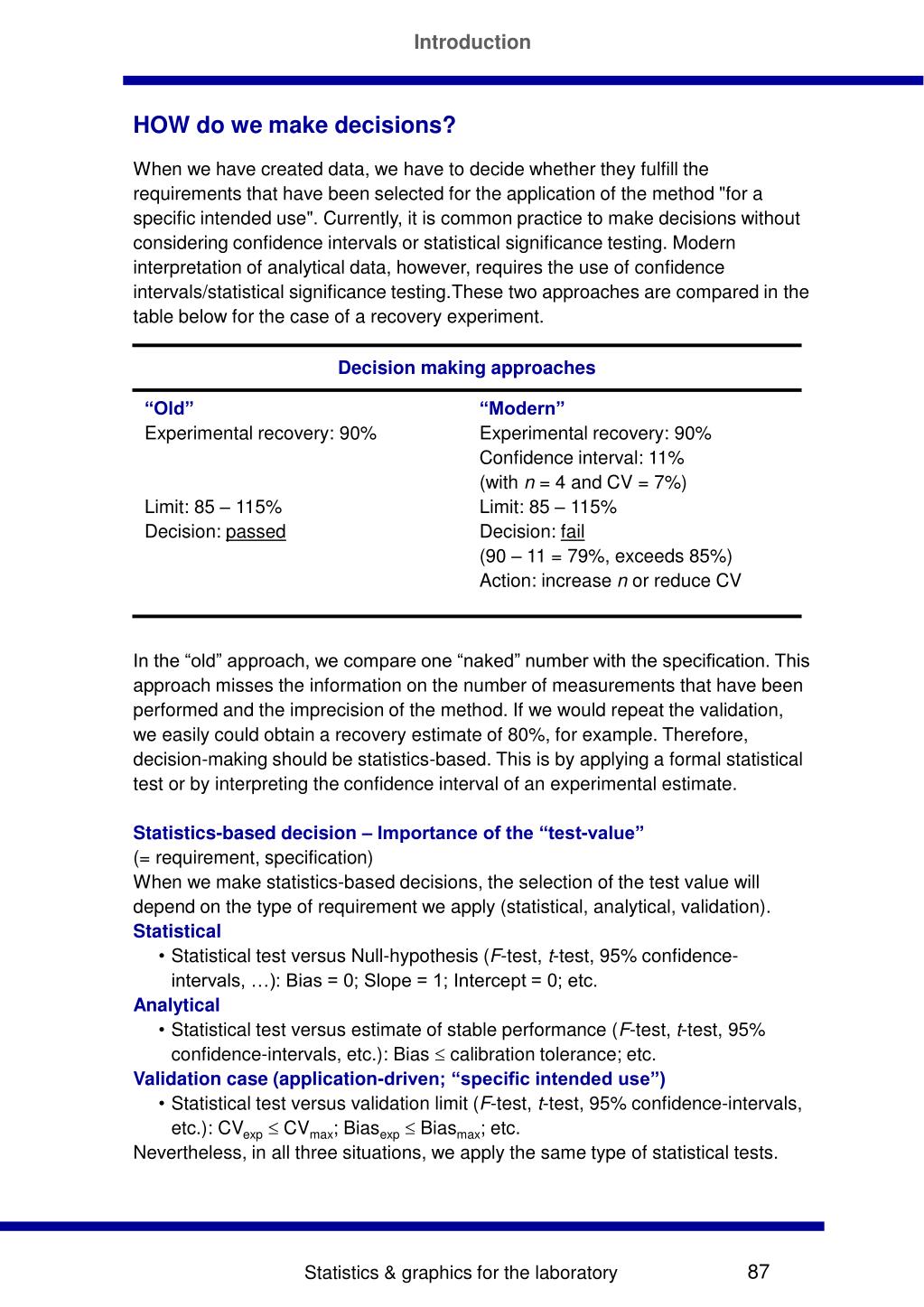

6. Introduction HOW do we make decisions? • When we have created data, we have to decide whether they fulfill the requirements that have been selected for the application of the method "for a specific intended use". Currently, it is common practice to make decisions without considering confidence intervals or statistical significance testing. Modern interpretation of analytical data, however, requires the use of confidence intervals/statistical significance testing.These two approaches are compared in the table below for the case of a recovery experiment. • In the “old” approach, we compare one “naked” number with the specification. This approach misses the information on the number of measurements that have been performed and the imprecision of the method. If we would repeat the validation, we easily could obtain a recovery estimate of 80%, for example. Therefore, decision-making should be statistics-based. This is by applying a formal statistical test or by interpreting the confidence interval of an experimental estimate. • Statistics-based decision – Importance of the “test-value” • (= requirement, specification) • When we make statistics-based decisions, the selection of the test value will depend on the type of requirement we apply (statistical, analytical, validation). • Statistical • Statistical test versus Null-hypothesis (F-test, t-test, 95% confidence-intervals, …): Bias = 0; Slope = 1; Intercept = 0; etc. • Analytical • Statistical test versus estimate of stable performance (F-test, t-test, 95% confidence-intervals, etc.): Bias  calibration tolerance; etc. • Validation case (application-driven; “specific intended use”) • Statistical test versus validation limit (F-test, t-test, 95% confidence-intervals, etc.): CVexp CVmax; Biasexp Biasmax; etc. • Nevertheless, in all three situations, we apply the same type of statistical tests. Statistics & graphics for the laboratory

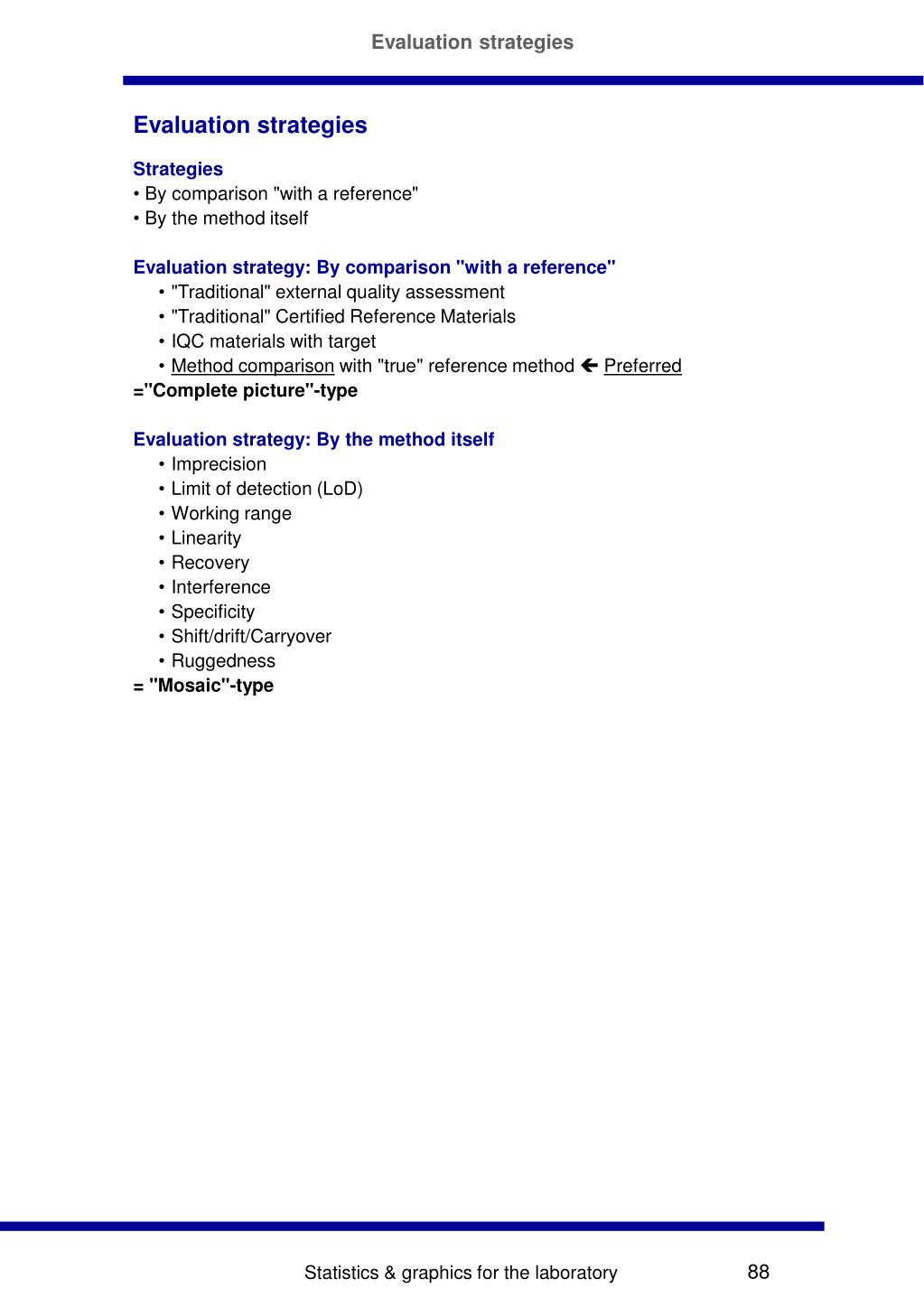

7. Evaluation strategies Evaluation strategies • Strategies • By comparison "with a reference" • By the method itself • Evaluation strategy: By comparison "with a reference" • "Traditional" external quality assessment • "Traditional" Certified Reference Materials • IQC materials with target • Method comparison with "true" reference method  Preferred • ="Complete picture"-type • Evaluation strategy: By the method itself • Imprecision • Limit of detection (LoD) • Working range • Linearity • Recovery • Interference • Specificity • Shift/drift/Carryover • Ruggedness • = "Mosaic"-type Statistics & graphics for the laboratory

8. Evaluation strategies Evaluation strategies • Evaluation strategy "complete picture" • Advantages • 1 experiment • Gives the complete picture • Beware • The interpretation heavily depends on the quality of the comparison method & the samples used! • Disadvantages • The reason of errrors may remain unknown  Apply "mosaic-type" • Specific purposes of method comparisons • Sufficient quality of a test method? • Comparison method is a reference method • Are 2 methods equivalent? • The 2 methods are of the same hierarchy • Recalibration of the test method • The comparison method is of higher or of the same hierarchy • Note on the calibration (adaptation) of a method via method comparison studies:  Be aware that minimum criteria have to be fulfilled! • Reliable outcome Not possible Unreliable outcome Statistics & graphics for the laboratory

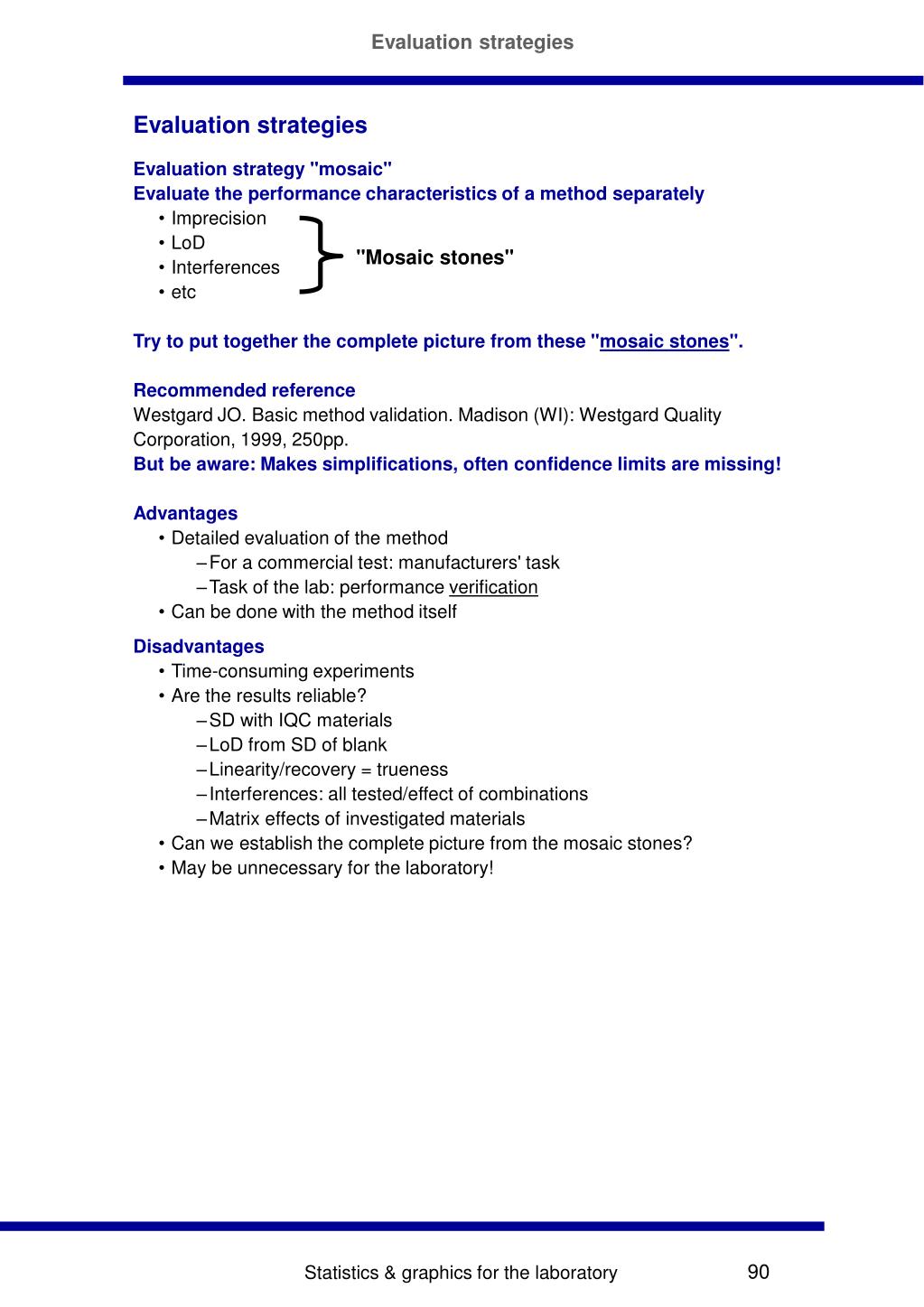

9. "Mosaic stones" Evaluation strategies Evaluation strategies • Evaluation strategy "mosaic" • Evaluate the performance characteristics of a method separately • Imprecision • LoD • Interferences • etc • Try to put together the complete picture from these "mosaic stones". • Recommended reference • Westgard JO. Basic method validation. Madison (WI): Westgard Quality Corporation, 1999, 250pp. • But be aware: Makes simplifications, often confidence limits are missing! • Advantages • Detailed evaluation of the method • For a commercial test: manufacturers' task • Task of the lab: performance verification • Can be done with the method itself • Disadvantages • Time-consuming experiments • Are the results reliable? • SD with IQC materials • LoD from SD of blank • Linearity/recovery = trueness • Interferences: all tested/effect of combinations • Matrix effects of investigated materials • Can we establish the complete picture from the mosaic stones? • May be unnecessary for the laboratory! Statistics & graphics for the laboratory

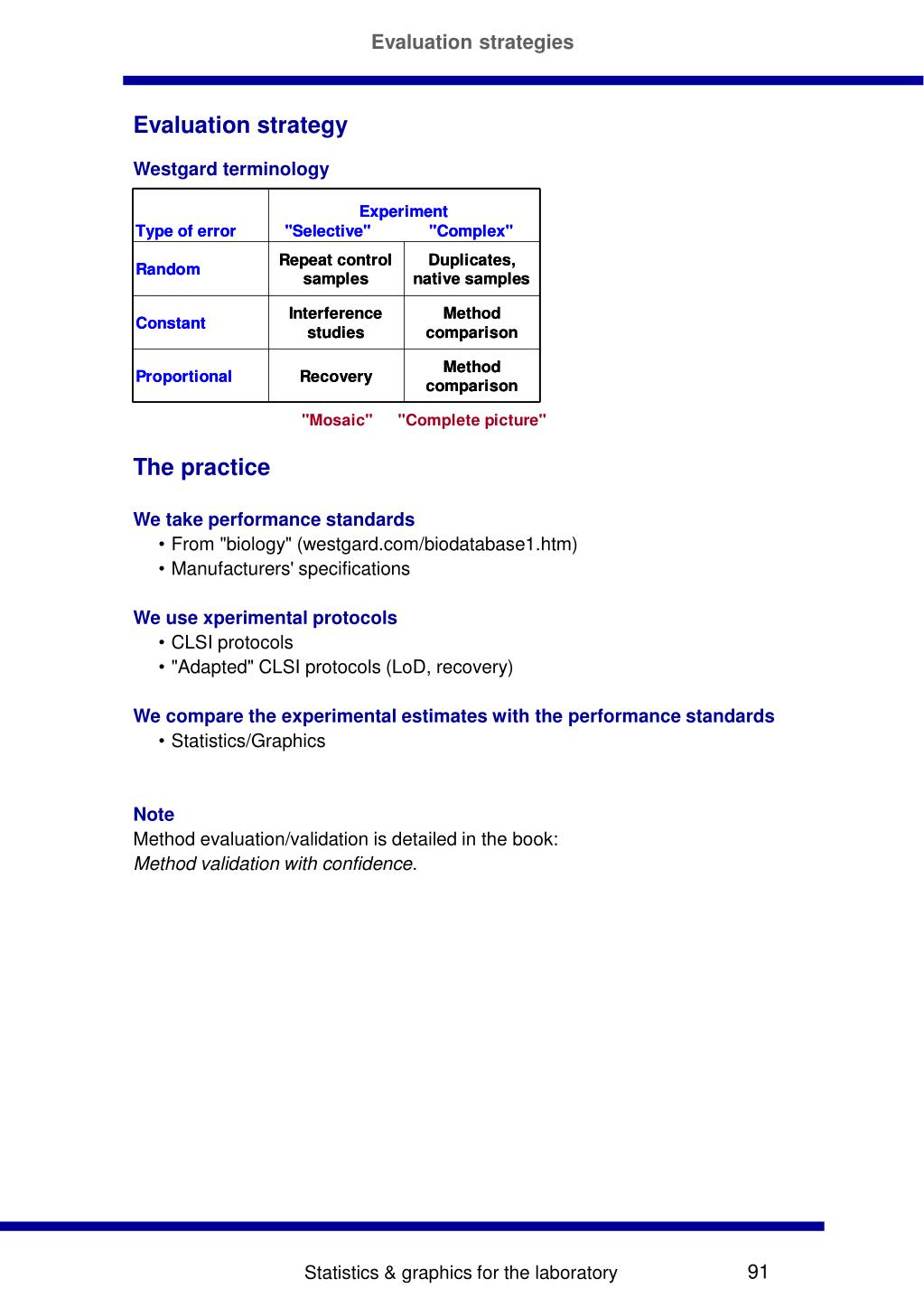

10. Evaluation strategies Evaluation strategy • Westgard terminology • The practice • We take performance standards • From "biology" (westgard.com/biodatabase1.htm) • Manufacturers' specifications • We use xperimental protocols • CLSI protocols • "Adapted" CLSI protocols (LoD, recovery) • We compare the experimental estimates with the performance standards • Statistics/Graphics • Note • Method evaluation/validation is detailed in the book: • Method validation with confidence. Statistics & graphics for the laboratory

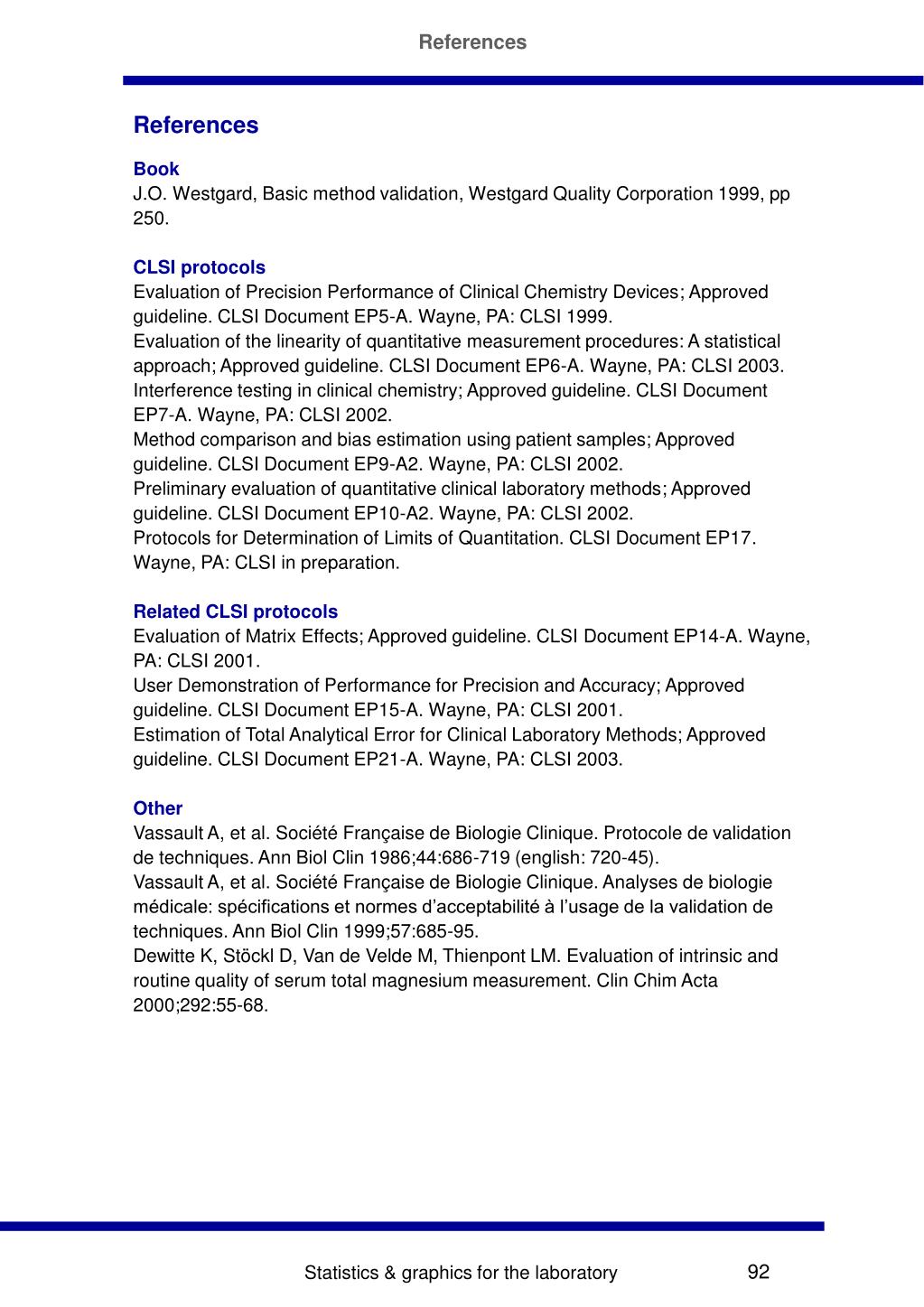

11. References References • Book • J.O. Westgard, Basic method validation, Westgard Quality Corporation 1999, pp 250. • CLSI protocols • Evaluation of Precision Performance of Clinical Chemistry Devices; Approved guideline. CLSI Document EP5-A. Wayne, PA: CLSI 1999. • Evaluation of the linearity of quantitative measurement procedures: A statistical approach; Approved guideline. CLSI Document EP6-A. Wayne, PA: CLSI 2003. • Interference testing in clinical chemistry; Approved guideline. CLSI Document EP7-A. Wayne, PA: CLSI 2002. • Method comparison and bias estimation using patient samples; Approved guideline. CLSI Document EP9-A2. Wayne, PA: CLSI 2002. • Preliminary evaluation of quantitative clinical laboratory methods; Approved guideline. CLSI Document EP10-A2. Wayne, PA: CLSI 2002. • Protocols for Determination of Limits of Quantitation. CLSI Document EP17. Wayne, PA: CLSI in preparation. • Related CLSI protocols • Evaluation of Matrix Effects; Approved guideline. CLSI Document EP14-A. Wayne, PA: CLSI 2001. • User Demonstration of Performance for Precision and Accuracy; Approved guideline. CLSI Document EP15-A. Wayne, PA: CLSI 2001. • Estimation of Total Analytical Error for Clinical Laboratory Methods; Approved guideline. CLSI Document EP21-A. Wayne, PA: CLSI 2003. • Other • Vassault A, et al. Société Française de Biologie Clinique. Protocole de validation de techniques. Ann Biol Clin 1986;44:686-719 (english: 720-45). • Vassault A, et al. Société Française de Biologie Clinique. Analyses de biologie médicale: spécifications et normes d’acceptabilité à l’usage de la validation de techniques. Ann Biol Clin 1999;57:685-95. • Dewitte K, Stöckl D, Van de Velde M, Thienpont LM. Evaluation of intrinsic and routine quality of serum total magnesium measurement. Clin Chim Acta 2000;292:55-68. Statistics & graphics for the laboratory
