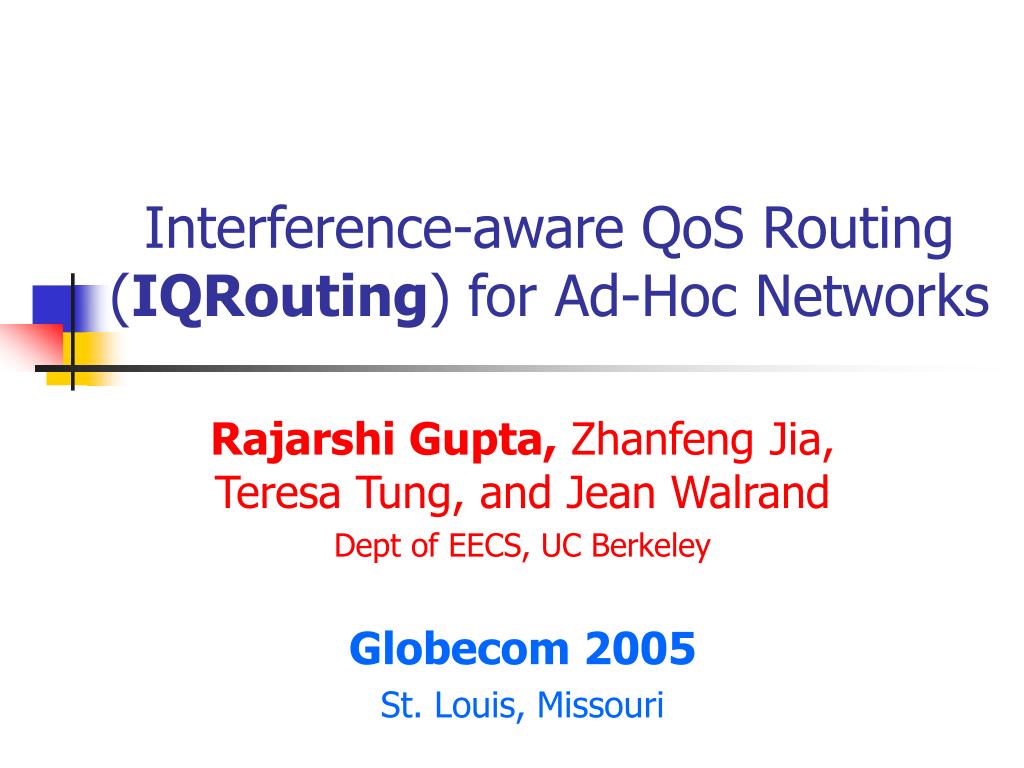

  1. Interference-aware QoS Routing (IQRouting) for Ad-Hoc Networks Rajarshi Gupta, Zhanfeng Jia, Teresa Tung, and Jean Walrand Dept of EECS, UC Berkeley Globecom 2005 St. Louis, Missouri

  2. Battalion of Tanks • Support flows with QoS • Video streaming • Voice calls • Urgent messages • DARPA sponsored SmartNets Project November 2005

  3. Interference • Wired networks • Independent links • Ad-hoc networks • Neighbor links interfere • Interference range > Transmission range • For simulations • Tx range = 500 m • Ix range = 1 km November 2005

  4. Link Conflict Node Interference Model Link November 2005

  5. Maximal Cliques: ABC, BCEF, CDF Cliques • Cliques • Clique= Complete Subgraph • Maximal Clique is not a subset of any other clique • Cliques in Conflict Graph • Set of links that all interfere with each other • Closely related to capacity • Clique Constraints • Only one link in a clique may be active at once • Flows on all links in a clique must sum  1 November 2005

  6. Available Bandwidth • Available bandwidth on a link (avlbw) • Each link part of many maximal cliques • Consider slack on each clique constraint • Take the minimum • Available bandwidth in network/path • Minimum of avlbw of all links in network/path • Key difference between wired and ad-hoc • In wired, width of path determined by bottleneck link • In ad-hoc, width determined by bottleneck clique November 2005

  7. Bellman’s Principle of Optimality • Principle states: If optimal path from S to D goes through A, then it follows optimal path from A to D (Bellman) • Distributed routing algorithms hinge on this principle November 2005

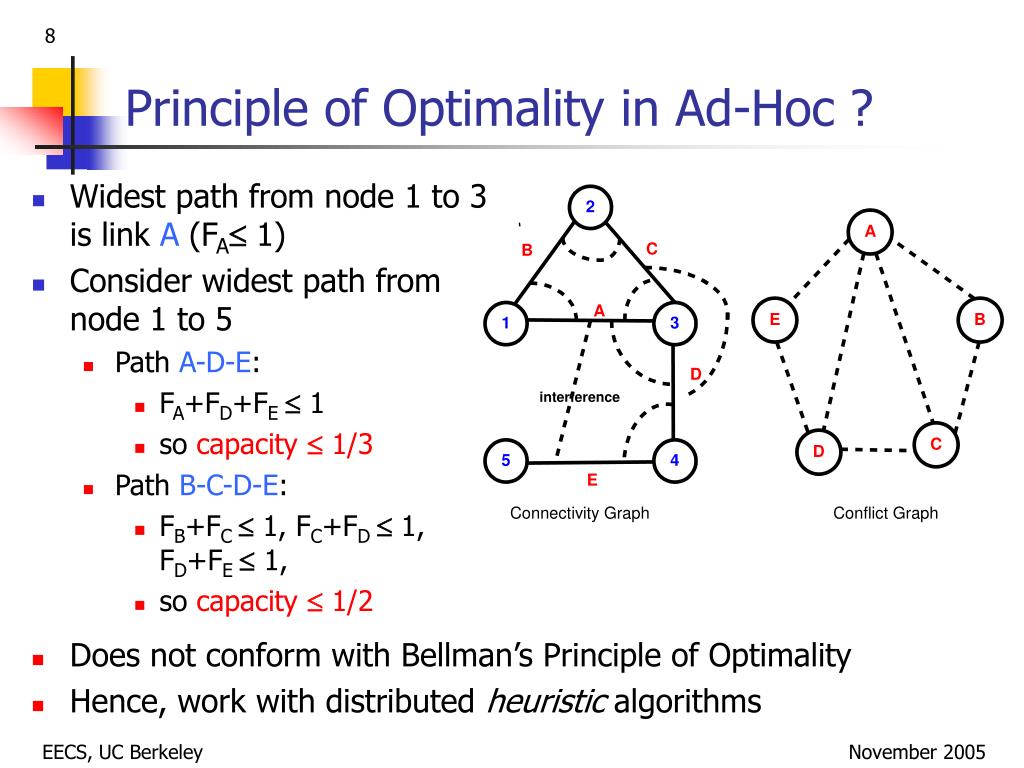

  8. Principle of Optimality in Ad-Hoc ? • Widest path from node 1 to 3 is link A (FA 1) • Consider widest path from node 1 to 5 • Path A-D-E: • FA+FD+FE  1 • so capacity  1/3 • Path B-C-D-E: • FB+FC  1, FC+FD  1, FD+FE  1, • so capacity  1/2 • Does not conform with Bellman’s Principle of Optimality • Hence, work with distributed heuristic algorithms November 2005

  9. IQRouting at Source • Link state protocol distributes available bandwidth information • Choose five candidate paths by source routing • Widest Shortest Path (WSP) • WSP compliment • Shortest Feasible Path (SFP) • OSPF-like weighted path cost ( + used capacity) • Shortest Widest Path (SWP) • Use ad-hoc versions of well-known QoS routing algorithms • Account for interference among neighboring links • Clique constraints determine avlbw November 2005

  10. Distributed IQRouting • Candidate paths are compared using probe packets • Distributed comparison across network • Nodes in path use local and current clique information • Probe rejected if lack of resources • QoS metric accumulated along path • Best candidate chosen at destination November 2005

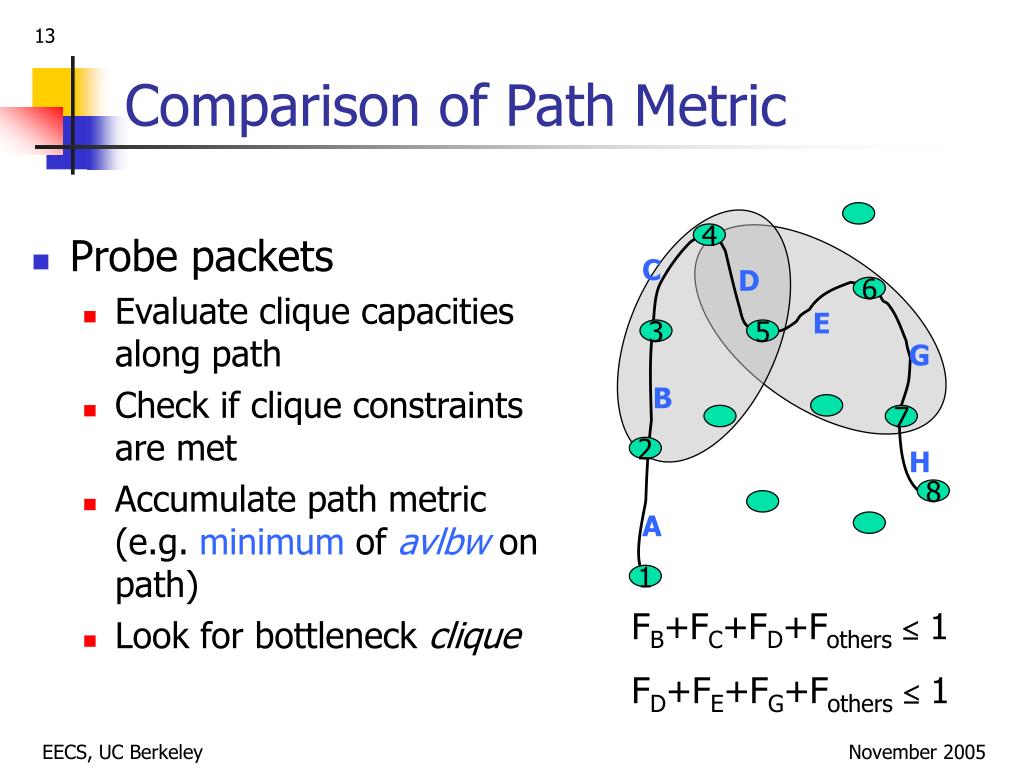

  11. Comparison of Path Metric • Probe packets • Evaluate clique capacities along path • Check if clique constraints are met • Accumulate path metric (e.g. minimum of avlbw on path) • Look for bottleneck clique 4 C D 6 E 3 5 G B 7 2 H 8 A 1 FB+FC+FD+Fothers 1 FD+FE+FG+Fothers 1 November 2005

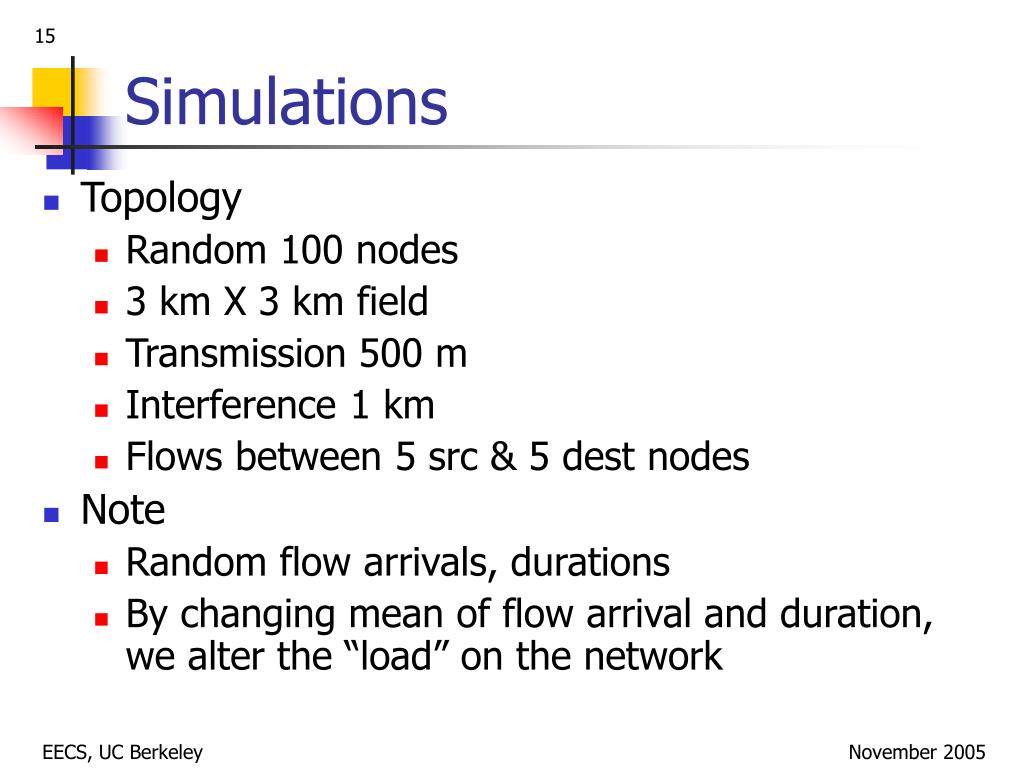

  12. Simulations • Topology • Random 100 nodes • 3 km X 3 km field • Transmission 500 m • Interference 1 km • Flows between 5 src & 5 dest nodes • Note • Random flow arrivals, durations • By changing mean of flow arrival and duration, we alter the “load” on the network November 2005

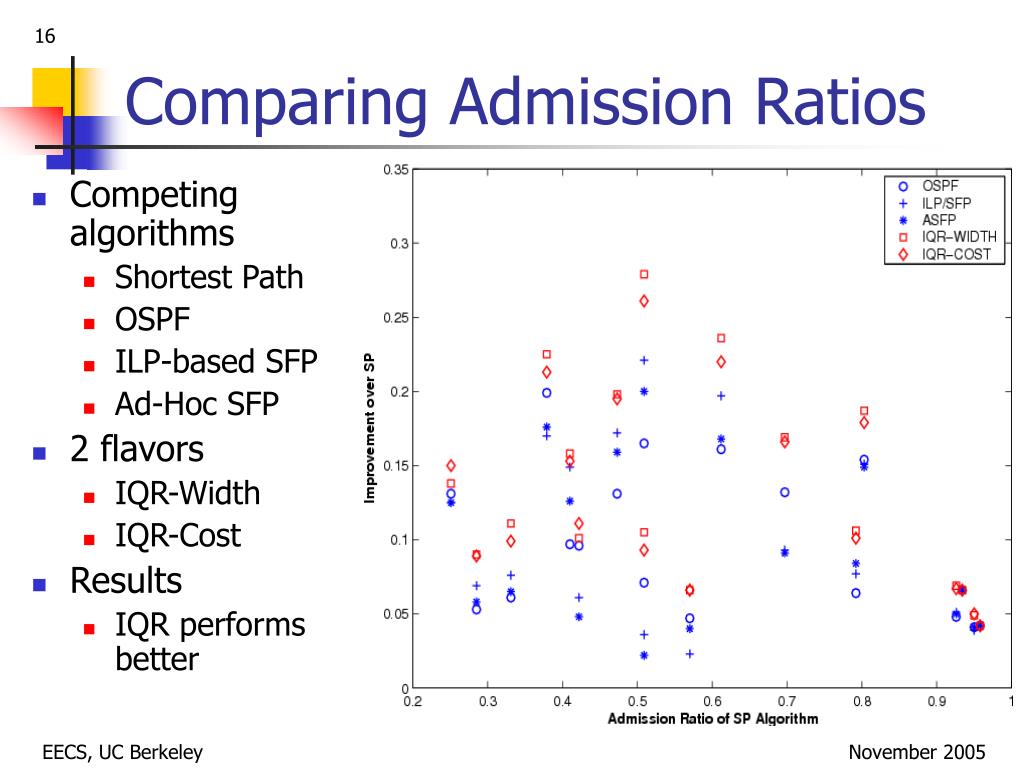

  13. Competing algorithms Shortest Path OSPF ILP-based SFP Ad-Hoc SFP 2 flavors IQR-Width IQR-Cost Results IQR performs better Comparing Admission Ratios November 2005

  14. Grid • 10X10 Grid • Choose node pairs 7 hops apart • Compare adm ratios and path length • At higher load, IQR finds longer paths with greater capacity November 2005

  15. 0 kbps 500 kbps 1000 kbps 0 33 18 27 4 10 14 3 11 46 17 48 100% 0.5 43 15 20 37 38 23 6 1 39 41 47 21 40 50% 5 22 44 36 16 29 9 49 1.5 28 7 1 26 12 42 13 34 0% 45 2 35 50 25 31 8 2 24 19 30 32 2.5 0 0.5 1 1.5 2 2.5 Choose Destination Routing… Click on bar to choose flow rate Choose Source Y position in km X position in km November 2005

  16. 0 kbps 500 kbps 1000 kbps Choose Next Source Choose Destination Click on bar to choose flow rate Routing… November 2005

  17. November 2005

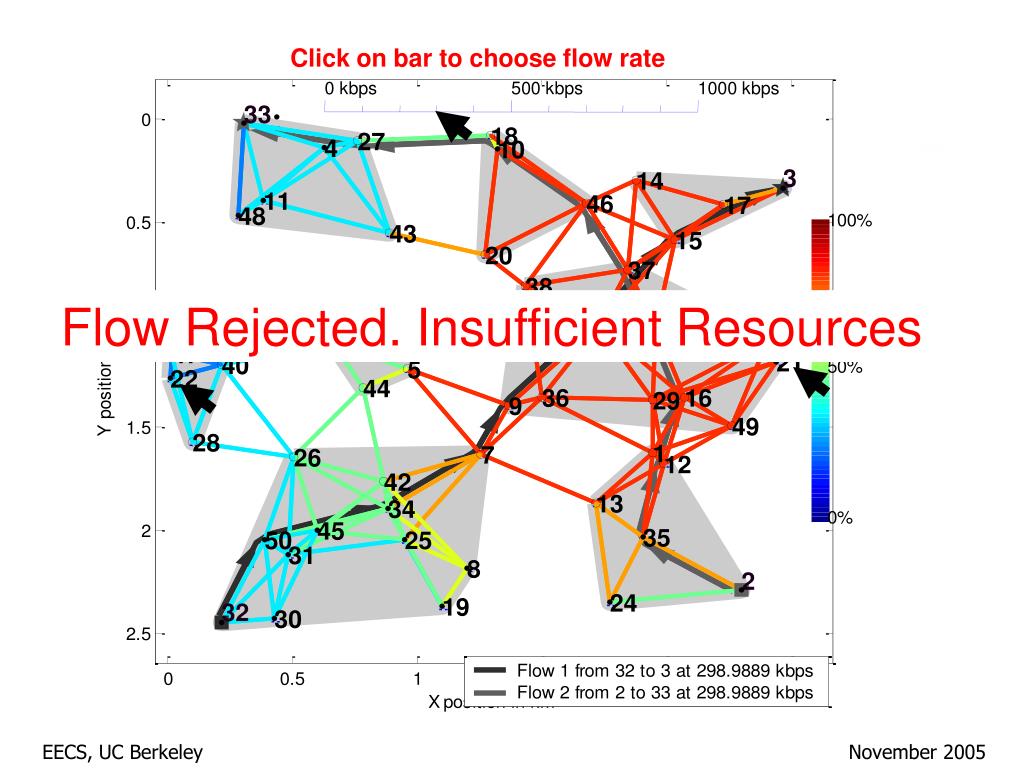

  18. 0 kbps 500 kbps 1000 kbps Choose Next Source Choose Destination Click on bar to choose flow rate Flow Rejected. Insufficient Resources November 2005

  19. Conclusions • Multi-hop services have a long way to go • Actual capacity far lower than advertised • Shortest path methods are inadequate • Heuristic schemes most promising • IQRouting proposes one simple, distributed algorithm for ad-hoc networks • Performance results show significant improvement November 2005
