Real and Virtual Images

Real and Virtual Images. SNC2D. How does an image form in a plane mirror?. Step 1: A multitude of light rays from the object will be incident towards the mirror. How does an image form in a plane mirror?. Step 2: The light will reflect off the mirror according to the Law of Reflection.

Download Presentation

Real and Virtual Images

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Real and Virtual Images SNC2D

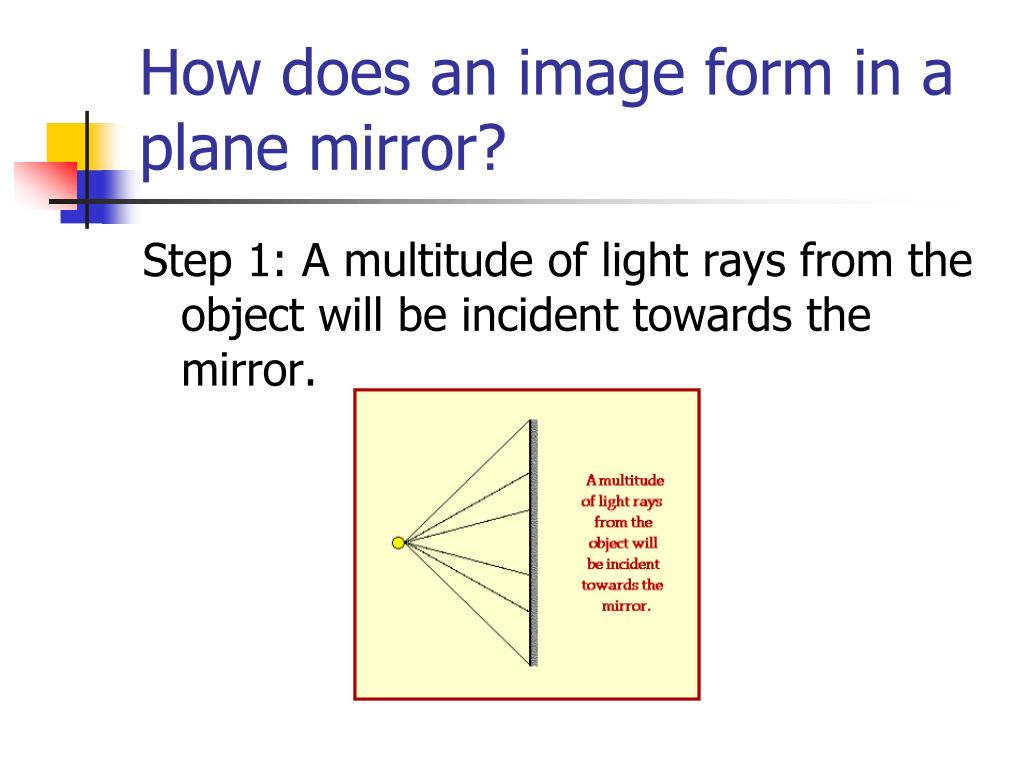

  2. How does an image form in a plane mirror? Step 1: A multitude of light rays from the object will be incident towards the mirror.

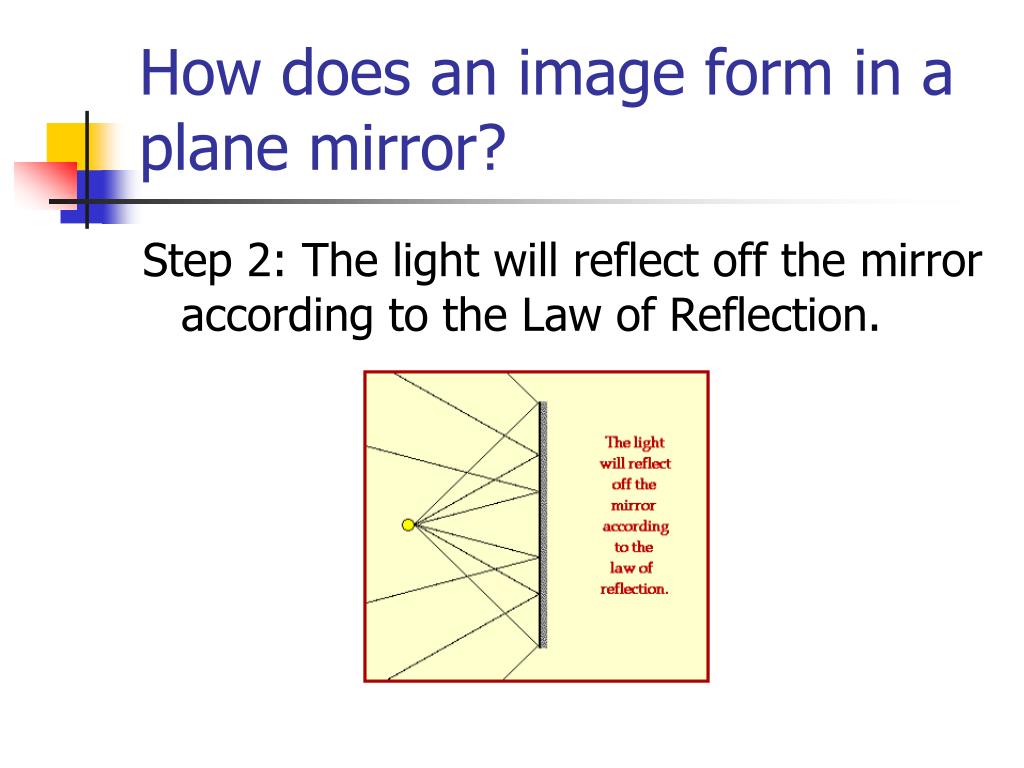

  3. How does an image form in a plane mirror? Step 2: The light will reflect off the mirror according to the Law of Reflection.

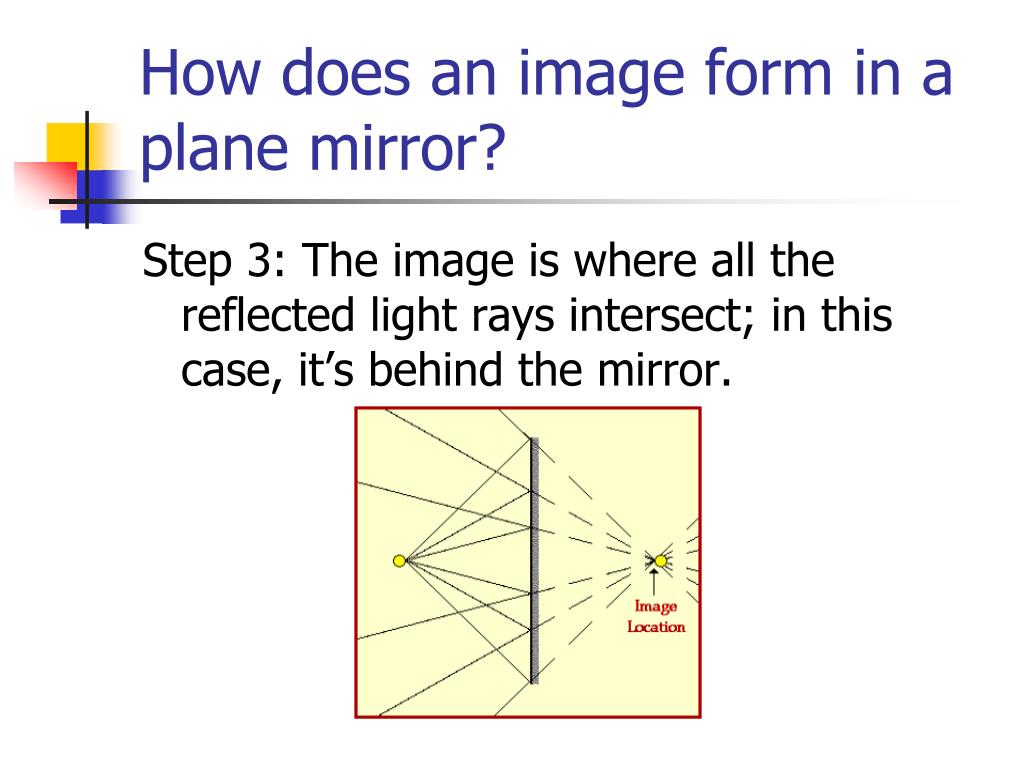

  4. How does an image form in a plane mirror? Step 3: The image is where all the reflected light rays intersect; in this case, it’s behind the mirror.

  5. How does an image form in a plane mirror? i.e. the image is where an observer thinks the light rays originate.

  6. Virtual Images An image formed by the intersection of the extensions of the light rays is called a virtual image. It cannot be focused on a screen.

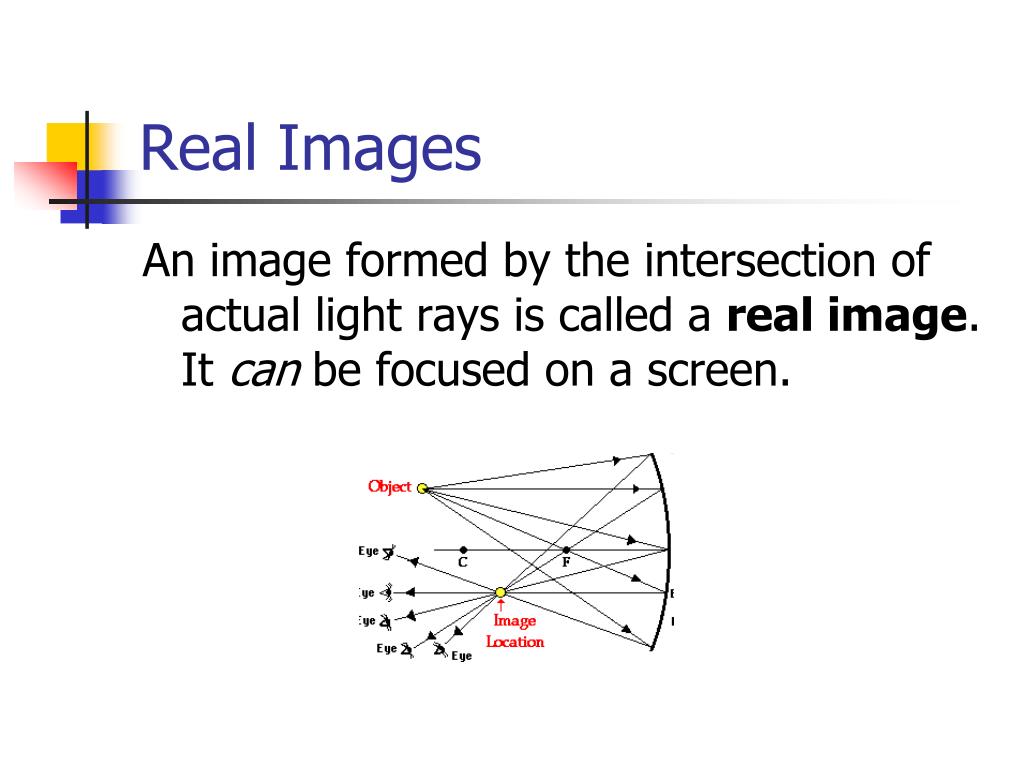

  7. Real Images An image formed by the intersection of actual light rays is called a real image. It can be focused on a screen.

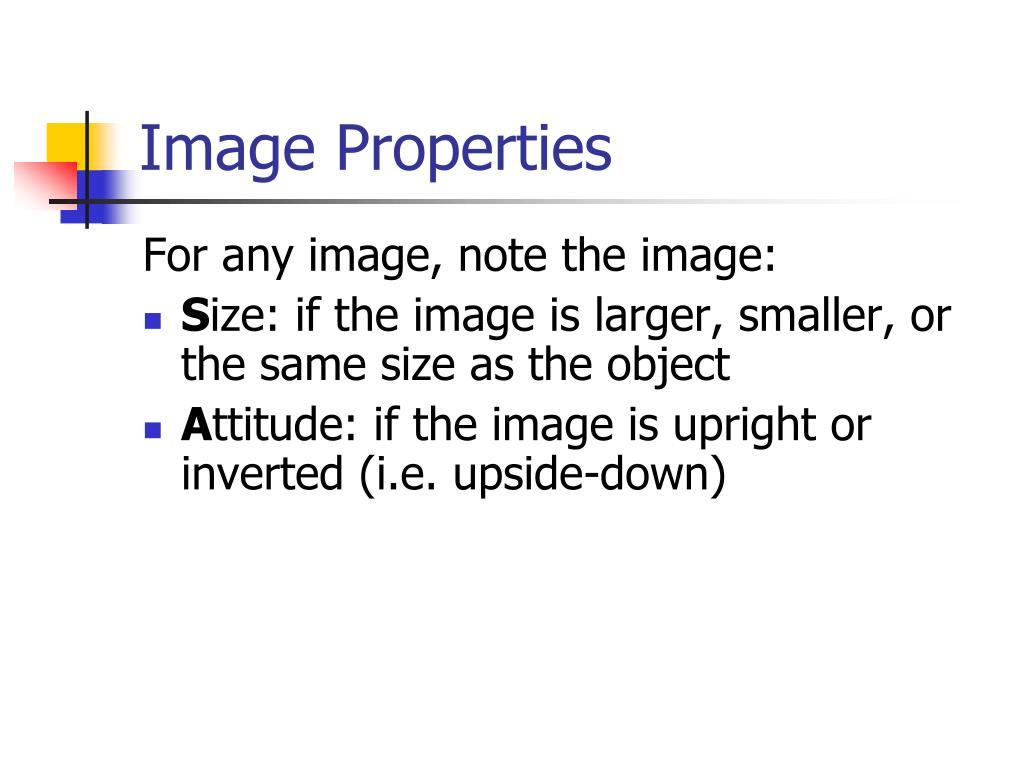

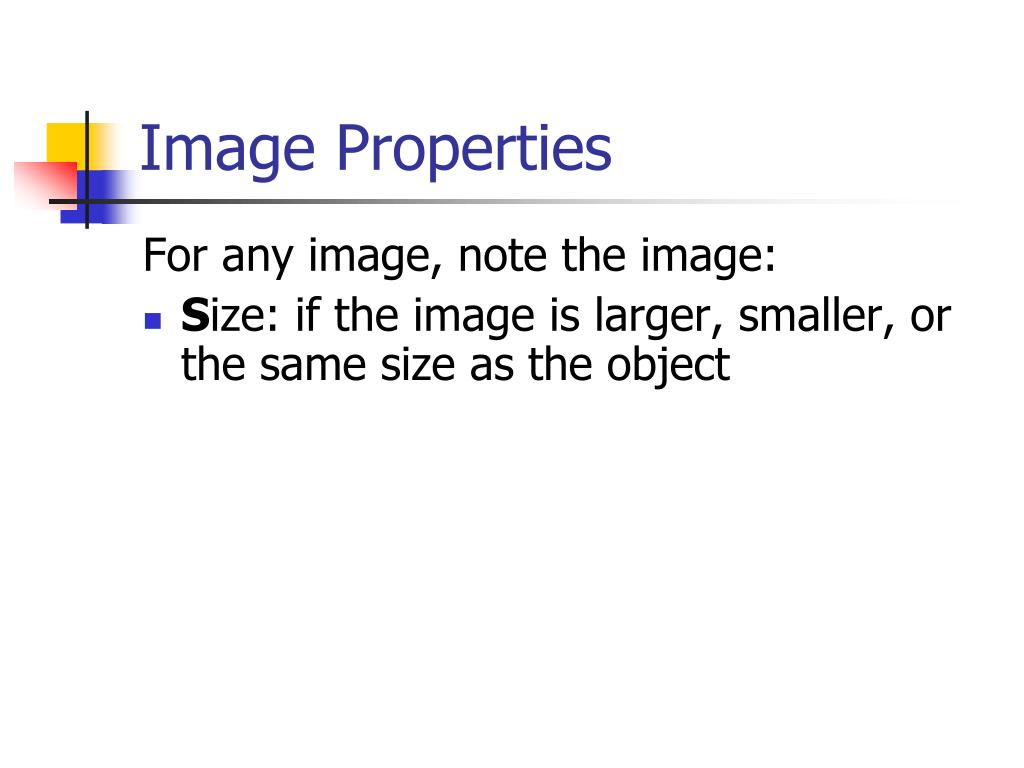

  8. Image Properties For any image, note the image: • Size: if the image is larger, smaller, or the same size as the object

  9. Image Properties For any image, note the image: • Size: if the image is larger, smaller, or the same size as the object • Attitude: if the image is upright or inverted (i.e. upside-down)

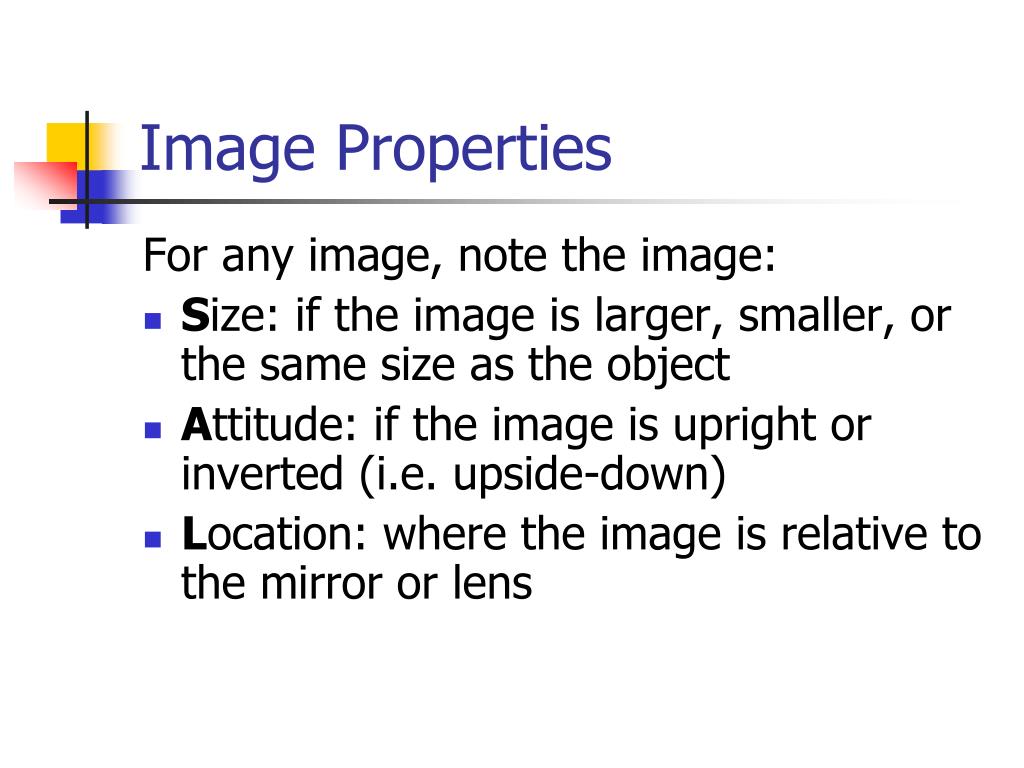

  10. Image Properties For any image, note the image: • Size: if the image is larger, smaller, or the same size as the object • Attitude: if the image is upright or inverted (i.e. upside-down) • Location: where the image is relative to the mirror or lens

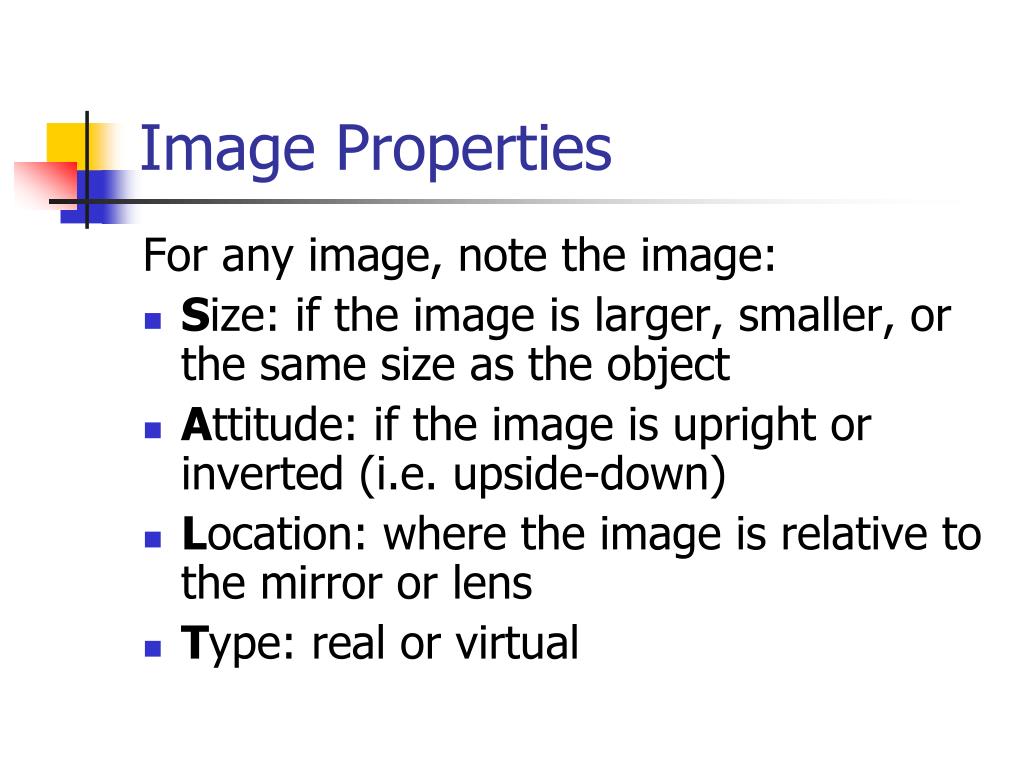

  11. Image Properties For any image, note the image: • Size: if the image is larger, smaller, or the same size as the object • Attitude: if the image is upright or inverted (i.e. upside-down) • Location: where the image is relative to the mirror or lens • Type: real or virtual
