Arches of the foot

Arches of the foot. 1- Medial Longitudinal arch. 2- Lateral longitudinal arch. 3- Transverse arch. The Medial Longitudinal Arch. Posterior Pillar: Calcaneus Top: Talus Anterior pillar: Navicular, 3 cuniforms, med. 3 metatarsals.

mort
Download Presentation

Arches of the foot

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Arches of the foot 1- Medial Longitudinal arch. 2- Lateral longitudinal arch. 3- Transverse arch.

  2. The Medial Longitudinal Arch Posterior Pillar:Calcaneus Top: Talus Anterior pillar: Navicular, 3 cuniforms, med. 3 metatarsals. Functions: 1- Distribution of body weight, 2- Protection of soft structures, 3- Shock absorption. 4- Elastic propulsion during walking or running

  3. The Medial Longitudinal Arch (cont.) Factors keeping med. Long. Arch: 1. Ligaments:Spring lig., deltoid lig., plantar aponeurosis, interosseous ligs., long & short plantar ligs. 2. Muscles:Tibialis post., tibialis ant., flexor hallucis longus, flexor digitorum longus, short muscles of the big toe. 3. Bony factor:The shape and constitution of the bones keep the foot in the arching position.

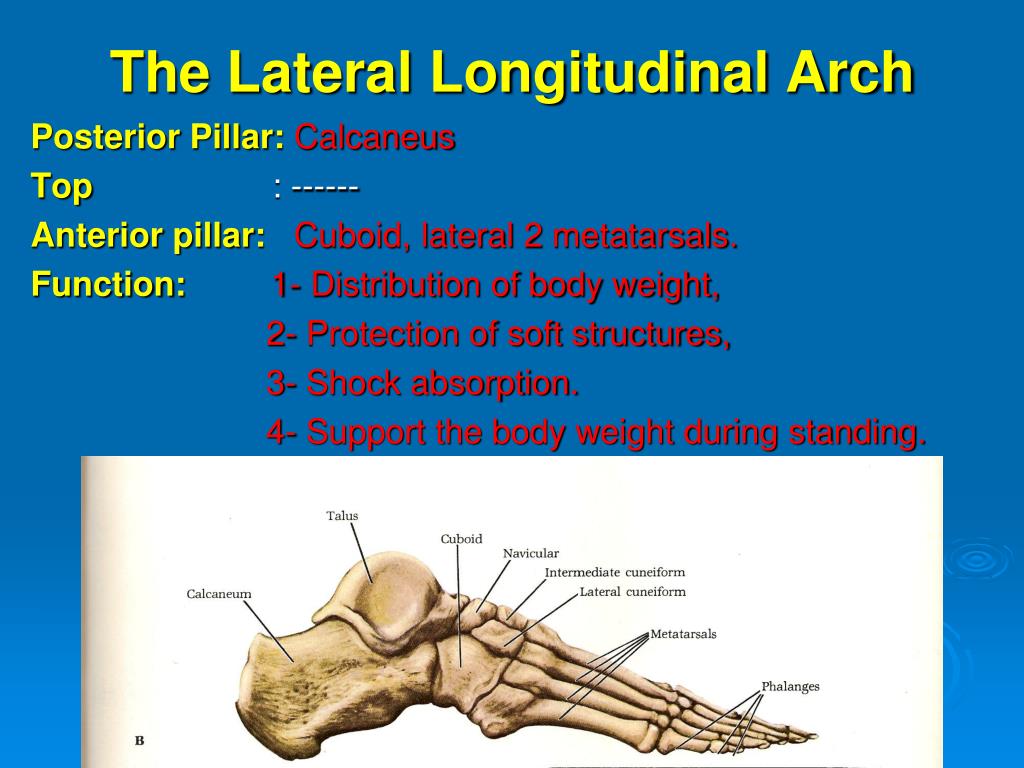

  4. The Lateral Longitudinal Arch Posterior Pillar:Calcaneus Top : ------ Anterior pillar:Cuboid, lateral 2 metatarsals. Function: 1- Distribution of body weight, 2- Protection of soft structures, 3- Shock absorption. 4- Support the body weight during standing.

  5. The Lateral Longitudinal Arch (cont.) Factors keeping lat. Long. Arch: 1. Ligaments:plantar aponeurosis, interosseous ligs., long & short plantar ligs. 2. Muscles:Peroneus longus & brevis. Flexor digitorum longus. Short muscles of the little toe. 3. Bony factor:The shape and constitution of the bones keep the foot in the arching position

  6. The Transverse Arch Formed by:1- Bases of the metatarsal bones 2- Cuboid 3- The 3 cuniforms. (incomplete arch)

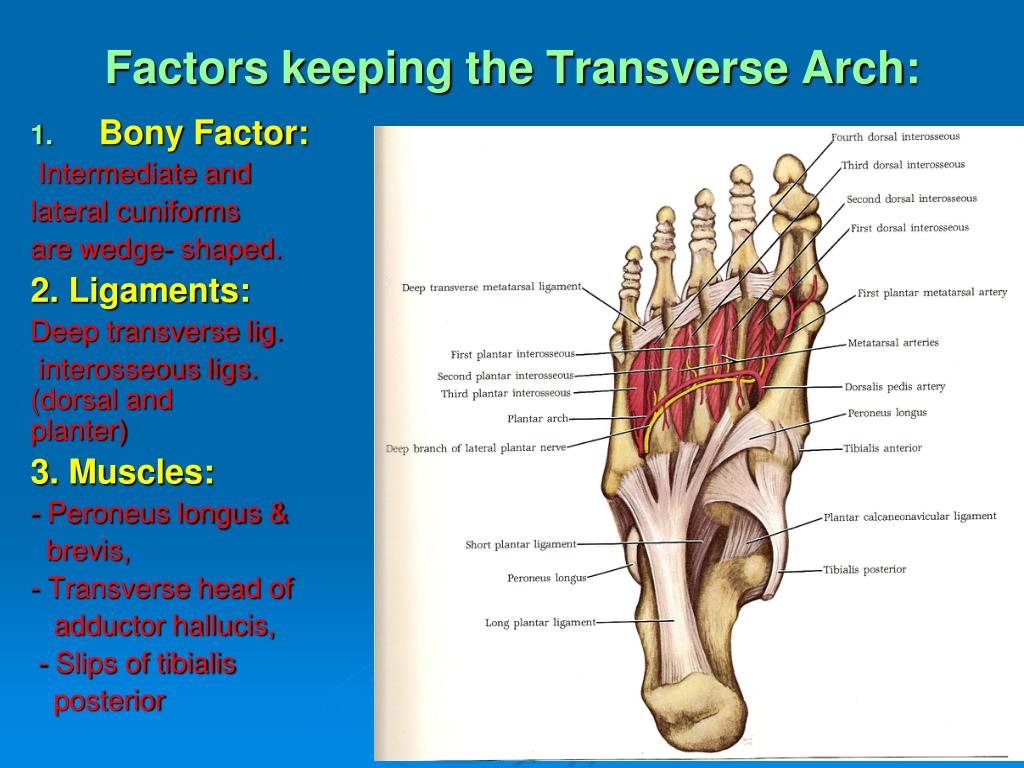

  7. Factors keeping the Transverse Arch: • Bony Factor: Intermediate and lateral cuniforms are wedge- shaped. 2. Ligaments: Deep transverse lig. interosseous ligs. (dorsal and planter) 3. Muscles: - Peroneus longus & brevis, - Transverse head of adductor hallucis, - Slips of tibialis posterior

  8. Anomalies: 1- Flat foot (pes planus):Rotatation of the calcaneus ----► evertion of the plantar surface, slipping down of the talus and navicular -----► lenthening of the medial longitudinal arch and abduction of the forefoot. Cause: Excess weight on the medial side of the foot due to malalignment of bones, relaxation of ligaments, or muscular imbalance. 2- Talipes equinovarus:Plantar flexion, inversion, and adduction of the foot. 3- Talipes calcaneovulgus:Dorsiflexion, eversion, and abduction 4- Sprain:Tear of the ligaments of the ankle ---►severe disability

  9. Thank You Good Luck
