  1. SJSU ENGR 10 Electrical Power Sources Prof. Ping Hsu (c) P.Hsu 2007

  2. Electrical energy can be transmitted via a pair of wires. (c) P.Hsu 2007

  3. A hydraulic analogy (c) P.Hsu 2007

  4. Voltage is the force (or pressure) that forces the positive electrical charge to flow (current) through a circuit. Voltage is measured in ‘Volts’.. (c) P.Hsu 2007

  5. ‘Voltage’ is a relative quantity. The “+” and “-” symbols in a circuit diagram denote the relative voltage (pressure) between two wires. In this circuit, the voltage on the wire marked by ‘+’ is 1.5v higher than that the wire marked by ‘-”. (c) P.Hsu 2007

  6. Current is the flow rate of positive electrical charge. Current is measured in Ampere (or Coulomb per second) Current always flows in complete loop. (c) P.Hsu 2007

  7. Analogy Electrical CircuitHydraulic system Voltage (V)  Pressure (psi) Current (A)  Fluid flow rate (Charge flow rate) (c) P.Hsu 2007

  8. Ohm’s Law If the ‘circuit’ is a simple resistor, the voltage, current, and the resistance of the resistor is related by Ohm’s Law: Resistance is measured in Ohm (Ω) (c) P.Hsu 2007

  9. Two extreme cases Open Circuit (R=infinite) Short Circuit (R=0) (c) P.Hsu 2007

  10. About Ohm’s Law Ohm’s Law, I=V/R, ONLY applies to the voltage across and current through a resistor. While any circuit operates at a certain voltage and current, the voltage and current may NOT be related by Ohm’s Law. (c) P.Hsu 2007

  11. Equivalent Loading Resistance While not all circuits’ voltage and current are related by the Ohm’s Law, we often take a circuit’s normal operating voltage and divide it by its normal operating current. This value is the circuit’s equivalent resistance. (c) P.Hsu 2007

  12. Q1. Voltage in an electrical circuit is similar to what physical quantity in a hydraulic system? (a) Fluid flow rate (b) Speed of the hydraulic motor (c) Volume of the hydraulic fluid (d) Pressure (e) Speed of the pump (c) P.Hsu 2007

  13. Q2: From the values given below, what is the equivalent resistance of an IPod? • 0.3 Ω • 30 Ω • 0.03 Ω • 0.9 Ω (e) 3.1 Ω (c) P.Hsu 2007

  14. The rate of electric energy transfer (power) in an electrical circuit is: Power(w) = V(volts)  I(Amps) The light bulb is consuming P=V*I of power. The battery is sourcing the same amount of power. (c) P.Hsu 2007

  15. Power = VI = V0 = 0 (Open Circuit) (c) P.Hsu 2007

  16. (c) P.Hsu 2007

  17. Sourcing or Consuming Power? When a current flows through a circuit experiencing a voltage drop, this circuit is consuming power. When a current flows through a circuit experiencing a voltage rise, this circuit is sourcing power. (c) P.Hsu 2007

  18. A hydraulic system analogy For Box A: Current flows from low to high => providing power For Box B: Current flows from high to low => consuming power (c) P.Hsu 2007

  19. Q3: Is box A consuming energy or sourcing energy? a) consuming b) sourcing c) neither d) both (c) P.Hsu 2007

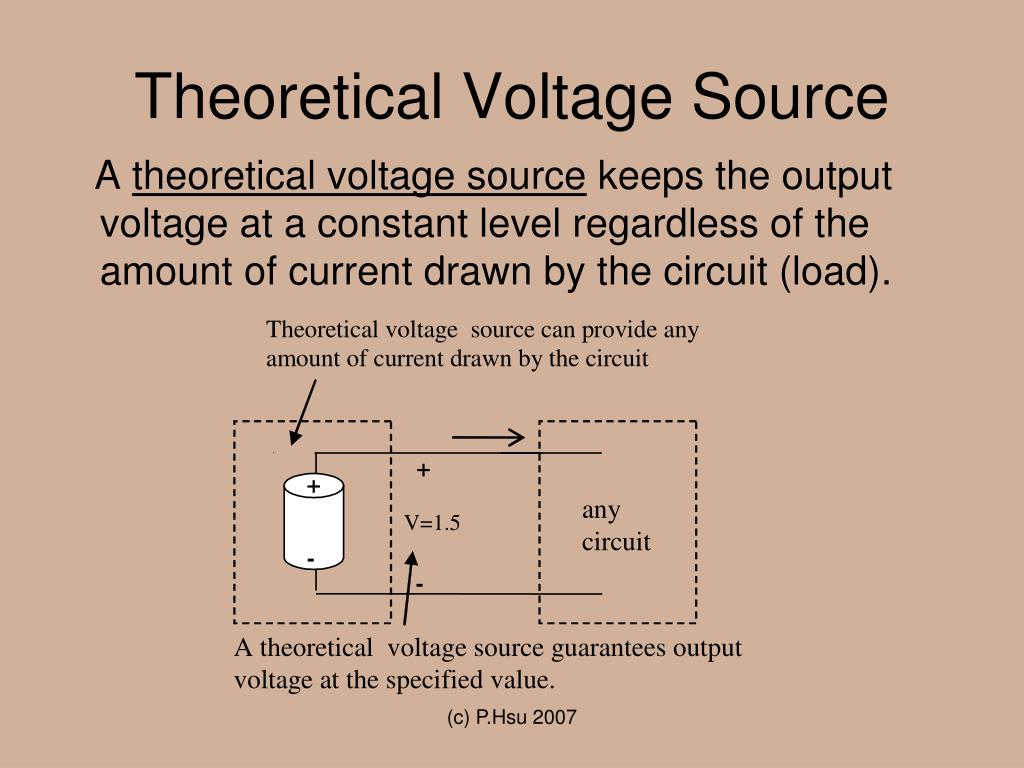

  20. Theoretical Voltage Source A theoretical voltage source keeps the output voltage at a constant level regardless of the amount of current drawn by the circuit (load). (c) P.Hsu 2007

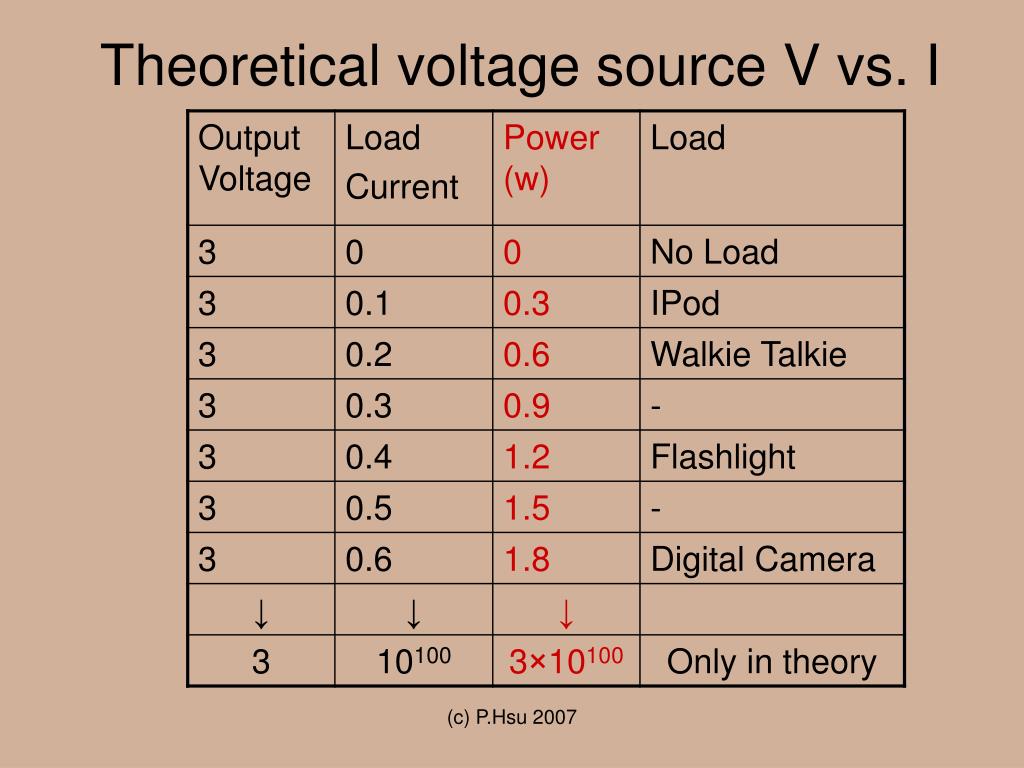

  21. Theoretical voltage source V vs. I (c) P.Hsu 2007

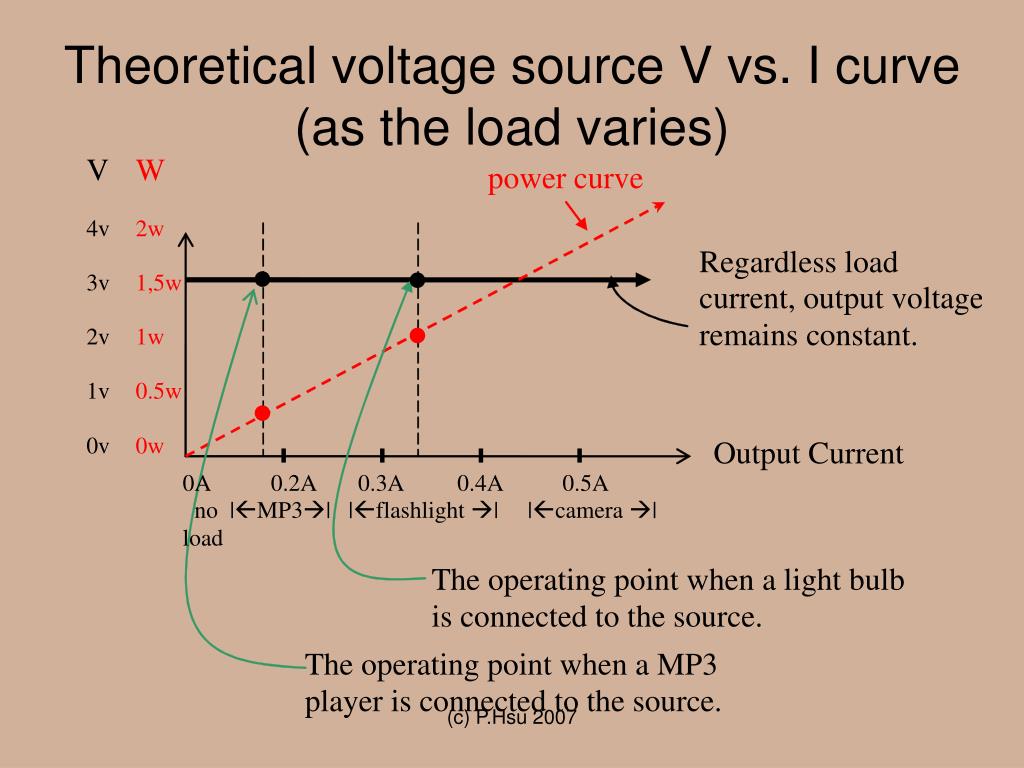

  22. Theoretical voltage source V vs. I curve (as the load varies) (c) P.Hsu 2007

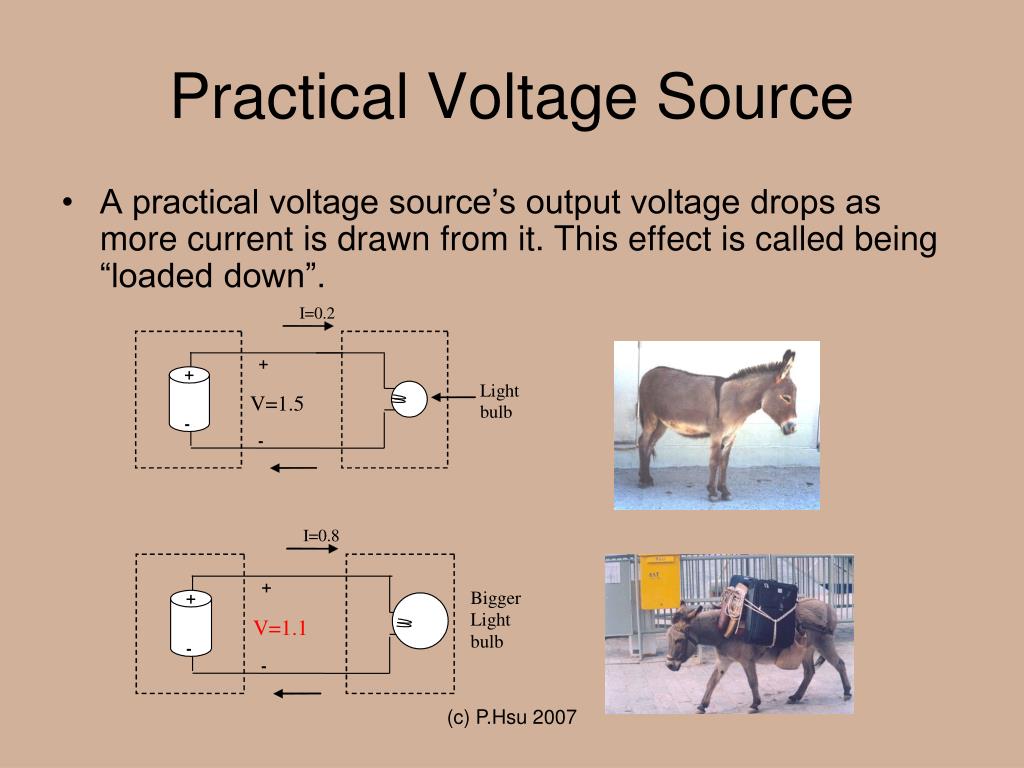

  23. Practical Voltage Source • A practical voltage source’s output voltage drops as more current is drawn from it. This effect is called being “loaded down”. (c) P.Hsu 2007

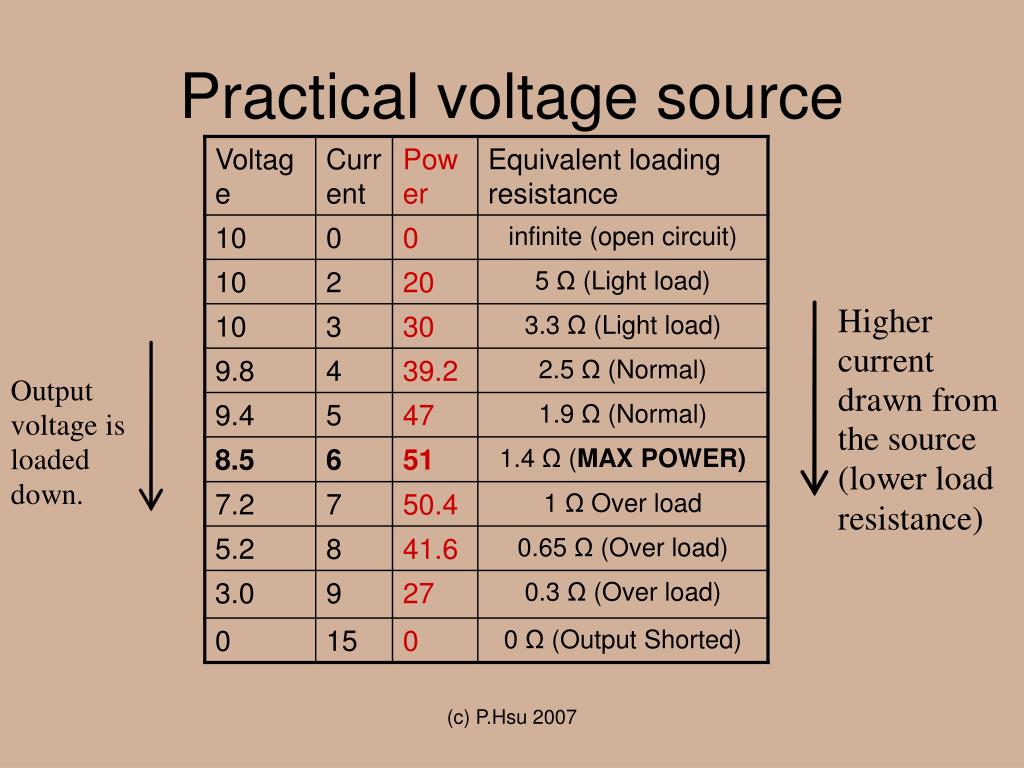

  24. Practical voltage source (c) P.Hsu 2007

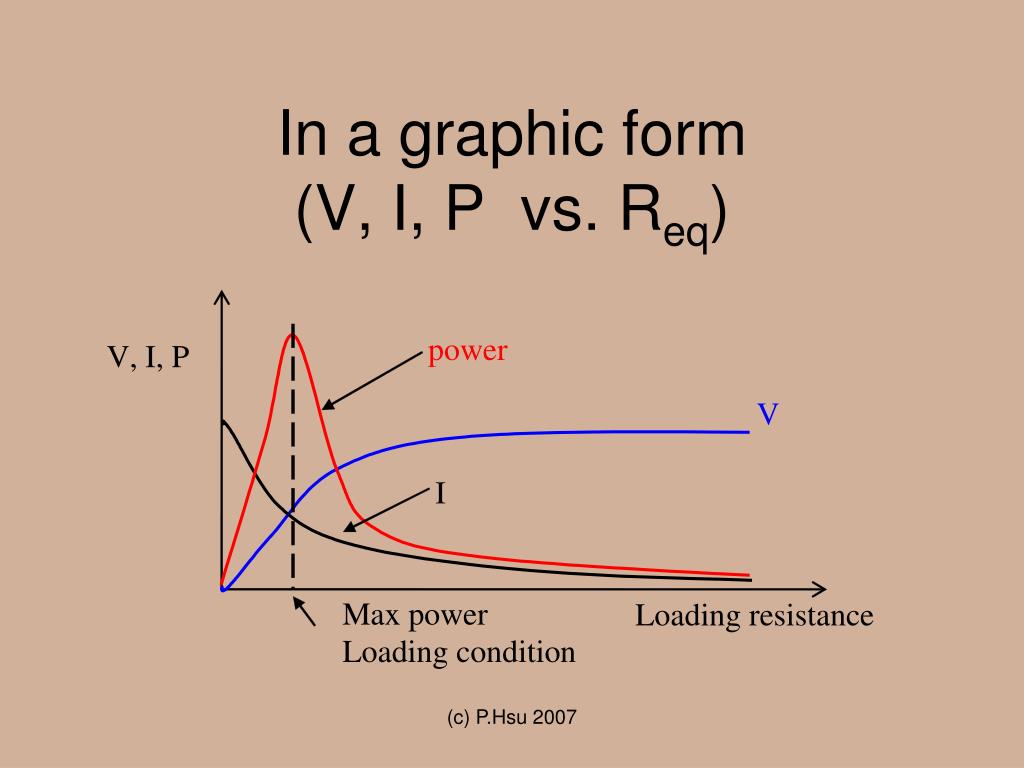

  25. In a graphic form(V, I, P vs. Req) (c) P.Hsu 2007

  26. In a graphic form(V, P vs. I) (c) P.Hsu 2007

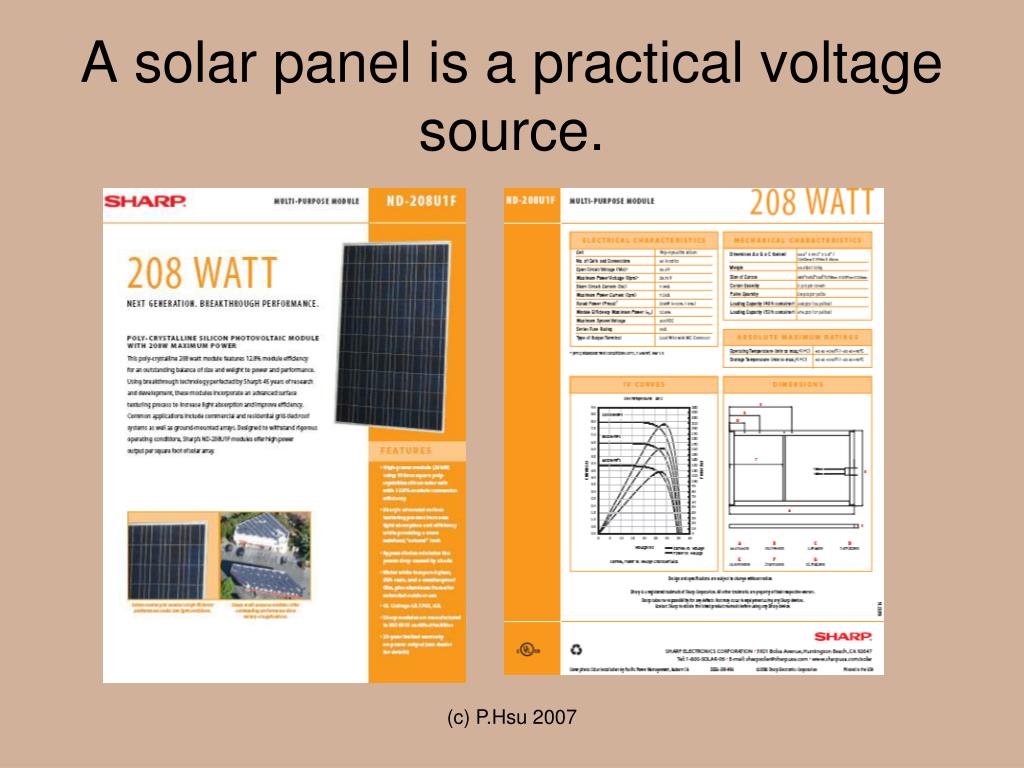

  27. A solar panel is a practical voltage source. (c) P.Hsu 2007

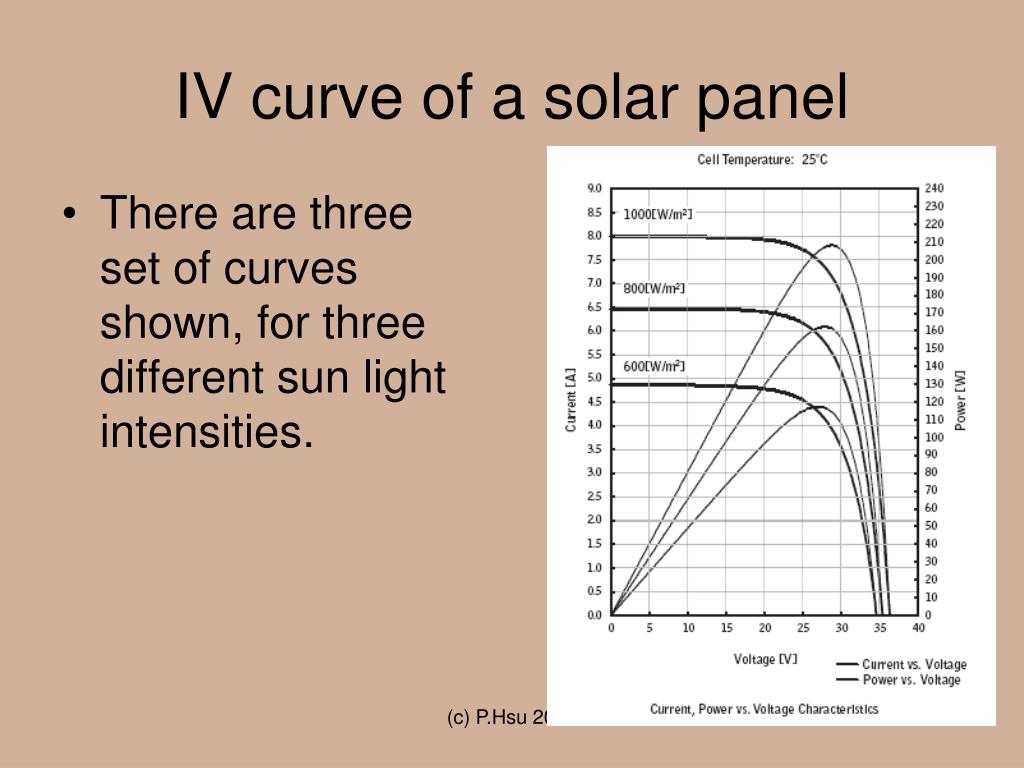

  28. IV curve of a solar panel • There are three set of curves shown, for three different sun light intensities. (c) P.Hsu 2007

  29. A variable resistor (potentiometer or POT) is used in experimentally determining the V vs. I curve of a solar cell. The same procedure is used in the wind turbine experiment. (c) P.Hsu 2007

  30. (c) P.Hsu 2007

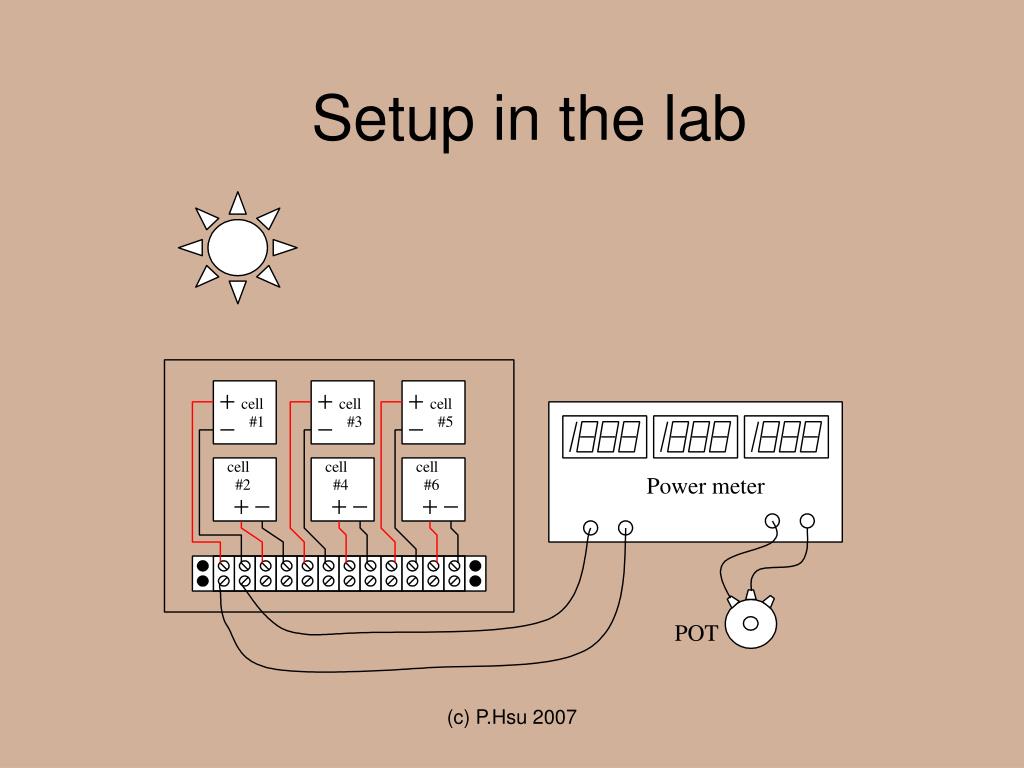

  31. Setup in the lab (c) P.Hsu 2007

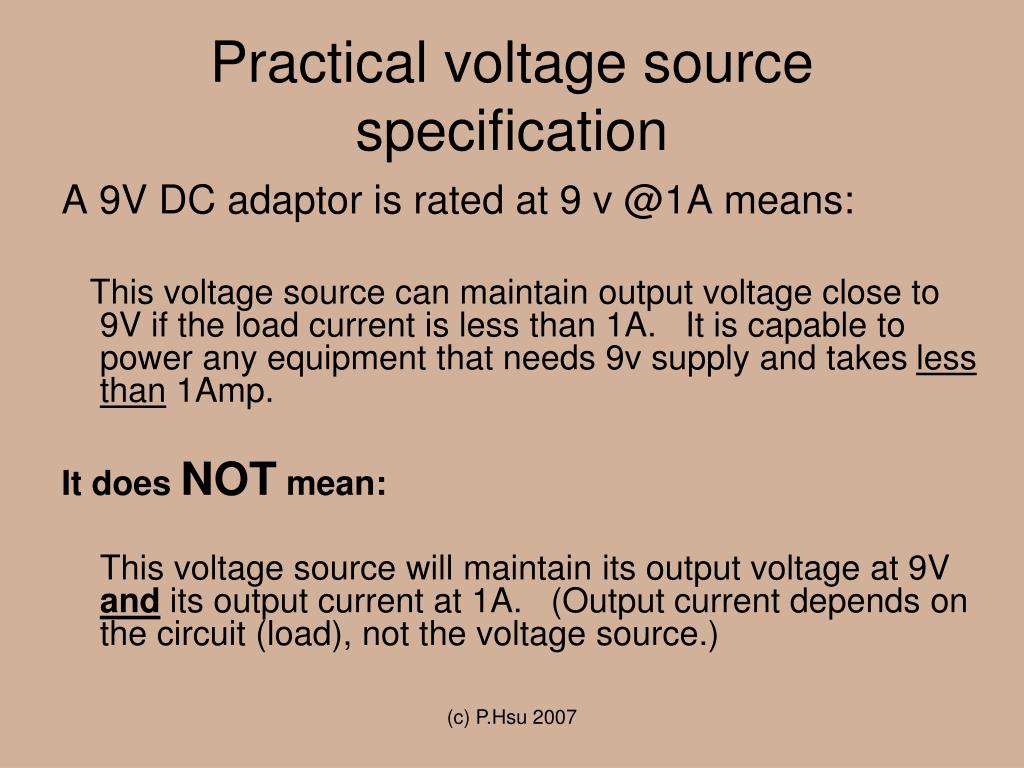

  32. Practical voltage source specification A 9V DC adaptor is rated at 9 v @1A means: This voltage source can maintain output voltage close to 9V if the load current is less than 1A. It is capable to power any equipment that needs 9v supply and takes less than 1Amp. It does NOT mean: This voltage source will maintain its output voltage at 9V and its output current at 1A. (Output current depends on the circuit (load), not the voltage source.) (c) P.Hsu 2007

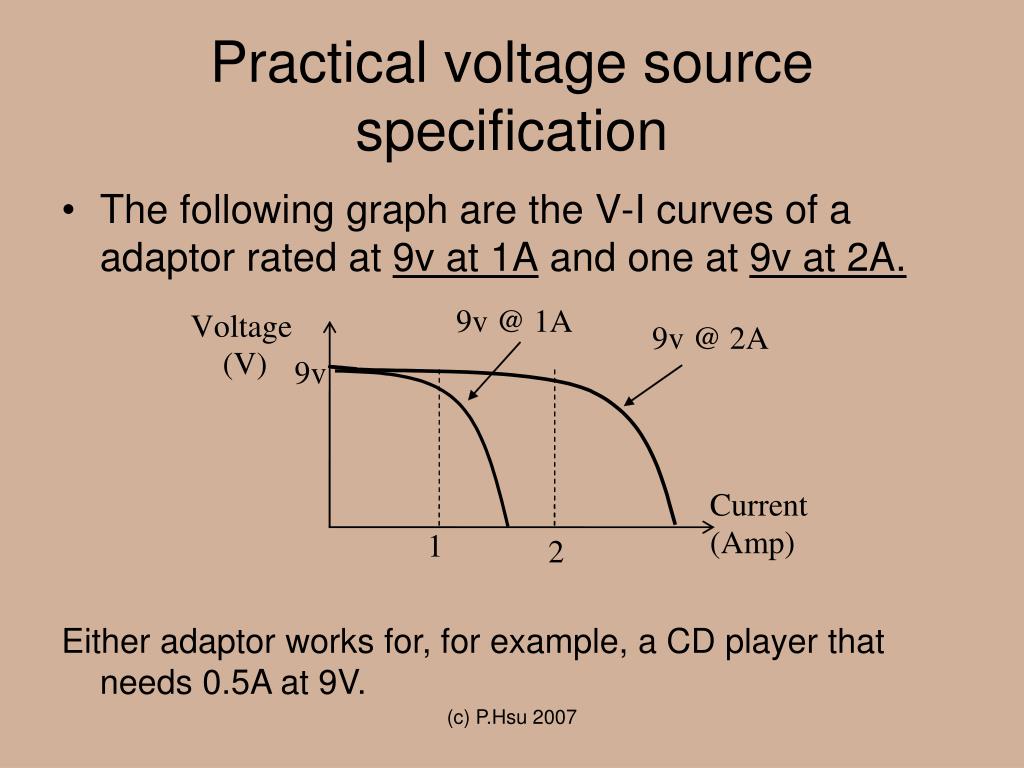

  33. Practical voltage source specification • The following graph are the V-I curves of a adaptor rated at 9v at 1A and one at 9v at 2A. Either adaptor works for, for example, a CD player that needs 0.5A at 9V. (c) P.Hsu 2007

  34. This adaptor is rated at 9V at 0.2A. (c) P.Hsu 2007

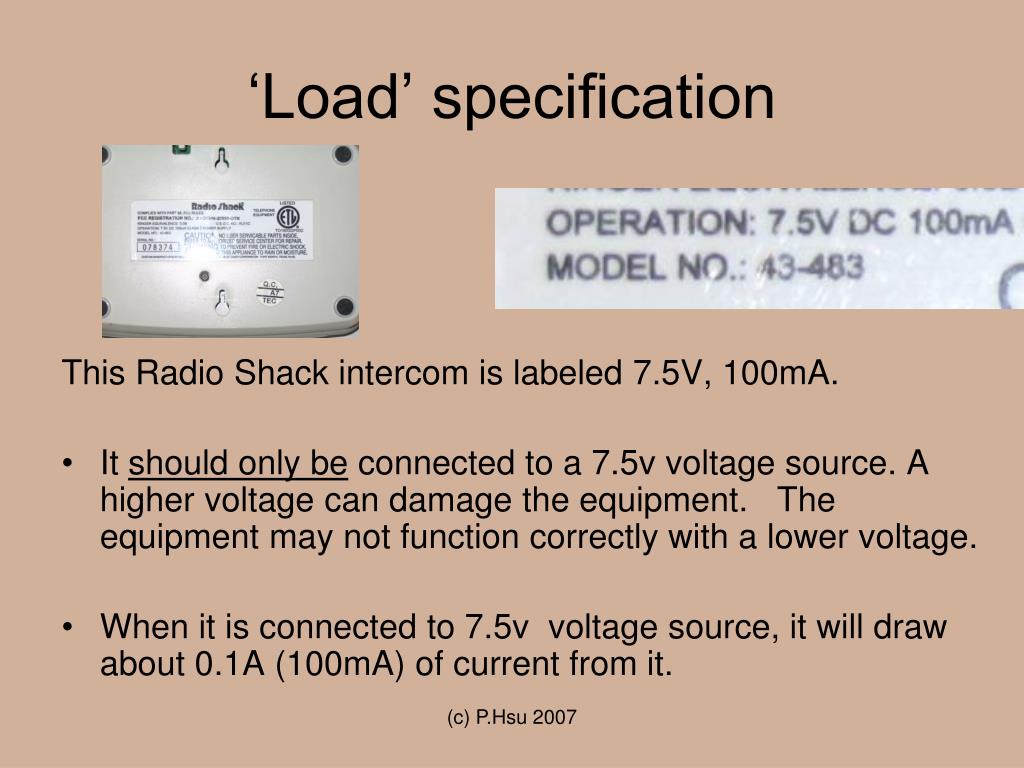

  35. ‘Load’ specification This Radio Shack intercom is labeled 7.5V, 100mA. • It should only be connected to a 7.5v voltage source. A higher voltage can damage the equipment. The equipment may not function correctly with a lower voltage. • When it is connected to 7.5v voltage source, it will draw about 0.1A (100mA) of current from it. (c) P.Hsu 2007

  36. Q4. The label on a CD player shows 9v@0.2A. Which of the follow adaptors will work with this CD player? (a) 9v@0.1A (b) 12v@0.2A (c) 9v@0.5A (d) 6v@0.5A (e) 12v@0.1A (c) P.Hsu 2007
