1 / 5

Daily Production Reporting in ISO15926

Daily Production Reporting in ISO15926. MONTH TO-DATE AVERAGE NET OIL PRODUCTION VOLUME. Daily oil net production volume – BBL. OLF DAILY PRODUCTION REPROTING CLASS NAME. LIQUID VOLUME. Daily oil net production volume – SM3.

naida
Download Presentation

Daily Production Reporting in ISO15926

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Daily Production Reporting in ISO15926

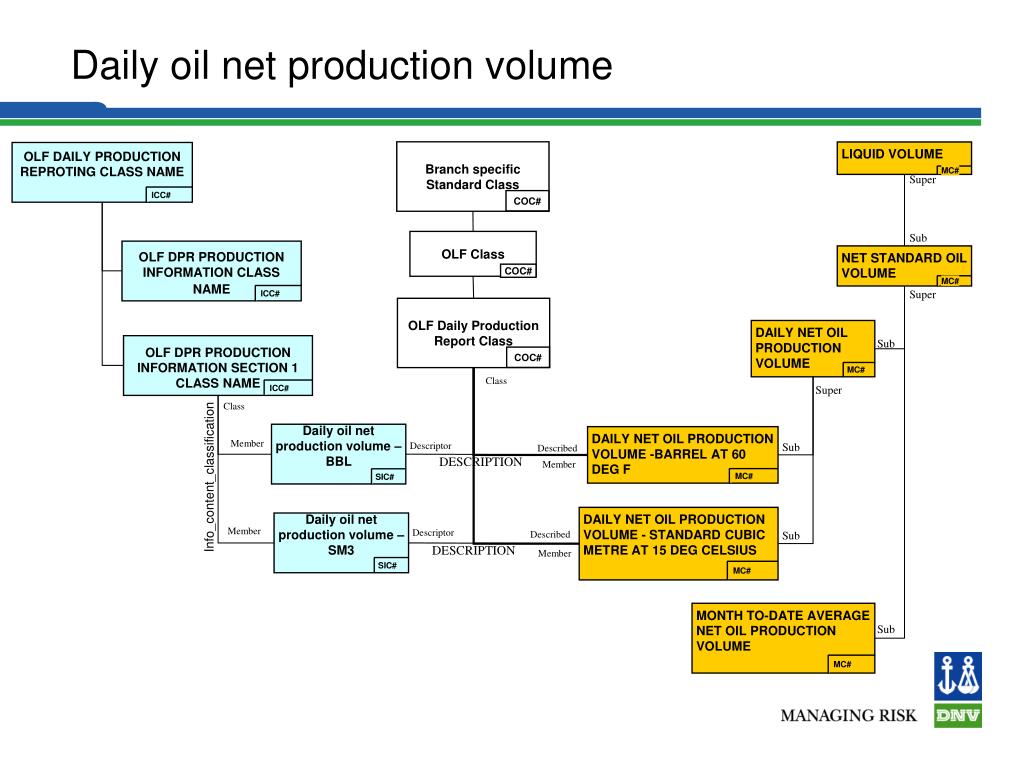

  2. MONTH TO-DATE AVERAGE NET OIL PRODUCTION VOLUME Daily oil net production volume – BBL OLF DAILY PRODUCTION REPROTING CLASS NAME LIQUID VOLUME Daily oil net production volume – SM3 DAILY NET OIL PRODUCTION VOLUME - STANDARD CUBIC METRE AT 15 DEG CELSIUS NET STANDARD OIL VOLUME OLF DPR PRODUCTION INFORMATION SECTION 1 CLASS NAME DAILY NET OIL PRODUCTION VOLUME -BARREL AT 60 DEG F DAILY NET OIL PRODUCTION VOLUME OLF DPR PRODUCTION INFORMATION CLASS NAME MC# MC# MC# MC# ICC# ICC# ICC# SIC# SIC# MC# MC# Branch specific Standard Class OLF Daily Production Report Class OLF Class COC# COC# COC# Daily oil net production volume Super Sub Super Sub Class Super Class Member Descriptor Sub Described DESCRIPTION Member Info_content_classification Member Descriptor Described Sub DESCRIPTION Member Sub

  3. Definitions in ISO 15926 • Super-sub class structure • A definition is written according to the following structure: “A ‘super class’ that is ….”

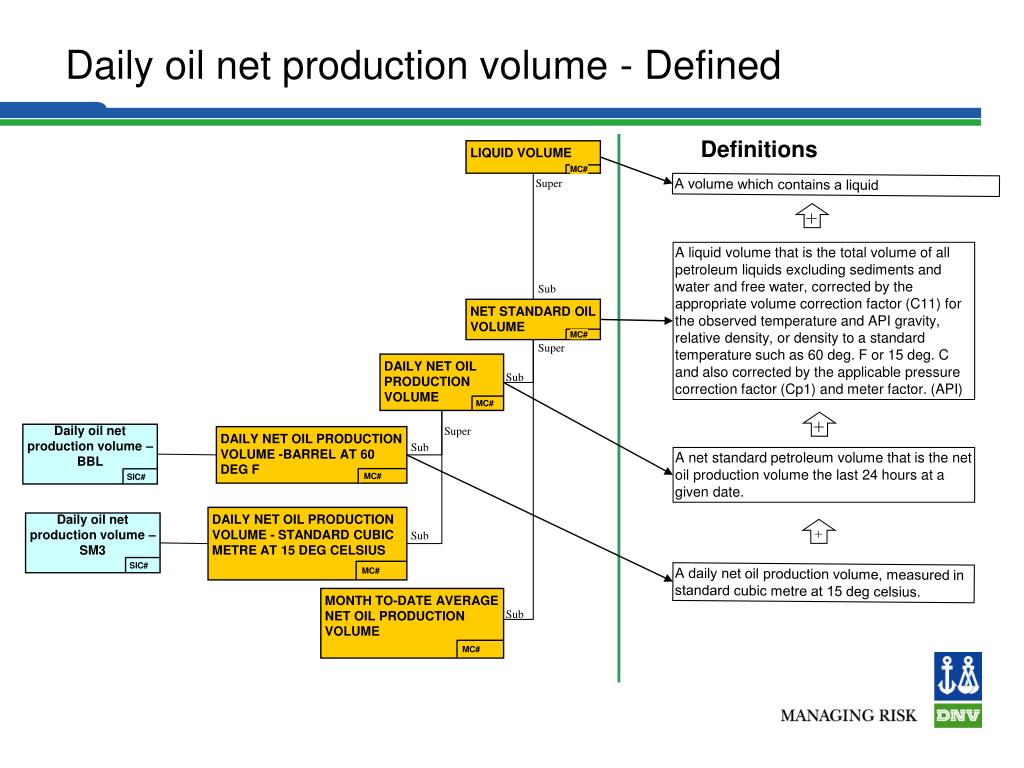

  4. Daily oil net production volume – SM3 LIQUID VOLUME MONTH TO-DATE AVERAGE NET OIL PRODUCTION VOLUME DAILY NET OIL PRODUCTION VOLUME - STANDARD CUBIC METRE AT 15 DEG CELSIUS Daily oil net production volume – BBL NET STANDARD OIL VOLUME DAILY NET OIL PRODUCTION VOLUME DAILY NET OIL PRODUCTION VOLUME -BARREL AT 60 DEG F MC# MC# MC# MC# SIC# SIC# MC# MC# Daily oil net production volume - Defined Definitions Super A volume which contains a liquid + A liquid volume that is the total volume of all petroleum liquids excluding sediments and water and free water, corrected by the appropriate volume correction factor (C11) for the observed temperature and API gravity, relative density, or density to a standard temperature such as 60 deg. F or 15 deg. C and also corrected by the applicable pressure correction factor (Cp1) and meter factor. (API) Sub Super Sub + Super Sub A net standard petroleum volume that is the net oil production volume the last 24 hours at a given date. + Sub A daily net oil production volume, measured in standard cubic metre at 15 deg celsius. Sub

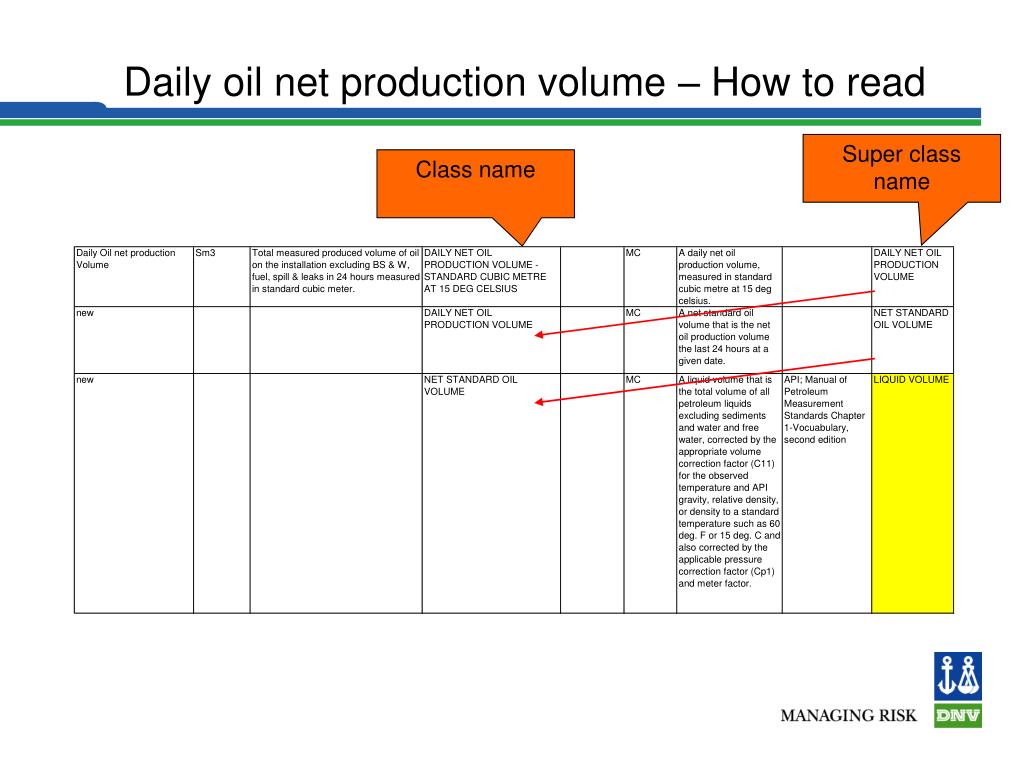

  5. Daily oil net production volume – How to read Super class name Class name
