Red x Green = Blue

11.4 The Cross product For an animation of this topic visit: http://www.math.umn.edu/~nykamp/m2374/readings/crossprod /. Red x Green = Blue. What is the cross product?. a × b is a vector that is perpendicular to both a and b .

nakia
Download Presentation

Red x Green = Blue

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. 11.4 The Cross productFor an animation of this topic visit:http://www.math.umn.edu/~nykamp/m2374/readings/crossprod/ Red x Green = Blue

  2. What is the cross product? • a × b is a vector that is perpendicular to both a and b. • ||a × b|| is the area of the parallelogram spanned by a and b (i.e. the parallelogram whose adjacent sides are the vectors a and b). • The direction of a×b is determined by the right-hand rule. (This means that if we curl the fingers of the right hand from a to b, then the thumb points in the direction of a × b.)

  3. Find the cross product of vectors (by hand and with a calculator) u = 3i +2j – k v = i + 2k Note: To find a cross product on the TI89 Press 2nd 5 (math) – 4 matrix – L Vector ops - crossP crossP([3,2,-1],[1,0,2]) Definition of Cross Product of Two Vectors in Space

  4. For an explanation and animation of the cross product visit: http://www.math.umn.edu/~nykamp/m2374/readings/crossprod/ Definition of Cross Product of Two Vectors in Space

  5. Example 1 • Find the cross product of the two vectors • u = i – 2j + k v = 3i + j – 2k • Find u x v • Find v x u • Find v x v

  6. Example 1 Find the cross product of the two vectors u = i – 2j + k v = 3i + j – 2k Find u x v Find v x u Find v x v

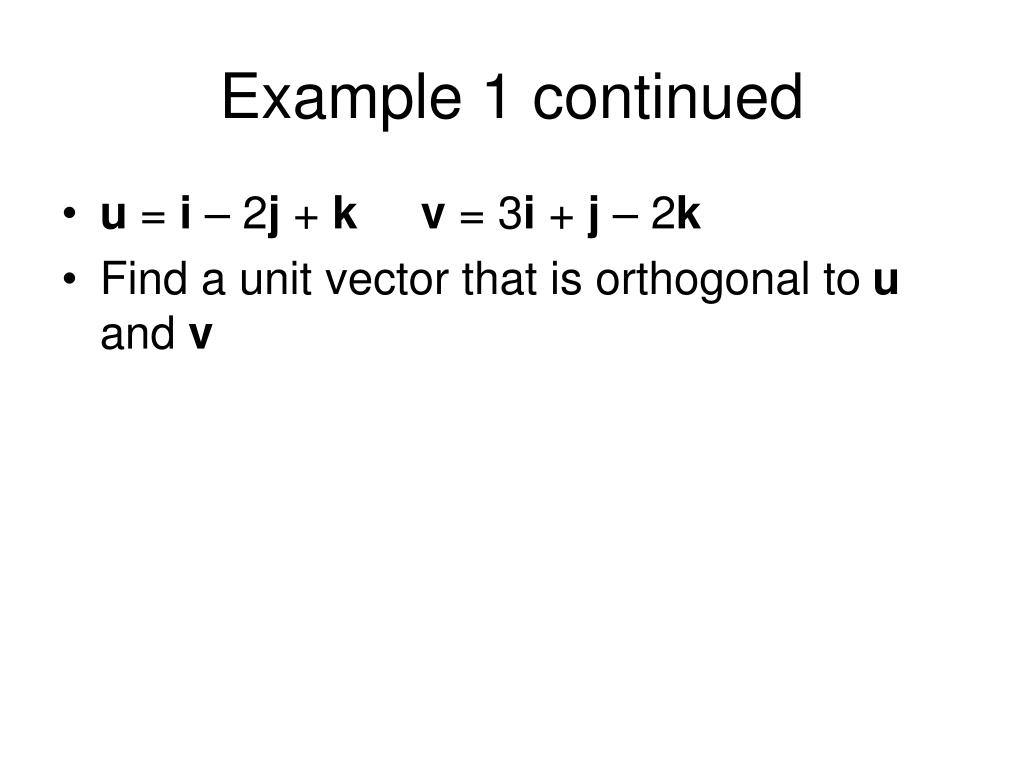

  7. Example 1 continued • u = i – 2j + kv = 3i + j – 2k • Find a unit vector that is orthogonal to u and v

  8. The Triple Scalar Product

  9. Geometric Property of Triple Scalar

  10. Example 5 • u = 3i – 5j + k • v = 2j – 2k • w = 3i + j + k • Find the volume of the parallelepiped having vectors u, v and w for sides

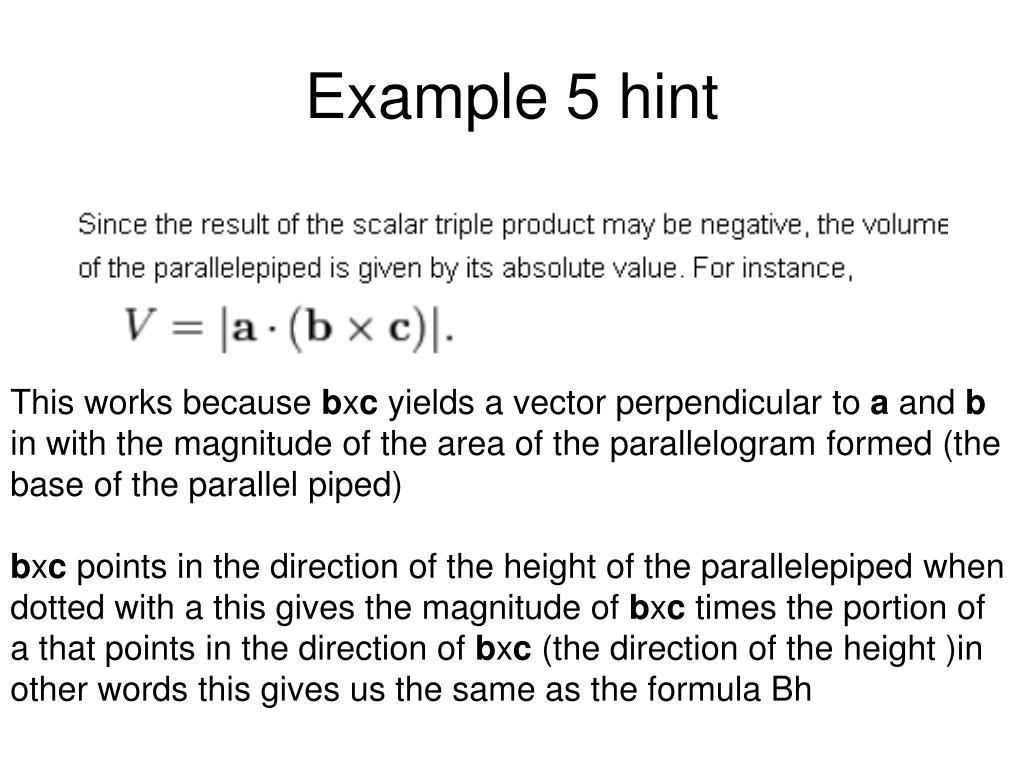

  11. Example 5 hint This works because bxc yields a vector perpendicular to a and b in with the magnitude of the area of the parallelogram formed (the base of the parallel piped) bxc points in the direction of the height of the parallelepiped when dotted with a this gives the magnitude of bxc times the portion of a that points in the direction of bxc (the direction of the height )in other words this gives us the same as the formula Bh

  12. Q: Why should you never make a math teacher angry? A: You might get a cross product Q: What do you get when you cross an elephant and a banana? A: | elephant | * | banana | * sin(theta)

  13. Proof of the cross productproof that the cross product is orthogonal to the two original vectors is part of the homework │u x v │ = │u │ │v │sinθ
