  1. Lecture 9. Op Amps I • What is an Op Amp? • Ideal Op Amps • Applications • Examples

  2. What is an Op Amp? • Op Amp is short for operational amplifier. • An operational amplifier is modeled as a voltage controlled voltage source. • An operational amplifier has a very high input impedance and a very high gain. • It has usually differential inputs and a single output.

  3. Use of Op Amps • Op amps can be configured in many different ways using resistors and other components. • Amplifiers provide gains in voltage or current. • Op amps can convert current to voltage. • Op amps can provide a buffer between two circuits. • Op amps can be used to implement integrators and differentiators. • Lowpass and bandpass filters.

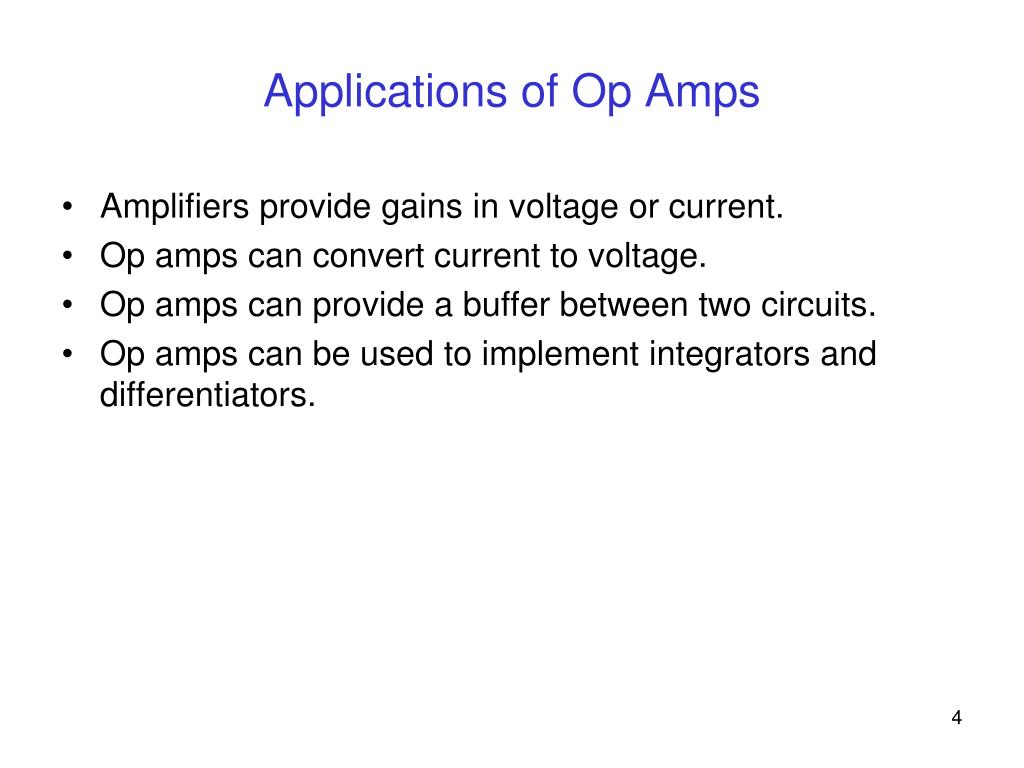

  4. Applications of Op Amps • Amplifiers provide gains in voltage or current. • Op amps can convert current to voltage. • Op amps can provide a buffer between two circuits. • Op amps can be used to implement integrators and differentiators.

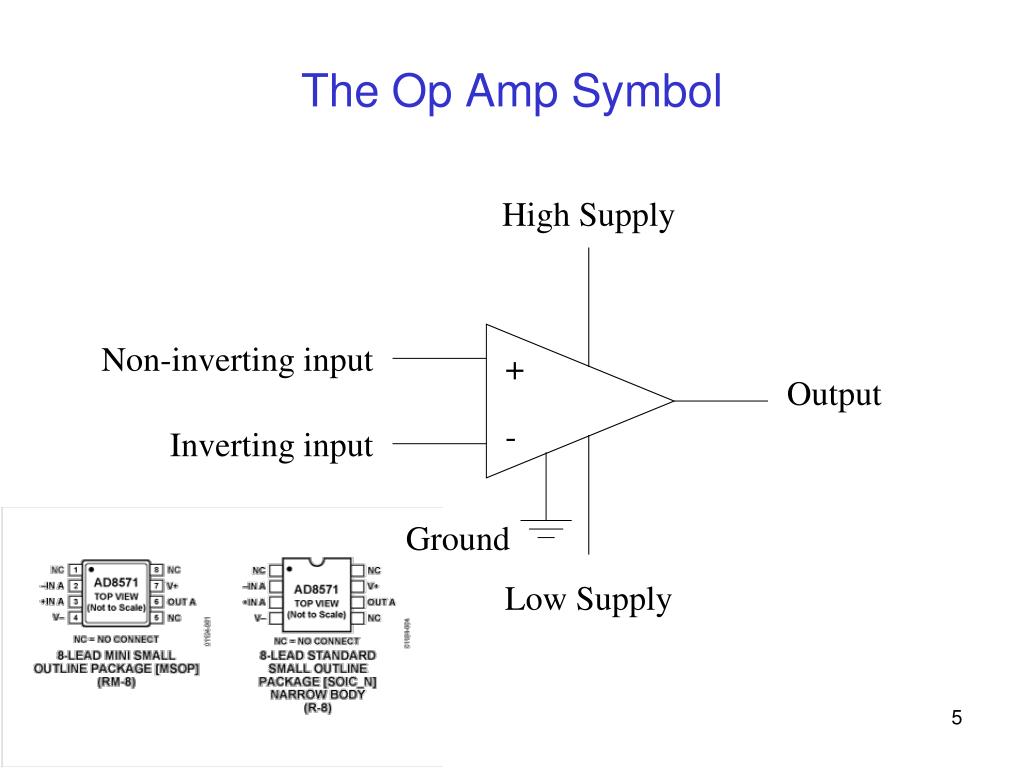

  5. + - The Op Amp Symbol High Supply Non-inverting input Output Inverting input Ground Low Supply

  6. + - The Op Amp Model – Voltage Dependent Source v+ Non-inverting input + vo Rin v- Inverting input - A(v+ -v- )

  7. + - Typical Op Amp • The input resistance Rin is very large (practically infinite). • The voltage gain A is very large (practically infinite). v+ Non-inverting input + vo Rin v- Inverting input - A(v+ -v- )

  8. “Ideal” Op Amp • The input resistance is infinite. • The gain is infinite. • The op amp is in a negative feedback configuration. • Infinite input resistance means the current into the inverting input is zero: i- = 0 • Infinite gain means the difference between v+ and v- is zero: v+ - v- = 0

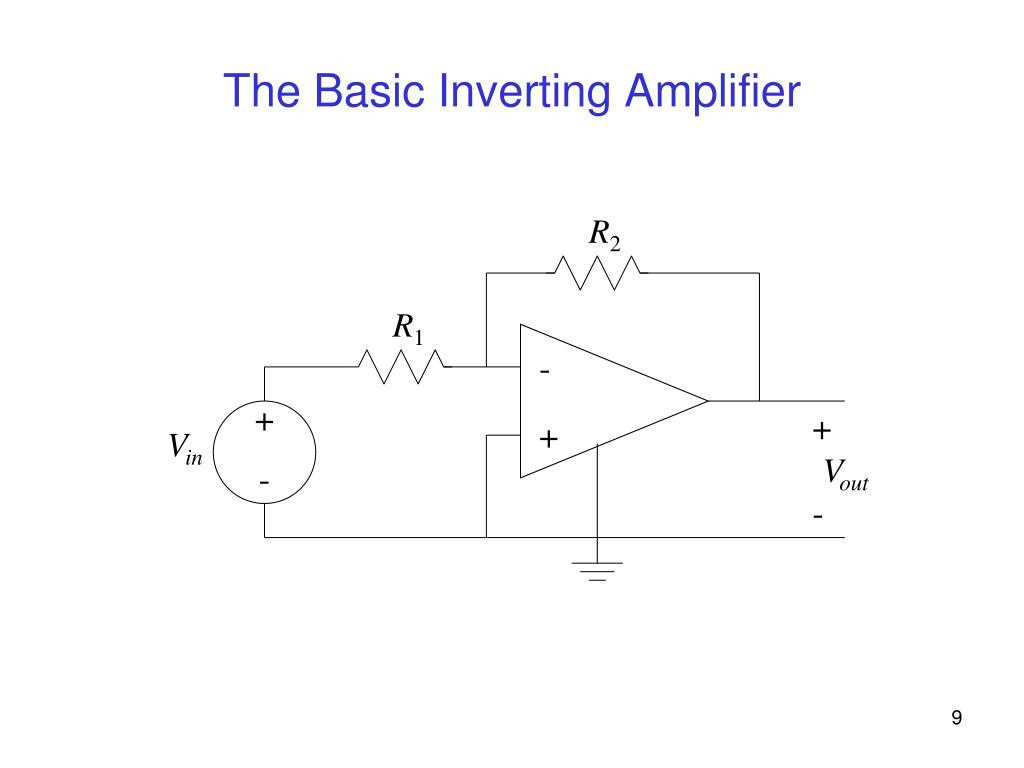

  9. R2 R1 - + + + Vin Vout - - The Basic Inverting Amplifier

  10. Solving the Amplifier Circuit Nodal Analysis: i1 + i2 + i-=0 R2 i2 R1 - i1 i-

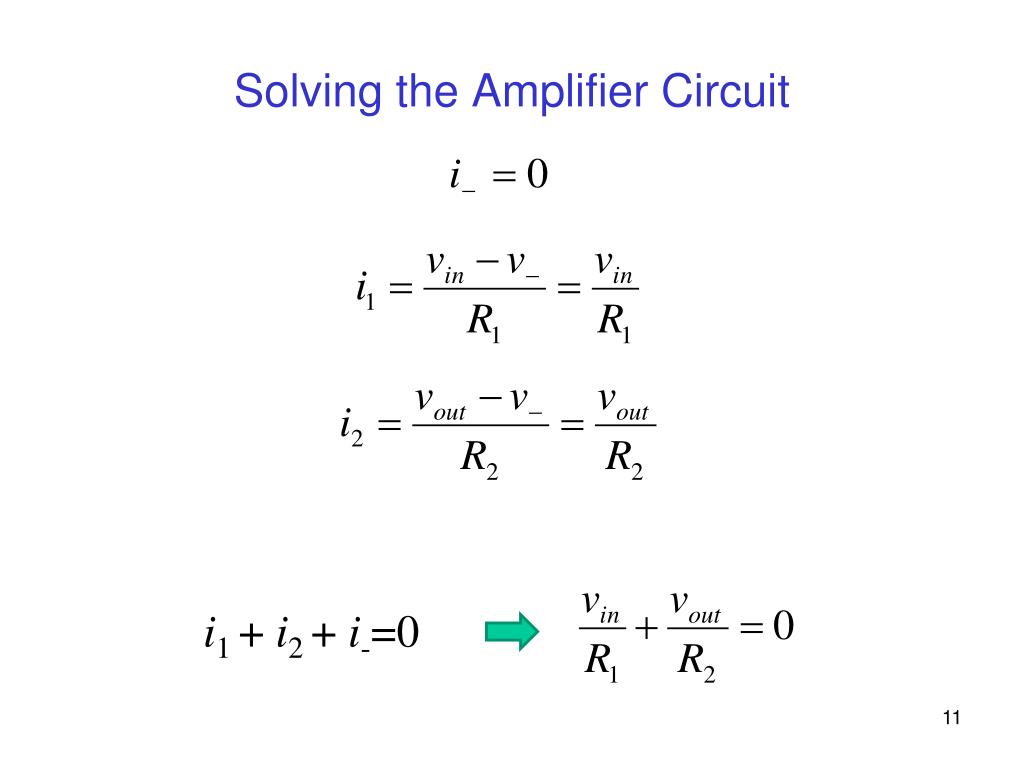

  11. Solving the Amplifier Circuit i1 + i2 + i-=0

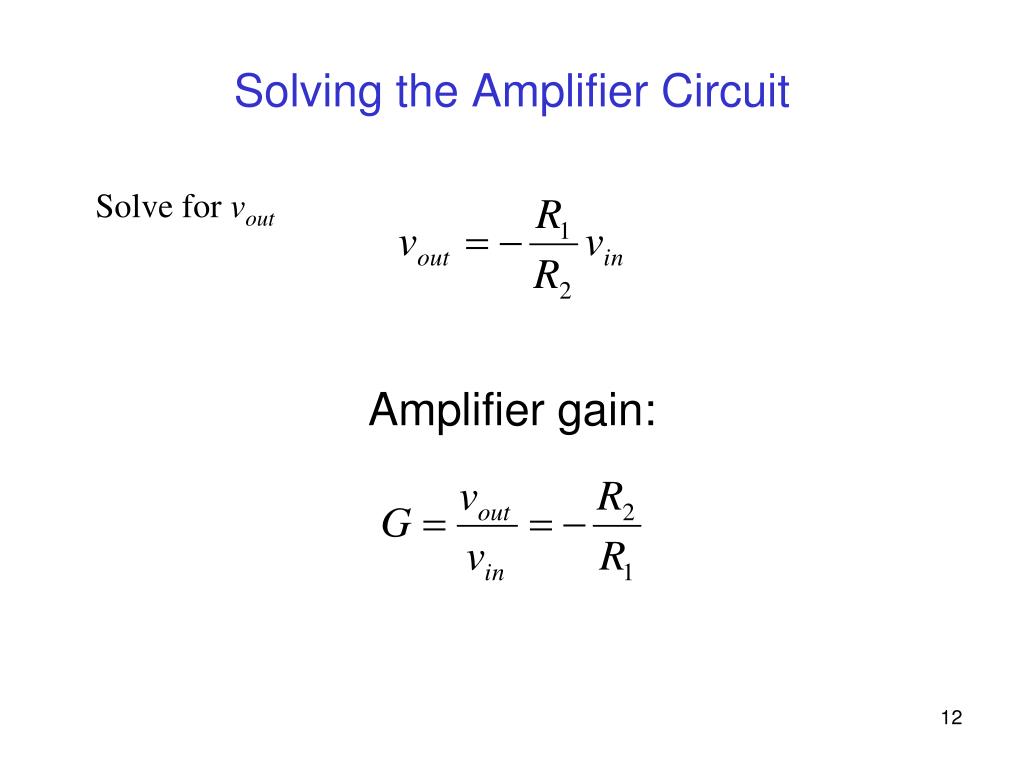

  12. Solving the Amplifier Circuit Amplifier gain: Solve for vout

  13. How to solve Op Amp Circuit? • Nodal analysis or other methods to solve for the output voltage in terms of the input(s). • Keep in mind that the ideal op amp model leads to the following conditions: i- = 0 v+ = v-

  14. R2 R1 - + + + Vin Vout - - Where is the Feedback?

  15. + + - + vin - vout R2 R1 - The Non-Inverting Amplifier

  16. Nodal Analysis: Finding the nodes + + - + i- vin - vout i1 i2 R2 R1 -

  17. Nodal Analysis: Apply KCL

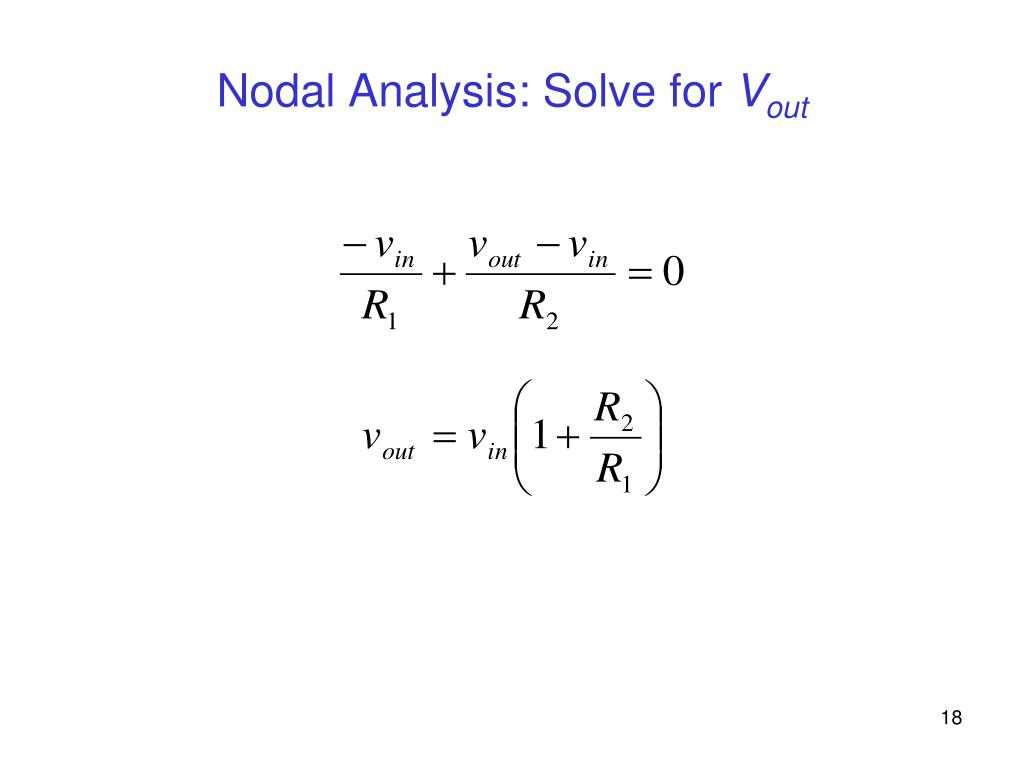

  18. Nodal Analysis: Solve for Vout

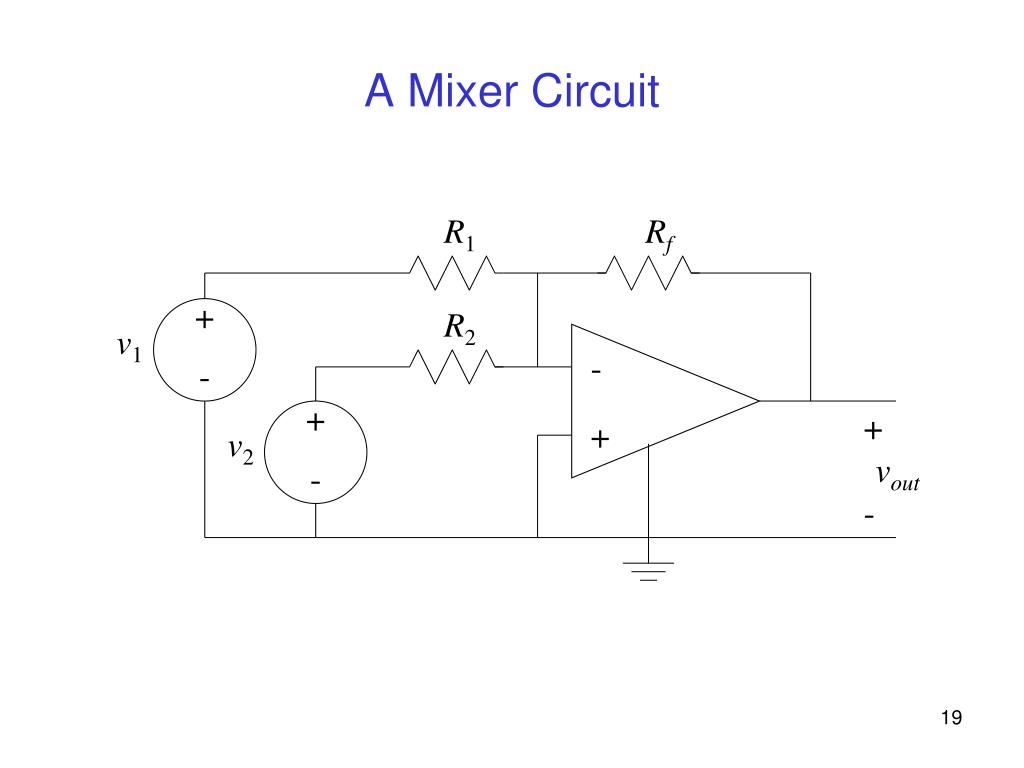

  19. R1 Rf R2 - + + + + v2 v1 vout - - - A Mixer Circuit

  20. + v2 - Nodal Analysis: Finding the nodes R1 Rf i1 if + R2 v1 i2 - - i- + + vout -

  21. Nodal Analysis: Apply KCL

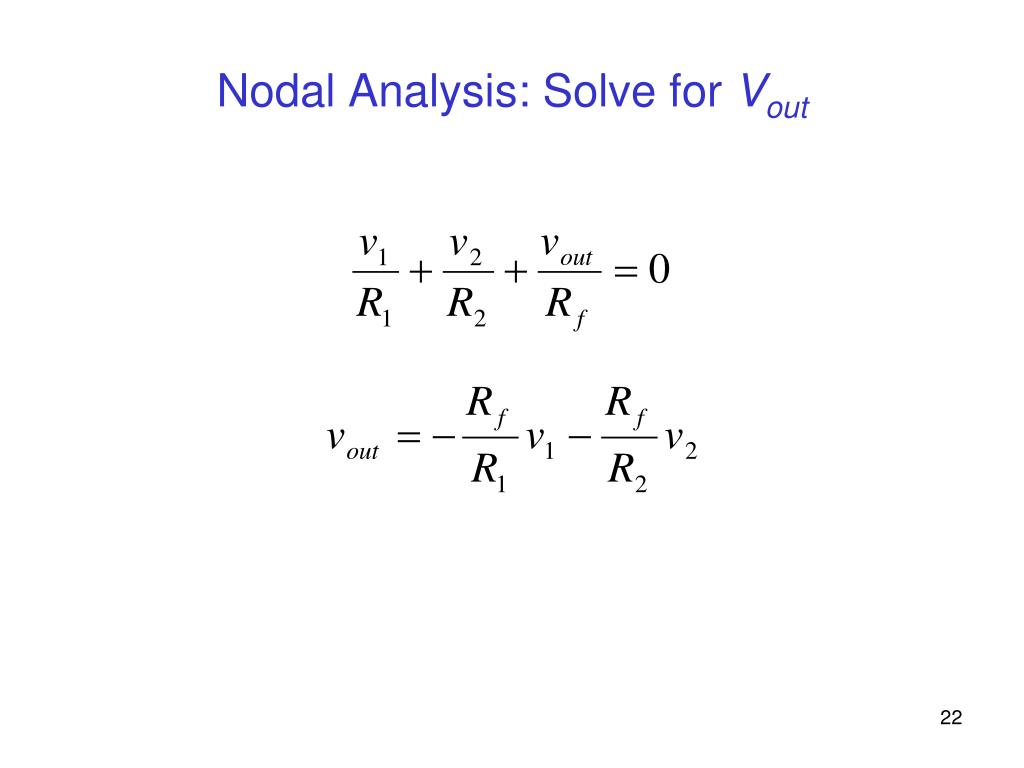

  22. Nodal Analysis: Solve for Vout

  23. Class Examples • Seeing atoms with STM 1 nA

  24. Class Examples • Solar cell 1 nA A circuit constructed for measuring current from the solar cell.  The first Op Amp is the current-to-voltage converter and the second op Amp inverts the voltage.
