  1. EDR/EDVR - DVR Training Overview Presented By: EverFocus Electronics System Sales Dept.

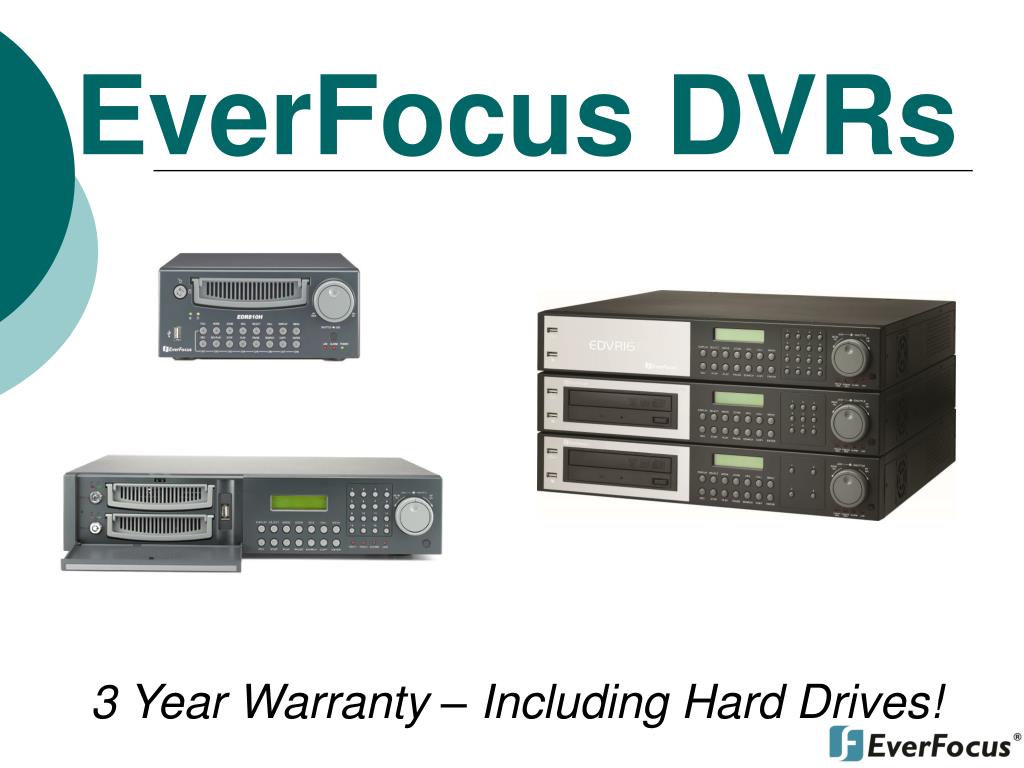

  2. EverFocus DVRs 3 Year Warranty – Including Hard Drives!

  3. EDR Half Size Series DVR Specs: • 4 or 8 Channel DVR • MPEG-4 Compression/120 FPS • Embedded Linux Operating System • 1 Hot Swap Hard Drive (2.5” for Mobile DVR) • 1 USB 2.0 Port for Archiving • Browser based remote viewing • Composite Monitor Output • 2 Audio In Channels/2 Audio Out • (2) RS485 for PTZ Control, Keyboard & Serial commands • IR Remote • Available in 250, 500GB, 1TB HDDs/ 120GB for Mobile DVR • WiFi Option on MW model (Mobile DVR) • GPS & Speed text overlay (GPS receiver needed, Mobile DVR) 3 Year Warranty – Including Hard Drives!

  4. EDR-Half Size Front Panel Dimensions - 11.7" (L) x 8.3" (W) x 3.5" (H)

  5. EDR Full Size Series DVR Specs: • 9 or 16 Channel DVRs • Up to 480 FPS (EDR1640) • Up to240 FPS (EDR920/EDR1620) • MPEG-4 Compression • Embedded Linux Operating System • 2 Hot Swap Hard Drives • 1 USB 2.0 Port for Archiving • Browser Based Remote Viewing • Composite/S-Video Monitor Outputs • 4 Audio Channels in & 1 out • PTZ Controls over the Network (RS-485 Connection) • Available in 250, 500GB, 1, 2 TB HDDs • SCSI port for disk array attachment (EDA800) • Additional outputs: 4 Matrix EPR200Optional USB 2.0 DVD Burner 3 Year Warranty – Including Hard Drives!

  6. EDVR D1Series DVR Specs: • 4, 9 or 16 Channel DVRs • Built-in DVD+RW Burner for Archiving • Up to 120 FPS • MPEG-4 Compression • Embedded Linux Operating System • 2 USB 2.0 Ports (Mouse Control & Archiving) • Browser Based Remote View • VGA & Composite Monitor Outputs • 4 Audio In Channels/1 Audio Out • PTZ Controls over the Network (RS-485 Connection) • 2 internal HDD Available in 250, 500GB, 1, 2 TB HDDs • IR Remote 3 Year Warranty – Including Hard Drives!

  7. EDVR D3 Series D3 DVR Specs: • 16 Channel Real Time DVR • Built-in DVD+RW Burner for Archiving • Up to 480 FPS • MPEG-4 Compression • Embedded Linux Operating System • 2 USB 2.0 Ports (Mouse Control & Archiving) • Browser Based Remote View • S-Video/VGA/Composite Monitor Outputs • 4 Audio In Channels/1 Audio Out • PTZ Controls over the Network (RS-485 Connection) • 2 internal HDD Available in 500GB, 1, 2 TB HDDs • SCSI port for disk array attachment (EDA800) • IR Remote 3 Year Warranty – Including Hard Drives!

  8. EDVR - Front Panel Dimensions 16.9" (L) x 15.8" (W) x 2.8" (H)

  9. EDVR - Back Panel Dimensions 16.9" (L) x 15.8" (W) x 2.8" (H)

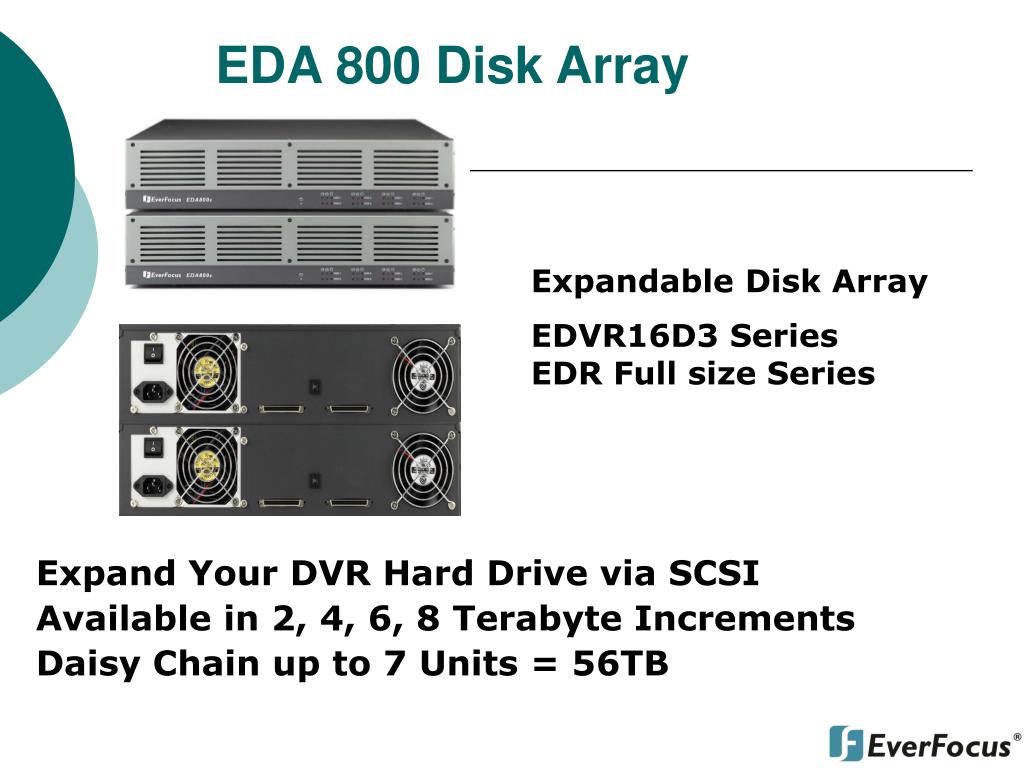

  10. EDA 800 Disk Array Expandable Disk ArrayEDVR16D3 Series EDR Full size Series Expand Your DVR Hard Drive via SCSI Available in 2, 4, 6, 8 Terabyte Increments Daisy Chain up to 7 Units = 56TB

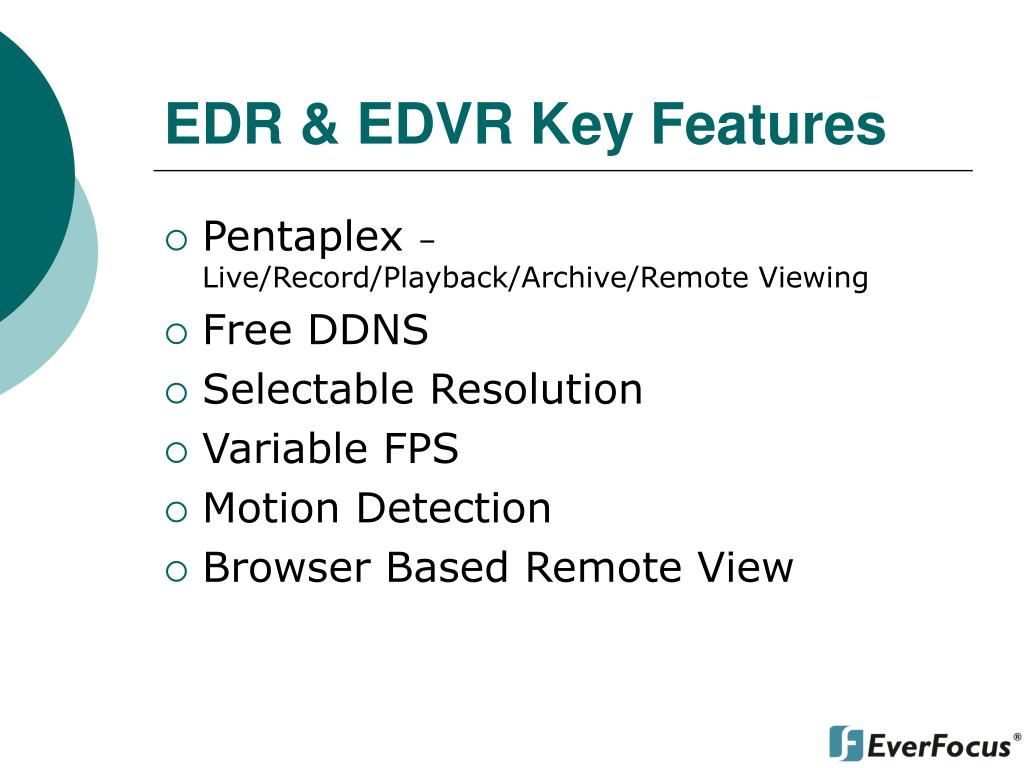

  11. EDR & EDVR Key Features • Pentaplex – Live/Record/Playback/Archive/Remote Viewing • Free DDNS • Selectable Resolution • Variable FPS • Motion Detection • Browser Based Remote View

  12. EverFocus DVRs QUESTIONS?

  13. Contact Info System Sales Team Rodney Guinto Rodney.Guinto@Everfocus.com Ext 127 626-844-8888 E.J. Colvell EJ.Colvell@Everfocus.com Ext 310 631-436-5070
