  1. 2500/T800 Configuration

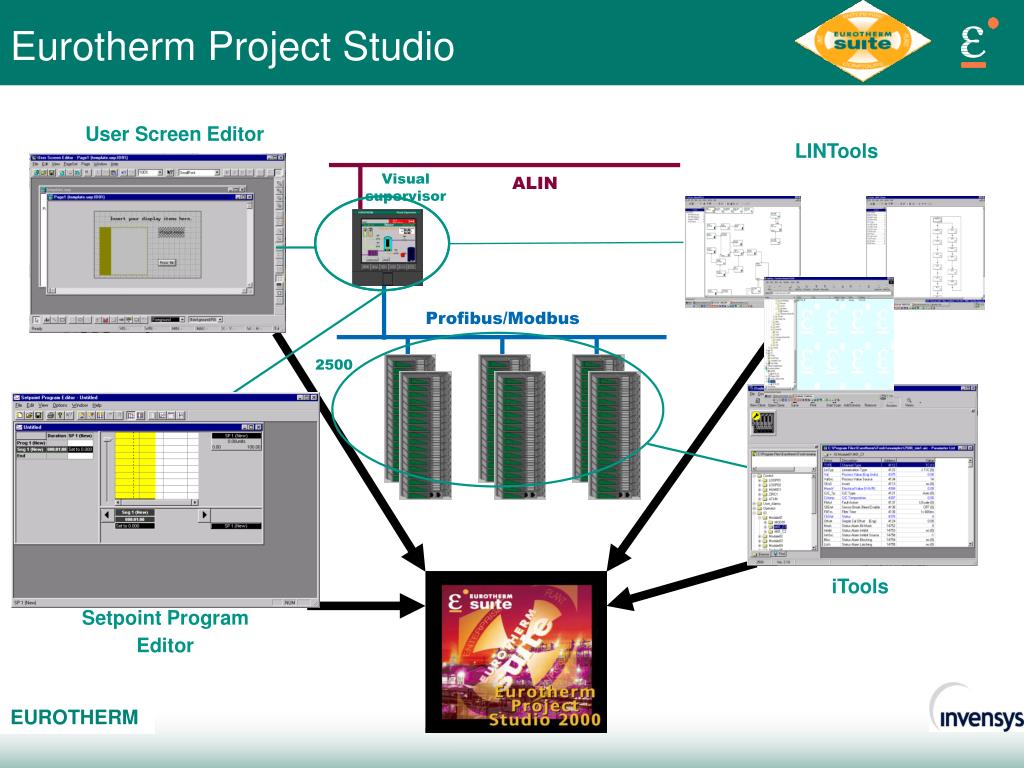

  2. Eurotherm Project Studio User Screen Editor LINTools Visual supervisor ALIN Profibus/Modbus 2500 iTools Setpoint Program Editor

  3. Getting files into the T800 3 ALIN 2 SLIN 1 1.44 Floppy

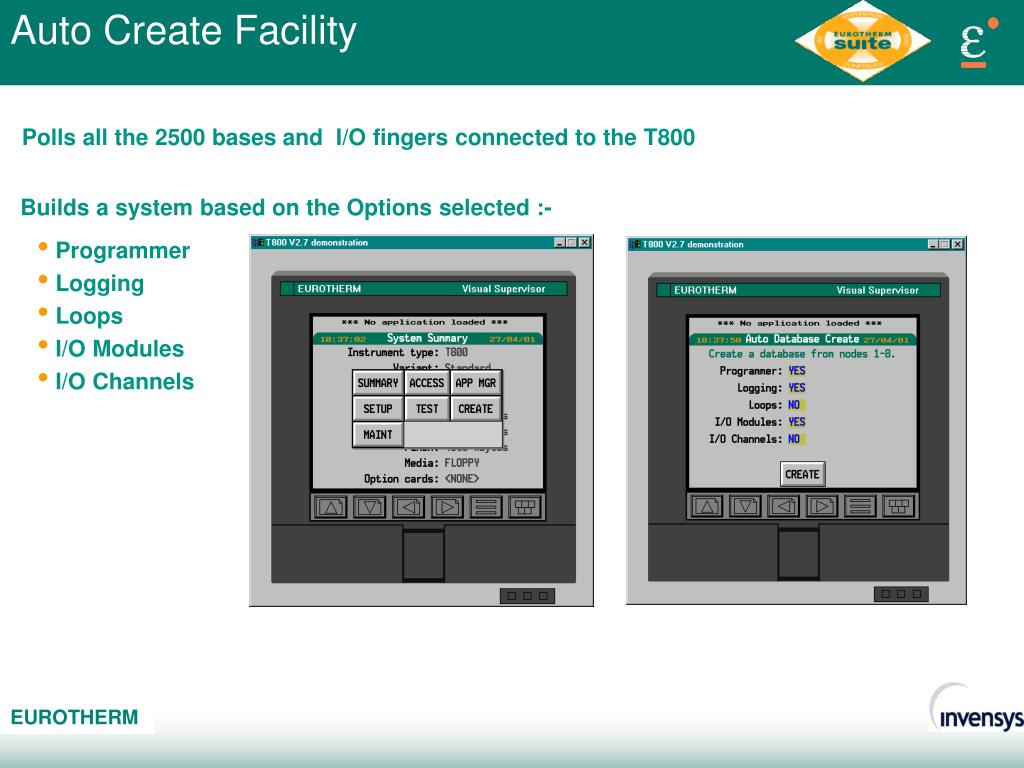

  4. Auto Create Facility Polls all the 2500 bases and I/O fingers connected to the T800 Builds a system based on the Options selected :- • Programmer • Logging • Loops • I/O Modules • I/O Channels

  5. Common File Types

  6. LINtools 2000 LINtools is a powerful multi-purpose Windows-based software package for use both off- and on-line. • Offline, LINtools creates and modifies LIN-based process control strategies, sequences, runtime graphics displays, MODBUS configurations, and text actions for a range of Eurotherm target instruments. • Online, LINtools lets you monitor and interact with control and sequence strategies running in remote instruments across the LIN or ALIN, providing a versatile commissioning and strategy debugging toolkit.

  7. LINtools 2000 LINtools offers you: • A common toolset for the ALIN product range • Graphical configuration • An extensive library of function blocks and control modules • Powerful online commissioning features • Automatic documentation • LINtools is part of the Eurotherm Project Studio suite

  8. LINtools Database Editor Three files are generated when you save a database in the LINtools Database Editor. They share the same root filename, but have different extensions according to their function:

  9. 2500 DIN Rail Controller

  10. Getting Started 2500 parameters shown in iTools

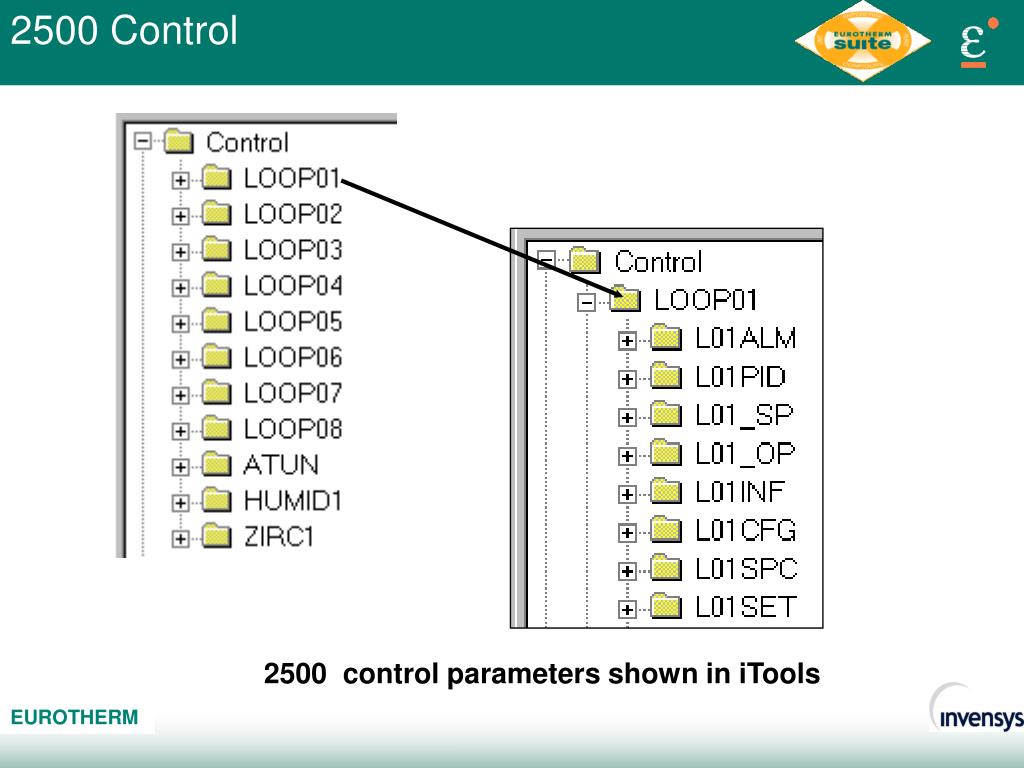

  11. 2500 Control 2500 control parameters shown in iTools

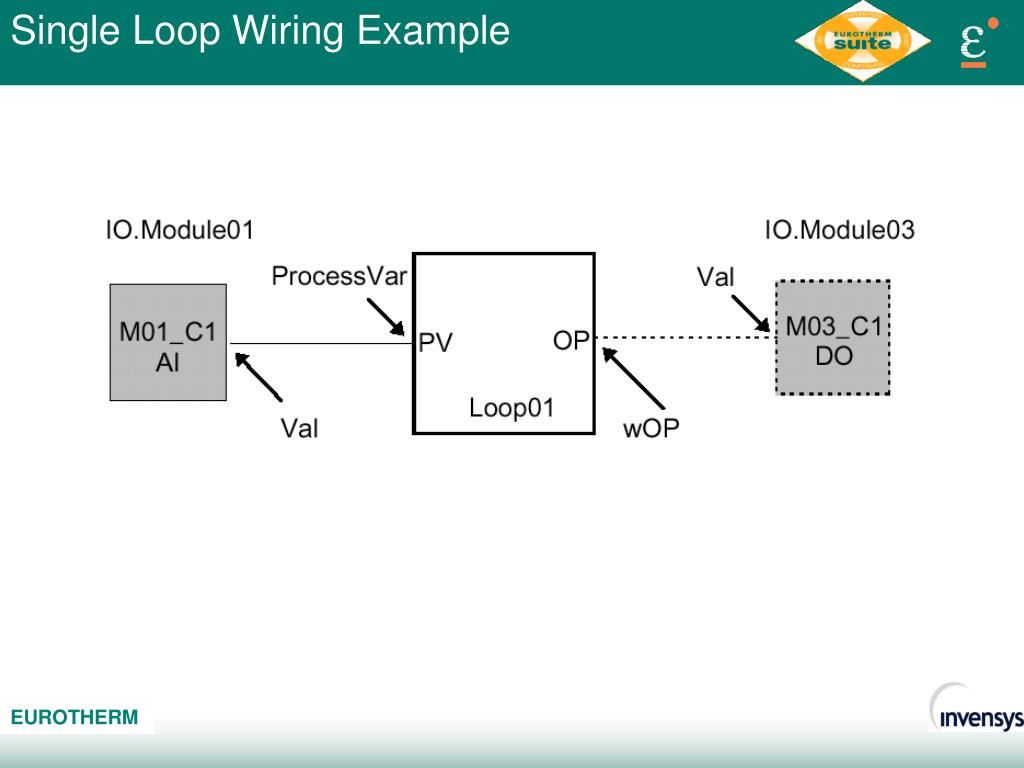

  12. Single Loop Wiring Example

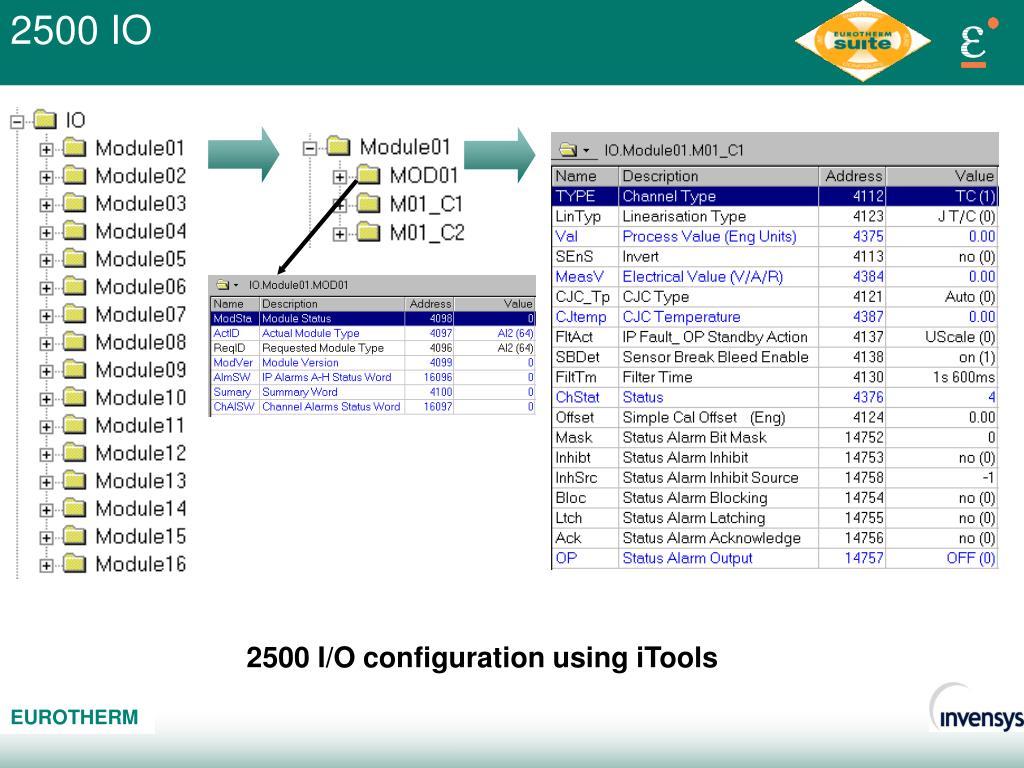

  13. 2500 IO 2500 I/O configuration using iTools
