Recovery of Precious Metals Without Mercury

Recovery of Precious Metals Without Mercury. What is iCON. iCON is a line of mineral processing equipment designed by professional engineers using Canadian technology iCON is designed by the engineers at Falcon Concentrators , the world leader in gravity concentration

nicole
Download Presentation

Recovery of Precious Metals Without Mercury

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Recovery of PreciousMetals Without Mercury

  2. Whatis iCON • iCON is a line of mineral processingequipmentdesignedbyprofessionalengineersusing Canadian technology • iCON isdesignedbytheengineers at FalconConcentrators, theworld leader in gravityconcentration • iCON has thesamequality and reliabilityyouexpectfromFalcon • iCON has thesamemetalurgical performance as Falcon

  3. WhySell iCON • ConstantRevenue • Short Project Time • PsychologicalWins • High GrossMargin and High InventoryTurns • iCON Sales Lead Quicklyto Sepro/Falcon Sales

  4. Sepro, Falcon, iCON Sepro • Falcon • Industrial Duty • Engineer on Staff • Scheduled Maintenance • Automation Options • Typically B2B • iCON • Artisanal Duty • Light Weight • Mobile • Service with Hand Tools • Service in the Field • Value Priced • B2 Owner/Operator

  5. Whatis iCON • Theheart of the iCON product line istheworldfamous iCON – i150 Concentrator • iCON wasdesigned in cooperationwiththe Global Mercury Project as safealternativeto Mercury amalgamation • iCON has thesupport and approval of governmentsaroundtheworld • People can recover more Gold with iCON thanwith Mercury Amalgamation

  6. iCON ProductLines • i150 Product Line • i150 Concentrator – 2 tphsolids • 1.0 SlurryPump • 12” x 24” High FrequencyScreen • IGR 100 Plant • IGR 1000 Plant • i350 Product Line • i350 Concentrator- 10 tphsolids • IGR 500 Plant • IGR 3000 Plant

  7. iCON Family

  8. Uses of iCON without Mercury • Hard Rock: Over 90% of iCON products are usedforhard rock • Initialprocessing of hard rock ores • Scalping of hard rock tails • Concentratingor ores for regional final processing • Alluvial and Dredging: the new i350 market • Primaryprocesswhenyouknowyourgoldistoo fine for a sluice • Upgradingconcentrates • Jigoverflow: Primaryjig and/orcleaningjig • Supplementtoyoursluiceprocess: 500 Plant

  9. More Uses ICON • Prospecting, Drilling, Sampling • Analysis of samples in thefield • A trailermounted IGR 100 is a commonbulksamplingtooland itseconomical • Easilycleanedbetweensampleswithoutfear of crosscontamination • Remediation • iCON has beenusedtorecovery 97% of Mercury in a single pass • Someminers use iCON specificallytorecover Mercury

  10. How it Works

  11. Ball Mill Discharge You can feedtheicondirectlyfrom a ballmillusinggravityflow

  12. iCON isReplacingKnudson, Knelson, Sluices and SpiralsaroundtheWorld

  13. Sample of Concentratewhen 100% of Gold isFinerthan 75 microns

  14. Alluvial and Dredging Manyrivers of theworldhavebeendredged as many as 6 times yieldingprofitable Gold each time and demonstratingtheinefficiency of sluices.

  15. IGR 100 Mountedon a Dredge

  16. Sample of AlluvialConcentrate

  17. iCON isCommonlyRecoveringthe Fine Gold LostbyOtherProcesses

  18. Global Mercury Project • iCON has thesupport and approval of manygovernmentsaroundtheworld • GovernmentPlant in Segovia Colombia • Theinitial test recoveredrecovered 82 g Hg from 1 ton of tails • Recommendation of Global Mercury Project • GravityConcentrationwithout Mercury

  19. Results of theFirst Test82g Hg, 5g Au from 1 Ton of Tails

  20. CustomerService • Wehave 15 distributorsaroundtheworld • Ask your local distributor for a demonstration at their office or at yoursite • Distributors are availablefor training • Mostimportantismanagingthecustomer’sexpectations • Howto use • Gold Production • Assessories • Spareparts kits are instock

  21. StepstoSuccess • Acknowledgethat iCON is a ConsumerPurchase • LimitedInternational Sales • ConsumerConfidenceisParamount • Peer Support • SeeingisBelieving – Demonstrations • Local Distributor Model • Seeit, Payforit, TakeDelivery • FocusonSuccessfulInstall Base • Therewill be manyinquiries and youmustclassifythecustomersinto A, B, C • Do theyhave a concession? • Do theyhaveexperience? • Do theyhavemoney? • ConversionRate • International EXW quotes: 1 in 200 • In-Stock orDemonstration: 1 in 5

  22. StepstoSuccess • KeeptheProcess Simple • Use gravityflowwhenpossible • Always try toavoidslurrypumps • Theserequireengineering and maintenance • Complicatedprocessesmayrequireengineering • Industrial processmay be Falcon sales • 95 % of i150 are usedforHard Rock • 75% of customersbuyonlytheconcentrator

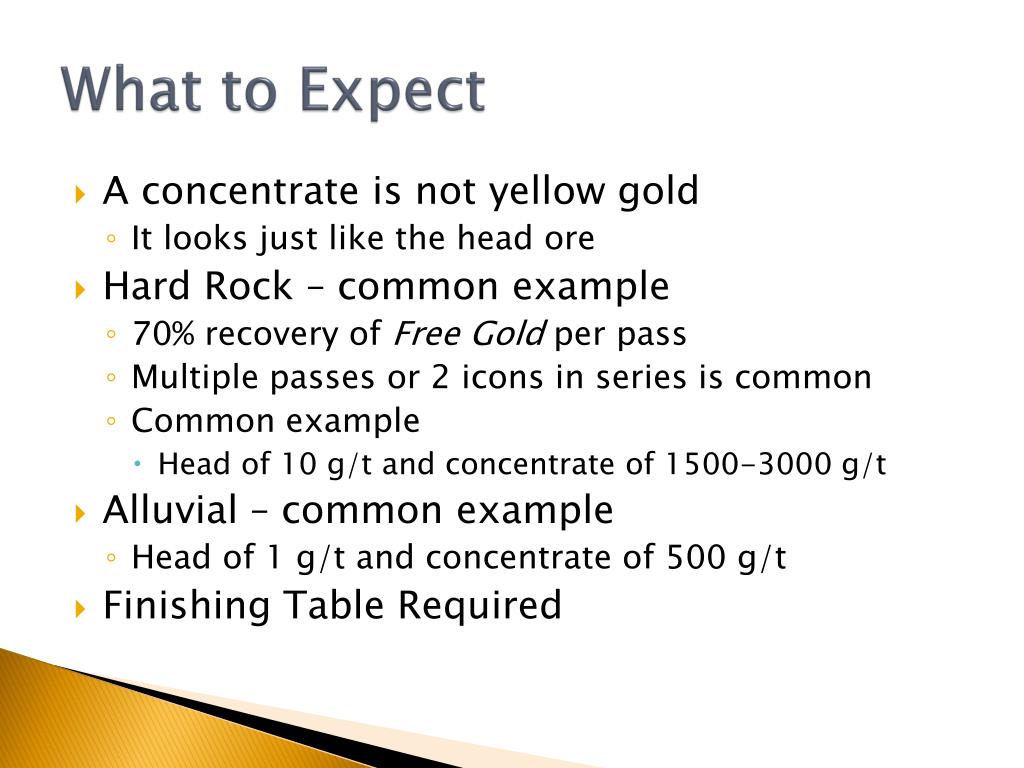

  23. WhattoExpect • A concentrateisnotyellowgold • It looks justlikethe head ore • Hard Rock – commonexample • 70% recovery of Free Gold per pass • Multiplepassesor 2 icons in series iscommon • Commonexample • Head of 10 g/t and concentrate of 1500-3000 g/t • Alluvial – commonexample • Head of 1 g/t and concentrate of 500 g/t • FinishingTableRequired

  24. ProductComparison • KC 7 – 7 InchBowl • 15 minute rinse • No VFD/SoftStart • 3x waterconsumption • EXW AvailabilityOnly • Belts, Pulleys and BearingstoWear • $18,000 EXW Canada • KC 12 - 11 InchBowl • Long Rinse Time • No VFD/SoftStartincluded • 3x WaterConsumption • High Wear Strike Zone • Belts, Pulleys and BearingstoWear • EXW AvailabilityOnly • ~47,000 USD • i150 – 8.75 InchBowl • 1 minute rinse • VFD/SoftStartincluded • Lowwaterconsumption • Regional Inventory • Directcoupledbowl • PrimaryWearItem: Used Tire • ~7000 USD • i350 – 13 InchBowl • 1 minute rinse • VFD/SoftStartincluded • LowWaterConsumption • Autogenous Strike Zone • DirectCoupledBowl • PrimaryWearItem: Used Tire • Regional Inventory • ~18,000 USD BetterRecovery of Fine Gold
