Chapter 5 Lesson 3

Chapter 5 Lesson 3. Objective: To identify properties of medians and altitudes of a triangle. A median of a triangle is a segment whose endpoints are a vertex and the midpoint of the opposite side. Theorem 5-8

nixie
Download Presentation

Chapter 5 Lesson 3

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

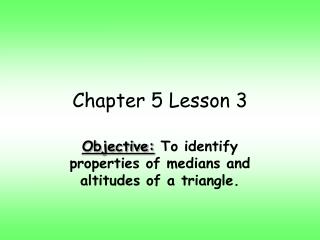

  1. Chapter 5 Lesson 3 Objective: To identify properties of medians and altitudes of a triangle.

  2. A median of a triangle is a segment whose endpoints are a vertex and the midpoint of the opposite side.

  3. Theorem 5-8 The medians of a triangle are concurrent at a point that is two thirds the distance from each vertex to the midpoint of the opposite side.

  4. In a triangle, the point of concurrency of the medians is the centroid. • The point is also called the center of gravity of a triangle because it is the point where a triangular shape will balance.

  5. Example 1: Finding Lengths of Medians D is the centroid of ∆ABC and DE = 6. Find BE. Since D is a centroid, BD =  BE and DE = BE.

  6. Example 2: Finding Lengths of Medians Use Example 1 to find BD. BD =  BE

  7. An altitude of a triangle is the perpendicular segment from a vertex to the line containing the opposite side. Unlike angle bisectors and medians, an altitude of a triangle can be a side of a triangle or it may lie outside the triangle.

  8. Example 3: Identifying Medians and Altitudes Is ST a median, an altitude, or neither? Explain. ST is an altitude; perpendicular segment from a vertex

  9. Example 4: Identifying Medians and Altitudes Is UW a median, an altitude, or neither? Explain. Median; UW is a segment drawn from vertex U to the midpoint of the opposite side.

  10. The lines containing the altitudes of a triangle are concurrent at the orthocenter of a triangle. Theorem 5-9 The lines that contain the altitudes of a triangle are concurrent.

  11. Assignment:
