  1. Bandwidth Scaling in UWB Communications Dana Porrat and David Tse University of California, Berkeley

  2. Capacity of Fading Channels • UWB over Multipath channel • Spreading Modulations • DSSS no Duty Cycle zero capacity Telatar & Tse, Médard & Gallager, Subramanian & Hajek • Theory • Kennedy, Gallager 1968 FSK + Duty Cycle achieves • Combine Duty Cycle and spreading modulations?

  3. The UWB Channel [Volt] Delay [nsec] Measurement Bandwidth ~1 GHz

  4. Multipath Channel Model • Block constant: coherence time • Delay spread • L independent paths

  5. How many paths in channel? • Antennas separation up to 10 m, LOS and NLOS • Strong paths counted: 60-90% of power • Number of paths increases with Bandwidth

  6. DSSS Capacity in Multipath Channel • No Duty Cycle Telater & Tse: • With Duty Cycle: Capacity depends on scaling of number of paths with W

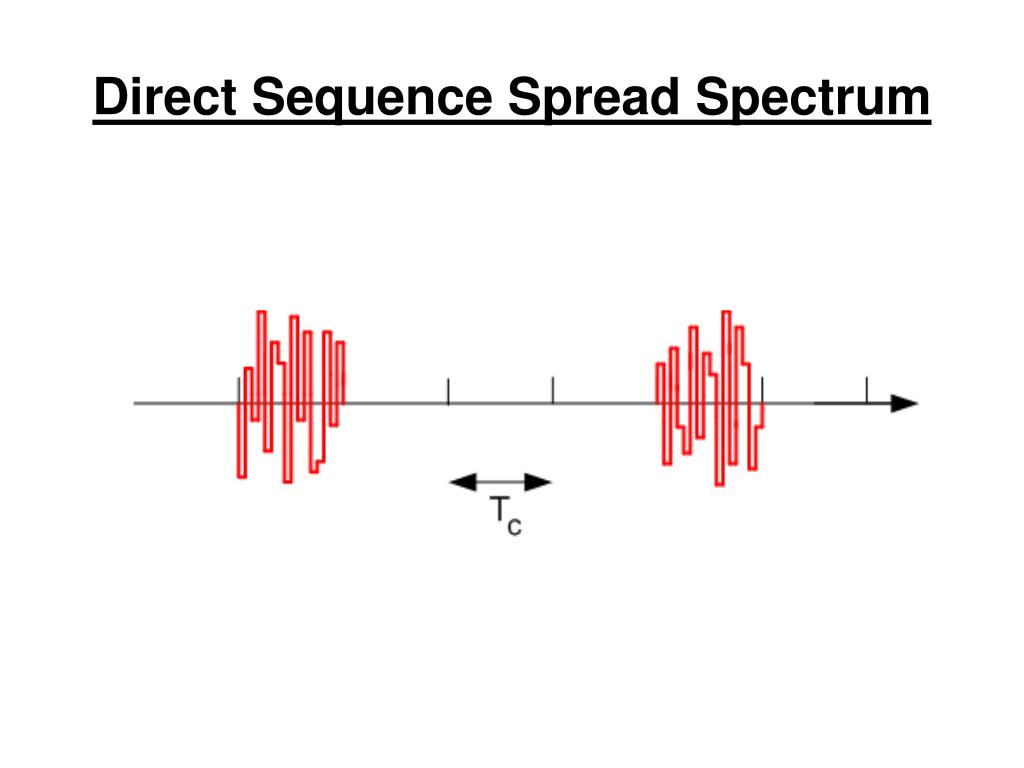

  7. Direct Sequence Spread Spectrum

  8. DSSS Capacity with Duty Cycle • Theorem 1: DSSS systems with duty cycle achieve for if • Theorem 2: DSSS systems with duty cycle, where the receiver knows the path delays achieve for if

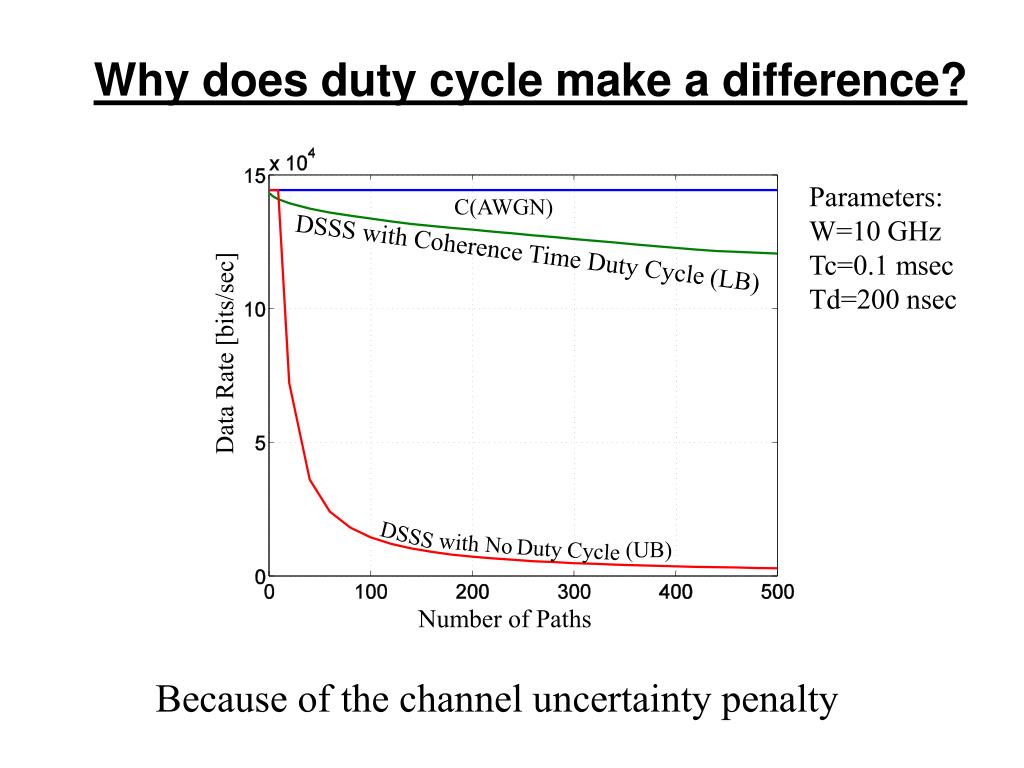

  9. Why does duty cycle make a difference? Parameters: W=10 GHz Tc=0.1 msec Td=200 nsec C(AWGN) DSSS with Coherence Time Duty Cycle (LB) Data Rate [bits/sec] DSSS with No Duty (UB) Cycle Number of Paths Because of the channel uncertainty penalty

  10. Duty Cycle for Spread Spectrum Parameters: W=10 GHz Tc=0.1 msec Td=200 nsec L=100 C(AWGN) DSSS Capacity (LB) Data Rate [bits/sec] Not so Bursty: Transmit on 1 coherence time of 500 Extremely Bursty: Infrequent Transmission Duty Cycle

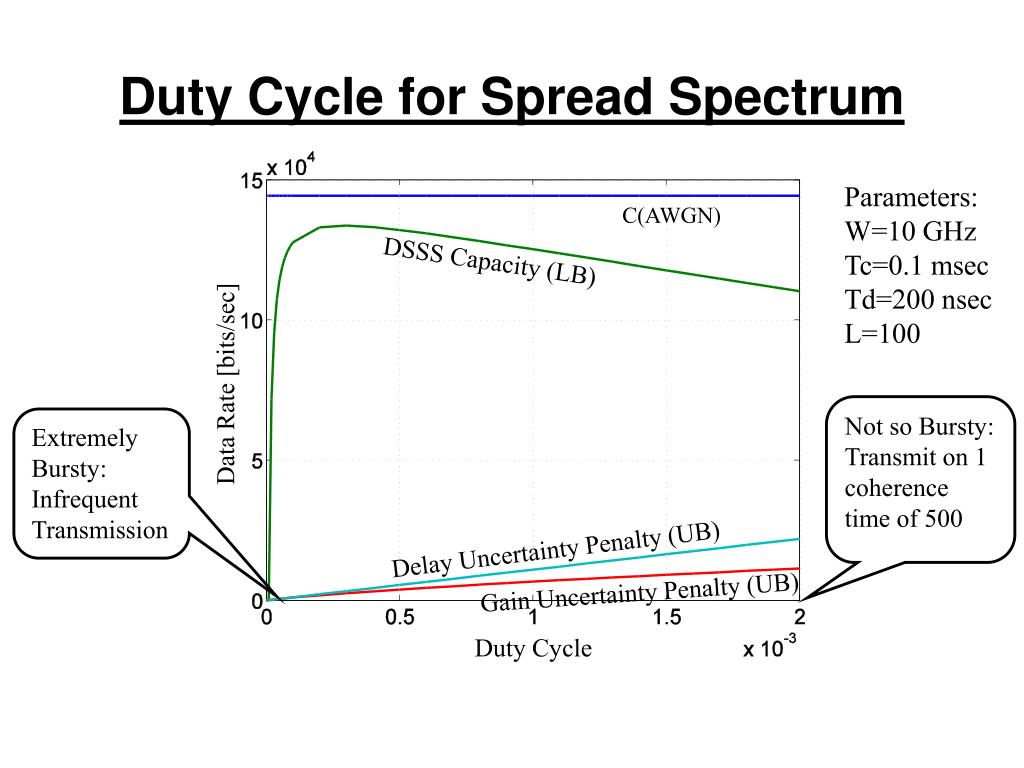

  11. Duty Cycle for Spread Spectrum Parameters: W=10 GHz Tc=0.1 msec Td=200 nsec L=100 C(AWGN) DSSS Capacity (LB) Data Rate [bits/sec] Not so Bursty: Transmit on 1 coherence time of 500 Extremely Bursty: Infrequent Transmission Delay Uncertainty Penalty (UB) Gain Uncertainty Penalty (UB) Duty Cycle

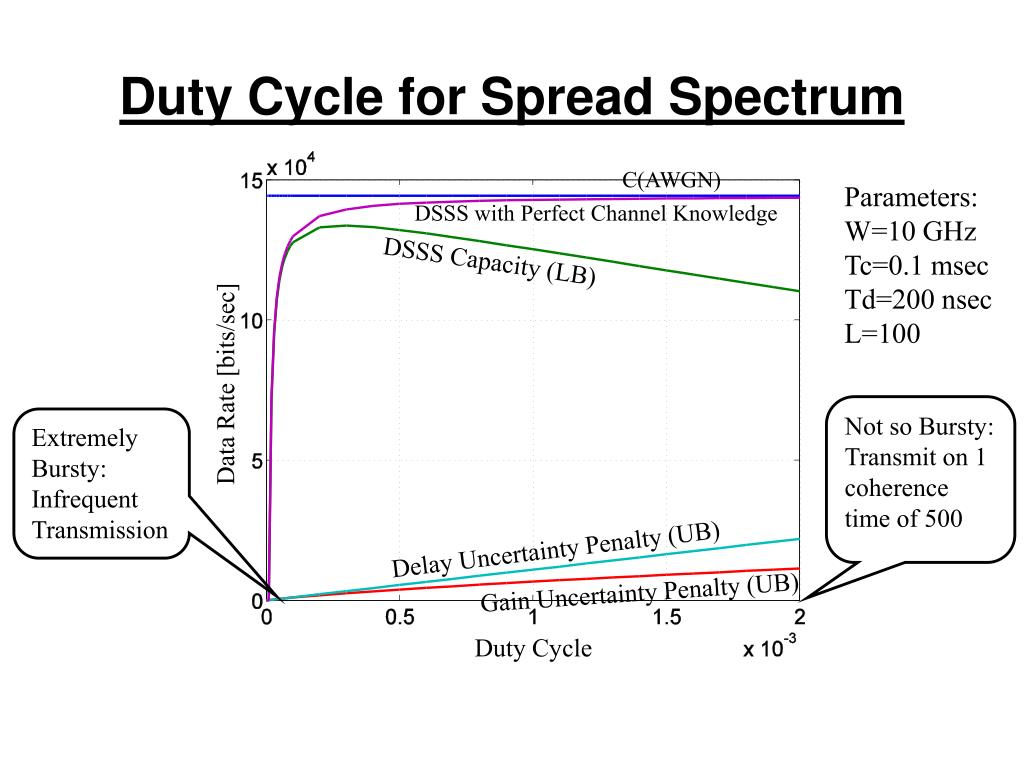

  12. Duty Cycle for Spread Spectrum C(AWGN) Parameters: W=10 GHz Tc=0.1 msec Td=200 nsec L=100 DSSS with Perfect Channel Knowledge DSSS Capacity (LB) Data Rate [bits/sec] Not so Bursty: Transmit on 1 coherence time of 500 Extremely Bursty: Infrequent Transmission Delay Uncertainty Penalty (UB) Gain Uncertainty Penalty (UB) Duty Cycle

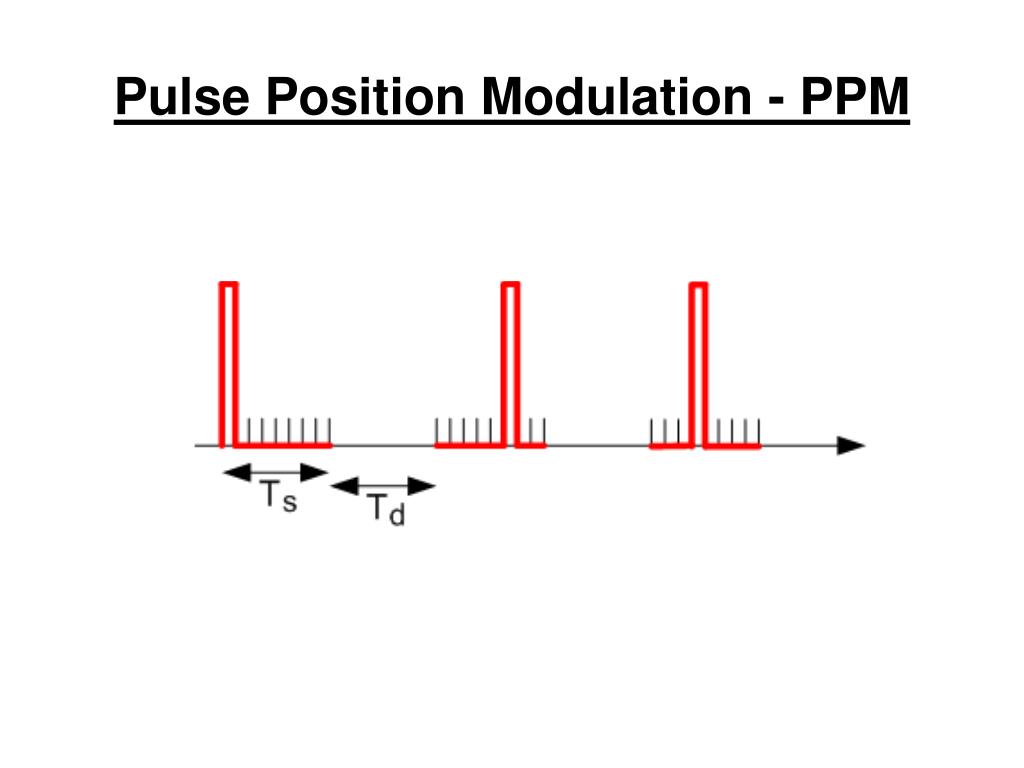

  13. Pulse Position Modulation - PPM

  14. DS Spread Spectrum vs. PPM Parameters: W=10 GHz Tc=0.1 msec Td=200 nsec C(AWGN) DSSS with Coherence Time Duty Cycle (LB) Data Rate [bits/sec] PPM with Coherence Time Duty Cycle (UB) Number of Paths

  15. Duty Cycle for Two Modulations Parameters: W=10 GHz Tc=0.1 msec Ts=Td=200 nsec L=100 C(AWGN) PPM (UB) DSSS (LB) Not so Bursty: Transmit on 1 coherence time of 100 Extremely Bursty: Infrequent Transmission Data Rate [bits/sec] Duty Cycle DS Spread Spectrum allows a lower duty cycle because it is more efficient spectrally.

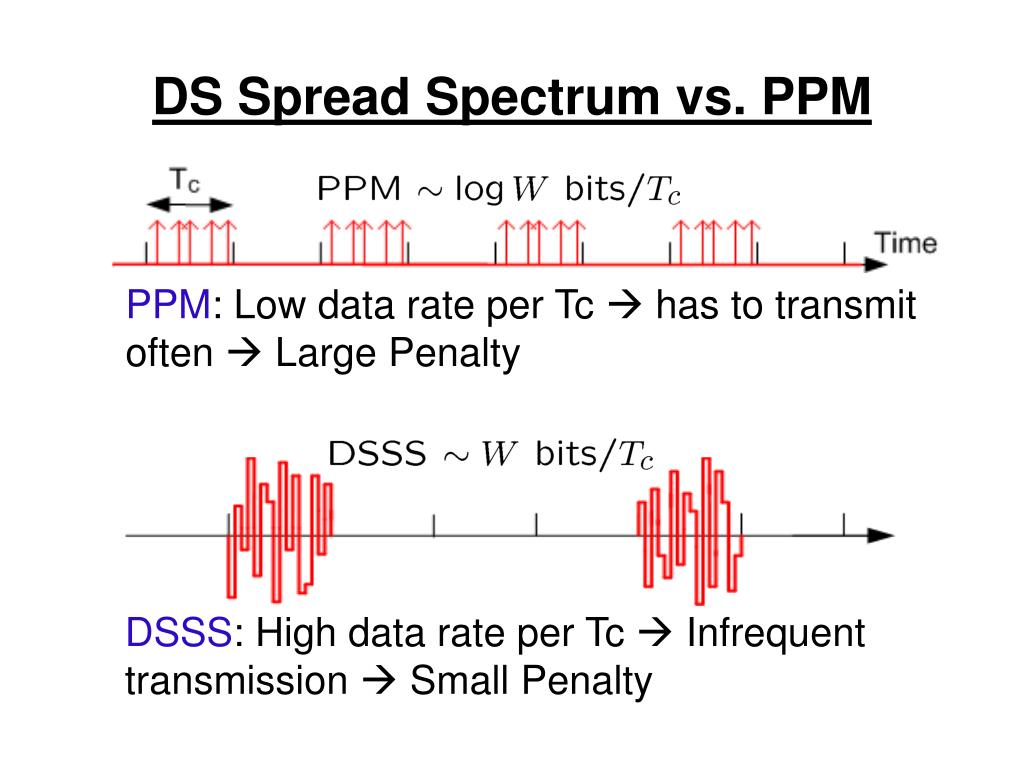

  16. DS Spread Spectrum vs. PPM PPM: Low data rate per Tc  has to transmit often  Large Penalty DSSS: High data rate per Tc  Infrequent transmission  Small Penalty

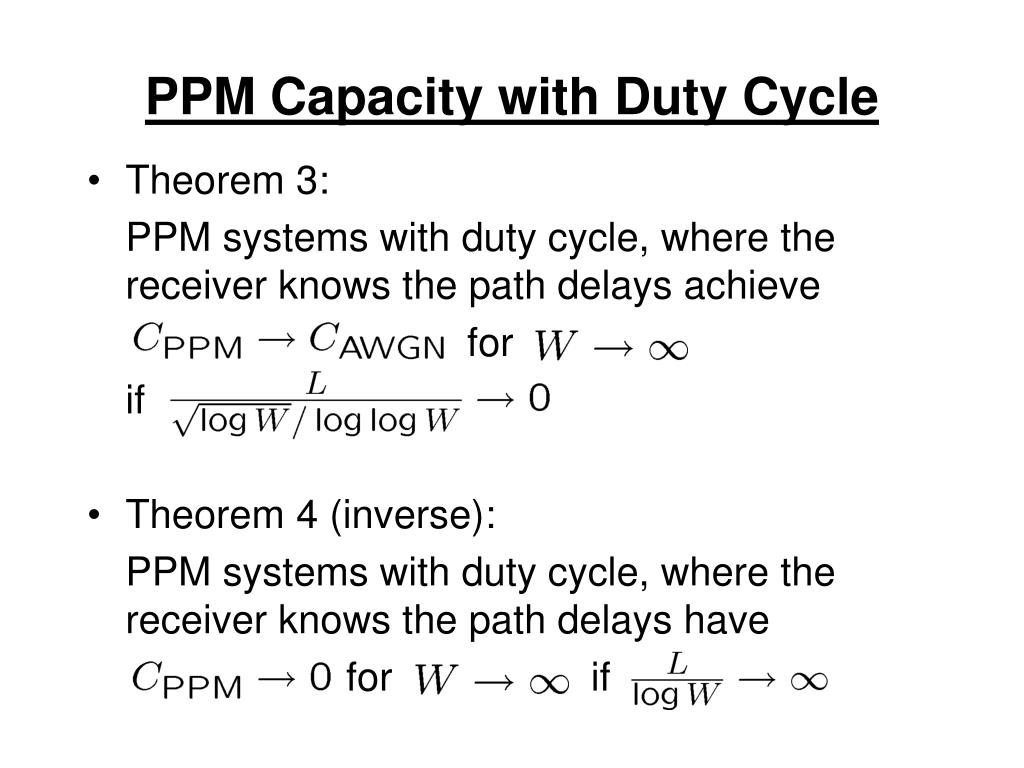

  17. PPM Capacity with Duty Cycle • Theorem 3: PPM systems with duty cycle, where the receiver knows the path delays achieve for if • Theorem 4 (inverse): PPM systems with duty cycle, where the receiver knows the path delays have for if

  18. DS Spread Spectrum vs. PPM • Spectral efficiency determines max number of paths that can be handled by system • Delays known, gains unknown DS Spread Spectrum PPM L 0 L ? W W

  19. The Message • Direct sequence spread spectrum and PPM achieve the channel capacity for if there are not too many channel paths, because duty cycle reduces the channel uncertainty penalty • In situations that require low duty cycle spectral efficiency is key

  20. Extra Slides

  21. How Often to Transmit? C(AWGN) Calculated With L=100 Paths Data Rate [bits/sec] Not so Bursty: Transmit on 1 coherence time of 500 Extremely Bursty: Infrequent Transmission Duty Cycle
