  1. Factors involved in selecting a propulsion system for your LNG shipping project Presentation by Ian Harper, Wavespec to LNG Shipping 2005 London, 27th October 2005

  2. Contents • What has changed recently? • Should you burn gas? • What solutions are available and which are realistic? • Evaluating economic factors • Evaluating the technical risks • Impact of choice on safety, environment and training • Solutions for the future

  3. First Diesel Engined LNG Carrier

  4. Changing Factors in Propulsion • The old LNG carrier world was simple! • Recent surge in demand for natural gas and LNG in Europe and USA • New trading patterns are developing • Massive increase in LNG fleet numbers • More supply sources and destinations • Bigger ships and new trade routes

  5. Should You Burn Gas? • Gas is “clean” and “green”? • Lower emissions of carbon, SOx and NOx • BOG needs to be disposed of or recycled • All non-steam ships need a Gas Combustion Unit (GCU) for backup gas disposal • Environmental and safety issues have to be tackled • Depends on the value of gas to the project

  6. Alternative Propulsion Options • Conventional Steam Turbine • Slow Speed Diesels with Reliquefaction • Gas Injection Slow Speed Diesels with Reliq • Dual Fuel Diesel Electric • Combined Cycle Gas Turbine Electric • Hybrids

  7. Traditional Steam Plant

  8. Engine Power for LNG Carriers

  9. Slow Speed Diesel Solutions • High thermal efficiency • Traditional ship propulsion system • Same emissions as conventional oil tanker • Requires reliquefaction plant and GCU • Maintenance only possible in port with twin screw • LPG ships have similar machinery • Benefit for crew sourcing

  10. Twin Screw Slow Speed Diesels

  11. MAN B&W 7S50ME-C

  12. Gas Injection Slow Speed Diesel

  13. Dual Fuel Diesel Solutions • Direct replacement for the steam boiler and turbine system • Higher efficiency than steam • Can only burn HFO or MDO or Gas • Flexibility of operation with electric drives • Maintenance possible at sea and in port

  14. Dual Fuel Diesel – Direct Drive

  15. Dual Fuel Diesel Electric (DFDE)

  16. Wartsila 6L50DF Engine

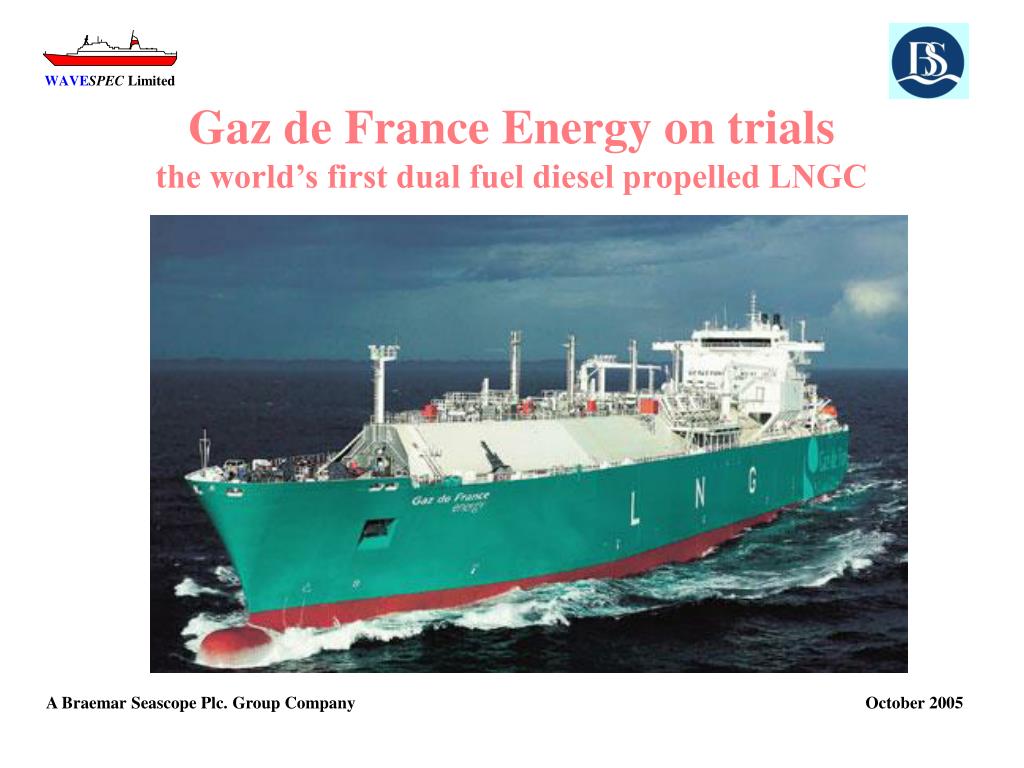

  17. Gaz de France Energy on trialsthe world’s first dual fuel diesel propelled LNGC

  18. Gas Turbine Solutions • Simple Cycle – not efficient but very small • Combined Cycle – aero derivative and industrial • Waste heat recovery and steam turbo-alternator • R-R, GE and Siemens have differing solutions • Different but share benefits and challenges • Potential for extra cargo is yet unproven • Very low maintenance on board……but! • Only feasible if burning gas

  19. COGES Plant Rolls-Royce

  20. GE LM2500+ Marine Gas Turbine

  21. Combined Cycle Gas Turbines Siemens

  22. Hybrid Solution MHI • Combines diesel engines and steam turbines • Direct drive propeller with Contra Rotating Pod • Reliquefaction plant for base BOG • Excess BOG produces steam for electricity MER

  23. Economic Factors • Choice is dependent on fuel costs • The relationship between HFO and LNG costs is critical in determining choice • Maintenance costs vary • Operators require longer docking cycles • Crew for diesels may be easier to find and train • Will the trade require a ship to heel out cargo? • Different projects will make different choices

  24. Technical Risks • Steam propelled LNG ships are a known factor • Alternatives involve levels of perceived risk • Technical risks can be qualified • Classification societies are assessing options • New entrants cannot easily benchmark risks • Project risks are project specific • Industry should remain self regulating – IMO and SIGTTO forums

  25. Environmental Factors • Over 95% of World Trade is carried in ships • The vast majority of these ships are propelled by slow speed diesel engines – e.g. container ships and oil tankers • The efficiency of these shipping operations means that CO2 emissions per tonne/km are very low • NOx and SOx emissions are legislated by MARPOL Annex VI and Flag States (e.g. EU) • The current limits will be reduced with time

  26. Annual Exhaust Emissions MAN B&W

  27. Annual Exhaust Emissions Wartsila

  28. Solutions for the Future • Qatar’s major projects driving size up and costs down • Trading and chartering options require flexibility in shipping operations • Do we still expect to see new technology introduced, or an industry standard emerge? If so, which one? • Environmental factors will have to be addressed

  29. 2005 is the Watershed Year • There are 136 LNG ships on order • Over 30% of these have diesel propulsion systems • 20 are twin screw SSD with reliquefaction • Approx 25 are single screw DFDE • About 40 LNG ships ordered in 2005, but less than 20% have conventional steam plants

  30. Thank you for your kind attention Ian Harper
