4.9 Flooding Casualty Control Software

894. 9. 8. 5-292-2-W. 20. 5-308-2-W. 5-328-2-W. 83. 201. 84. 35. 40. 436. 5-276-0-F. 5-292-0-E. 6. 5-292-1-W. 5-344-0-J. 5-328-0-J. 3-292-2-E. 5-321-1-F. 1. 0. 1. 100P. 5. 20. 8. 9. 5-250-0-E. 5-328-1-W. 5-308-1-W. 5-292-3-W. 201. 83. 84. 215S.

olin
Download Presentation

4.9 Flooding Casualty Control Software

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

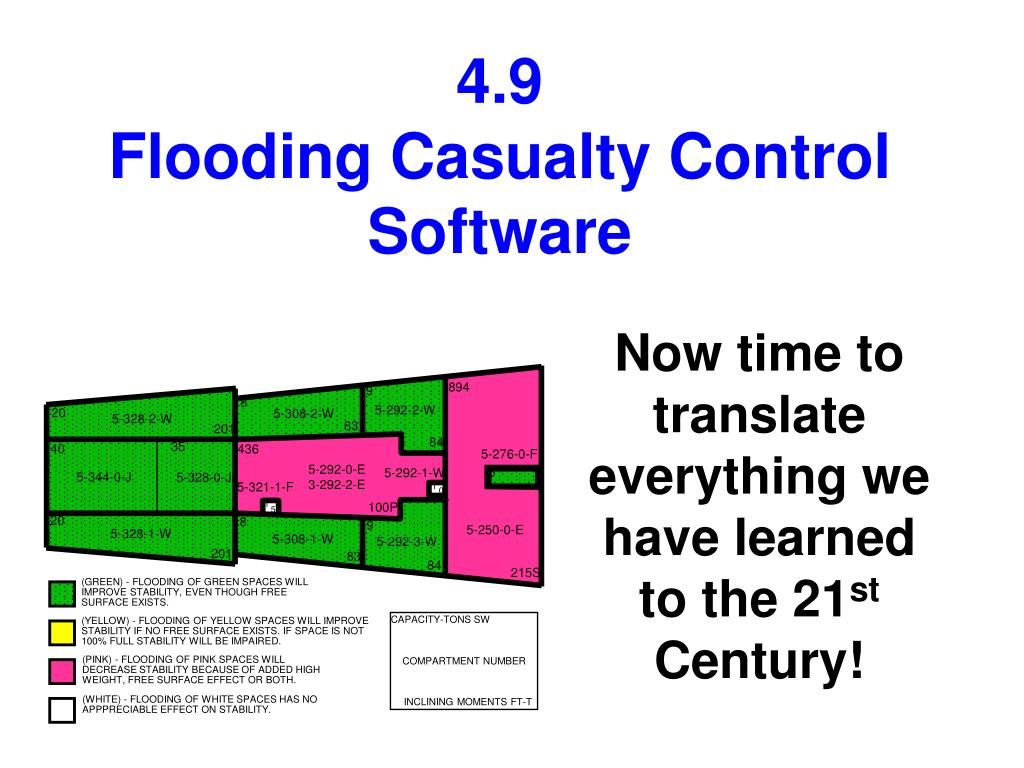

  1. 894 9 8 5-292-2-W 20 5-308-2-W 5-328-2-W 83 201 84 35 40 436 5-276-0-F 5-292-0-E 6 5-292-1-W 5-344-0-J 5-328-0-J 3-292-2-E 5-321-1-F 1 0 1 100P 5 20 8 9 5-250-0-E 5-328-1-W 5-308-1-W 5-292-3-W 201 83 84 215S (GREEN) - FLOODING OF GREEN SPACES WILL IMPROVE STABILITY, EVEN THOUGH FREE SURFACE EXISTS. CAPACITY-TONS SW (YELLOW) - FLOODING OF YELLOW SPACES WILL IMPROVE STABILITY IF NO FREE SURFACE EXISTS. IF SPACE IS NOT 100% FULL STABILITY WILL BE IMPAIRED. (PINK) - FLOODING OF PINK SPACES WILL DECREASE STABILITY BECAUSE OF ADDED HIGH WEIGHT, FREE SURFACE EFFECT OR BOTH. COMPARTMENT NUMBER (WHITE) - FLOODING OF WHITE SPACES HAS NO APPPRECIABLE EFFECT ON STABILITY. INCLINING MOMENTS FT-T 4.9Flooding Casualty Control Software Now time to translate everything we have learned to the 21st Century!

  2. SAILOR’SCREED “ I am a United States Sailor. I will support and defend the Constitution of the United States of America and I Will obey the orders of those appointed over me. I represent the fighting spirit of the Navy and those who have gone before me to defend freedom and democracy around the world. I proudly serve my country’s Navy combat team with Honor, Courage, and Commitment I am committed to excellence and fair treatment of all.”

  3. References • FCCS User’s Manual Version 3.4 (or greater)

  4. Enabling Objectives • DESCRIBE what FCCS is and why it’s important. • LIST functions/capabilities of FCCS. • DESCRIBE Importance of Validating FCCS. • PERFORM liquid load shifts and simulated damage to analyze ship stability.

  5. 8 20 5-308-2-W 5-328-2-W 83 201 84 35 40 436 5-292-0-E 5-292-1-W 5-344-0-J 5-328-0-J 3-292-2-E 5-321-1-F 1 0 1 100P 5 20 5-250-0-E 5-328-1-W 201 215S 894 9 5-292-2-W 5-276-0-F 6 8 9 5-308-1-W 5-292-3-W 83 84 (GREEN) - FLOODING OF GREEN SPACES WILL IMPROVE STABILITY, EVEN THOUGH FREE SURFACE EXISTS. CAPACITY-TONS SW (YELLOW) - FLOODING OF YELLOW SPACES WILL IMPROVE STABILITY IF NO FREE SURFACE EXISTS. IF SPACE IS NOT 100% FULL STABILITY WILL BE IMPAIRED. COMPARTMENT NUMBER (PINK) - FLOODING OF PINK SPACES WILL DECREASE STABILITY BECAUSE OF ADDED HIGH WEIGHT, FREE SURFACE EFFECT OR BOTH. INCLINING MOMENTS FT-T (WHITE) - FLOODING OF WHITE SPACES HAS NO APPPRECIABLE EFFECT ON STABILITY.

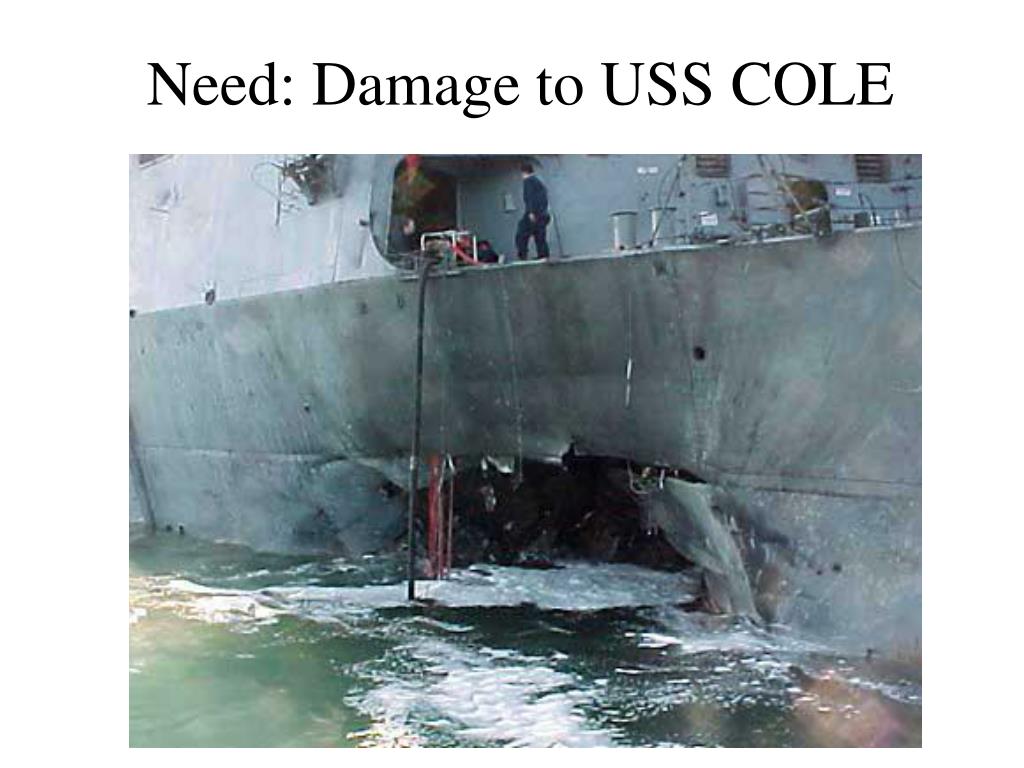

  6. Need: Damage to USS COLE

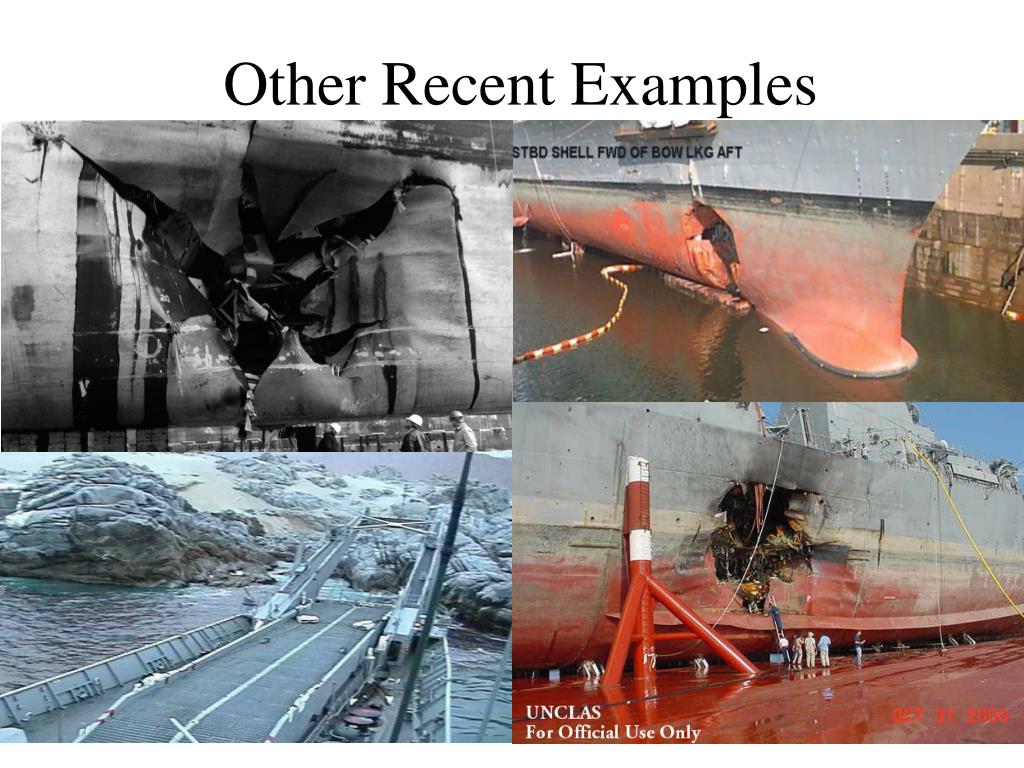

  7. Other Recent Examples

  8. FCCS Block Screen Shots

  9. What is FCCS? • Flooding Casualty Control Software. • A program used to quickly evaluate a ship’s intact, damaged, and grounded stability. • Creates loading graphs and gives recommendations of corrective actions.

  10. What is FCCS? • Is formatted with same information from inclining experiment. • Corresponds to DC Book, and DC Plates. • Takes into account SHIP SPECIFIC design criteria…. MEANING FCCS is ship specific! • Some FCCS Blanks… DDG Flight 2A… Big Decks…

  11. What can FCCS do? • Load management functions. • Calculates, displays, prints hydrostatic properties. • Alerts user of potentially dangerous situations. • Offers recommendations to improve current condition of loading. • Display/track expended liquid reports (for each tank).  Shortcoming in program capabilities

  12. What can FCCS do? (cont). • Track dry loads, liquid loads, ice loads, crane loads, wind and sea loads. • Determine Flooded damaged reports. • Evaluate stability and bottom reaction forces during vessel grounding. Both intentional and unintentional.

  13. • Status I: No displacement or Stability problems • Status II: Deficient in both margins • Status III: Deficient in KG margin • Status IV: Deficient in displacement margin WEIGHT AND MOMENT COMPENSATION PROGRAM

  14. What can FCCS do? (cont). • You can save various loading conditions. • Full Load • Min OP • Pre-dry-docking (zero list and zero trim) • “DCA’s sink the ship worst case scenario” • “500 migrants on the flight deck”

  15. LIMITATIONS • Follow Liquid Loading Instructions • No Abnormal Topside Weights • Don’t Submerge Limiting Draft Marks • Maintain Watertight Integrity

  16. Why validate FCCS? • Garbage in = Garbage out. • YOU MUST UPDATE LIQUID LOAD DAILY! • Step 1) Ensure most recent version in use on your ship. • Step 2) Dry load/Full Load verification • Fixed ballast • Stores • Ammunition and AIRCRAFT! • Abnormal load (ex: New small boat just installed)

  17. Why validate FCCS? (cont) • Very laborious process. • Once done, drafts from FCCS should very closely match what you are actually seeing… • If NOTYOU HAVE A PROBLEM

  18. REVIEW OF CRITICAL STABILITY 1. Negative GM 2. Listing to danger angle 3. Floodable length exceeded 4. Damage w/ impending bad weather

  19. FCCS vs. Established References • DOES NOT take precedence over NTTP, NSTM, Section II(a) etc. • In a DAMAGE SCENARIO, your knowledge will get you back in the fight long before you break out and start using this program…

  20. FCCS today… • Kept on a “Stand Alone” computer. “Capt… the DCA needs a new laptop!” • Allowed to be installed on LAN computers for training purposes.

  21. FCCS and the future… • DDX will have “real time” updating of Liquid Load soundings (TLI) and will constantly be evaluating stability. • But – That will not change Limitations of DC Book, Design Criteria, Critical Stability etc.

  22. POC’s • COAST GUARD: • Commanding Officer • USCG ELC • Code 023, Mail Stop 25 • 2401 Hawkins Point Rd • Baltimore, MD 21226-5000 • Tel: 410-762-6708/6712 • E-mail: • FCCS/elc@internet.uscg.mil NAVY: Naval Surface Warfare Center Carderock Division – Code 244 Attn: J Rosborough 9500 MacArthur Blvd West Bethesda, MD 20817-5700 Tel: 301-227-5392 E-mail: RosboroughJM@nswccd.navy.mil

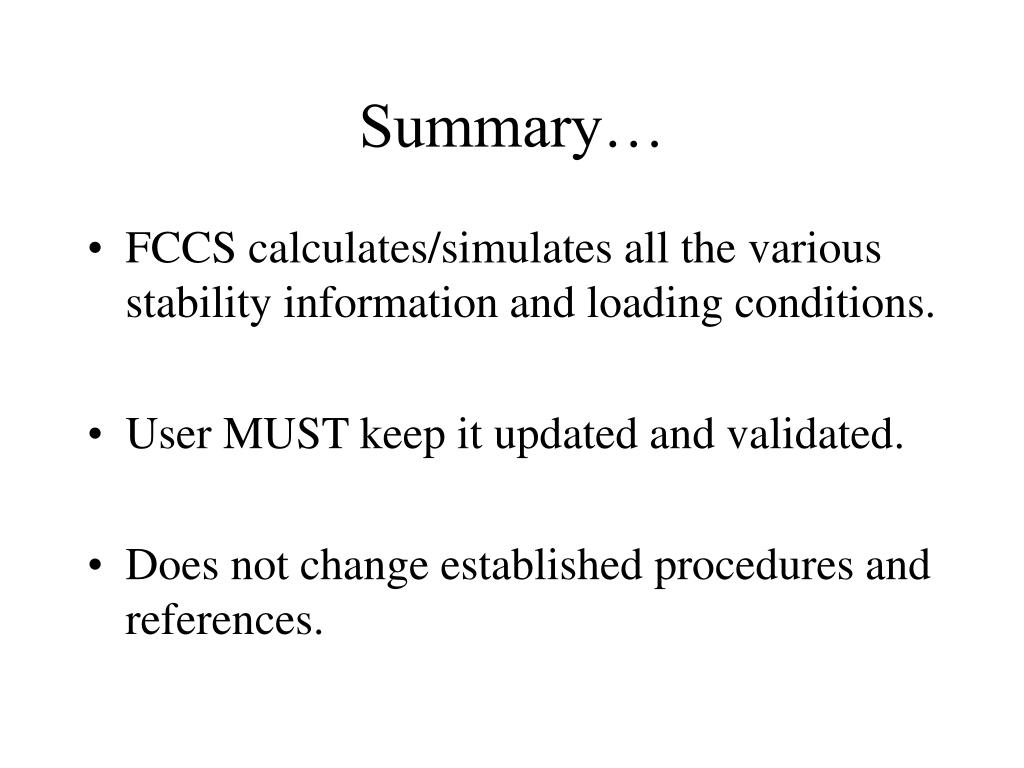

  23. Summary… • FCCS calculates/simulates all the various stability information and loading conditions. • User MUST keep it updated and validated. • Does not change established procedures and references.

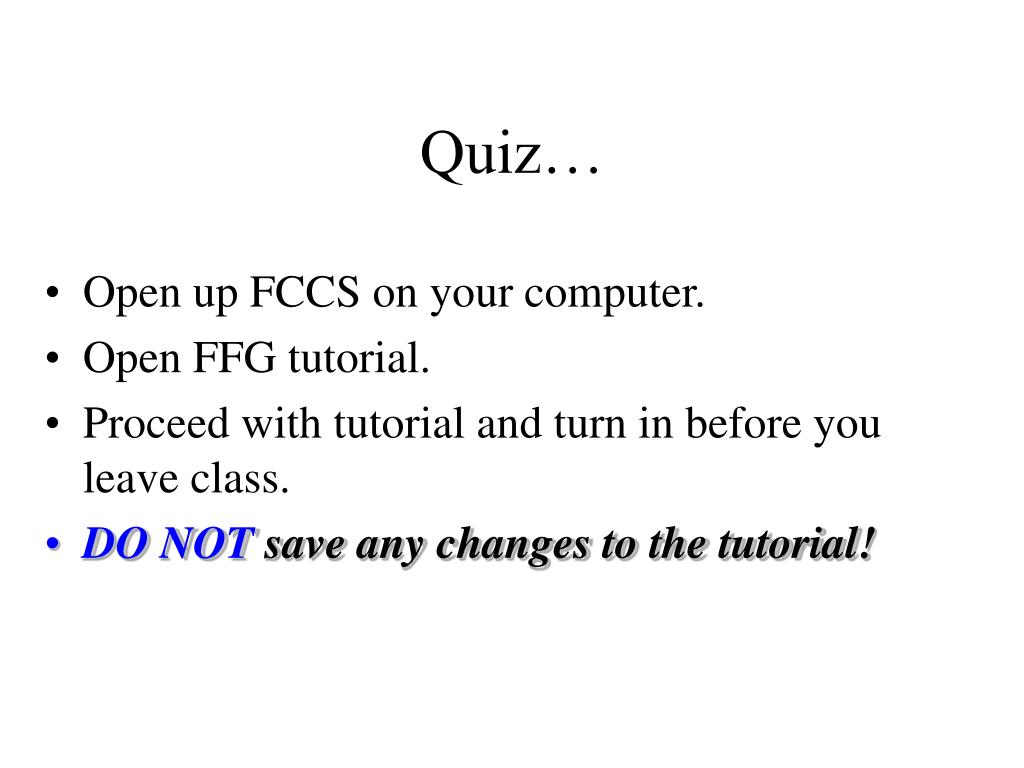

  24. Quiz… • Open up FCCS on your computer. • Open FFG tutorial. • Proceed with tutorial and turn in before you leave class. • DO NOT save any changes to the tutorial!
