  1. OVMS M3 Accelerometer Pictures 16 August, 2010 Esguerra - LBT

  2. Summary • Remaining 3 accelerometers installed on DXM3 • Measure acceleration in direction normal to glass • Minor issues • 1 existing M3x10 (?) fastener difficult to remove • Stripped hex socket • Removed with pliers; replaced with new M3x14 • Possible interference with other M3x? Hardware • Installed with M3x14 hardware, 12 in-lb

  3. SX M3 Accelerometers (for reference) Sn26382 (y) sn26239 (x) sn26416

  4. SX M3 Accelerometers (for reference) sn26239 (x) Sn26382 (y) sn26413

  5. SX M3 Accelerometers (for reference) sn26416 sn26413

  6. DX M3 Accelerometers sn25845 sn26238 * Installed Aug 16, 2010

  7. DX M3 Accelerometers sn25845 * Installed Aug 16, 2010

  8. DX M3 Accelerometers sn25845 sn25843 * Installed Aug 16, 2010

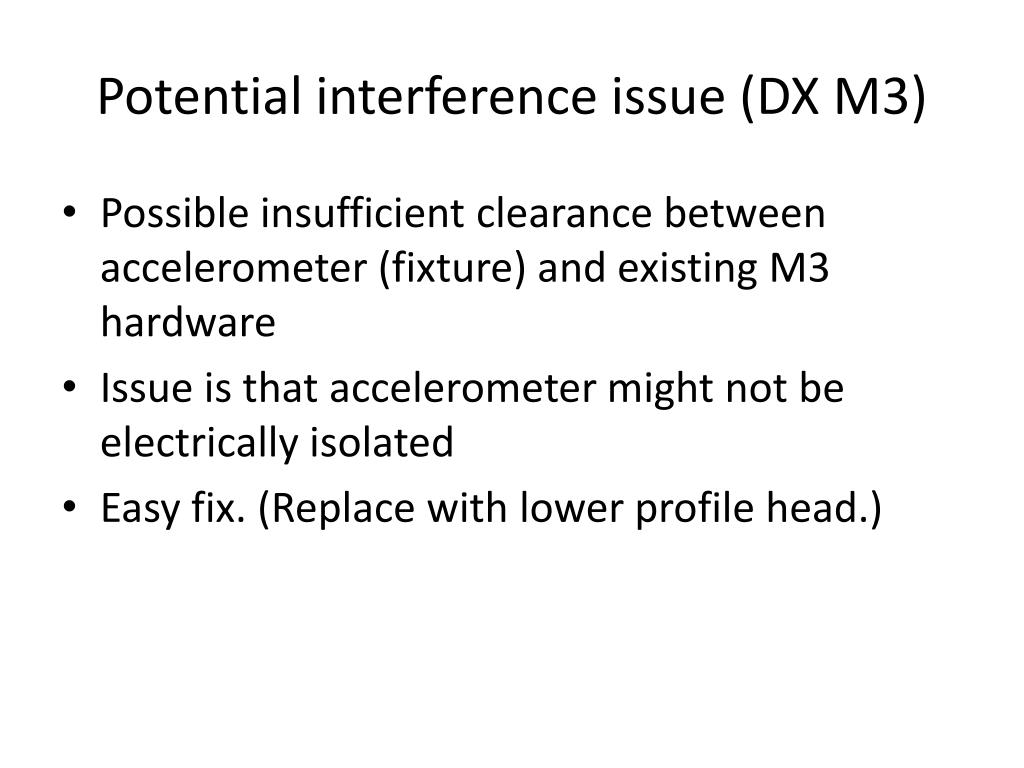

  9. Potential interference issue (DX M3) • Possible insufficient clearance between accelerometer (fixture) and existing M3 hardware • Issue is that accelerometer might not be electrically isolated • Easy fix. (Replace with lower profile head.)

  10. Potential interference issue (DX M3) sn25845 sn26238

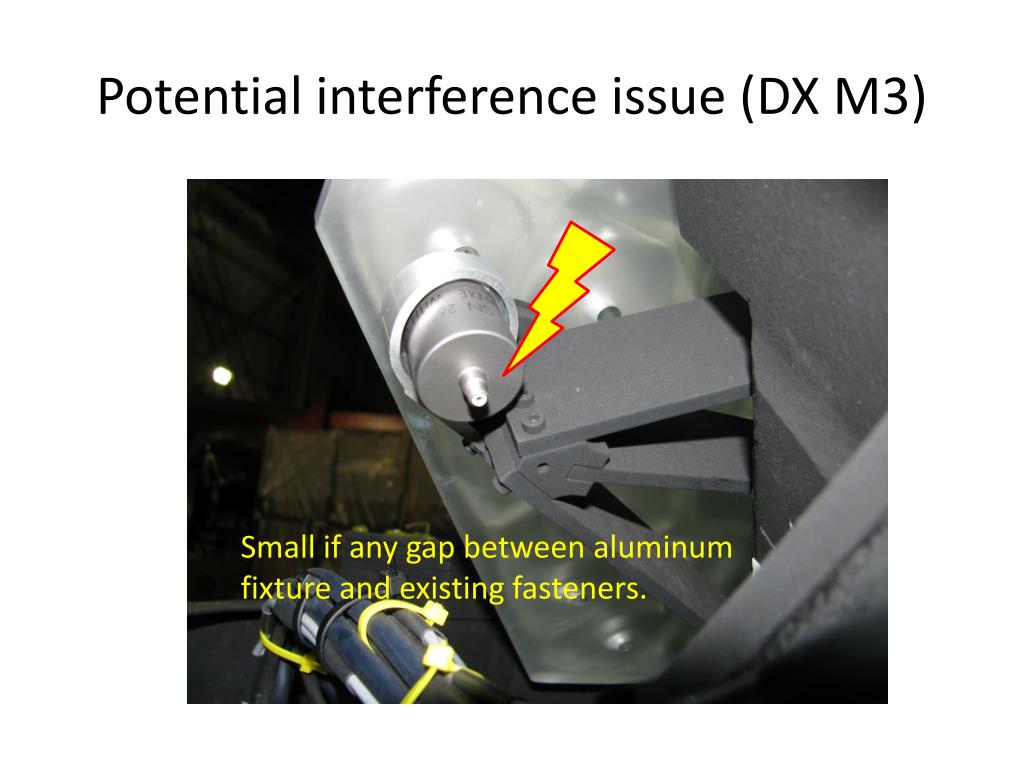

  11. Potential interference issue (DX M3) Small if any gap between aluminum fixture and existing fasteners.

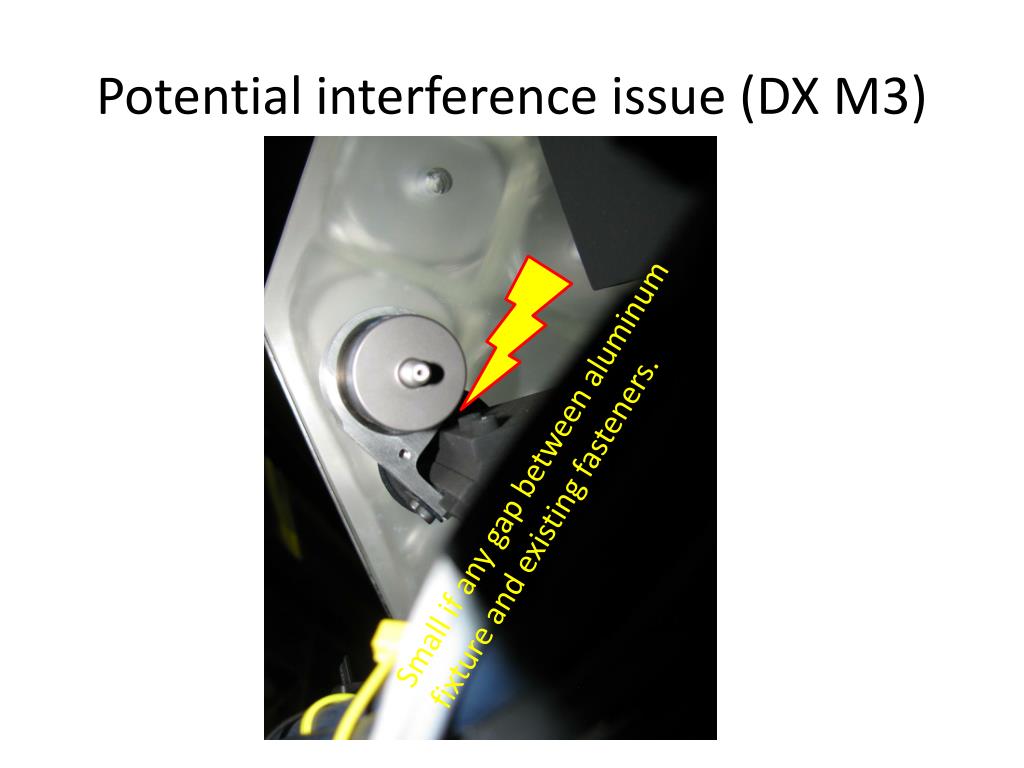

  12. Potential interference issue (DX M3) Small if any gap between aluminum fixture and existing fasteners.

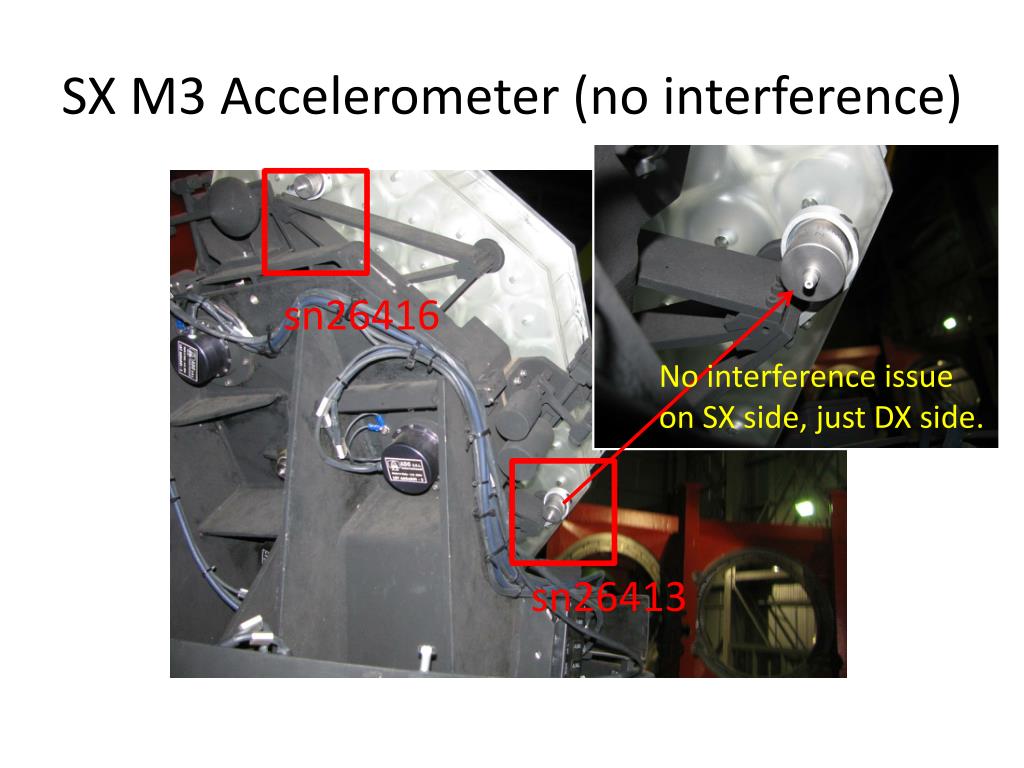

  13. SX M3 Accelerometer (no interference) sn26416 No interference issue on SX side, just DX side. sn26413
