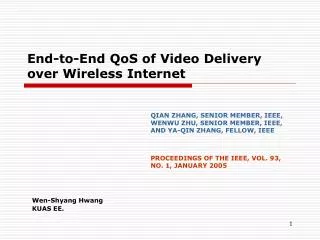

End-to-End QoS of Video Delivery over Wireless Internet. QIAN ZHANG, SENIOR MEMBER, IEEE, WENWU ZHU, SENIOR MEMBER, IEEE, AND YA-QIN ZHANG, FELLOW, IEEE. Wen-Shyang Hwang KUAS EE. PROCEEDINGS OF THE IEEE, VOL. 93, NO. 1, JANUARY 2005. Abstract.

orly
Download Presentation

End-to-End QoS of Video Delivery over Wireless Internet

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. End-to-End QoS of Video Delivery over Wireless Internet QIAN ZHANG, SENIOR MEMBER, IEEE, WENWU ZHU, SENIOR MEMBER, IEEE, AND YA-QIN ZHANG, FELLOW, IEEE Wen-Shyang Hwang KUAS EE. PROCEEDINGS OF THE IEEE, VOL. 93, NO. 1, JANUARY 2005

  2. Abstract • Key elements in the end-to-end QoS support including: • scalable video representation • network-aware end system • network QoS provisioning • Two approaches in QoS support: • network-centric solution • how to map QoS criterion at different layers respectively • optimize total quality across these layers • network modeling, QoS mapping, and QoS adaptation. • end-system centric solution • network adaptation • available bandwidth estimation • efficient video transport protocol • media adaptation. • error control • power control • corresponding bit allocation

  3. Outline • Introduction • Network-Centric Cross-Layer End-to-end QoS Support • Network QoS provisioning for wireless Internet • Cross-layer QoS support for video delivery over wireless Internet • End-System Centric QoS Support • Network adaptive congestion control • Adaptive error control • Joint power control and error control • Rate-distortion based bit allocation • Conclusion

  4. I. Introduction • QoS support involves several areas: application, terminal, networking architecture, network management, business model, and end user. • Capacity of wireless channel varies randomly with time, providing deterministic QoS(zero QoS violation probability) will waste resources. • Challenges for end-to-end QoS video delivery over wireless Internet: • QoS support involves a wide range of technological aspects. • video coding, physical and link layers support, efficient packet delivery, congestion control, error control, and power control • Diverse QoS requirements (data rate, delay, and packet loss) • video is sensitive to packet delivery delay but tolerate frame losses and transmission errors. • Different types of networks have different characteristics. • mixtures of heterogeneous wireless access technologies co-existed • packet loss in wireless Internet can be congestion loss or erroneous loss • Heterogeneity among end users. • users have different requirements (latency, video visual quality)

  5. Support QoS Requirements • Support QoS requirement in all components of video delivery system from end to end: • QoS provisioning from networks • QoS in wireless networks is different from Internet (IS and DS) • Scalable video presentation from applications • enhancement layers further refine the video quality. • Network adaptive congestion/error/power control in end systems. • controlling transmission power and adjusting transmission rate

  6. Two approaches providing end-to-end QoS support • Network-centric QoS provisioning • Router, switch, base-station, access-point provide prioritized QoS to satisfy data rate, delay bound, packet loss requirements. • At link layer, QoS is expressed in terms of probability of buffer overflow or probability of delay violation. • At video application layer, QoS is measured by mean squared error (MSE) or peak-signal-to-noise ratio (PSNR). • Key issue is the effective QoS mapping across different layer. • how to model the varying network and coordinate effective adaptation of QoS parameters at video application layer and prioritized transmission system at link layer. • End-system centric • congestion control, error control, and power control, to maximize the application-layer video quality without any QoS support from underlying network.

  7. Network-centric Cross-layer End-to-end QoS Support • The solution includes source video encoding, cross-layer QoS mapping and adaptation, prioritized transmission control, adaptive network modeling, and video decoder/output modules.

  8. Network-centric Cross-layer End-to-end QoS Support • In time-varying wireless Internet, dynamic QoS management system interacts with underlying prioritized transmission system to handle: • service degradation • resource constraint. • To offer a good compromise between video quality and available transmission resource • The key is how to provide • an effective cross-layer QoS mapping • an efficient adaptation mechanism.

  9. A. Network QoS Provisioning for Wireless Internet • IETF introduces: • IntServ provides guaranteed and controlled services. • RSVP lack scalability and difficulty in all elements be RSVP. • DiffServ provides a scalable and manageable network with service differentiation capability. • QoS provision in wireless networks: • 3GPP standardizes a common QoS framework for data services, • defined a framework for end-to-end QoS from radio access network through core network to gateway node within UMTS. • defined four UMTS QoS classes according to delay sensitivity: conversational, streaming, interactive, and background classes. • In wireless local area networks • IEEE 802.11e, EDCF establishes a probabilistic priority mechanism to allocate bandwidth based on traffic categories. • WME (Wireless Multimedia Enhancements) provide an interim QoS solution.

  10. B. Cross-Layer QoS Support for Wireless Internet • An efficient QoS mapping scheme that addresses cross-layer QoS issues for video delivery over wireless Internet includes: • wireless network modeling • effectively model time-varying and nonstationary behavior of wireless networks • prioritized transmission control scheme • derive and adjust the rate constraint of a prioritized transmission system • QoS mapping and adaptation mechanism • optimally map video application classes to statistical QoS guarantees of a prioritized transmission system • provide best tradeoff between video application quality and transmission capability under time-varying wireless networks.

  11. Wireless Network Modeling • model a communication channel at different layers • physical layer • classified into radio-layer channel, modem-layer channel, and codec-layer channel. • link-layer

  12. Physical layer models • radio-layer channel models can be classified into • large-scale path loss models • characterize the underlying physical mechanisms (reflection, diffraction, scattering) for specific paths. • small-scale fading models • describe the characteristics of generic radio paths in a statistical fashion. • Modem-layer channel can be modeled by a finite-state Markov chain • states are characterized by different BERs. • codec-layer channel can be modeled by a finite-state Markov chain • states are characterized by different data-rates, or a symbol being error-free/in-error, or a channel being good/bad • existing physical-layer channel models are complex to characterize the relationship between control parameters and calculated QoS measures.

  13. Prioritized Transmission Control • For differentiated services, a class-based buffering and scheduling mechanism is needed. • each QoS priority class can obtain a certain level of statistical QoS guarantees in terms of probability of packet loss and packet delay. • translate the statistical QoS guarantees of multiple priority classes into rate constraints based on the effective capacity theory. • rate constraints specify the maximum data rate that transmitted reliably with statistical QoS guarantee over time-varying wireless channel. • video substreams can be classified into classes, and bandwidth can be allocated accordingly for each class. • The rate constraint of multiple priority classes under a time-varying service rate channel can be derived according to the guaranteed packet loss probabilities and different buffer sizes of each priority class.

  14. QoS Mapping and QoS Adaptation • Mapping and adaptation: to match QoS criterion across different layers. • QoS measurement are not directly related at below two layers • video application layer: distortion and uninterrupted video service perceived by end-users • link layer: packet loss/delay probability • At video application layer, each video packet is characterized based on its loss and delay properties. • Video packets are classified and optimally mapped to the classes of link transmission module under the rate constraint. • QoS mapping and adaptation for wireless network was addressed: • find optimal mapping policy from one GOP (group of picture) to K priority classes. • find a set of QoS parameters for priority network

  15. III. End-System Centric QoS Support • video applications should be aware of and adaptive to the variation of network condition in wireless Internet. • The adaptation consists of network adaptationand media adaptation.

  16. Adaptation • Network adaptation: • how many network resources (bandwidth and battery power) for the video • design an adaptive media transport protocol for video delivery. • Adaptive Network Monitor: • probing and estimating the dynamic network conditions. • Congestion Controlmodule: • adjusts sending rate based on the feedback information. • Media adaptation • controls bit rate of video based on estimated available bandwidth • adjusts error and power control according to wireless Internet conditions. • Network-aware Unequal Error Protection (UEP) module • protects different layers against congestive packet losses and erroneous losses according to their importance and network status. • Network-aware Transmission Power Adjustmentmodule • adjusts transmission power to affect wireless channel conditions. • R-D Based Bit Allocationmodule • performs media adaptation control with two different targets, i.e., distortion-minimization and power consumption-minimization.

  17. A. Network Adaptive Congestion Control • Congestion-control mechanism takes the form of rate control at end systems to reduce packet loss and delay. • Involved protocols: RTP, RTCP, SDP, RTSP, SCTP, SIP, and HTTP. • Two types of TCP-friendly flow-control protocols for multimedia: • Sender-based rate adjustment: performs AIMD rate control as TCP. • Model-based flow control: a stochastic TCP model to represent TCP throughput as a function of packet loss ratio and RTT. • The issues of network condition estimation for designing transport protocol for video transmission over wireless Internet • estimation of congestion loss ratio. (end-to-end packet loss can be caused by either congestion loss or erroneous loss) • round trip time (RTT) estimation • available bandwidth estimation.

  18. End-to-End Packet Loss Differentiation and Estimation • Two types of methods to distinguish the network status: • split connection method: agent at the edge of wired and wireless network to measure network conditions separately. • end-to-end method: adopt heuristic methods such as interarrival time or packet pair. • Two types of approaches for available bandwidth estimation: • based on the estimated RTT and packet loss ratio. • using the Receiver Based Packet Pair (RBPP) method. • requires the use of two consecutively sent packets to determine a bandwidth share sample.

  19. Adaptive Error Control • Two basic error correction mechanisms: ARQ and FEC. • ARQ is more effective than FEC. FEC has strict delay requirements. • Hybrid ARQ scheme achieve both delay bound and rate effectiveness by limiting the number of retransmissions. • Some discussions on hybrid FEC and delay-constrained ARQ schemes: • protection strategies applied to video over cellular networks • integrated packetization, scheduling, and protection strategies for wireless transmission of nonscalable coded video. • video-optimized error resilience techniques for compressed video. • resilient real-time video streaming over IEEE 802.11b WLANs for both unicast and multicast transmission. • Scalable video has fast adaptation characteristic. • unequal error protection (UEP): strong channel-coding protection for base layer, weaker channel-coding for enhancement layer. • how to add FEC to scalable video coding has great interest recently.

  20. Joint Power Control and Error Control • tradeoff between quality of video application and power consumption • processing power and transmission power at end-systems • The point of view: • From network: multipath fading and multiple access interference (MAI) use high transmission power. • From video coding: to decrease transmission power, more complex compression algorithms and channel coding schemes are applied. • From individual user: allocate available bits for source and channel coders to minimize total processing power consumption. • From group user: • changetransmission power of one user will alter other users’ receiving (signal-tointerference ratio) SIRs and video quality. • due to multiple access interference, the global minimization of power consumption must be investigated

  21. Rate, Distortion and Power Consumption • Observe relationship among rate, distortion, and power consumption. • According to rate-distortion theory, the lower source coding rate R, the larger distortion • power-constrained distortion includes both distortion by the source rate control R and distortion caused by power constraint P • end-to-end distortion is composed of the distortion by source rate control R, the distortion caused by the channel errors E, and the distortion caused by the power constraint P

  22. Rate-Distortion Based Bit Allocation • metrics to evaluate video quality • expected end-to-end distortion • source distortion: caused by source coding such as quantization and rate control. • channel distortion:packet loss due to network congestion or wireless link error. • expected end-to-end power consumption. • includes processing power on source coding, processing power on channel coding, and transmission power for data delivery. • important to efficiently allocate bits among source coding and channel coding under fixed bandwidth capacity • minimal expected end-to-end distortion • minimal expected end-to-end power consumption
