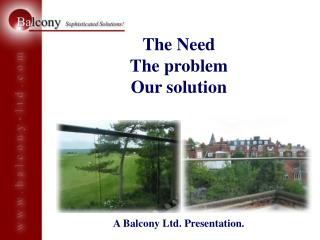

  1. The NeedThe problemOur solutionA Balcony Ltd. Presentation.

  2. The Need Growing request for clear view glass balustrades in high rise and regular buildings. Curved glass demand is increasing. Juliette balconies require a more modern look.

  3. The Problem Glass balconies require manyvertical posts that disrupt the clear view. Considered very expensive, resulting in them being rarely used.

  4. The Solutionintroducing: The breakthrough balustrade technology system that is changing the balustrade market place

  5. Our Solution: Clear view -no vertical posts required, in most cases. No corner posts needed. Fitting system flexible to any material. Juliette balconies with fitted glass and no posts. Very competitive prices. Self manufactured products. Over 20 years experience.

  6. This is Not Structural Glass

  7. Our Technology The breakthrough lays not in the glass butin the hand railing itself. Made from aluminum, it has the structure that can hold a straight glass balcony without depending on vertical posts for at least 3 or 3.8 meters. This solution does not require structural glass and can come in two versions: 1 2 Up to 3.0 meters columnless opening up to 3.8 meters columnless opening

  8. Comparison

  9. More advantages: More than 3,000 meters monthly capacity. Non-Maintenance materials. In-House manufacturing Equaling in flexible quantities. Original method for glass curving. No segmentation. 6.5 meters 15.4 meters

  10. Our Range of applications:For more information click on the buttons Curved glass External Balconies Staircases & Galleries Juliette Balconies Continue

  11. Our Range of Products: External Balconies General: Specifically designed for external balconies. Ideal for external use even in the most corrosive and sea environments. Easily installed and easily replaced if damaged. Most sizes can be done without posts No corner posts. Clean connections to the walls. Built to suit all types of balconies; timber, steel or concrete. Neatest, simplest, most aesthetic and most cost effective.

  12. External Balconies Technical specification: Balustrade structure: 6063 T5 extruded aluminium profilesPaint/coating: 60-100 micron Polyester powder coating in white colour, or 10-15 micron high-quality anodizing in bronze or natural satin finish. Also available our new “Royal Chrome” anodized finish. RAL colour options available for large projects only. Fixings: Extruded aluminium Wall brackets and A2 or A4 stainless steel fixingsGaskets: EPDM (ethylene-propylene rubber)Glass: 10mm Clear Toughened or toughened & laminated clear glass. Tinted glass is available for large projects. Permitted Loading: Line load 0.74 kN/m, point load to infill 1.0kN.

  13. External Balconies CAD details – Balcony 1: Up to 3.0m between walls without need for vertical posts. Section.

  14. External Balconies CAD details – Balcony 1: Up to 3.0m between walls without need for vertical posts. Plan view &Elevation.

  15. External Balconies CAD details – Balcony 1: Up to 3.0m between walls without need for vertical posts. Section through wall connection

  16. External Balconies CAD details – Balcony 2: Up to 3.8m between walls without need for vertical posts. Section.

  17. External Balconies CAD details – Balcony 2: Up to 3.8m between walls without need for vertical posts. Plan view &Elevation.

  18. External Balconies CAD details – Balcony 2: Up to 3.8m between walls without need for vertical posts. Section through wall connection.

  19. Our Range of Products: Curved glass General: Long stretches with no vertical posts. * Its smooth clean touch complements the building. Virtually Any radius. A combination of radiuses (ellipses). “S” shaped bends. Specifically designed for external balconies. Ideal for external use even in the most corrosive and sea environments. Easily installed and easily replaced if damaged. Clean connections to the walls. Built to suit all types of balconies; timber, steel or concrete. * radius limitations apply

  20. Curved glass Technical specification: Balustrade structure: 6063 T5 extruded aluminium profilesPaint/coating: 60-100 micron Polyester powder coating in white colour, or 10-15 micron high-quality anodizing in bronze or natural satin finish. Also available our new “Royal Chrome” anodized finish. RAL colour options available for large projects only. Fixings: Extruded aluminium Wall brackets and A2 or A4 stainless steel fixingsGaskets: EPDM (ethylene-propylene rubber)Glass: 10mm Clear Toughened or toughened & laminated clear glass. Tinted glass is available for large projects. Permitted Loading: Line load 0.74 kN/m, point load to infill 1.0kN.

  21. Curved glass CAD details – Balcony 1: subjected to certain radiuses, most sizes can be made withno vertical posts Section.

  22. Curved glass CAD details – Balcony 1: subjected to certain radiuses, most sizes can be made withno vertical posts Plan view &Elevation.

  23. Curved glass CAD details – Balcony 1: subjected to certain radiuses, most sizes can be made withno vertical posts Section through wall connection.

  24. Curved glass CAD details – Balcony 2: subjected to certain radiuses, most sizes can be made withno vertical posts Section.

  25. Curved glass CAD details – Balcony 2: subjected to certain radiuses, most sizes can be made withno vertical posts Plan view &Elevation.

  26. Curved glass CAD details – Balcony 2: subjected to certain radiuses, most sizes can be made withno vertical posts Section through wall connection.

  27. Our Range of Products: Juliette Balconies A revolution in Juliette balconies! No more ugly balconies.Clean & beautiful from outside.Virtually unnoticeable from inside. Unobstructed view of the scenery.

  28. Juliette Balconies Fixed to the side of the wall.Bottom track connected underneath the sill of the window. The handrail is connected on the face of the wall past the edge of the structural opening.Balcony’s Juliette system requires NO vertical posts and can be made up to 3.2m long.Easily fitted from the outside and then glazed from the inside. Easy glass replacement if required, no need for costly scaffolding. Ideal for external use even in the most corrosive and sea environment. No corner posts. Installed around a corned without any vertical posts. General:

  29. Juliette Balconies Technical specification: Balustrade structure: 6063 T5 extruded aluminium profilesPaint/coating: 60-100 micron Polyester powder coating in white colour, or 10-15 micron high-quality anodizing in bronze or natural satin finish. Also available our new “Royal Chrome” anodized finish. RAL colour options available for large projects only. Fixings: Extruded aluminium Wall brackets and A2 or A4 stainless steel fixingsGaskets: EPDM (ethylene-propylene rubber)Glass: 10mm Clear Toughened or toughened & laminated clear glass. Tinted glass is available for large projects. Permitted Loading: Line load 0.74 kN/m, point load to infill 1.0kN.

  30. Juliette Balconies CAD details balcony 1 Juliette : up to 3.2m long Section.

  31. Juliette Balconies CAD details balcony 1 Juliette : up to 3.2m long Elevation.

  32. Our Range of Products: Staircases & Galleries General: Implemented on staircases utilizing the newel-post and the string. Allowing light to penetrate into the staircase area. Details for concrete and steel staircases can be made with prior planning.Using glass balustrades landings and mezzanine floors enhance the size of the room both to the landing/mezzanine floor and the floor below.

  33. Staircases & Galleries Technical specification: Balustrade structure: 6063 T5 extruded aluminium profilesPaint/coating: 60-100 micron Polyester powder coating in white colour, or 10-15 micron high-quality anodizing in bronze or natural satin finish. Also available our new “Royal Chrome” anodized finish. RAL colour options available for large projects only. Fixings: Extruded aluminium Wall brackets and A2 or A4 stainless steel fixingsGaskets: EPDM (ethylene-propylene rubber)Glass: 10mm Clear Toughened or toughened & laminated clear glass. Tinted glass is available for large projects. Permitted Loading: Line load 0.74 kN/m, point load to infill 1.0kN.

  34. Staircases & Galleries Balcony 1: system 1 is most common forinternal usages. Up to 3.5m without vertical posts.

  35. Staircases & Galleries Balcony 1: system 1 is most common forinternal usages. Up to 3.5m without vertical posts.

  36. Staircases & Galleries Balcony 1: system 1 is most common forinternal usages. Up to 3.5m without vertical posts.

  37. Safety Lab and site safety testing. UK-Comply with BS6180 & BS6399. France-Comply with NF P 01-013 & NF P 08-301. “Shock” test passed.

  38. About the company With 20 years of vast experience, we are experts in all Glass-Aluminum related products for construction. The company is active in Europe and the US and has offices in France, the UK, Israel and California.

  39. Tel: 01342-410411 Fax: 01342-410412 E-mail: enquiries@balconette.co.uk Unit 5 Forest Row Business Park Station Road, Forest Row East Sussex RH18 5DW Please visit our site at:www.balconette.co.uk We hope now you have a Clear View
