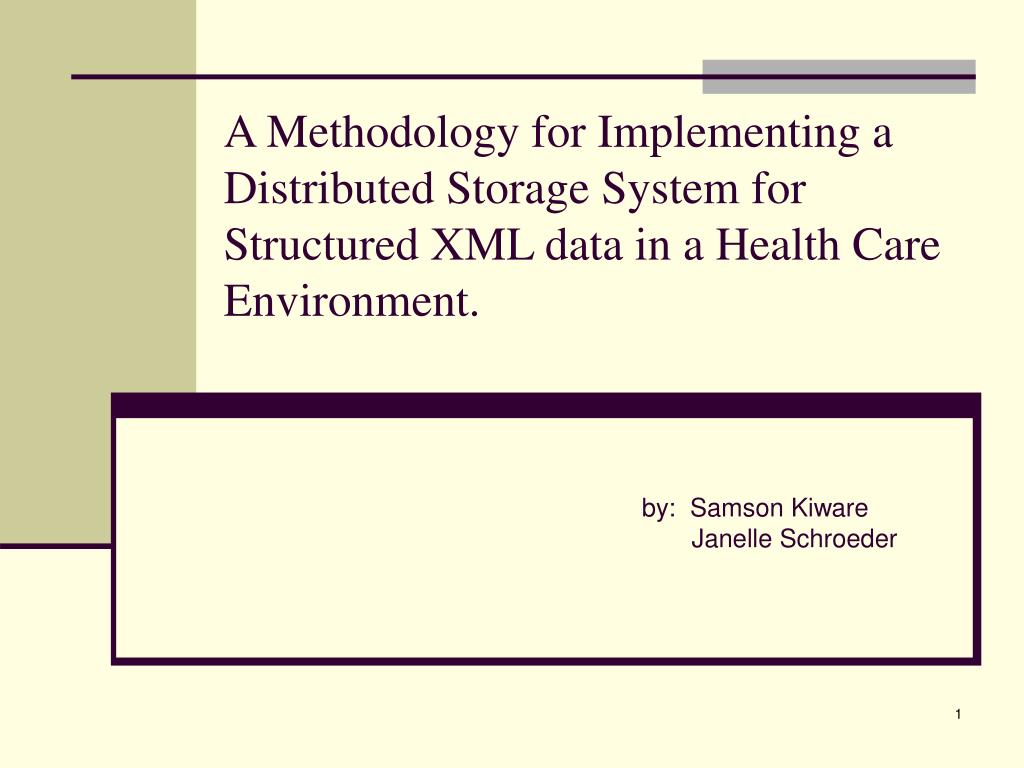

  1. A Methodology for Implementing a Distributed Storage System for Structured XML data in a Health Care Environment. by: Samson Kiware Janelle Schroeder

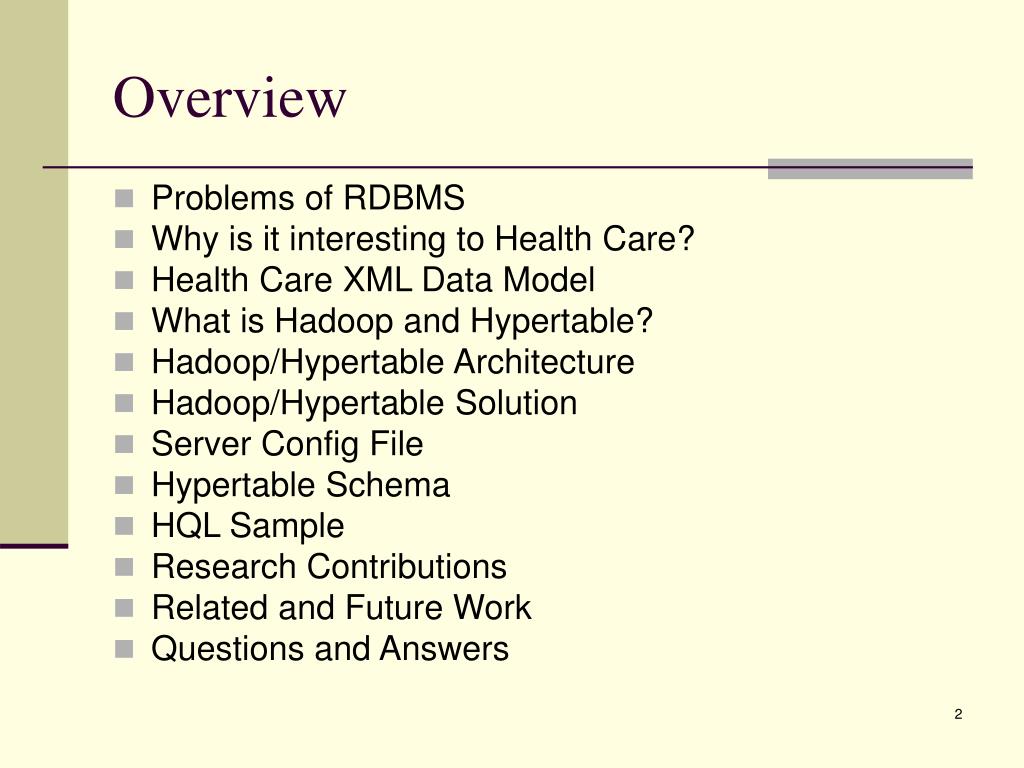

  2. Overview • Problems of RDBMS • Why is it interesting to Health Care? • Health Care XML Data Model • What is Hadoop and Hypertable? • Hadoop/Hypertable Architecture • Hadoop/Hypertable Solution • Server Config File • Hypertable Schema • HQL Sample • Research Contributions • Related and Future Work • Questions and Answers

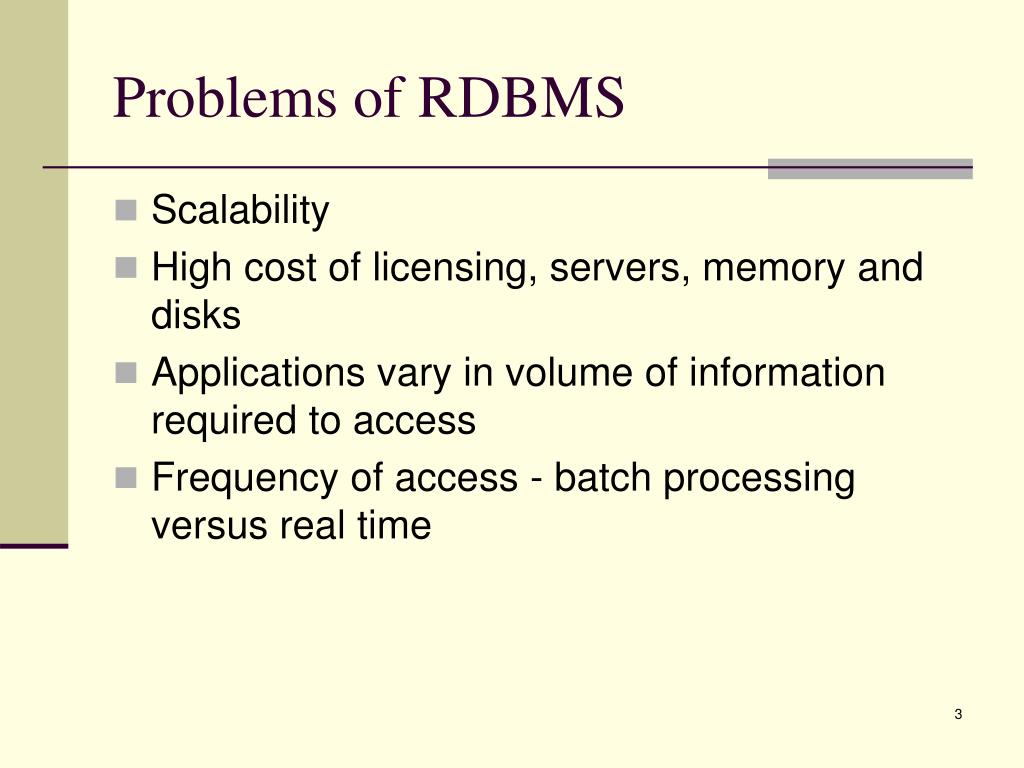

  3. Problems of RDBMS • Scalability • High cost of licensing, servers, memory and disks • Applications vary in volume of information required to access • Frequency of access - batch processing versus real time

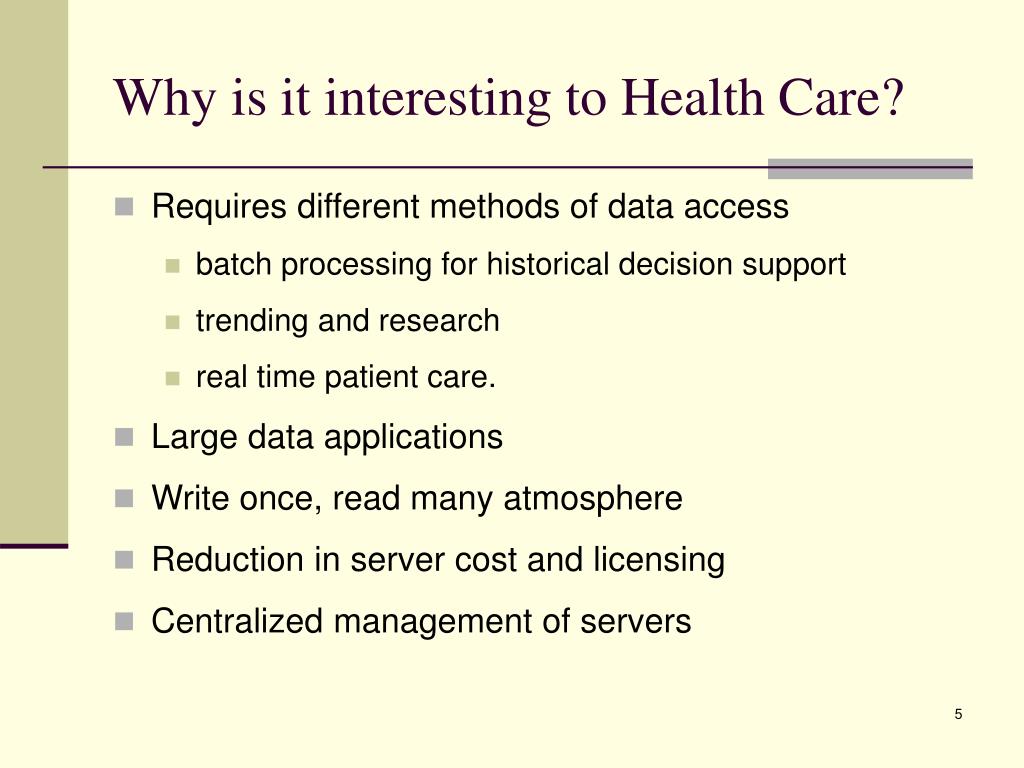

  4. Why is it interesting to Health Care? • Requires different methods of data access • batch processing for historical decision support • trending and research • real time patient care. • Large data applications • Write once, read many atmosphere • Reduction in server cost and licensing • Centralized management of servers

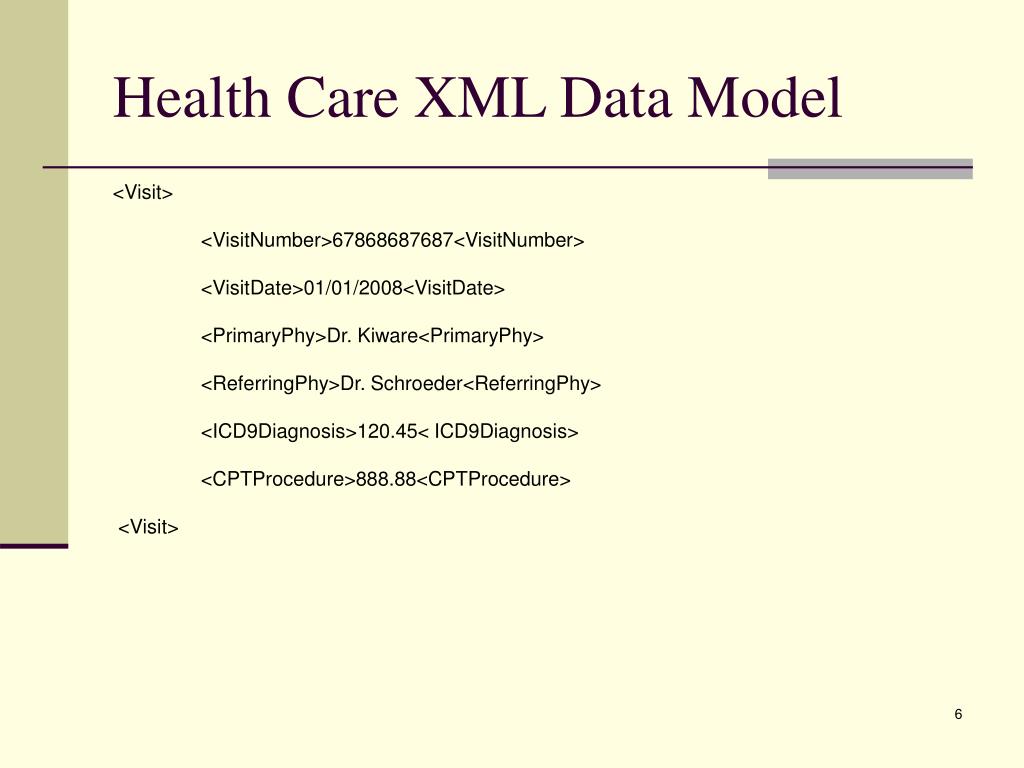

  5. Health Care XML Data Model <Visit> <VisitNumber>67868687687<VisitNumber> <VisitDate>01/01/2008<VisitDate> <PrimaryPhy>Dr. Kiware<PrimaryPhy> <ReferringPhy>Dr. Schroeder<ReferringPhy> <ICD9Diagnosis>120.45< ICD9Diagnosis> <CPTProcedure>888.88<CPTProcedure> <Visit>

  6. What are Hadoop and Hypertable? • Hadoop is a distributed computing platform for running a processing system • Hypertable is an open source, high performance, scalable, distributed storage processing system for structured and unstructured data

  7. Hadoop/Hypertable Architecture

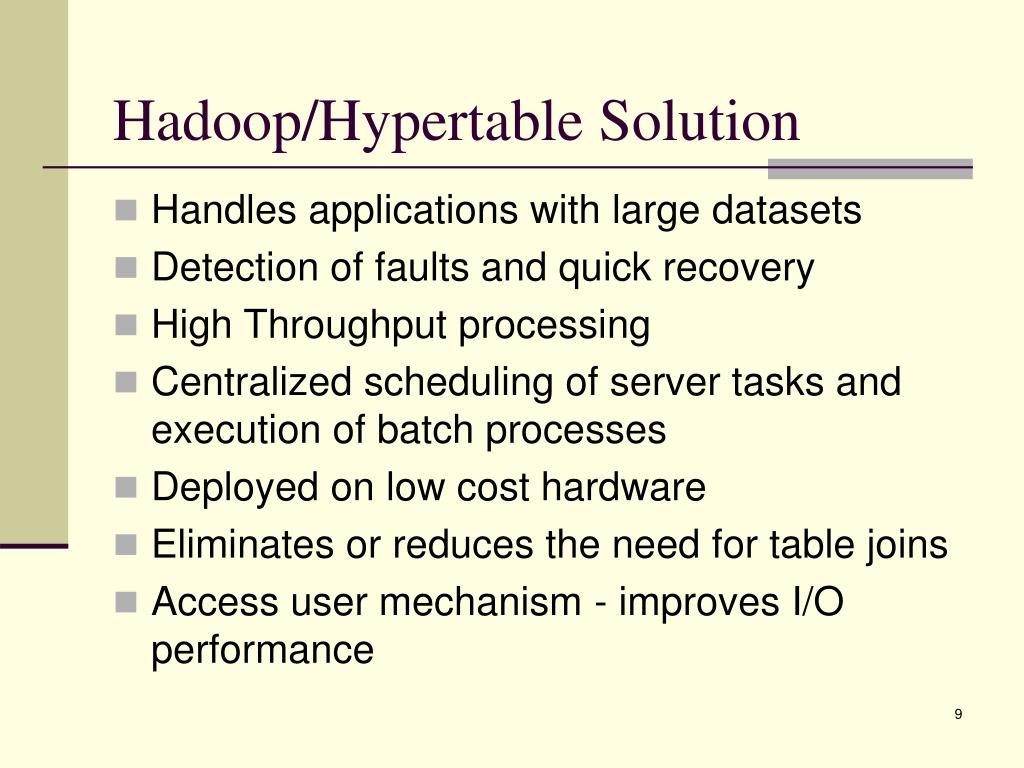

  8. Hadoop/Hypertable Solution • Handles applications with large datasets • Detection of faults and quick recovery • High Throughput processing • Centralized scheduling of server tasks and execution of batch processes • Deployed on low cost hardware • Eliminates or reduces the need for table joins • Access user mechanism - improves I/O performance

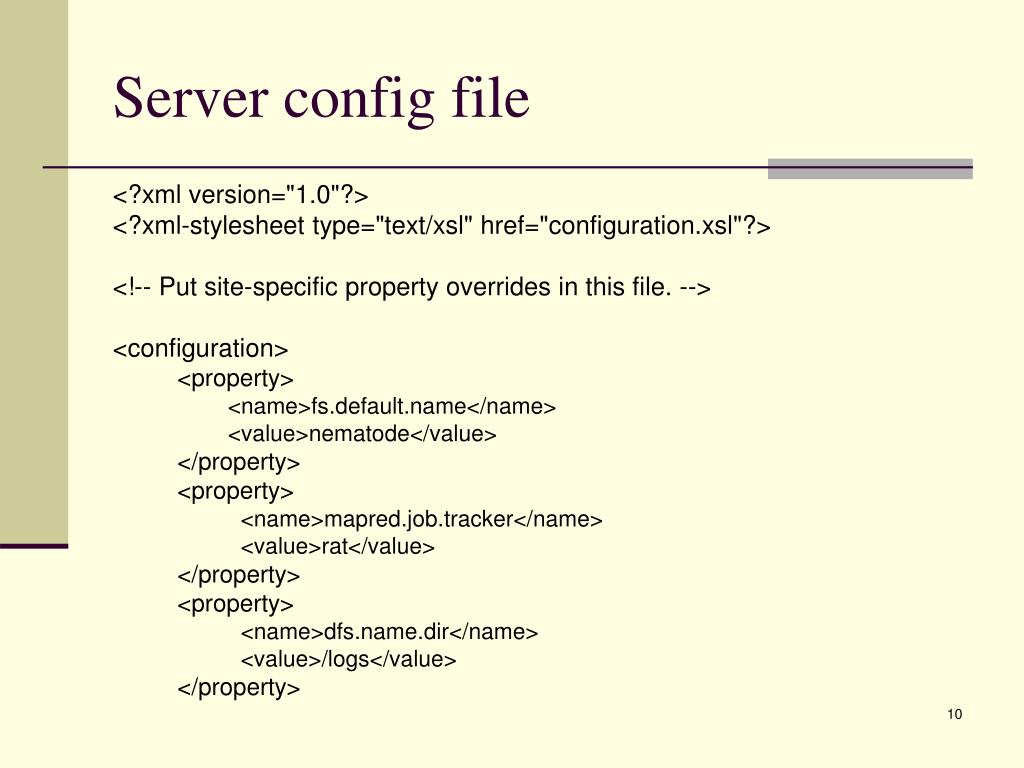

  9. Server config file <?xml version="1.0"?> <?xml-stylesheet type="text/xsl" href="configuration.xsl"?> <!-- Put site-specific property overrides in this file. --> <configuration> <property> <name>fs.default.name</name> <value>nematode</value> </property> <property> <name>mapred.job.tracker</name> <value>rat</value> </property> <property> <name>dfs.name.dir</name> <value>/logs</value> </property>

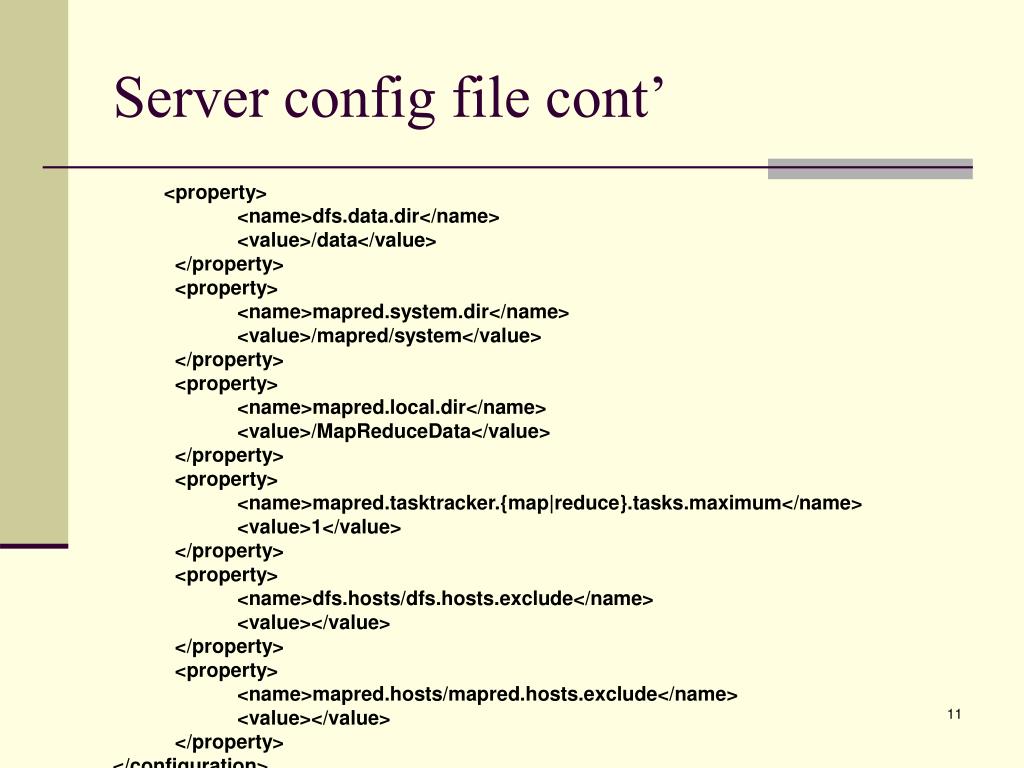

  10. Server config file cont’ <property> <name>dfs.data.dir</name> <value>/data</value> </property> <property> <name>mapred.system.dir</name> <value>/mapred/system</value> </property> <property> <name>mapred.local.dir</name> <value>/MapReduceData</value> </property> <property> <name>mapred.tasktracker.{map|reduce}.tasks.maximum</name> <value>1</value> </property> <property> <name>dfs.hosts/dfs.hosts.exclude</name> <value></value> </property> <property> <name>mapred.hosts/mapred.hosts.exclude</name> <value></value> </property> </configuration>

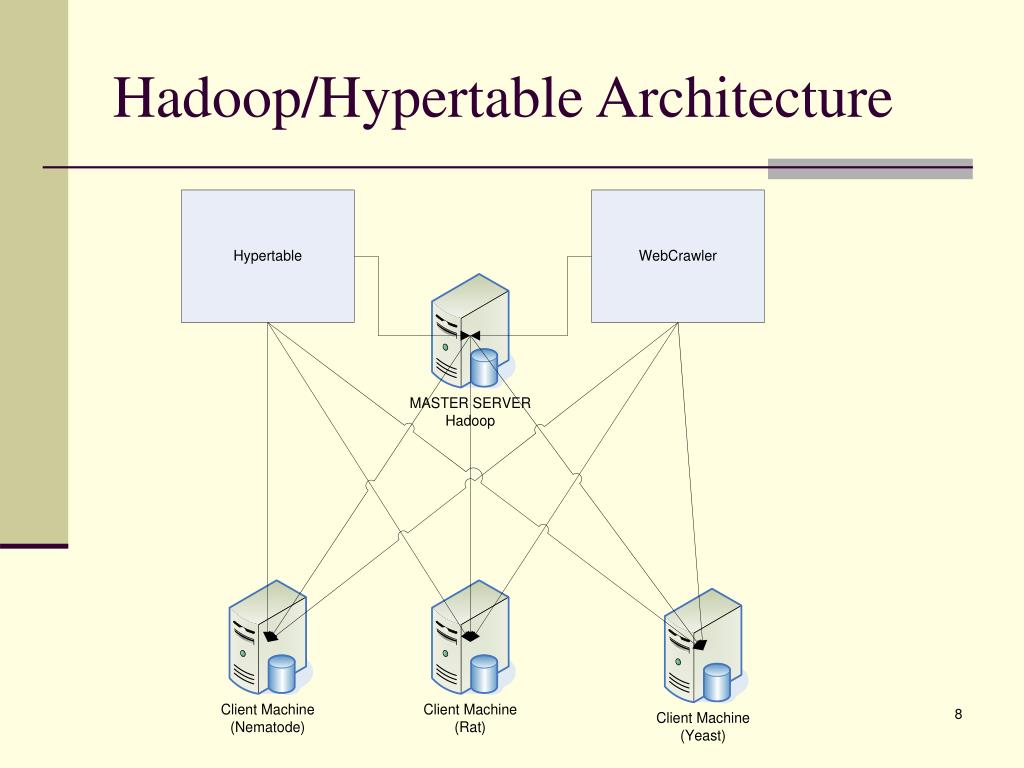

  11. Hadoop/Hypertable Architecture

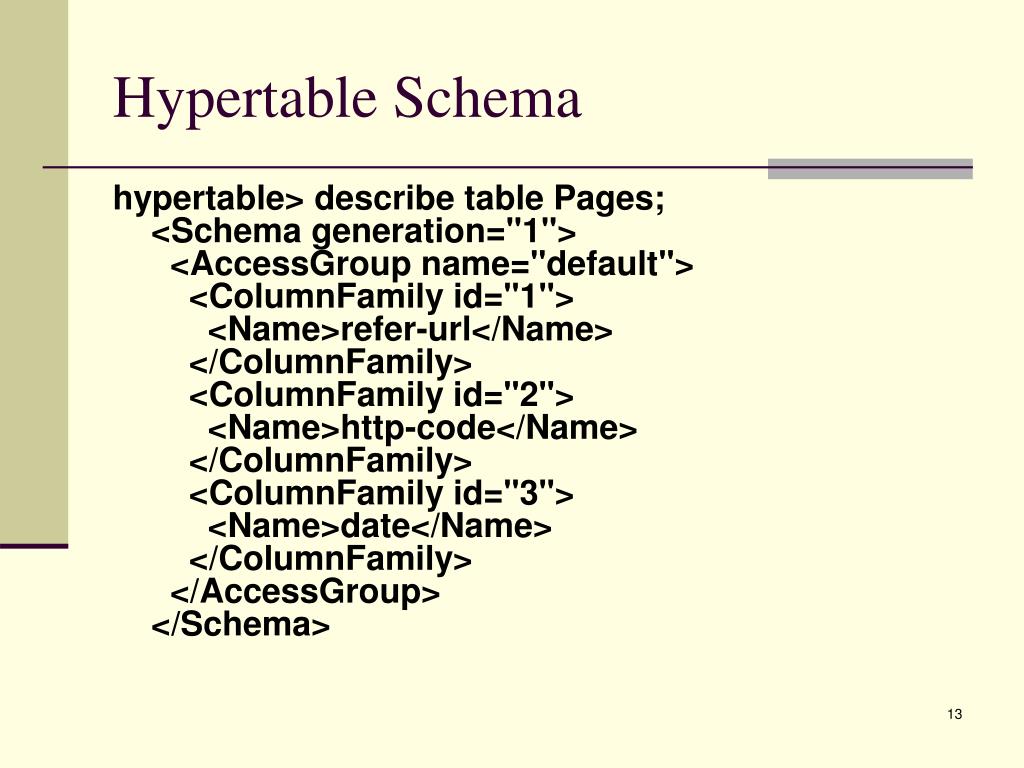

  12. Hypertable Schema hypertable> describe table Pages;<Schema generation="1">  <AccessGroup name="default">    <ColumnFamily id="1">      <Name>refer-url</Name>    </ColumnFamily>    <ColumnFamily id="2">      <Name>http-code</Name>    </ColumnFamily>    <ColumnFamily id="3">      <Name>date</Name>    </ColumnFamily>  </AccessGroup></Schema>

  13. HQL Sample • Sample for a patient centric model, where MRN (medical record number of patient) serves as a row key and column families are created for different categories of health information: • See next slide

  14. CREATE TABLE “Patient” ROWKEY: <MRN>12234434<MRN> Column_Family_Name: “Visit”, “Insurance”, “Genetic Profile” Column: “Visit” Value: <Visit> <VisitNumber>67868687687<VisitNumber> <VisitDate>01/01/2008<VisitDate> <PrimaryPhy>Dr. Kiware<PrimaryPhy> <ReferringPhy>Dr. Schroeder<ReferringPhy> <ICD9Diagnosis>120.45< ICD9Diagnosis> <CPTProcedure>888.88<CPTProcedure> <Visit> Timestamp: (TODAY’S DATE/TIME) HQL Sample

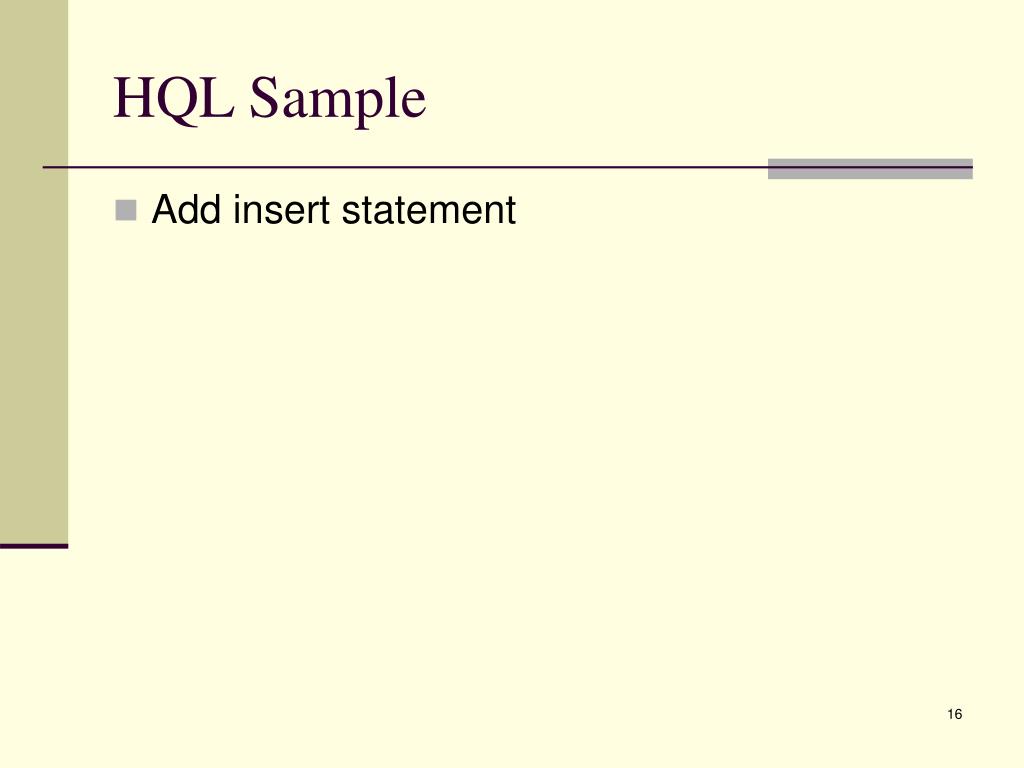

  15. HQL Sample • Add insert statement

  16. Research Contributions • Install Hadoop and Hypertable an open source, distributed storage system in cluster environment • Create documentation for installation in a Linux and Windows environment • Designed and implement a data model for a health care environment

  17. Related and Future Work • Google’s BigTable • Web Crawler • Solution for managing xml schema versions • Conduct comparative performance research • Investigate job tracking and task scheduling • Apply 3-dimmensional data warehousing techniques (Type 1, Type 2 or Type 3)

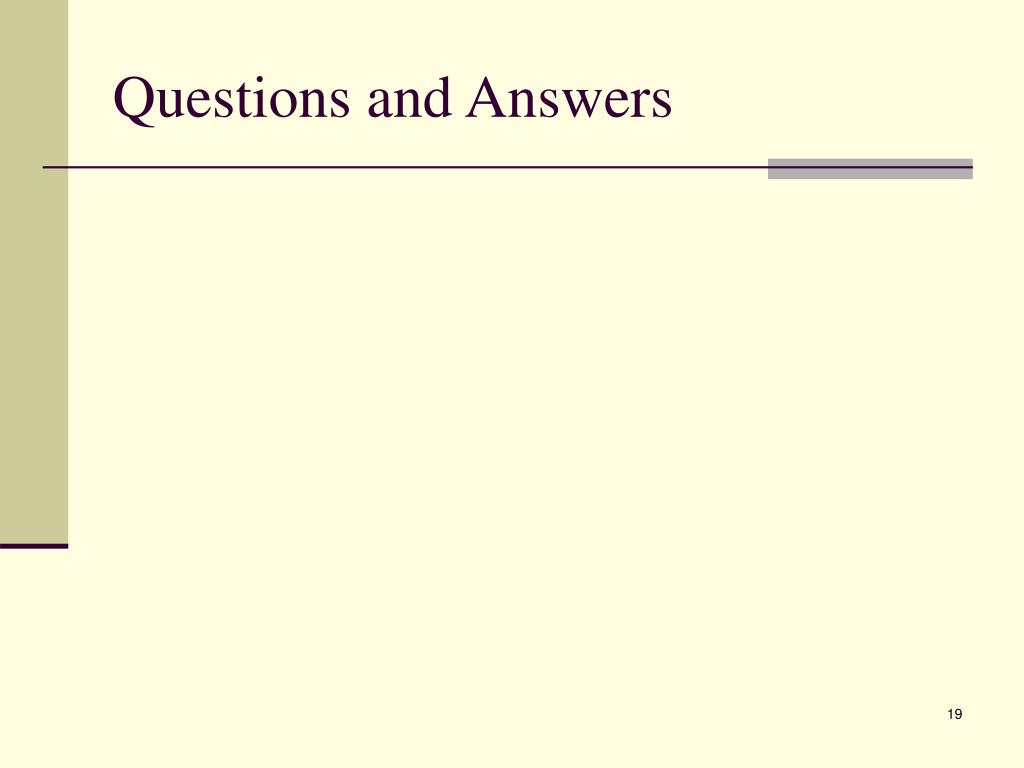

  18. Questions and Answers
