  1. October 2004, Frankfurt

  2. Michael Kretzschmar Andrea Marcomini Commercial Training

  3. Daily 3.0 HPI - HPT Range Content Market demand The new Daily engine offer The Daily line-up Sales argumentation The new engine technology Maintenance Diagnostic Ecology Value for customer Let’s compare

  4. Market demand Customer expectations Customer needs evolution comply through an innovative product concept to assure the best in terms of: • Performance • High standard of comfort • Running costs reduction

  5. Market demand Iveco’s answer Iveco’s response should respect: • Continuous innovation • Quality improvement • Customer attention Result: Optimization of Daily offer with new 3.0 l engines (F1C Family ) to respond to Market demand.

  6. Market demand Market segmentation ~ 300,000 units ~ 30,000 units 3.51 - 6.5 tons 3.5 tons 10 x WestEuropean market figures 2003

  7. > 120 HP < 120 HP Market demand Market split 3.5 ton 57% 43% WestEuropean market figures 2003

  8. > 120 HP < 120 HP Market demand Market split 3.51 – 6.5 ton 26% 74% WestEuropean market figures 2003

  9. The new Daily engine offer Principle targets and objectives The Daily engine range responds to the market demand by offering anoutstanding quality in terms of: • Performance • Profitability • Comfort • Ecology

  10. The new Daily engine offer The new engine range puzzle 96 HP 116 HP NEW NEW 136 HP 166 HP

  11. The new Daily engine offer The new engine range puzzle High Performance Injection • 2.3 litres total displacement • 4 Cylinders in line • 96 and 116 HP • Max. torque 240 / 270 Nm

  12. The new Daily engine offer The new engine range puzzle High Performance Injection High Performance Turbine • 3.0 litres total displacement • 4 Cylinders in line • 136 and 166 HP • Max torque 340 / 380 Nm

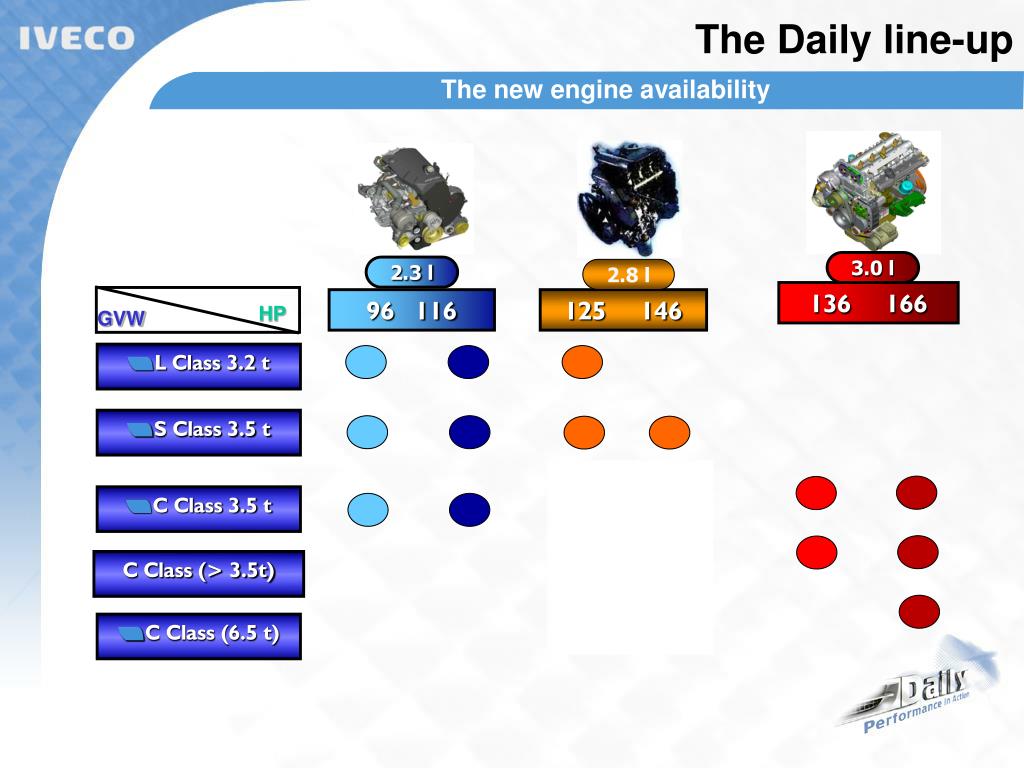

  13. 3.0 l 136 166 The Daily line-up The new engine availability 2.3 l 2.8 l 96 116 125 146 HP GVW L Class 3.2 t S Class 3.5 t C Class 3.5 t C Class (> 3.5t) C Class (6.5 t)

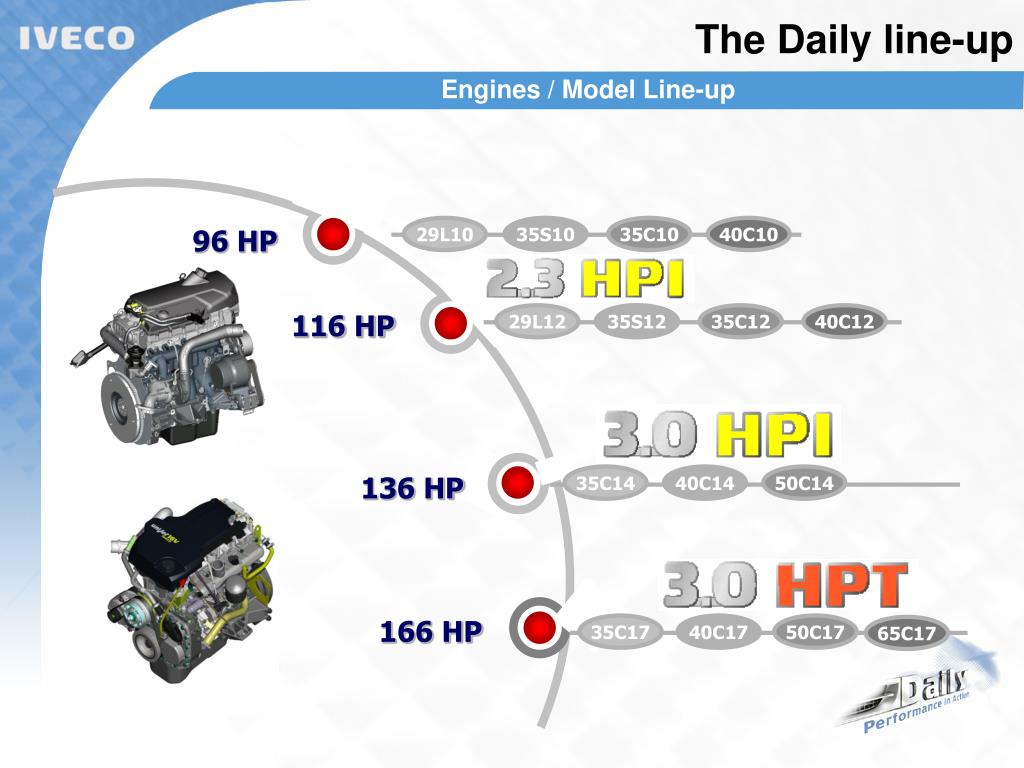

  14. The Daily line-up Engines / Model Line-up 96 HP 29L10 35S10 35C10 40C10 116 HP 29L12 35S12 35C12 40C12 136 HP 35C14 40C14 50C14 166 HP 35C17 40C17 50C17 65C17

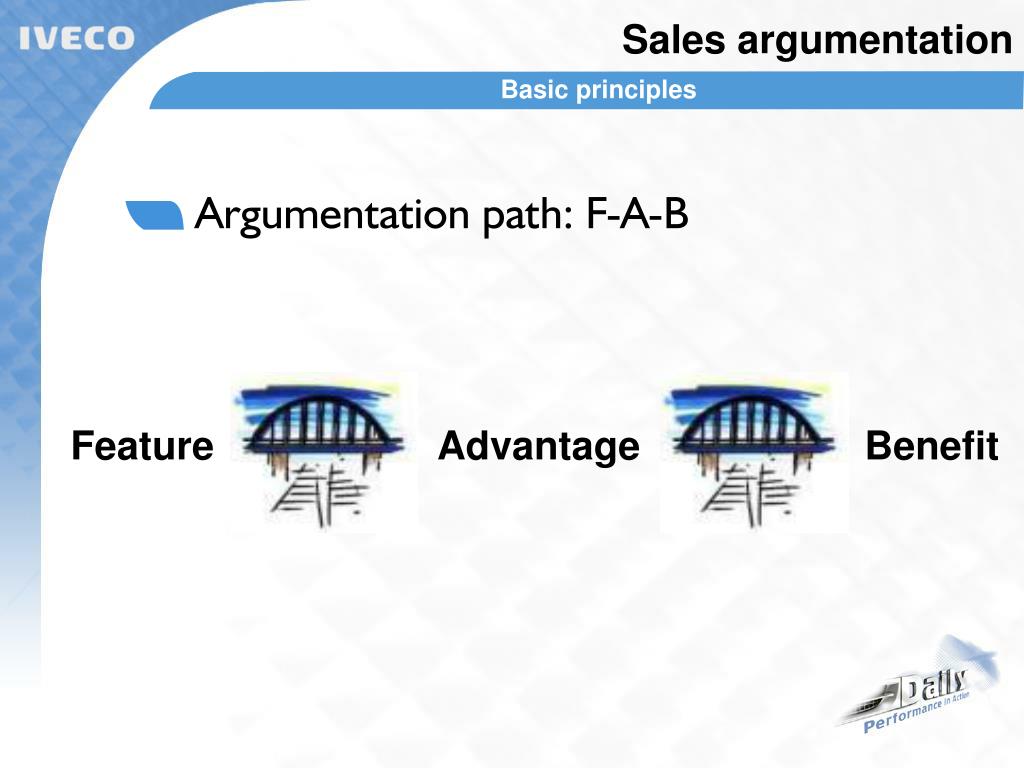

  15. Feature Advantage Benefit Sales argumentation Basic principles • Argumentation path: F-A-B

  16. Feature Advantage Benefit Service Interval 40' Higher availability Higher productivity Less gear changes Flat torque curve Driver comfort Optimised combustion 16 Valves Ecological benefits Sales argumentation Basic principles • F-A-B = “Translation” for customers

  17. Sales argumentation Basic principles • “Value for customer” = 3.0 HPI-HPT F-A-B + Daily Range F-A-B

  18. Sales argumentation Basic principles “Less is more” • Only 3-5 features • To be transported into real advantages • To be personalised into customer‘s mission, creation of real benefits • Economical benefit calculation

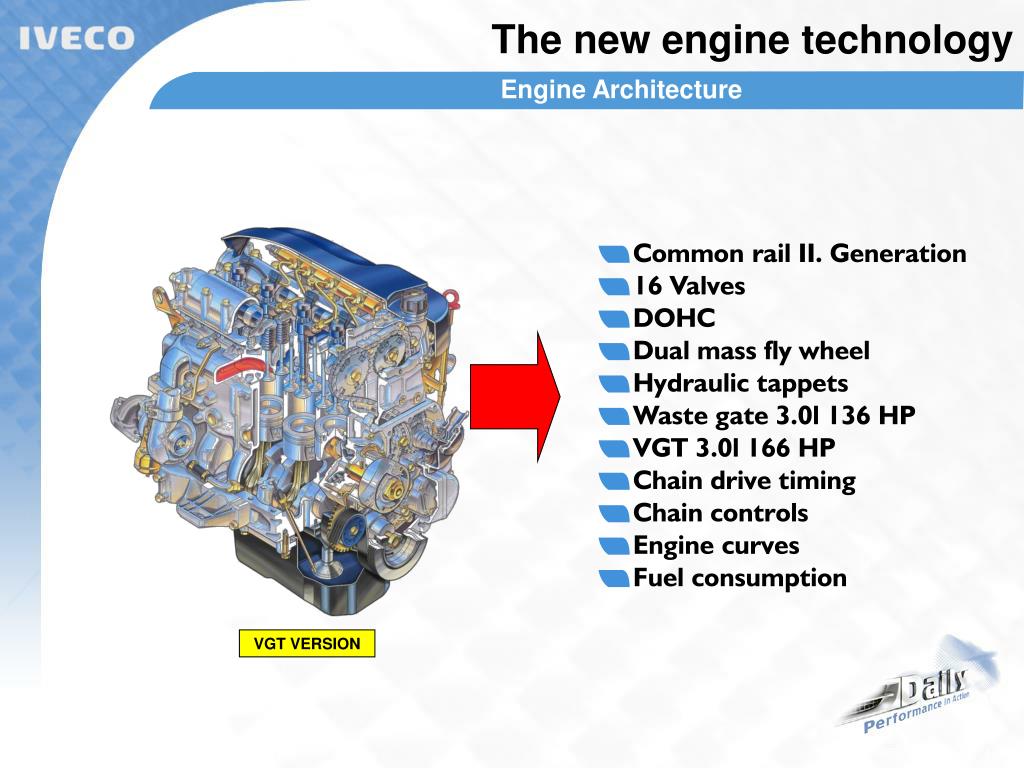

  19. The new engine technology Engine Architecture Common rail II. Generation 16 Valves DOHC Dual mass fly wheel Hydraulic tappets Waste gate 3.0l 136 HP VGT 3.0l 166 HP Chain drive timing Chain controls Engine curves Fuel consumption VGT VERSION

  20. The new engine technology High pressure Common Rail (1600 bar) The high pressure 2nd generation Common Rail system, managed by ECU, injects the fuel into the cylinder more efficiently. 1600 bar Feature High pressure Common Rail Advantages Optimum combustion Substantial reductions in harmful emissions Fuel savings

  21. The new engine technology High pressure Common Rail (1600 bar)

  22. The new engine technology 16 valves The adoption of a 16-valve (4 valves for cylinder) system results in optimized engine performance. Feature 16 valves engines Advantages Better cylinders fill: Improved engine performance Improved fuel saving

  23. The new engine technology Double overhead camshaft The new engines have some technical features which permit an engine durability extension: Feature Double overhead camshaft (DOHC) Advantages Intake and output valves can be controlled independently, reducing mechanical stress on the shafts

  24. The new engine technology Dual mass flywheel Feature Dual mass flywheel Advantages Fewer vibrations Reduction in transmission kick Reduction in noise levels

  25. The new engine technology Hydraulic tappets Feature Hydraulic tappets Advantages Less stress on engine Lower maintenance costs Reduction in noise levels

  26. The new engine technology Turbocharger group This device meters the exhaust gases, sending part directly to the exhaust pipe when the booster pressure reaches a set level. Feature Wastegate 136 HP only TO THE VALVE CONTROL PRESSURE Advantages Better performance at lower revs Less strain on mechanical components Longer engine lifespan

  27. The new engine technology Turbocharger group

  28. NON W/G REQUESTED BOOST BOOST PRESSURE W/G ENGINE SPEED The new engine technology Wastgate function Constant calibration of the boost pressure Possible utilizing of small dimensions turbines, suitable to delivery progressive torque at low engine revs No uncontrolled over-speed

  29. The new engine technology Turbocharger group This device allows the engine cylinders to be filled efficiently at all engine speeds, by constantly regulating the flow of exhaust gas. Feature Variable Geometry Turbine (VGT) 166 HP only Advantages Better performance at lower revs Avoid the “turbo lag” Less strain on mechanical components Longer engine lifespan

  30. BOOST PRESSURE ENGINE SPEED The new engine technology VGT function 3 2 1 1 TURBOCHARGER WITHOUT WASTEGATE 2 TURBOCHARGER WITH WASTEGATE VARIABLE GEOMETRY TURBINE 3

  31. The new engine technology Chain drive timing Feature Timing chain Advantages No maintenance needed Replacement at 350,000 Km

  32. The new engine technology Engine curve • MAX POWER: 100 KW / 136 HP at 3500 / rpm • SPECIFIC POWER: 45.5 / HP/ l • MAX TORQUE: 340 Nm / 35.0 kgm at 1400 - 2800/ rpm POWER TORQUE GREEN ZONE 1500 - 2750 rpm

  33. The new engine technology Engine curve • MAX POWER: 122 KW / 166HP at 3500 / rpm • SPECIFIC POWER: 55.5 / HP/ l • MAX TORQUE: 380 Nm / 39.0 kgm at 1250 - 3070/ rpm POWER TORQUE GREEN ZONE 1500 - 2750 rpm

  34. The new engine technology Fuel consumption Reduction 8 ÷ 10 % compared to 8140 engine / .13 - .15 in the same operative conditions. Van version Excluding Urban mission

  35. Maintenance Maintenance intervals New engines vs.8140 engines 2.8 l (8140) 90,000 Km 40,000 Km 30,000 Km 90,000 Km 40,000 Km 80,000 Km 120,000 Km 350,000 Km

  36. Maintenance Maintenance intervals comparison 2.8 l (8140) 30,000 Km + 33% 40,000 Km Oil Filter Fuel filter

  37. Maintenance Maintenance intervals comparison 2.8 l (8140) 40,000 Km + 100% 80,000 Km Air filter

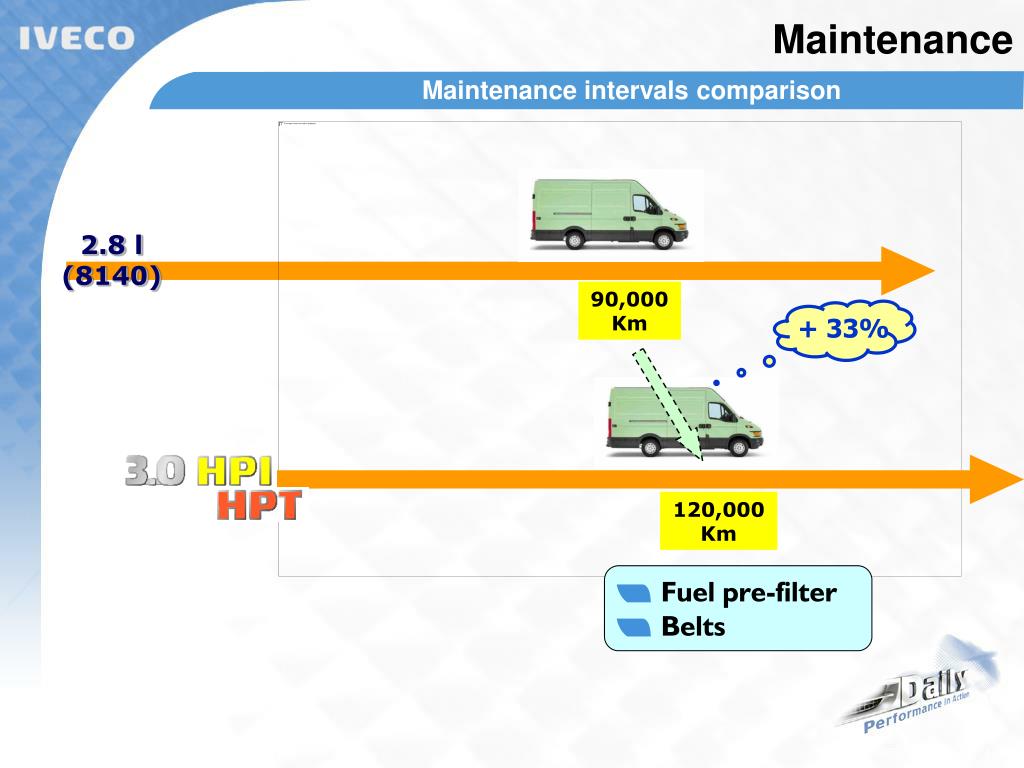

  38. Maintenance Maintenance intervals comparison 2.8 l (8140) 90,000 Km + 33% 120,000 Km Fuel pre-filter Belts

  39. Maintenance Maintenance intervals comparison 2.8 l (8140) 90,000 Km 350,000 Km Glow-plugs Change timing belt (2.8 l) or chain (3.0 l)

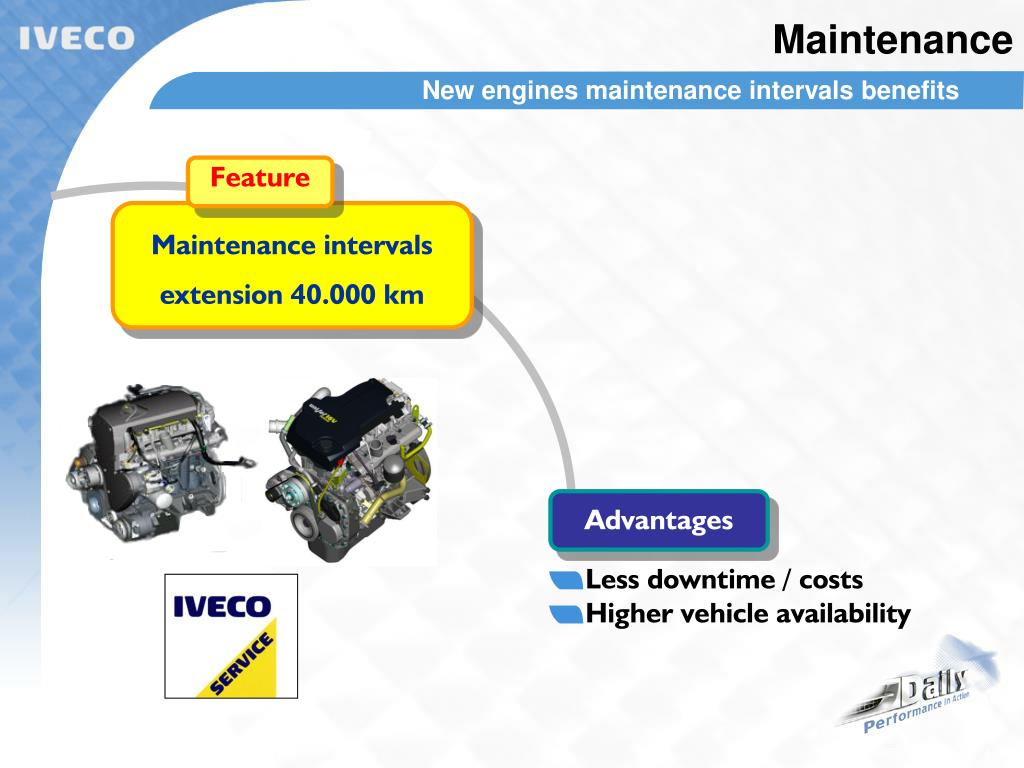

  40. Maintenance Chain drive timing New engines maintenance intervals benefits Feature Maintenance intervals extension 40.000 km Advantages Less downtime / costs Higher vehicle availability

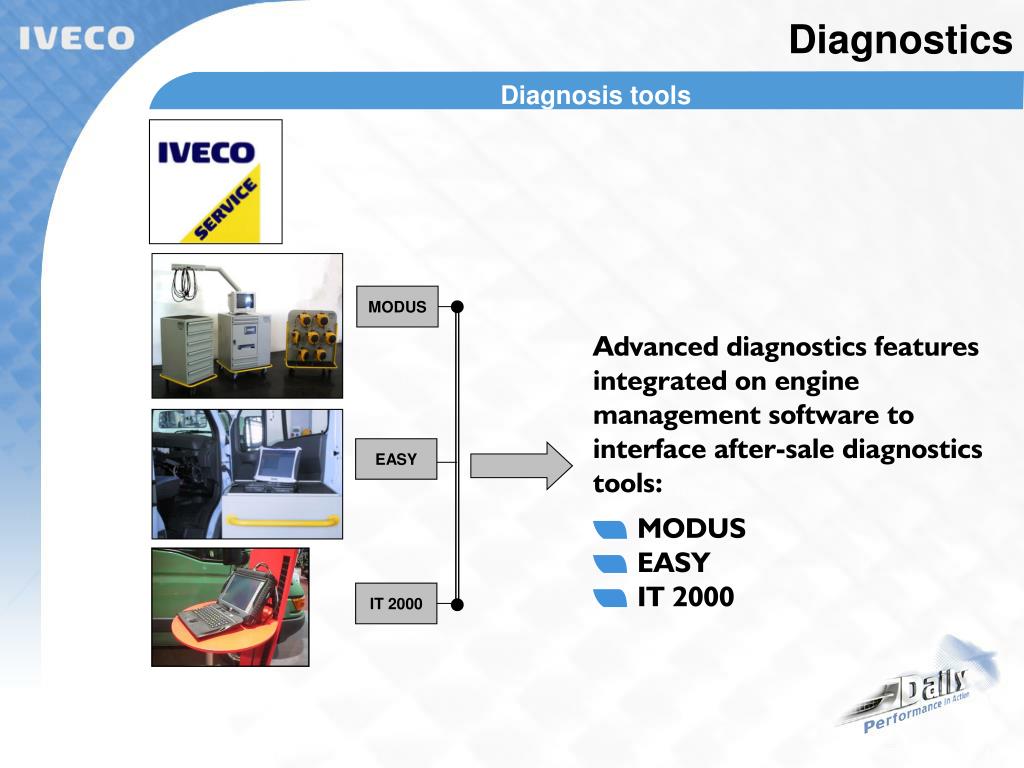

  41. Diagnostics Diagnosis tools MODUS Advanced diagnostics features integrated on engine management software to interface after-sale diagnostics tools: EASY MODUS EASY IT 2000 IT 2000

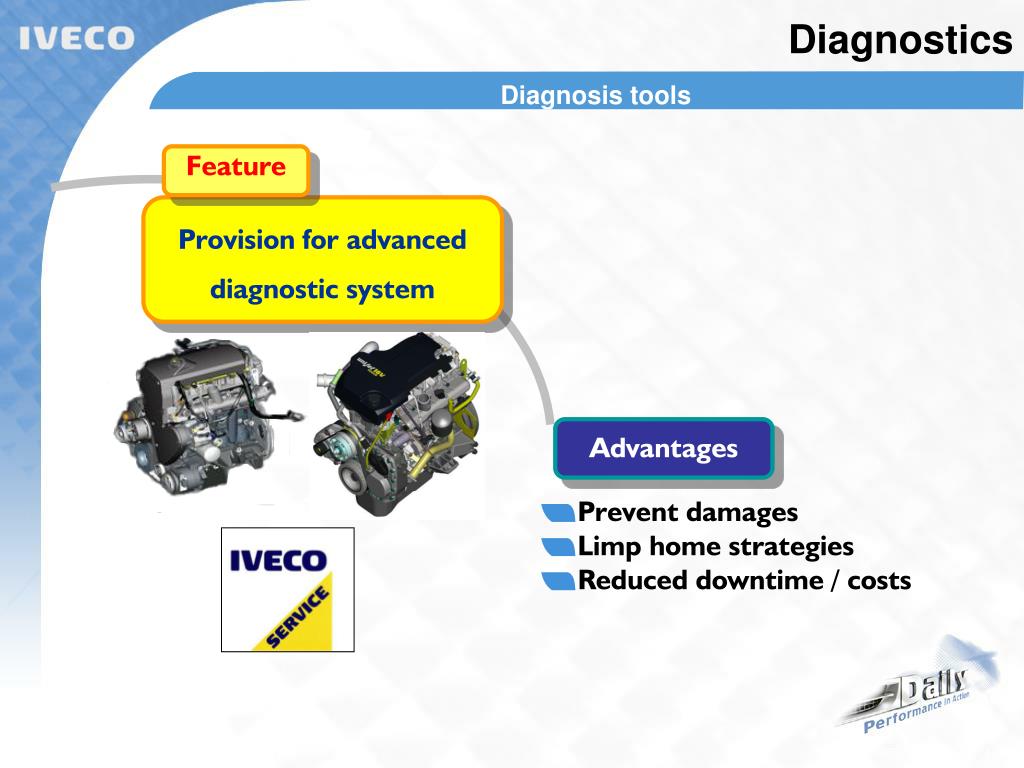

  42. Diagnostics Chain drive timing Diagnosis tools Feature Provision for advanced diagnostic system Advantages Prevent damages Limp home strategies Reduced downtime / costs

  43. Ecology Chain drive timing Designed for the environment Compliance with EURO 3 emission limits (EURO 4 ready) Design according to EEC regulations on dangerous materials More than 92 % of recyclable materials

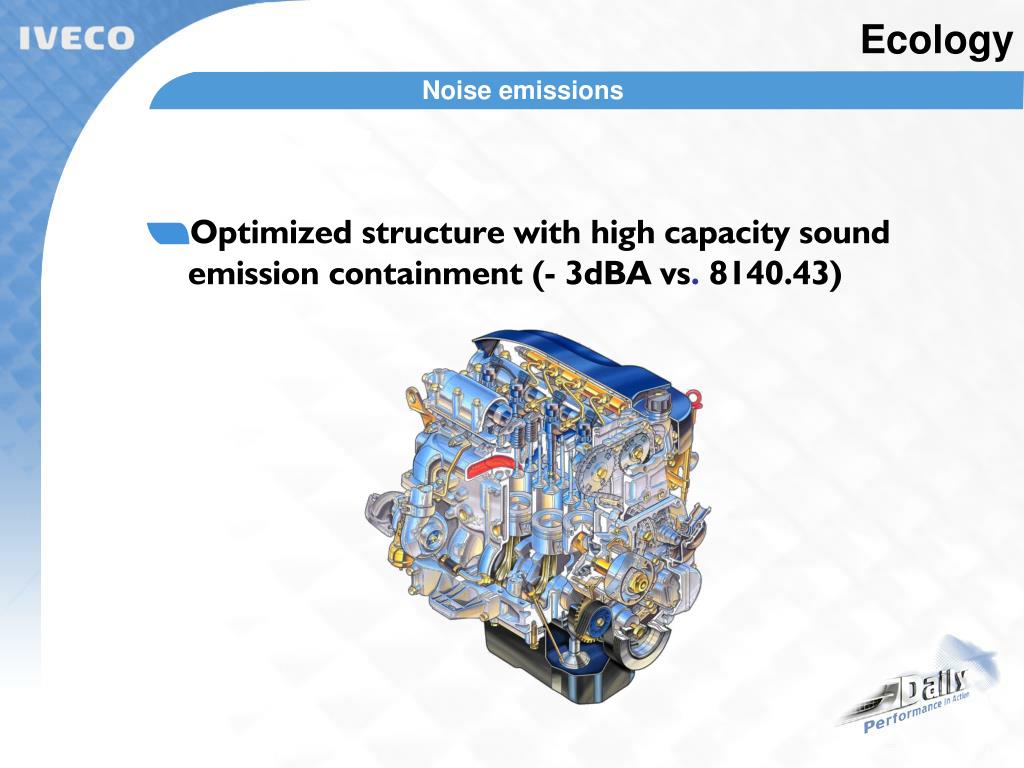

  44. Ecology Chain drive timing Noise emissions Optimized structure with high capacity sound emission containment (- 3dBA vs. 8140.43)

  45. Value for customer The strong points of the new HPI – HPT Engines Plus Plus Reduction in harmful emissions Better control of booster Plus Fuel saving Plus Enhanced driveability Plus Reduction in noise levels Plus Enhanced performance even at low revs and in all “difficult” situations Plus Less stress on mechanical components

  46. Value for customer Performance New Engine performances More power available More torque available Flat torque at a wide range of revs

  47. Value for customer Benefits PROFITABILITY Considerable savings on fuel Longer maintenance intervals Greater engine reliability Preventive diagnosis Driving flexibility in all conditions COMFORT Lower noise level in the cab Lower vibrations Fewer gear changes

  48. HPI 2.3 / 96 HP HPI 2.3 / 116 HP HPI 3.0 / 136 HP HPT 3.0 / 166 HP Value for customer Engine range / Missions In – town operation In - town operation Regional operation Person transport M1 Van < / = 12 m3 S / C class Van < / = 10 m3 l / S class Medium / long distance transports Consistent GVW / GCW applications Van >/ = 12 m3 c Chassis Cab > 35C Long distance transports International haulage Consistent GVW / GCW applications Van > / = 12 m3 c Chassis Cab > 35C

  49. 96 HP CONTROLLED TEMPERATURE TRANSPORT CAMPERS EXPRESS COURIER HOTEL SHUTTLES,CATERING SERVICES,.. REMOVAL COMPANIES DOOR TO DOOR DISTRIBUTION PARCEL DISTRIBUTION CRAFTSMEN/SHOPKEEPERS FLOWER DELIVERY, BAKERS,.. AMBULANCES BUILDING / PUBLIC WORKS MOBILE WORSHOP ROAD ASSISTANCE MINI CAMPERS VALUABLES TRANSPORT NEWSPAPERS TRANSPORT MINIBUS 136 HP 166 HP Value for customer The selection 116 HP

  50. Let’s compare Comparison with the competition
