  1. Annular Eclipse of the Sun

  2. Phases of the Moon • The appearance or shape of the Moon gradually changes through the course of a month. This cycle - the cycle of lunar phases, may be explained if we state the following: • The Moon is spherical in shape. • The Moon is not self-luminous, but rather reflects the light of the distant Sun. • The Moon circles the Earth once per month.

  3. Moon at Perigee and Apogee • Distance: 359,861 km • Distance: 405,948 km

  4. Eclipses • Celestial bodies are always “eclipsing” or moving in front of each other. • Eclipses occur at predictable intervals. • Other names include: Transits and Occultations. • Solar Eclipses can be total, partial, or annular

  5. Solar Eclipse Moon Blocks Sun Moon Casts a Shadow on Earth

  6. Earth Smaller than Sun Shadow Smaller than Earth Shadow 2x Moon Sun 20x Moon Earth Smaller than Sun Earth > 1/10 Sun Earth 1/7 Sun Really 1/109 Sun

  7. Lunar Eclipse Earth Blocks Sun from Moon Moon Passes Through Earth’s Shadow

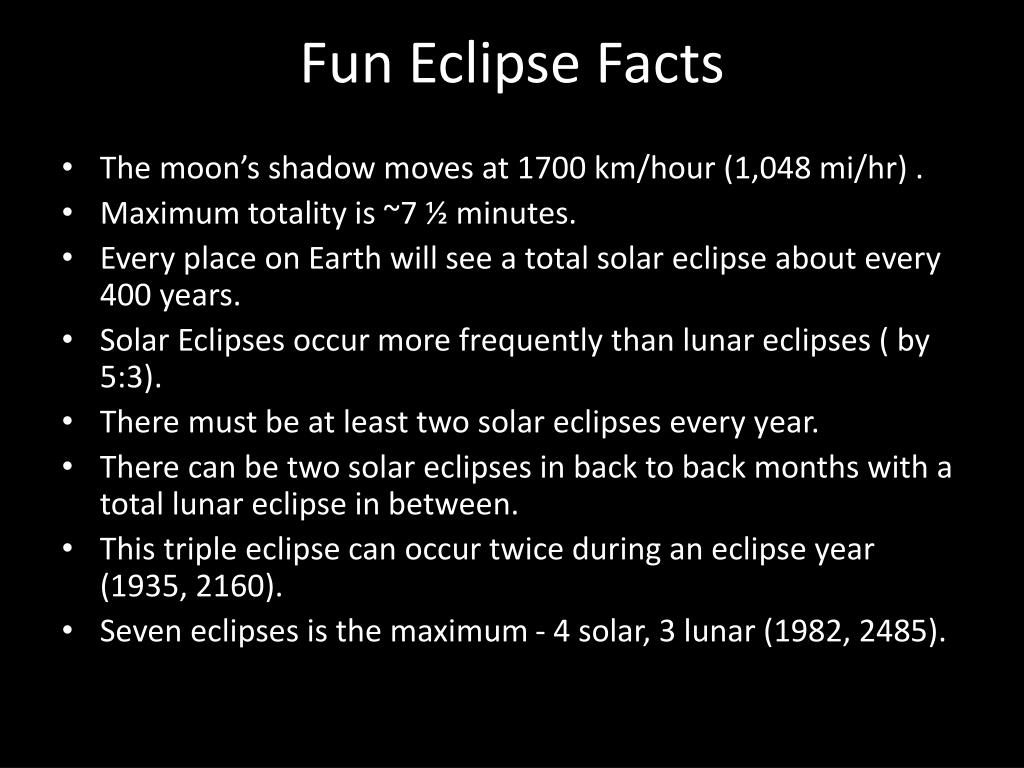

  8. Fun Eclipse Facts • The moon’s shadow moves at 1700 km/hour (1,048 mi/hr) . • Maximum totality is ~7 ½ minutes. • Every place on Earth will see a total solar eclipse about every 400 years. • Solar Eclipses occur more frequently than lunar eclipses ( by 5:3). • There must be at least two solar eclipses every year. • There can be two solar eclipses in back to back months with a total lunar eclipse in between. • This triple eclipse can occur twice during an eclipse year (1935, 2160). • Seven eclipses is the maximum - 4 solar, 3 lunar (1982, 2485).

  9. If you ever want to view an eclipse, the first thing you must know is this: Never view the sun with the naked eye or with any optical device, such as binoculars or a telescope!This is more than advice. Why? Did you ever take a magnifying glass out into the sun and burn leaves? If so, you probably remember that when the focused sunlight coming through the lens was refracted and concentrated to a small spot, the energy available there was truly remarkable. Guess what? You have a lens just like that in your eye. If you look at the sun, your eye-lens will concentrate the sun's light and focus it to a very small spot on the back of your retina. This can cause permanent eye damage or blindness. Additionally, there are no pain sensors back there so you won't even know it's happening! Have I scared the willies out of you? Good!

  10. Pinhole Projector • There are safe ways to view the sun. The simplest requires only a long box (at least 6 feet long), a piece of aluminum foil, a pin, and a sheet of white paper. • The length of the box is important. The longer the box, the bigger the pinhole image. To find the size of the image, multiply the length of the box by the number 0.0093. For a box that is 1 meter long, the image will be 0.0093 meters (or 9.3 mm) in diameter. If your box is 5 feet (60 inches) long, your solar image will be 60 x 0.0093 = 0.56 inches in diameter. If you want to round things off, the size of the image is about 1/100th the length of the box. • If you can't find a long box or tube, you can tape together two or more boxes to make a longer one. In the following illustrations, we found that taping together two triangular UPS shipping tubes works well. Of course, if you do this, you must cut out the cardboard at the ends of the tube in the middle!

  11. 1) Find or make a long box or tube. 2) Cut a hole in the center of one end of the box. 3) Tape a piece of foil over the hole. 4) Poke a small hole in the foil with a pin.

  12. 5) Cut a viewing hole in the side of the box. 6) Put a piece of white paper inside the end of the box near the viewing portal. Point the end of the box with the pinhole at the sun so that you see a round image on the paper at the other end. If you are having trouble pointing, look at the shadow of the box on the ground. Move the box so that the shadow looks like the end of the box (so the sides of the box are not casting a shadow). The round spot of light you see on the paper is a pinhole image of the sun. Do not look through the pinhole at the sun!Look only at the image on the paper.

  13. Quick and Easy Viewer Get two pieces of cardboard--one piece colored white to project onto. Cut a square in one cardboard, then tape a piece of foil over the square. Now make a pinhole in the middle of the foil.With the sun behind you, hold the pinhole cardboard as far from the white cardboard as you can. Remember, the farther you are from the screen, the bigger your image.

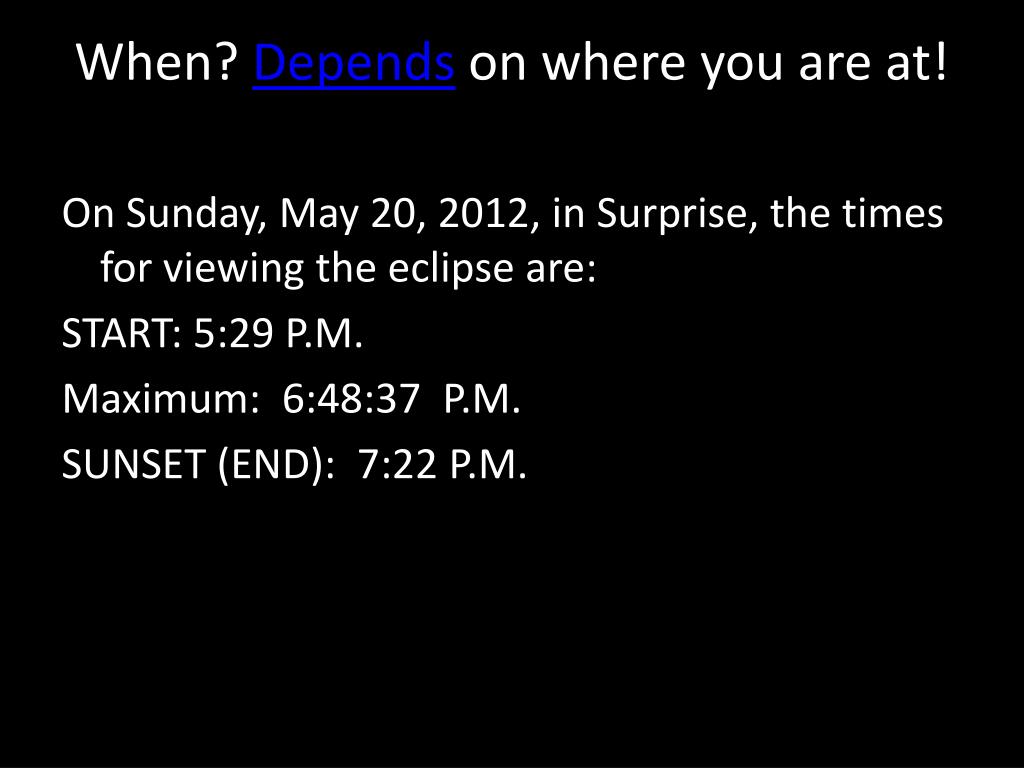

  14. When? Depends on where you are at! On Sunday, May 20, 2012, in Surprise, the times for viewing the eclipse are: START: 5:29 P.M. Maximum: 6:48:37 P.M. SUNSET (END): 7:22 P.M.

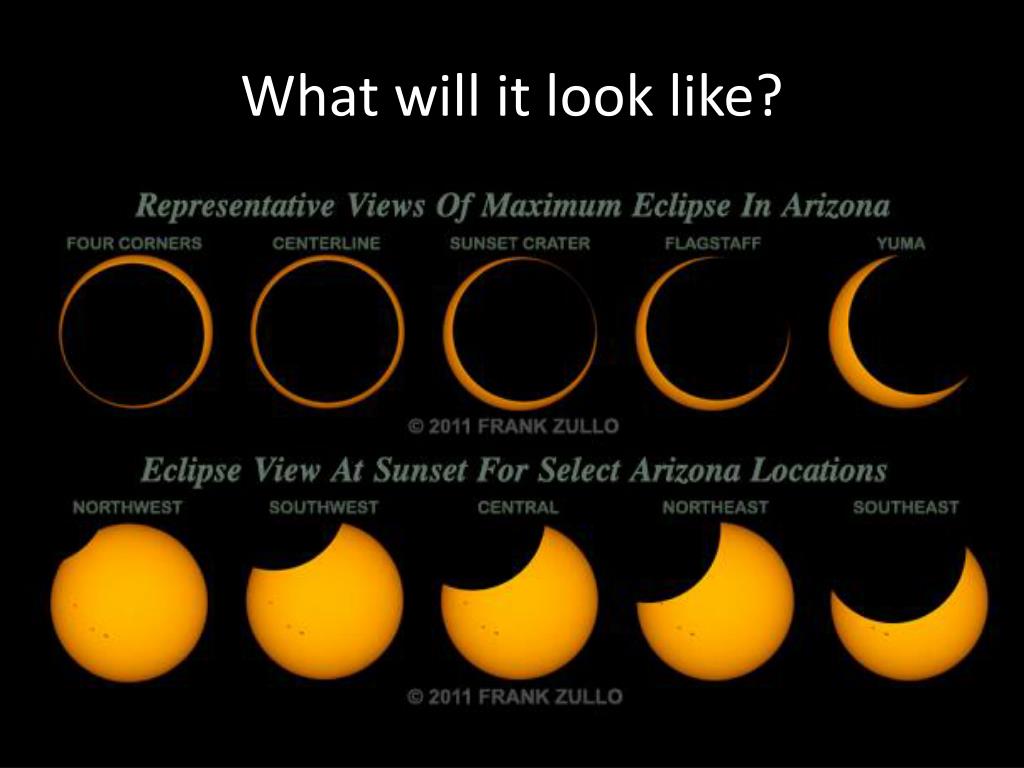

  15. What will it look like?

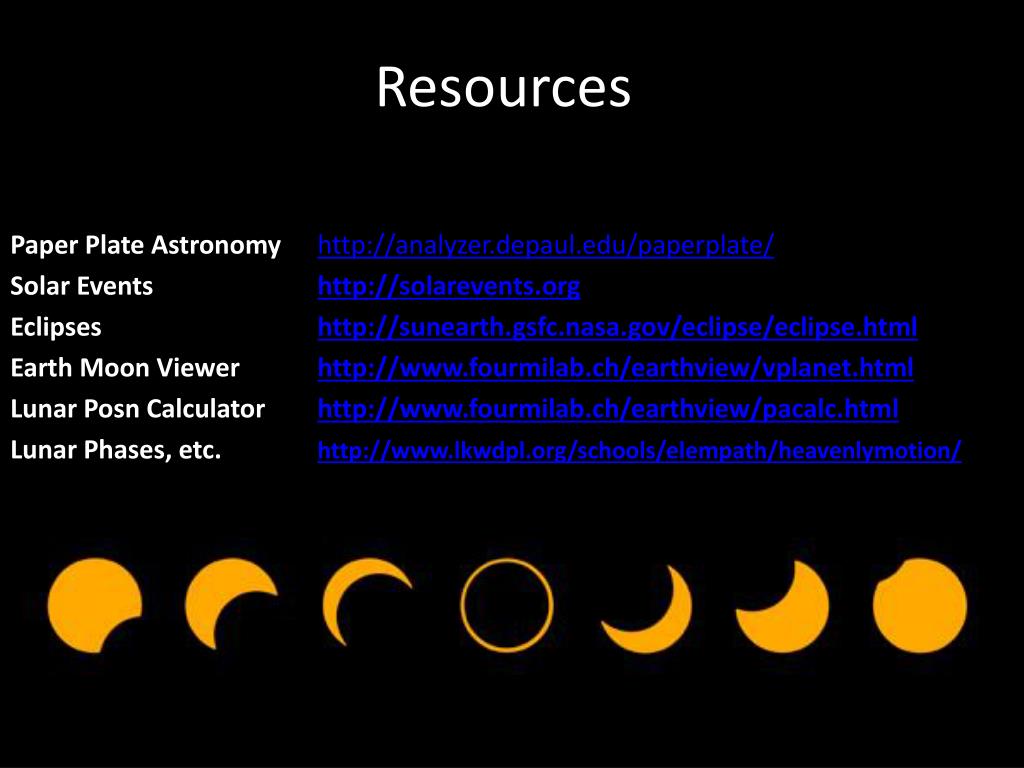

  16. Resources Paper Plate Astronomyhttp://analyzer.depaul.edu/paperplate/ Solar Events http://solarevents.org Eclipses http://sunearth.gsfc.nasa.gov/eclipse/eclipse.html Earth Moon Viewer http://www.fourmilab.ch/earthview/vplanet.html Lunar Posn Calculator http://www.fourmilab.ch/earthview/pacalc.html Lunar Phases, etc. http://www.lkwdpl.org/schools/elempath/heavenlymotion/
