  1. CSE 3302 Pascal(Using slides of Tom Rethard)

  2. Algol • Successful, so … • Use the ideas in other languages • Algol-like languages • List processing • String manipulation • Systems programming • Artificial Intelligence • Upgrades to Algol itself

  3. PL/I • A block-structured COBOL/FORTRAN union (IBM, 1967) • Algol block structure • COBOL file manipulation • FORTRAN syntactic style • “Everything for Everyone” • “The Only Programming Language You’ll Ever Need” • Basically, a Swiss Army knife

  4. PL/I • Characterized by Dijkstra as “a fatal disease” and “a programming language for which the defining documentation is of a frightening size and complexity. Using PL/I must be like flying a plane with 7000 buttons, switches, and handles to manipulate in the cockpit”

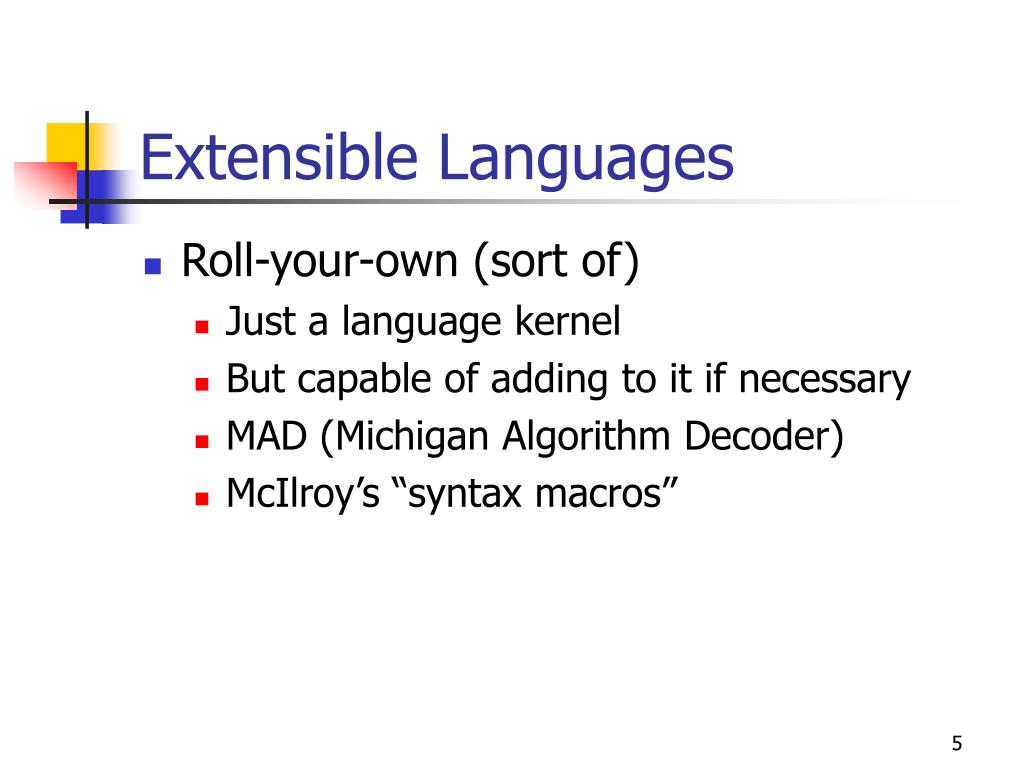

  5. Extensible Languages • Roll-your-own (sort of) • Just a language kernel • But capable of adding to it if necessary • MAD (Michigan Algorithm Decoder) • McIlroy’s “syntax macros”

  6. Simple Kernel • Turned out to be a good idea • Frequent choice was an Algol subset with more general data structuring abilities • Allowed generalization to an application area, built on a common foundation.

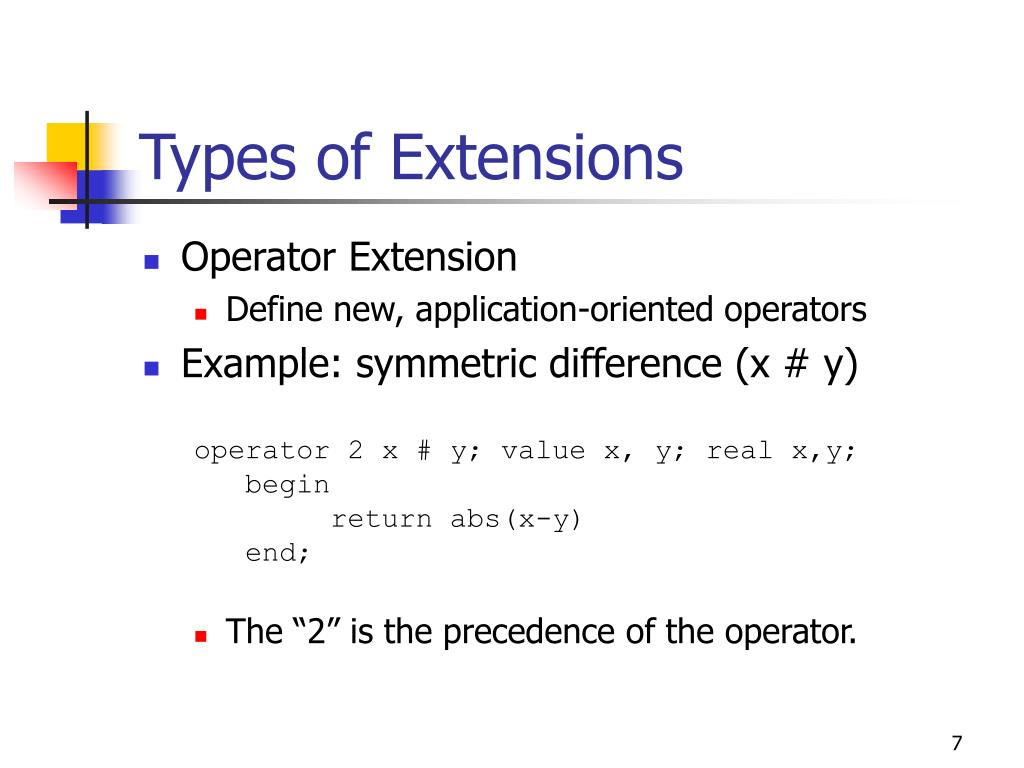

  7. Types of Extensions • Operator Extension • Define new, application-oriented operators • Example: symmetric difference (x # y) operator 2 x # y; value x, y; real x,y; begin return abs(x-y) end; • The “2” is the precedence of the operator.

  8. Types of Extensions • Syntax macros real syntax: sum from I = lb to ub of elem;value lb, ub;integer I, lb, ub; real elem;begin real s; s := 0; for I := lb step 1 until ub do s := s + elem; return send; • Total := sum from k = 1 to N of Wages[k];

  9. Issues with Extensible languages • Usually inefficient • Tough to write a compiler for a language that is always changing! • Poor Diagnostics • The compiler really doesn’t understand what’s going on.

  10. Pascal • Designed by Niklaus Wirth • Previously designed • Algol-W (a proposed extension to ALGOL with C. A. R. Hoare) • Euler • PL360

  11. Pascal Goals • The language should be suitable for teaching programming in a systematic way. • The implementation of the language should be reliable and efficient, at compile-time and run-time, on available computers.

  12. History • Development started in 1968 • First working compiler in 1970 • Pascal-70 Report was 29 pages (cf. Algol’s 16) • P-Code based system in 1973 • Spread quickly on microcomputers in the 70s & 80s

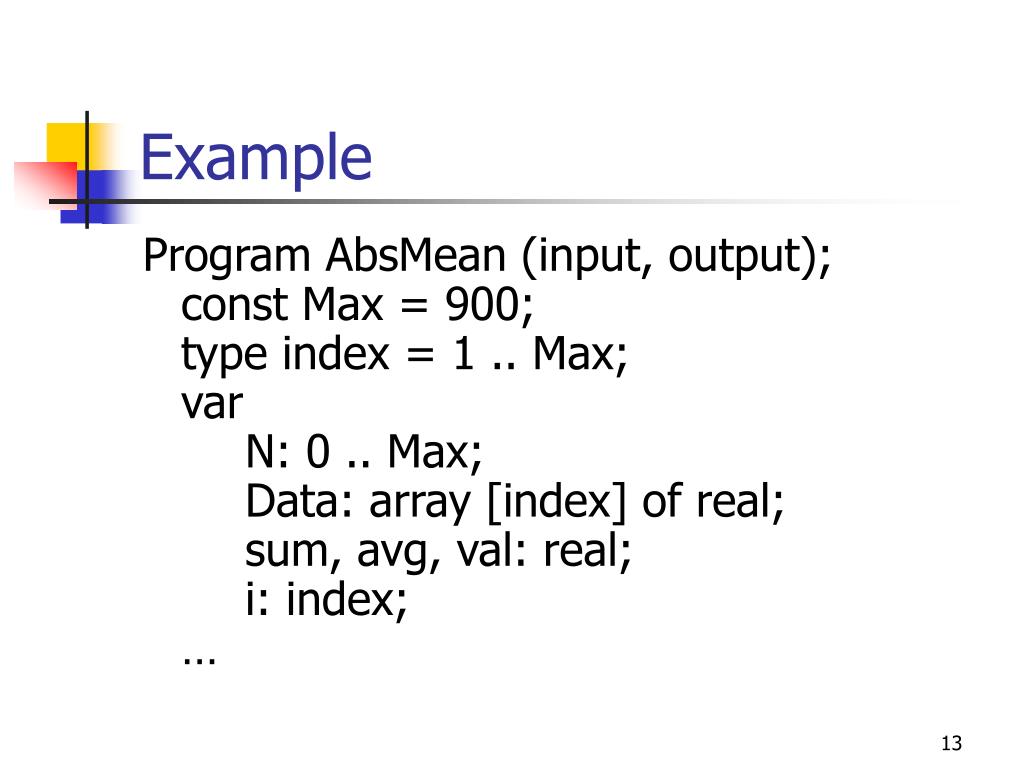

  13. Example Program AbsMean (input, output);const Max = 900;type index = 1 .. Max;var N: 0 .. Max; Data: array [index] of real; sum, avg, val: real; i: index;…

  14. Example (con’t) beginsum := 0;readln (N);for i := 1 to N do begin readln (val); if val < 0 then Data[i] := val else Data[i] := val end;for i := 1 to N do sum = sum + Data[i];avg := sum/N;writeln (avg); end.

  15. Enumerations • Old Way begin integer today, tomorrow;integer Sun, Mon, Tue, Wed, Thu, Fri, Sat;Sun := 0; Mon := 1; Tue := 2; Wed := 3;Thu := 4; Fri := 5; Sat := 6;…today := Tue;tomorrow := today + 1;…

  16. Enumerations • Pascal Way Type DayOfWeek = (Sun, Mon, Tue, Wed, Thu, Fri, Sat); Month = (Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sep, Oct, Nov, Dec);var today, tomorrow: DayOfWeek;begin…today := Tue;tomorrow := today + 1;…today = Jan; /* type error …

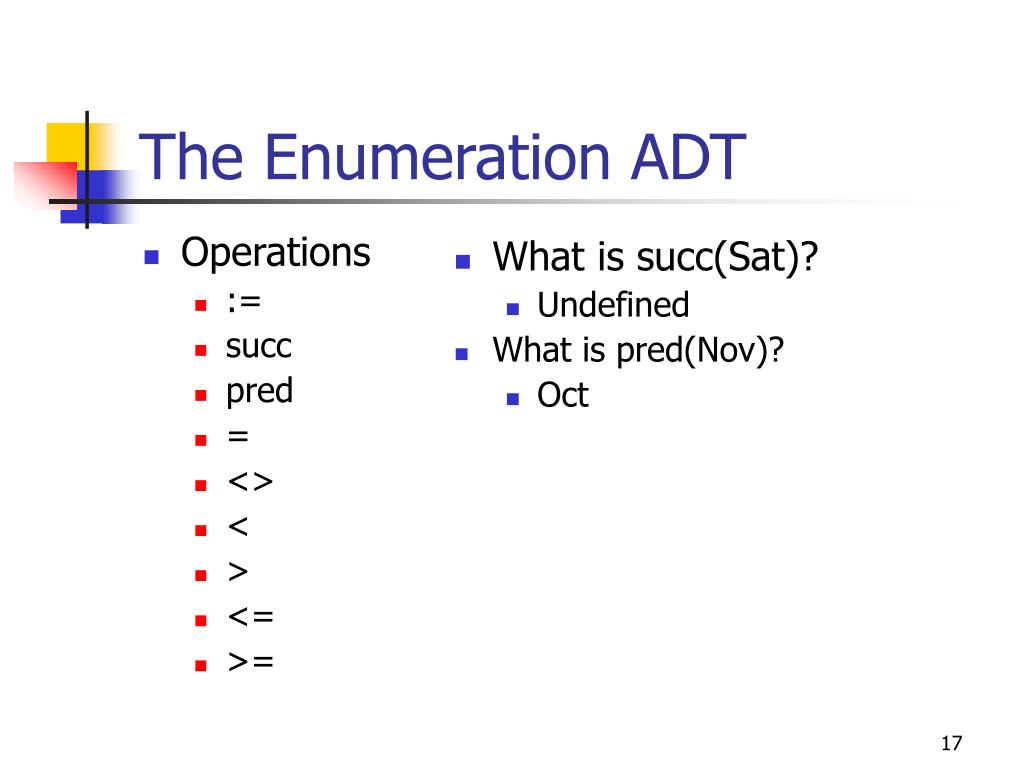

  17. The Enumeration ADT • Operations • := • succ • pred • = • <> • < • > • <= • >= • What is succ(Sat)? • Undefined • What is pred(Nov)? • Oct

  18. Enumeration Characteristics • High Level and Application Oriented • Efficient • Storage • Secure • Does not allow meaningless operations

  19. Subrange Types var DayOfMonth 1 .. 31; • Restricts the range of values for DayOfMonth to the integer subrange of 1..31 • Can also use in enumerations: Type WeekDay = Mon .. Fri

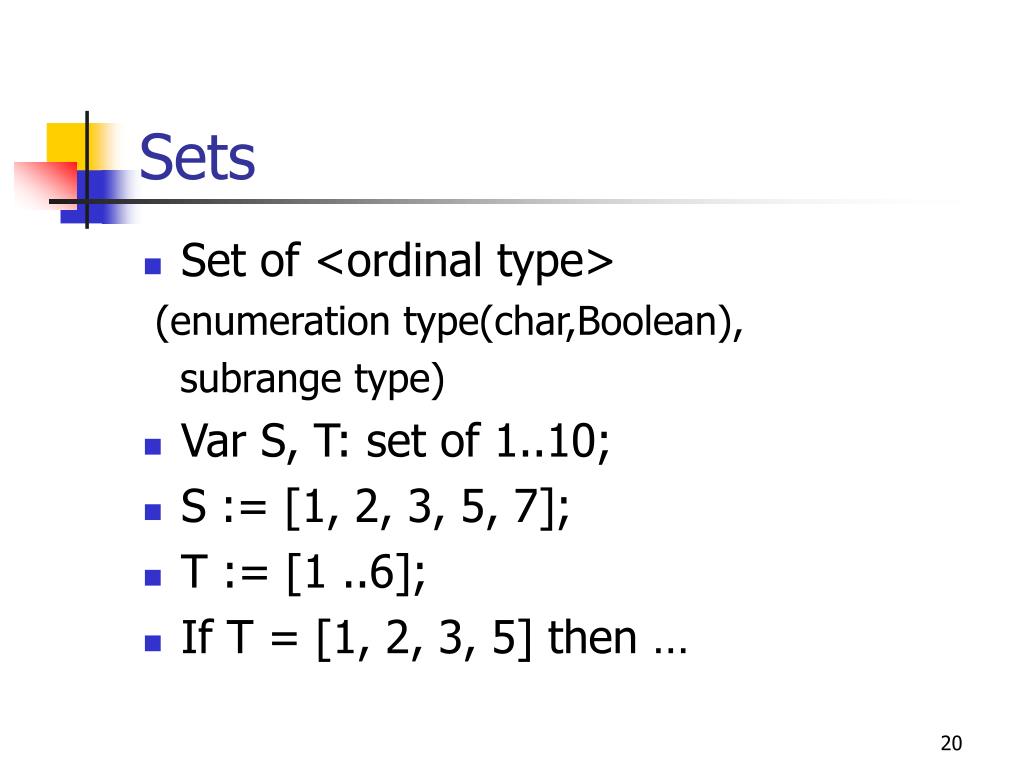

  20. Sets • Set of <ordinal type> (enumeration type(char,Boolean), subrange type) • Var S, T: set of 1..10; • S := [1, 2, 3, 5, 7]; • T := [1 ..6]; • If T = [1, 2, 3, 5] then …

  21. Set Operations • = • <> • <= subset or equal • >= • But: no < or > !

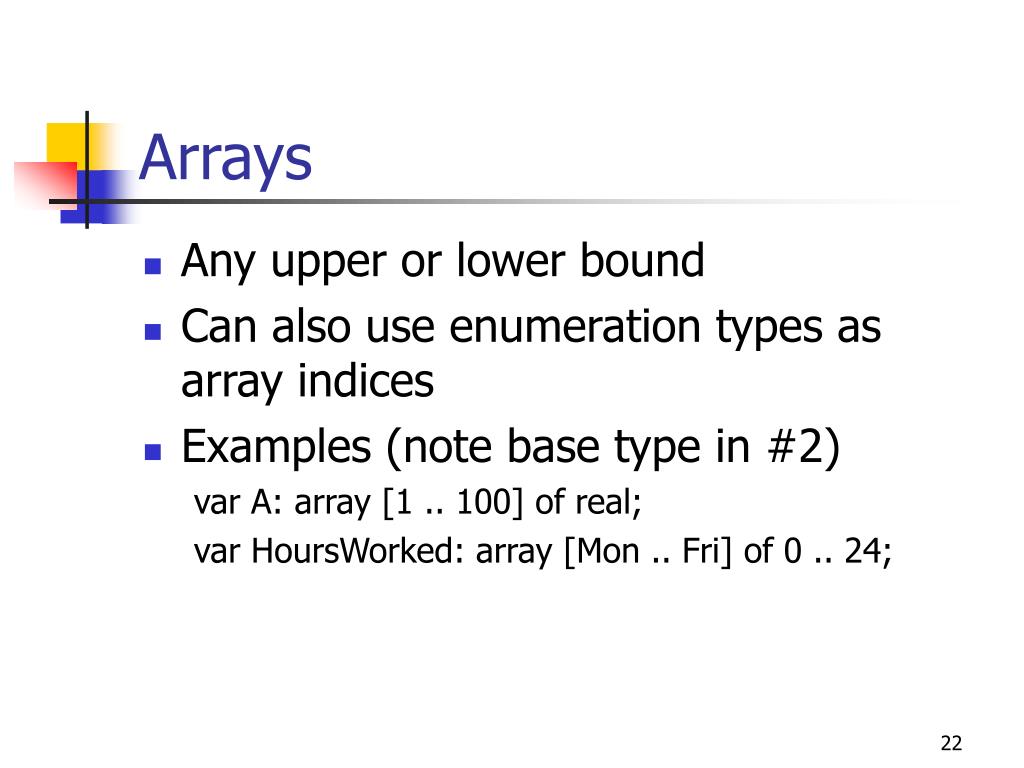

  22. Arrays • Any upper or lower bound • Can also use enumeration types as array indices • Examples (note base type in #2) var A: array [1 .. 100] of real; var HoursWorked: array [Mon .. Fri] of 0 .. 24;

  23. Arrays Var day: Mon .. Fri; TotalHours: 0..120;begin TotalHours := 0; for day := Mon to Fri do TotalHours := TotalHours + HoursWorked[day];

  24. Arrays – of Characters Any finite discrete type for index var Occur: array [char] of integer; …Occur[ch] := Occur[ch] + 1; …if Occur[‘e’] > Occur[‘t’] then …

  25. More Complex Arrays var M: array [1..20] of array [1 .. 100] of real;orvar m: array [1 .. 20, 1 .. 100] of real;

  26. Arrays Issue • There are some problems • Need to be static, not dynamic • Must know types at compile time • Dimensions are part of the array type • Arrays are considered the same type if index types and base types both match

  27. Type problems type vector = array [1 .. 100] of real;var U, V, vector;function sum (x: vector): real; …begin … end {sum}; • Can write var W: array [1 ..75] of real; • But cannot write: Sum(W)

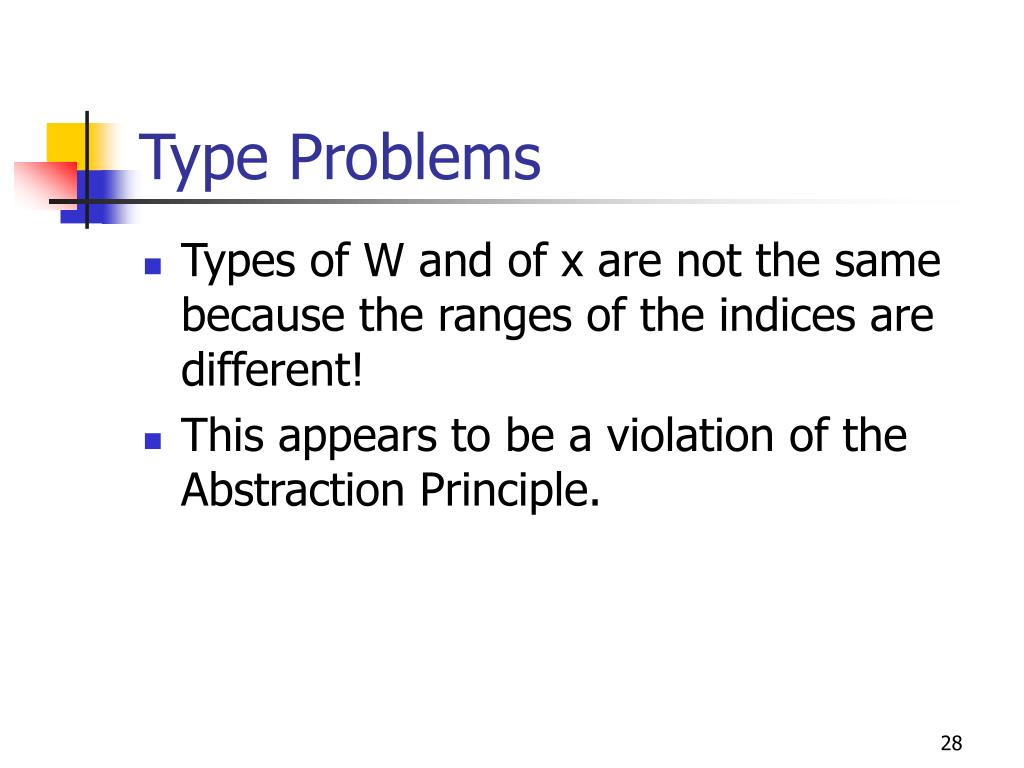

  28. Type Problems • Types of W and of x are not the same because the ranges of the indices are different! • This appears to be a violation of the Abstraction Principle.

  29. Record Types • Heterogeneous data • Multiple components • Various types

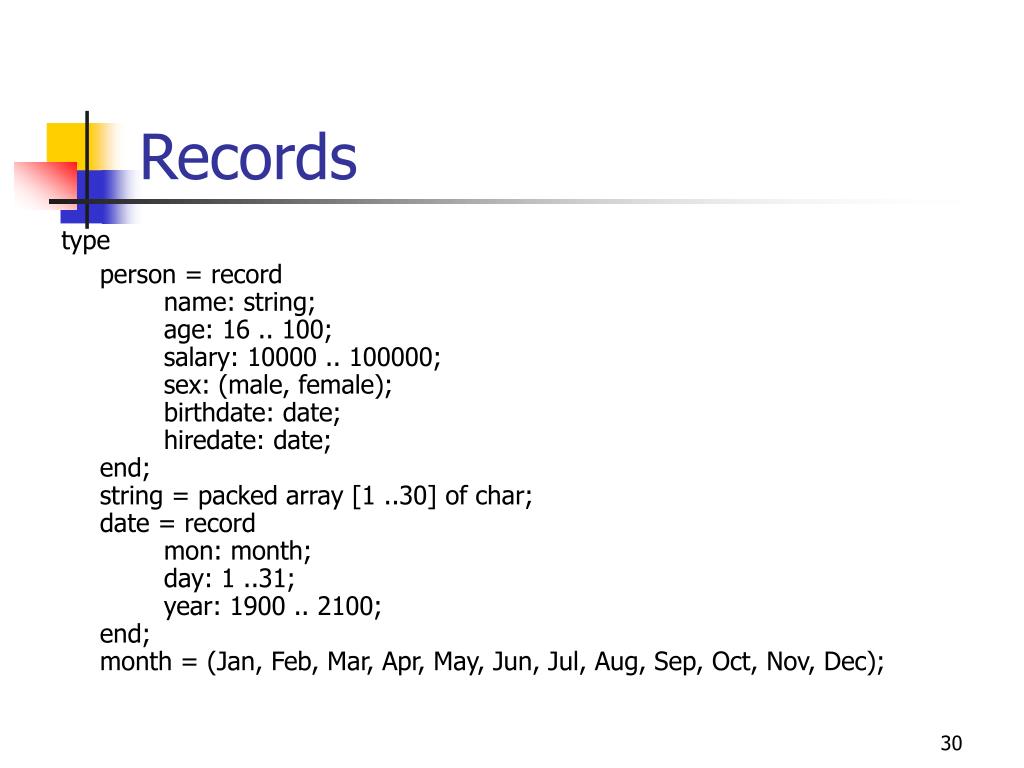

  30. Records type person = record name: string; age: 16 .. 100; salary: 10000 .. 100000; sex: (male, female); birthdate: date; hiredate: date;end;string = packed array [1 ..30] of char;date = record mon: month; day: 1 ..31; year: 1900 .. 2100;end;month = (Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sep, Oct, Nov, Dec);

  31. Using a Record • To use a record:var newhire: person;just like any other type

  32. Getting to the Components varnewhire: person;today: date;…newhire.age := 25;newhire.sex := female;newhire.date := today;

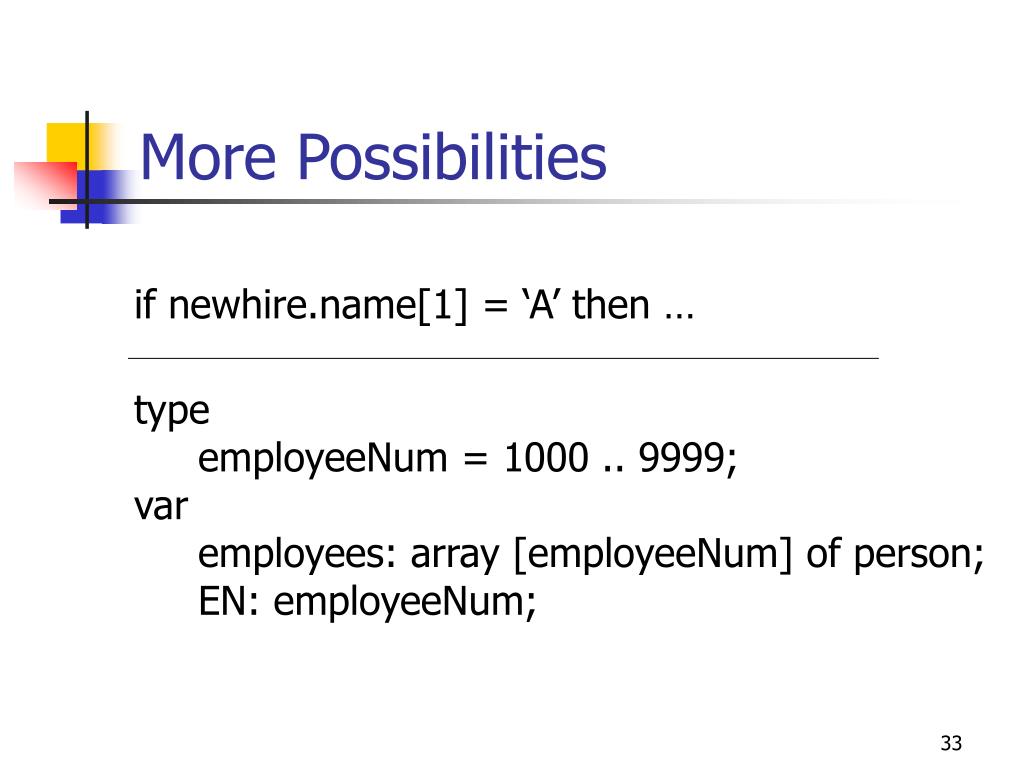

  33. More Possibilities if newhire.name[1] = ‘A’ then … type employeeNum = 1000 .. 9999;var employees: array [employeeNum] of person; EN: employeeNum;

  34. Making it Simpler with newhirebegin age := 25; sex := female; date := todayend;

  35. Storage Groupings • Homogeneous • Arrays • All elements are the same type • Computed (dynamic) selector (subscript or index) • Heterogeneous • Records • Elements (components) may be of different types • Static selector

  36. Variant Records • Sometimes records vary from one record type to another. • Think of this as a primitive form of subclassing

  37. Variant Records type plane = record flight: 0 .. 999; kind: (B727, B737, B747); status (inAir, onGround, atTerminal); altitude: 0 .. 100000; heading: 0 .. 359; arrival: time; destination: airport; location: airport; runway: runwayNumber; parked: airport; gate: 1.. 100; departure: time;end; {plane}

  38. What’s Wrong? • Not all data has meaning at the same time. • Can imply a plane is located at one airport and is parked at another • Violates security principle.

  39. Variant Records type plane = record flight: 0 .. 999; kind: (B727, B737, B747); case status: (inAir, onGround, atTerminal); inAir:( altitude: 0 .. 100000; heading: 0 .. 359; arrival: time; destination: airport); onGround: ( location: airport; runway: runwayNumber); atTerminal: ( parked: airport; gate: 1.. 100; departure: time);end; {plane}

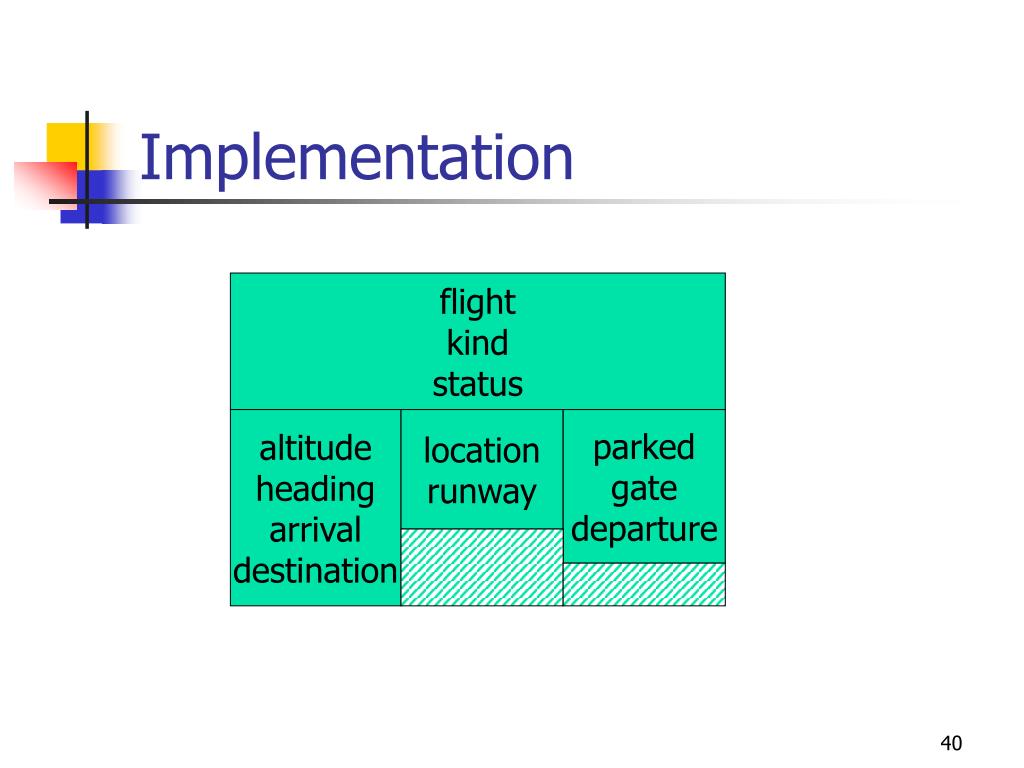

  40. Implementation flightkindstatus altitudeheadingarrivaldestination locationrunway parkedgatedeparture

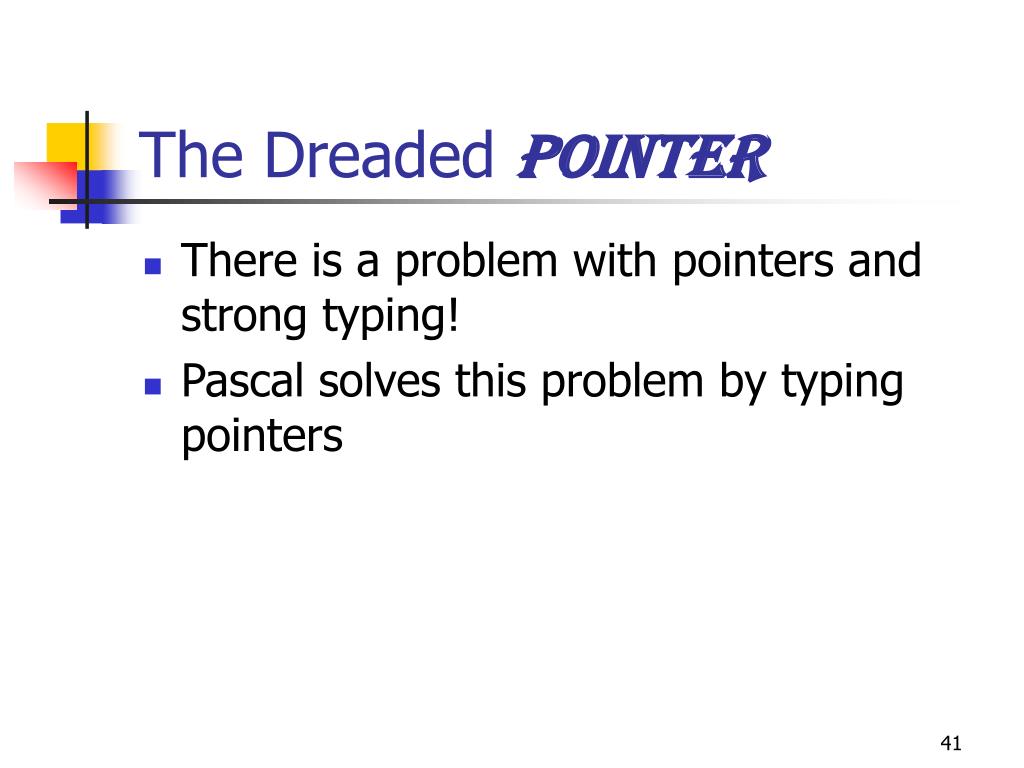

  41. The Dreaded Pointer • There is a problem with pointers and strong typing! • Pascal solves this problem by typing pointers

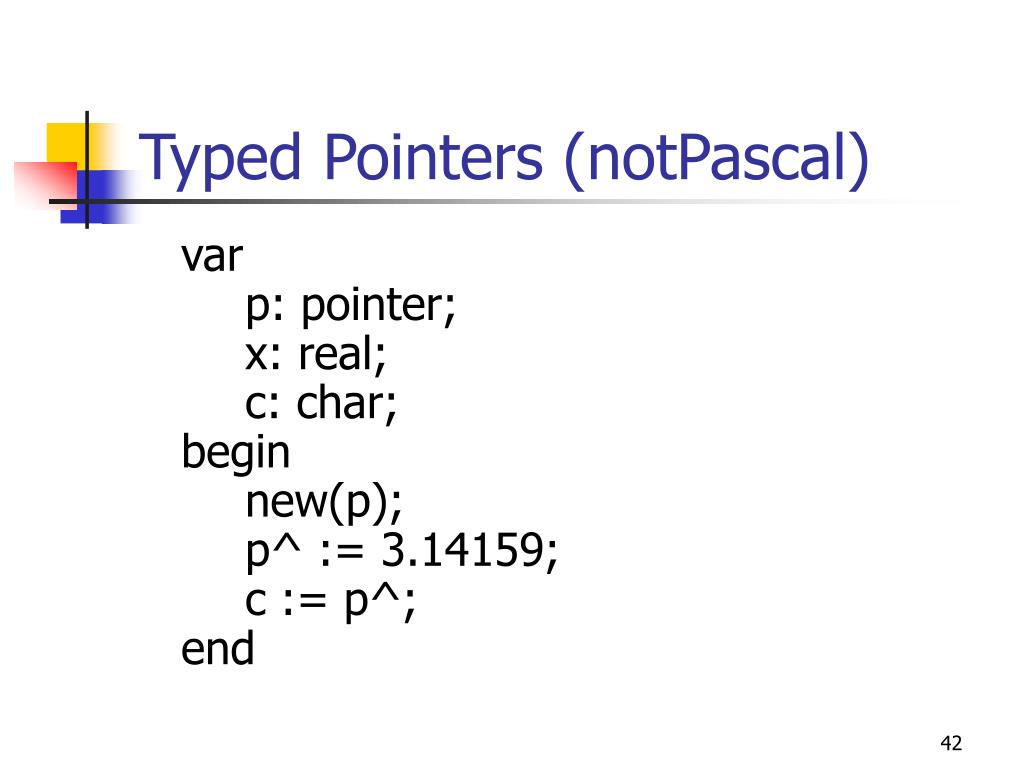

  42. Typed Pointers (notPascal) var p: pointer; x: real; c: char;begin new(p); p^ := 3.14159; c := p^; end

  43. Typed Pointers (Pascal) var p: ^real; x: real; c: char;begin new(p); p^ := 3.14159; c := p^; {illegal}end

  44. Pointers with Records var p: ^plane;begin … p^.plane.parked[1] … …end;

  45. Type Equivalence • Not as clear as it could have been • Revised Pascal Report • Specifies assignments are ok if expression and variable have identical type • Does not define identical type

  46. Interpretations for equivalency • Structural equivalence • Structural descriptions of the types be the same • Name equivalence • Names must be same

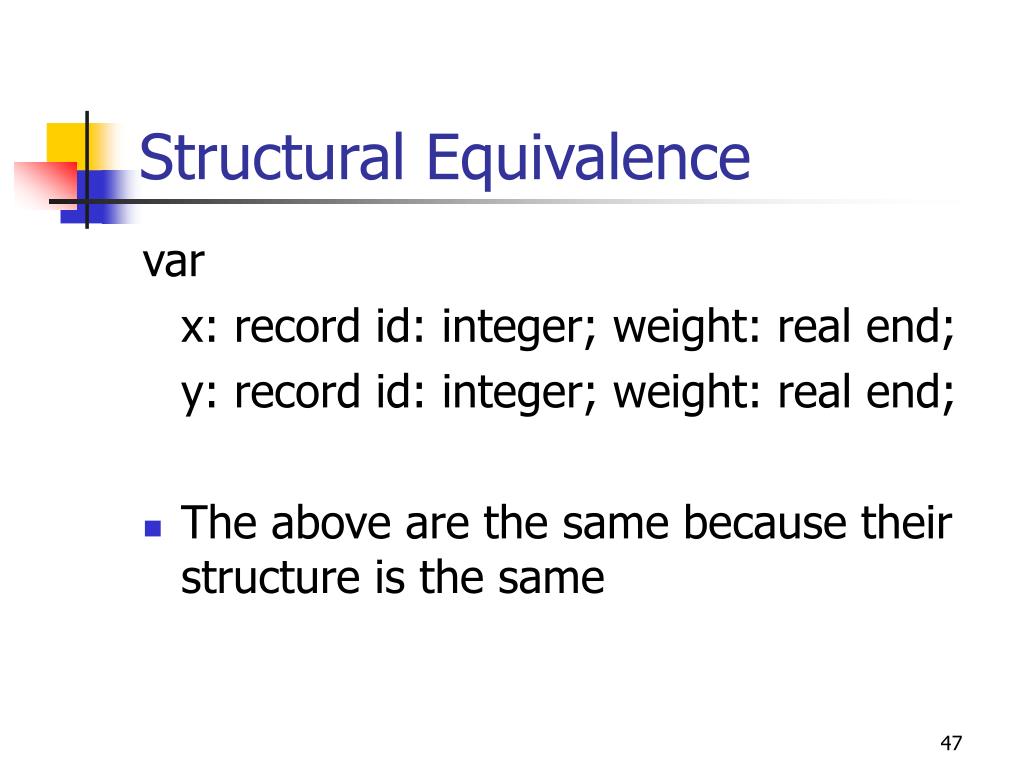

  47. Structural Equivalence var x: record id: integer; weight: real end; y: record id: integer; weight: real end; • The above are the same because their structure is the same

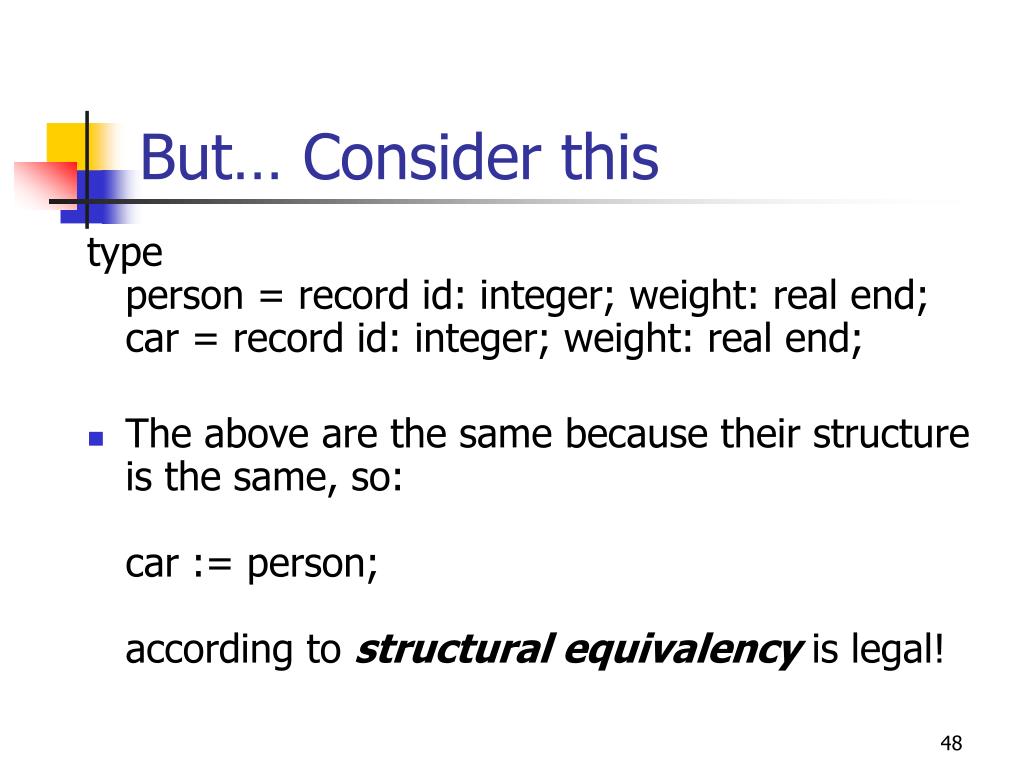

  48. But… Consider this typeperson = record id: integer; weight: real end;car = record id: integer; weight: real end; • The above are the same because their structure is the same, so:car := person;according to structural equivalency is legal!

  49. Name Equivalence varx: record id: integer; weight: real end;y: record id: integer; weight: real end; • Is actually ambiguous, • Different versions of Name Equivalence Rule differ on this example. • If reinterpreted as follows, then they are different type T00029: record id: integer; weight: real end; T00030: record id: integer; weight: real end; varx: T00029;y: T00030;

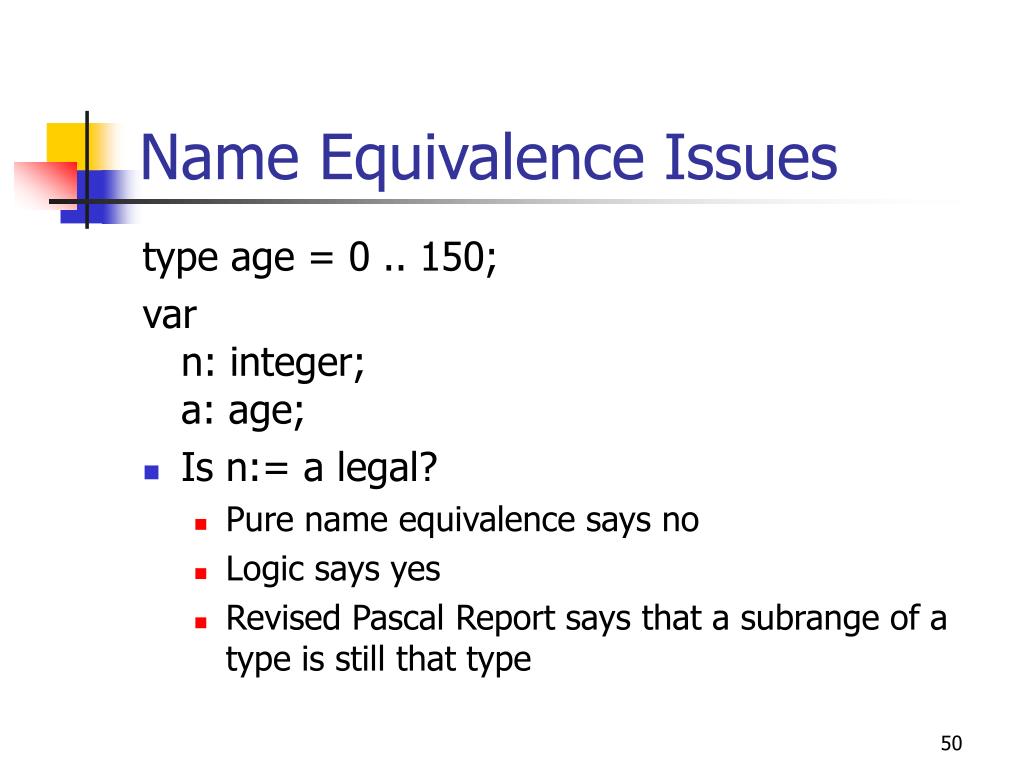

  50. Name Equivalence Issues type age = 0 .. 150; var n: integer;a: age; • Is n:= a legal? • Pure name equivalence says no • Logic says yes • Revised Pascal Report says that a subrange of a type is still that type
