  1. RTO PROCEDURES

  2. TASK: Provide basic level instruction in proper radio-telephone operating (RTO) procedures. CONDITION: Given conference style instruction in a classroom environment. STANDARD: Soldiers better prepared to transmit and receive messages on unit radios.

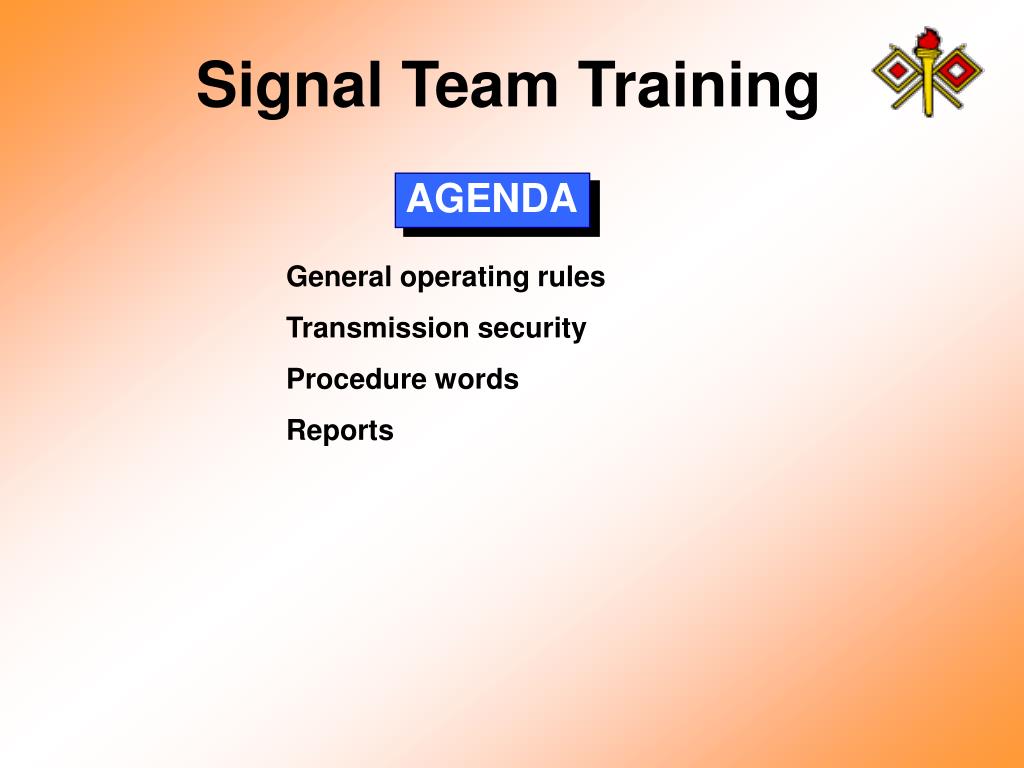

  3. AGENDA General operating rules Transmission security Procedure words Reports

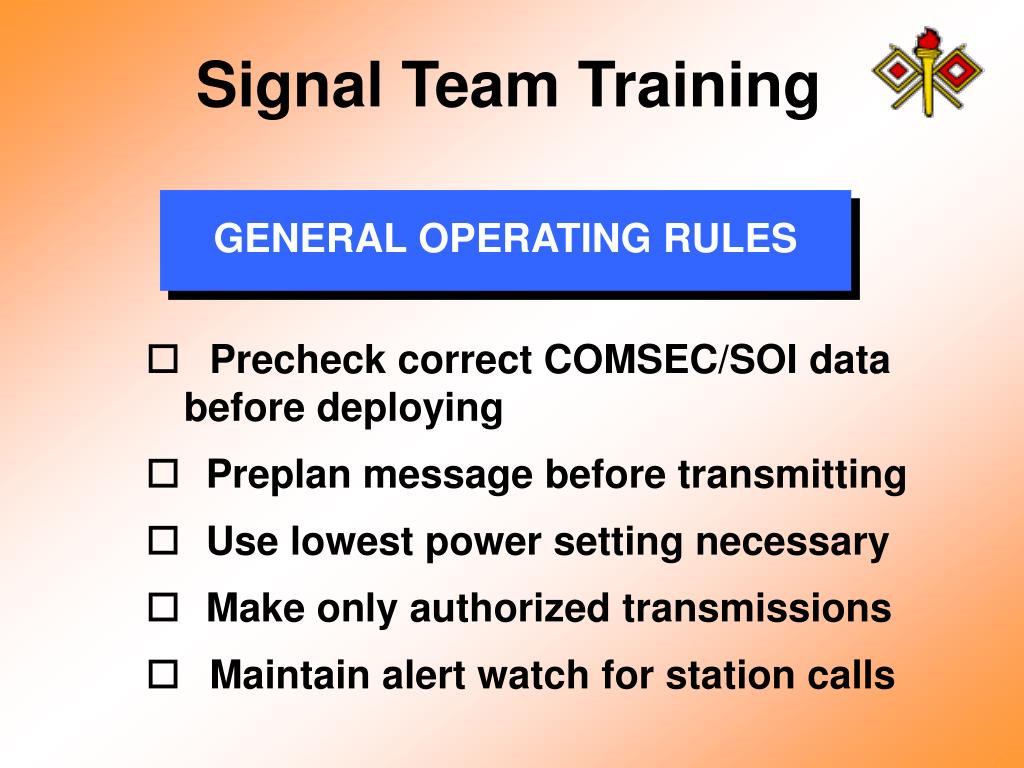

  4. Precheck correct COMSEC/SOI data before deploying Preplan message before transmitting Use lowest power setting necessary Make only authorized transmissions Maintain alert watch for station calls GENERAL OPERATING RULES

  5. Listen before transmitting Transmit clearly and accurately Demand authentication Use the phonetic alphabet Maintain transmission security GENERAL OPERATING RULES (cont.)

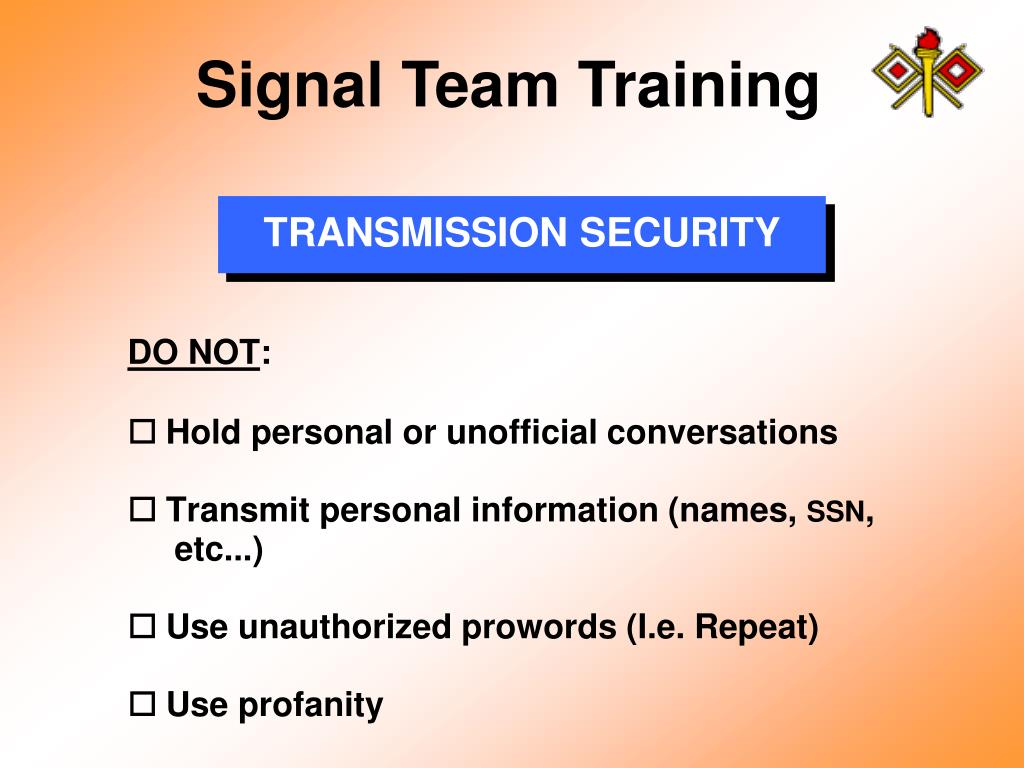

  6. DO NOT: Hold personal or unofficial conversations Transmit personal information (names, SSN, etc...) Use unauthorized prowords (I.e. Repeat) Use profanity TRANSMISSION SECURITY

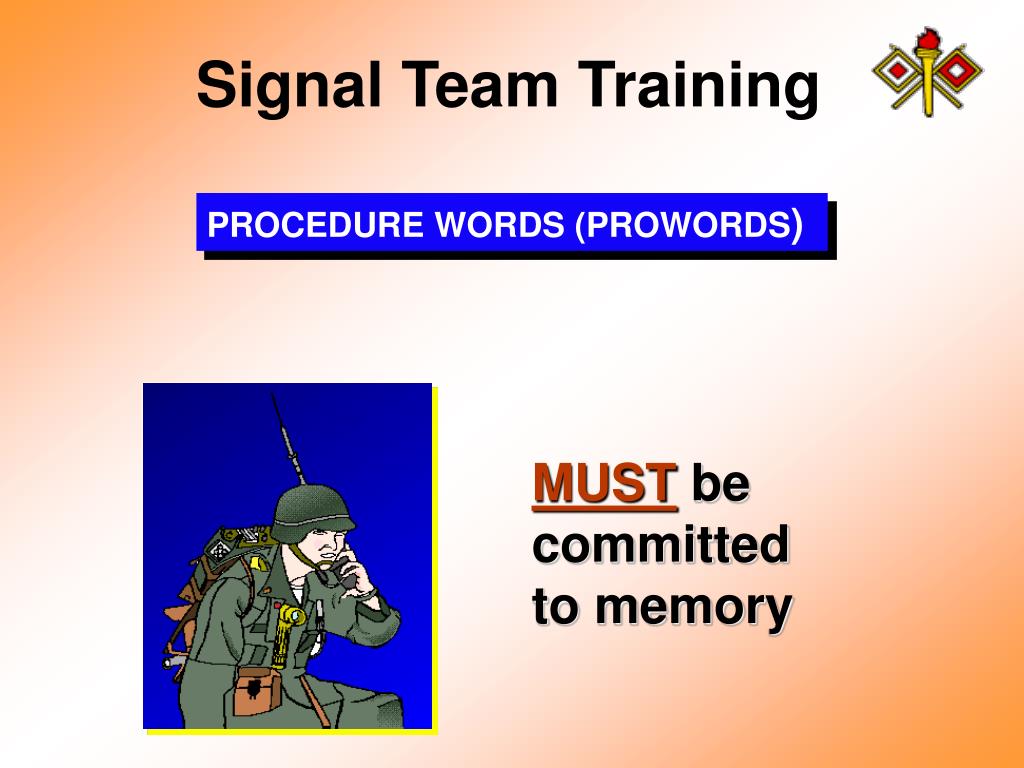

  7. PROCEDURE WORDS (PROWORDS) MUST be committed to memory

  8. I have received your last transmission satisfactorily. (PROWORDS) “ROGER”

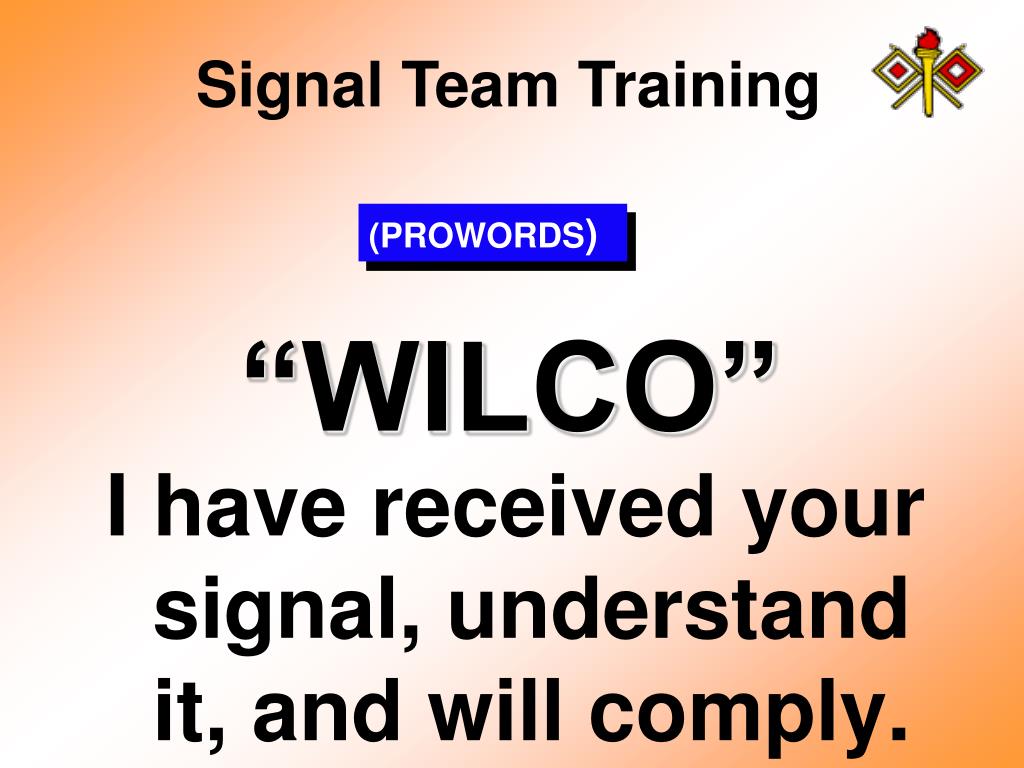

  9. I have received your signal, understand it, and will comply. (PROWORDS) “WILCO”

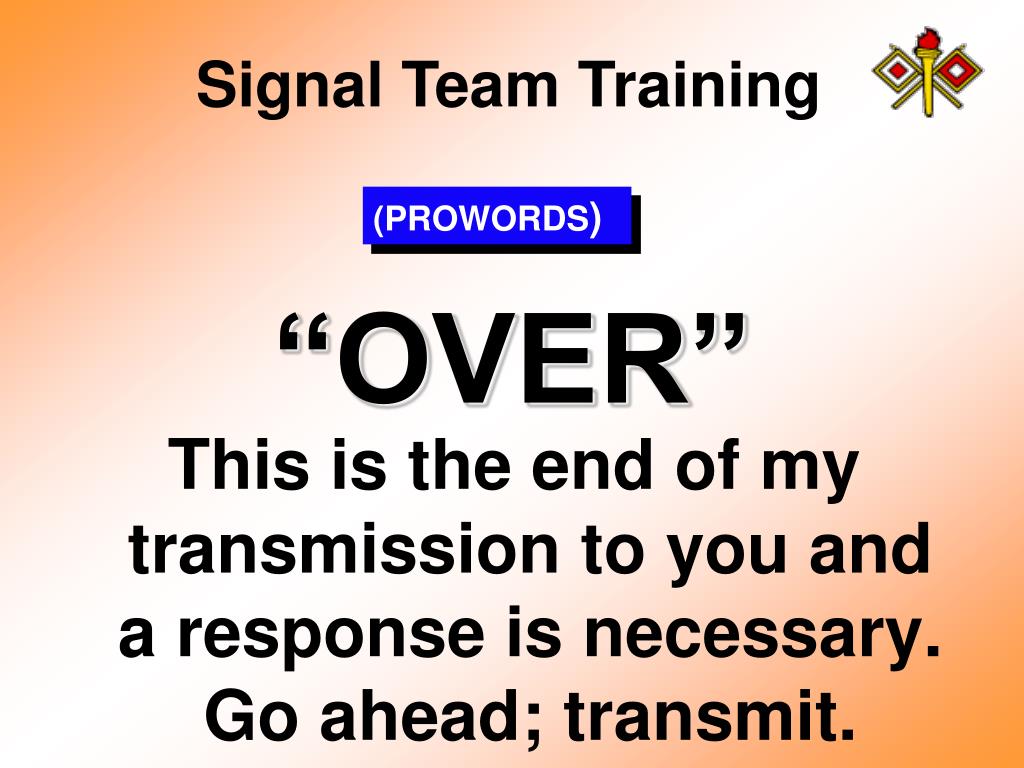

  10. This is the end of my transmission to you and a response is necessary. Go ahead; transmit. (PROWORDS) “OVER”

  11. This is the end of my transmission and no answer is required. (PROWORDS) “OUT”

  12. I must pause for a few seconds. (PROWORDS) “WAIT”

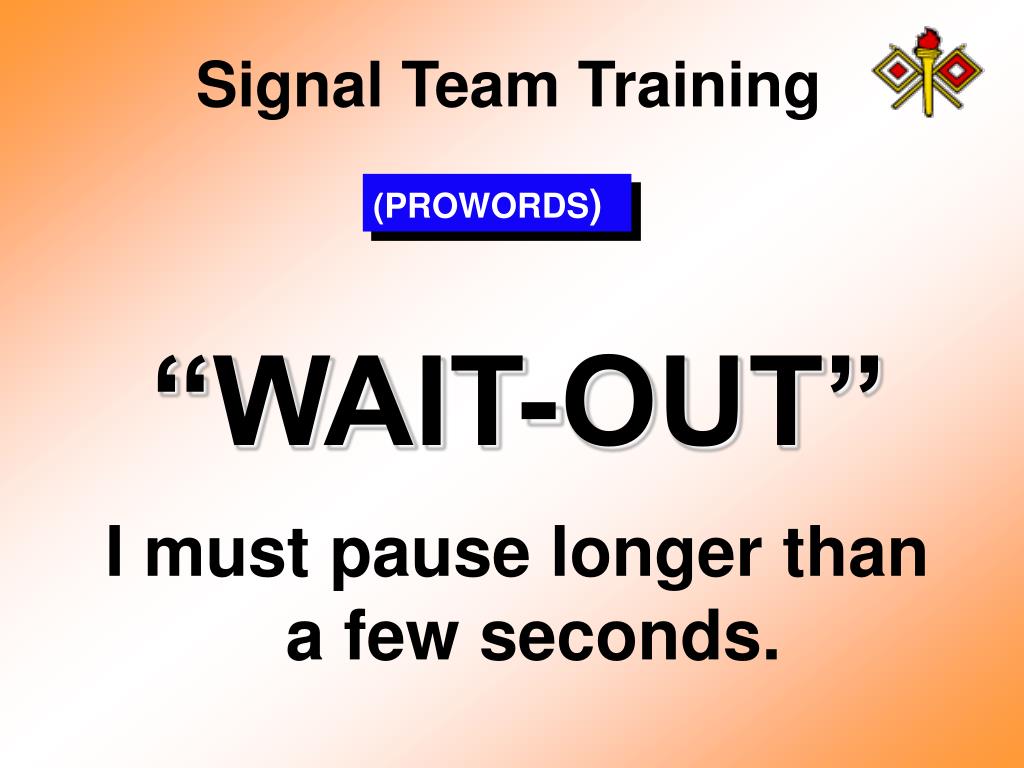

  13. I must pause longer than a few seconds. (PROWORDS) “WAIT-OUT”

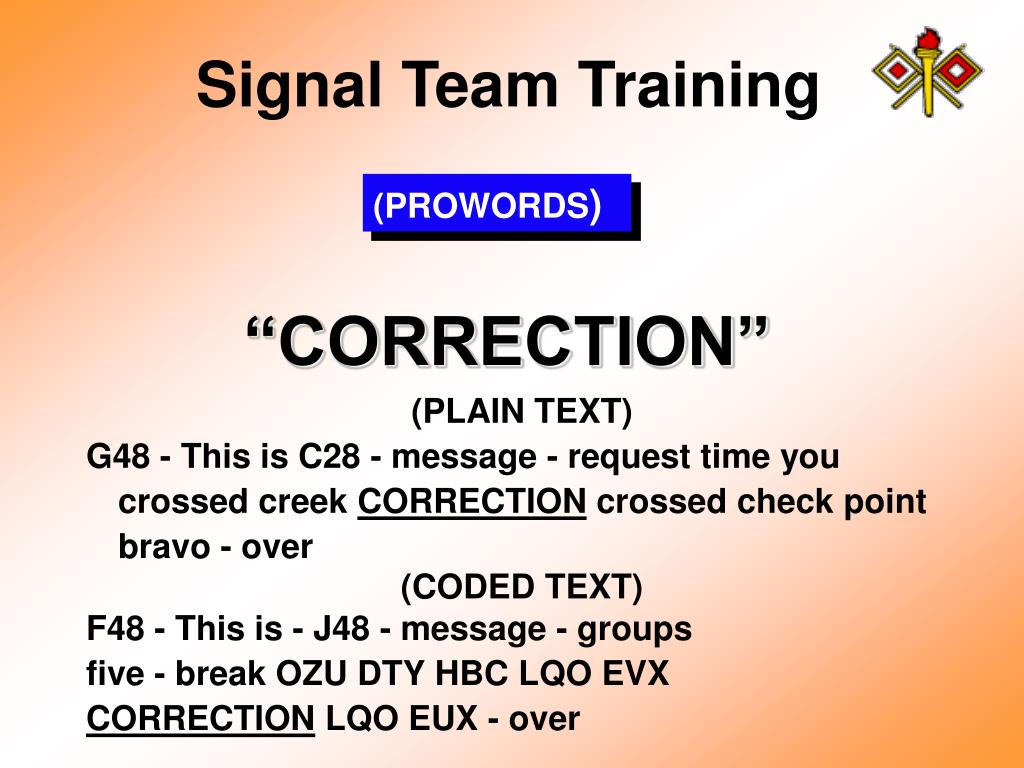

  14. (PLAIN TEXT) G48 - This is C28 - message - request time you crossed creek CORRECTION crossed check point bravo - over (CODED TEXT) F48 - This is - J48 - message - groups five - break OZU DTY HBC LQO EVX CORRECTION LQO EUX - over (PROWORDS) “CORRECTION”

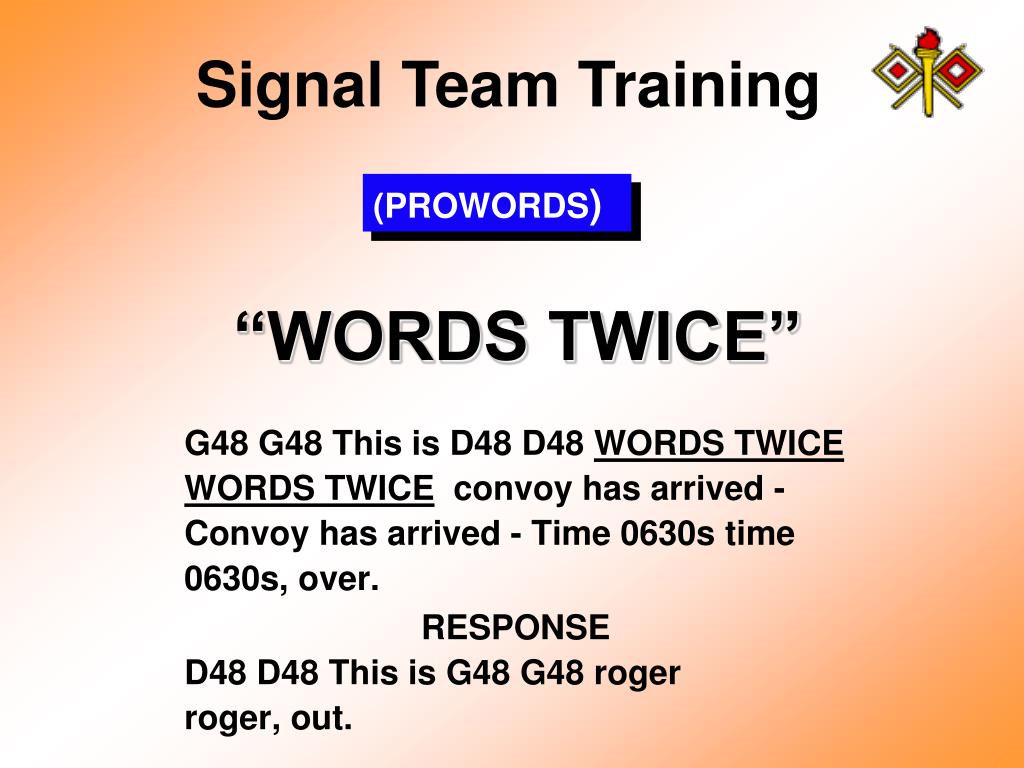

  15. G48 G48 This is D48 D48 WORDS TWICE WORDS TWICE convoy has arrived - Convoy has arrived - Time 0630s time 0630s, over. RESPONSE D48 D48 This is G48 G48 roger roger, out. (PROWORDS) “WORDS TWICE”

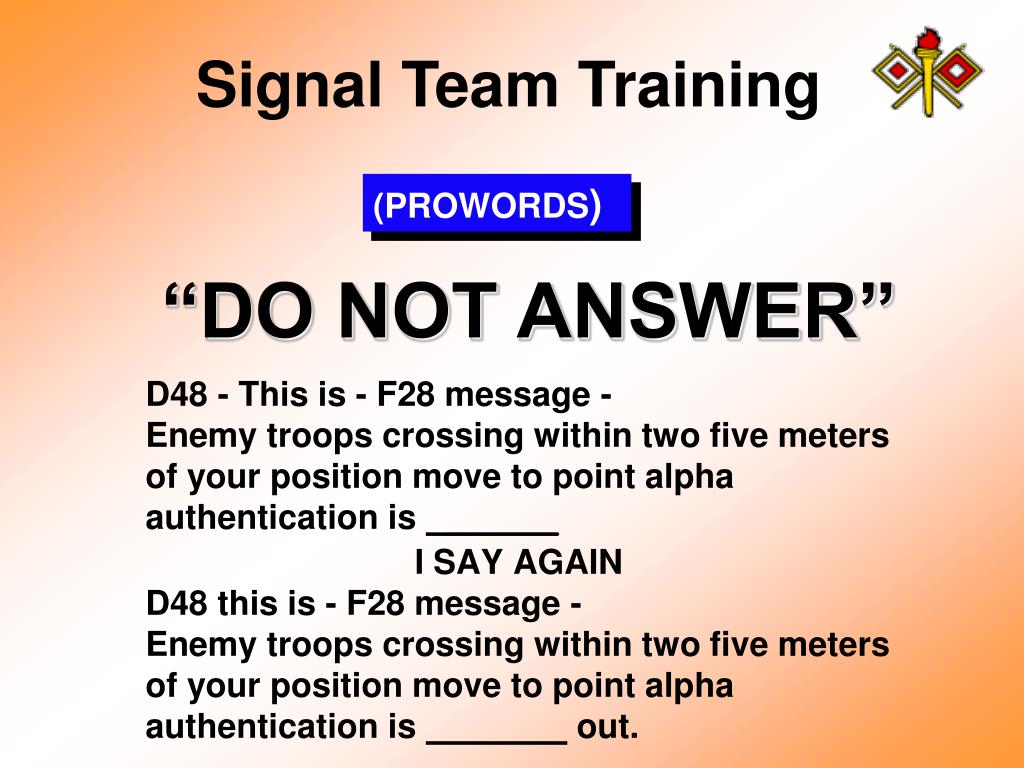

  16. D48 - This is - F28 message - Enemy troops crossing within two five meters of your position move to point alpha authentication is ______ I SAY AGAIN D48 this is - F28 message - Enemy troops crossing within two five meters of your position move to point alpha authentication is out. (PROWORDS) “DO NOT ANSWER”

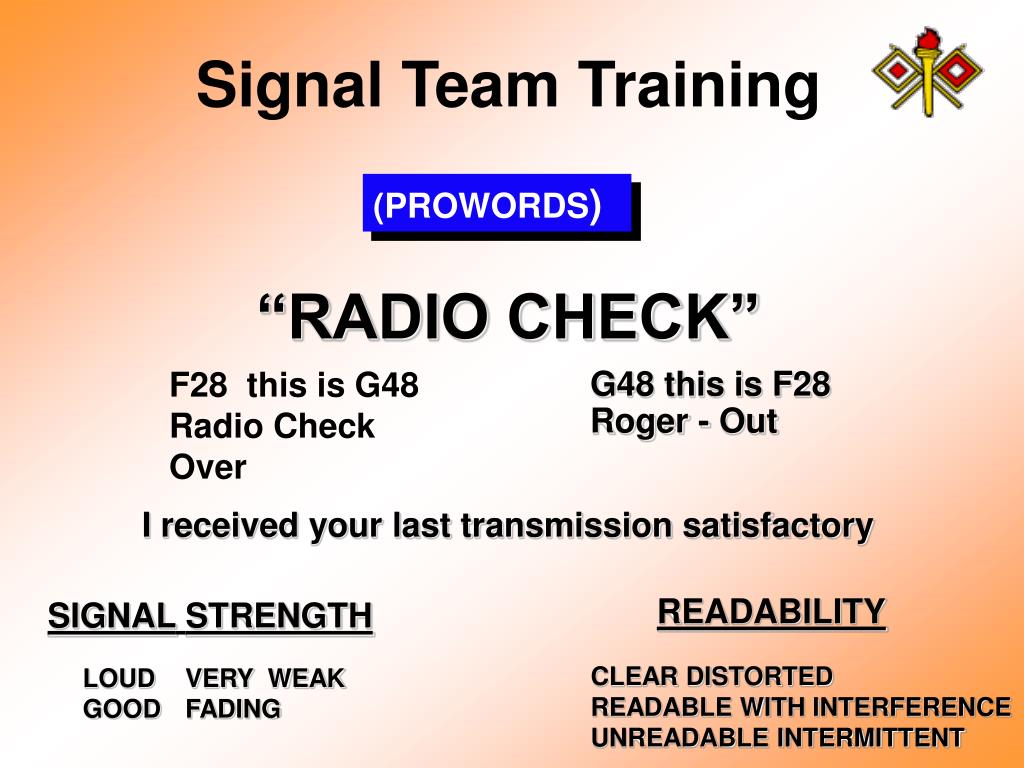

  17. “RADIO CHECK” F28 this is G48 Radio Check Over G48 this is F28 Roger - Out I received your last transmission satisfactory (PROWORDS) READABILITY SIGNALSTRENGTH CLEAR DISTORTED READABLE WITH INTERFERENCE UNREADABLE INTERMITTENT LOUD VERY WEAK GOOD FADING

  18. (PROWORDS) REPETITION 1. Say again. 2. Say again all after. 3. Say again all before. 4. Say again to . 5. Say again word after. 6. Say again word before. RESPONSE I say again.

  19. ACE REPORT Used within the convoy to complete Command Information Requirements to submit to higher

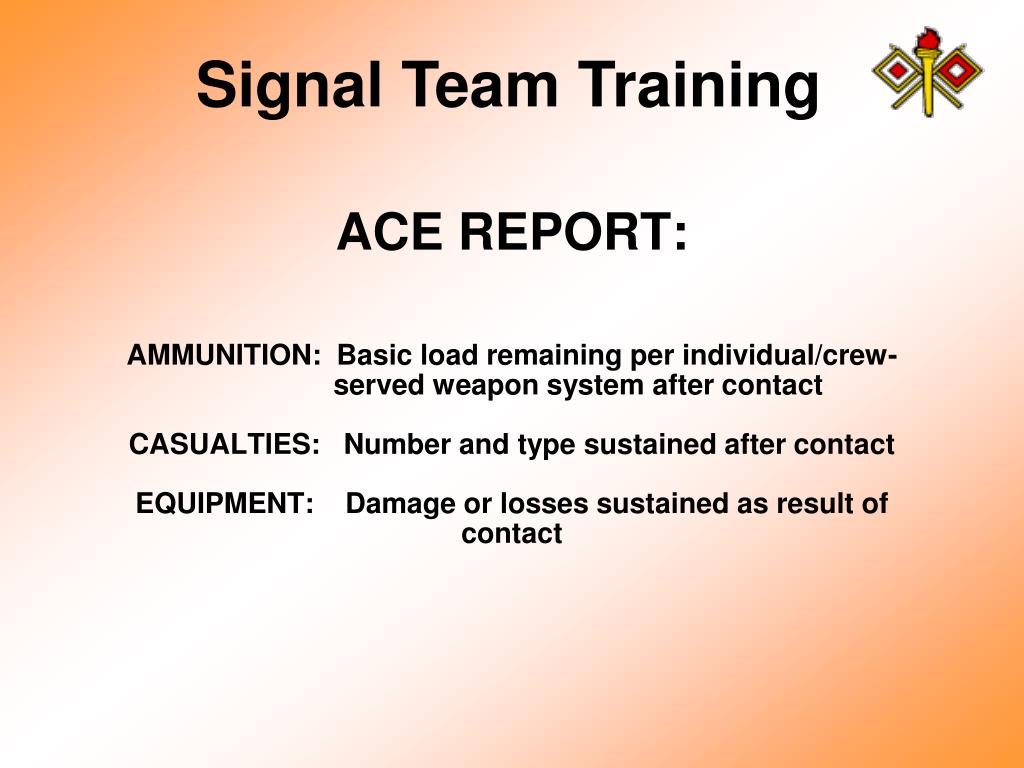

  20. ACE REPORT:AMMUNITION: Basic load remaining per individual/crew- served weapon system after contactCASUALTIES: Number and type sustained after contactEQUIPMENT: Damage or losses sustained as result of contact

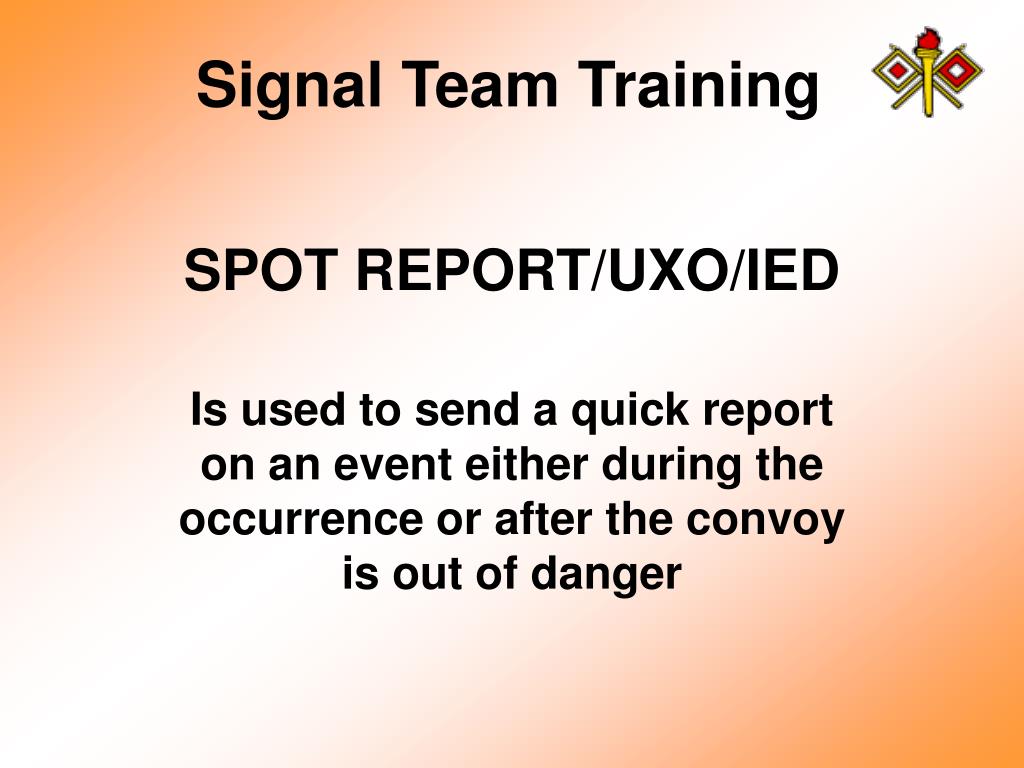

  21. SPOT REPORT/UXO/IED Is used to send a quick report on an event either during the occurrence or after the convoy is out of danger

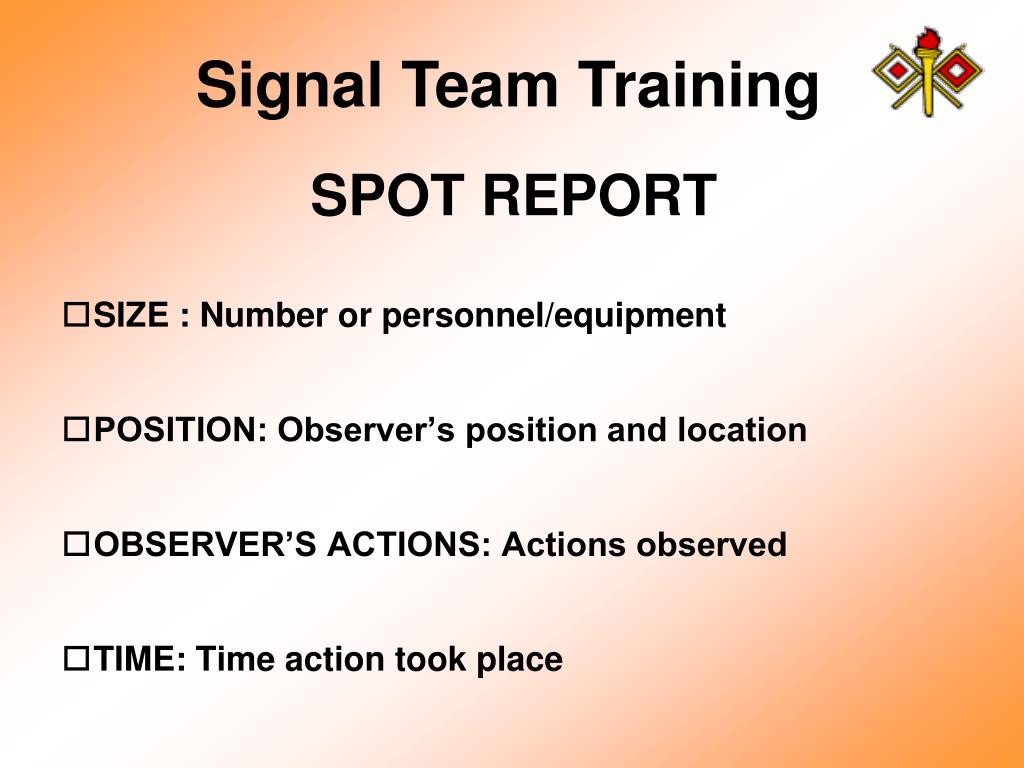

  22. SIZE : Number or personnel/equipment POSITION: Observer’s position and location OBSERVER’S ACTIONS: Actions observed TIME: Time action took place SPOT REPORT

  23. DTG Discovered Reporting unit and location Contact method (telephone number or radio) Type of Munitions NBC Contamination Resources Threatened Impact on Mission Protective Measures Taken Recommended Priority (Immediate/Indirect/Minor/None) IED/UXO

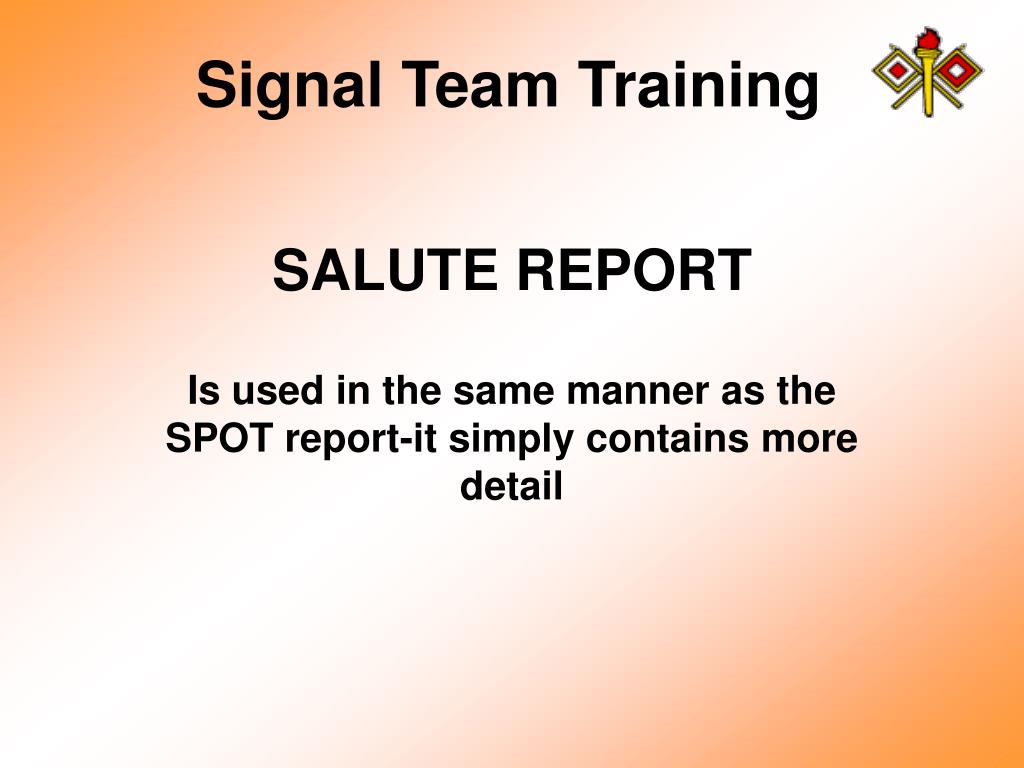

  24. SALUTE REPORT Is used in the same manner as the SPOT report-it simply contains more detail

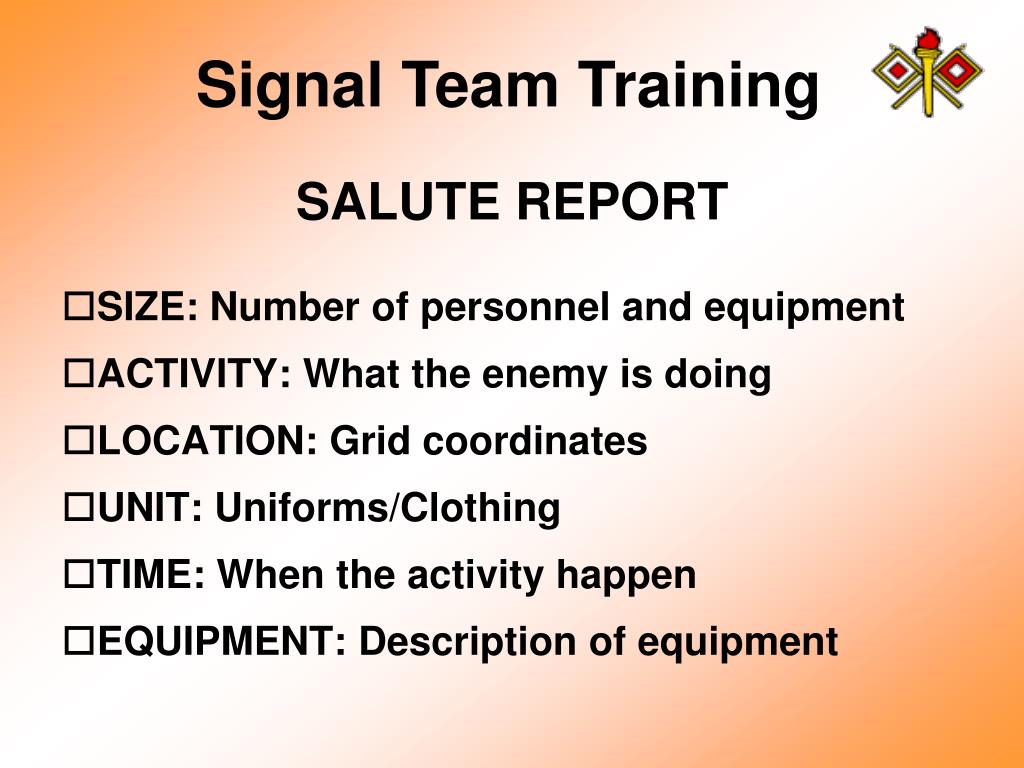

  25. SIZE: Number of personnel and equipment ACTIVITY: What the enemy is doing LOCATION: Grid coordinates UNIT: Uniforms/Clothing TIME: When the activity happen EQUIPMENT: Description of equipment SALUTE REPORT

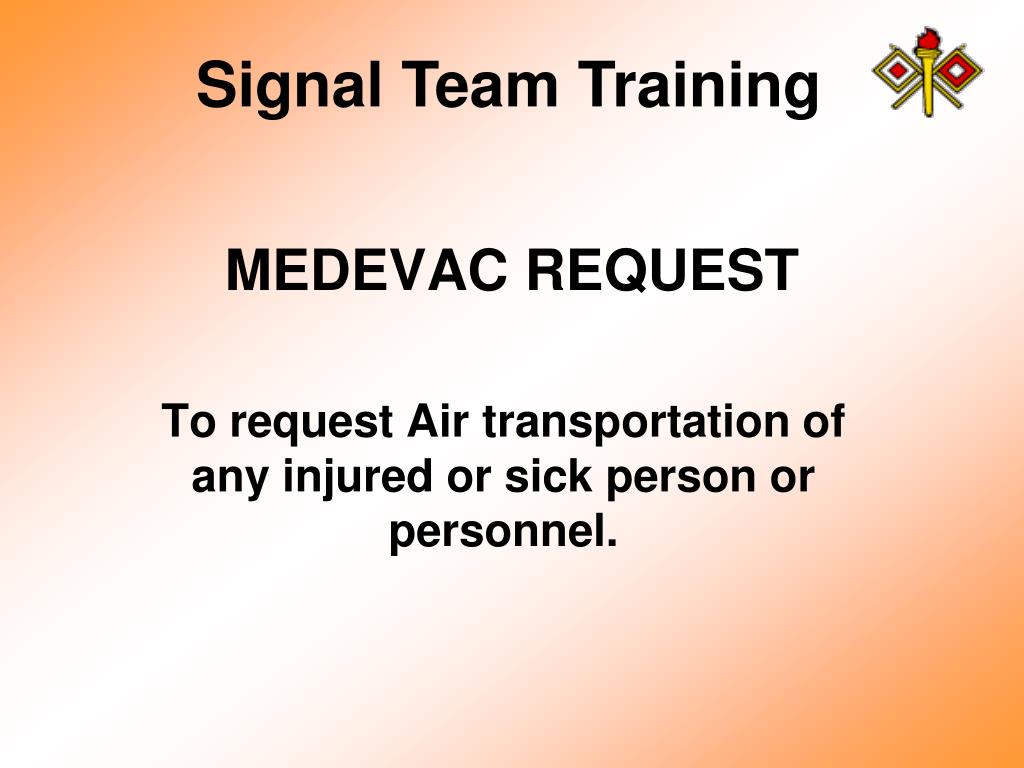

  26. MEDEVAC REQUEST To request Air transportation of any injured or sick person or personnel.

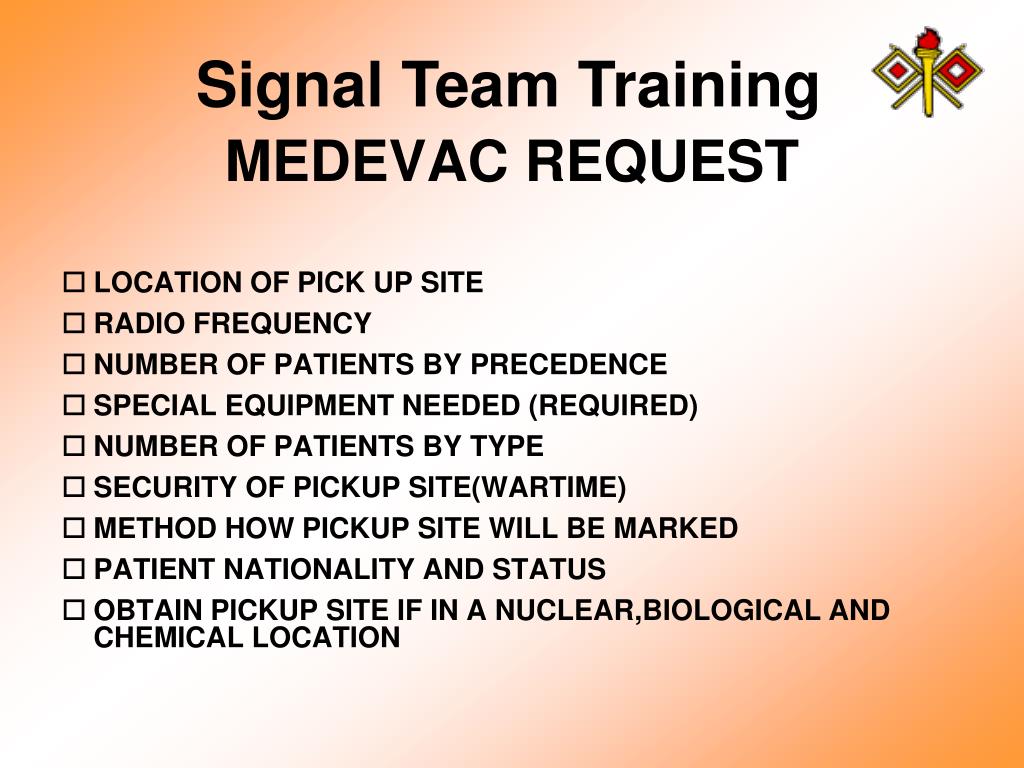

  27. LOCATION OF PICK UP SITE RADIO FREQUENCY NUMBER OF PATIENTS BY PRECEDENCE SPECIAL EQUIPMENT NEEDED (REQUIRED) NUMBER OF PATIENTS BY TYPE SECURITY OF PICKUP SITE(WARTIME) METHOD HOW PICKUP SITE WILL BE MARKED PATIENT NATIONALITY AND STATUS OBTAIN PICKUP SITE IF IN A NUCLEAR,BIOLOGICAL AND CHEMICAL LOCATION MEDEVAC REQUEST

  28. Most efficient communications within a net is attained when operators habitually use proper procedures in transmitting and receiving messages. SUMMARY

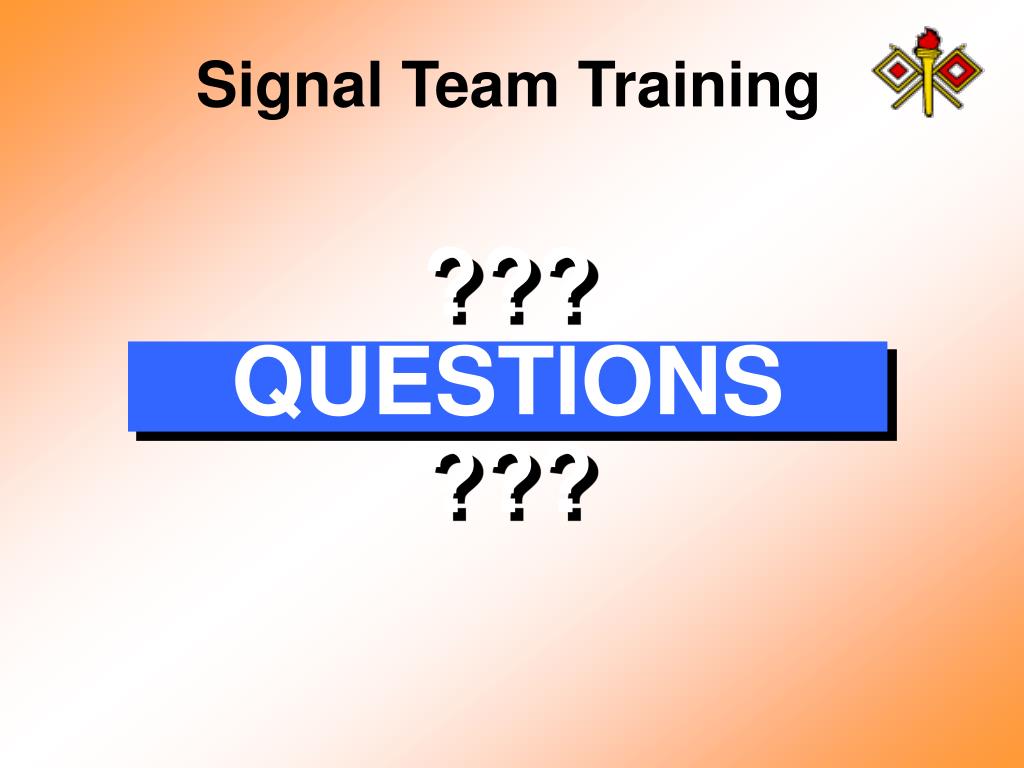

  29. ??? QUESTIONS ???
