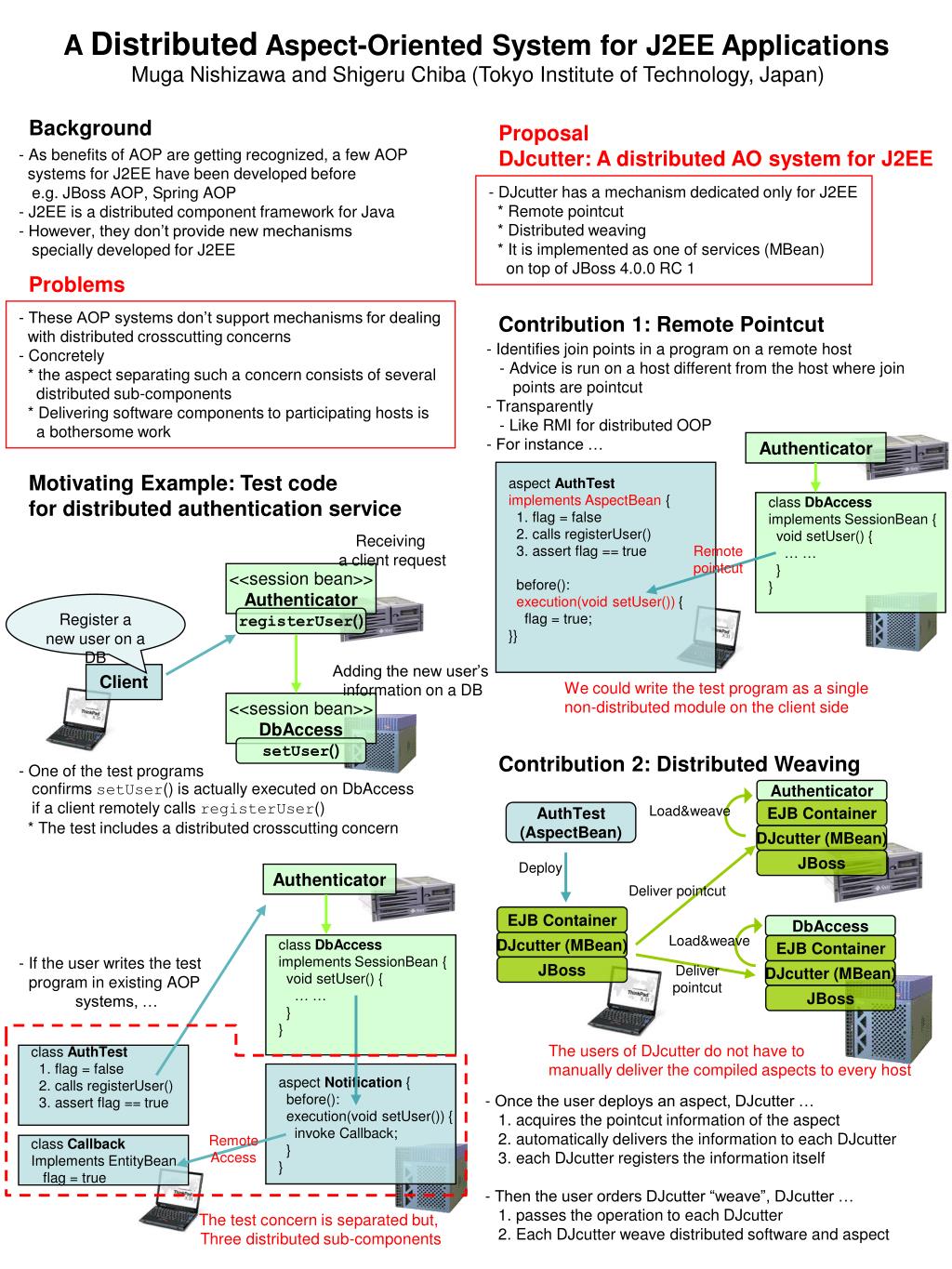

  1. A Distributed Aspect-Oriented System for J2EE Applications Muga Nishizawa and Shigeru Chiba (Tokyo Institute of Technology, Japan) Background Proposal DJcutter: A distributed AO system for J2EE - As benefits of AOP are getting recognized, a few AOP systems for J2EE have been developed before e.g. JBoss AOP, Spring AOP - J2EE is a distributed component framework for Java - However, they don’t provide new mechanisms specially developed for J2EE - DJcutter has a mechanism dedicated only for J2EE * Remote pointcut * Distributed weaving * It is implemented as one of services (MBean) on top of JBoss 4.0.0 RC 1 Problems - These AOP systems don’t support mechanisms for dealing with distributed crosscutting concerns - Concretely * the aspect separating such a concern consists of several distributed sub-components * Delivering software components to participating hosts is a bothersome work Contribution 1: Remote Pointcut - Identifies join points in a program on a remote host - Advice is run on a host different from the host where join points are pointcut - Transparently - Like RMI for distributed OOP - For instance … Authenticator aspect AuthTest implements AspectBean { 1. flag = false 2. calls registerUser() 3. assert flag == true before(): execution(void setUser()) { flag = true; }} Motivating Example: Test code for distributed authentication service class DbAccess implements SessionBean { void setUser() { … … } } Receiving a client request Remote pointcut <<session bean>> Authenticator Register a new user on a DB registerUser() Adding the new user’s information on a DB Client We could write the test program as a single non-distributed module on the client side <<session bean>> DbAccess setUser() Contribution 2: Distributed Weaving - One of the test programs confirms setUser() is actually executed on DbAccess if a client remotely calls registerUser() * The test includes a distributed crosscutting concern Authenticator Load&weave EJB Container AuthTest (AspectBean) DJcutter (MBean) JBoss Deploy Authenticator Deliver pointcut EJB Container DbAccess Load&weave DJcutter (MBean) class DbAccess implements SessionBean { void setUser() { … … } } EJB Container - If the user writes the test program in existing AOP systems, … Deliver pointcut JBoss DJcutter (MBean) JBoss The users of DJcutter do not have to manually deliver the compiled aspects to every host class AuthTest 1. flag = false 2. calls registerUser() 3. assert flag == true aspect Notification { before(): execution(void setUser()) { invoke Callback; } } - Once the user deploys an aspect, DJcutter … 1. acquires the pointcut information of the aspect 2. automatically delivers the information to each DJcutter 3. each DJcutter registers the information itself - Then the user orders DJcutter “weave”, DJcutter … 1. passes the operation to each DJcutter 2. Each DJcutter weave distributed software and aspect Remote Access class Callback Implements EntityBean flag = true The test concern is separated but, Three distributed sub-components

  2. Preplaned Dynamic Weaving Muga Nishizawa and Shigeru Chiba (Tokyo Institute of Technology, Japan) Proposal: Preplaned Dynamic Weaving Background: Dynamic Weaving - Aspects can be composed, updated and removed into application at runtime - Benefits * Is that Aspects can be woven without restarting application * Improves efficiency of software development e.g.) Reduces downtime of web application - Aspects allow dynamically changing the behavior of software - but, those are woven into the rest of application at load-time for efficiency - Weavable aspects must be known before running application (but NOT a problem in practice) Overview of Our Aspects Motivation - Aspects can dynamically define/redefine/undefine fields and methods of other objects (similar to inter-type declarations) - The following aspects redefine method register() defined in CustomerManager - Existing mechanisms for dynamic weaving are not acceptable for industry: low performance, lack of transparency, no-safety(?) e.g. * Using JPDA [Popovici ’03] * JVM’s extension [Bockisch ’04] - We want to use dynamic weaving more easily and simply Each register method Is used in a mock object for testing @Aspect class Aspect1 { @Refine(“CustomerManager”) class A { void register(String name) { return ; }}} @Aspect class Aspect2 { @Refine(“CustomerManager”) class A { void register(String name) { throw new Exception(“existing”); }}} Motivating Example: Unit Test for Client of server-side CustomerManager - By using dynamic weaving, we want to replace real collaborators’ implementations with mock implementations dynamically - By using @Deploy, Aspect is dynamically deployed within the control flow of the execution of method annotated by it @Deploy(“Aspect1”) void testRegisterNewCustomer() { // do something … } @Deploy(“Aspect2”) void testRegisterExistingCustomer() { // do something … } TestDriver Calls the client actually Registers a new customer Within the ctl-flow of testRegNew() execution, Aspect1 is deployed Client CustomerManager +register(String): void Implementation How to test client’s register(..) class Client { CustomerManager mgr; boolean register(String name) { try{ mgr.register(name); return true; } catch(Exception e) { return false; }}} class CustomerManager { // load-time weaving void register(String name) { switch(Weaver.getDeployed()) { // returns a hash code value case Aspect1’s hash : Aspect1_$$_register(name); return; case Aspect2’s hash : Aspect2_$$_register(name); return; default: original_$$_register(name); return; }} void Aspect1_$$_register(String name) { /* method body defined in Aspect1 class */ } void Aspect2_$$_register(String name) { /* method body defined in Aspect2 class */ } void original_$$_register(String name) { /*original method body */ } } - Replaces the real CustomerManager with mock objects - Changes the mock objects with respect to each test-method => dynamic weaving - Traditional test driver’s code for this client void testRegisterNewCustomer() { //register a customer that does not already exist boolean couldRegister = new Client().register(NEW_CUSTOMER); assertTrue(couldRegister); } void testRegisterExistingCustomer() { //register a customer that does exist boolean couldNotRegister = ! new Client().register(EXISTING_CUSTOMER); assertTrue(couldNotRegister); } Contribution - We proposed efficient dynamic weaving by using only bytecode transformation (without using other tools) (Note that, the aspects must be known at load-time) - These inter-type declarations allow us to redefine/extend implementations simply e.g. redefining mock implementations - Future work is to implement the mechanism for pointcut-advice, other inter-type declarations
