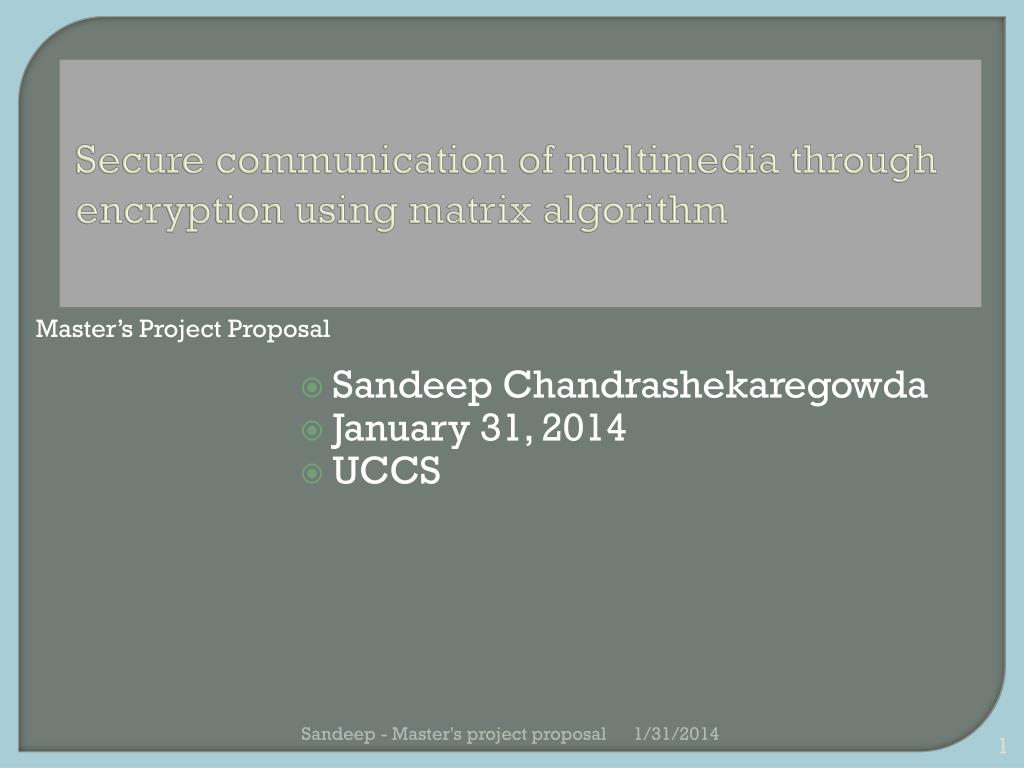

  1. Secure communication of multimedia through encryption using matrix algorithm Sandeep Chandrashekaregowda January 31, 2014 UCCS Master’s Project Proposal Sandeep - Master's project proposal

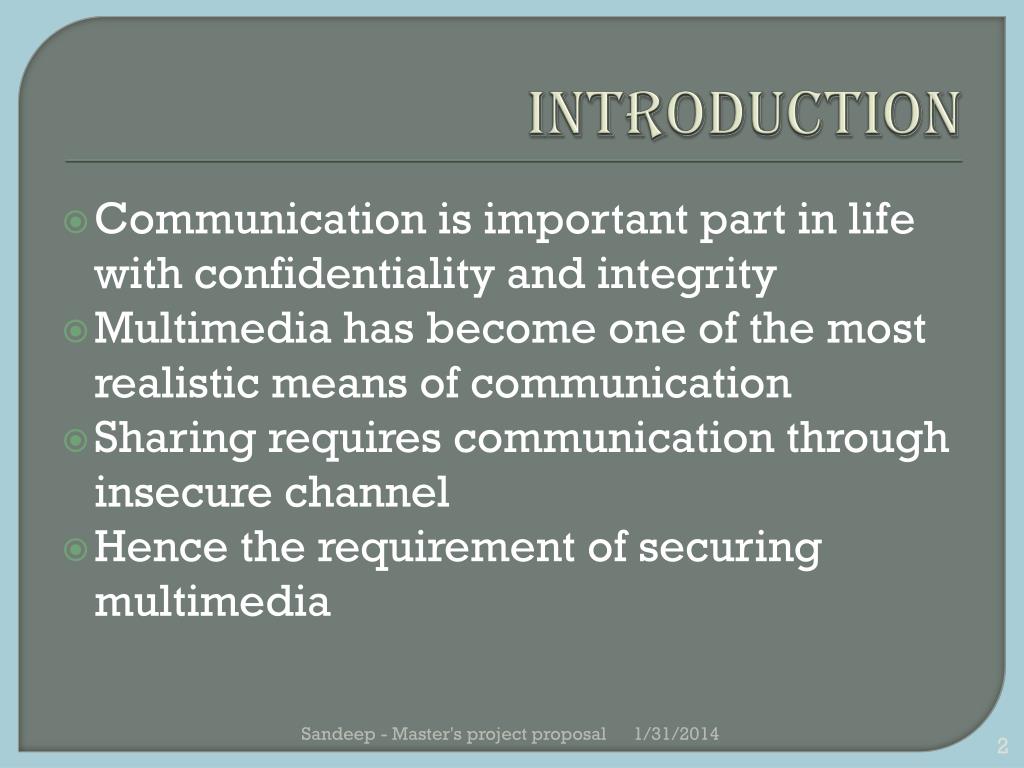

  2. Introduction • Communication is important part in life with confidentiality and integrity • Multimedia has become one of the most realistic means of communication • Sharing requires communication through insecure channel • Hence the requirement of securing multimedia Sandeep - Master's project proposal

  3. Motivation • The motivation for this project is: • Three major classification of video encryption. •  Bits level encryption provides higher security among all. • The speed of encryption is low even after higher compression ratio. • Better to go with selective encryption. • Selective frames in the video files must be encrypted at a good speed. Sandeep - Master's project proposal

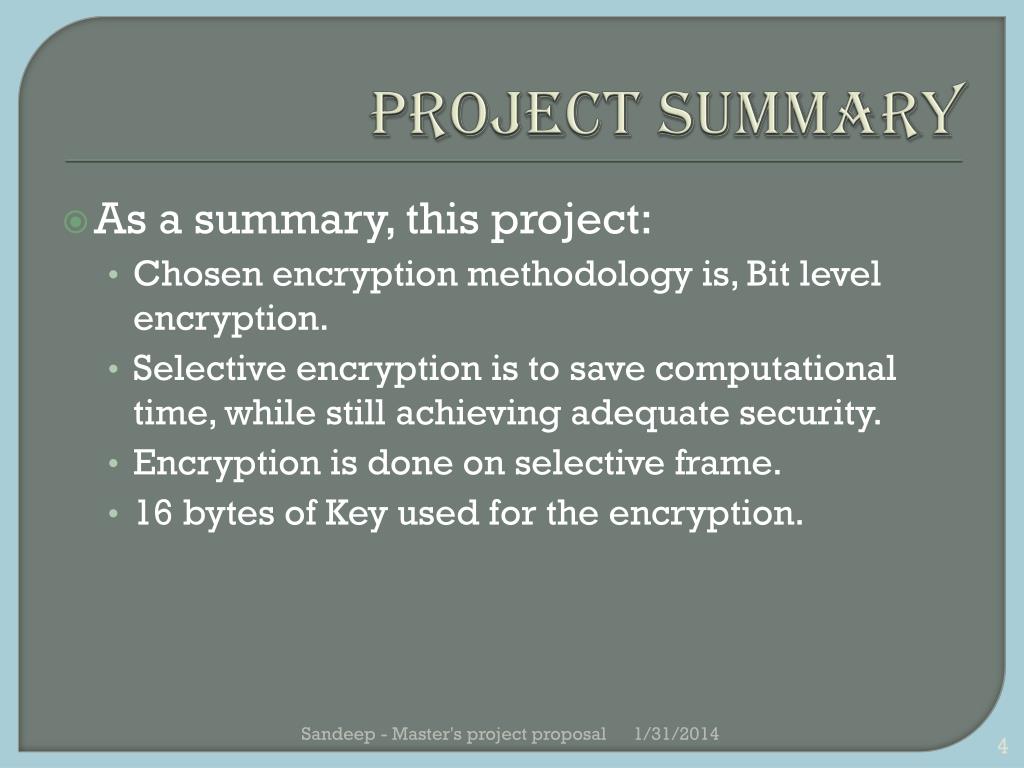

  4. Project Summary • As a summary, this project: • Chosen encryption methodology is, Bit level encryption. • Selective encryption is to save computational time, while still achieving adequate security. • Encryption is done on selective frame. • 16 bytes of Key used for the encryption. Sandeep - Master's project proposal

  5. Prior Work and Motivation • Prior work: Sandeep - Master's project proposal

  6. Prior Work and Motivation • A survey of video encryption algorithms.: • The survey shows that there is no scheme that fits for all applications • The selection of an appropriate algorithm should depend on the particular application requirements. • It was observed that almost all video encryption algorithms have a relatively low security level. Sandeep - Master's project proposal

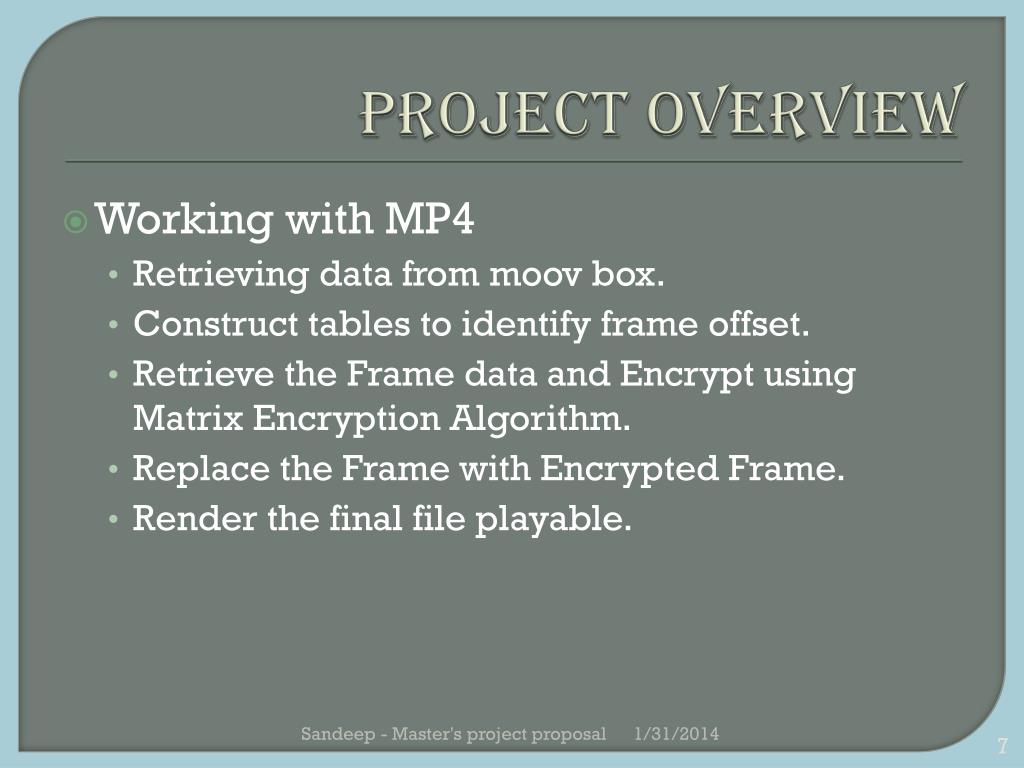

  7. Project Overview • Working with MP4 • Retrieving data from moovbox. • Construct tables to identify frame offset. • Retrieve the Frame data and Encrypt using Matrix Encryption Algorithm. • Replace the Frame with Encrypted Frame. • Render the final file playable. Sandeep - Master's project proposal

  8. Project Overview • Matrix Encryption Algorithm • Initial Round: • Divide the stream in frames to 16 bytes of sub-frames; consider it as a 4x4 matrix. Each sub-frame is encrypted separately. • Rounds: • Operate on the part of matrix: Divide the matrix as 2x2 matrix (each cell will be containing 2x2 matrix in it). Perform Xor operation on 1st part of the matrix with its next one. • Operate with Key: Perform Xor operation on the 4x4 matrix with key of 16 bytes (considering the key as 4x4 matrix for the operation) • Shift cells: shift the divided matrix cell values clockwise. • Final Round: • Append the encrypted sub-frames. Sandeep - Master's project proposal

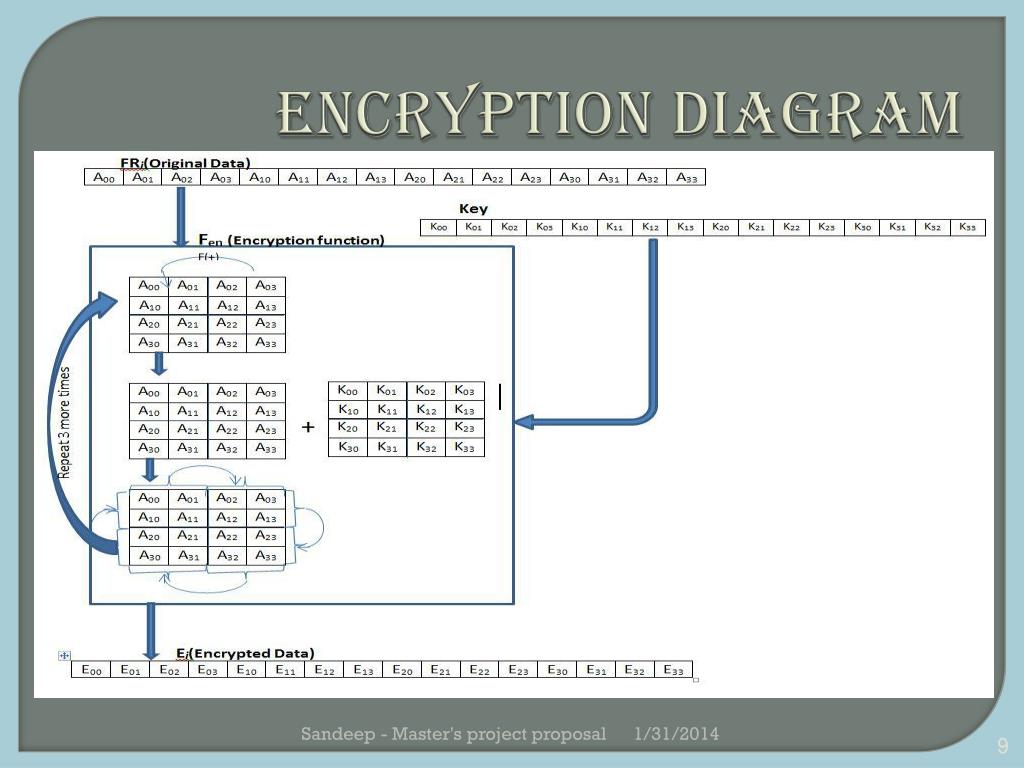

  9. Encryption Diagram Sandeep - Master's project proposal

  10. Project Deliverables • The deliverables for this project are: • Working prototype of the algorithm: • Divide the stream in frames to 16 bytes of sub-frames; consider it as a 4x4 • Testing the algorithm: • Confidentially deliver the media • How the algorithm is different from existing • Perform time/size analysis of the algortihm • Project report: • To write simple and comprehensive project report Sandeep - Master's project proposal

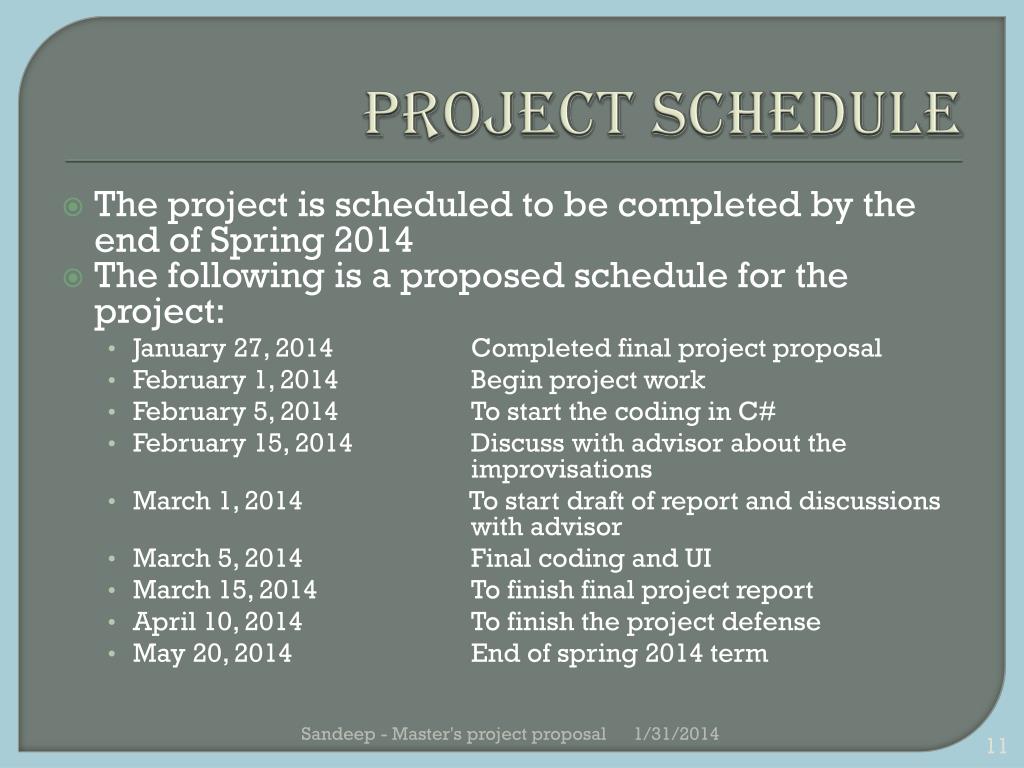

  11. Project Schedule • The project is scheduled to be completed by the end of Spring 2014 • The following is a proposed schedule for the project: • January 27, 2014 Completed final project proposal • February 1, 2014 Begin project work • February 5, 2014 To start the coding in C# • February 15, 2014 Discuss with advisor about the improvisations • March 1, 2014 To start draft of report and discussions with advisor • March 5, 2014 Final coding and UI • March 15, 2014 To finish final project report • April 10, 2014 To finish the project defense • May 20, 2014 End of spring 2014 term Sandeep - Master's project proposal

  12. Primary References [1]    Liu, Fuwen, and Hartmut Koenig. "A survey of video encryption algorithms."computers & security 29.1 (2010): 3-15. [2]    Lui, Oi-Yan, Ching-Hung Yuen, and Kwok-Wo Wong. "Chaos-Based selective encryption for AVS video coding standard." Advances in Multimedia Information Processing–PCM 2012. Springer Berlin Heidelberg, 2012. 501-512. [3]    Lim, Youngkwon, et al. "MMT: An Emerging MPEG Standard for Multimedia Delivery over the Internet." MultiMedia, IEEE 20.1 (2013): 80-85. [4] Ravishankar, K. C., and M. G. Venkateshmurthy. "Region based selective image encryption." Computing & Informatics, 2006. ICOCI'06. International Conference on. IEEE, 2006. Sandeep - Master's project proposal
