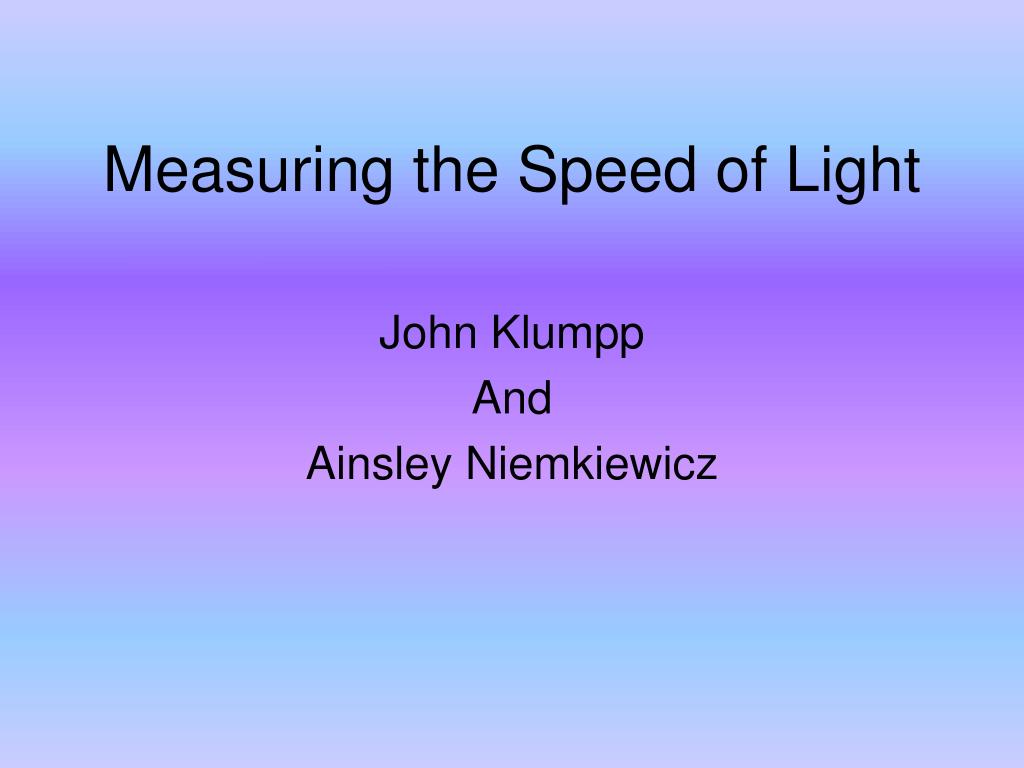

  1. Measuring the Speed of Light John Klumpp And Ainsley Niemkiewicz

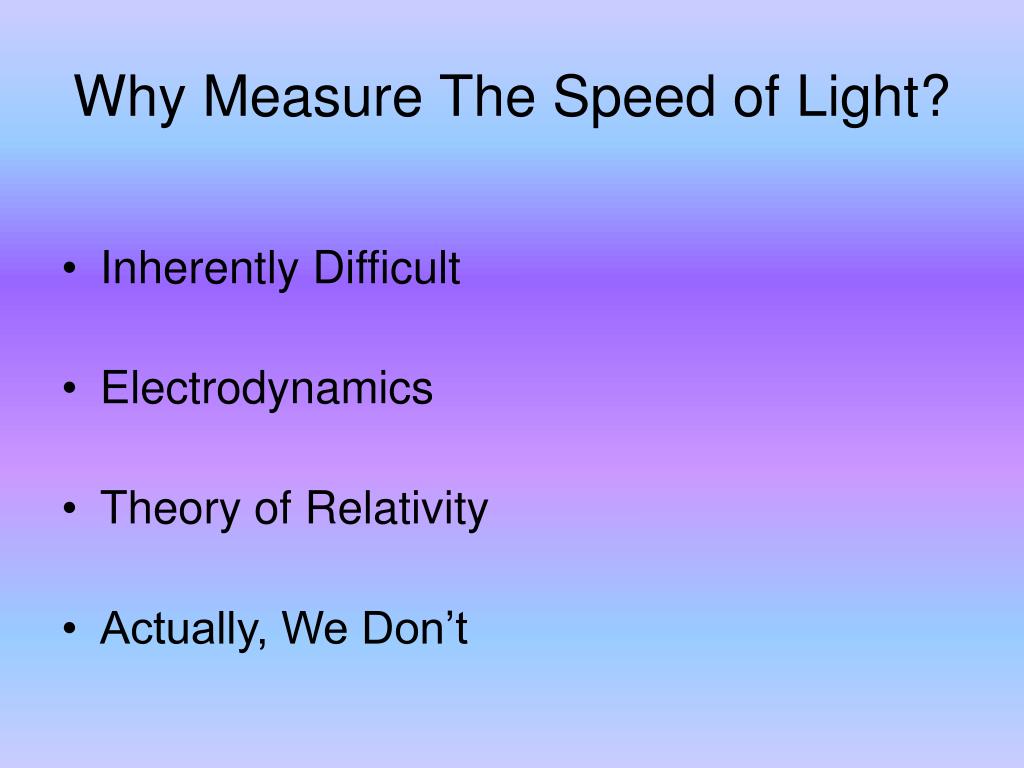

  2. Why Measure The Speed of Light? • Inherently Difficult • Electrodynamics • Theory of Relativity • Actually, We Don’t

  3. How We Do It • Measure Travel Time of Laser Pulse

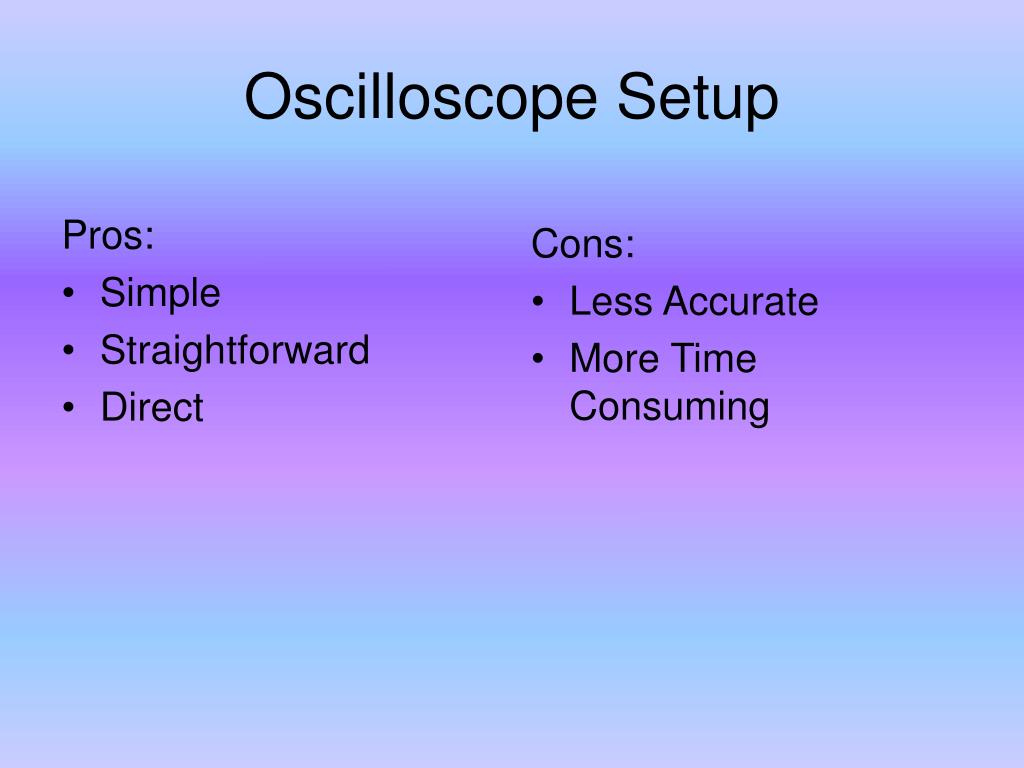

  4. Pros: Simple Straightforward Direct Cons: Less Accurate More Time Consuming Oscilloscope Setup

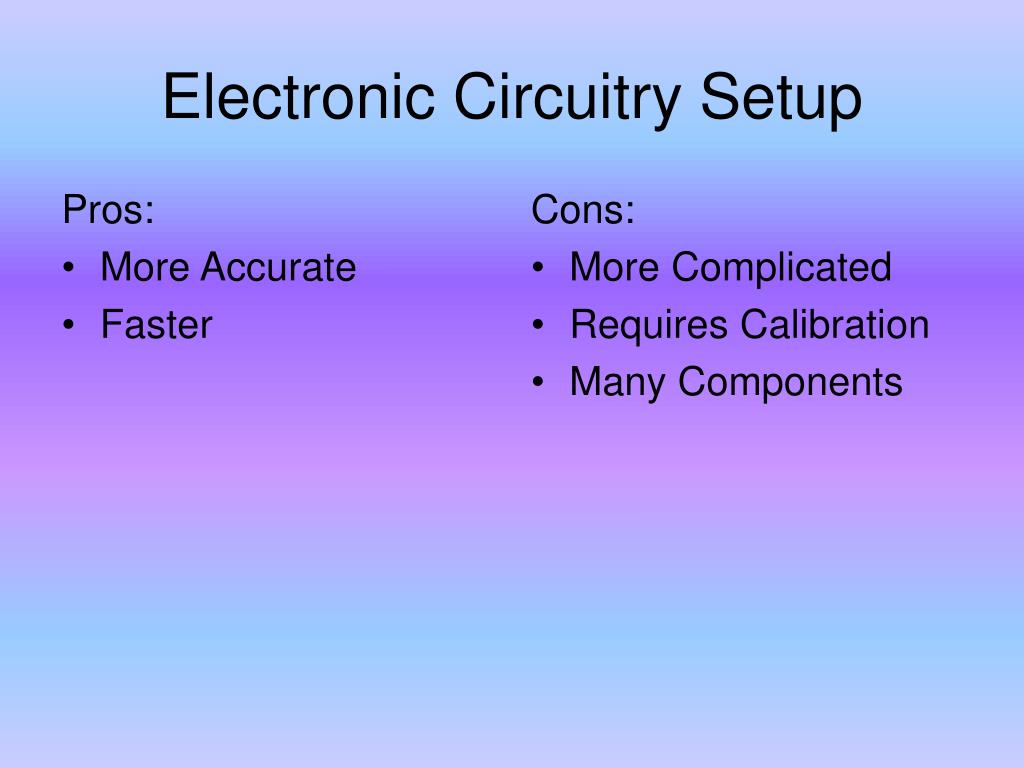

  5. Pros: More Accurate Faster Cons: More Complicated Requires Calibration Many Components Electronic Circuitry Setup

  6. Data • Total Round Trip Distance: DAC = 62.71m • Short Trip Distance: DAB = .486m • Measured Flight Path Distance: DBC = 62.71m - .486m = 62.224m

  7. Oscilloscope Data Total round trip flight time, including lag, TAC, with signal amplitude 138.8mV: TAB, TBC, calculation of SoL with signal amplitude 136.4mV: (TBC = TAC – TAB, SoL = DBC/TBC = 62.224/TBC)

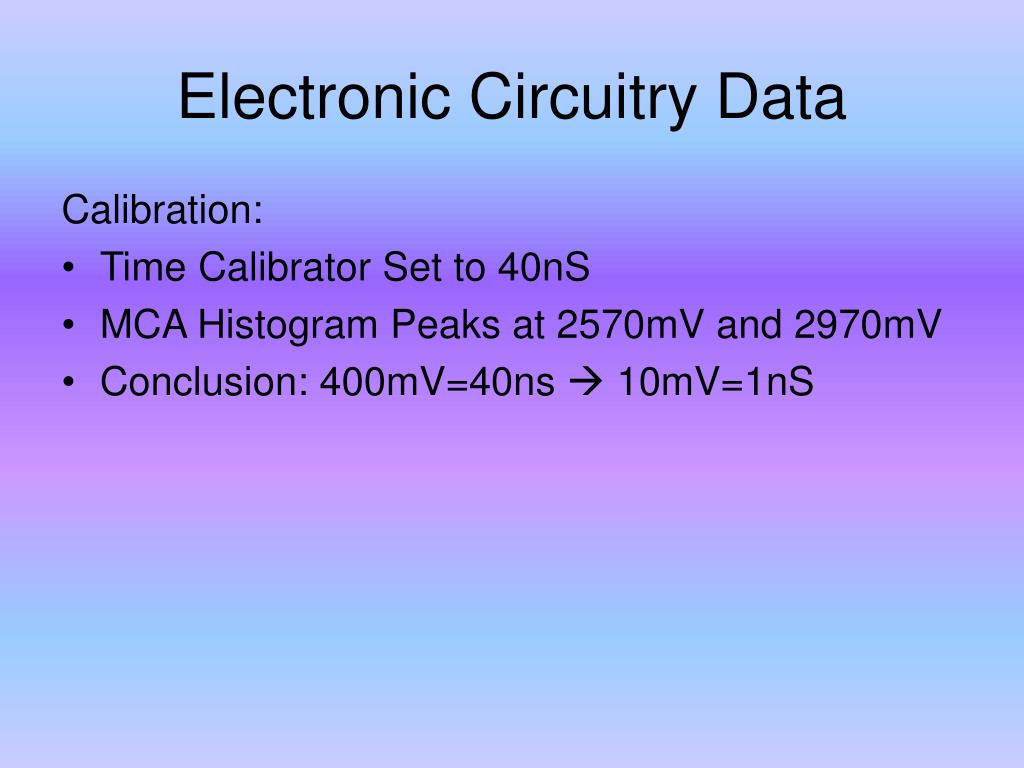

  8. Electronic Circuitry Data Calibration: • Time Calibrator Set to 40nS • MCA Histogram Peaks at 2570mV and 2970mV • Conclusion: 400mV=40ns  10mV=1nS

  9. Measurement of TBC: • Short Trip Peak at 510mV ~TAB • Long Trip Peak at 2599mV ~TAC • TBC ~ 2599mV – 510mV = 2089mV • Applying Calibration Constant, TBC = 208.9nS • We thus have c=d/t = 62.224m/208.9nS =2.979 * 108m/S = c

  10. Data Analysis Oscilloscope: • Average of five measurements • Uncertainty comes from-distance measurement-correlating peak locations • C = (2.983±.05)*108m/s • % Error = .498%

  11. Data Analysis • Electronic Circuitry • Electronic time measurements • Computer analysis of data • Very precise time measurements • Uncertainty comes from:-distance measurement-Do we trust our equipment? • C = (2.978±.03)*108m/s • % Error = .664%

  12. Conclusion • Classical Experiment, New Technology • Accurate, Straightforward Method • %Error < 1% • Speed of light = speed of propagation of Maxwell’s EM waves! • We can now test predictions of relativity
