  1. MGate 5101-PBM-MN Prepared by: Ray Chen Date: mm-dd-yyyy

  2. MGate 5101-PBM-MN PROFIBUS Essentials MGate 5101-PBM-MN Confidential

  3. PROFIBUS Essentials Confidential

  4. PROFIBUS Essentials • Origin and Organization • Certificate • Industrial Communication • OSI vs. PROFIBUS Standard • Physical Transmission Technology • Fieldbus Data Link (FDL) • DP Functions • Application Profile • PROFIBUS DP State Machine • Conclusion

  5. Origin and Organization • An open field bus communication protocol • Created in 1987 in Germany • PROFIBUS & PROFINET International (PI) • More than 31 million devices (by the end of 2009) • Over 1,400 members (2010) Confidential

  6. Certificate • Awarded a certificate by PI. • In officially authorized PI test laboratories • Interoperability with devices from other manufacturers Confidential

  7. Industrial Communication Confidential

  8. OSI vs PROFIBUS Standard Confidential

  9. Physical Transmission Technology Confidential

  10. Fieldbus Data Link (FDL) • Master / Slave Network • Token Passing • An assigned master periodically requests each slave on the network. • Read / Write data from / to slaves cyclically. • Each slave device is assigned to one master. Active Stations PLC PC PROFIBUS Passive Stations (Field Devices) Confidential

  11. DP Functions • All versions of DP are independent Confidential

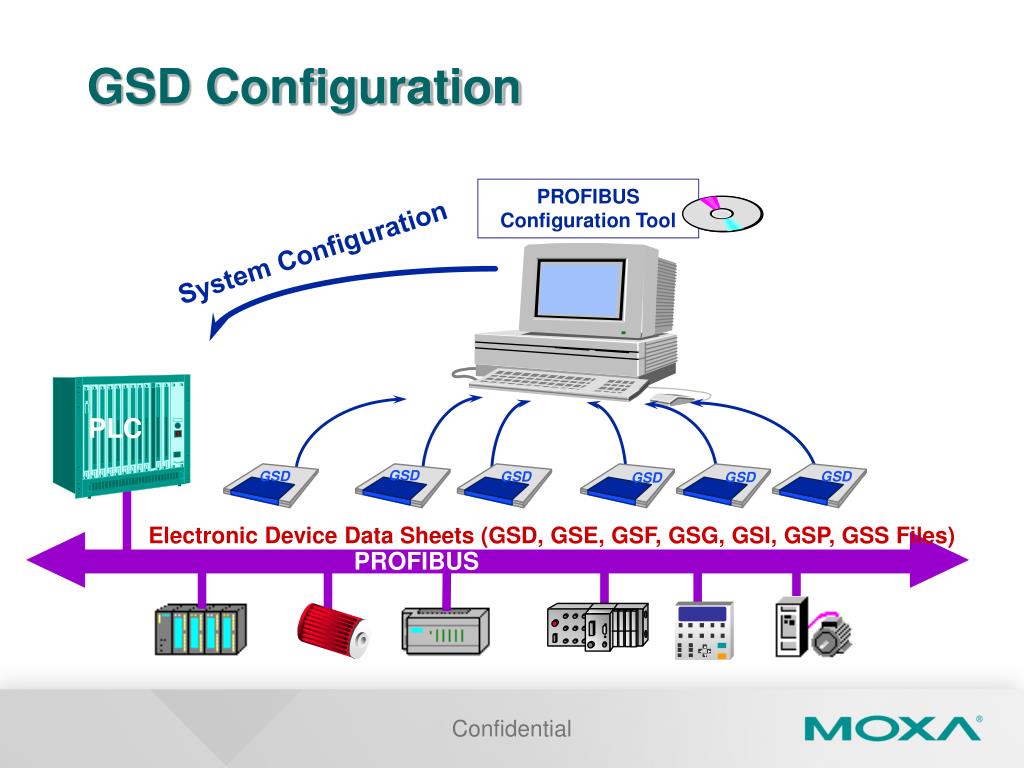

  12. PROFIBUS Configuration Tool GSD GSD GSD GSD GSD GSD GSD Configuration System Configuration PLC Electronic Device Data Sheets (GSD, GSE, GSF, GSG, GSI, GSP, GSS Files) PROFIBUS Confidential

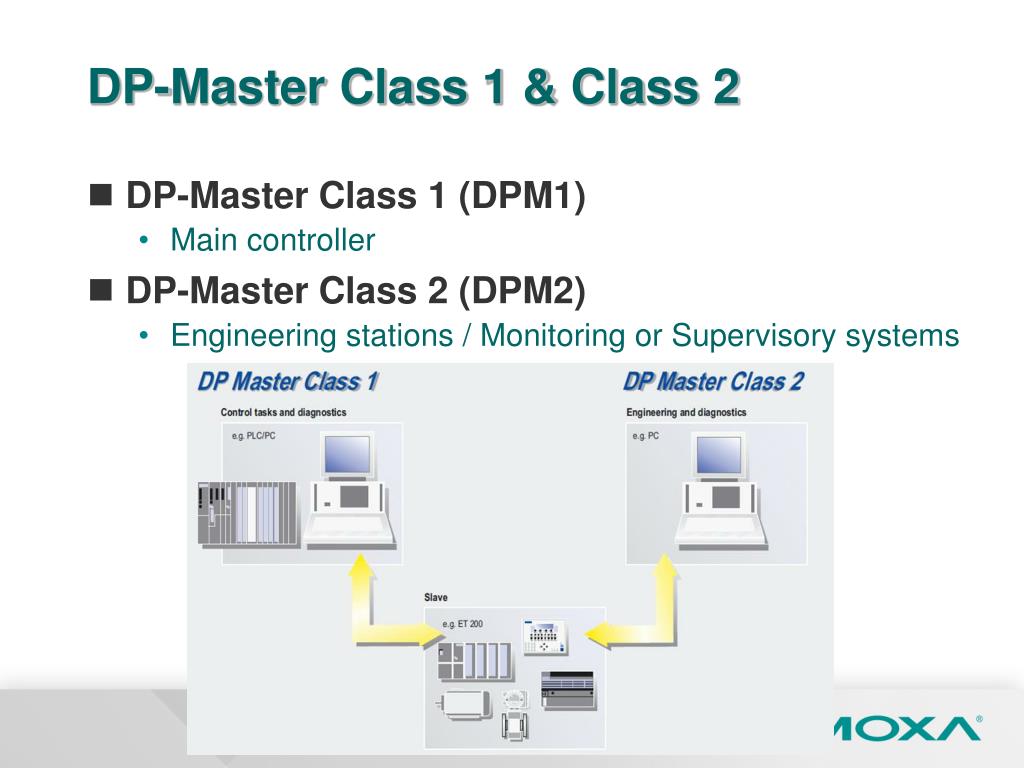

  13. DP-Master Class 1 & Class 2 • DP-Master Class 1 (DPM1) • Main controller • DP-Master Class 2 (DPM2) • Engineering stations / Monitoring or Supervisory systems Confidential

  14. Application Profiles • For specified applications that defines: • DP Functions • Transmission Technology Confidential

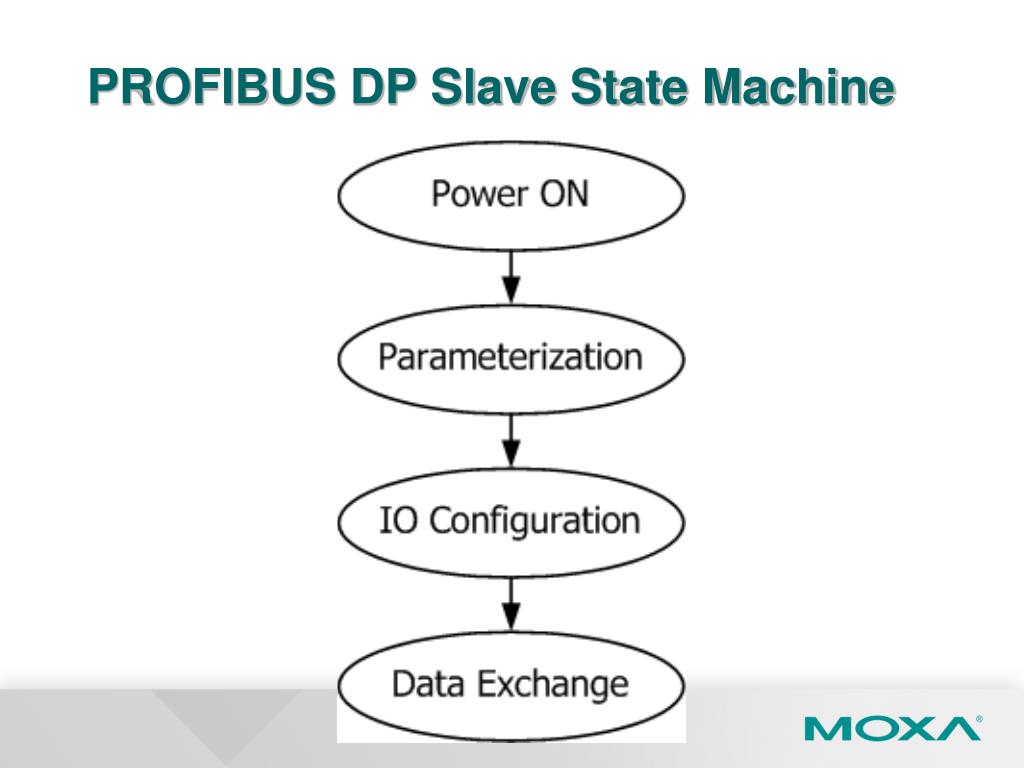

  15. PROFIBUS DP Slave State Machine Confidential

  16. PROFIBUS DP Master State Machine Confidential

  17. You should Remember • Efficient, real-time communication system • Fieldbus Data Link (FDL) • Master / Slave network • Token Passing • GSD configuration file • Application Profiles • PROFIBUS DP • PROFIBUS PA Confidential

  18. MGate 5101-PBM-MN Confidential

  19. Training Essentials • Modbus / MGate Manager • 2007 MTSC Training: MGate MB3000 • Modbus Troubleshooting / MGate 4101-MB-PBS • 2012 MTSC Training: MGate 4101-MB-PBS Confidential

  20. MGate 5101-PBM-MN • MGate 5101 Introduction • MOXA Solutions • Product View • MGate 5101 specifications • Product Function Block • Configuring MGate 5101 • Network Topology for Configuration • Operate MGate Manager • Configure MGate 5101 • Configuring MGate 4101 • Troubleshooting • MGate Manager – Diagnose • Web Console – I/O Data View

  21. Industrial Fieldbus Gateway – MGate 4101-MB-PBS Industrial Fieldbus Gateway MGate 4101-MB-PBS Remote Center / Control Room PROFIBUS Master Station Modbus Slave Confidential

  22. Industrial Ethernet Gateway– MGate 5101-PBM-MN Remote Center / Control Room Modbus Master Industrial Ethernet Gateway MGate 5101-PBM-MN Station PROFIBUS Slave Confidential

  23. MGate 5101-PBM-MN Product View • Power Input Terminal Block • Dual Power input • Relay • LED Indicators • RJ45 Ethernet Port • Modbus TCP • DIN-Rail Mounting Kit • RS-232 Console • PROFIBUS DB9 Female

  24. MGate 5101-PBM-MN Spec

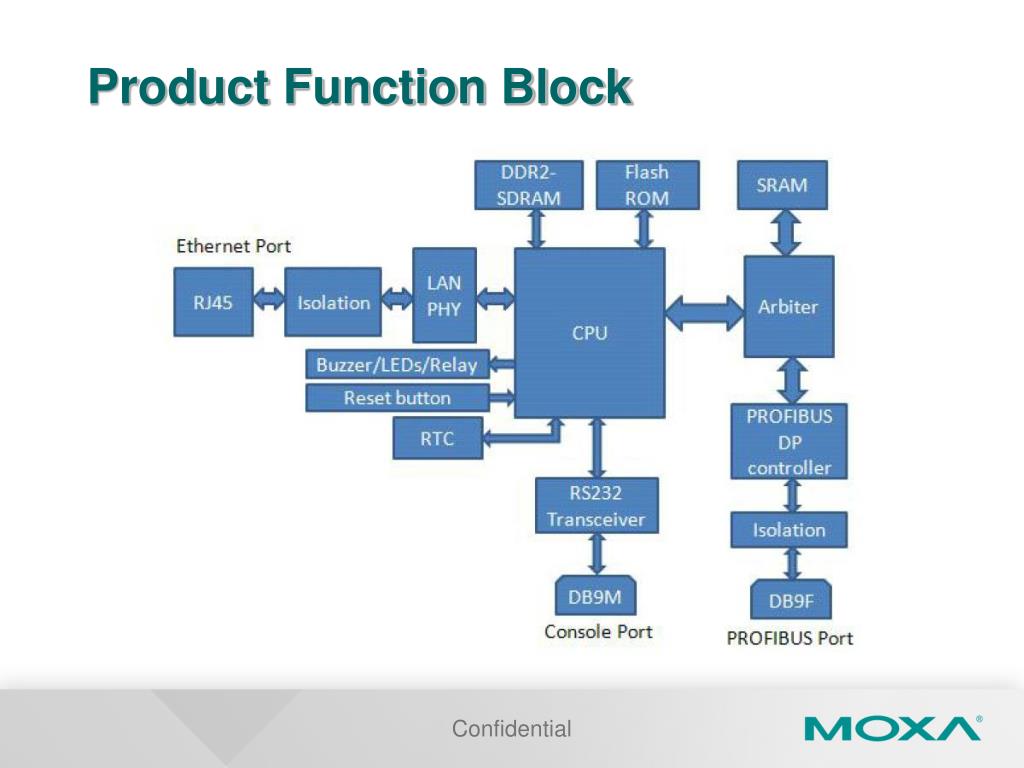

  25. Product Function Block Confidential

  26. Configuring MGate 5101-PBM-MN Confidential

  27. Configuring MGate 5101-PBM-MN Network Topology for Configuration Operate MGate Manager Configure MGate 5101 Confidential

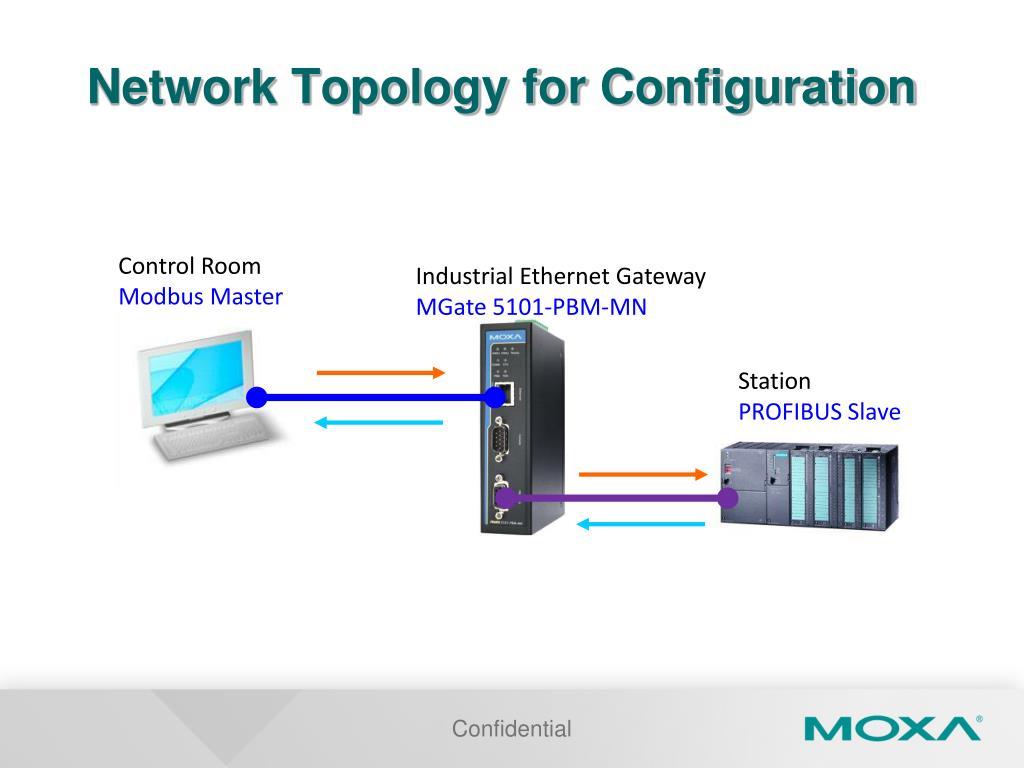

  28. Network Topology for Configuration Control Room Modbus Master Industrial Ethernet Gateway MGate 5101-PBM-MN Station PROFIBUS Slave Confidential

  29. Operate MGate Manager • Support MGate 5101-PBM-MN from V1.6 MGate 5101 New Functions Confidential

  30. GSD Management 1. Confidential 2.

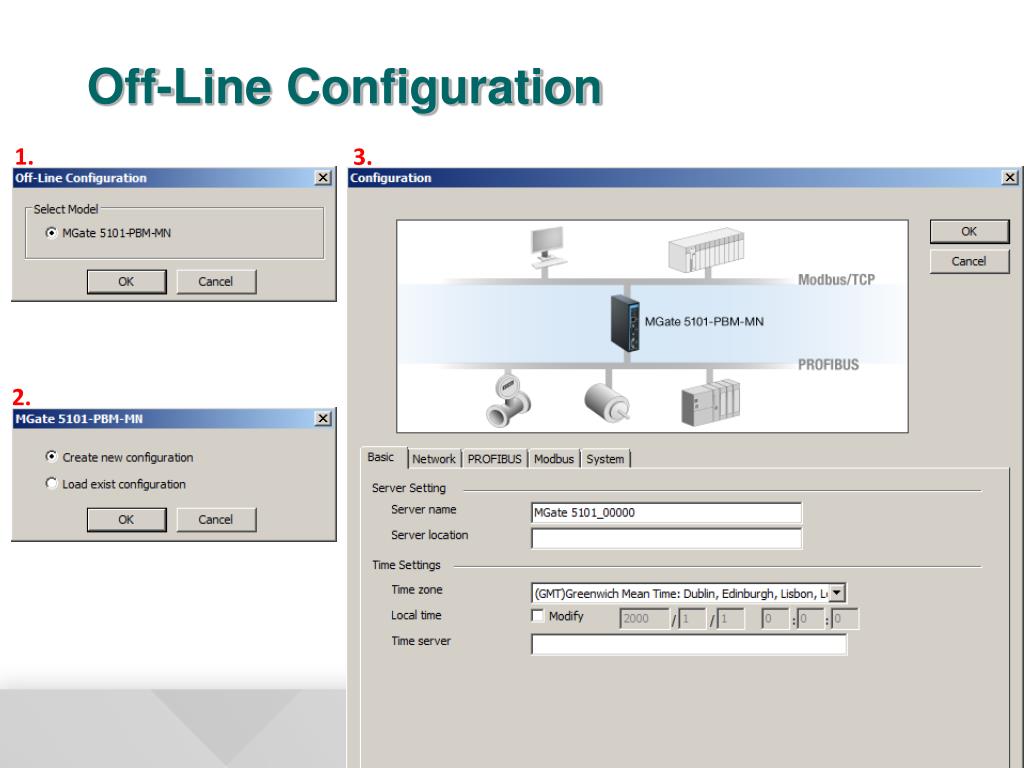

  31. Off-Line Configuration 1. 3. 2. Confidential

  32. Configuring MGate 5101-PBM-MN Confidential

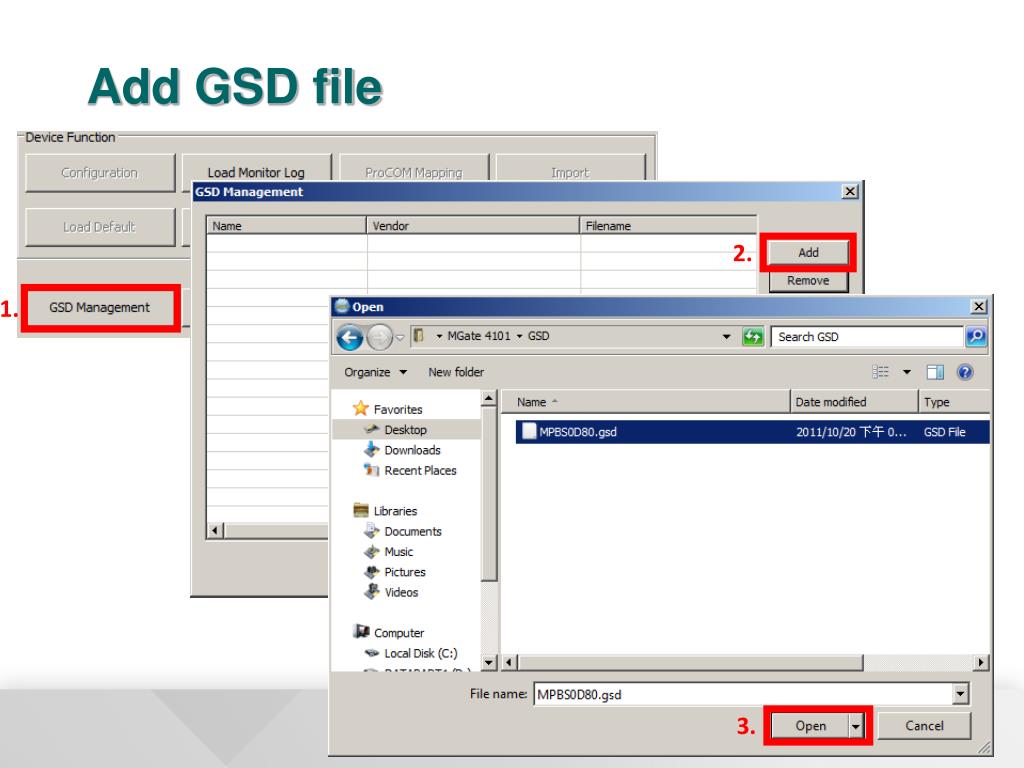

  33. Add GSD file 2. 1. 3. Confidential

  34. Basic Settings Confidential

  35. For PROFIBUS Settings Confidential

  36. PROFIBUS Settings Confidential

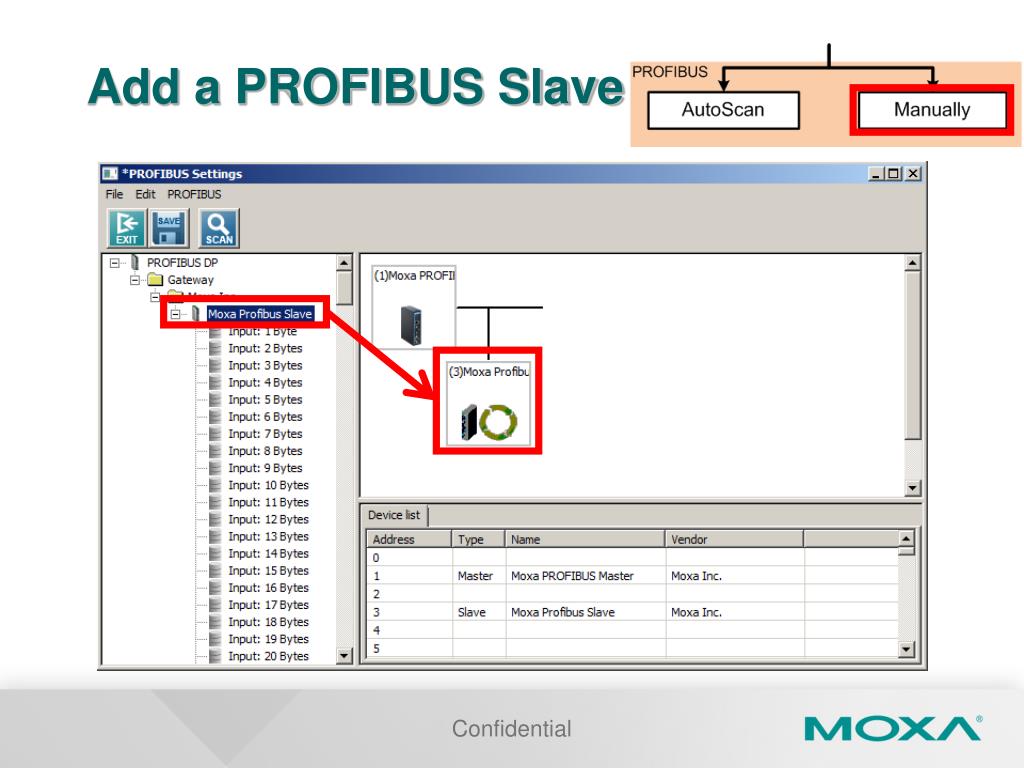

  37. Add a PROFIBUS Slave Confidential

  38. Add I/O Modules 1. 2. Confidential

  39. Drag I/O Modules 4. 3. Confidential

  40. AutoScan Confidential

  41. Modbus Settings Confidential

  42. Configuring MGate 4101-MB-PBS Confidential

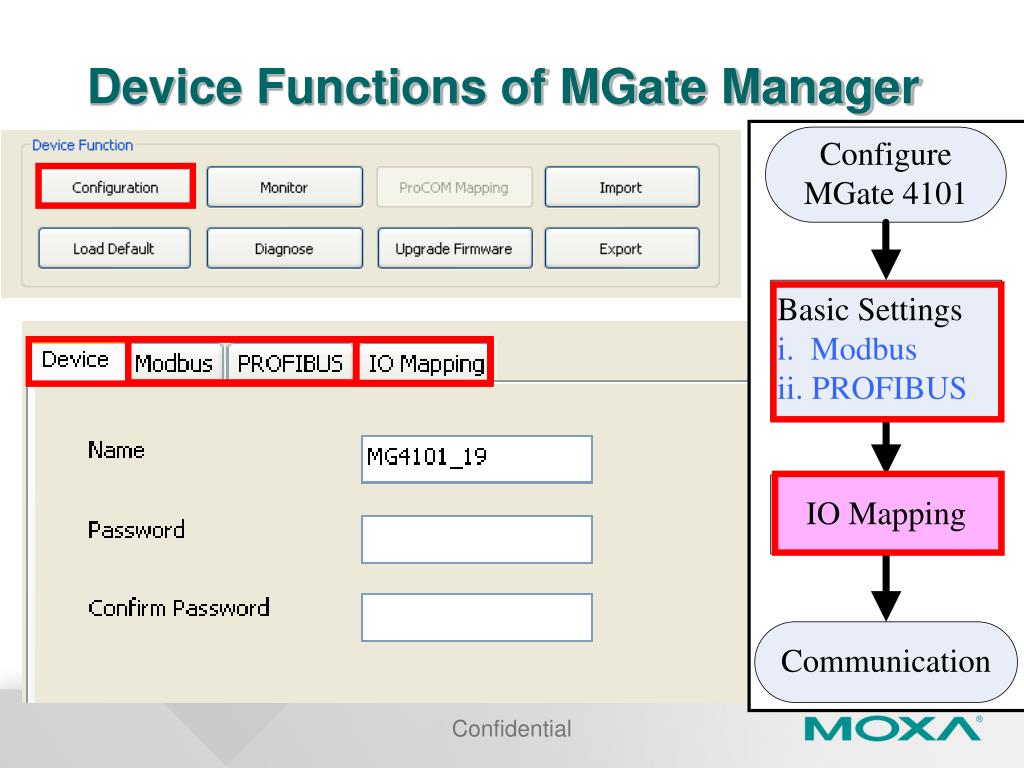

  43. Device Functions of MGate Manager Confidential

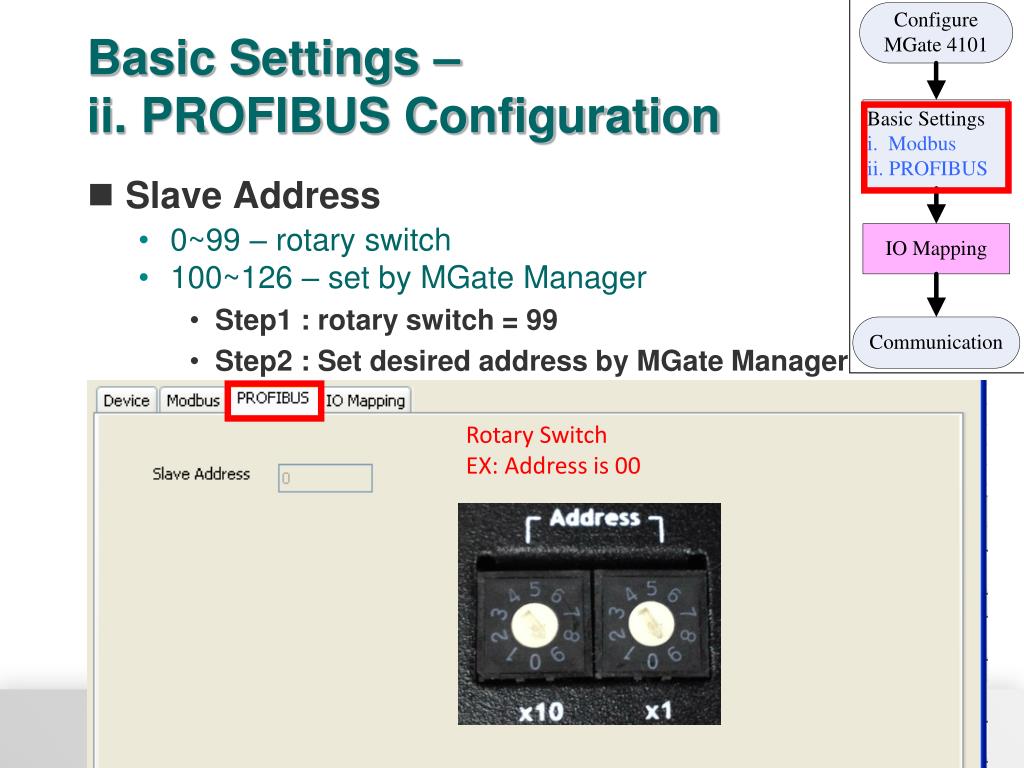

  44. Basic Settings – ii. PROFIBUS Configuration • Slave Address • 0~99 – rotary switch • 100~126 – set by MGate Manager • Step1 : rotary switch = 99 • Step2 : Set desired address by MGate Manager Rotary Switch EX: Address is 00 Confidential

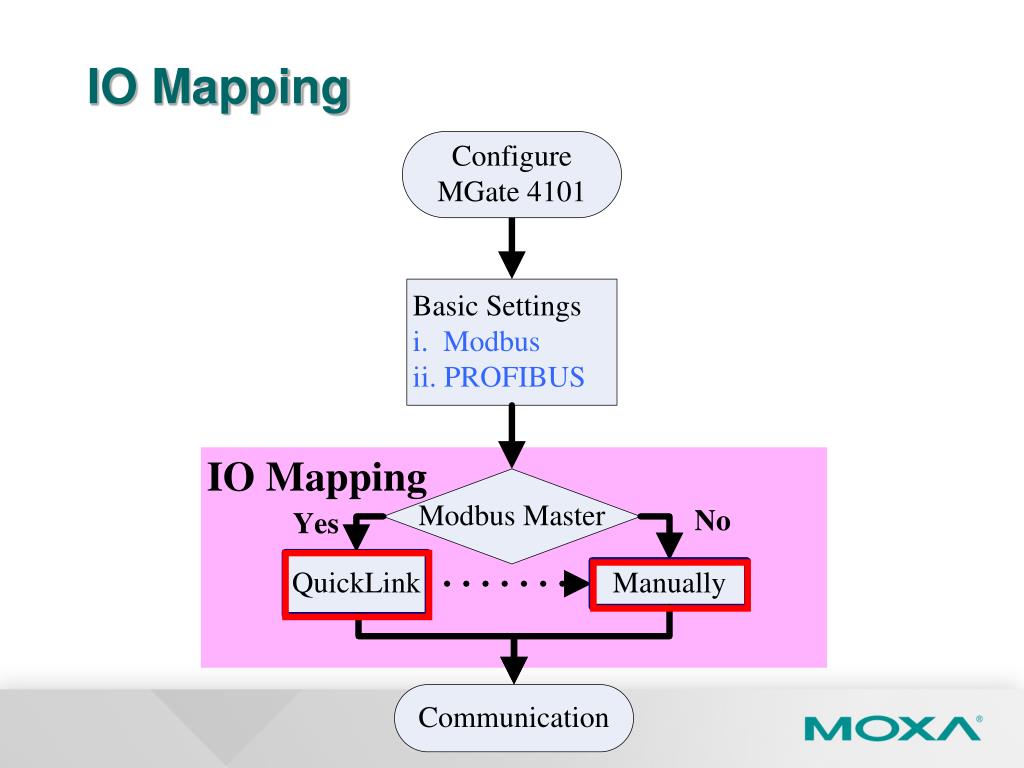

  45. IO Mapping Confidential

  46. Two way to IO mapping • Manually • QuickLink Modbus Slave: Manually Modbus Master: QuickLink Confidential

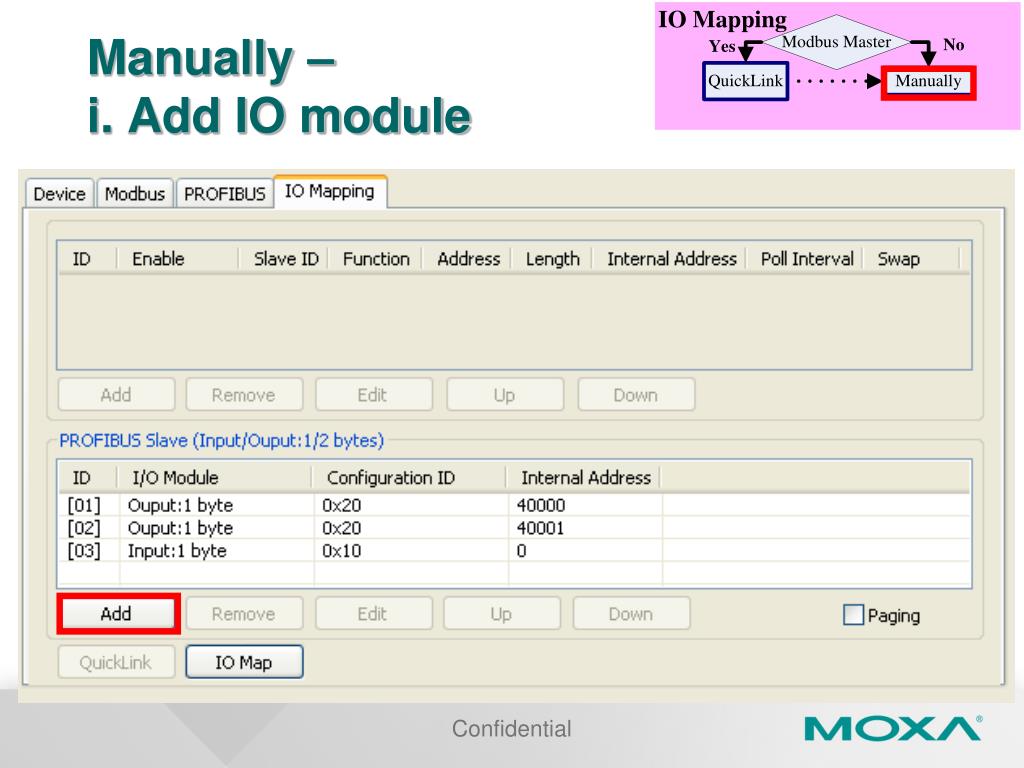

  47. Manually – i. Add IO module Confidential

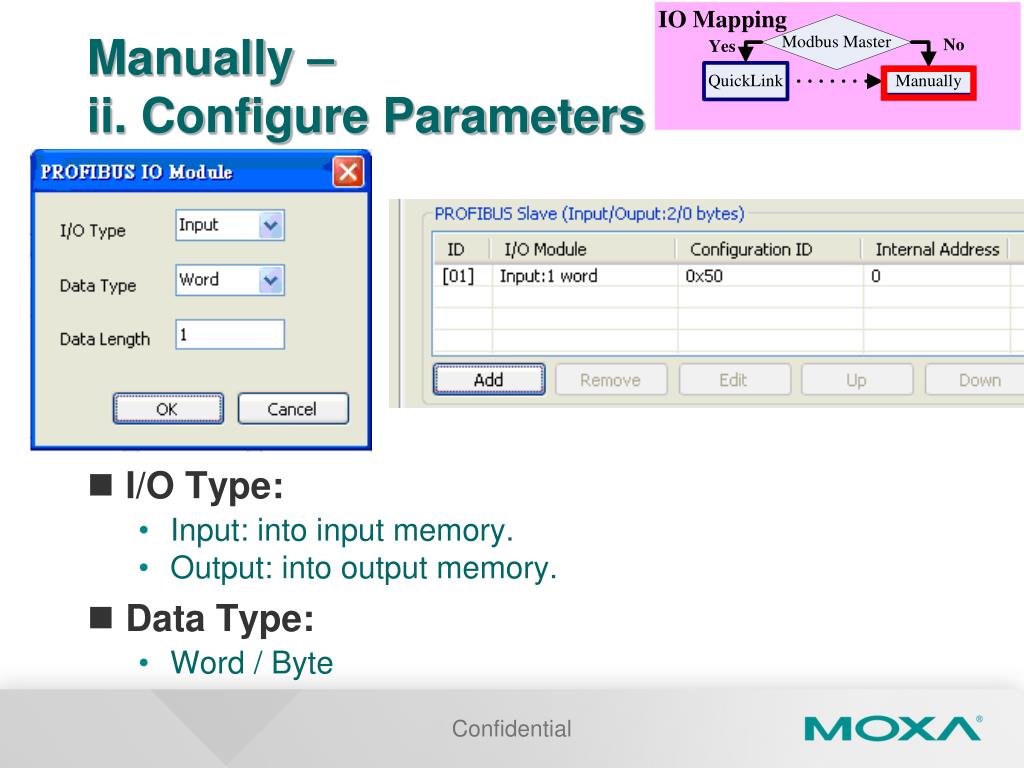

  48. Manually – ii. Configure Parameters • I/O Type: • Input: into input memory. • Output: into output memory. • Data Type: • Word / Byte Confidential

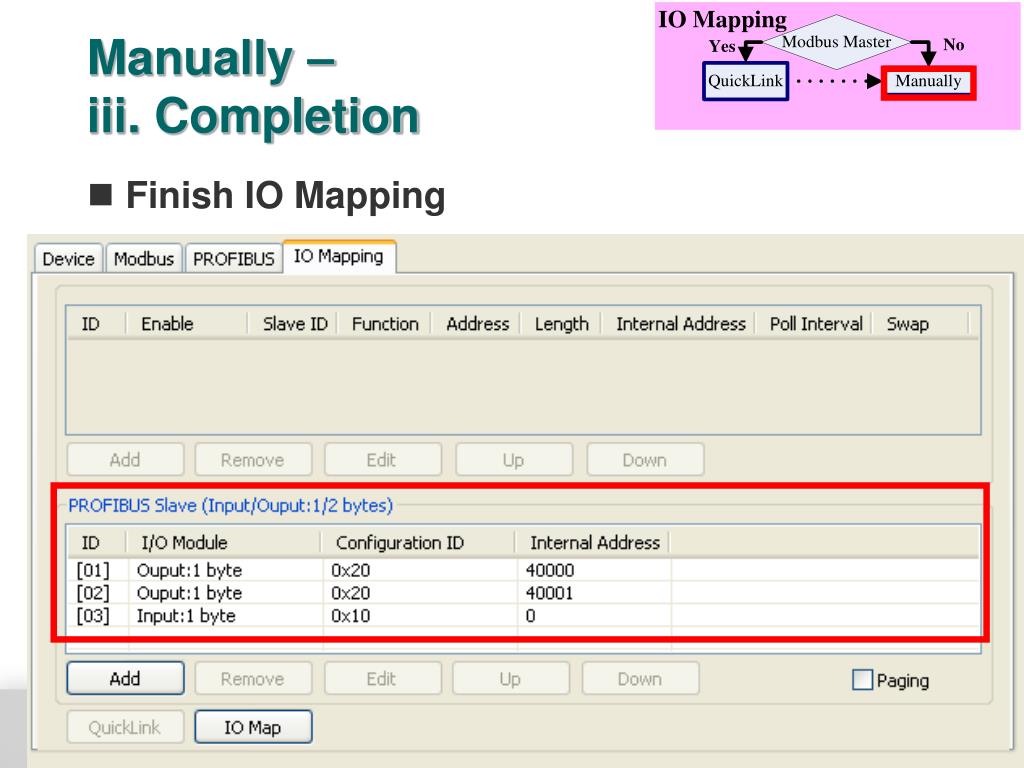

  49. Manually – iii. Completion • Finish IO Mapping Confidential

  50. Troubleshooting Confidential
