  1. Make my desktop app great with touch, mouse, and pen Nick Waggoner Senior Program Manager 4-022

  2. Demo: Photo annotation

  3. Agenda • Input and hit-testing • Windows touch language • Panning and zooming • Pen and ink

  4. Where we are today • Deep and mature • Diverse ecosystem • Primarily mouse and keyboard

  5. PC Form Factorshave evolved.

  6. Key platform APIs Desktop Applications Win32 apps Input and Interaction Rendering and composition Input and interaction DirectManipulation DirectComposition DirectManipulation Remainder of Win32 InteractionContext Direct2D, DirectWrite Realtime Stylus Ink Recognition Dynamic DPI InteractionContext Realtime stylus Ink recognition WM_POINTER Family Direct3D WM_Pointer family Windows kernel services

  7. Input and hit-testing

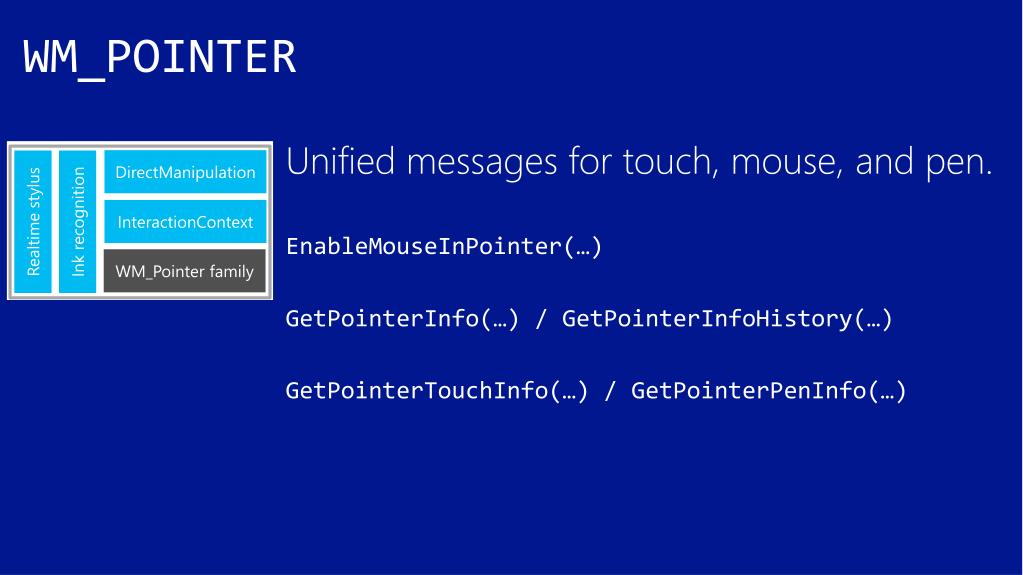

  8. WM_POINTER • Unified messages for touch, mouse, and pen. • EnableMouseInPointer(…) • GetPointerInfo(…) / GetPointerInfoHistory(…) • GetPointerTouchInfo(…) / GetPointerPenInfo(…) DirectManipulation InteractionContext Realtime stylus Ink recognition WM_Pointer family

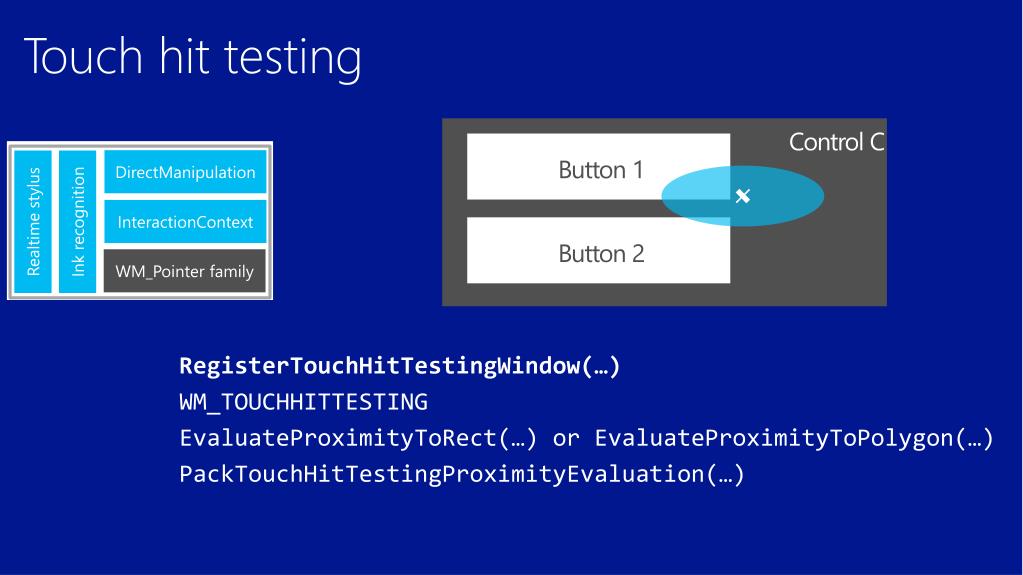

  9. Touch hit testing Control C Button 1 • RegisterTouchHitTestingWindow(…) • WM_TOUCHHITTESTING • EvaluateProximityToRect(…) or EvaluateProximityToPolygon(…) • PackTouchHitTestingProximityEvaluation(…) Button 2 DirectManipulation InteractionContext Realtime stylus Ink recognition WM_Pointer family

  10. Demo: Moving to WM_POINTER & WM_TOUCHHITTESTING

  11. Windows touch language

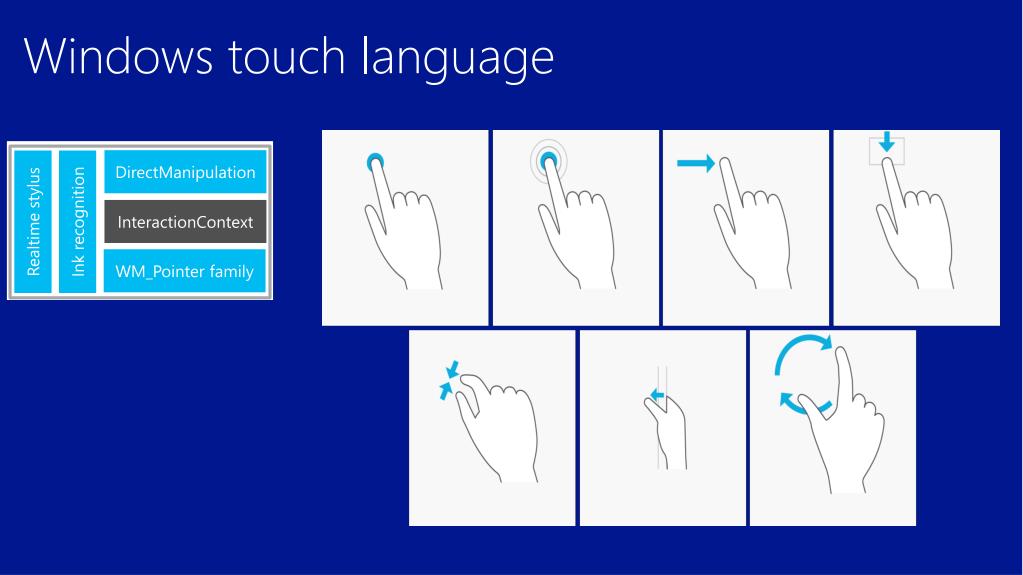

  12. Windows touch language DirectManipulation InteractionContext Realtime stylus Ink recognition WM_Pointer family

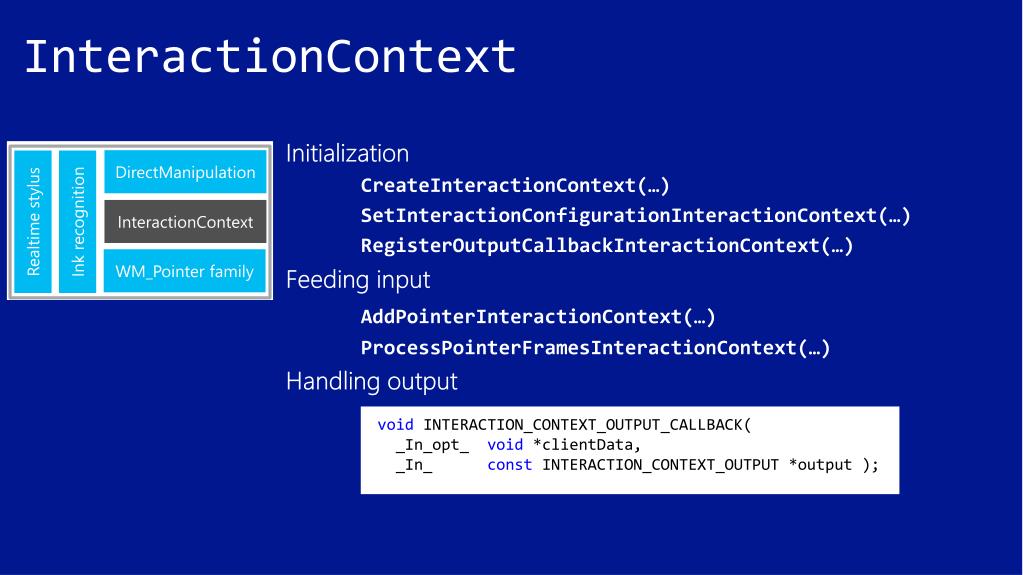

  13. InteractionContext • Initialization • CreateInteractionContext(…) • SetInteractionConfigurationInteractionContext(…) • RegisterOutputCallbackInteractionContext(…) • Feeding input • AddPointerInteractionContext(…) • ProcessPointerFramesInteractionContext(…) • Handling output DirectManipulation InteractionContext Realtime stylus Ink recognition WM_Pointer family voidINTERACTION_CONTEXT_OUTPUT_CALLBACK( _In_opt_  void *clientData, _In_      const INTERACTION_CONTEXT_OUTPUT *output );

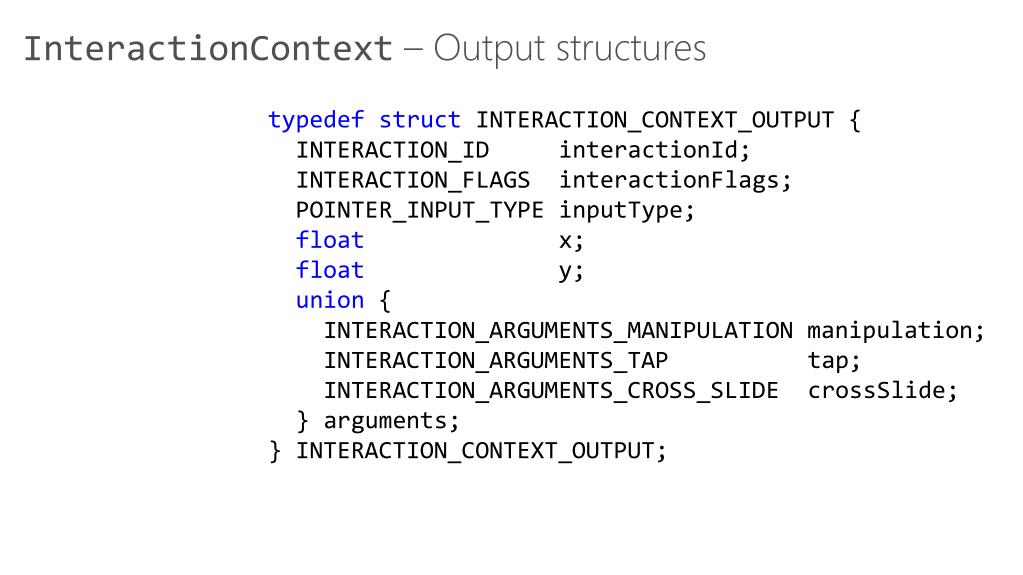

  14. InteractionContext – Output structures typedefstruct INTERACTION_CONTEXT_OUTPUT { INTERACTION_ID     interactionId; INTERACTION_FLAGS  interactionFlags; POINTER_INPUT_TYPE inputType; float              x; float              y; union { INTERACTION_ARGUMENTS_MANIPULATION manipulation; INTERACTION_ARGUMENTS_TAP          tap; INTERACTION_ARGUMENTS_CROSS_SLIDE  crossSlide; } arguments; } INTERACTION_CONTEXT_OUTPUT;

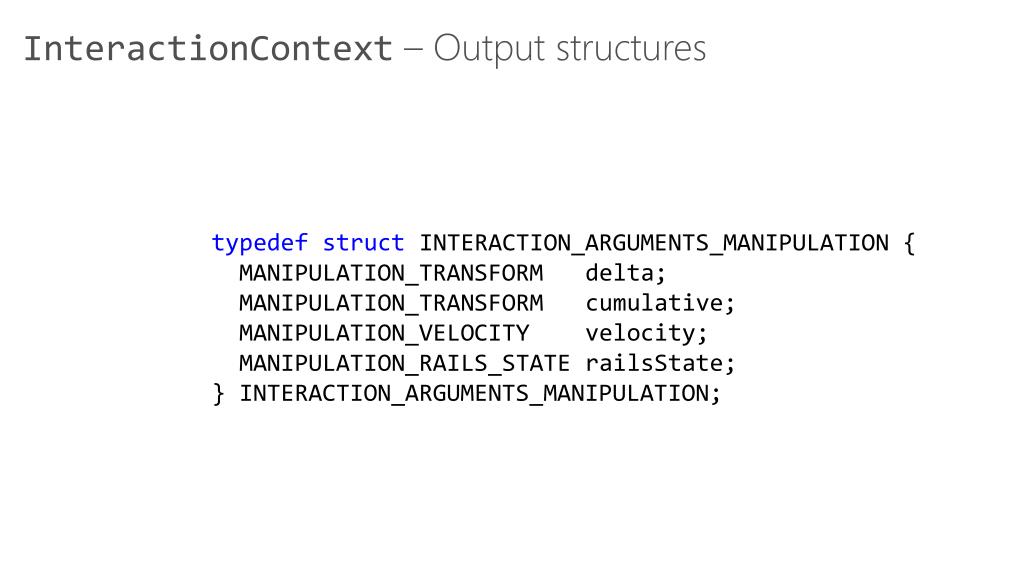

  15. InteractionContext – Output structures typedefstruct INTERACTION_ARGUMENTS_MANIPULATION { MANIPULATION_TRANSFORM   delta; MANIPULATION_TRANSFORM   cumulative; MANIPULATION_VELOCITY    velocity; MANIPULATION_RAILS_STATE railsState; } INTERACTION_ARGUMENTS_MANIPULATION;

  16. Demo: Integrating the touch language

  17. Panning and zooming

  18. DirectManipulation • Drives panning and zooming in the system • Slide and pinch • Encapsulates the personality • Inertia • Bounce effects • Snap-points DirectManipulation InteractionContext Realtime stylus Ink recognition WM_Pointer family

  19. DirectManipulation • Pre-declare your behaviors/interactions DirectManipulation InteractionContext Realtime stylus Ink recognition WM_Pointer family Harness the power of Windows with DirectComposition

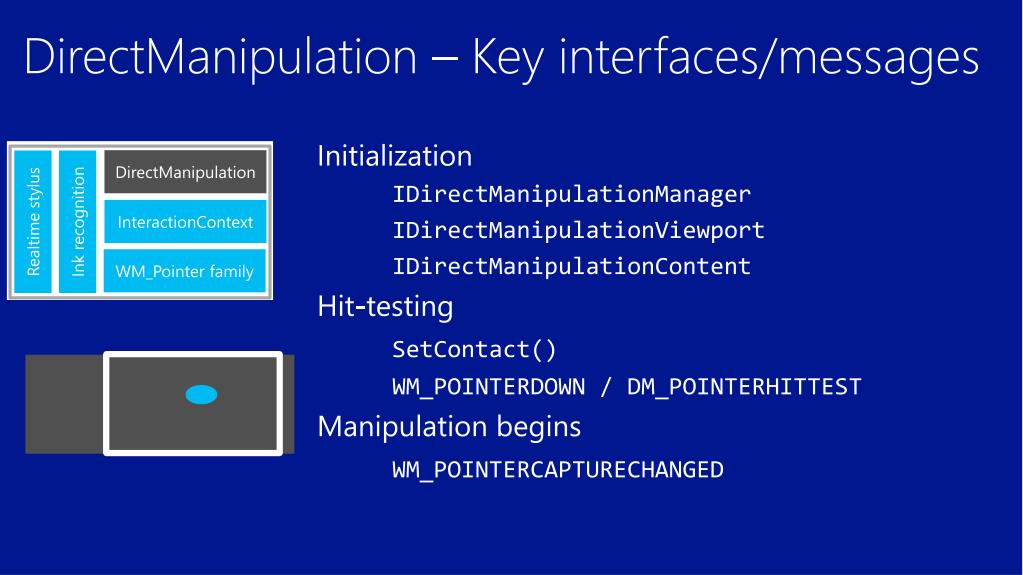

  20. DirectManipulation – Key interfaces/messages • Initialization • IDirectManipulationManager • IDirectManipulationViewport • IDirectManipulationContent • Hit-testing • SetContact() • WM_POINTERDOWN / DM_POINTERHITTEST • Manipulation begins • WM_POINTERCAPTURECHANGED DirectManipulation InteractionContext Realtime stylus Ink recognition WM_Pointer family

  21. Adding panning and zooming

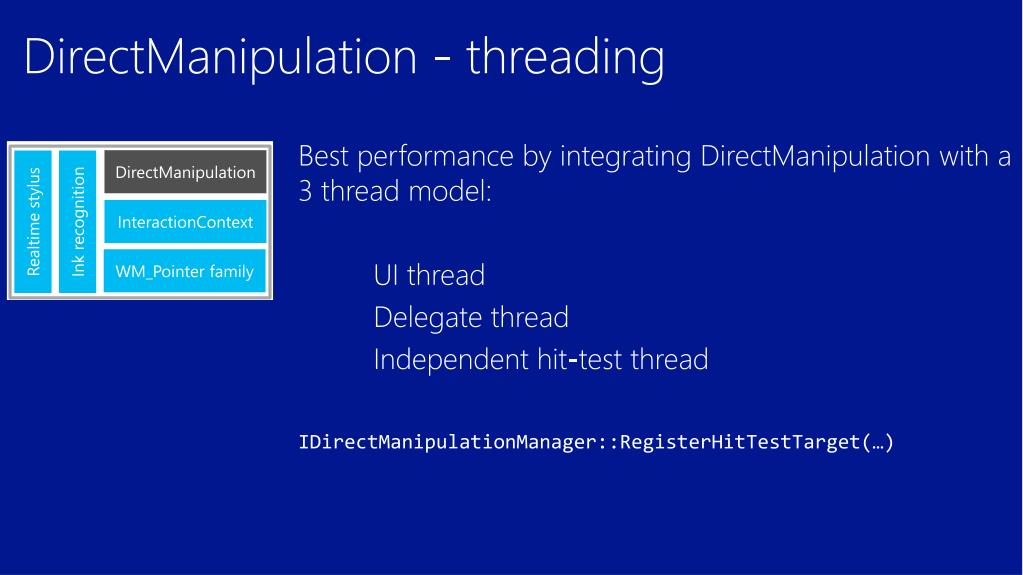

  22. DirectManipulation - threading • Best performance by integrating DirectManipulation with a 3 thread model: • UI thread • Delegate thread • Independent hit-test thread • IDirectManipulationManager::RegisterHitTestTarget(…) DirectManipulation InteractionContext Realtime stylus Ink recognition WM_Pointer family

  23. Pen and ink

  24. RealTimeStylus • Independent of the UI thread • Handwriting recognition DirectManipulation InteractionContext Realtime stylus Ink recognition WM_Pointer family

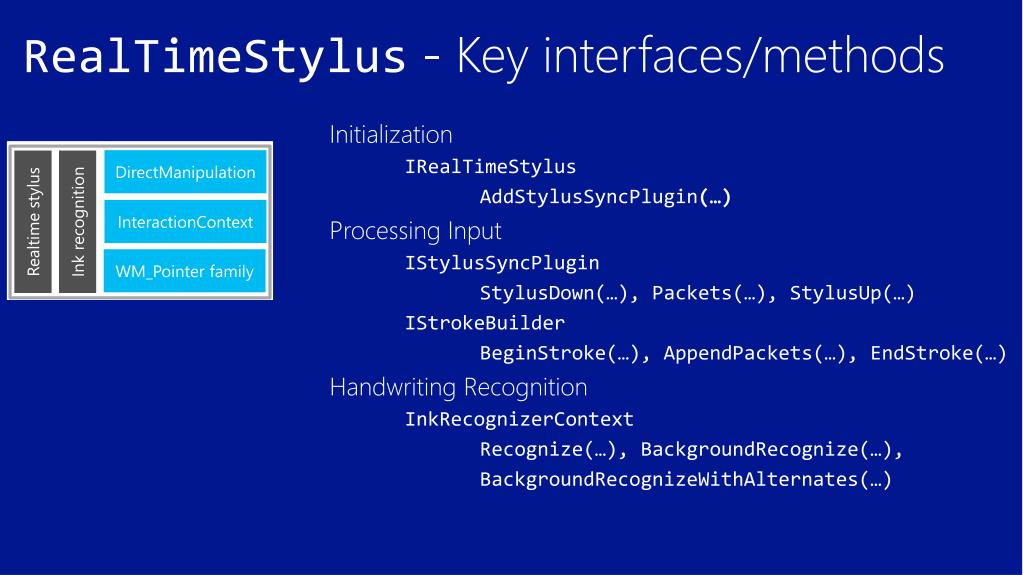

  25. RealTimeStylus- Key interfaces/methods • Initialization • IRealTimeStylus • AddStylusSyncPlugin(…) • Processing Input • IStylusSyncPlugin • StylusDown(…), Packets(…), StylusUp(…) • IStrokeBuilder • BeginStroke(…), AppendPackets(…), EndStroke(…) • Handwriting Recognition • InkRecognizerContext • Recognize(…), BackgroundRecognize(…), • BackgroundRecognizeWithAlternates(…) DirectManipulation InteractionContext Realtime stylus Ink recognition WM_Pointer family

  26. RealTimeStylus- Key interfaces/methods IRealTimeStylus DirectManipulation IStylusSyncPlugin InteractionContext Realtime stylus Ink recognition IStrokeBuilder InkRecognizerContext WM_Pointer family

  27. Adding ink and recognition

  28. Performance is critical for both inking as well as panning and zooming experiences.

  29. Recap

  30. Takeaways • Use WM_POINTER for touch, mouse, and pen. • Use the InteractionContext to incorporate the Windows touch language into your app. • Use DirectManipulation for great panning and zooming. • Differentiate your app by making ink pop with the RealTimeStylus APIs. DirectManipulation InteractionContext Realtime stylus Ink recognition WM_Pointer family

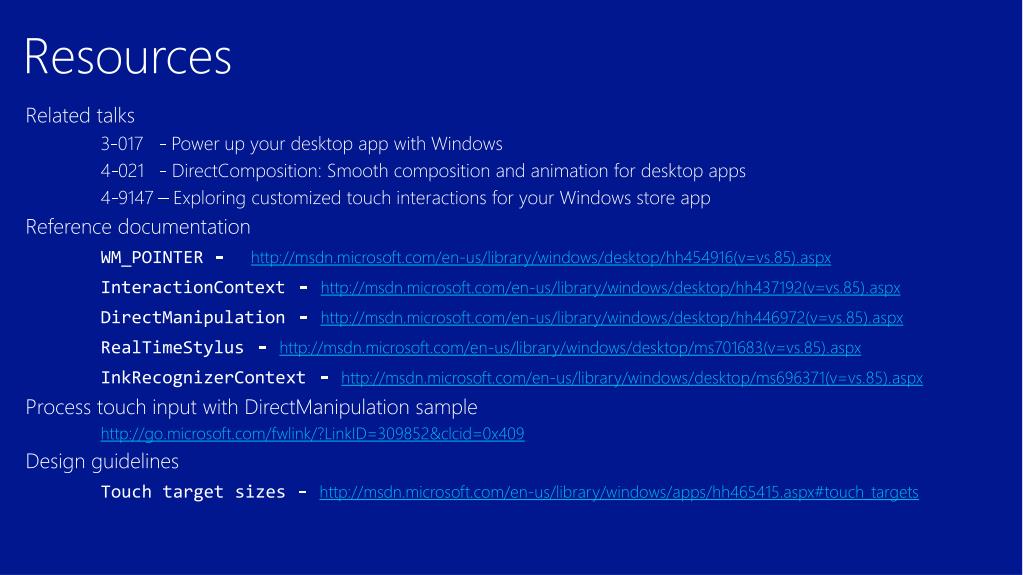

  31. Resources • Related talks • 3-017 - Power up your desktop app with Windows • 4-021 - DirectComposition: Smooth composition and animation for desktop apps • 4-9147 – Exploring customized touch interactions for your Windows store app • Reference documentation • WM_POINTER - http://msdn.microsoft.com/en-us/library/windows/desktop/hh454916(v=vs.85).aspx • InteractionContext - http://msdn.microsoft.com/en-us/library/windows/desktop/hh437192(v=vs.85).aspx • DirectManipulation - http://msdn.microsoft.com/en-us/library/windows/desktop/hh446972(v=vs.85).aspx • RealTimeStylus - http://msdn.microsoft.com/en-us/library/windows/desktop/ms701683(v=vs.85).aspx • InkRecognizerContext - http://msdn.microsoft.com/en-us/library/windows/desktop/ms696371(v=vs.85).aspx • Process touch input with DirectManipulation sample • http://go.microsoft.com/fwlink/?LinkID=309852&clcid=0x409 • Design guidelines • Touch target sizes - http://msdn.microsoft.com/en-us/library/windows/apps/hh465415.aspx#touch_targets
