  1. WOW! Look, Mommy! I see a cool Army aviator!

  2. Aerial Adjustment Of Artillery

  3. CWO BLUME Fire Support Instructor Bldg 5911, Rm 325 Ph#: 255-9712 DSN: 558-9712 HOME: 334-792-6882

  4. RULES OF ENGAGEMENT (ROE) • Food/Drink OK but keep the room & tables clean. • Clean off maps. • Break areas: Snacks, Latrines, Smoking • If you are sleepy, do pushups! • No Tobacco except on breaks • Cells off or silent mode! • Learn & Have fun!

  5. Coffee ROE 1. Unplug pot when it is nearly empty. 2. Use stir sticks to stir coffee (not spoons). 3. Spoon in creamer can and with sugar. No H1N1 zone.

  6. Terminal Learning Objectives • ACTION: Perform call for fire. • CONDITION: Given a classroom and a student handout. • STANDARD: 33 questions covering all material Must score 70% to achieve a GO; can miss up to 10. Failure will result in remedial training and retest. Maximum score on retest is 70%.

  7. References • FM 6-20-10 The Targeting Process • FM 6-20-20 Fire Support at BN TF and Below • FM 6-30 Observed Fire • FM 6-50 The Field Artillery Cannon Battery • FM 101-5-1 Operational Terms and Graphics • ST 6-50-20 Battery XO Leaders Handbook • AMC-P 700-3-3 Complete Round Chart of Artillery Ammunitions

  8. Administrative Notes SAFETY REQUIREMENTS: NONE RISK ASSESSMENT LEVEL: LOW ENVIRONMENTAL CONSIDERATIONS: NONE EXAM: 33 questions covering all material. Must score 70% to achieve a GO; can miss up to 10. Failure will result in remedial training and retest. Maximum score on retest is 70%.

  9. ENABLING LEARNING OBJECTIVE A ACTION: Select the six elements in a standard call for fire. CONDITION: Given a classroom and a student handout. STANDARD: 33 questions covering all material Must score 70% to achieve a GO; can miss up to 10. Failure will result in remedial training and retest. Maximum score on retest is 70%.

  10. Call for Fire “A1H16 de A1H34, AF, k” “Grid AC 634328, k” “Sniper, in a concrete high rise, Excaliber i/e, AMC, k” FM 6-30 pg 4-7

  11. CALL FOR FIRE • LANGUAGE OF THE ARTILLERY • STANDARD FORMAT • 6 ELEMENTS • 3 TRANSMISSIONS

  12. 1 = “1 round” Abbreviations • de = “this is” • K = “over” • i/e = “in effect” • i/o = “in the open” • i/a = “in adjustment”

  13. 2 CALL FOR FIRE FORMAT 1 I - OBSERVER IDENTIFICATION W - WARNING ORDER/METHOD OF TARGET LOCATION L - TARGET LOCATION D - TARGET DESCRIPTION M - METHOD OF ENGAGEMENT M - METHOD OF FIRE AND CONTROL 3

  14. I. Observer Identification • FDC Callsign is “B1S40” • Observer Callsign is “B1S30” • “B1S40 de B1S30” Use Phonetic Alphabet

  15. II. Warning Order • Type of Mission: • Adjust Fire • Fire For Effect • Suppress • Immediate Suppression • Immediate Smoke FM 6-30 pg 4-1/2

  16. Adjust Fire • “S40 de S30, AF, K” Fire for Effect • “S40 de S30, FFE, K”

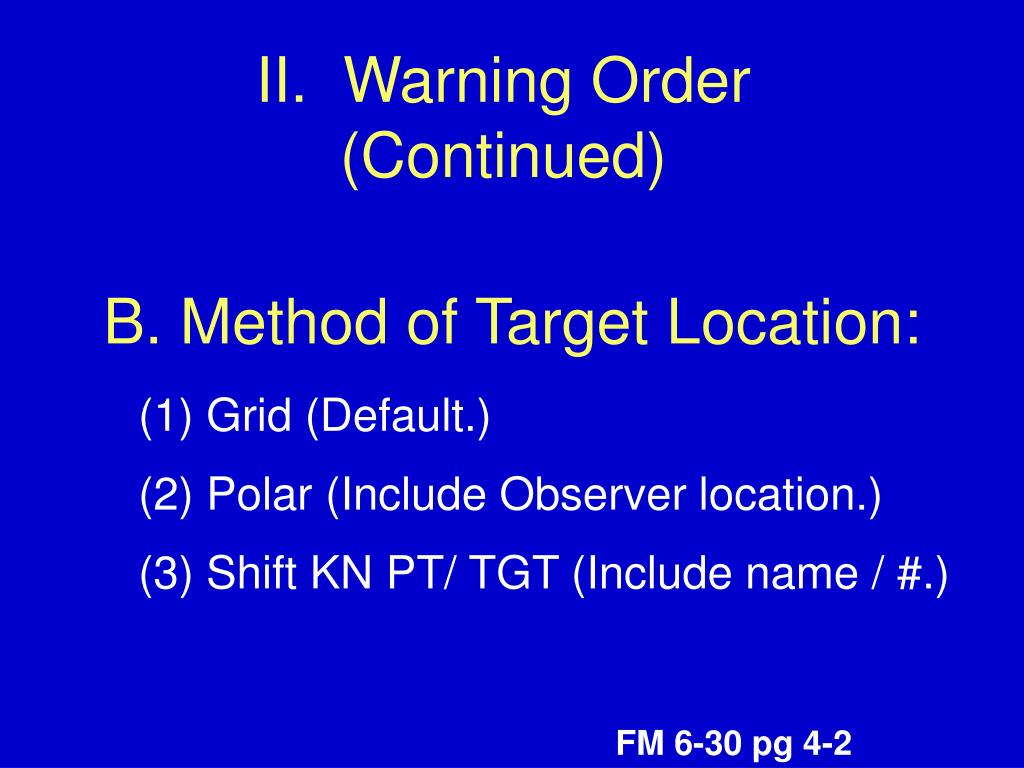

  17. B. Method of Target Location: II. Warning Order(Continued) (1) Grid (Default.) (2) Polar (Include Observer location.) (3) Shift KN PT/ TGT (Include name / #.) FM 6-30 pg 4-2

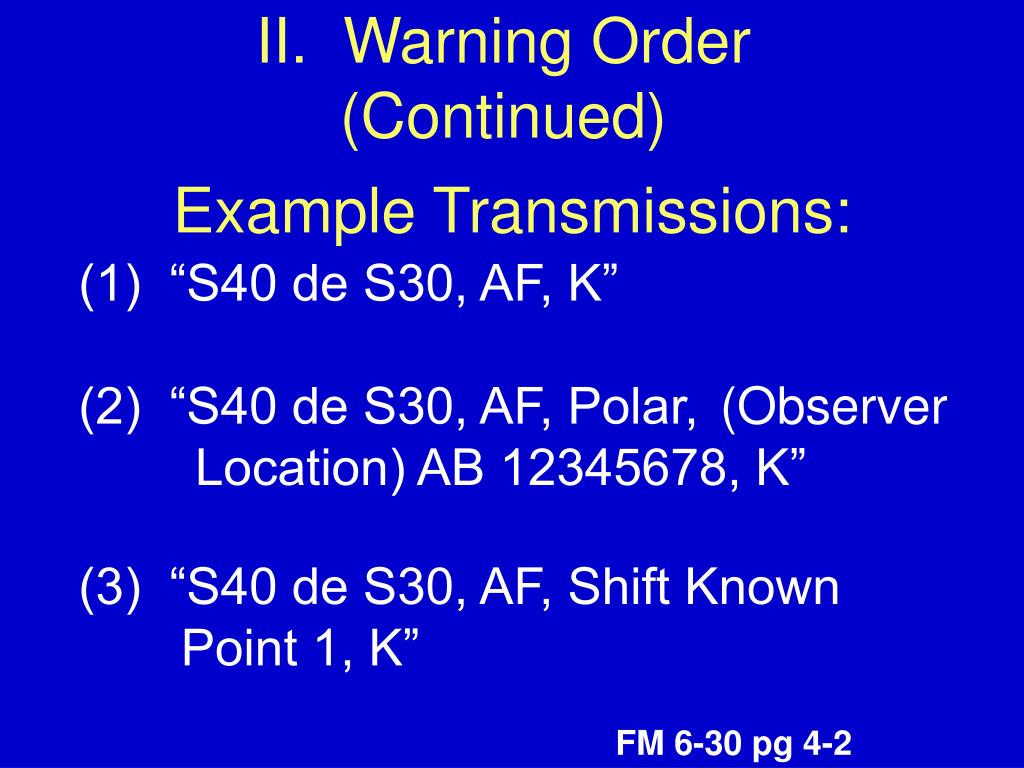

  18. II. Warning Order(Continued) Example Transmissions: (1) “S40 de S30, AF, K” (2) “S40 de S30, AF, Polar, (Observer Location) AB 12345678, K” (3) “S40 de S30, AF, Shift Known Point 1, K” FM 6-30 pg 4-2

  19. CALL FOR FIRE FORMAT • OBSERVER IDENTIFICATION • WARNING ORDER/METHOD OF TARGET LOCATION • TARGET LOCATION

  20. III. Target Location Grid: “Grid AB123456, K” Polar: “Dir 310°mag, Dis 3200m, K” Shift: “Dir 170°, L190, +400, D45, K” FM 6-30 pg 4-2

  21. CALL FOR FIRE FORMAT • OBSERVER IDENTIFICATION • WARNING ORDER/METHOD OF TARGET LOCATION • TARGET LOCATION • TARGET DESCRIPTION

  22. IV. Target Description • (Last Mandatory CFF Element) • Word picture of the target: • Type of Element • # of Elements • What is it doing • Degree of protection “Infantry Platoon, stationary, i/o, K” FM 6-30 pg 4-3

  23. IV. Target Description • (Last Mandatory CFF Element) “Infantry Platoon, stationary, i/o, K” “3 Tanks, Moving on road, i/o, K” FM 6-30 pg 4-3

  24. CALL FOR FIRE FORMAT • OBSERVER IDENTIFICATION • WARNING ORDER/METHOD OF TARGET LOCATION • TARGET LOCATION • TARGET DESCRIPTION • METHOD OF ENGAGEMENT

  25. DANGER CLOSE 600 meters for mortars and artillery 750 meters for 5” or smaller naval fire 1000 meters for greater than 5” less than 16” naval fire 2000 meters for 16” naval or MLRS fires MARK METHOD OF ENGAGEMENT • TRAJECTORY • Low Angle • High Angle • AMMUNITION • DISTRIBUTION • BCS Sheaf • Open • Converged • Linear

  26. V. Method of Engagement(Continued) • Trajectory: • (]) Low: Default. • (2) High: Once announced remains • in effectuntil cancelled. “T-62 behind hill, High Angle, K” FM 6-30 pg 4-4 / FM 3-09.30 pg 6-6

  27. Low Angle

  28. High Angle Fire FM 6-30 pg 7-3 / FM 3-09.30 pg 9-8

  29. V. Method of Engagement(Continued) e. Ammunition: (1) In adjustment/In effect projectile (HE) (2) In adjustment/In effect fuze (Q)(VT) (3) Volume of fire in the FFE (1) FM 6-30 pg 4-4 / FM 3-09.30 pg 6-6

  30. Ammunition Example Transmissions: “2 Mi-24s fueling i/o, WP, 3 rds i/e, K” “3 BMPs i/o, WP i/a, ICM i/e, K”

  31. V. Method of Engagement(Continued) Distribution DEFAULT BCS Sheaf: Computer Generated

  32. X = Aim Points BC Sheaf FM 6-30 pg 4-4 / FM 3-09.30 pg 6-6

  33. Open Sheaf FM 6-30 pg 4-4, pg 5-7 fig 5-8 / FM 3-09.30 pg 6-6

  34. Converged Sheaf FM 6-30 pg 5-7

  35. OR TWO END POINTS CENTER GRID ATTITUDE & LENGTH X = Aim Points Linear Sheaf FM 6-30 pg 4-4 / Square to FM 6-20-20 pg 1-27

  36. CALL FOR FIRE FORMAT 1 • OBSERVER IDENTIFICATION • WARNING ORDER/METHOD OF TARGET LOCATION • TARGET LOCATION • TARGET DESCRIPTION • METHOD OF ENGAGEMENT • METHOD OF FIRE AND CONTROL 2 3

  37. CANNOT OBSERVE TIME ON TARGET (TOT) CONTINUOUS ILLUMINATION COORDINATED ILLUMINATION CONTINUOUS FIRE CEASE LOADING CHECK FIRING METHOD OF FIRE AND CONTROL • AT MY COMMAND (AMC)

  38. VI. Method of Fire and Control • Cease Loading: • Routine. • Target destroyed before all rounds have been fired. • Gunline fires rounds in the howitzer and does not load anymore rounds.

  39. VI. Method of Fire and Control • Check Firing: • Big Deal! (-like calling MAYDAY!) • All units on the net stop firing immediately. • Gunbunnies immediately move away from howitzer, even if rounds are in the tube.

  40. REPEAT FOLLOWED BY WHEN READY (DEFAULT) METHOD OF FIRE AND CONTROL • AT MY COMMAND (AMC) • CANNOT OBSERVE • TIME ON TARGET (TOT) • CONTINUOUS ILLUMINATION • COORDINATED ILLUMINATION • CONTINUOUS FIRE • CEASE LOADING • CHECK FIRING

  41. Sample Grid Mission “H16 de H34, AF, k” “Grid AC 634328, k” “POL site i/o, WP i/e, AMC, k” FM 6-30 pg 4-7

  42. Sample Polar Plot Mission 1st Transmission: “H16 de H34, AF, polar, AA12345678, k” 2nd Transmission: “Dir 090° magnetic, Dis 3100, U40, k” 3rd Transmission: “Infantry squad in the prone, ICM i/e, k” FM 6-30 pg 4-8

  43. Sample Shift Mission “H16 de H34, AF, shift KN PT 1, k” “DIR 010° mag, L 320, + 400, U 60, k” “2 BMPs i/o, ICM i/e, k” FM 6-30 pg 4-5

  44. How many elements in a CFF? 6 How many transmissions and elements per transmission? 3 and 2, 1, & 1-3

  45. List the six elements. I, W, L, D, M,M What information is contained in each element? > I: ID > W: AF, FFE, Immediate Suppression, Immediate Smoke, Suppression Grid, Shift, Polar >L: Location to match method in Warning Order >D: Description. Incl #, size, activity, cover, etc >M: Method of engagement. Danger close, Marking > M: Method of Control. AMC, TOT, WR, Repeat, etc
