  1. CE 578 Highway Traffic Operations Lecture 12: Auxiliary Lane Sensitivity Analysis and Climbing Lane Warrant Michael Dixon

  2. Objectives • Understand significance of variables • Application of procedure for climbing lanes Michael Dixon

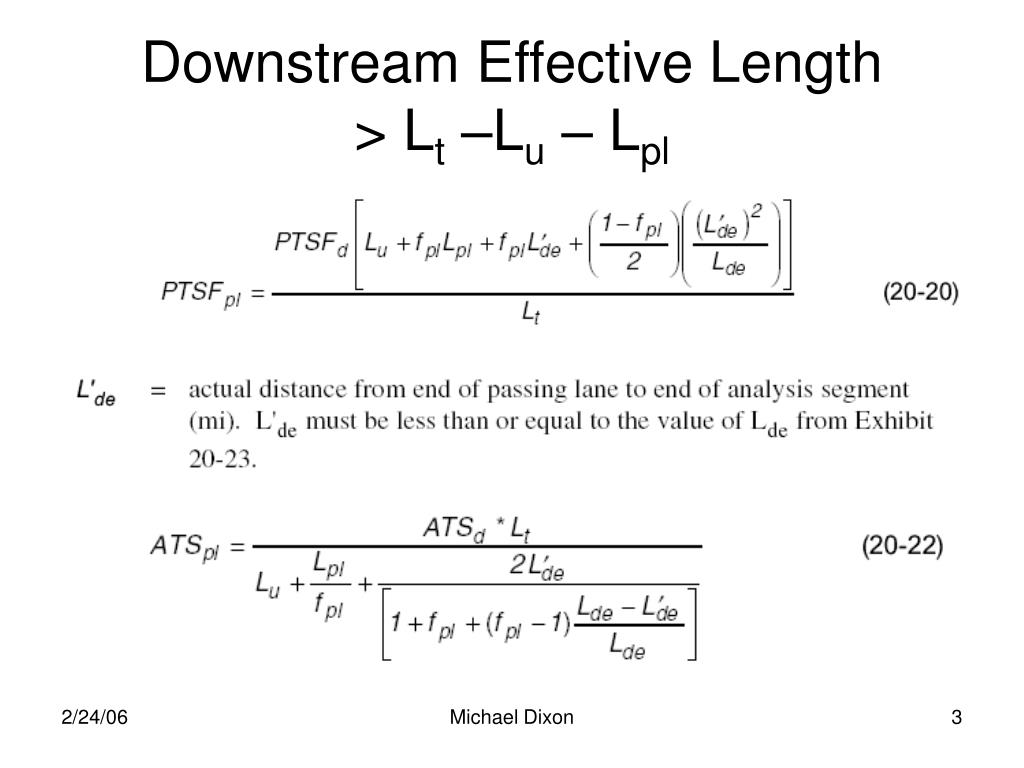

  3. Downstream Effective Length > Lt –Lu – Lpl Michael Dixon

  4. Sensitivity Analysis: Lt Michael Dixon

  5. Sensitivity Analysis: Lpl Michael Dixon

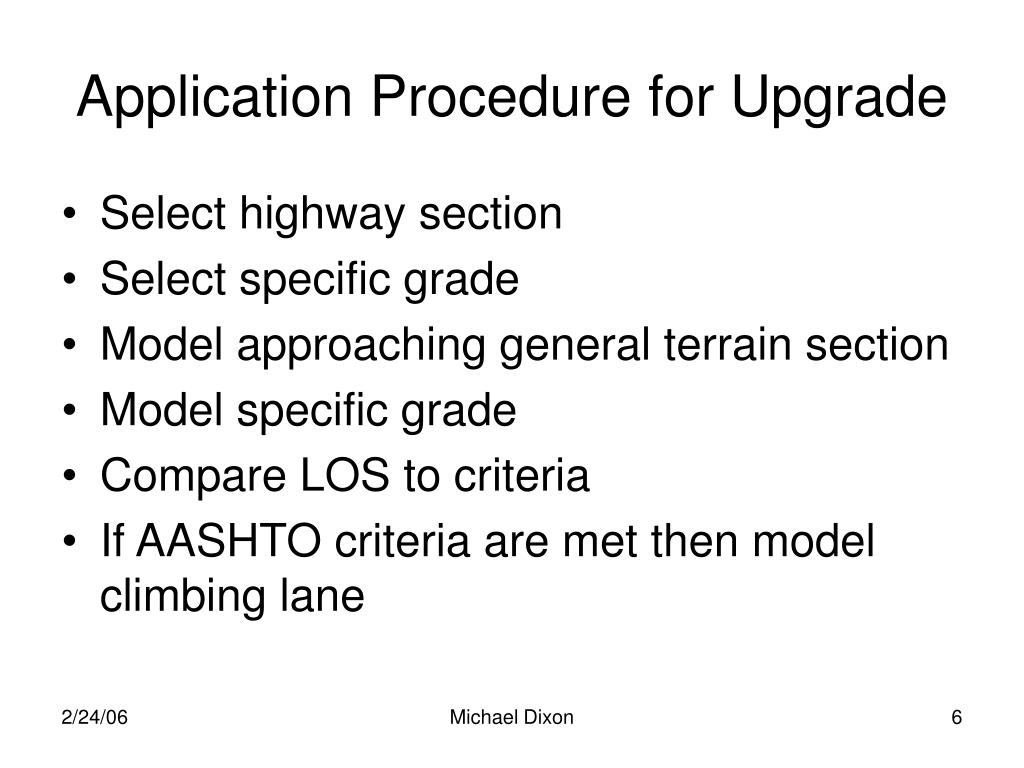

  6. Application Procedure for Upgrade • Select highway section • Select specific grade • Model approaching general terrain section • Model specific grade • Compare LOS to criteria • If AASHTO criteria are met then model climbing lane Michael Dixon

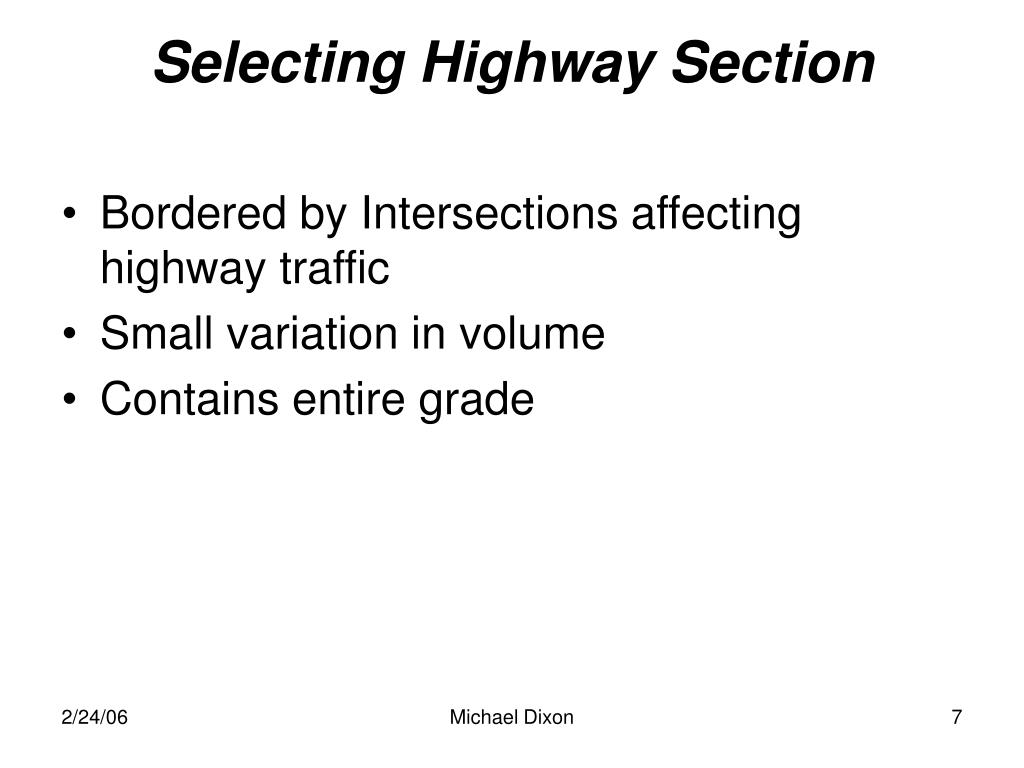

  7. Selecting Highway Section • Bordered by Intersections affecting highway traffic • Small variation in volume • Contains entire grade Michael Dixon

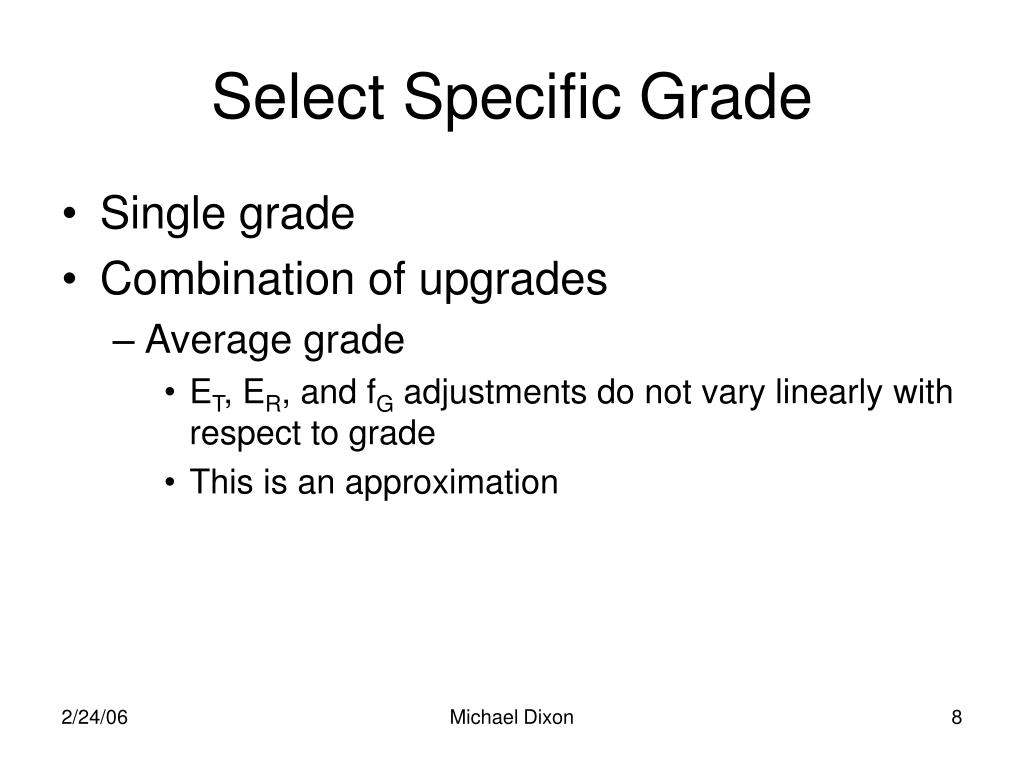

  8. Select Specific Grade • Single grade • Combination of upgrades • Average grade • ET, ER, and fG adjustments do not vary linearly with respect to grade • This is an approximation Michael Dixon

  9. Model Approaching General Terrain Section • Use directional analysis procedure Michael Dixon

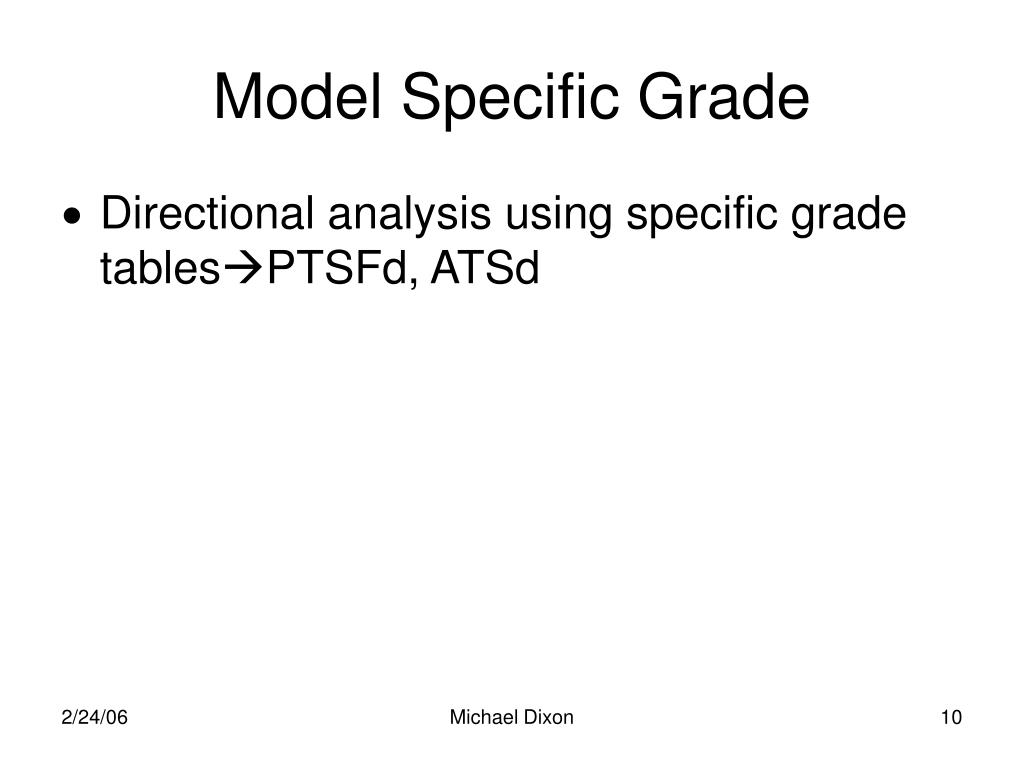

  10. Model Specific Grade • Directional analysis using specific grade tablesPTSFd, ATSd Michael Dixon

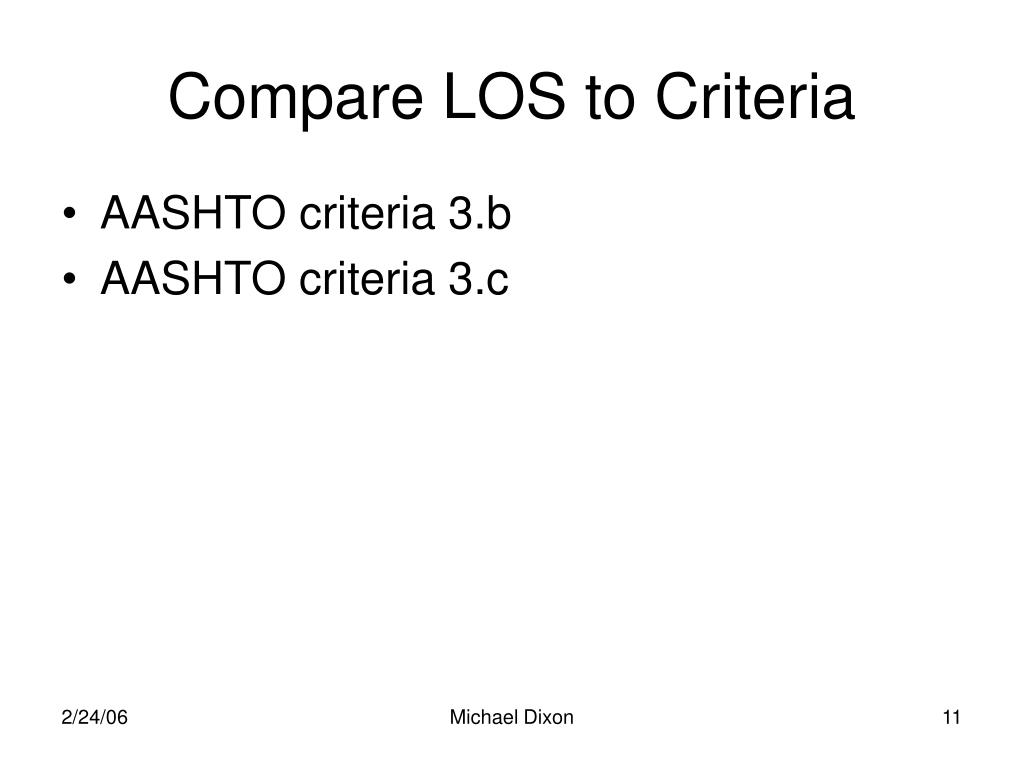

  11. Compare LOS to Criteria • AASHTO criteria 3.b • AASHTO criteria 3.c Michael Dixon

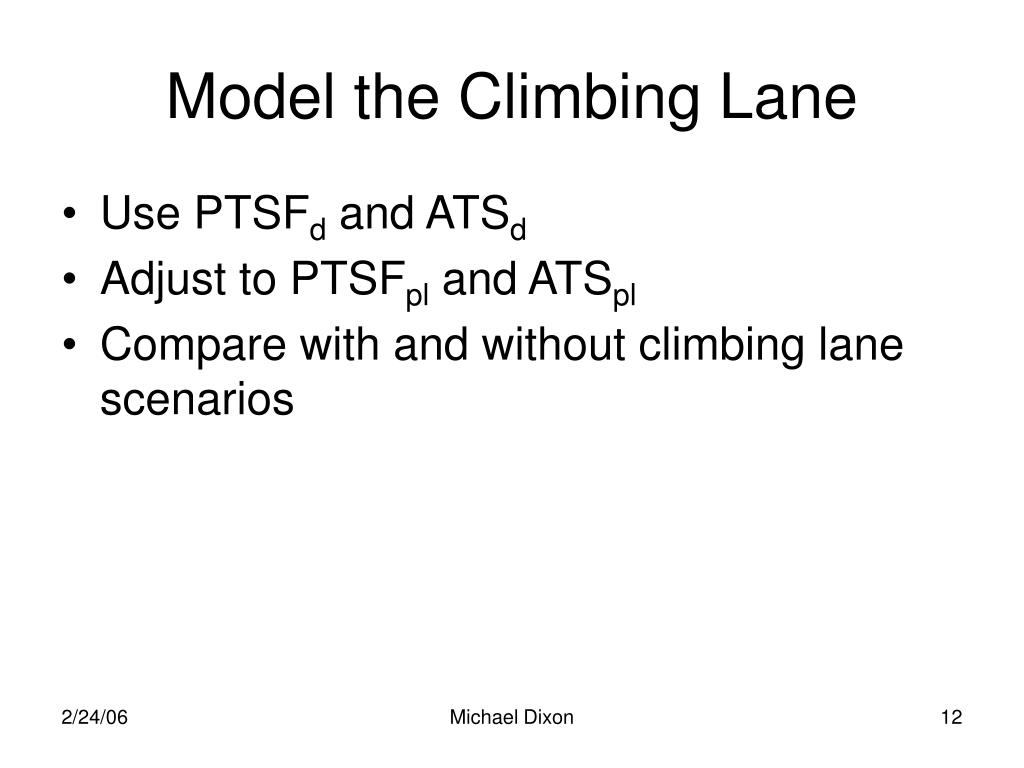

  12. Model the Climbing Lane • Use PTSFd and ATSd • Adjust to PTSFpl and ATSpl • Compare with and without climbing lane scenarios Michael Dixon
