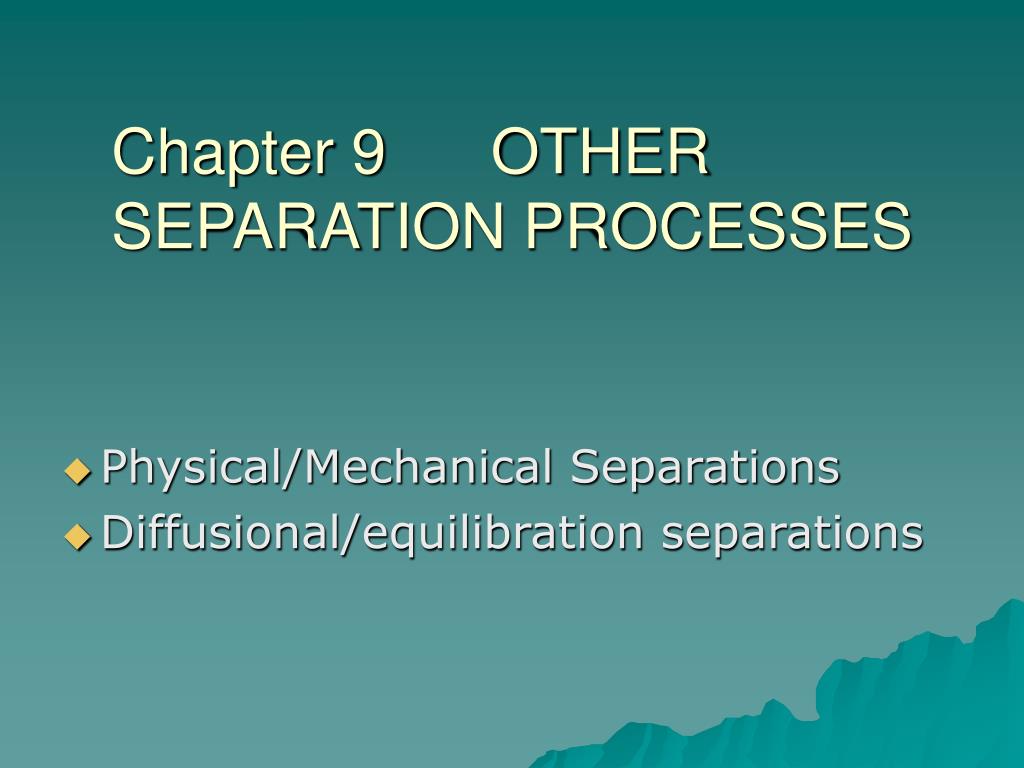

  1. Chapter 9 OTHER SEPARATION PROCESSES • Physical/Mechanical Separations • Diffusional/equilibration separations

  2. Physical/Mechanical Separations • Filtration • Expression • Centrifugation • Cyclone

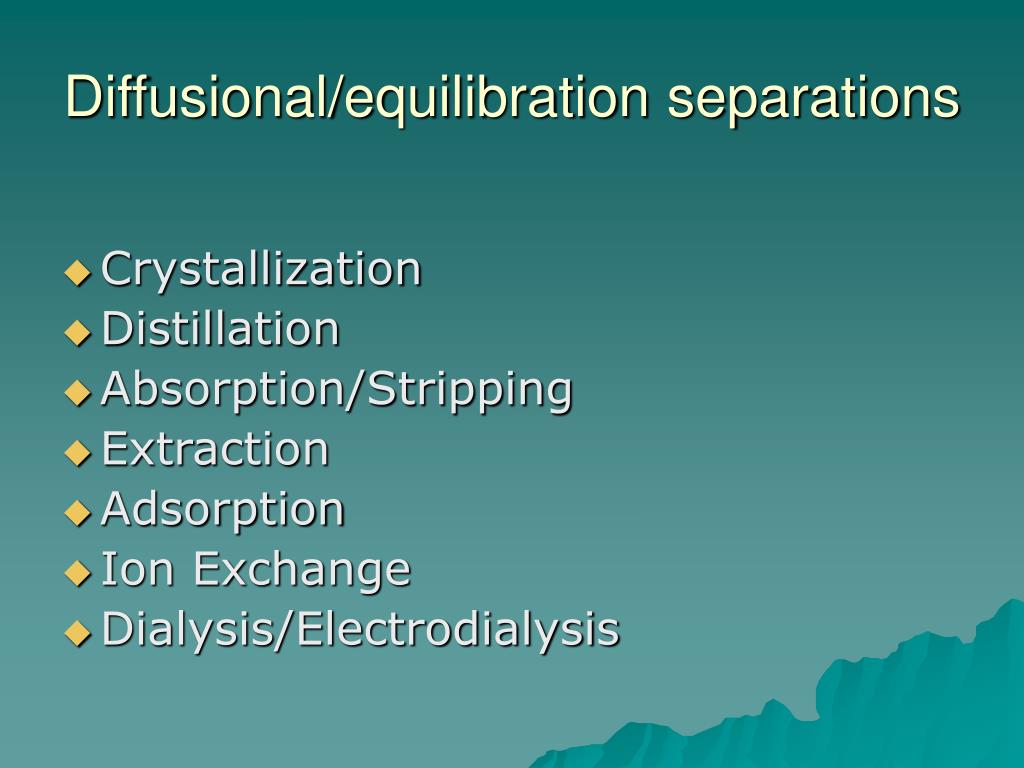

  3. Diffusional/equilibration separations • Crystallization • Distillation • Absorption/Stripping • Extraction • Adsorption • Ion Exchange • Dialysis/Electrodialysis

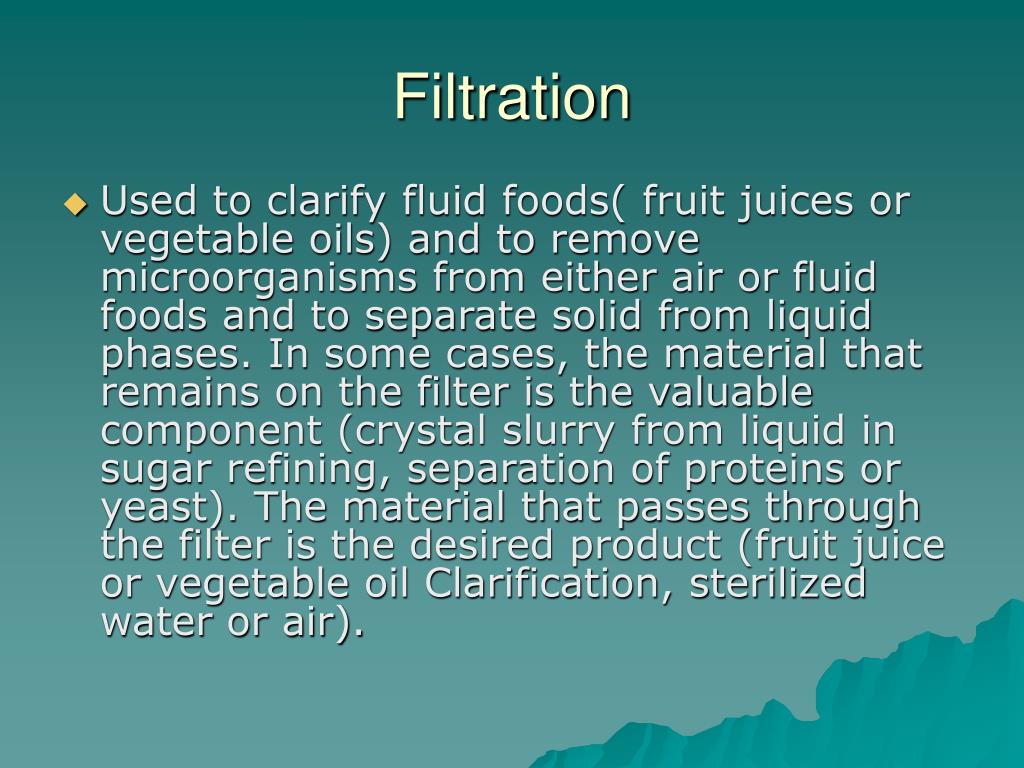

  4. Filtration • Used to clarify fluid foods( fruit juices or vegetable oils) and to remove microorganisms from either air or fluid foods and to separate solid from liquid phases. In some cases, the material that remains on the filter is the valuable component (crystal slurry from liquid in sugar refining, separation of proteins or yeast). The material that passes through the filter is the desired product (fruit juice or vegetable oil Clarification, sterilized water or air).

  5. Principles of Operation. • Filtration involves passing a material through a filter medium that retains particles of a certain size, Filtration is distinguished from other membrane separations (ultrafiltration and reverse osmosis) in terms of the size of particles that are separated. A fluid containing solid matter is forced through a filter medium, with the solid particles being retained by the filter and the liquid passing through.

  6. Configurations • plate-and-frame • continuous rotary filter

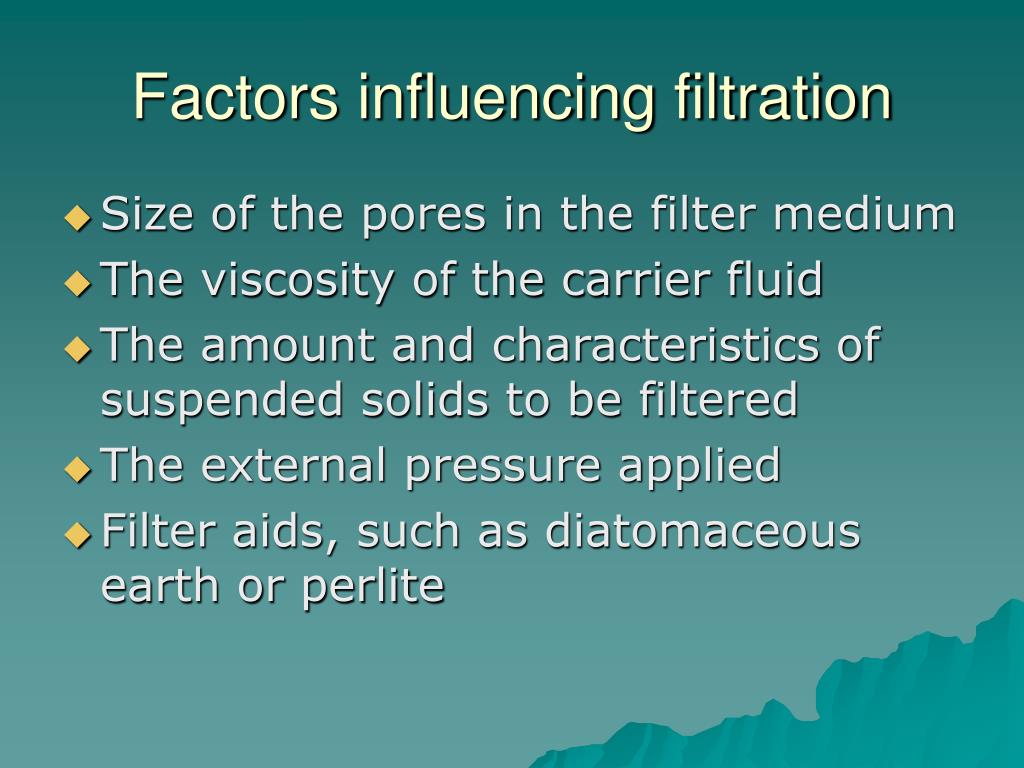

  7. Factors influencing filtration • Size of the pores in the filter medium • The viscosity of the carrier fluid • The amount and characteristics of suspended solids to be filtered • The external pressure applied • Filter aids, such as diatomaceous earth or perlite

  8. Expression • Expression may be defined as forced expulsion (due to pressure) of fluids from semifluid materials. The liquid contained within a semisolid food is forced through some form of filtration medium, whether a perforated metal wall or a porous fabric filter, which retains the solid component of the material. Expression is different from filtration due to the nature of the applied pressure. In expression, pressure is applied by moving retaining walls, whereas pressure is applied in filtration by pumping the material into a fixed area.

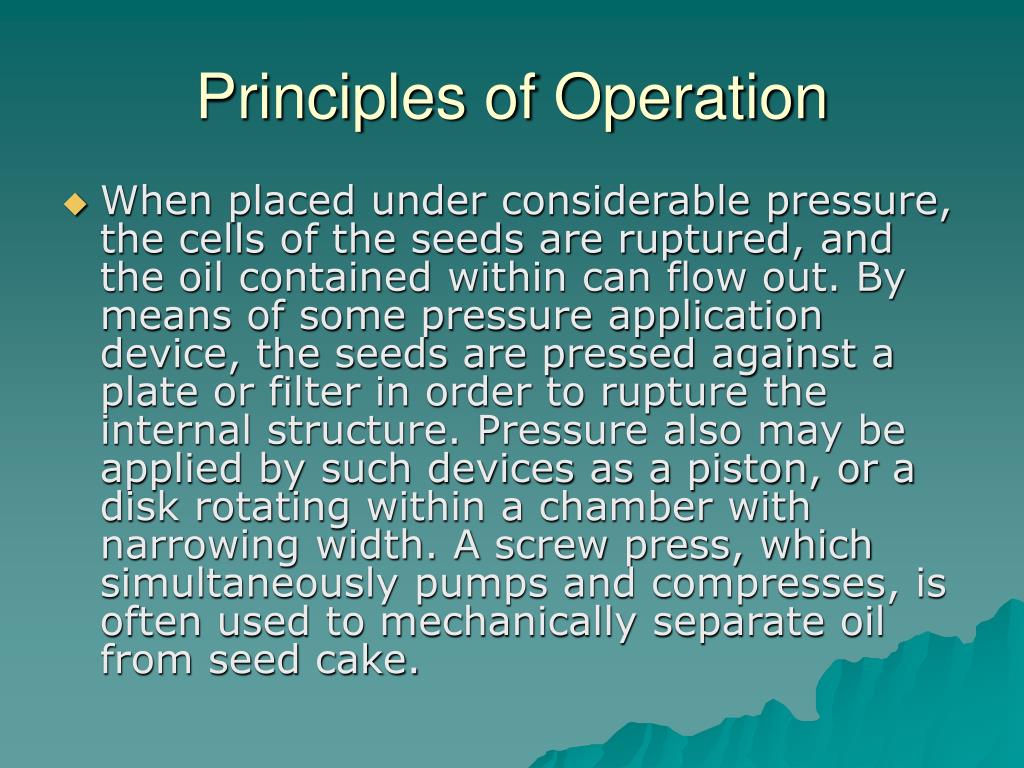

  9. Principles of Operation • When placed under considerable pressure, the cells of the seeds are ruptured, and the oil contained within can flow out. By means of some pressure application device, the seeds are pressed against a plate or filter in order to rupture the internal structure. Pressure also may be applied by such devices as a piston, or a disk rotating within a chamber with narrowing width. A screw press, which simultaneously pumps and compresses, is often used to mechanically separate oil from seed cake.

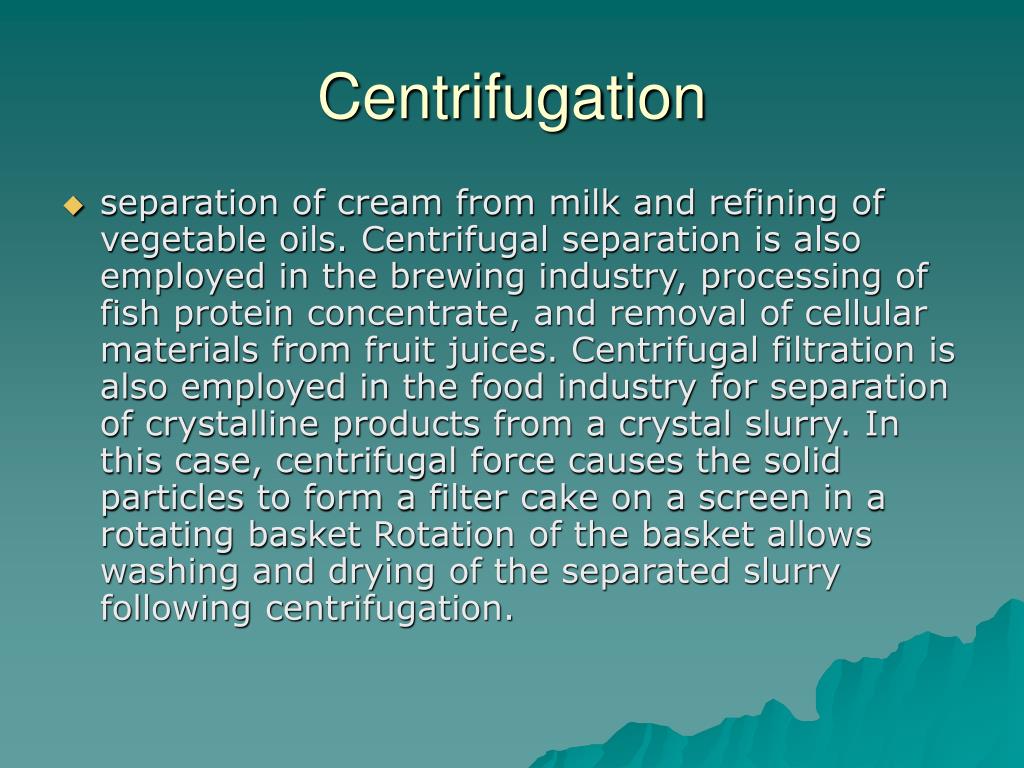

  10. Centrifugation • separation of cream from milk and refining of vegetable oils. Centrifugal separation is also employed in the brewing industry, processing of fish protein concentrate, and removal of cellular materials from fruit juices. Centrifugal filtration is also employed in the food industry for separation of crystalline products from a crystal slurry. In this case, centrifugal force causes the solid particles to form a filter cake on a screen in a rotating basket Rotation of the basket allows washing and drying of the separated slurry following centrifugation.

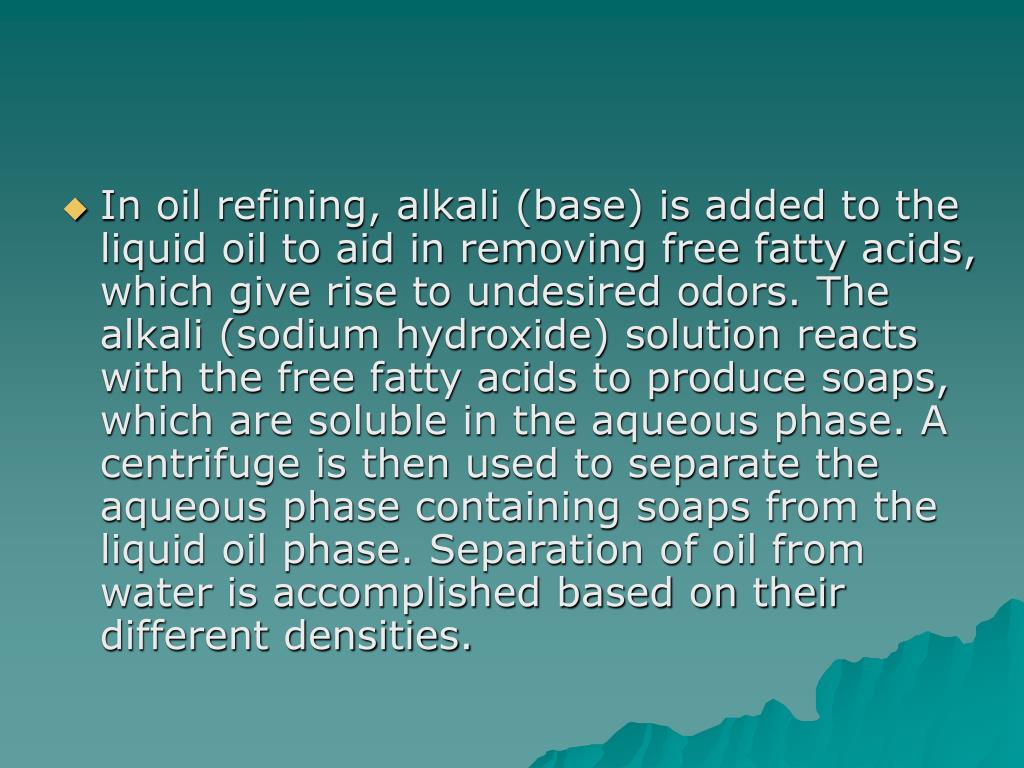

  11. In oil refining, alkali (base) is added to the liquid oil to aid in removing free fatty acids, which give rise to undesired odors. The alkali (sodium hydroxide) solution reacts with the free fatty acids to produce soaps, which are soluble in the aqueous phase. A centrifuge is then used to separate the aqueous phase containing soaps from the liquid oil phase. Separation of oil from water is accomplished based on their different densities.

  12. Separation of the fat in milk is also accomplished using a centrifugal separator, In this case, whole milk containing about 3.2 to 3.5% milk fat enters the centrifuge, where the fat phase is separated from the aqueous phase by centrifugal force based on their different densities. The fat phase is only concentrated, and not separated entirely, to produce cream with about 30% fat The remainder of the cream is basically the same as the skim milk, which is the other product from the centrifuge. In a centrifuge, the fat content of milk may be reduced to less 0.1% .

  13. Principles of Operation • In a salad dressing made with oil and water, shaking is needed to mix the two phases (oil and water). After the bottle has sat for awhile, the oil separates from the aqueous phase. The oil rises to form the top layer, since it is less dense than the aqueous phase. The force of gravity causes this separation. In a centrifuge, rotational forces are applied to separate materials with different densities. The centrifuge is used to separate phases based on differences in density.

  14. In a typical centrifugal separator, there are a number of disks set one on top of another with only a small spacing. The disks are shaped like funnels with a 45-degree angle. This disk stack rotates at 5,000 to 6,000 rpm to generate considerable centrifugal force. The stream enters at the bottom of the stacks and makes its way into the stack through a series of holes in the disks. The phase which has greater density is forced to the outer regions of the centrifuge. The lighter phase migrates to the inner regions of the centrifuge and collects at the center of the disk stuck.

  15. centrifugal clarification • Centrifugation of a slurry to separate a solid phase from a liquid carrier involves basically the same principle of operation. If there are only small amounts of insoluble solids to be removed (less than 5% or so), it is called centrifugal clarification.

  16. Decanting • Rotating a liquid containing solid particles at sufficiently high velocity causes the solid particles to separate from the fluid by centrifugal force. If the solids have higher density than the fluid, they are preferentially forced to the outside of the rotating chamber used to implement the centrifugal force. Typically, a basket with a screen for walls is used so that the solid particles form a filter cake on the walls of the basket. Centrifugal filters can be either batch or continuous. At the end of a batch filtration cycle, the filter cake on the basket is washed with pure liquid and then dried by rapid rotation. The product is then scraped off the basket for further processing.

  17. Cyclone • It is often necessary to separate particulate material, whether solid particles or fine liquid droplets, suspended in a gas. This occurs, for example, when spray-dried powders must be separated from the air that was used to dry them. It also occurs during steam generation, when fine droplets of entrained water must be removed from the vapor to produce saturated steam.

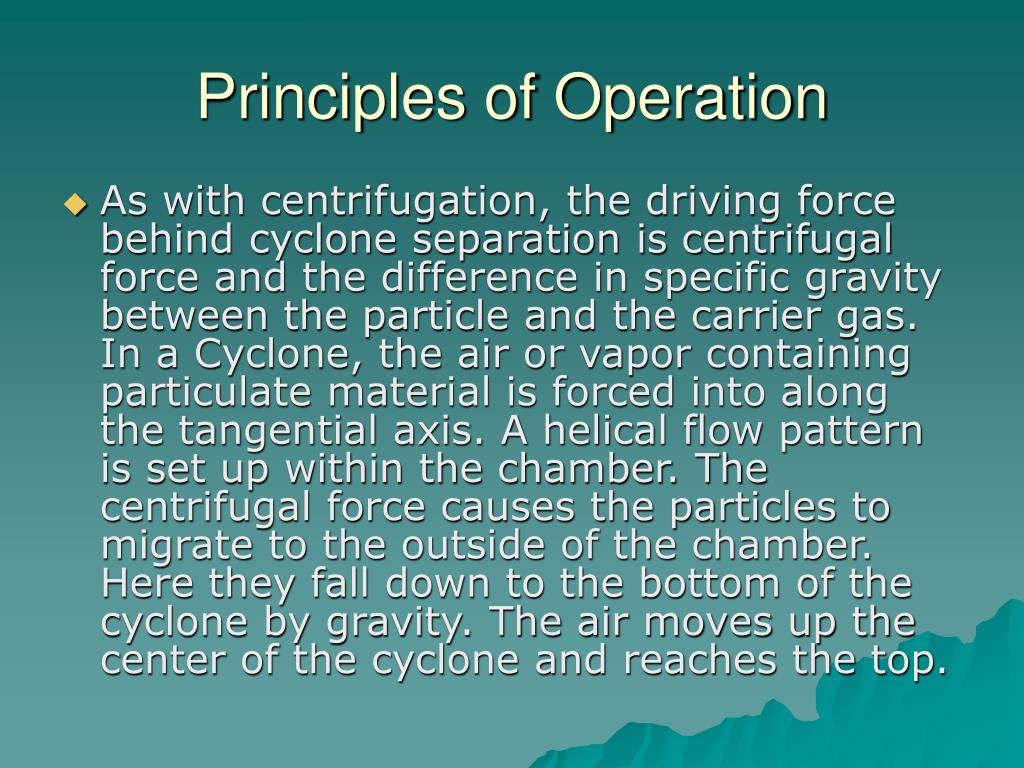

  18. Principles of Operation • As with centrifugation, the driving force behind cyclone separation is centrifugal force and the difference in specific gravity between the particle and the carrier gas. In a Cyclone, the air or vapor containing particulate material is forced into along the tangential axis. A helical flow pattern is set up within the chamber. The centrifugal force causes the particles to migrate to the outside of the chamber. Here they fall down to the bottom of the cyclone by gravity. The air moves up the center of the cyclone and reaches the top.

  19. DIFFUSIONAL EQUILIBRIUM SEPARATIONS • solid--liquid extraction • Distillation • Crystallization • liquid--liquid extraction

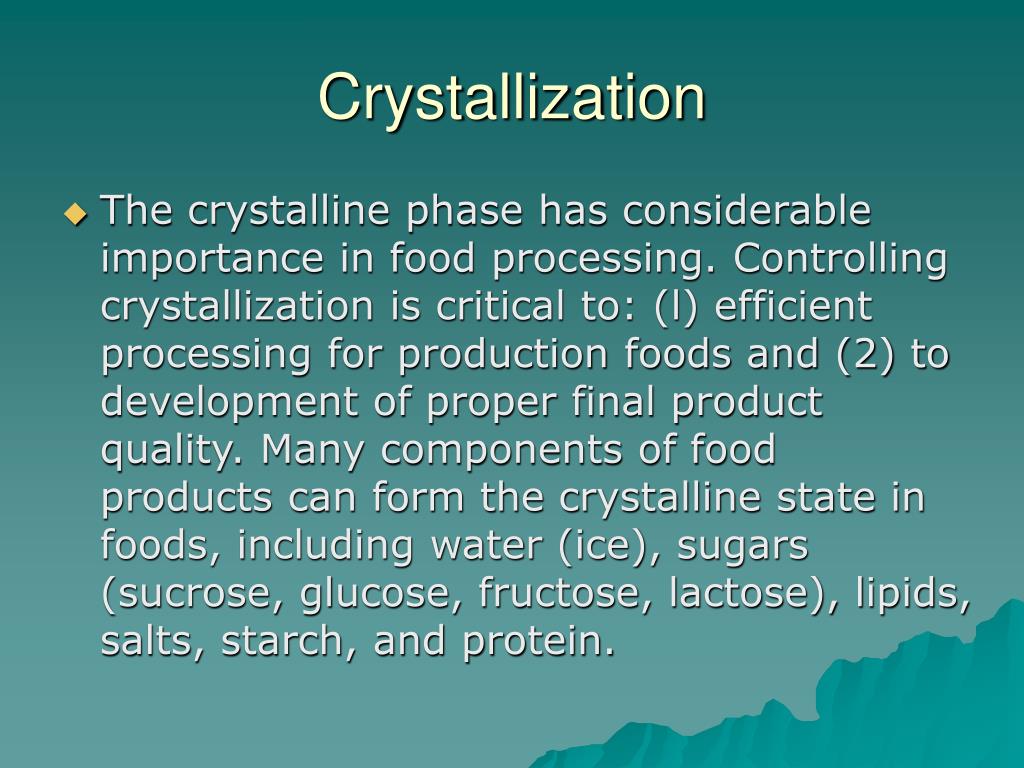

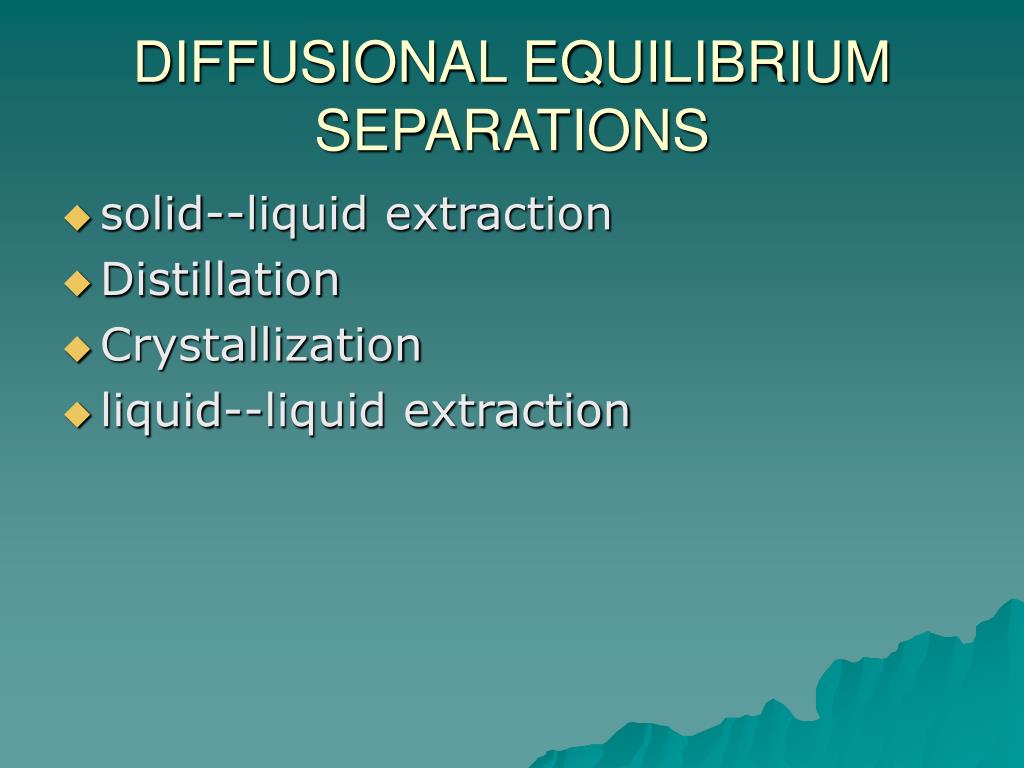

  20. Crystallization • The crystalline phase has considerable importance in food processing. Controlling crystallization is critical to: (l) efficient processing for production foods and (2) to development of proper final product quality. Many components of food products can form the crystalline state in foods, including water (ice), sugars (sucrose, glucose, fructose, lactose), lipids, salts, starch, and protein.

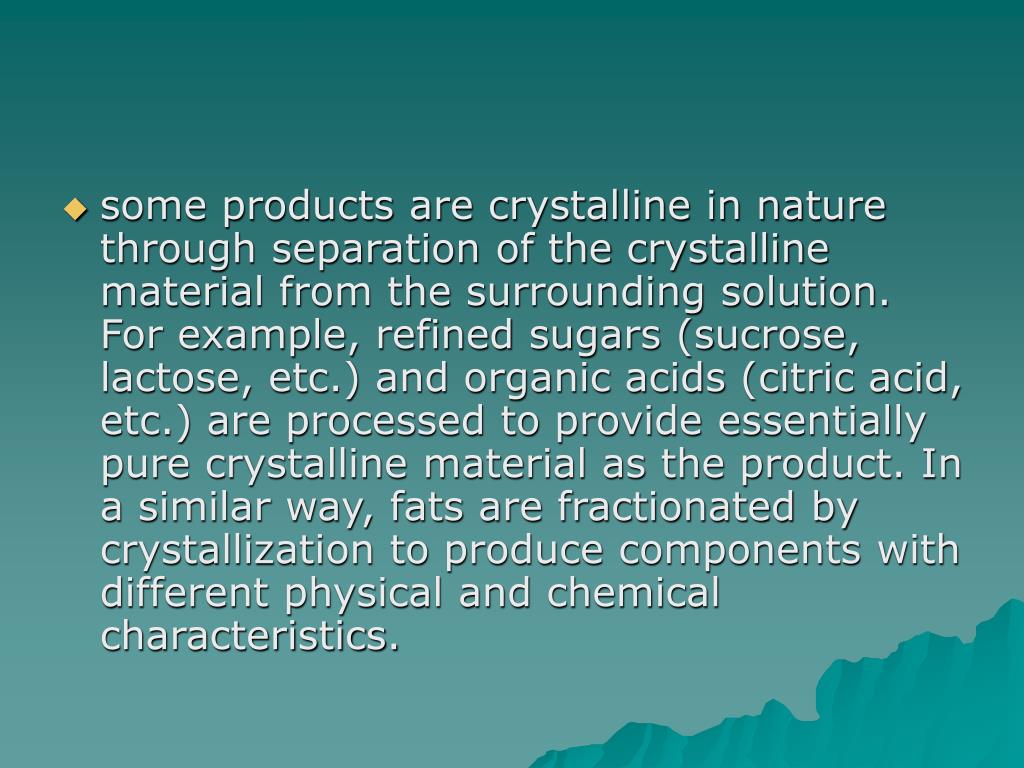

  21. some products are crystalline in nature through separation of the crystalline material from the surrounding solution. For example, refined sugars (sucrose, lactose, etc.) and organic acids (citric acid, etc.) are processed to provide essentially pure crystalline material as the product. In a similar way, fats are fractionated by crystallization to produce components with different physical and chemical characteristics.

  22. In production of refined sugar, sugar crystals are produced by crystallization from concentrated solution. The slurry formed in the crystallizer is centrifuged to produce a saturated liquid and the crystalline product. After drying, the crystalline product is generally screened or sieved to classify the sugar crystals according to product size.

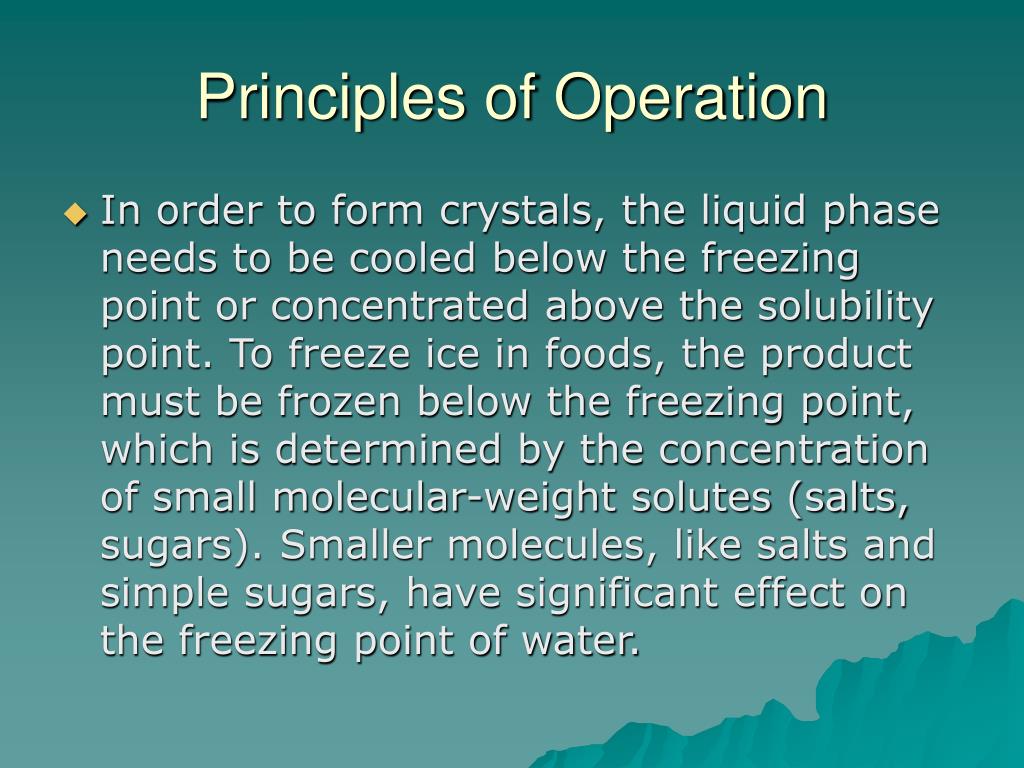

  23. Principles of Operation • In order to form crystals, the liquid phase needs to be cooled below the freezing point or concentrated above the solubility point. To freeze ice in foods, the product must be frozen below the freezing point, which is determined by the concentration of small molecular-weight solutes (salts, sugars). Smaller molecules, like salts and simple sugars, have significant effect on the freezing point of water.

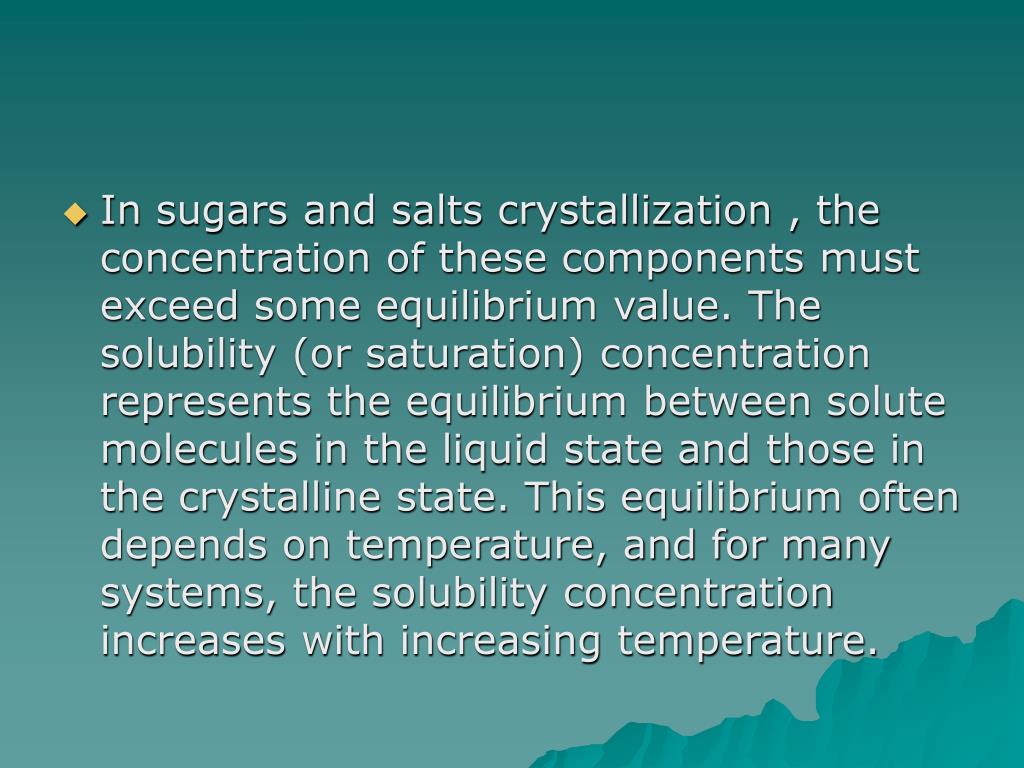

  24. In sugars and salts crystallization , the concentration of these components must exceed some equilibrium value. The solubility (or saturation) concentration represents the equilibrium between solute molecules in the liquid state and those in the crystalline state. This equilibrium often depends on temperature, and for many systems, the solubility concentration increases with increasing temperature.

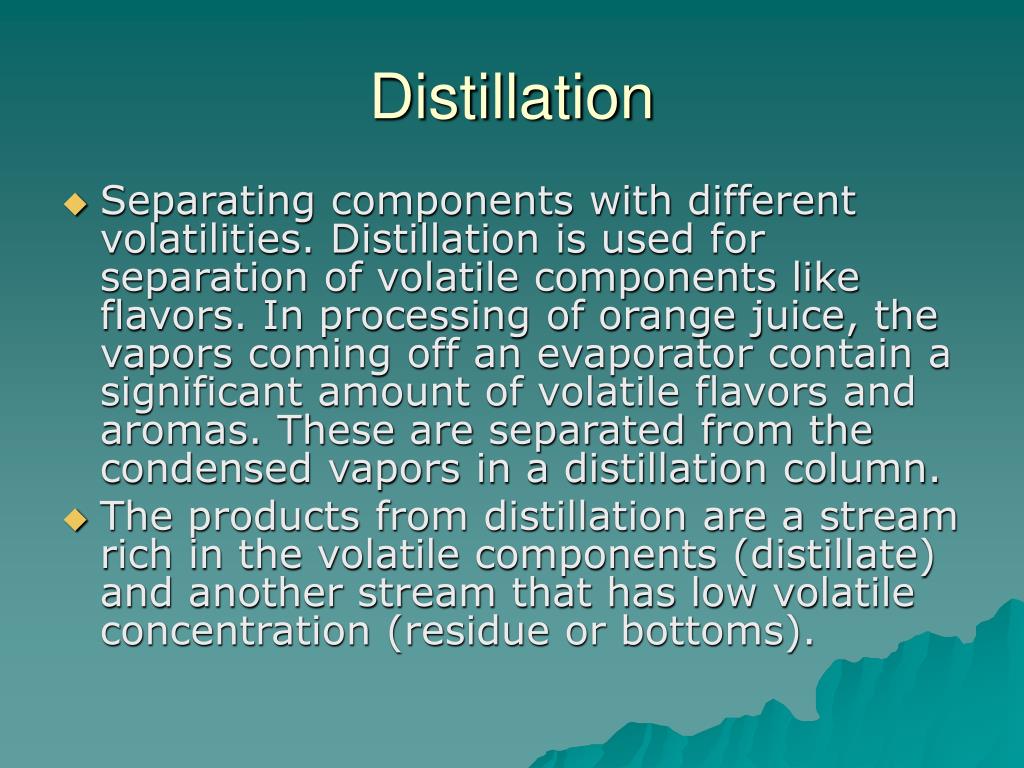

  25. Distillation • Separating components with different volatilities. Distillation is used for separation of volatile components like flavors. In processing of orange juice, the vapors coming off an evaporator contain a significant amount of volatile flavors and aromas. These are separated from the condensed vapors in a distillation column. • The products from distillation are a stream rich in the volatile components (distillate) and another stream that has low volatile concentration (residue or bottoms).

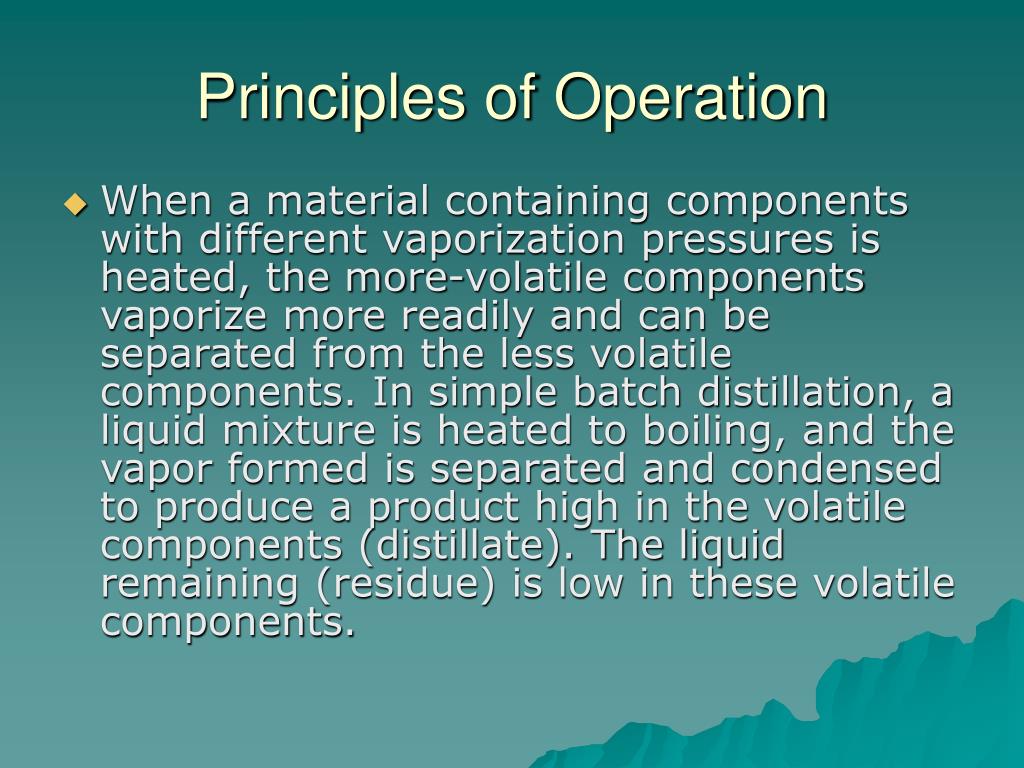

  26. Principles of Operation • When a material containing components with different vaporization pressures is heated, the more-volatile components vaporize more readily and can be separated from the less volatile components. In simple batch distillation, a liquid mixture is heated to boiling, and the vapor formed is separated and condensed to produce a product high in the volatile components (distillate). The liquid remaining (residue) is low in these volatile components.

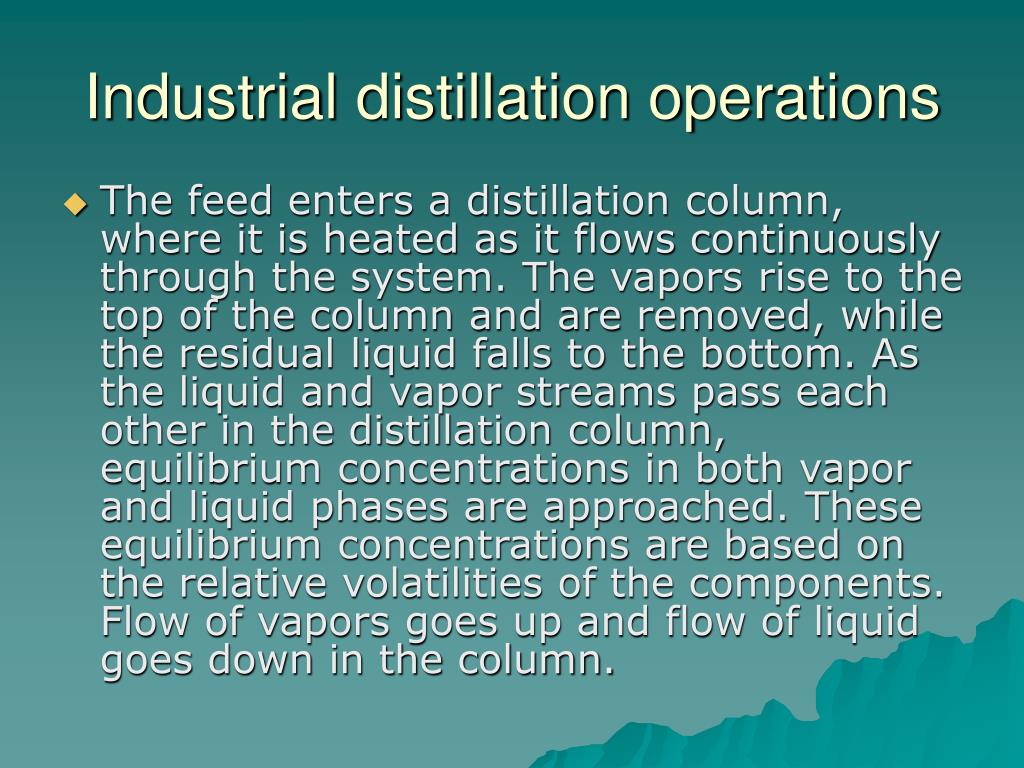

  27. Industrial distillation operations • The feed enters a distillation column, where it is heated as it flows continuously through the system. The vapors rise to the top of the column and are removed, while the residual liquid falls to the bottom. As the liquid and vapor streams pass each other in the distillation column, equilibrium concentrations in both vapor and liquid phases are approached. These equilibrium concentrations are based on the relative volatilities of the components. Flow of vapors goes up and flow of liquid goes down in the column.

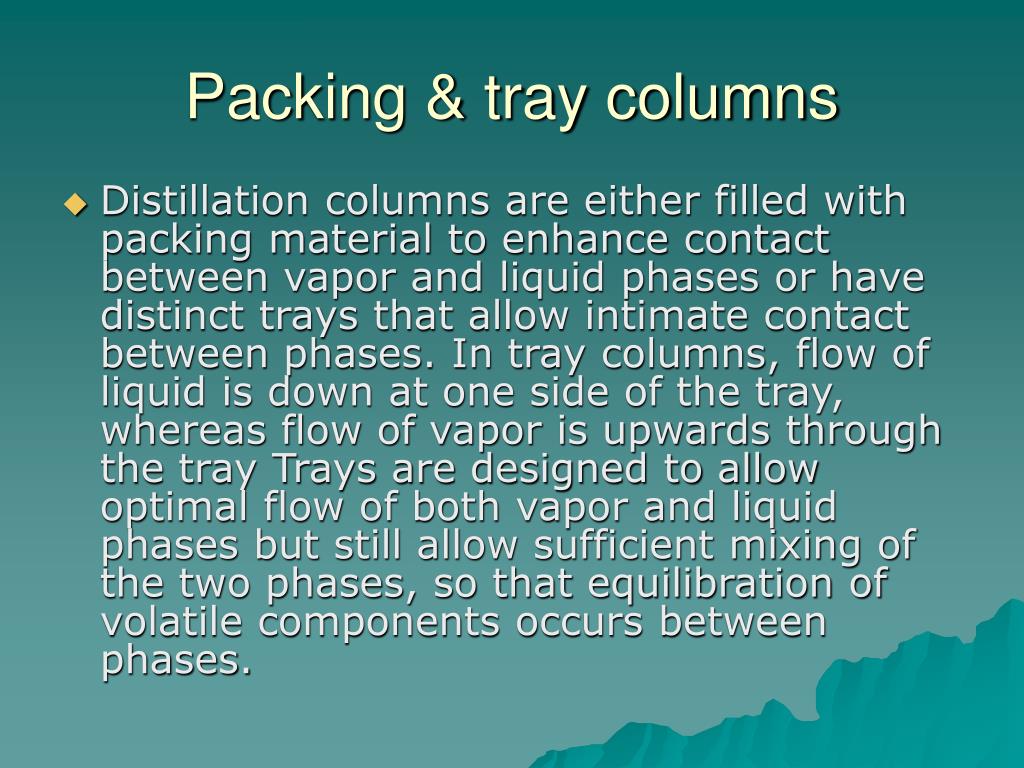

  28. Packing & tray columns • Distillation columns are either filled with packing material to enhance contact between vapor and liquid phases or have distinct trays that allow intimate contact between phases. In tray columns, flow of liquid is down at one side of the tray, whereas flow of vapor is upwards through the tray Trays are designed to allow optimal flow of both vapor and liquid phases but still allow sufficient mixing of the two phases, so that equilibration of volatile components occurs between phases.

  29. Tray columns • In tray columns, flow of liquid is down at one side of the tray, whereas flow of vapor is upwards through the tray. Trays are designed to allow optimal flow of both vapor and liquid phases but still allow sufficient mixing of the two phases, so that equilibration of volatile components occurs between phases.
