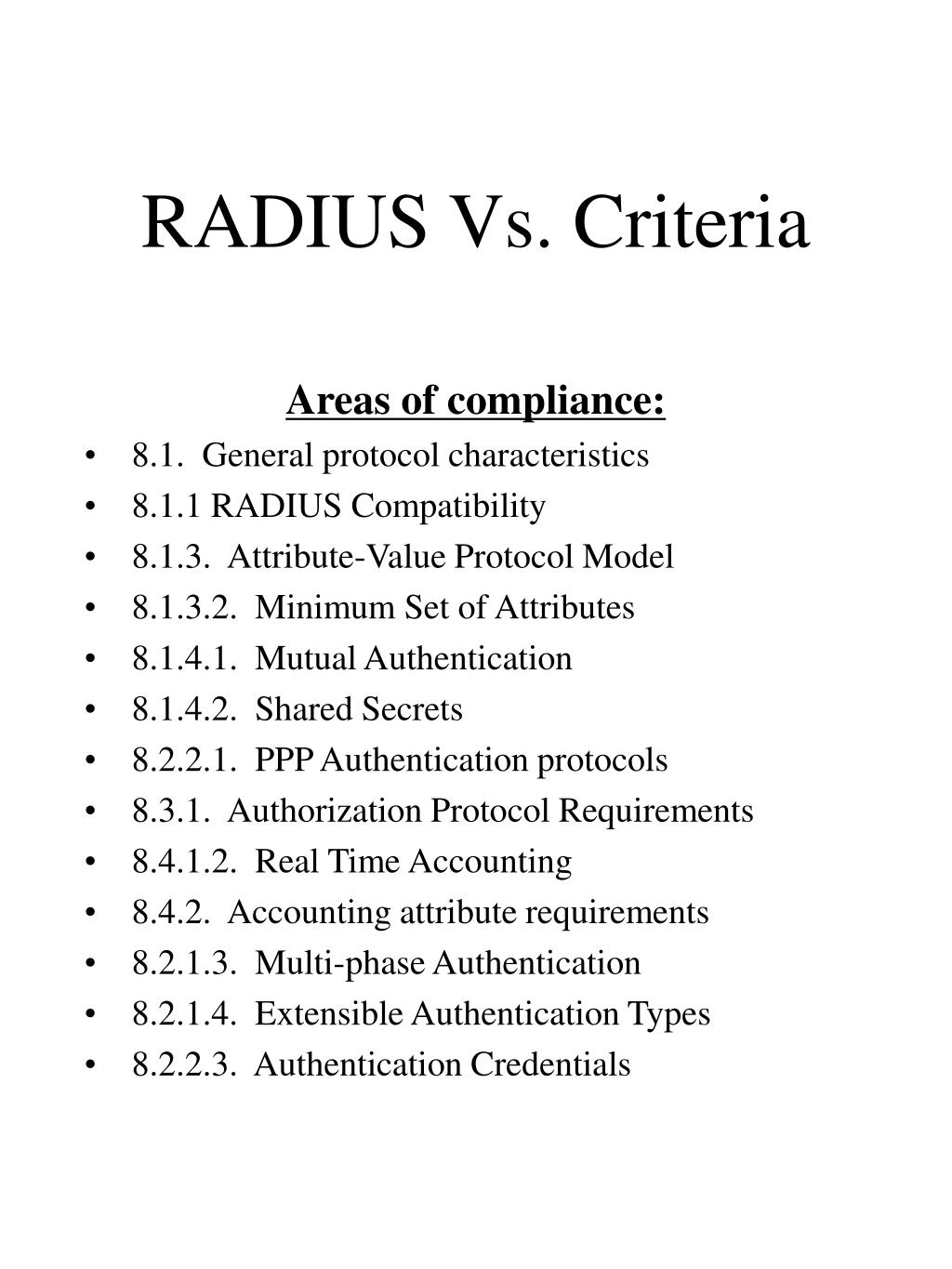

  1. RADIUS Vs. Criteria Areas of compliance: • 8.1. General protocol characteristics • 8.1.1 RADIUS Compatibility • 8.1.3. Attribute-Value Protocol Model • 8.1.3.2. Minimum Set of Attributes • 8.1.4.1. Mutual Authentication • 8.1.4.2. Shared Secrets • 8.2.2.1. PPP Authentication protocols • 8.3.1. Authorization Protocol Requirements • 8.4.1.2. Real Time Accounting • 8.4.2. Accounting attribute requirements • 8.2.1.3. Multi-phase Authentication • 8.2.1.4. Extensible Authentication Types • 8.2.2.3. Authentication Credentials

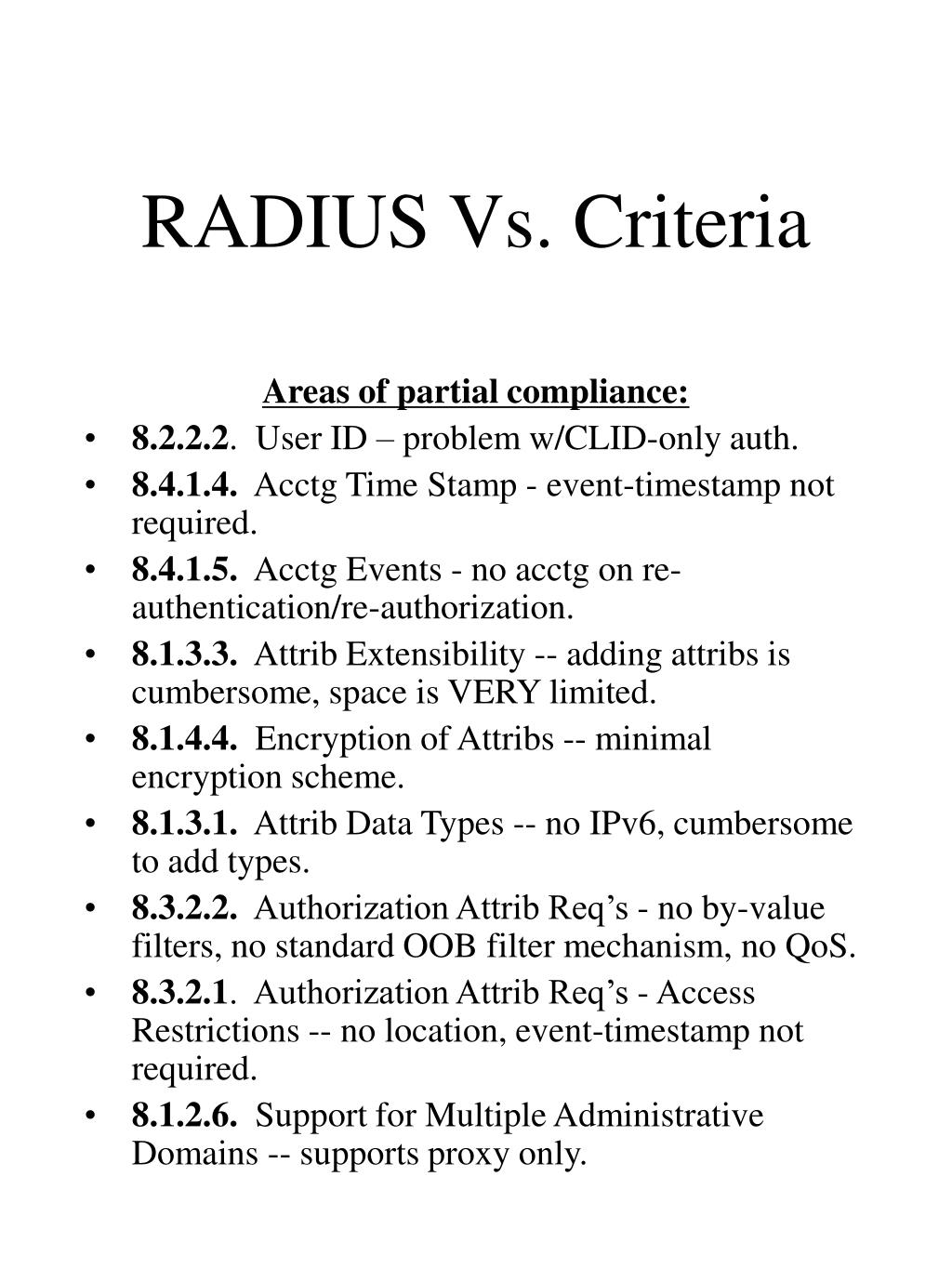

  2. RADIUS Vs. Criteria Areas of partial compliance: • 8.2.2.2. User ID – problem w/CLID-only auth. • 8.4.1.4. Acctg Time Stamp - event-timestamp not required. • 8.4.1.5. Acctg Events - no acctg on re-authentication/re-authorization. • 8.1.3.3. Attrib Extensibility -- adding attribs is cumbersome, space is VERY limited. • 8.1.4.4. Encryption of Attribs -- minimal encryption scheme. • 8.1.3.1. Attrib Data Types -- no IPv6, cumbersome to add types. • 8.3.2.2. Authorization Attrib Req’s - no by-value filters, no standard OOB filter mechanism, no QoS. • 8.3.2.1. Authorization Attrib Req’s - Access Restrictions -- no location, event-timestamp not required. • 8.1.2.6. Support for Multiple Administrative Domains -- supports proxy only.

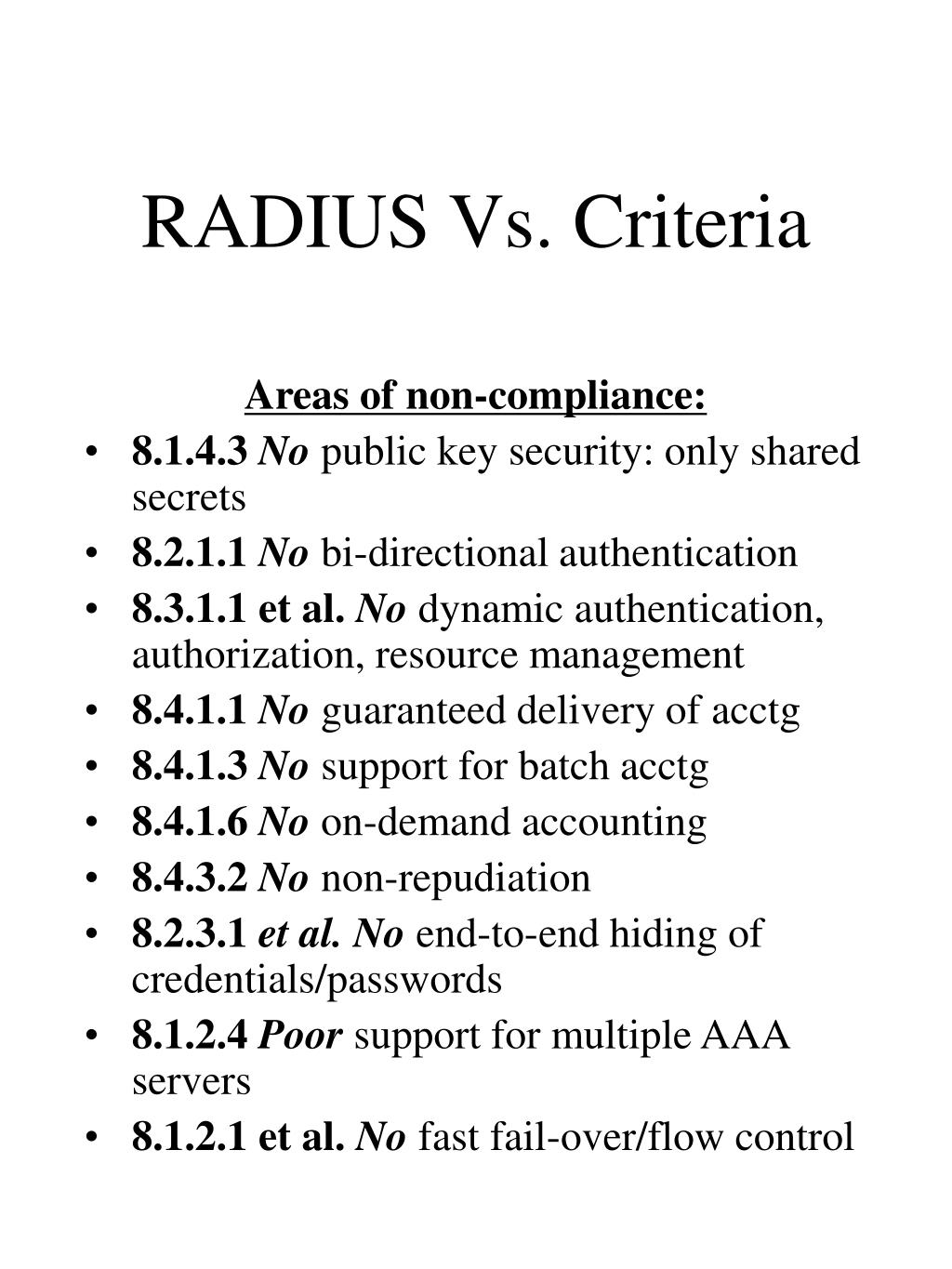

  3. RADIUS Vs. Criteria Areas of non-compliance: • 8.1.4.3 No public key security: only shared secrets • 8.2.1.1 No bi-directional authentication • 8.3.1.1 et al. No dynamic authentication, authorization, resource management • 8.4.1.1 No guaranteed delivery of acctg • 8.4.1.3 No support for batch acctg • 8.4.1.6 No on-demand accounting • 8.4.3.2 No non-repudiation • 8.2.3.1 et al. No end-to-end hiding of credentials/passwords • 8.1.2.4 Poor support for multiple AAA servers • 8.1.2.1 et al. No fast fail-over/flow control

  4. RADIUS Vs. Criteria Conclusion: RADIUS as currently specified does not meet the criteria for a next-generation NAS AAA protocol. The RADIUS protocol cannot be modified to meet those criteria without fundamentally rewriting the protocol specification.
