  1. Multi-Project Reticle Design & Wafer Dicing under Uncertain Demand Andrew B Kahng, UC San Diego Ion Mandoiu, University of Connecticut Xu Xu, UC San Diego Alex Zelikovsky, Georgia State University

  2. Multi-Project Wafers • Mask set cost: >$1M for 90 nm technology • Share cost of mask tooling between multiple designs! • Prototyping • Low volume production Images courtesy of EuroPractice and CMP

  3. Design Flow for MPW Die Sizes + Production Volumes Project Partitioning Project Cloning Reticle Floorplaning Shotmap Definition Dicing Plan Definition Reticle, Wafer Shotmap, Wafer Dicing Plans

  4. Design Flow for MPW Die Sizes + Production Volumes Project Partitioning Project Cloning Reticle Floorplaning Shotmap Definition Dicing Plan Definition Reticle, Wafer Shotmap, Wafer Dicing Plans

  5. Why is Dicing a Problem? • Side-to-side dicing! • Correctly sliced out dies • Cut lines along all four edges • No cut line partitioning the die Standard wafer dicing MPW dicing

  6. Side-to-side Dicing Problem Given: • Production volume for each die • Reticle floorplan • Wafer shot-map Find: • Horizontal and vertical dicing plans for each wafer To Minimize: • #wafers required to meet production volumes

  7. Dicing Strategies 2 2 2 1 1 1 3 3 3 4 4 4 • Wafer Dicing Plan (DP): all horizontal and vertical cut lines used to cut a wafer • Row/Column DP: cut lines through row/column of reticle images • Single wafer dicing plan (SDP) [ISPD04] [KahngR04] • The same wafer DP used for all wafers • Different DPs used for different rows/cols in a wafer • Multiple wafer dicing plans (MDP) • Restricted MDP: the same DP used for all rows/cols of a wafer • Graph coloring based heuristic in [Xu et al. 04]

  8. Independent Dies • Under restricted MDP dicing, all reticle images on wafer yield the same set of dies • Independent set: set of dies that that can be simultaneously diced from a reticle image • Only maximal independent sets are of interest! 2 1 3 4 Maximal Independent Sets: {1, 4} {2} {3}

  9. ILP for Restricted MDP

  10. CMP Floorplan

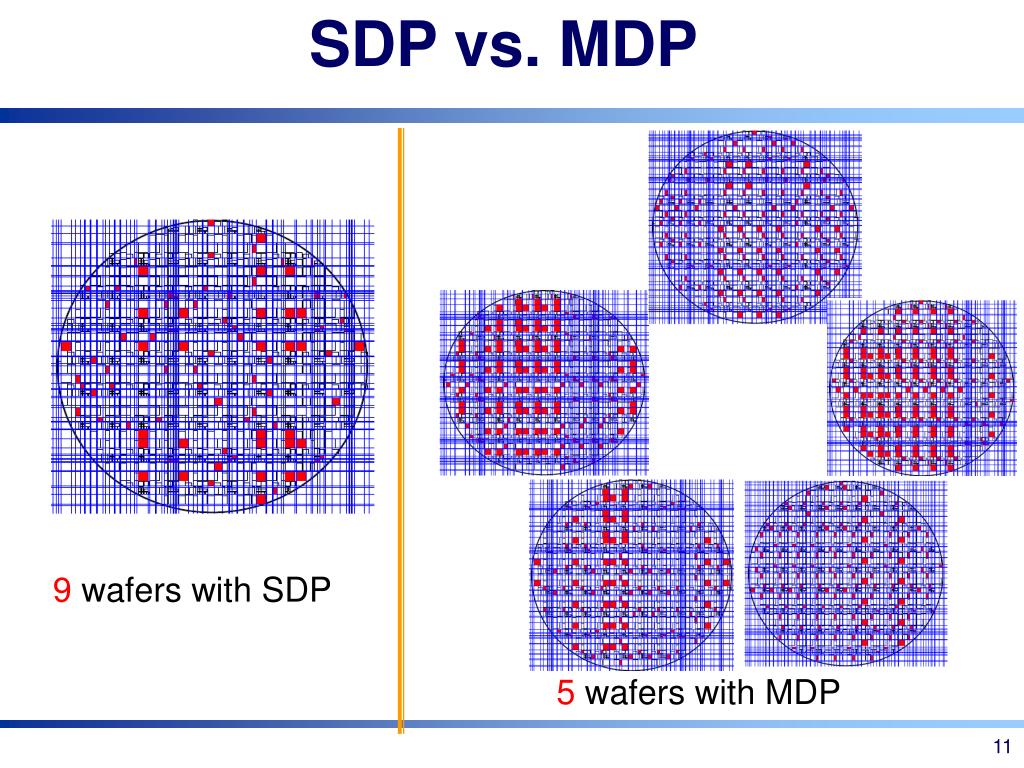

  11. SDP vs. MDP 5 wafers with MDP 9 wafers with SDP

  12. 4-Part Dicing • Partition each wafer into 4 parts then dice each part separately using side-to-side cuts

  13. Design Flow for MPW Die sizes + Production Volumes Project Partitioning Project Cloning Reticle Floorplaning Shotmap Definition Dicing Plan Definition Reticle, Wafer Shotmap, Wafer Dicing Plans

  14. Shotmap #1 Shotmap #2 Shotmap Definition Problem ? Reticle Floorplan • Simple grid-based shotmap definition algorithm yields an average reduction of 13.6% in #wafers

  15. Design Flow for MPW Die sizes + Production Volumes Project Partitioning Project Cloning Reticle Floorplaning Shotmap Definition Dicing Plan Definition Reticle, Wafer Shotmap, Wafer Dicing Plans

  16. Reticle Floorplaning Problem • Given: • Die sizes & production volumes • Maximum reticle size • Find: • Placement of dies within the reticle • To Minimize: • Production cost (reticle cost, #wafers, …)

  17. Reticle Floorplaning Methods • Key challenge: cost estimation • Previous approaches • Simulated annealing [ISPD04] • Grid-packing [Andersson et al. 04, KahngR04] • Integer programming [WuL05] • Our approach: Hierarchical Quadrisection (HQ)

  18. Hierarchical Quadrisection Floorplan • At most one die assigned to each region at lowest level • Region widths/heights easily computed from die assignment • HQ mesh more flexible than grid

  19. HQ Algorithm • Random initial assignment improved using simulated annealing • SA moves: region exchange, die rotation • Max reticle size enforced throughout the algorithm • Hierarchical structure enables quick cost estimation

  20. HQ Floorplan of CMP Testcase Reticle Area =2.30(vs. 2.45) 4 wafers with MDP (vs. 5)

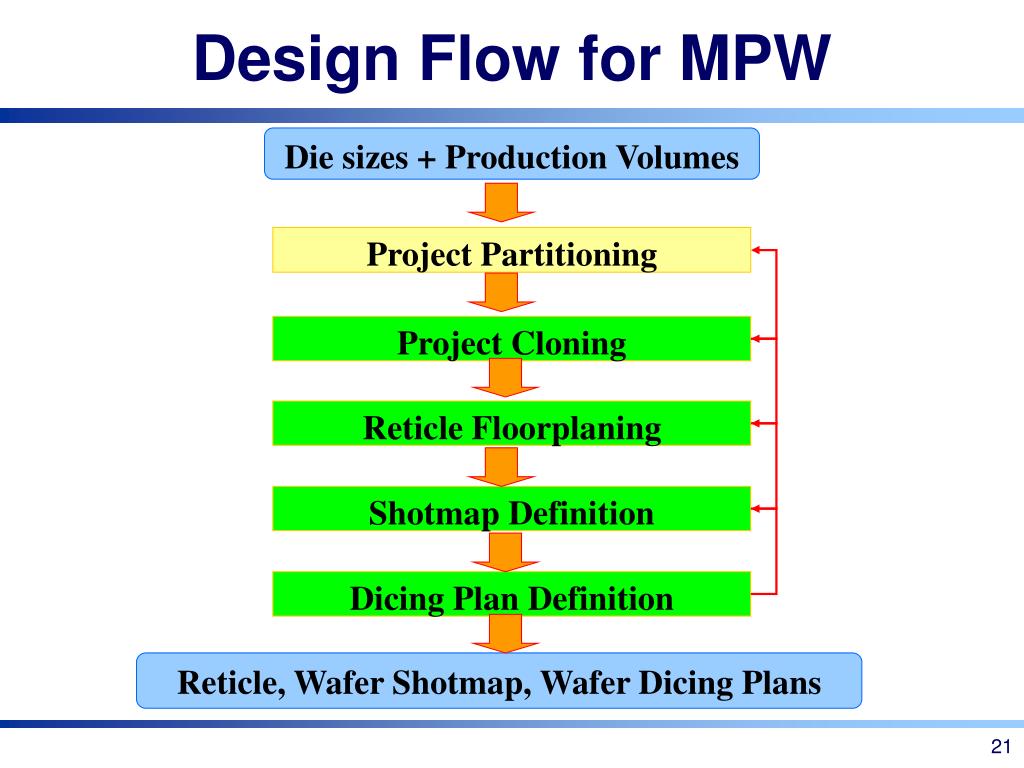

  21. Design Flow for MPW Die sizes + Production Volumes Project Partitioning Project Cloning Reticle Floorplaning Shotmap Definition Dicing Plan Definition Reticle, Wafer Shotmap, Wafer Dicing Plans

  22. Project Cloning • Motivation • Die-to-die inspection [Xu et al.] • Reduced wafer cost when there is large variation in production demands • Post-processing approach [WuL05] • Insert clones in white space left on reticle • Our approach • Before floorplaning: number of clones proportional to square root of production volume; clones arranged in clone arrays • During floorplaning: clone arrays assigned to single cell in HQ; new SA moves: add/delete clone array row/column • After floorplaning: insert additional clone array rows/columns without increasing cell size

  23. Design Flow for MPW Die sizes + Production Volumes Project Partitioning Project Cloning Reticle Floorplaning Shotmap Definition Dicing Plan Definition Reticle, Wafer Shotmap, Wafer Dicing Plans

  24. Schedule Aware Partition • More decision knobs: fabrication schedule I will not pay you afterJune ? But, money will be saved if waiting for other orders… • Project Partitioning Problem • Given: Reticle size, set of projects • Find:Partition of projects into reticles • To minimize: Sum of manufacturing cost and delay cost • [BACUS05] Schedule-aware partitioning leads to an average cost reduction of 63.8% vs. schedule-blind partitioning

  25. Demand Uncertainty • Customer demands (over reticle life period) may not be fully known at design time • Only rough customer demand distribution available (e.g., min/max demand) • MPW become even more attractive in this context: sharing of demand misprediction risks • Online wafer dicing combined with production of larger wafer lots can bring further economies of scale (see paper) • Feasible when there are no IP protection issues

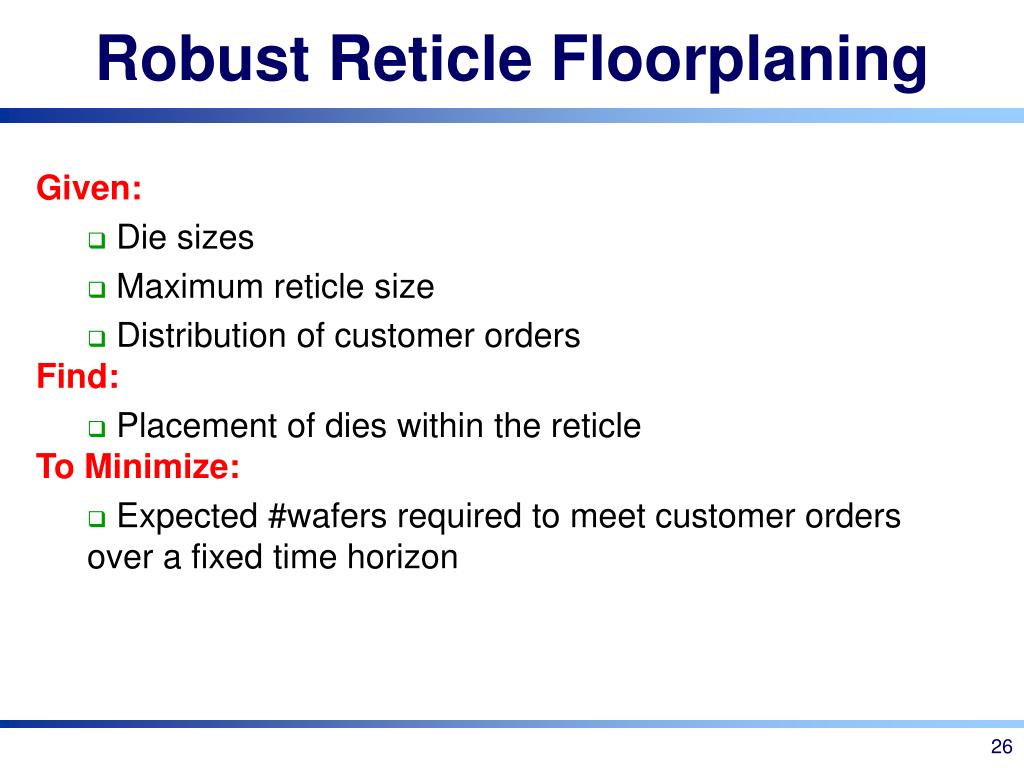

  26. Robust Reticle Floorplaning • Given: • Die sizes • Maximum reticle size • Distribution of customer orders • Find: • Placement of dies within the reticle • To Minimize: • Expected #wafers required to meet customer orders over a fixed time horizon

  27. Compared Algorithms • HQ with production volume set to the expected customer demand • HQ+Cloning with production volume set to the expected customer demand • Distribution-driven simulated annealing • Use expected production cost for evaluating SA moves • Monte-Carlo simulation used to estimate expected cost

  28. Robustness Results - Normal

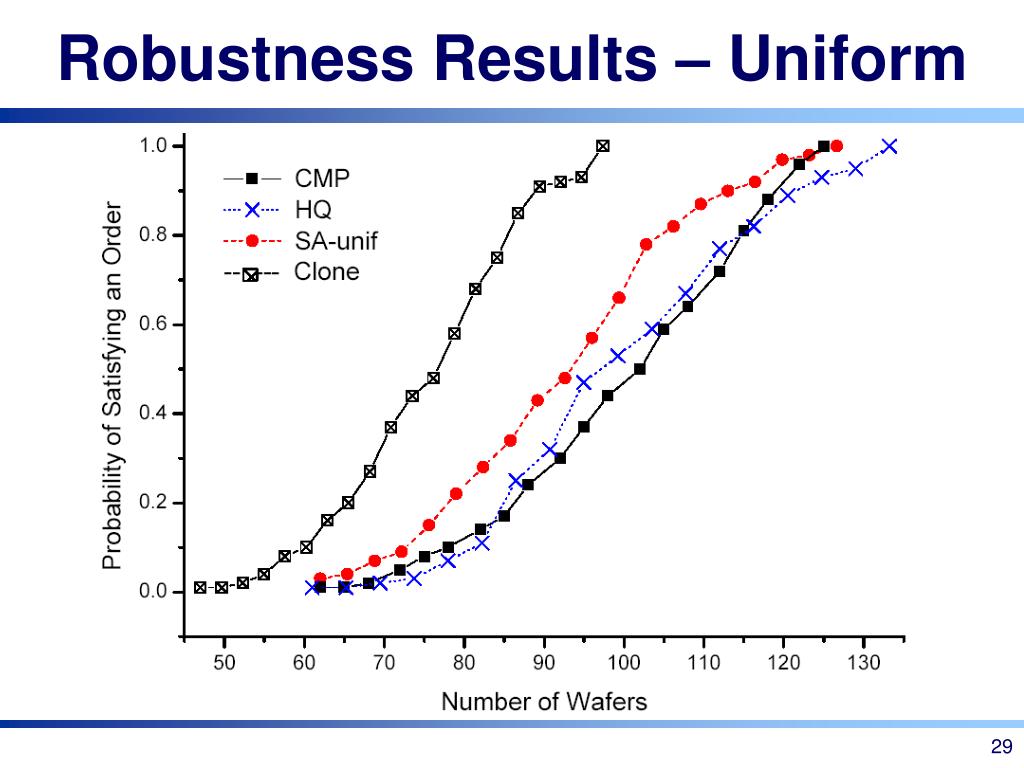

  29. Robustness Results – Uniform

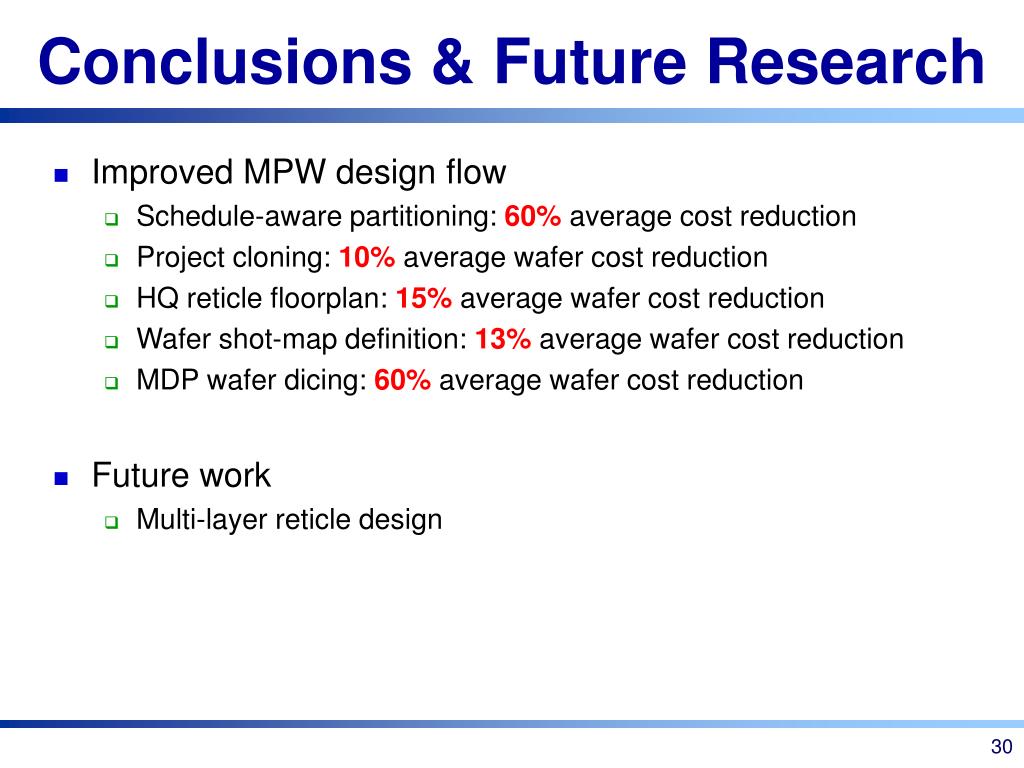

  30. Conclusions & Future Research • Improved MPW design flow • Schedule-aware partitioning: 60% average cost reduction • Project cloning: 10% average wafer cost reduction • HQ reticle floorplan: 15% average wafer cost reduction • Wafer shot-map definition: 13% average wafer cost reduction • MDP wafer dicing: 60% average wafer cost reduction • Future work • Multi-layer reticle design
