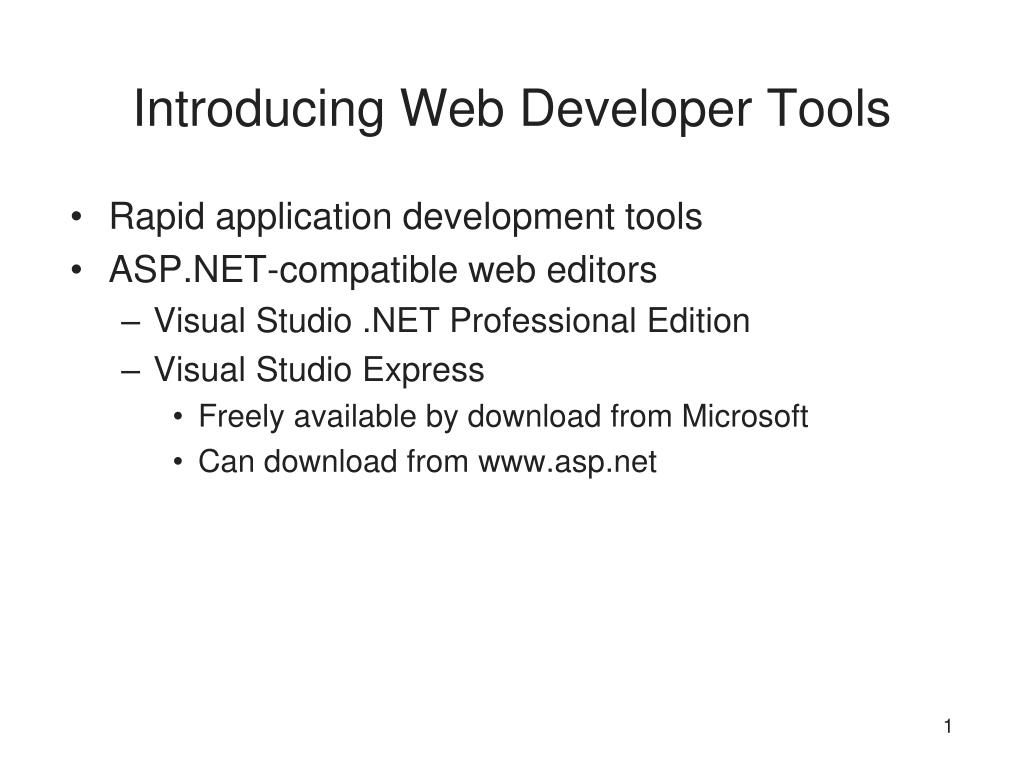

  1. Introducing Web Developer Tools • Rapid application development tools • ASP.NET-compatible web editors • Visual Studio .NET Professional Edition • Visual Studio Express • Freely available by download from Microsoft • Can download from www.asp.net

  2. HTTP

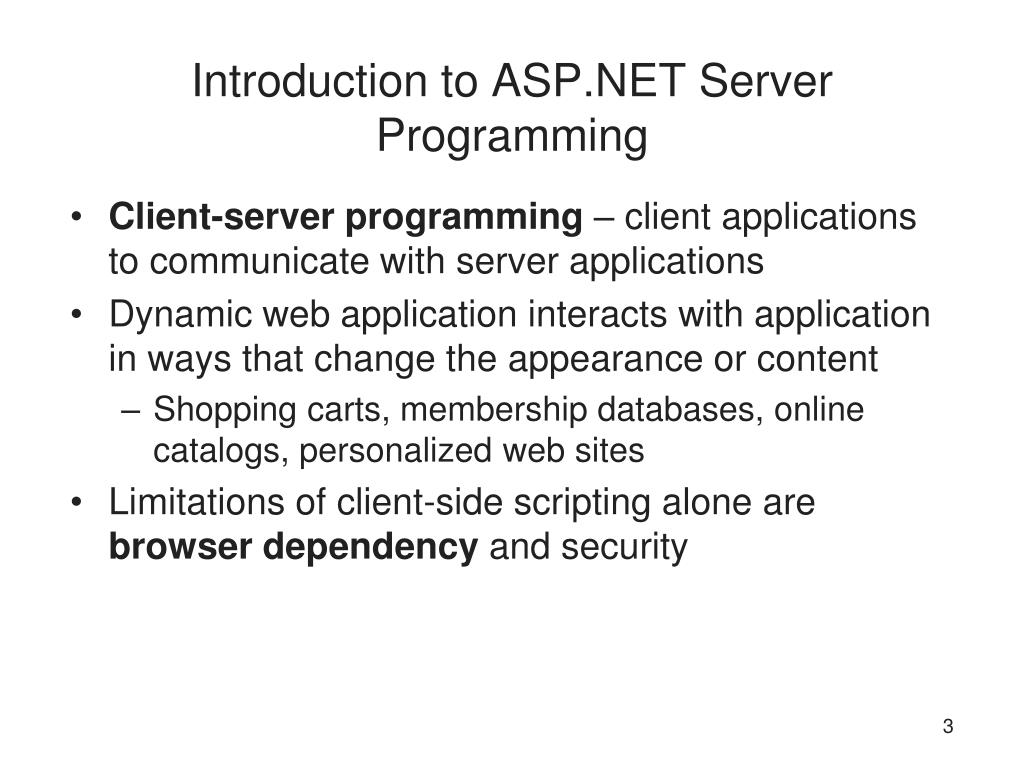

  3. Introduction to ASP.NET Server Programming • Client-server programming – client applications to communicate with server applications • Dynamic web application interacts with application in ways that change the appearance or content • Shopping carts, membership databases, online catalogs, personalized web sites • Limitations of client-side scripting alone are browser dependency and security

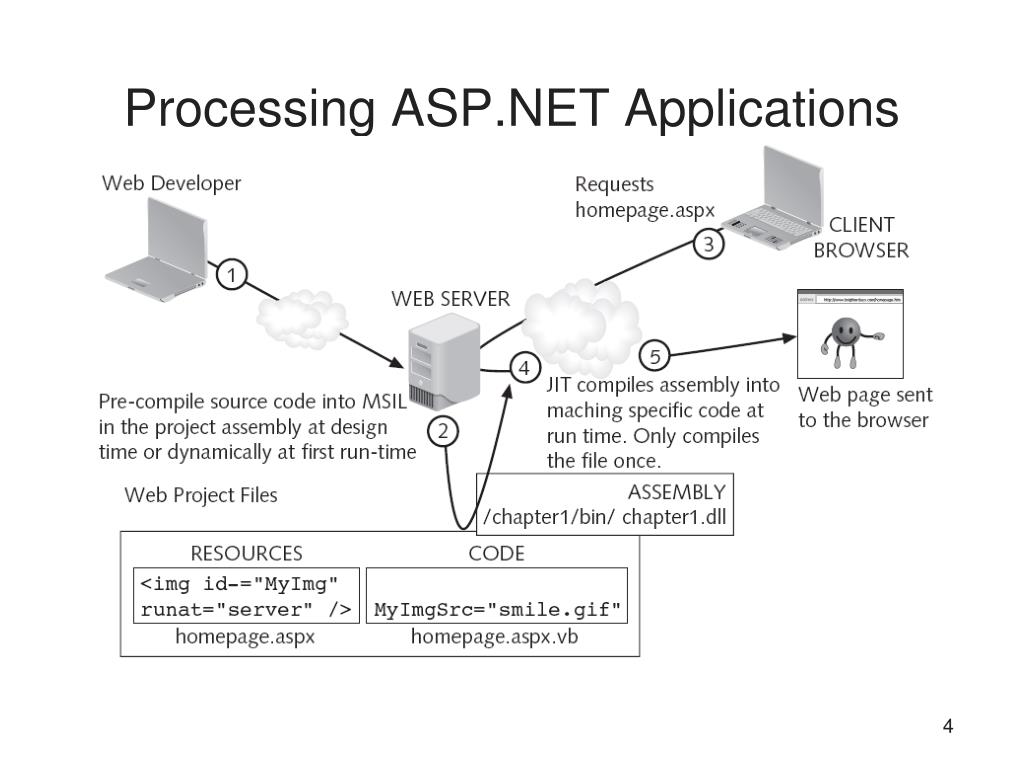

  4. Processing ASP.NET Applications

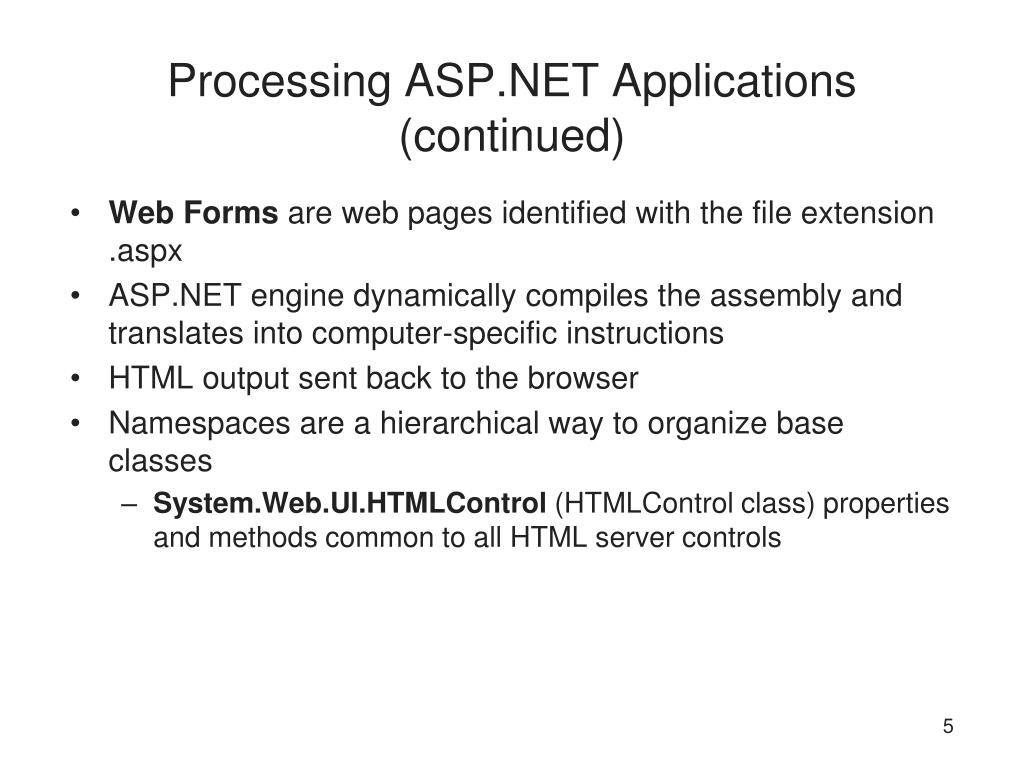

  5. Processing ASP.NET Applications (continued) • Web Forms are web pages identified with the file extension .aspx • ASP.NET engine dynamically compiles the assembly and translates into computer-specific instructions • HTML output sent back to the browser • Namespaces are a hierarchical way to organize base classes • System.Web.UI.HTMLControl (HTMLControl class) properties and methods common to all HTML server controls

  6. Server Controls

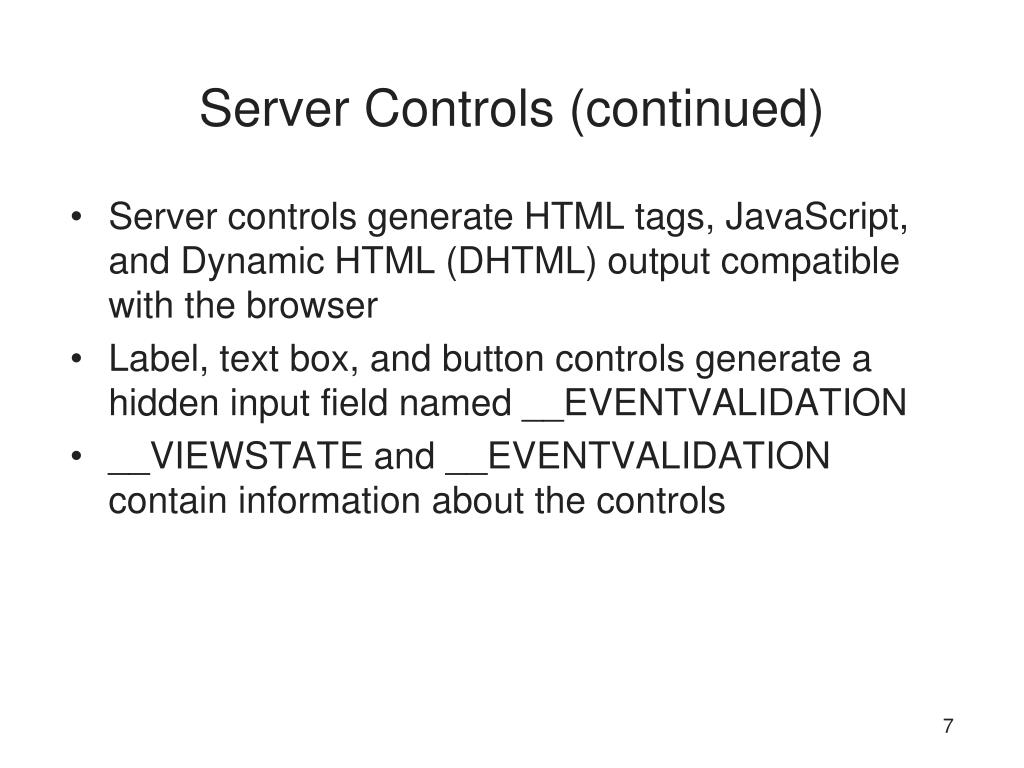

  7. Server Controls (continued) • Server controls generate HTML tags, JavaScript, and Dynamic HTML (DHTML) output compatible with the browser • Label, text box, and button controls generate a hidden input field named __EVENTVALIDATION • __VIEWSTATE and __EVENTVALIDATION contain information about the controls

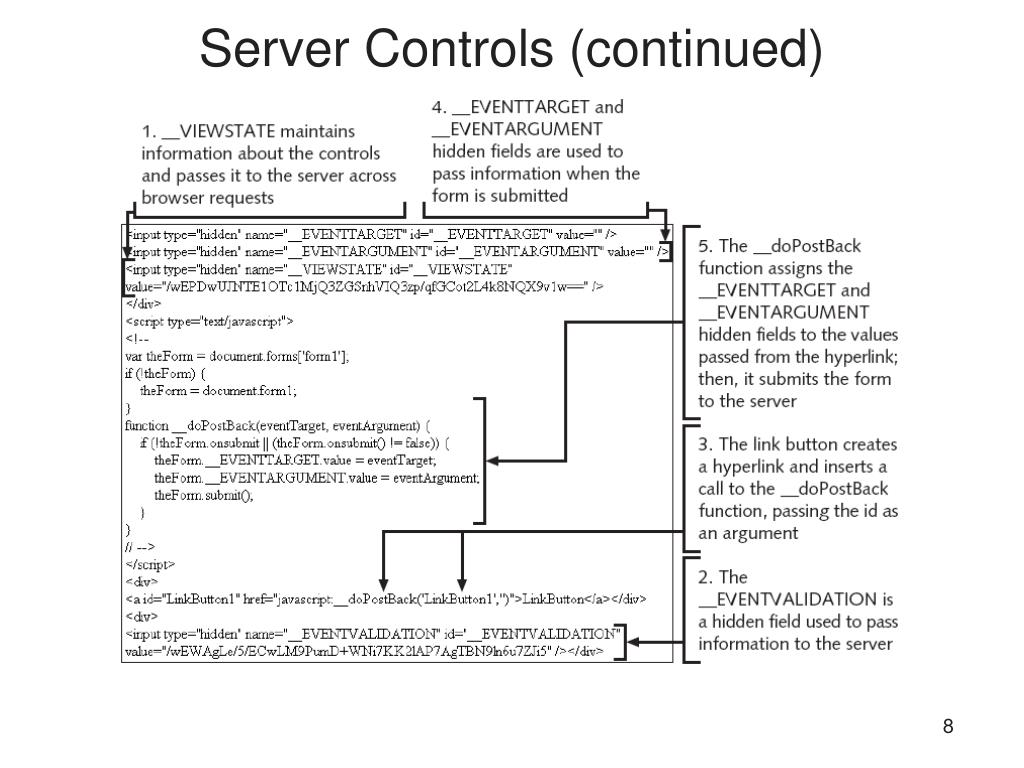

  8. Server Controls (continued)

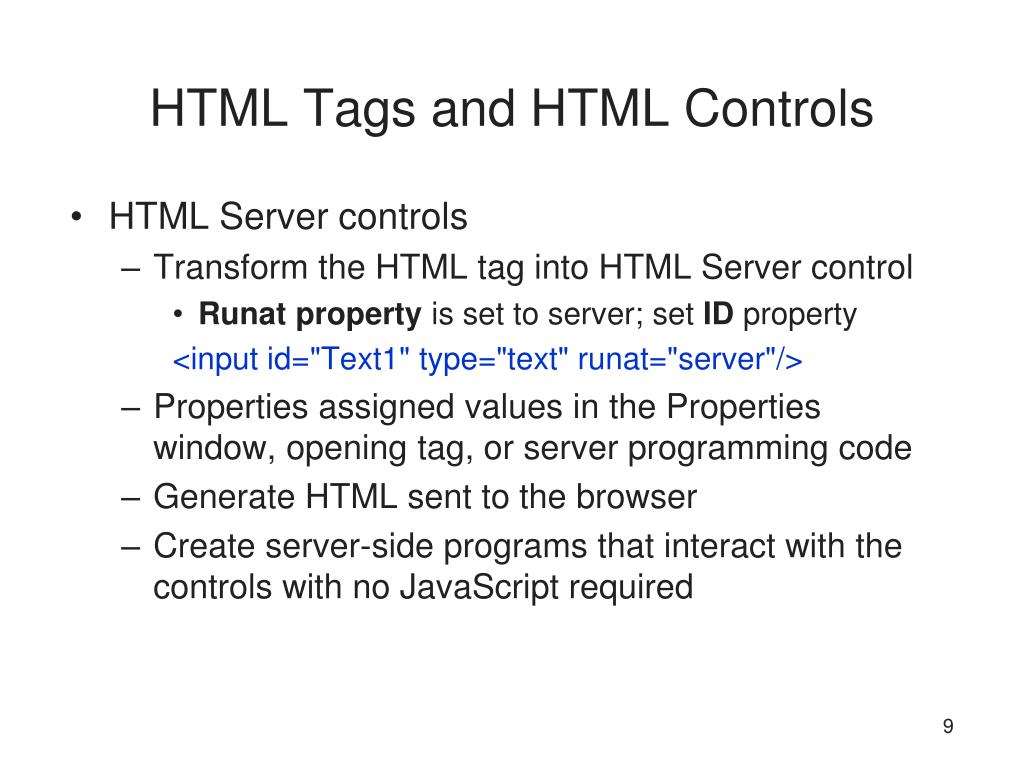

  9. HTML Tags and HTML Controls • HTML Server controls • Transform the HTML tag into HTML Server control • Runatproperty is set to server; set ID property <input id="Text1" type="text" runat="server"/> • Properties assigned values in the Properties window, opening tag, or server programming code • Generate HTML sent to the browser • Create server-side programs that interact with the controls with no JavaScript required

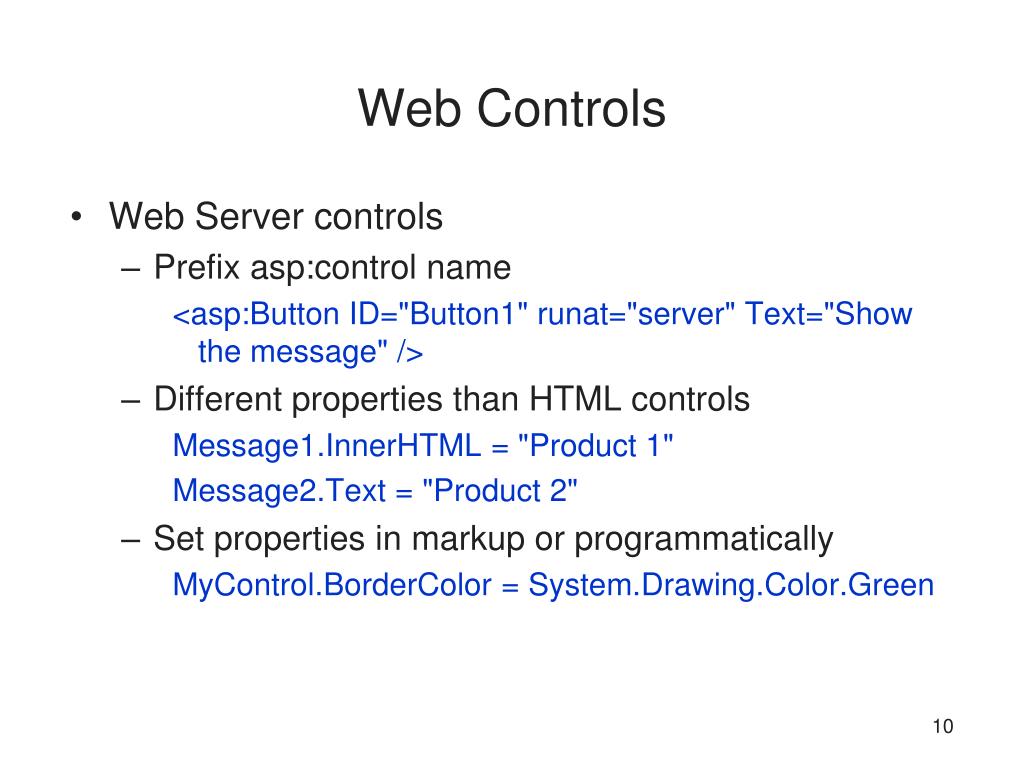

  10. Web Controls • Web Server controls • Prefix asp:control name <asp:Button ID="Button1" runat="server" Text="Show the message" /> • Different properties than HTML controls Message1.InnerHTML = "Product 1" Message2.Text = "Product 2" • Set properties in markup or programmatically MyControl.BorderColor = System.Drawing.Color.Green

  11. Creating a Web Page Using a Web Editor

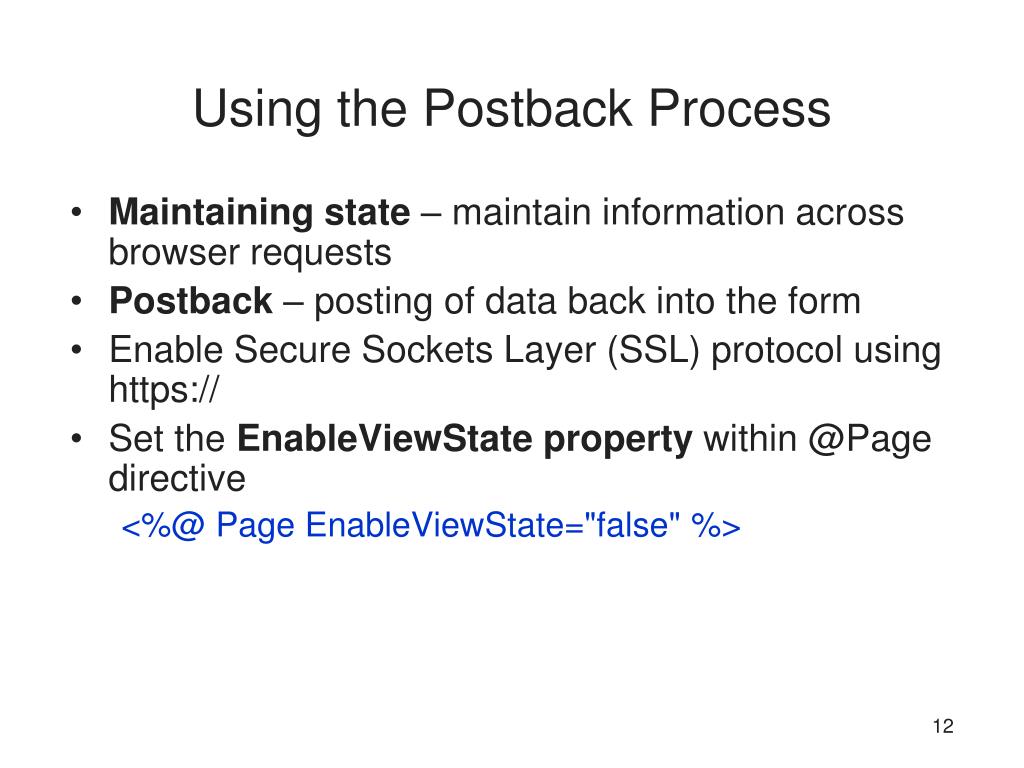

  12. Using the Postback Process • Maintaining state – maintain information across browser requests • Postback – posting of data back into the form • Enable Secure Sockets Layer (SSL) protocol using https:// • Set the EnableViewStateproperty within @Page directive <%@ Page EnableViewState="false" %>

  13. Summary • Visual studio Express is a scaled down version of Visual Studio .NET and is used to create ASP.NET applications • Solution Explorer window allows you to manage all of your files • Set object properties in code manually or in the Properties window • Toolbox contains commonly used controls, organized into tabs • HTML is a markup language that uses tags to identify how to format and present the content; web pages created with HTML can end in .htm or .html • Forms collect information from the visitor; form elements include text boxes, check boxes, and drop-down lists • Create HTML code in HTML view, or Design view

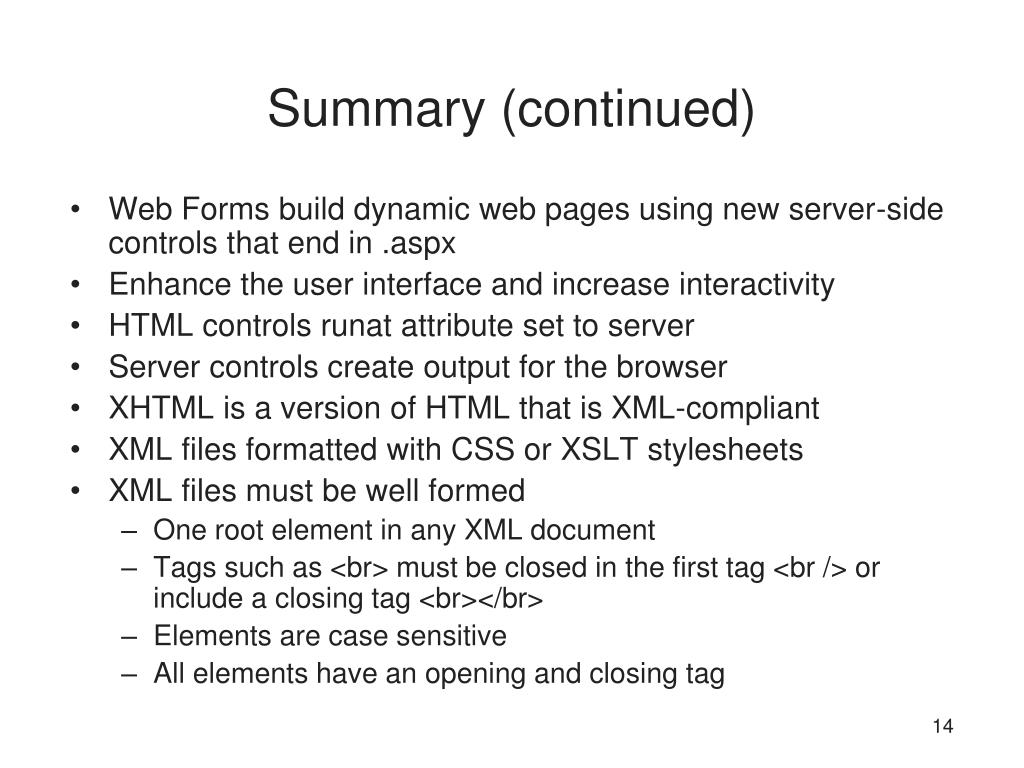

  14. Summary (continued) • Web Forms build dynamic web pages using new server-side controls that end in .aspx • Enhance the user interface and increase interactivity • HTML controls runat attribute set to server • Server controls create output for the browser • XHTML is a version of HTML that is XML-compliant • XML files formatted with CSS or XSLT stylesheets • XML files must be well formed • One root element in any XML document • Tags such as <br> must be closed in the first tag <br /> or include a closing tag <br></br> • Elements are case sensitive • All elements have an opening and closing tag

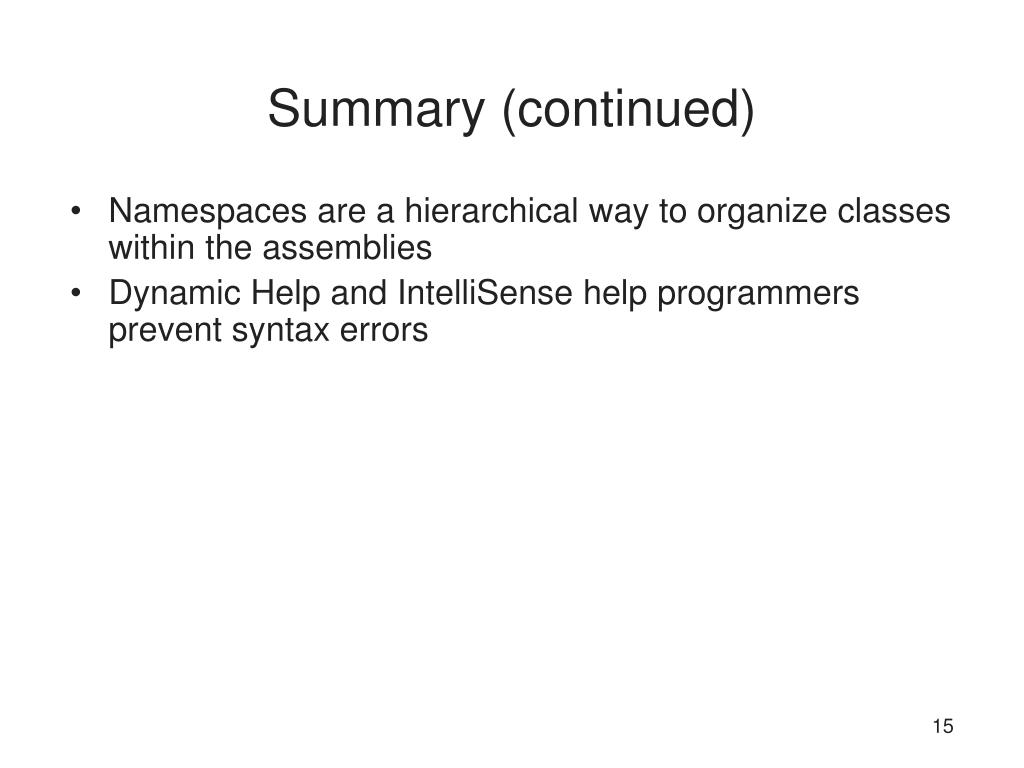

  15. Summary (continued) • Namespaces are a hierarchical way to organize classes within the assemblies • Dynamic Help and IntelliSense help programmers prevent syntax errors
