  1. Unit Two Notes – Kinematics in Two Dimensions

  2. Student Objectives: • Students should be able to add, subtract, and resolve displacement and velocity vectors so they can: • Determine the components of a vector along two specified, mutually perpendicular axes. • Determine the net displacement of a particle of the location of a particle relative to another. • Determine the change in velocity of a particle or the velocity of one particle relative to another. • Students should understand the motion of projectiles in a uniform gravitational field, so they can: • Write down expressions for the horizontal and vertical components of velocity and position as functions of time, and sketch or identify graphs of these components. • Use these expressions in analyzing the motion of a projectile that is projected with an arbitrary initial velocity.

  3. Section 1: Adding Vectors Graphically

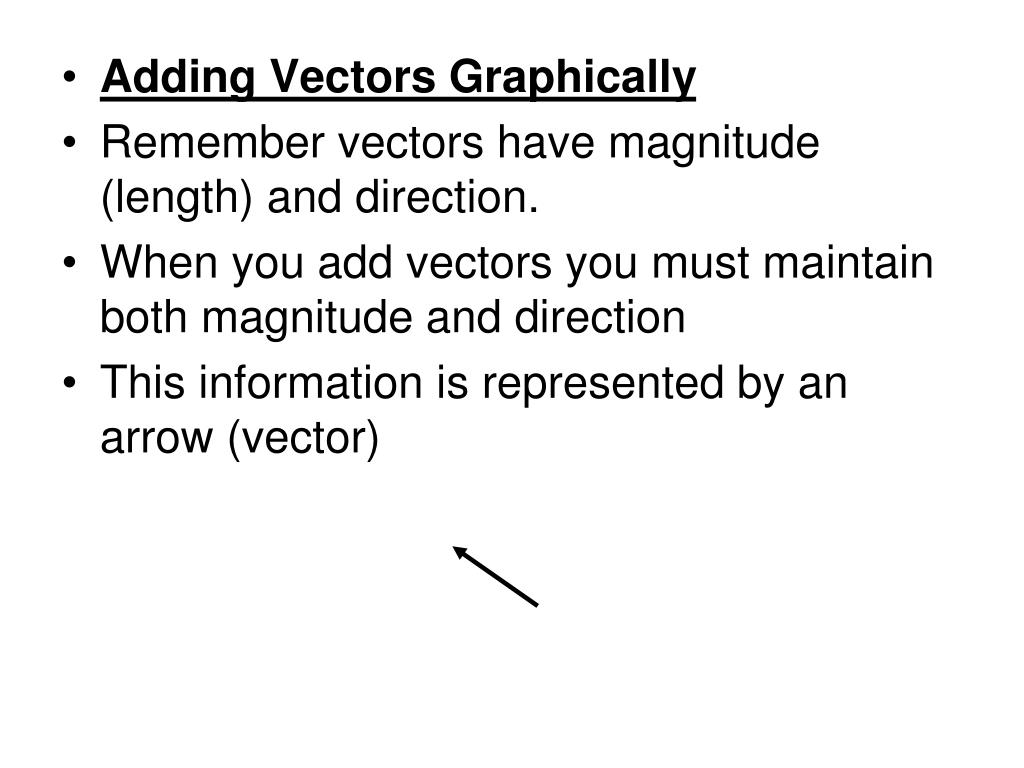

  4. Adding Vectors Graphically • Remember vectors have magnitude (length) and direction. • When you add vectors you must maintain both magnitude and direction • This information is represented by an arrow (vector)

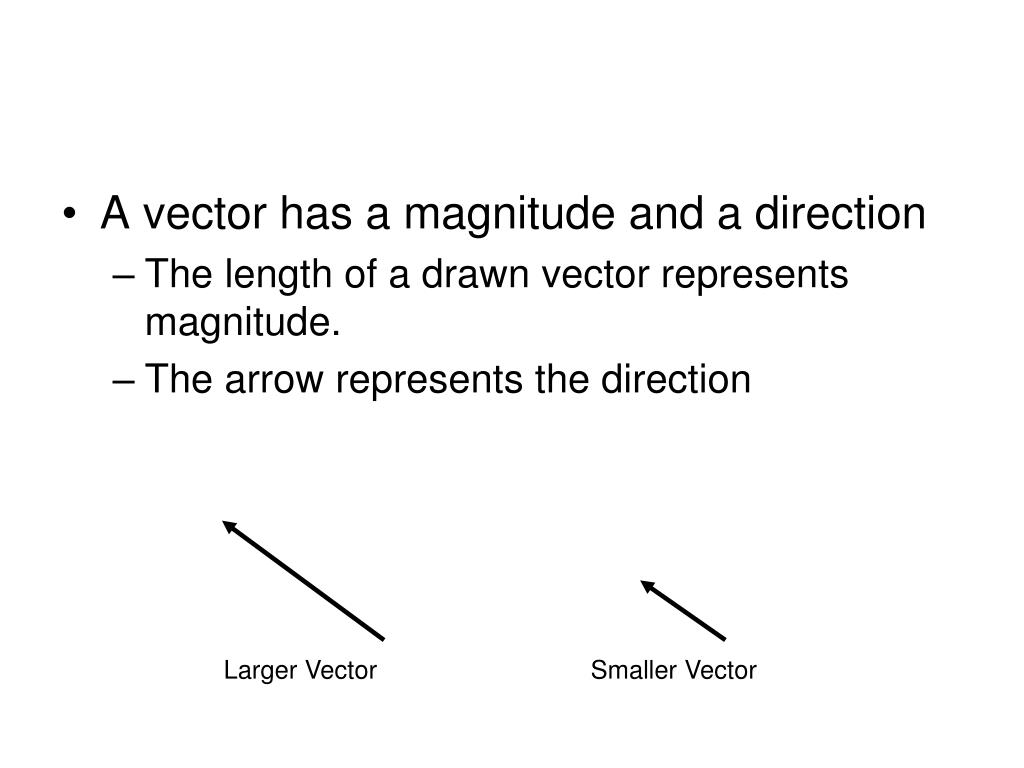

  5. A vector has a magnitude and a direction • The length of a drawn vector represents magnitude. • The arrow represents the direction Larger Vector Smaller Vector

  6. Graphical Representation of Vectors • Given Vector a: Draw 2a Draw -a

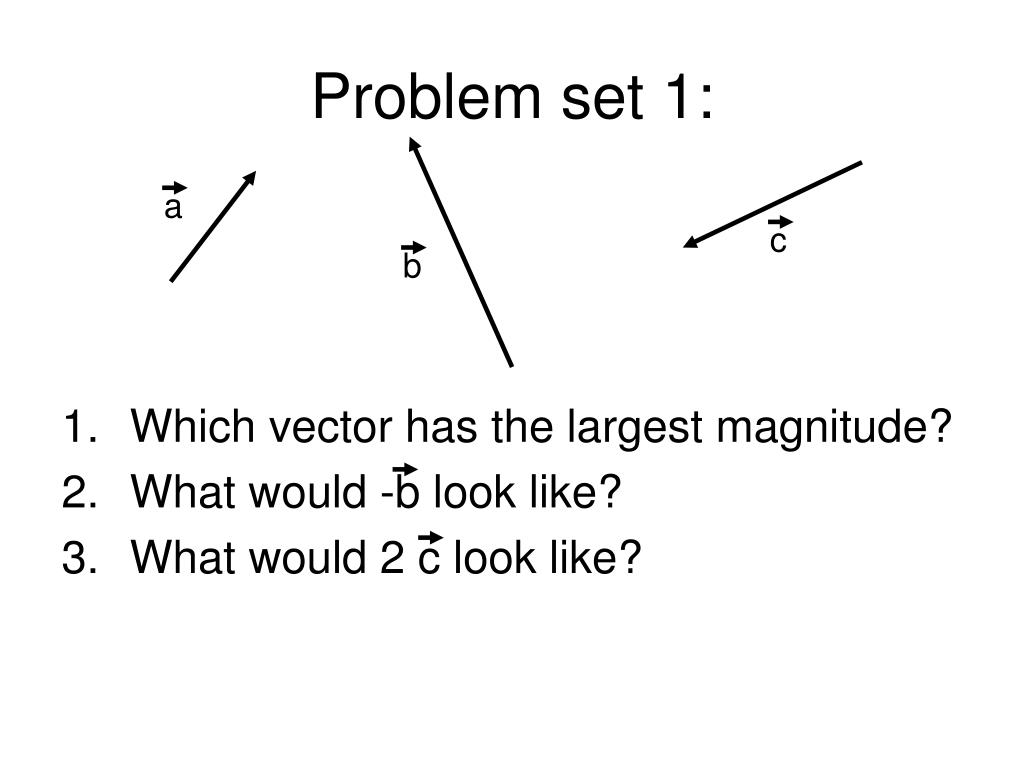

  7. Problem set 1: • Which vector has the largest magnitude? • What would -b look like? • What would 2 c look like? a c b

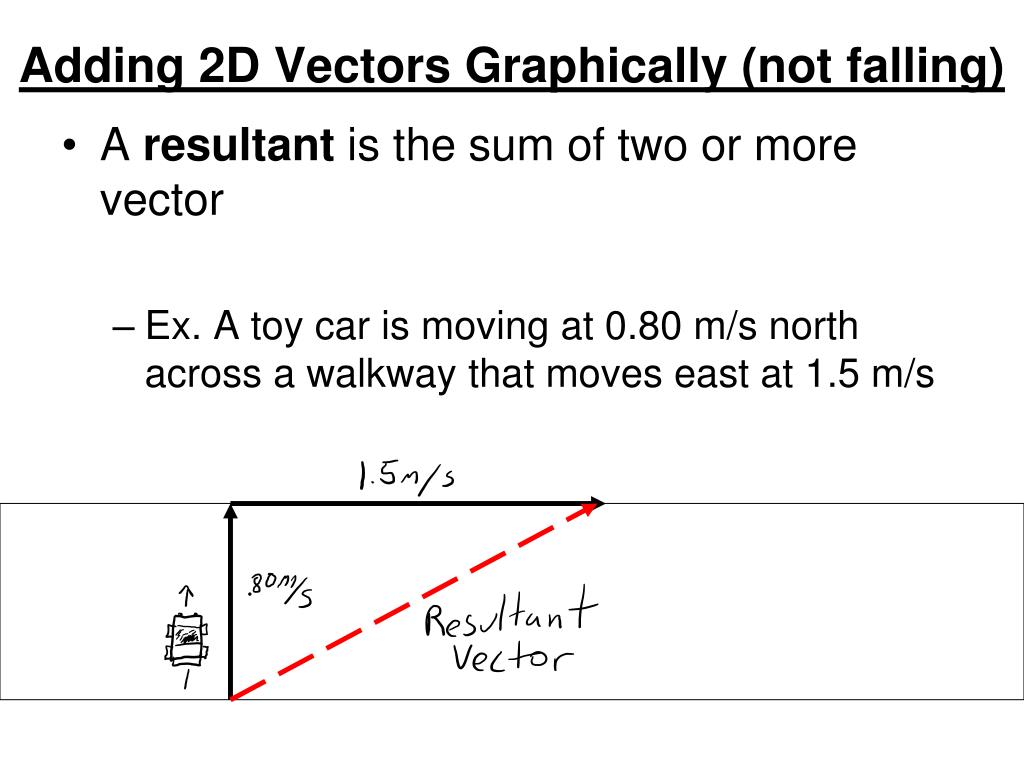

  8. Adding 2D Vectors Graphically (not falling) • A resultant is the sum of two or more vector • Ex. A toy car is moving at 0.80 m/s north across a walkway that moves east at 1.5 m/s

  9. Vectors • Three vectors a c b

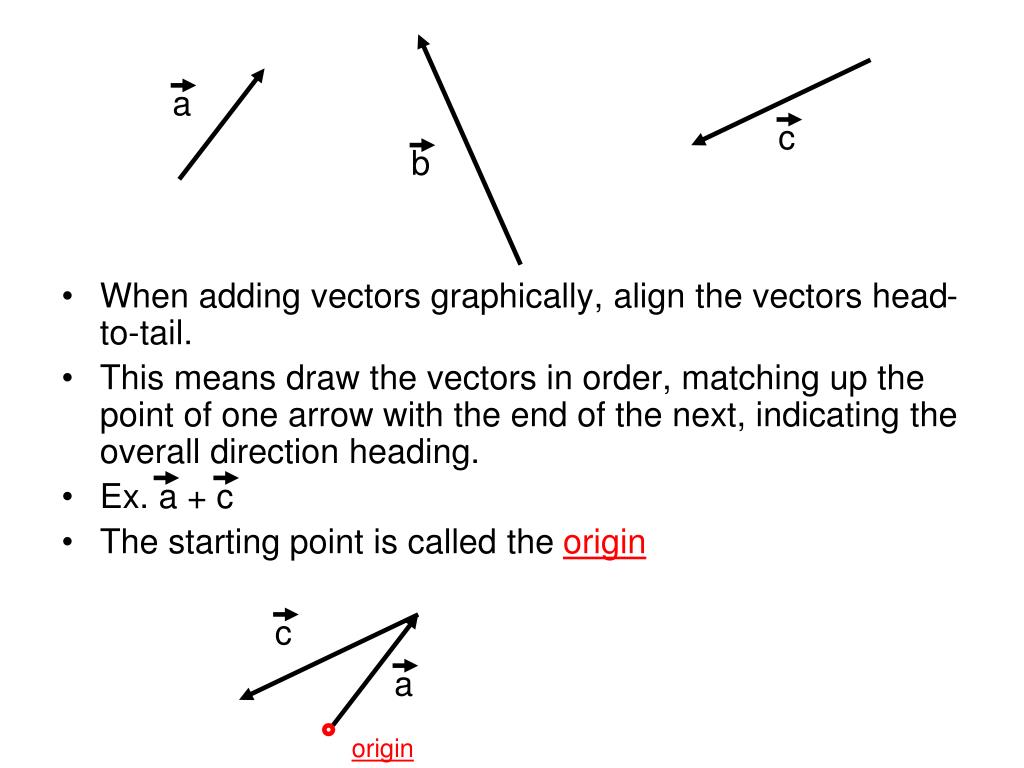

  10. a c b • When adding vectors graphically, align the vectors head-to-tail. • This means draw the vectors in order, matching up the point of one arrow with the end of the next, indicating the overall direction heading. • Ex. a + c • The starting point is called the origin c a origin

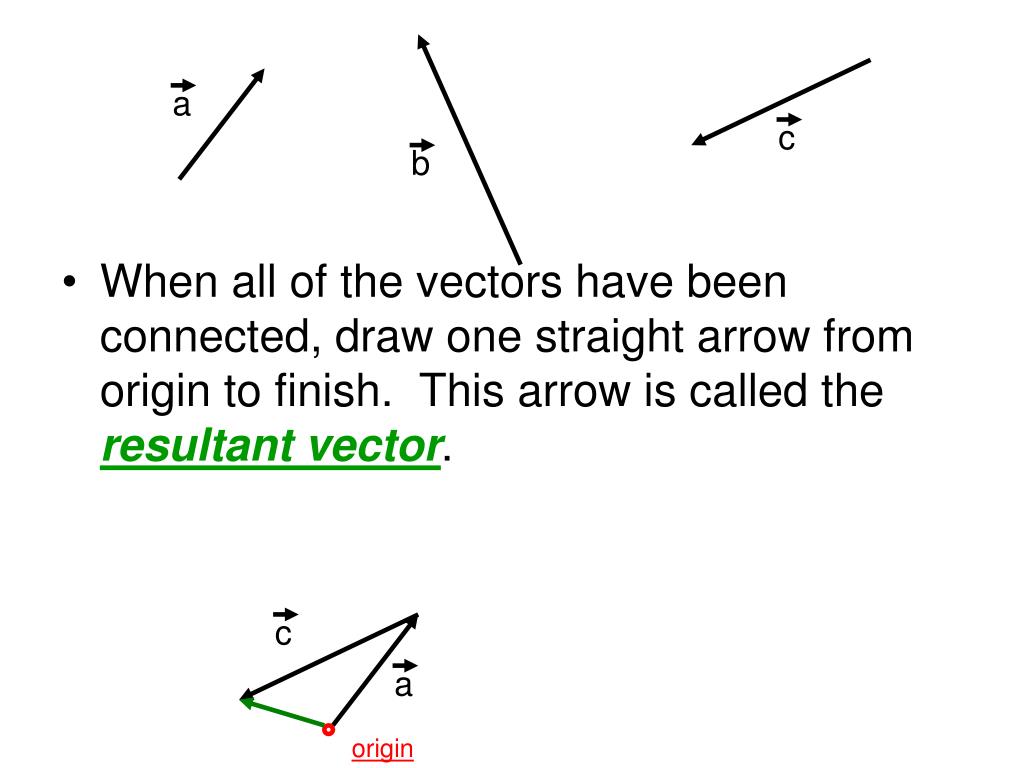

  11. a c b • When all of the vectors have been connected, draw one straight arrow from origin to finish. This arrow is called the resultant vector. c a origin

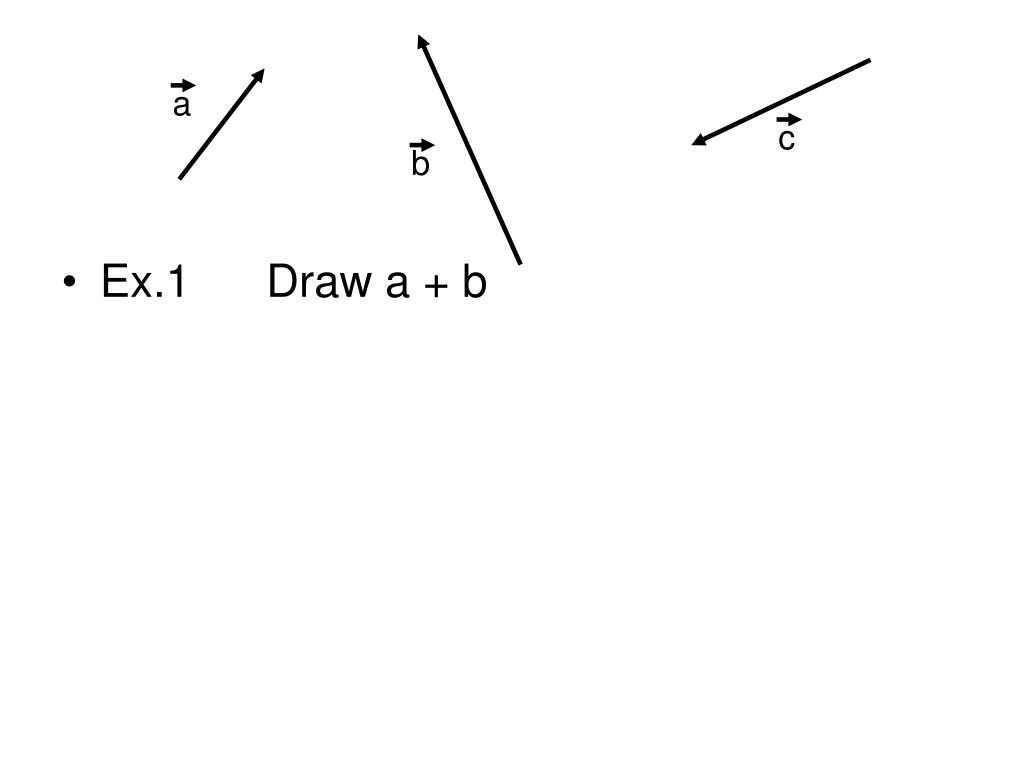

  12. a c b • Ex.1 Draw a + b

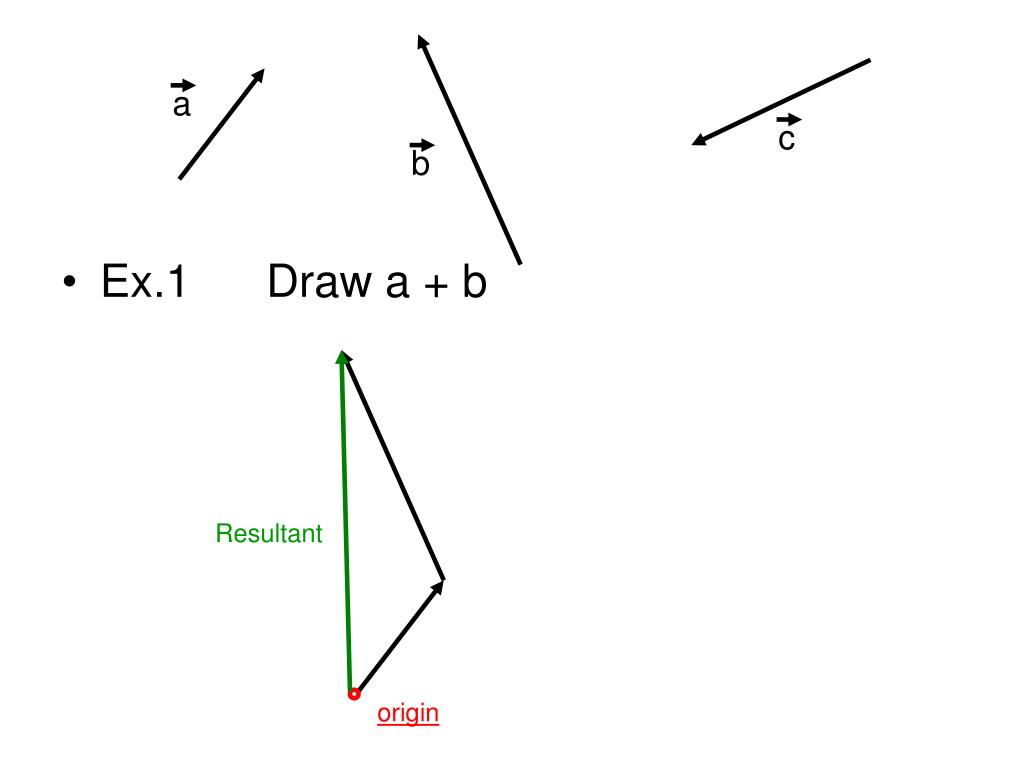

  13. a c b • Ex.1 Draw a + b Resultant origin

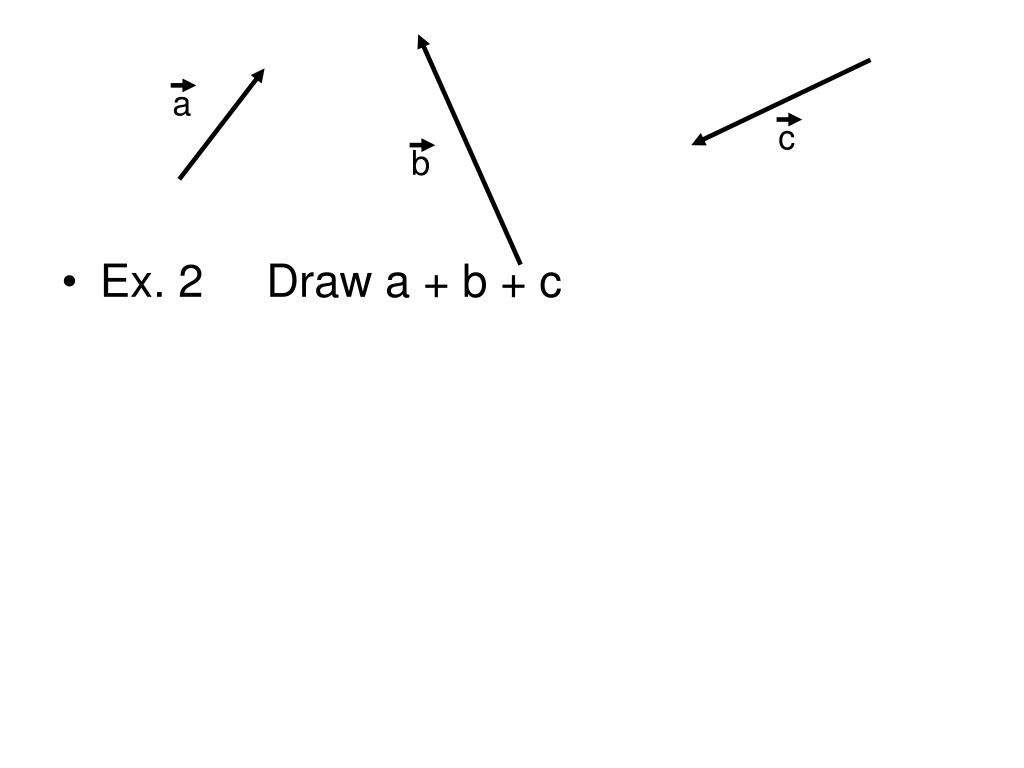

  14. a c b • Ex. 2 Draw a + b + c

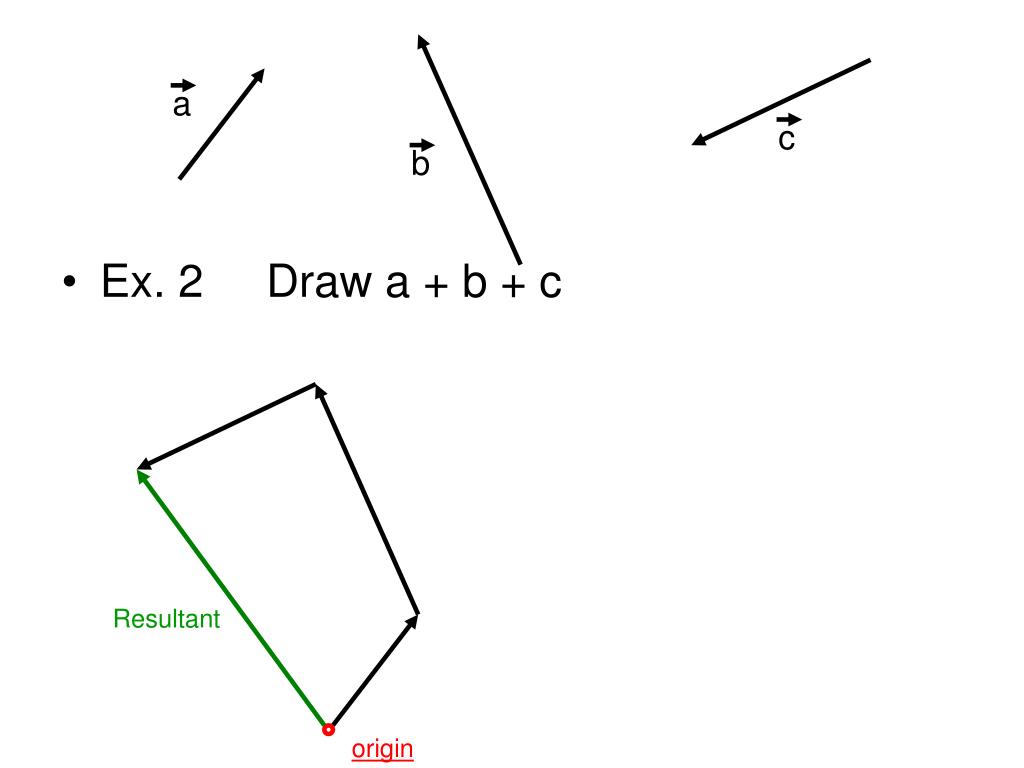

  15. a c b • Ex. 2 Draw a + b + c Resultant origin

  16. a c b • Ex. 3 Draw 2a – b – 2c

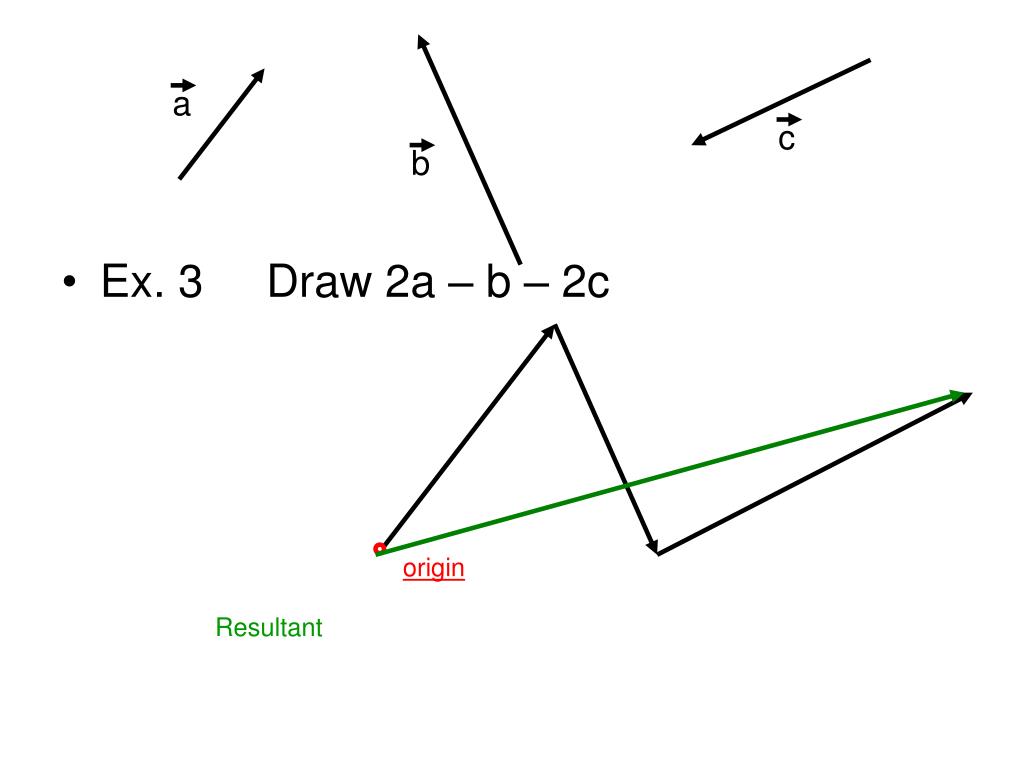

  17. a c b • Ex. 3 Draw 2a – b – 2c origin Resultant

  18. Section 2: How do you name vector directions?

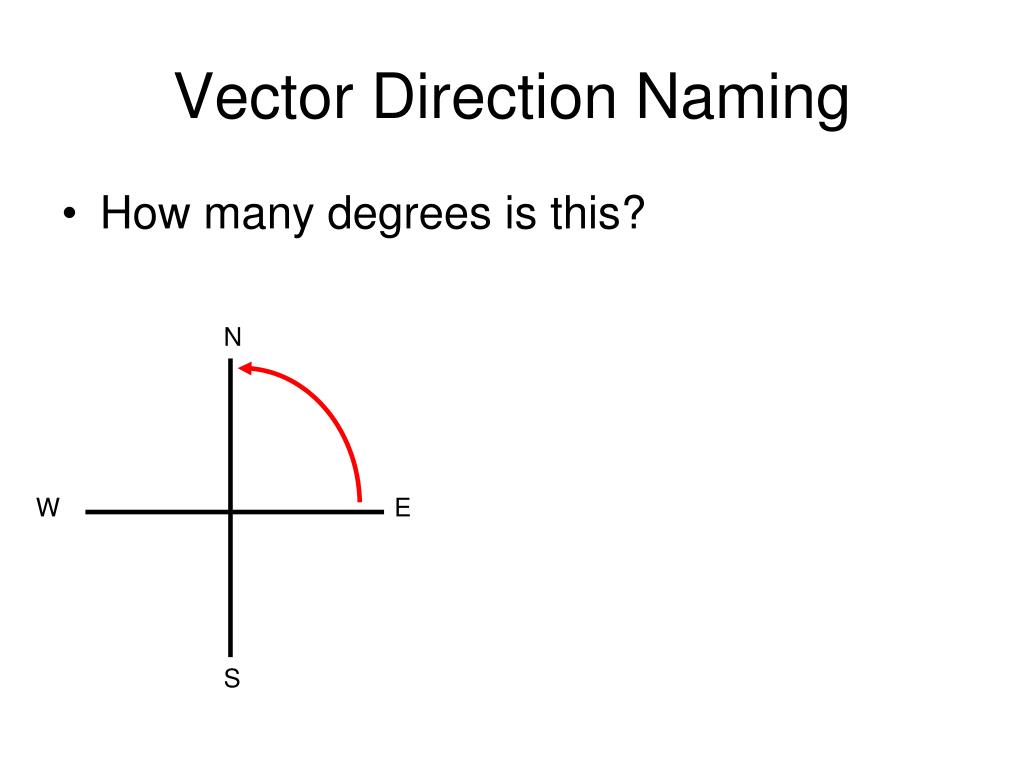

  19. Vector Direction Naming • How many degrees is this? N W E S

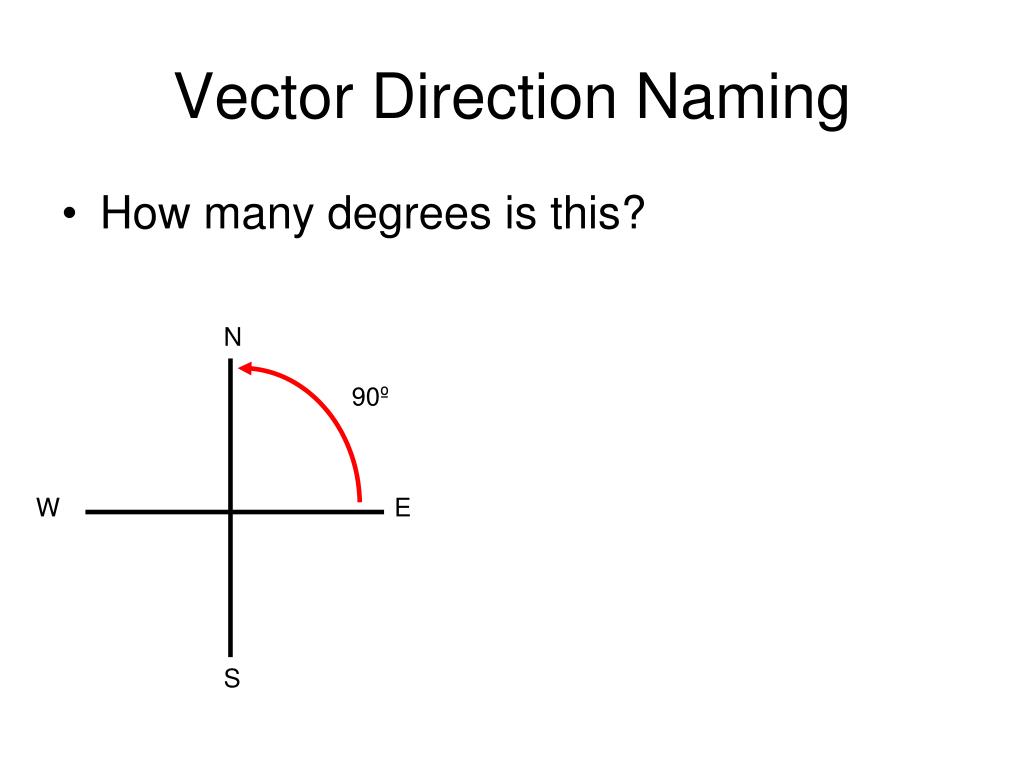

  20. Vector Direction Naming • How many degrees is this? N 90º W E S

  21. Vector Direction Naming • What is the difference between 15º North of East and 15 º East of North? N W E S

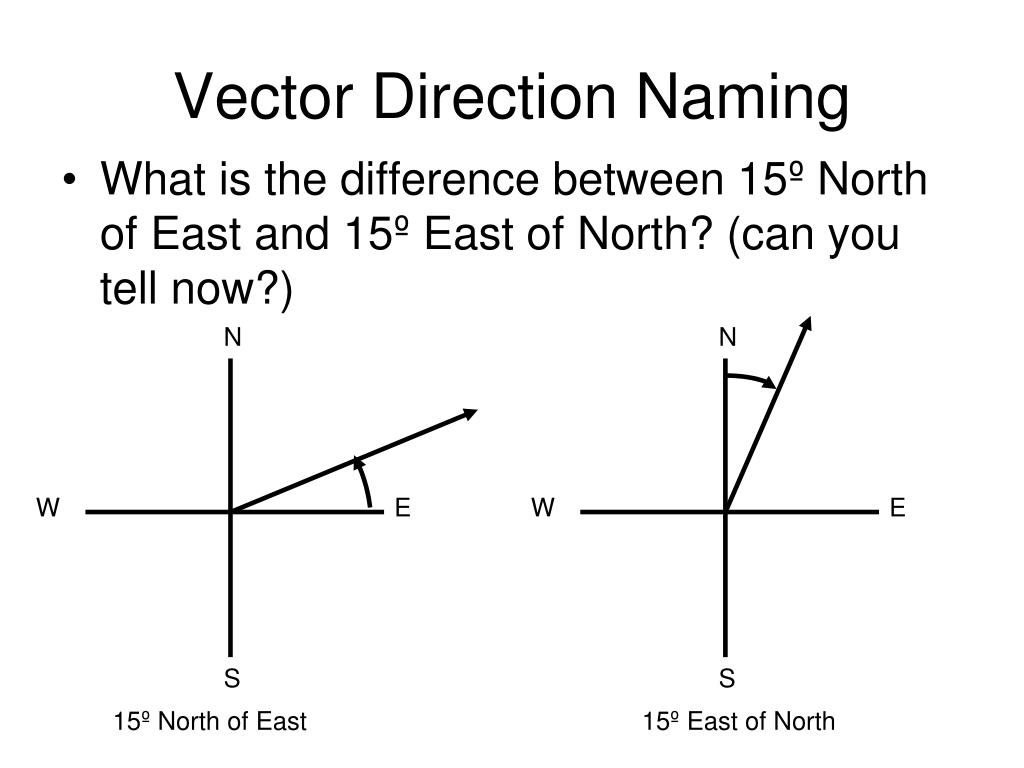

  22. Vector Direction Naming • What is the difference between 15º North of East and 15º East of North? (can you tell now?) N N W E W E S S 15º North of East 15º East of North

  23. Vector Direction Naming N 15º W S 15º North of what?

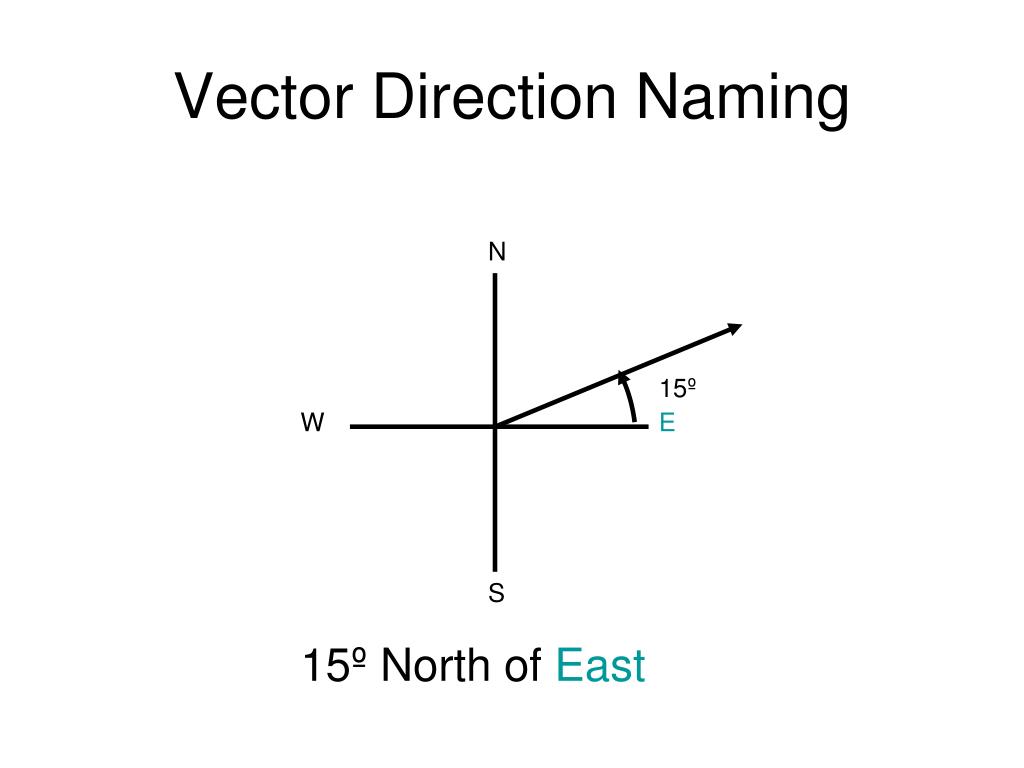

  24. Vector Direction Naming N 15º W E S 15º North of East

  25. 15º W E S 15º East of What?

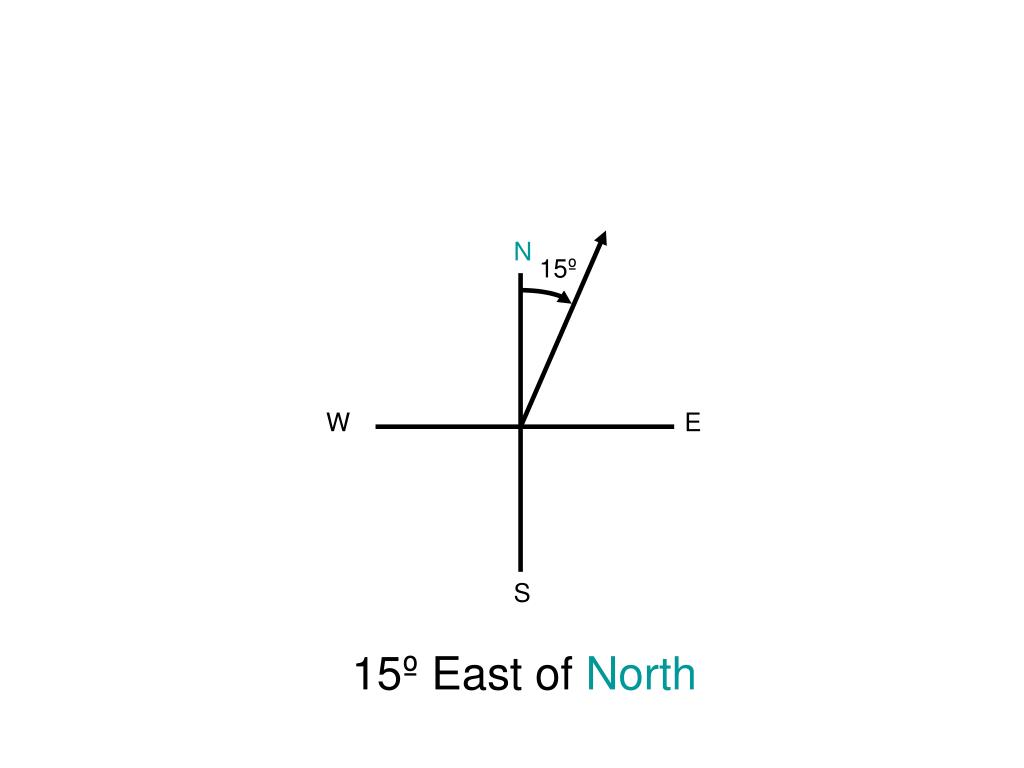

  26. N 15º W E S 15º East of North

  27. ___ of ___ N E This is the baseline. It is the direction you look at first This is the direction you go from the baseline to draw your angle

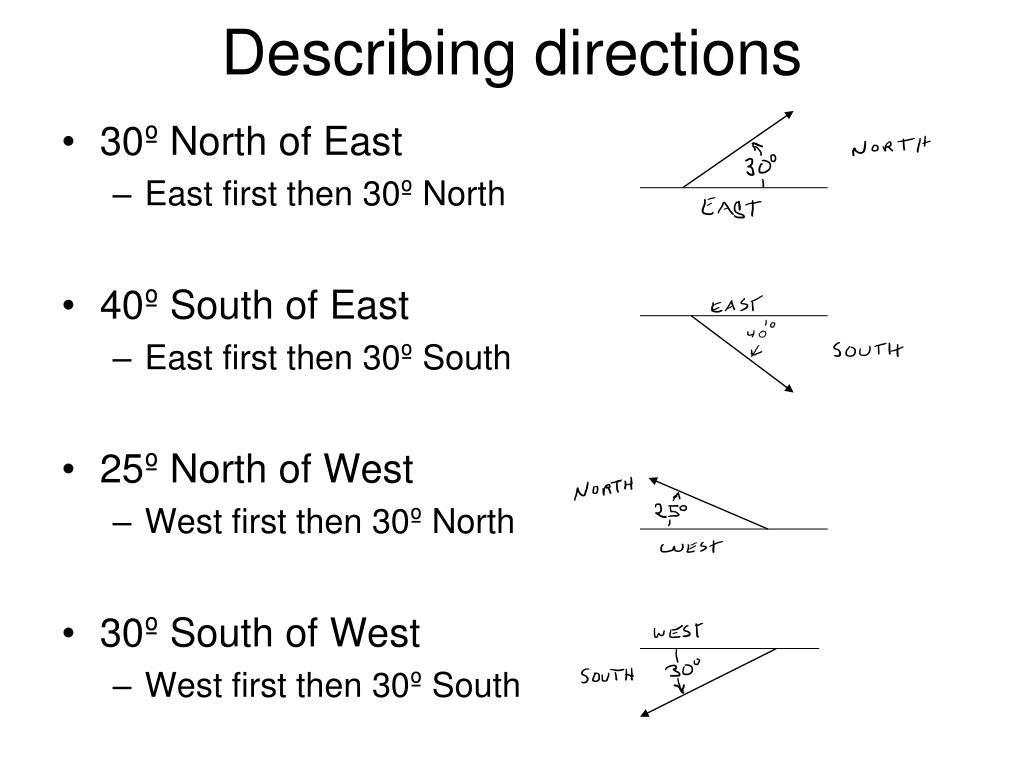

  28. Describing directions • 30º North of East • East first then 30º North • 40º South of East • East first then 30º South • 25º North of West • West first then 30º North • 30º South of West • West first then 30º South

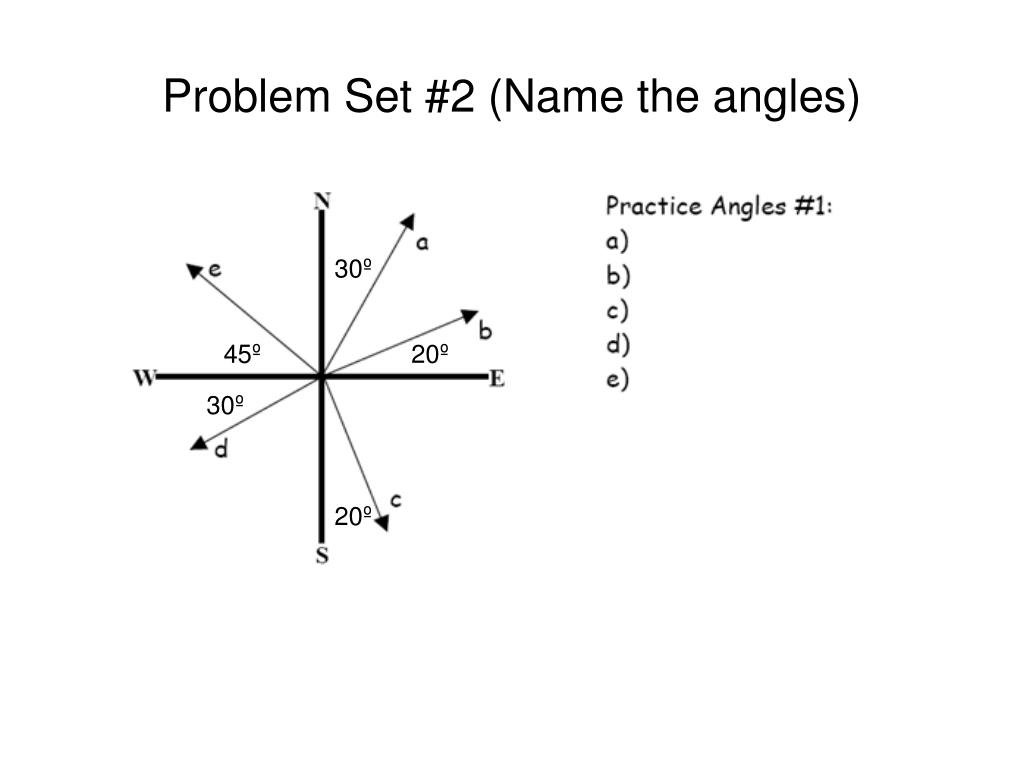

  29. Problem Set #2 (Name the angles) 30º 45º 20º 30º 20º

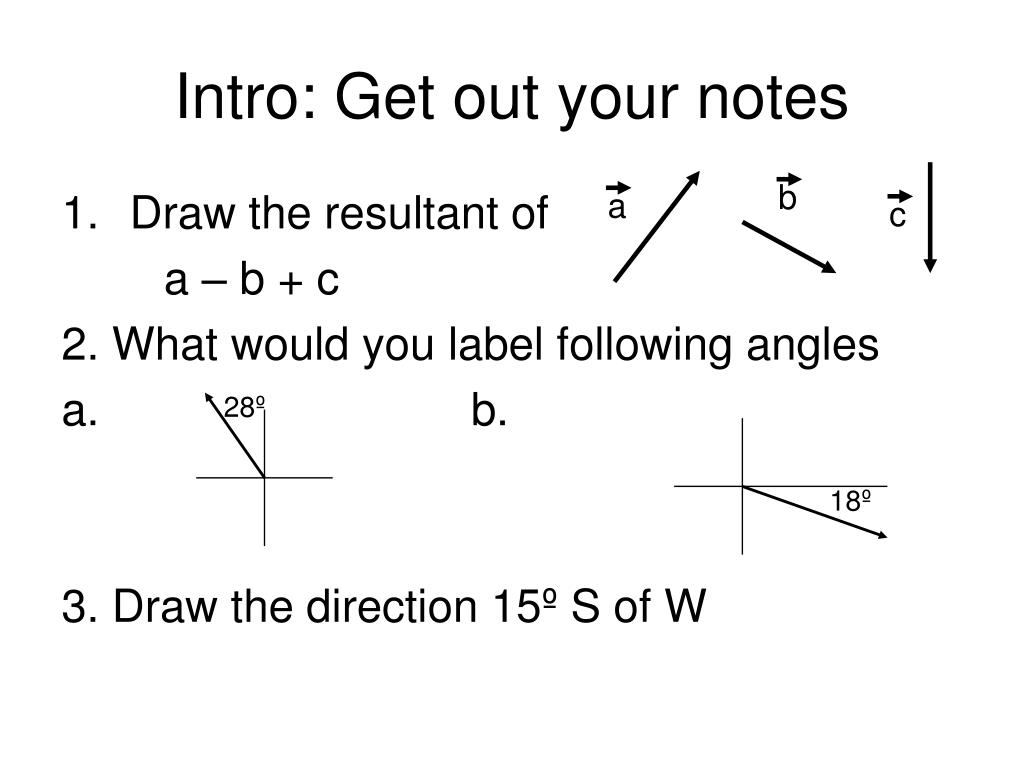

  30. Intro: Get out your notes b • Draw the resultant of a – b + c 2. What would you label following angles a. b. 3. Draw the direction 15º S of W a c 28º 18º

  31. Section 3: How do you add vectors mathematically (not projectile motion)

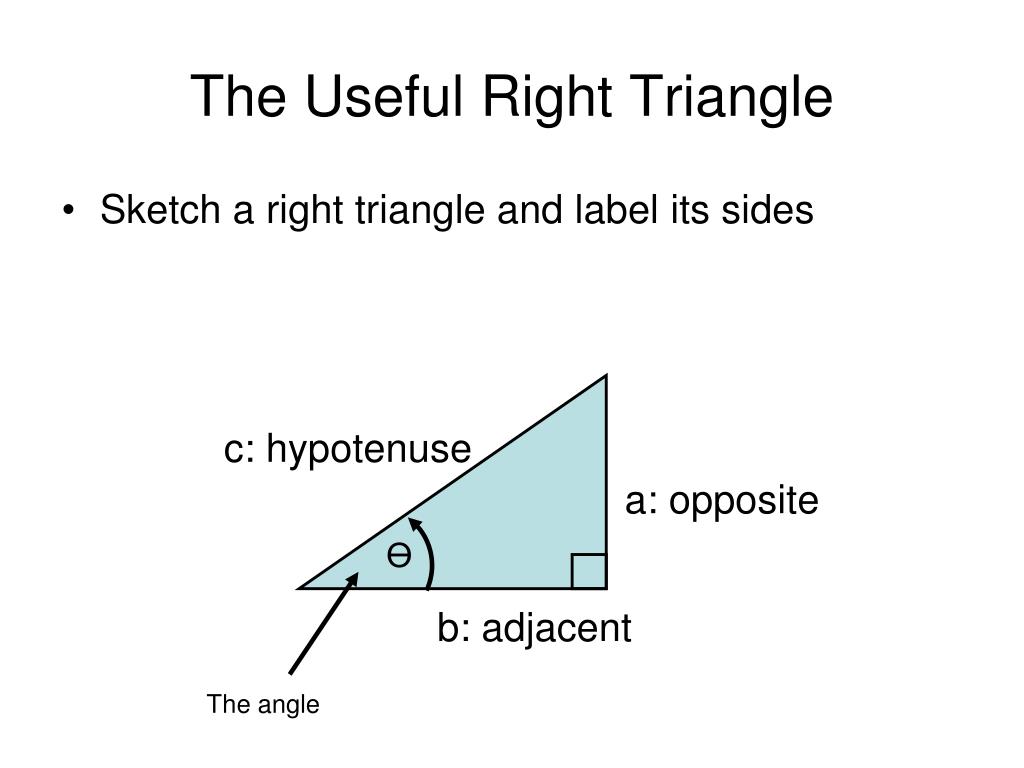

  32. The Useful Right Triangle • Sketch a right triangle and label its sides c: hypotenuse a: opposite Ө b: adjacent The angle

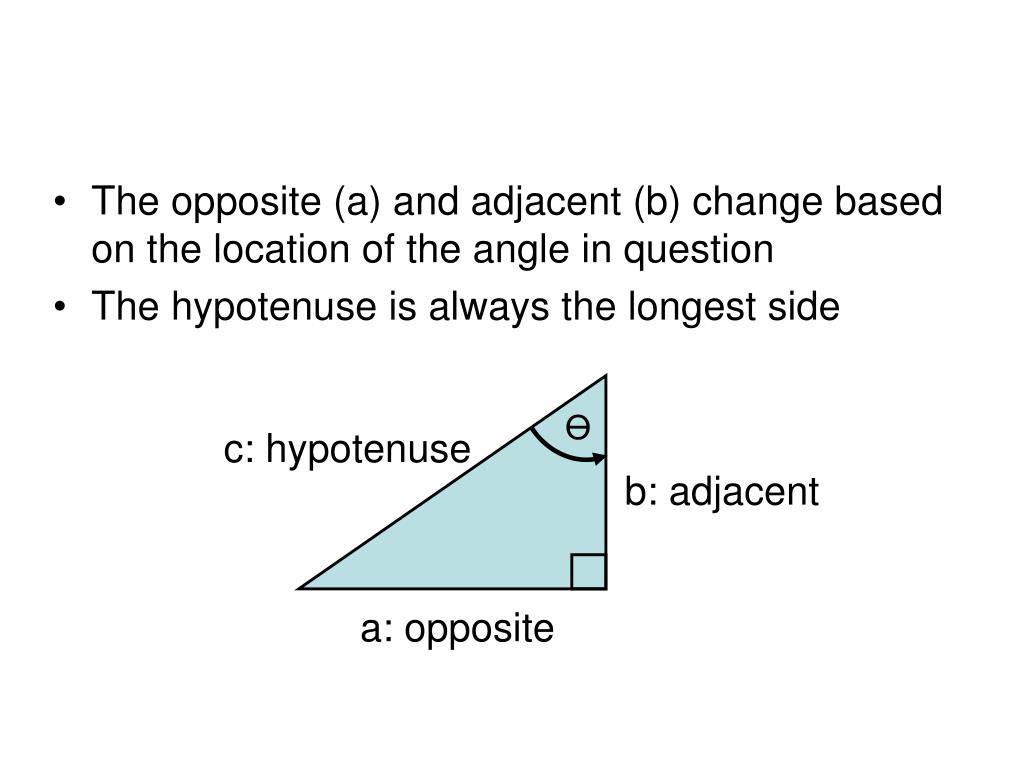

  33. The opposite (a) and adjacent (b) change based on the location of the angle in question • The hypotenuse is always the longest side Ө c: hypotenuse b: adjacent a: opposite

  34. The opposite (a) and adjacent (b) change based on the location of the angle in question • The hypotenuse is always the longest side Ө c: hypotenuse b: adjacent a: opposite

  35. To figure out any side when given two other sides • Use Pythagorean Theorem a2 + b2 =c2 c: hypotenuse a: opposite Ө b: adjacent The angle

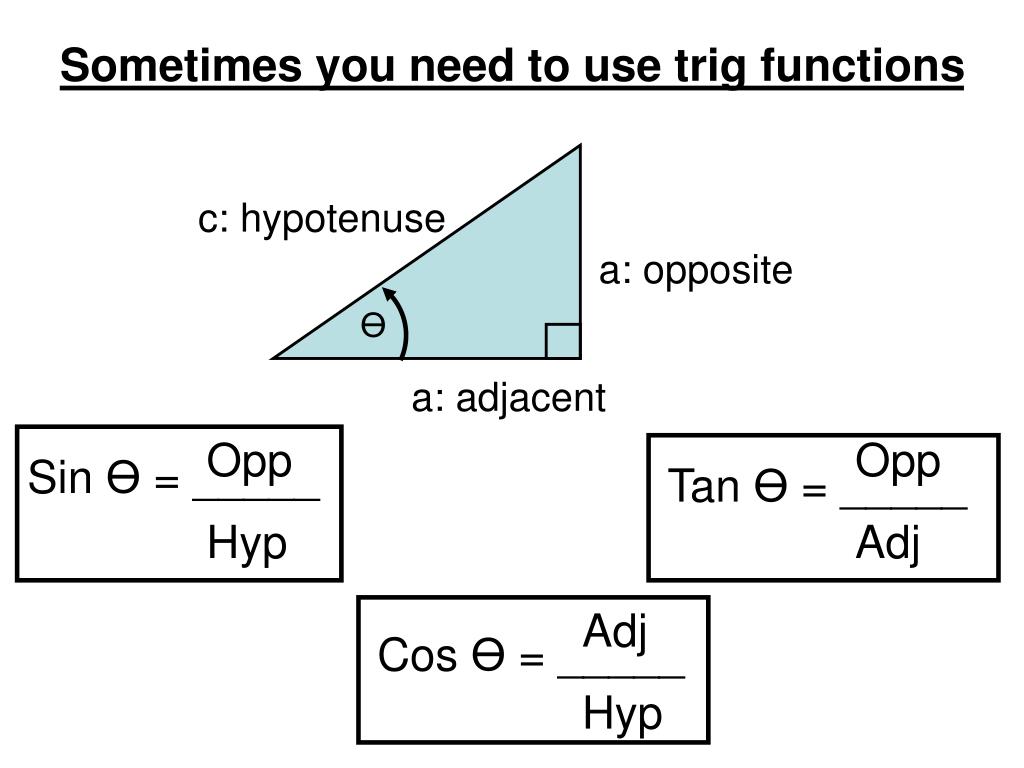

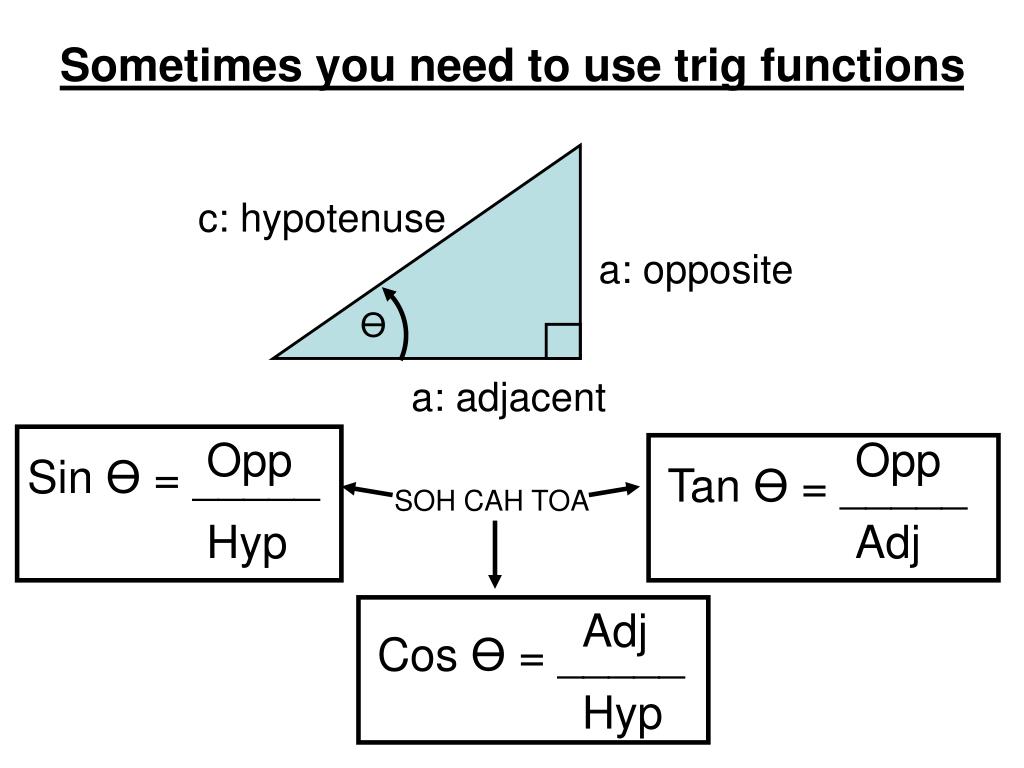

  36. Sometimes you need to use trig functions c: hypotenuse a: opposite Ө a: adjacent Opp Hyp Opp Adj Sin Ө = _____ Tan Ө = _____ Adj Hyp Cos Ө = _____

  37. Sometimes you need to use trig functions c: hypotenuse a: opposite Ө a: adjacent Opp Hyp Opp Adj Sin Ө = _____ Tan Ө = _____ SOH CAH TOA Adj Hyp Cos Ө = _____

  38. More used versions Opp Hyp Sin Ө = _____ Opp = (Sin Ө)(Hyp) Adj Hyp Cos Ө = _____ Adj = (Cos Ө)(Hyp) Opp Adj Opp Adj Ө = Tan-1 _____ Tan Ө = _____

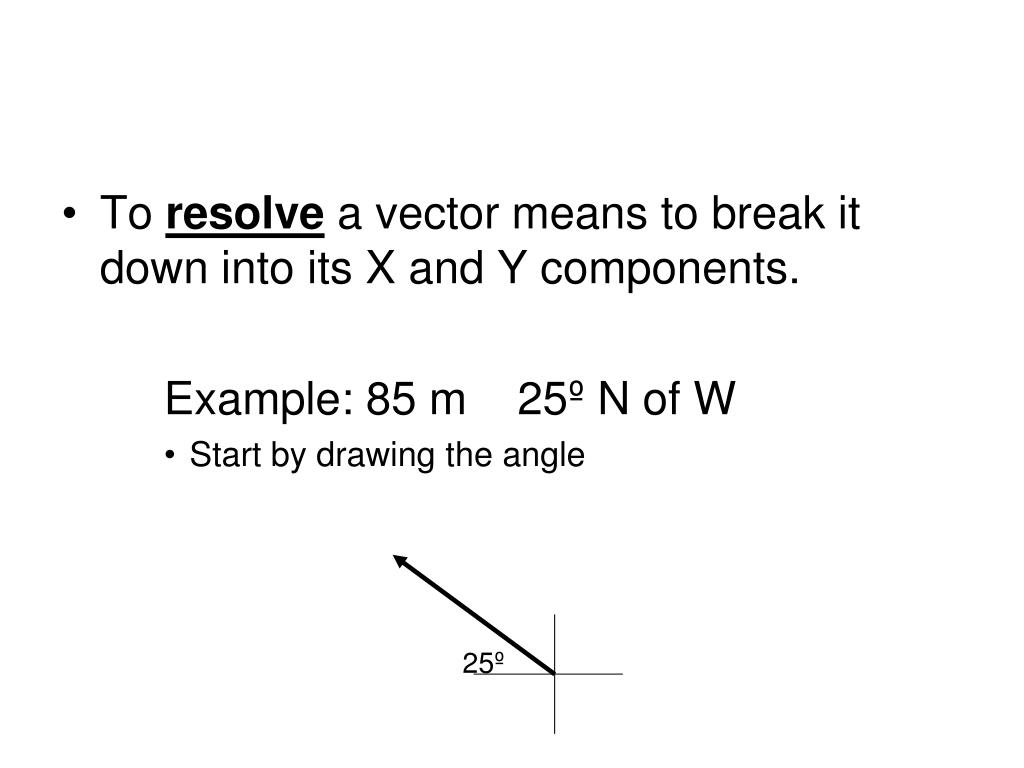

  39. To resolve a vector means to break it down into its X and Y components. Example: 85 m 25º N of W • Start by drawing the angle 25º

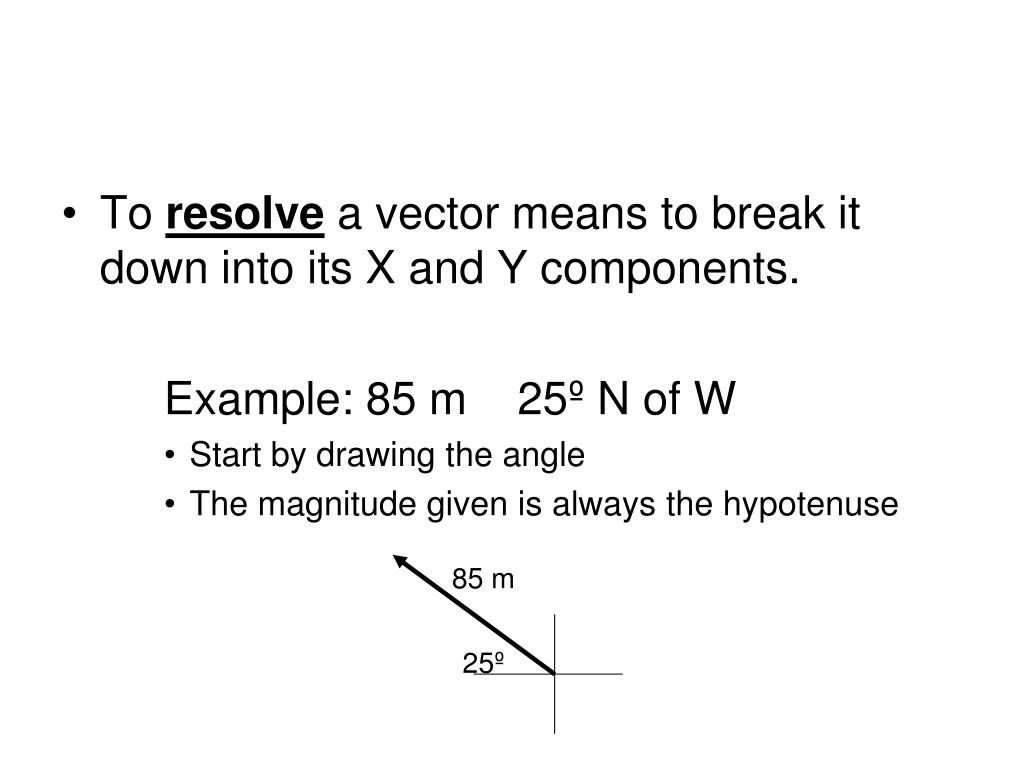

  40. To resolve a vector means to break it down into its X and Y components. Example: 85 m 25º N of W • Start by drawing the angle • The magnitude given is always the hypotenuse 85 m 25º

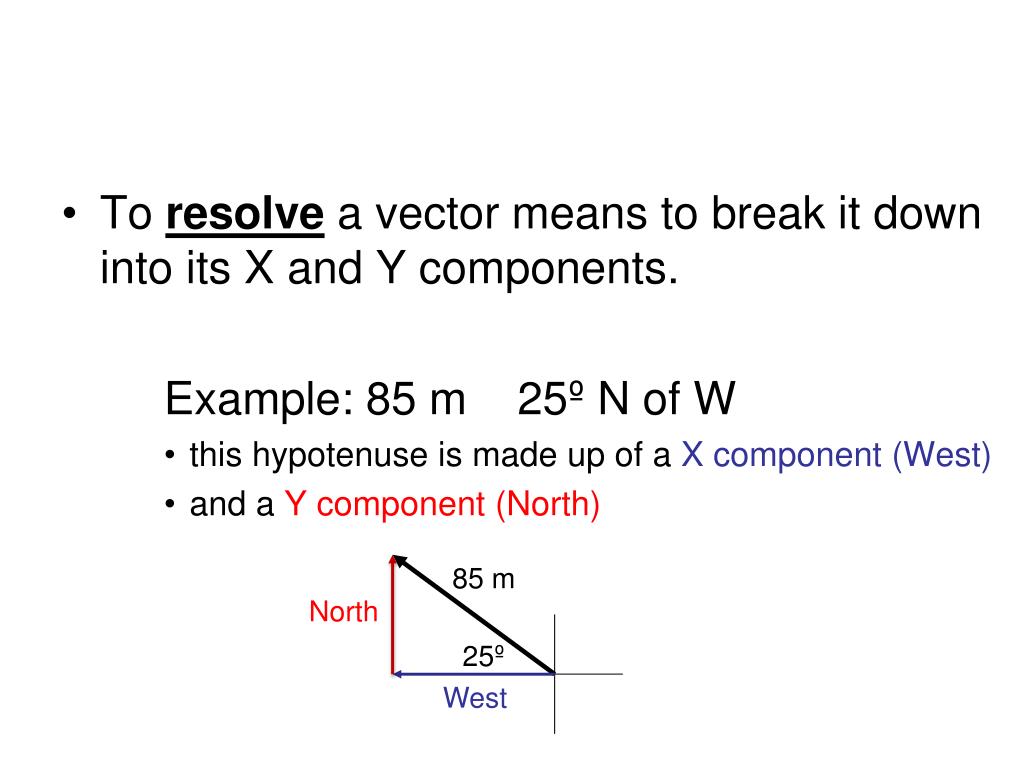

  41. To resolve a vector means to break it down into its X and Y components. Example: 85 m 25º N of W • this hypotenuse is made up of a X component (West) • and a Y component (North) 85 m • North 25º West

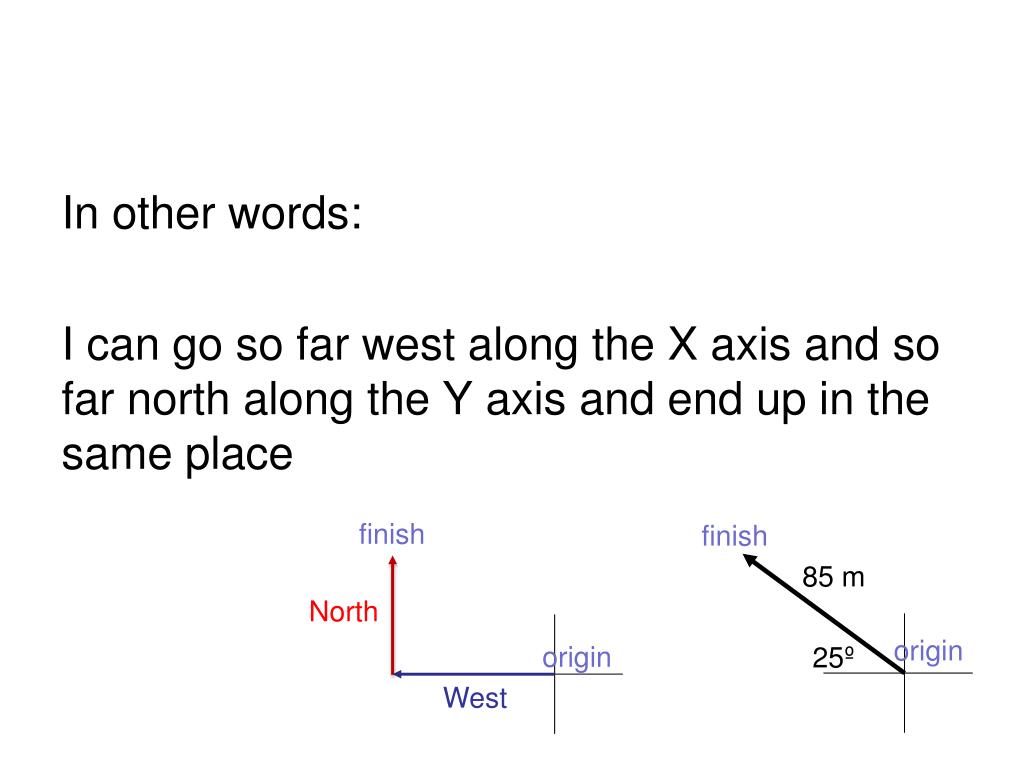

  42. In other words: I can go so far west along the X axis and so far north along the Y axis and end up in the same place finish finish 85 m • North origin origin 25º West

  43. If the question asks for the West component: Solve for that side • Here the west is the adjacent side Adj = (Cos Θ)(Hyp) 85 m 25º West or Adj.

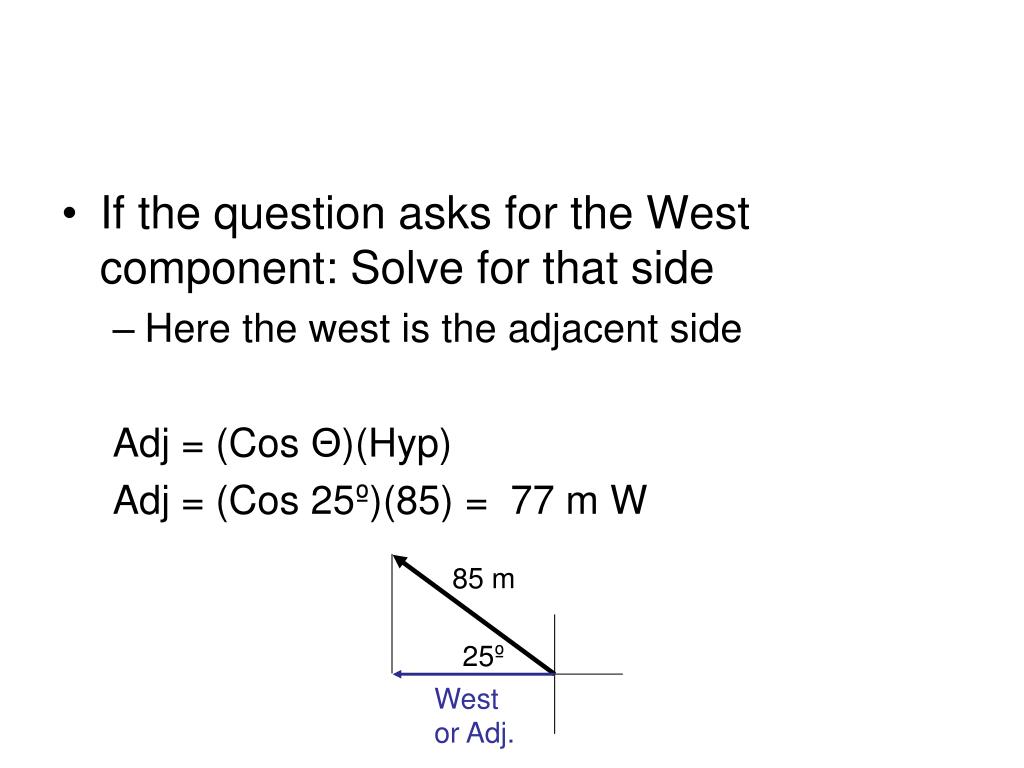

  44. If the question asks for the West component: Solve for that side • Here the west is the adjacent side Adj = (Cos Θ)(Hyp) Adj = (Cos 25º)(85) = 77 m W 85 m 25º West or Adj.

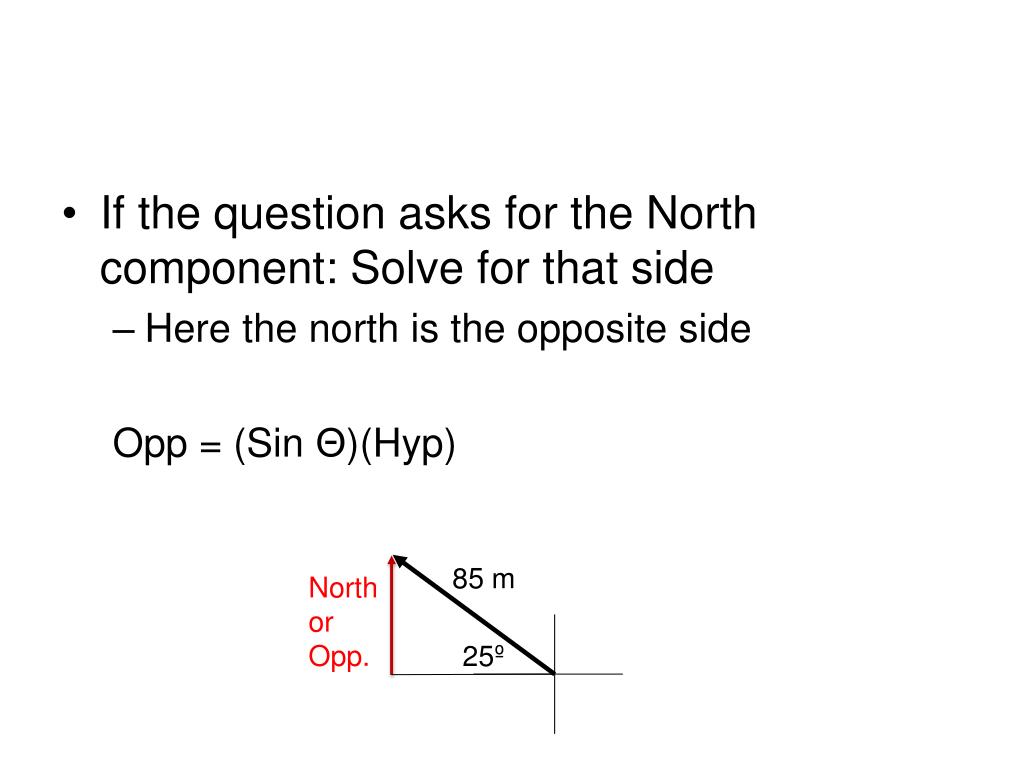

  45. If the question asks for the North component: Solve for that side • Here the north is the opposite side Opp = (Sin Θ)(Hyp) 85 m • North • or • Opp. 25º

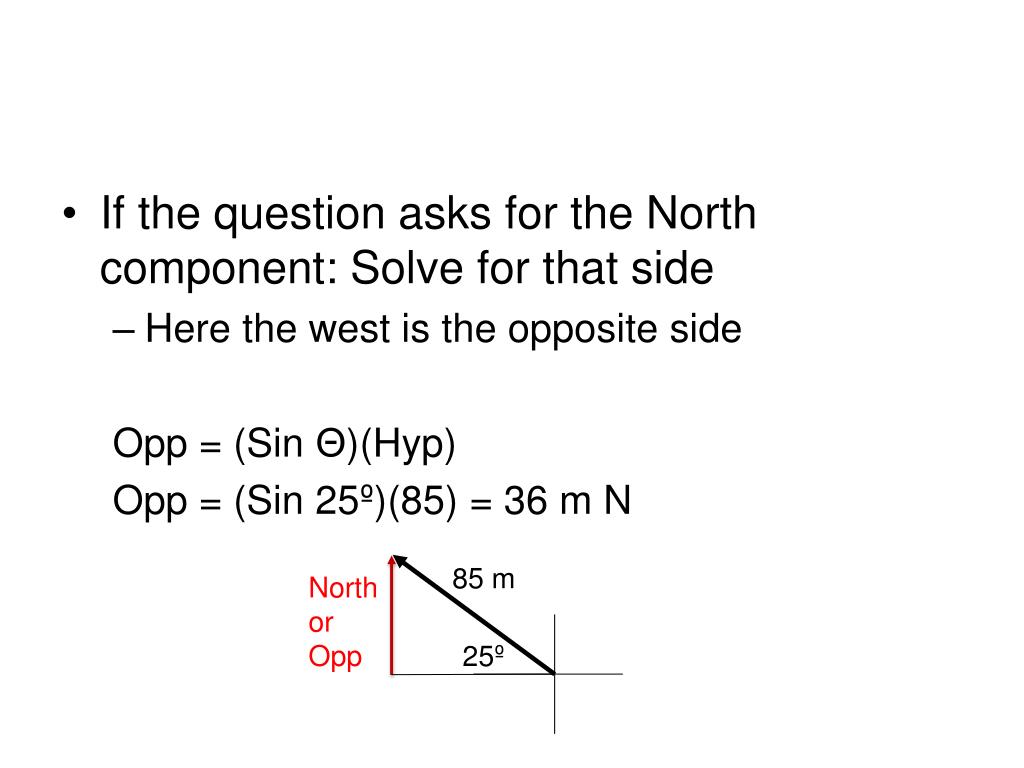

  46. If the question asks for the North component: Solve for that side • Here the west is the opposite side Opp = (Sin Θ)(Hyp) Opp = (Sin 25º)(85) = 36 m N 85 m • North • or • Opp 25º

  47. Resolving Vectors Into Components • Ex 4a. Find the west component of 45 m 19º S of W

  48. Resolving Vectors Into Components • Ex 4a. Find the west component of 45 m 19º S of W

  49. Ex 4a. Find the south component of 45 m 19º S of W

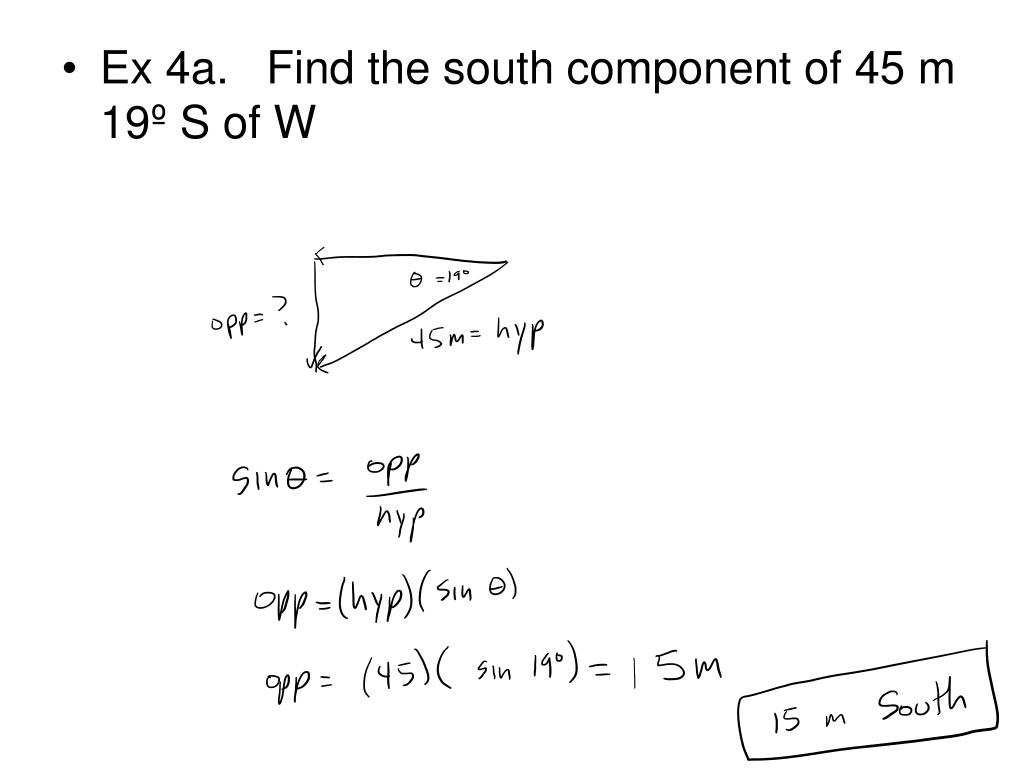

  50. Ex 4a. Find the south component of 45 m 19º S of W
