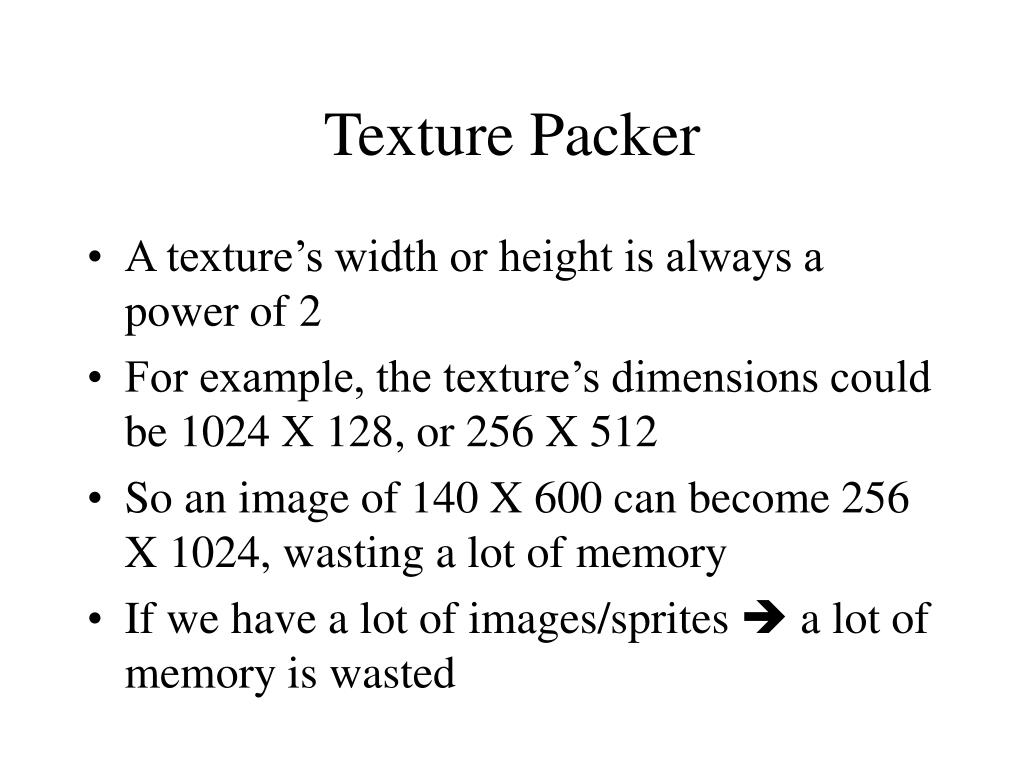

  1. Texture Packer • A texture’s width or height is always a power of 2 • For example, the texture’s dimensions could be 1024 X 128, or 256 X 512 • So an image of 140 X 600 can become 256 X 1024, wasting a lot of memory • If we have a lot of images/sprites  a lot of memory is wasted

  2. Texture Atlas • A Texture Atlas is an image that can contain several images • Each image inside the texture atlas has a sprite frame that defines a rectangular area in which the image is within the texture atlas • These sprite frames are saved in a separate file (.plist extension) • This way, Cocos2D can extract images from a texture atlas containing several images

  3. Texture Packer • So we can use a texture atlas (or several) to save memory space • Furthermore, using a texture atlas to bring the sprites into memory will save CPU time • Instead of one “draw call” per sprite, we just have one “draw call” to draw all the images in the texture atlas

  4. Texture Packer • Once we have a texture atlas, Cocos2D provides us the tools to deal with a texture atlas • In order to create a texture atlas, we can use a tool called Texture Packer

  5. TexturePacker • Can be downloaded at http://www.texturepacker.com • Free and paid version • 2D tool • Paid version can export to PVR format (native version of iPhone’s graphics chip)

  6. Standard vs Retina display • With the new retina display (higher resolution – 4X), if we work with one image at a time, we can supply 2 images, one in HD with the –hd suffix in the file name, one in Standard resolution without the –hd suffix in the file name

  7. Texture Packer • When working with Texture Packer, it is recommended that you use ONE set of image files, HD images without the –hd suffix in the file name • Texture Packer will manage creating 2 versions, one without the -hd suffix and one without it

  8. Texture Packer • Open New project, create Assets group inside Resources, create GameArt Group inside Assets, add png files to GameArt folder • Open TexturePacker • Click on Add Sprites and add images (can also drag folder or images onto right pane) • Images line up automatically in middle pane • Next: fill data in left pane

  9. Texture Packer • Choose 1024 X 1024 • Select compressed tzr for texture format • Select premultiply alpha • Click on file …, select directory (Resources of this project), name file game-art-hd, make sure .plist format is selected (default)

  10. Texture Packer • Click on Publish • Dialog box: some features are from the Pro version: pay or change settings • Change settings, Publish • Back to XCode, add the .plist and .pvr.czz files to Resources folder

  11. Texture Packer • Note that we need to Publish • Once using game-art.plist and once using game-art-hd.plist as the data file • We also need to import both of them into the resources folder of our project (we will import a total of 4 files) • We are now ready to code

  12. CCSpriteFrameCache class • The CCSpriteFrameCache is a singleton class that implements the loading of sprite frames • It saves them in a cache • Has shared.. Method to access the singleton object

  13. CCSpriteFrameCache class • CCSpriteFrameCache *frameCache = [CCSpriteFrameCache sharedSpriteFrameCache]; • The method addSpriteFramesWithFile: adds multiple sprite frames from a .plist file • A texture will be loaded automatically using the same name as the file name, replacing .plist with .png

  14. CCSpriteFrameCache class • [frameCache addSpriteFramesWithFile: @”game-art.plist”]; • Now we can build the frames array by looping through the CCSpriteFrame that we can retrieve from frameCache; for that, we use the method spriteFrameByName from CCSpriteFrameCache

  15. CCSpriteFrameCache class • for( int i = 0; i < 5; i++ ) • { • NSString *file = [NSString stringWithFormat:@”ship-anim%i.png”, i]; • CCSpriteFrame *frame = [frameCache spriteFrameByName: file]; • [frames addObject: frame]; • }

  16. CCSpriteFrameCache class • Now we can build the animation as before and run the action • We can also add a method in the CCAnimation Category to encapsulate dealing with a texture atlas rather than individual files
