  1. Using the Frames Subsystem July 2013

  2. What is the Power of Frames? • The “power” of the Frames capability stems from the SPICE system’s ability to construct complex reference frame transformations with no programming effort required of you - the end user • But it’s crucial that you select and load the needed kernels • The principal benefit from the Frames capability is obtained through the main SPK subsystem interfaces (SPKEZR and SPKPOS) and the Frames subsystem interfaces (SXFORM and PXFORM) • The remaining pages illustrate typical use of frames • Several VERY IMPORTANT usage issues are mentioned in the core Frames tutorial; be sure to also read that. In SPICE terminology: “reference frame” = “coordinate system” Using Frames

  3. Offset Between Instruments • Required Kernels: • Generic LSK • Mission FK • Camera IK(s) M i s a l i g n m e n t a n g l e b e t w e e n I S S Compute the angular separation between the ISS Narrow Angle Camera and Wide Angle Camera boresights: C Retrieve the matrix that transforms vectors from NAC to WAC frame CALL PXFORM( ‘CASSINI_ISS_NAC’, ‘CASSINI_ISS_WAC’, ET, MAT ) C Transform NAC boresight to WAC frame and find separation angle CALL MXV ( MAT, NAC_BORESIGHT_nac, NAC_BORESIGHT_wac ) ANGLE = VSEP( NAC_BORESIGHT_wac , WAC_BORESIGHT_wac ) I S S N A C c a m e r a b o r e s i g h t s F r a m e C A S S I N I N A C B o r e s i g h t I S S W A C F r a m e W A C B o r e s i g h t S / C F r a m e ISS = Imaging Science System Using Frames

  4. Angular Constraints • Required Kernels: • Generic LSK • Mission FK • Spacecraft SCLK • Camera IK • Planetary Ephemeris SPK • Spacecraft SPK • Spacecraft CK J 2 0 0 0 S u n F r a m e S u n d i r e c t i o n Check whether the angle between the camera boresight and the direction to the Sun is within the allowed range: CALL SPKPOS( ‘SUN’, ET, ‘CASSINI_ISS_NAC’, ‘LT+S’, ‘CASSINI’, SUNVEC, LT ) ANGLE = VSEP( NAC_BORESIGHT_nac, SUNVEC ) IF ( ANGLE .LE. CONSTRAINT ) WRITE(*,*) ‘WE ARE IN TROUBLE!’ C A S S I N I i n t h e N A C f r a m e S S B I S S N A C F r a m e A n g l e b e t w e e n N A C B o r e s i g h t S / C a n d S u n d i r e c t i o n F r a m e S a t u r n J 2 0 0 0 F r a m e N A C B o r e s i g h t Using Frames

  5. Angles at the Surface J 2 0 0 0 • Required Kernels: • Generic LSK • Generic PCK • Mission FK • Planetary Ephemeris SPK • Satellite Ephemeris SPK • Landing Site SPK S S B F r a m e Compute solar azimuth and elevation at the Huygens probe landing site CALL SPKPOS(‘SUN’,ET,‘HUYGENS_LOCAL_LEVEL’,‘LT+S’,‘HUYGENS_PROBE’,SUNVEC,LT) CALL RECLAT(SUNVEC, R, AZIMUTH, ELEVATION) ELEVATION = -ELEVATION IF (AZIMUTH .LT. 0.D0) THEN AZIMUTH = AZIMUTH + TWOPI() ENDIF S u n S o l a r J 2 0 0 0 S u n D i r e c t i o n E L F r a m e I n L o c a l L e v e l S o l a r F r a m e A Z T i t a n L o c a l L e v e l T i t a n ‘ s I A U F r a m e a t t h e B o d y - f i x e d p r o b e L a n d i n g f r a m e S i t e Using Frames

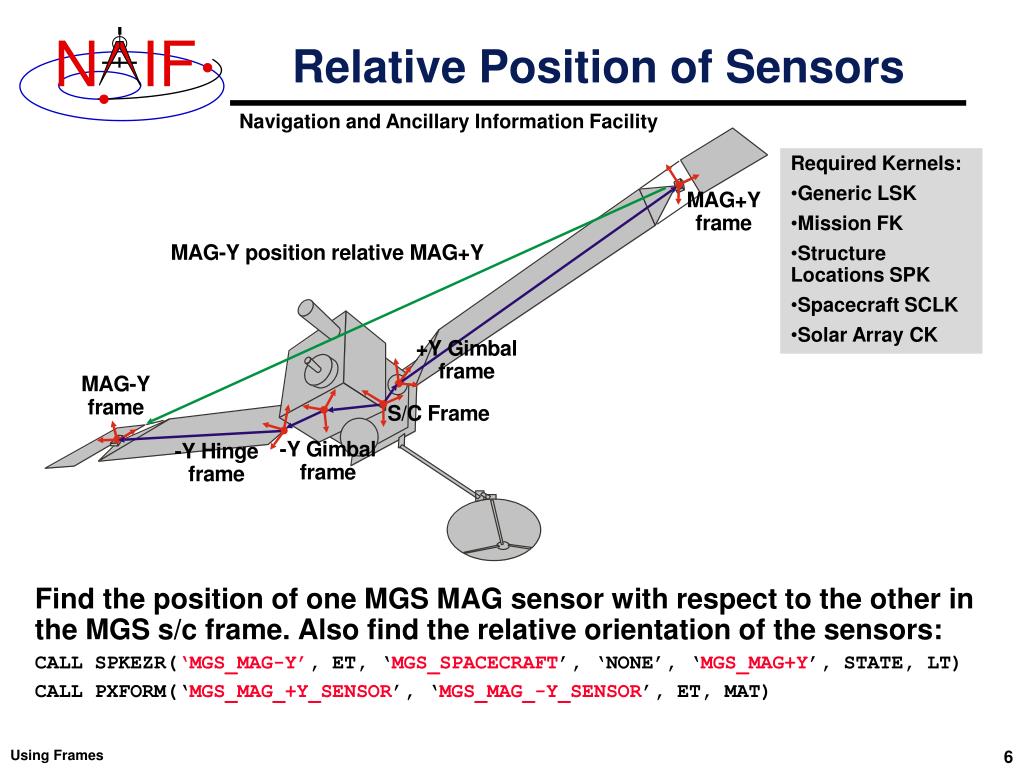

  6. Relative Position of Sensors • Required Kernels: • Generic LSK • Mission FK • Structure Locations SPK • Spacecraft SCLK • Solar Array CK M A G + Y f r a m e Find the position of one MGS MAG sensor with respect to the other in the MGS s/c frame. Also find the relative orientation of the sensors: CALL SPKEZR(‘MGS_MAG-Y’, ET, ‘MGS_SPACECRAFT’, ‘NONE’, ‘MGS_MAG+Y’, STATE, LT) CALL PXFORM(‘MGS_MAG_+Y_SENSOR’, ‘MGS_MAG_-Y_SENSOR’, ET, MAT) M A G - Y p o s i t i o n r e l a t i v e M A G + Y + Y G i m b a l f r a m e M A G - Y f r a m e S / C F r a m e - Y G i m b a l H i n g e - Y f r a m e f r a m e Using Frames

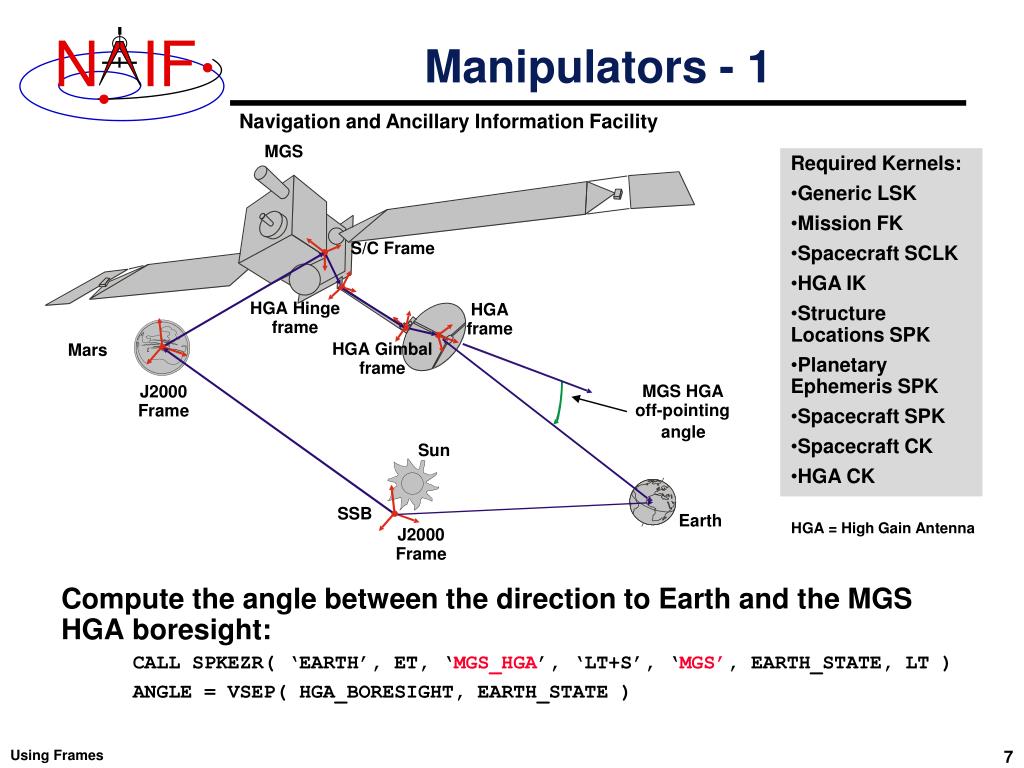

  7. Manipulators - 1 M G S • Required Kernels: • Generic LSK • Mission FK • Spacecraft SCLK • HGA IK • Structure Locations SPK • Planetary Ephemeris SPK • Spacecraft SPK • Spacecraft CK • HGA CK Compute the angle between the direction to Earth and the MGS HGA boresight: CALL SPKEZR( ‘EARTH’, ET, ‘MGS_HGA’, ‘LT+S’, ‘MGS’, EARTH_STATE, LT ) ANGLE = VSEP( HGA_BORESIGHT, EARTH_STATE ) S / C F r a m e H G A H i n g e H G A f r a m e f r a m e H G A G i m b a l M a r s f r a m e M G S H G A J 2 0 0 0 o f f - p o i n t i n g F r a m e a n g l e S u n S S B E a r t h HGA = High Gain Antenna J 2 0 0 0 F r a m e Using Frames

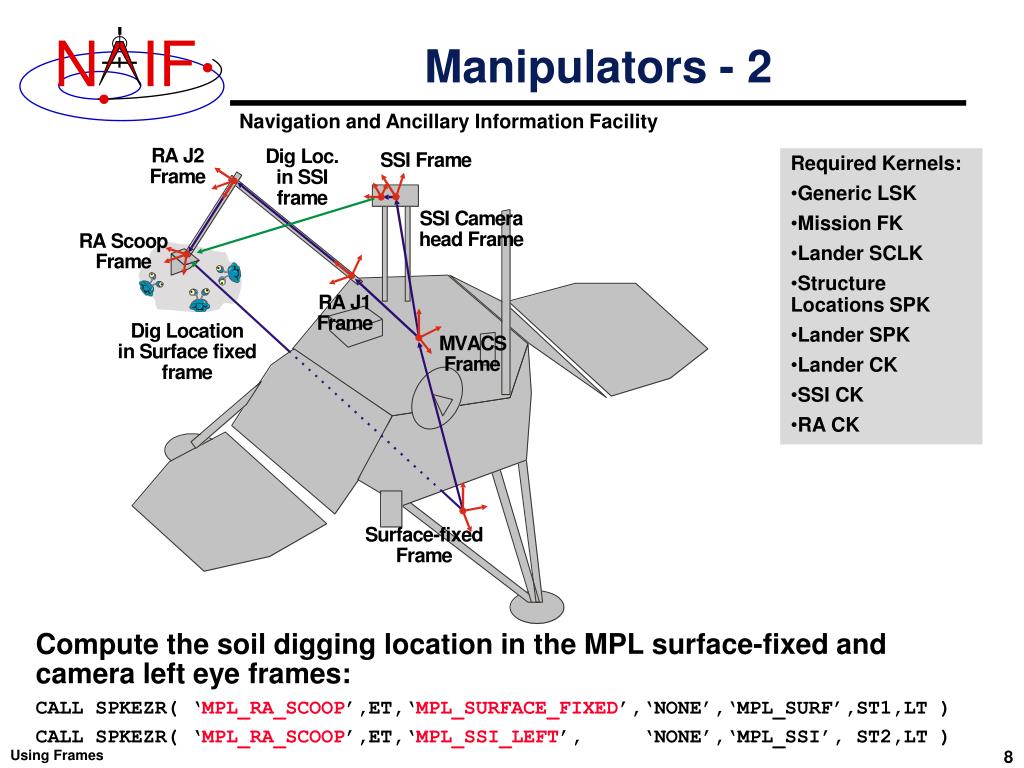

  8. Manipulators - 2 R A J 2 D i g L o c . • Required Kernels: • Generic LSK • Mission FK • Lander SCLK • Structure Locations SPK • Lander SPK • Lander CK • SSI CK • RA CK S S I F r a m e F r a m e i n S S I f r a m e S S I C a m e r a Compute the soil digging location in the MPL surface-fixed and camera left eye frames: CALL SPKEZR( ‘MPL_RA_SCOOP’,ET,‘MPL_SURFACE_FIXED’,‘NONE’,‘MPL_SURF’,ST1,LT ) CALL SPKEZR( ‘MPL_RA_SCOOP’,ET,‘MPL_SSI_LEFT’, ‘NONE’,‘MPL_SSI’, ST2,LT ) h e a d F r a m e R A S c o o p F r a m e R A J 1 F r a m e D i g L o c a t i o n M V A C S i n S u r f a c e f i x e d F r a m e f r a m e S u r f a c e - f i x e d F r a m e Using Frames
