  1. NiosTM Advanced Training SESSION II Memory Accesses

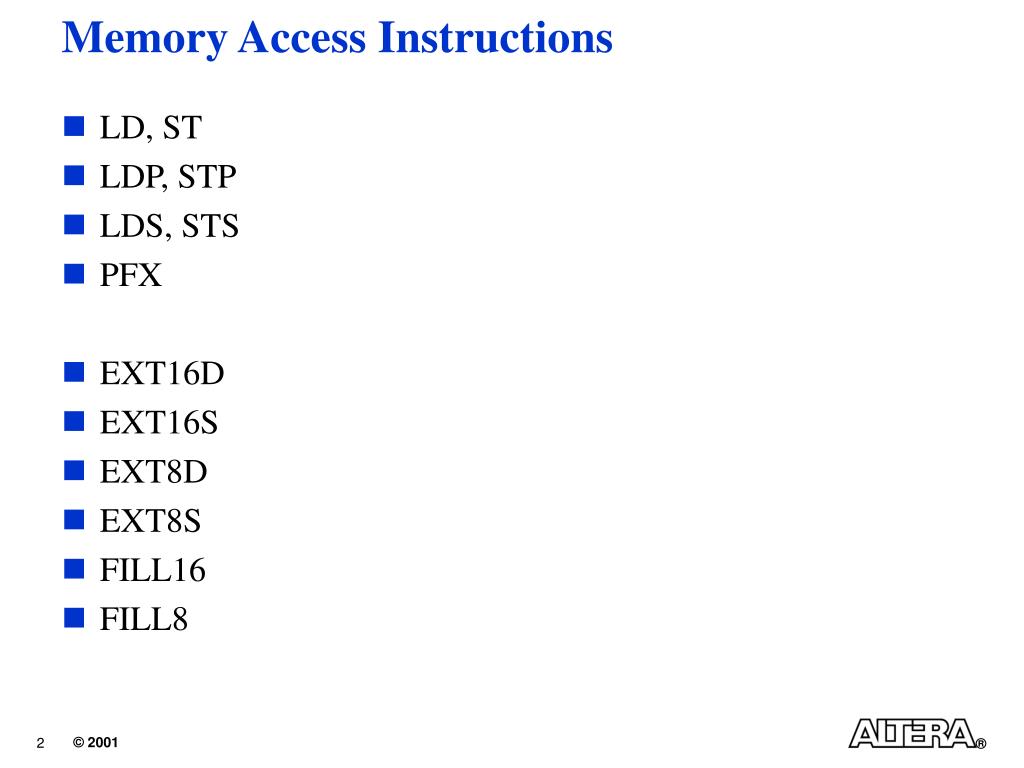

  2. Memory Access Instructions • LD, ST • LDP, STP • LDS, STS • PFX • EXT16D • EXT16S • EXT8D • EXT8S • FILL16 • FILL8

  3. Prefixable Instructions PFX IMM11 0 4 5 13 12 13 9 14 8 11 7 15 6 1 2 10 4 5 6 7 8 9 10 3 11 12 14 15 0 1 2 3 IMM5 Ra X X X X X 1 X X 0 1 X 1 X X 0 1 X X X X X 1 X X 0 X 1 X X X 0 0 31 21 20 16 15 5 4 0 IMM11[15..5] IMM5 IMM11[15..5] IMM5 • The following instructions can be extented by PFX instruction: • ADDI, AND, ANDN, CMPi, MOVHi, MOVi, OR, SUBi, XOR • LD, LDP, LDS, ST, STP or STS DO NOT follow the same mechanism PFX intruction Example: MOVI, MOVHI instruction PFX IMM11 MOVHI IMM5 Ra = PFX IMM11 MOVI IMM5

  4. The best way to use PFX instruction • PFX %hi(100) ; Extract bits 5..15 of x • MOVI %g1, %lo(100) ; Extract low 5 bits of x • PFX %xhi(100) ; Extract bits 21..31 of x • MOVHI %g1, %xlo(100) ; Extract bits 16..20 of x

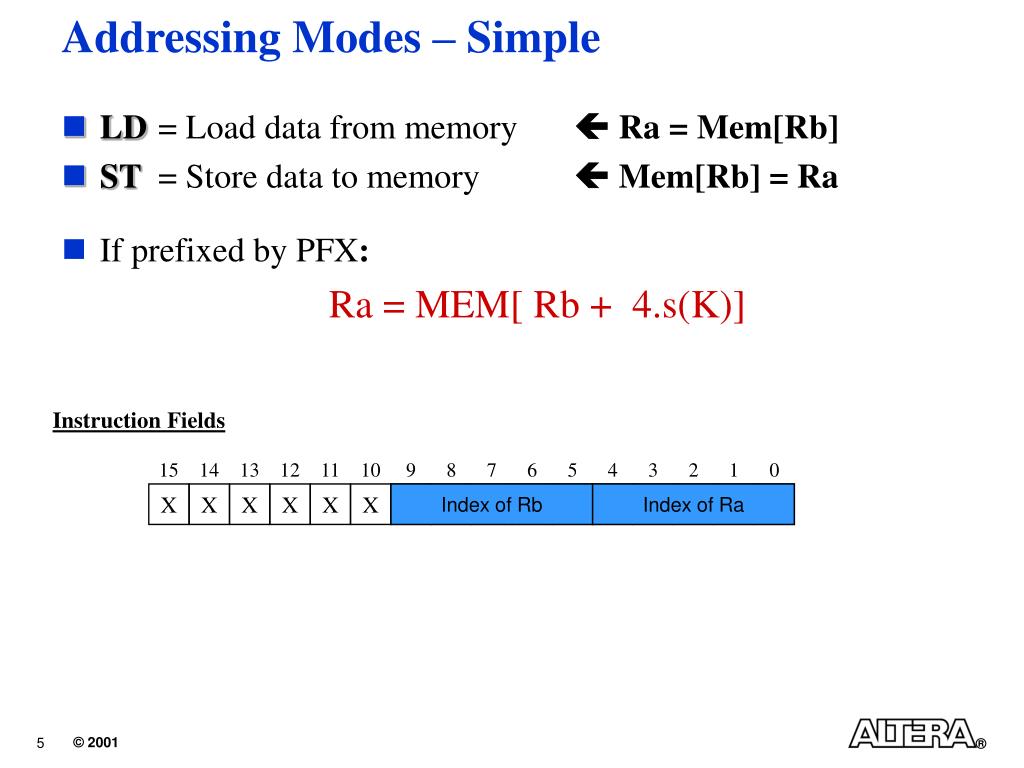

  5. Addressing Modes – Simple 12 0 15 1 13 2 6 14 11 3 10 9 4 8 7 5 X X X X X X X X X X X X X X X X Index of Rb Index of Ra • LD = Load data from memory Ra = Mem[Rb] • ST = Store data to memory Mem[Rb] = Ra • If prefixed by PFX: Ra = MEM[ Rb + 4.s(K)] Instruction Fields

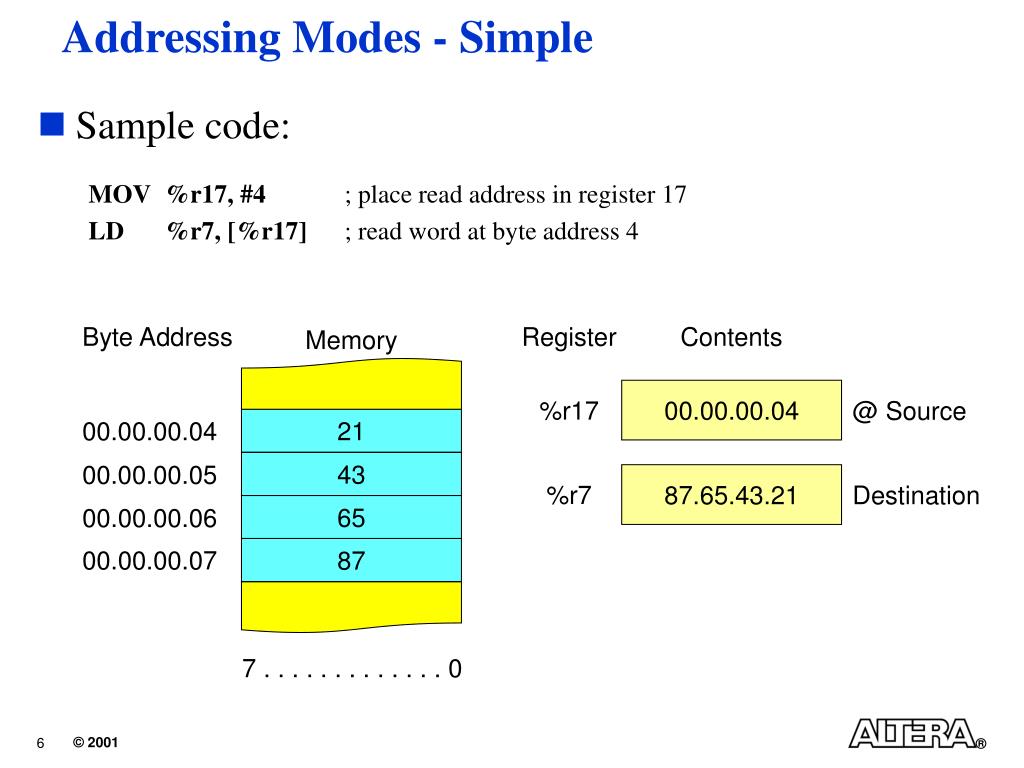

  6. Addressing Modes - Simple Byte Address Register Contents Memory 87.65.43.21 %r7 Destination 21 00.00.00.04 43 00.00.00.04 00.00.00.05 %r17 @ Source 65 00.00.00.06 87 00.00.00.07 7 . . . . . . . . . . . . . 0 • Sample code: MOV %r17, #4; place read address in register 17 LD %r7, [%r17] ; read word at byte address 4

  7. Addressing Modes - Simple (with Offset) Byte Address Register Contents Memory AB.CD.EF.00 Destination %r7 00 00.00.00.24 00.00.00.08 %i3 EF 00.00.00.25 CD 00.00.00.26 00.00.00.07 %K Offset 00.00.00.24 AB 00.00.00.27 @ Source 7 . . . . . . . . . . . . . 0 • Sample code: • MOV %i3, #8 ; place read address (8) in register %i3 • PFX #7 ; offset is 7 words (28 bytes, 0x1C) • LD %r7, [%i3] ; read word at byte address 0x24

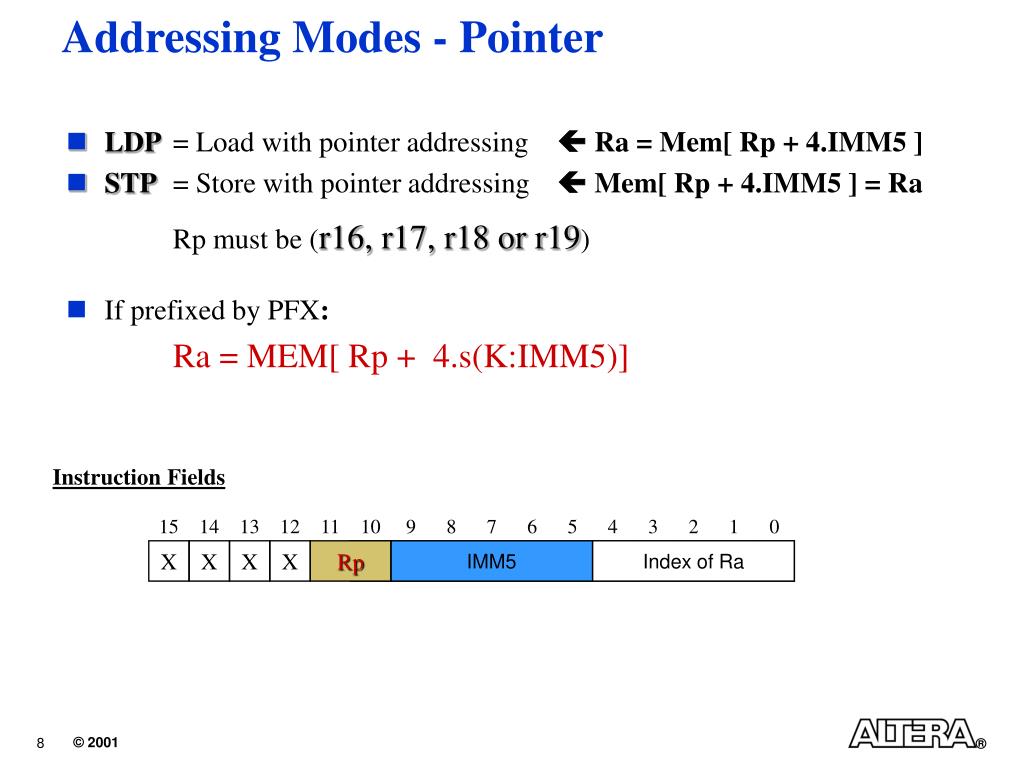

  8. Addressing Modes - Pointer 6 13 0 1 14 2 12 15 3 10 9 4 8 7 5 X X X X X X X X X X X X X X 11 Rp IMM5 Index of Ra • LDP = Load with pointer addressing Ra = Mem[ Rp + 4.IMM5 ] • STP = Store with pointer addressing Mem[ Rp + 4.IMM5 ] = Ra Rp must be (r16, r17, r18 or r19) • If prefixed by PFX: Ra = MEM[ Rp + 4.s(K:IMM5)] Instruction Fields

  9. Addressing Modes - Pointer Byte Address Memory Register Contents 00.00.00.2C @ Destination 32 00.00.00.2C 54 00.00.00.2D 00.00.00.20 %r16 Base Pointer 76 00.00.00.2E 98 00.00.00.2F 00.00.00.0C #3*4 IMM Offset 98.76.54.32 7 . . . . . . . . . . . . . 0 %r3 Source • Sample code: • MOV %r16, #0x20; set base pointer to 0x20 • STP [%r16, #3], %r3 ; store word to byte address 0x2C

  10. Addressing Modes - Pointer (with Offset) 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 1 1 0 0 1 0 0 K-Register = 3 IMM5 = 4 • Sample code: • MOV %r16, #0x20; set base pointer to 0x20 • PFX %hi(100) ; hi loads upper 11-bits • STP [%r16, %lo(100)], %r3 ; lo loads lower 5-bits 100d = b

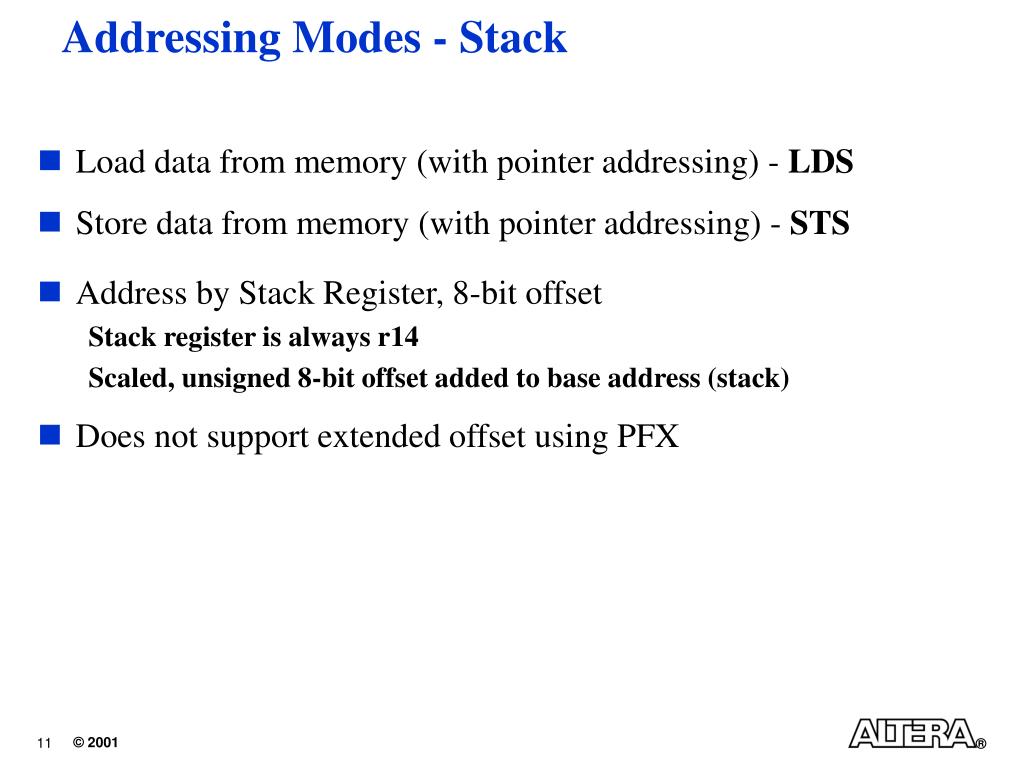

  11. Addressing Modes - Stack • Load data from memory (with pointer addressing) - LDS • Store data from memory (with pointer addressing) - STS • Address by Stack Register, 8-bit offset Stack register is always r14 Scaled, unsigned 8-bit offset added to base address (stack) • Does not support extended offset using PFX

  12. Instruction Set EXT16D Assembler Syntax: EXT16D %rA, %rB Example: LD %i3, [%i4] EXT16D %i3, %i4 Half Word 1 Half Word 0 rA before rB[1..0] ------------------- 0 ------------------- Half Word n rA after

  13. Instruction Set EXT8D Assembler Syntax: EXT8D %rA, %rB Example: LD %i3, [%i4] EXT8D %i3, %i4 Byte 3 Byte 2 Byte 1 Byte 0 rA before rB[1..0] ------------------------ 0 ------------------------ Byte n rA after

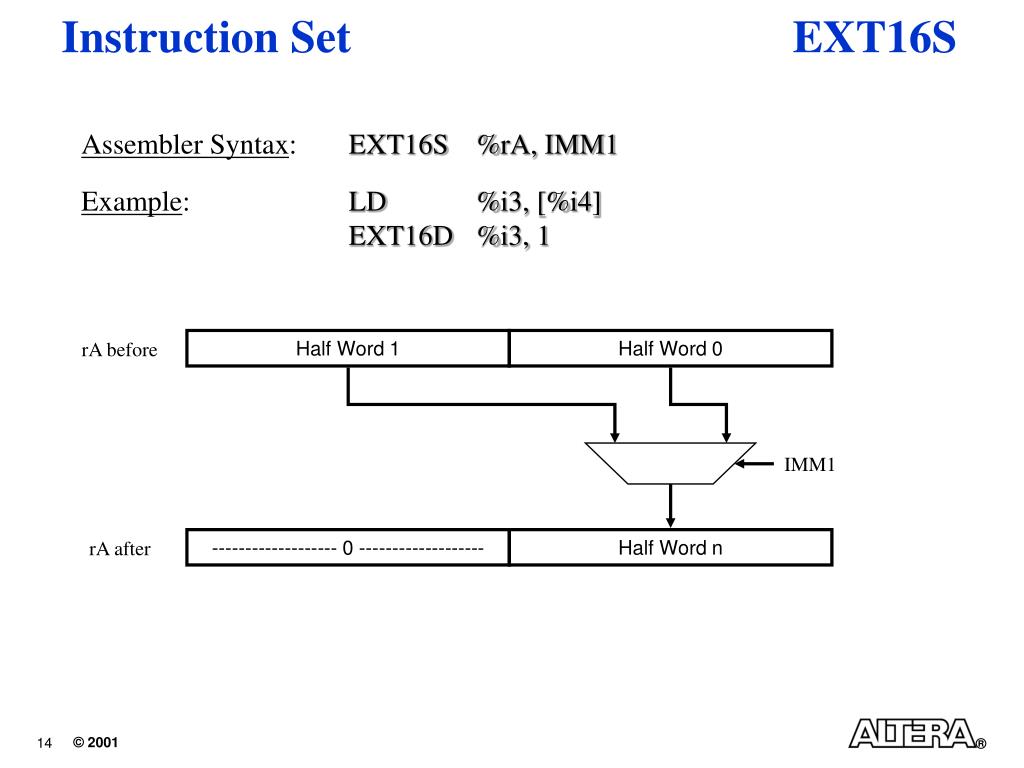

  14. Instruction Set EXT16S Assembler Syntax: EXT16S %rA, IMM1 Example: LD %i3, [%i4] EXT16D %i3, 1 Half Word 1 Half Word 0 rA before IMM1 ------------------- 0 ------------------- Half Word n rA after

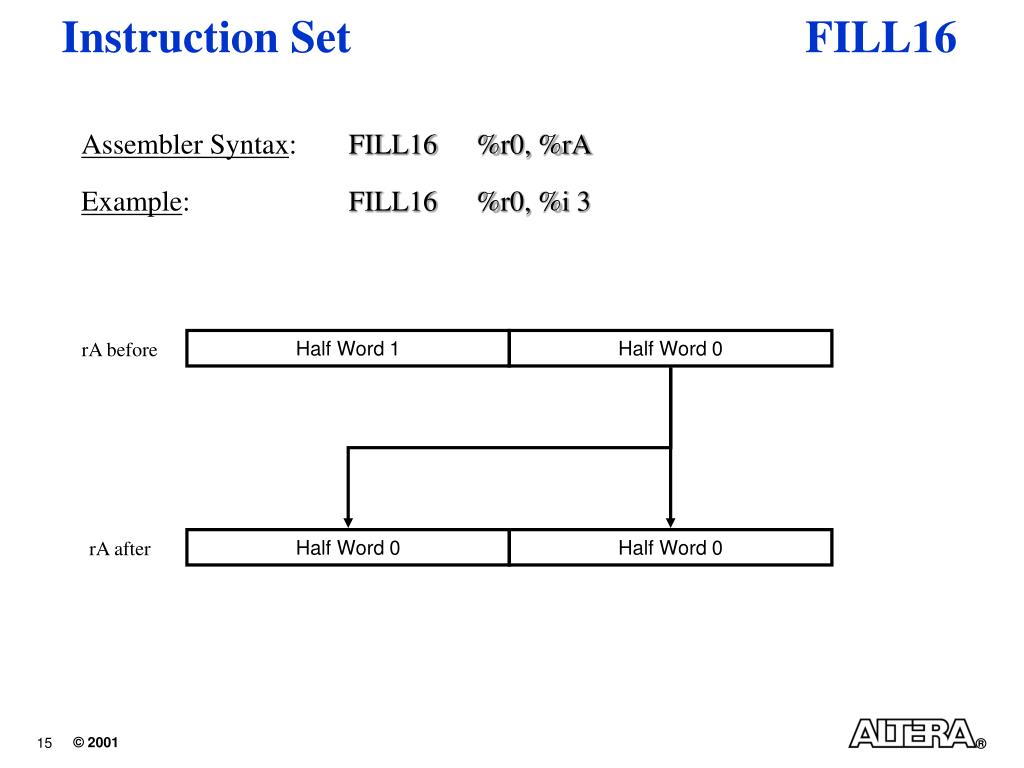

  15. Instruction Set FILL16 Assembler Syntax: FILL16 %r0, %rA Example: FILL16 %r0, %i 3 Half Word 1 Half Word 0 rA before Half Word 0 Half Word 0 rA after

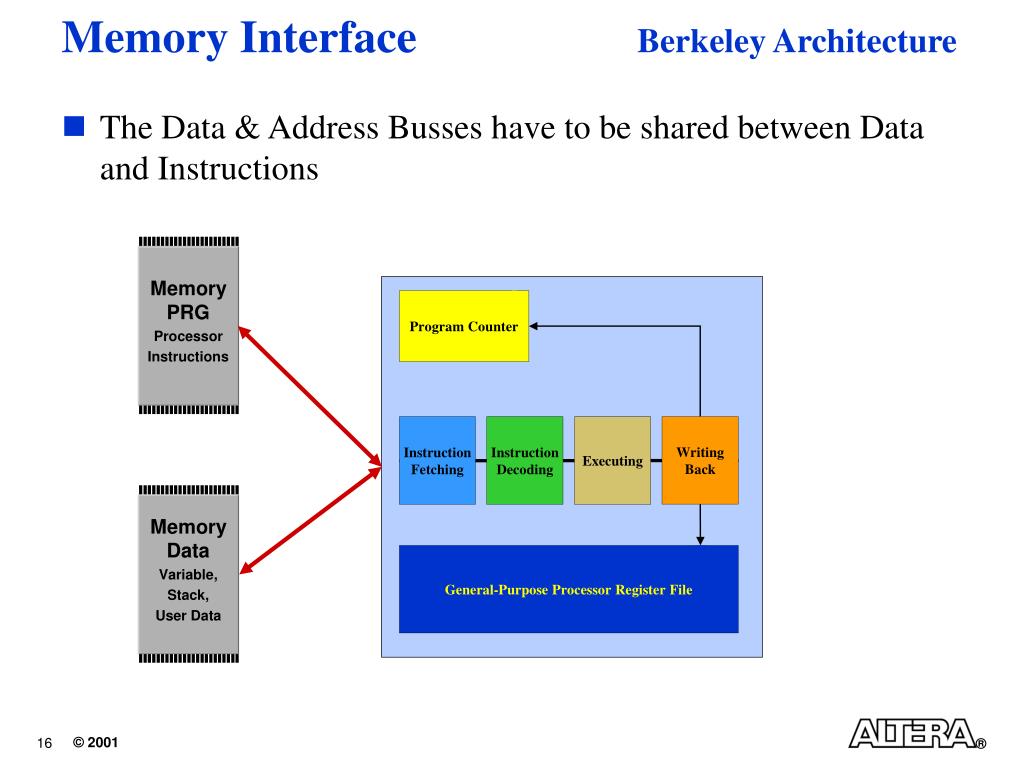

  16. Memory Interface Berkeley Architecture WritingBack InstructionFetching InstructionDecoding Executing MemoryPRG Processor Instructions MemoryData Variable, Stack, User Data General-Purpose Processor Register File Program Counter • The Data & Address Busses have to be shared between Data and Instructions

  17. Memory Interface Decoder Impact • Design requirements • Guarantee reliable access to external memory • Achieve 50MHz w/o cache • Uses Fast IO on APEX pad • ~16ns addr-out-to-data-in • Requires 2 clocks when switching between external memory and other devices

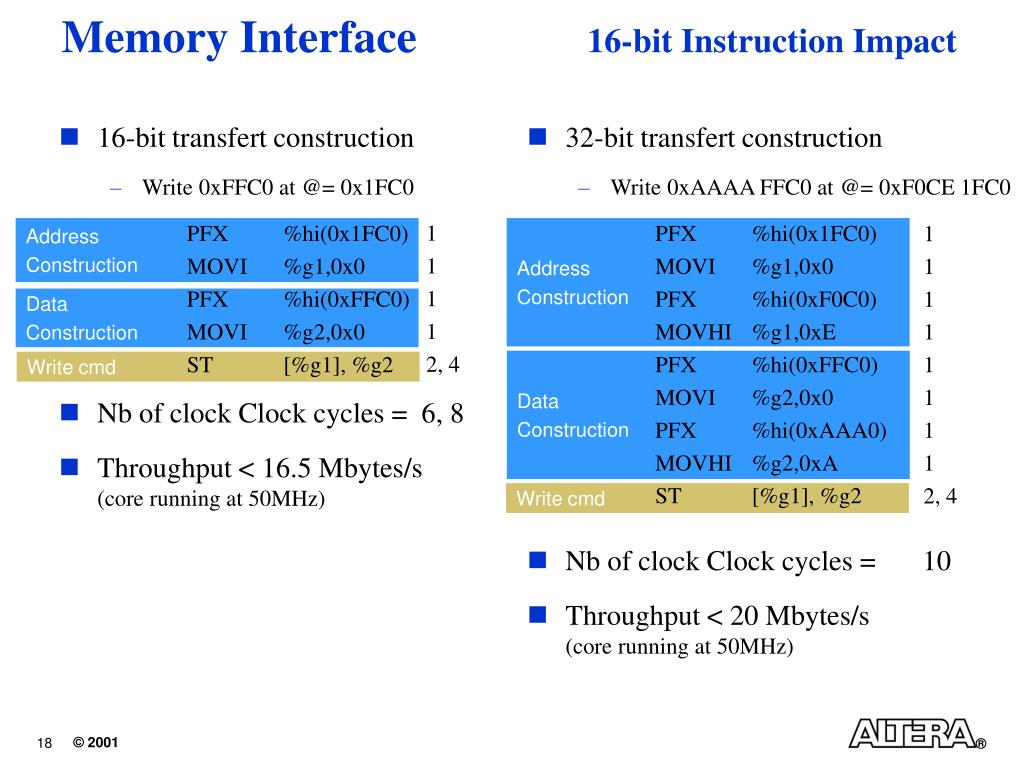

  18. 16-bit transfert construction Write 0xFFC0 at @= 0x1FC0 PFX %hi(0x1FC0) MOVI %g1,0x0 PFX %hi(0xFFC0) MOVI %g2,0x0 ST [%g1], %g2 Memory Interface 16-bit Instruction Impact • 32-bit transfert construction • Write 0xAAAA FFC0 at @= 0xF0CE 1FC0 • PFX %hi(0x1FC0) • MOVI %g1,0x0 • PFX %hi(0xF0C0) • MOVHI %g1,0xE • PFX %hi(0xFFC0) • MOVI %g2,0x0 • PFX %hi(0xAAA0) • MOVHI %g2,0xA • ST [%g1], %g2 1 1 1 1 2, 4 1 1 1 1 1 1 1 1 2, 4 Address Construction Address Construction Data Construction Data Construction Write cmd • Nb of clock Clock cycles = 6, 8 • Throughput < 16.5 Mbytes/s(core running at 50MHz) Write cmd • Nb of clock Clock cycles = 10 • Throughput < 20 Mbytes/s(core running at 50MHz)

  19. Memory Interface Read/Write switch • Read/Write switch between 2 internal @ • Read/Write switch between external / internal @

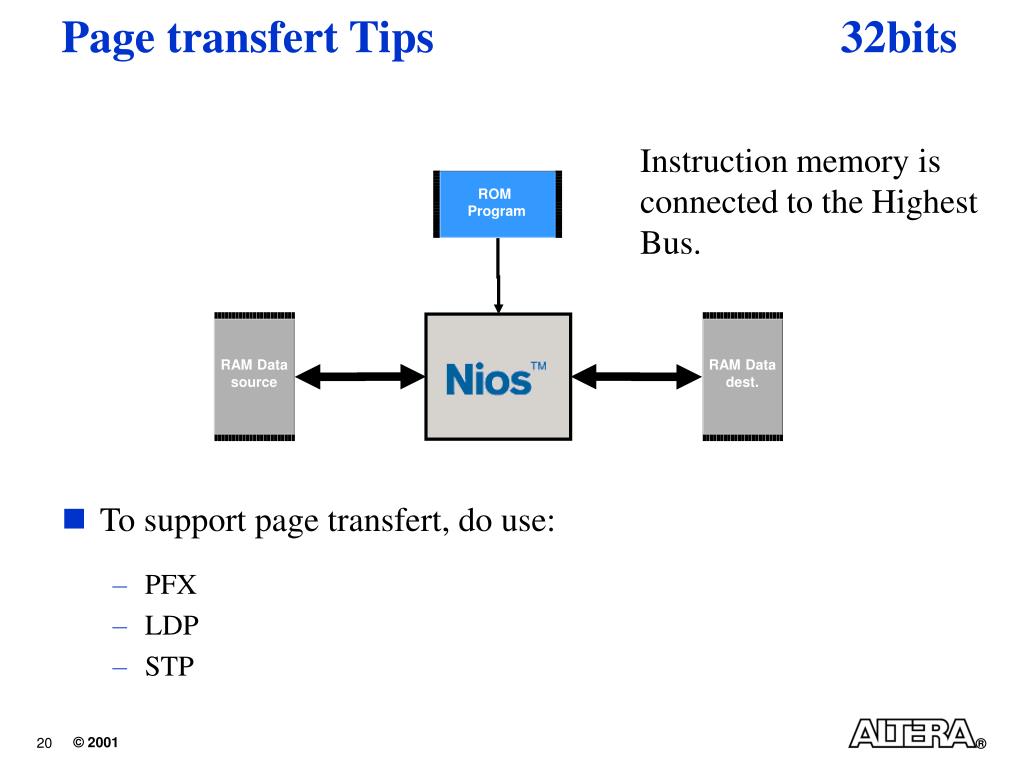

  20. Page transfert Tips 32bits RAM Datasource RAM Datadest. ROM Program • To support page transfert, do use: • PFX • LDP • STP Instruction memory is connected to the Highest Bus.

  21. Page transfert Tips 5, 8 Clock cycles per transfert • Transfert from @1 = 0xAAAA FFC0 to @2= 0xF0CE 1FC0 PFX %hi(0xFFC0) PFX %hi(AFC0) MOVI %r16,0x0 MOVI %r17,0x0 PFX %hi(0xAAA0) PFX %hi(0xFFC0) MOVHI %r16,0xA MOVHI %r17,0x0 LDP %r1, [%r16, 0x0] STP [%r16, 0x0], %r1 LDP %r1, [%r15, 0x1] STP [%r16, 0x1], %r1 … LDP %r1, [%r16, 0x3E] STP [%r16, 0x3E], %r1 LDP %r1, [%r15, 0x3E] STP [%r16, 0x3E], %r1 PFX %hi(0xF0) PFX %hi(0xF0) ADDI %r16, 0xF ADDI %r17, 0xF 1 1 1 1 2, 4 3, 4 2, 4 3, 4 2, 4 3, 4 2, 4 3, 4 1 1 Address @1 Construction Address @2 Construction Read cmd Write cmd Address @1 Update Address @2 Update

  22. Page transfert Tips Address @1 & @2 Construction 8 64 Transferts 320/576 324/580 Clock cycles per 128 words access Address @1 & @2 update4 Throughput 80Mbytes/s, in the best case, if the memory instruction = data memory (Core running at 50MHz) If data memory /= instruction memory then, Throughput  45Mbytes/s (Core running at 50MHz)

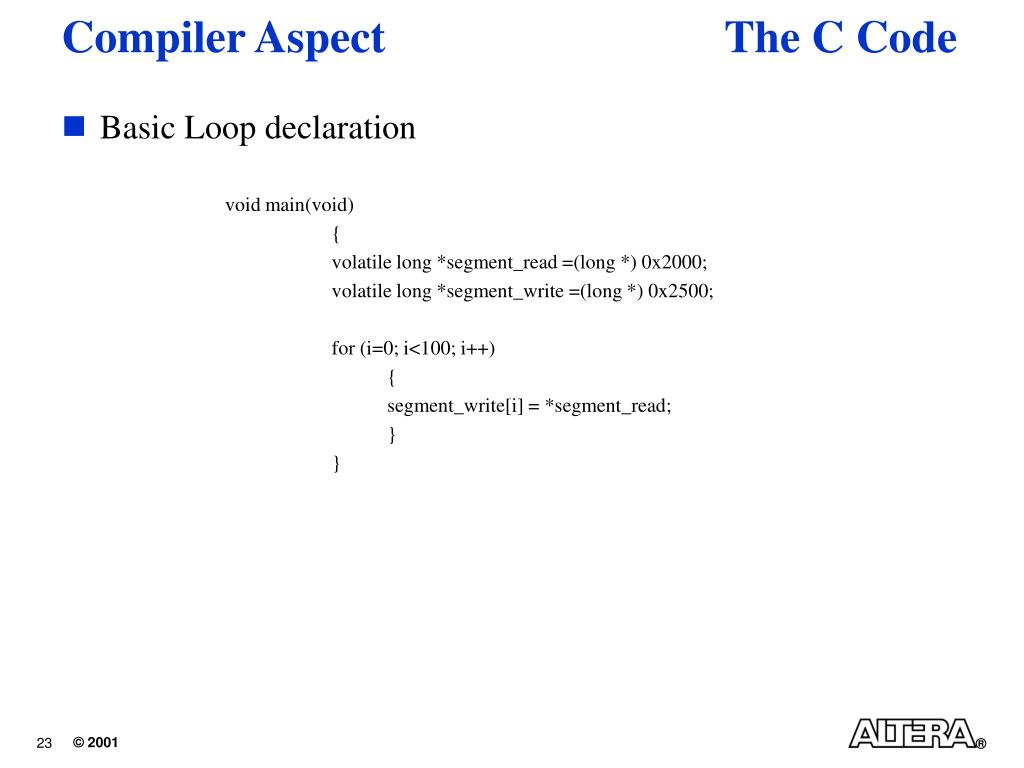

  23. Compiler Aspect The C Code • Basic Loop declaration • void main(void) • { • volatile long *segment_read =(long *) 0x2000; • volatile long *segment_write =(long *) 0x2500; • for (i=0; i<100; i++) • { • segment_write[i] = *segment_read; • } • }

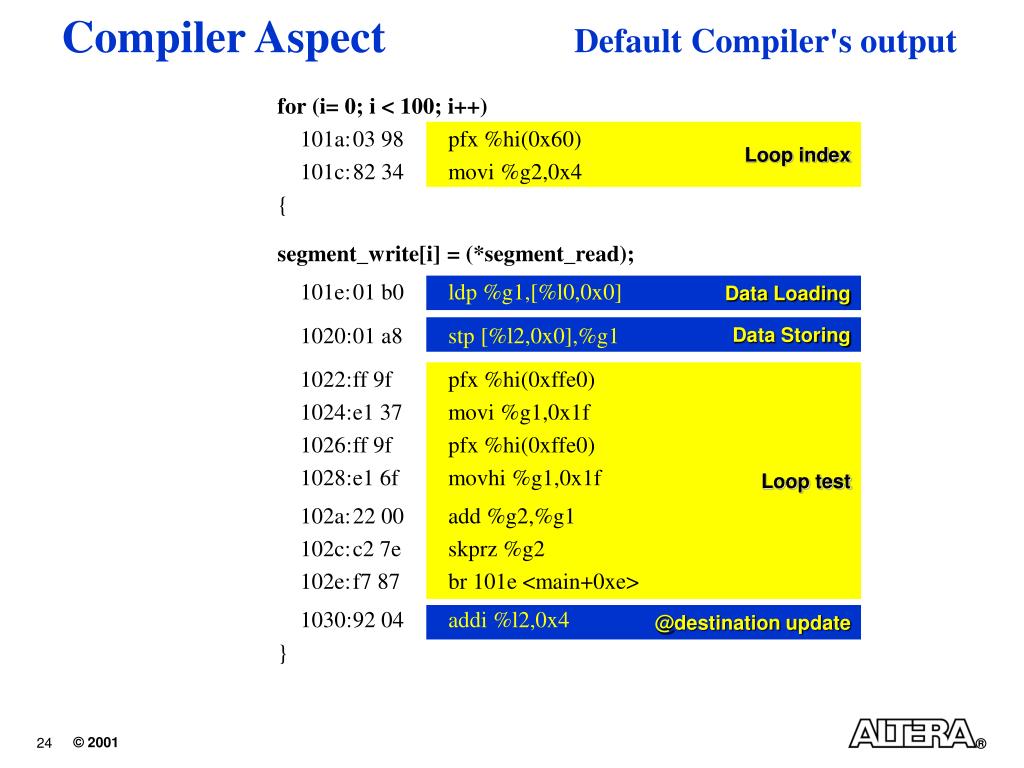

  24. Compiler Aspect Default Compiler's output for (i= 0; i < 100; i++) 101a: 03 98 pfx %hi(0x60) 101c: 82 34 movi %g2,0x4 { segment_write[i] = (*segment_read); 101e: 01 b0 ldp %g1,[%l0,0x0] 1020: 01 a8 stp [%l2,0x0],%g1 1022: ff 9f pfx %hi(0xffe0) 1024: e1 37 movi %g1,0x1f 1026: ff 9f pfx %hi(0xffe0) 1028: e1 6f movhi %g1,0x1f 102a: 22 00 add %g2,%g1 102c: c2 7e skprz %g2 102e: f7 87 br 101e <main+0xe> 1030: 92 04 addi %l2,0x4 } Loop index Data Loading Data Storing Loop test @destination update

  25. Compiler Aspect Optimization Options -funroll-loops • Perform the optimization of loop unrolling. This is only done for loops whose number of iterations can be determined at compile time or run time. • How to use it ? NIOS-BUILD –cc "-funroll-loops" myprg.c

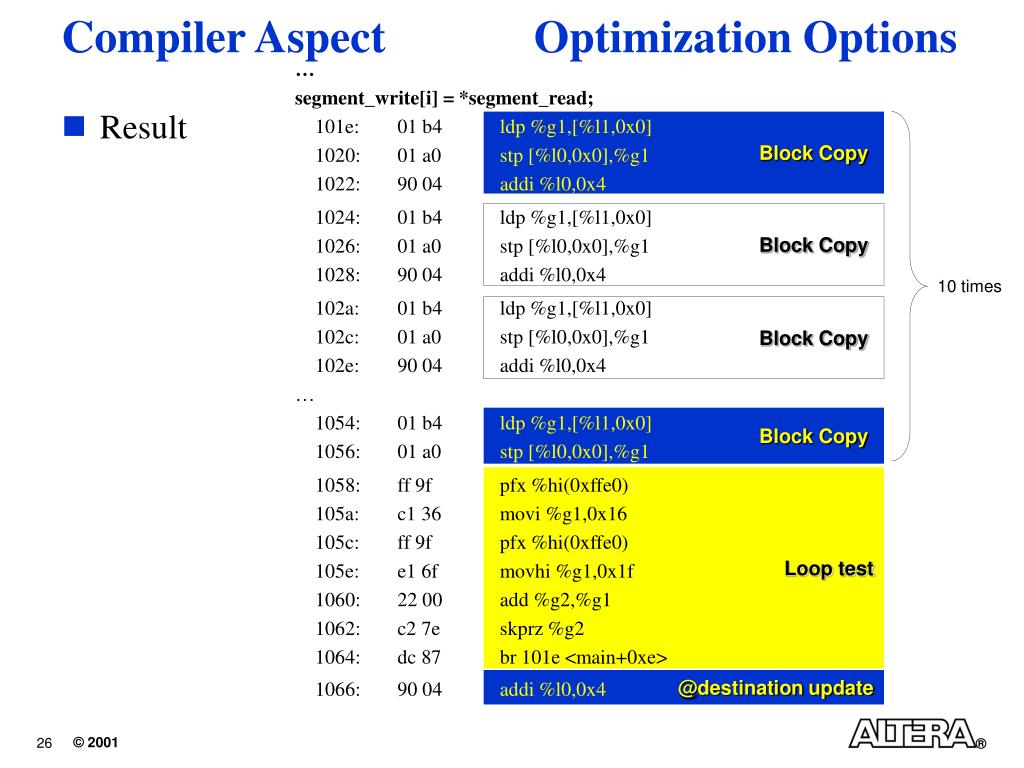

  26. Compiler Aspect Optimization Options … segment_write[i] = *segment_read; 101e: 01 b4 ldp %g1,[%l1,0x0] 1020: 01 a0 stp [%l0,0x0],%g1 1022: 90 04 addi %l0,0x4 1024: 01 b4 ldp %g1,[%l1,0x0] 1026: 01 a0 stp [%l0,0x0],%g1 1028: 90 04 addi %l0,0x4 102a: 01 b4 ldp %g1,[%l1,0x0] 102c: 01 a0 stp [%l0,0x0],%g1 102e: 90 04 addi %l0,0x4 … 1054: 01 b4 ldp %g1,[%l1,0x0] 1056: 01 a0 stp [%l0,0x0],%g1 1058: ff 9f pfx %hi(0xffe0) 105a: c1 36 movi %g1,0x16 105c: ff 9f pfx %hi(0xffe0) 105e: e1 6f movhi %g1,0x1f 1060: 22 00 add %g2,%g1 1062: c2 7e skprz %g2 1064: dc 87 br 101e <main+0xe> 1066: 90 04 addi %l0,0x4 • Result Block Copy Block Copy 10 times Block Copy Block Copy Loop test @destination update

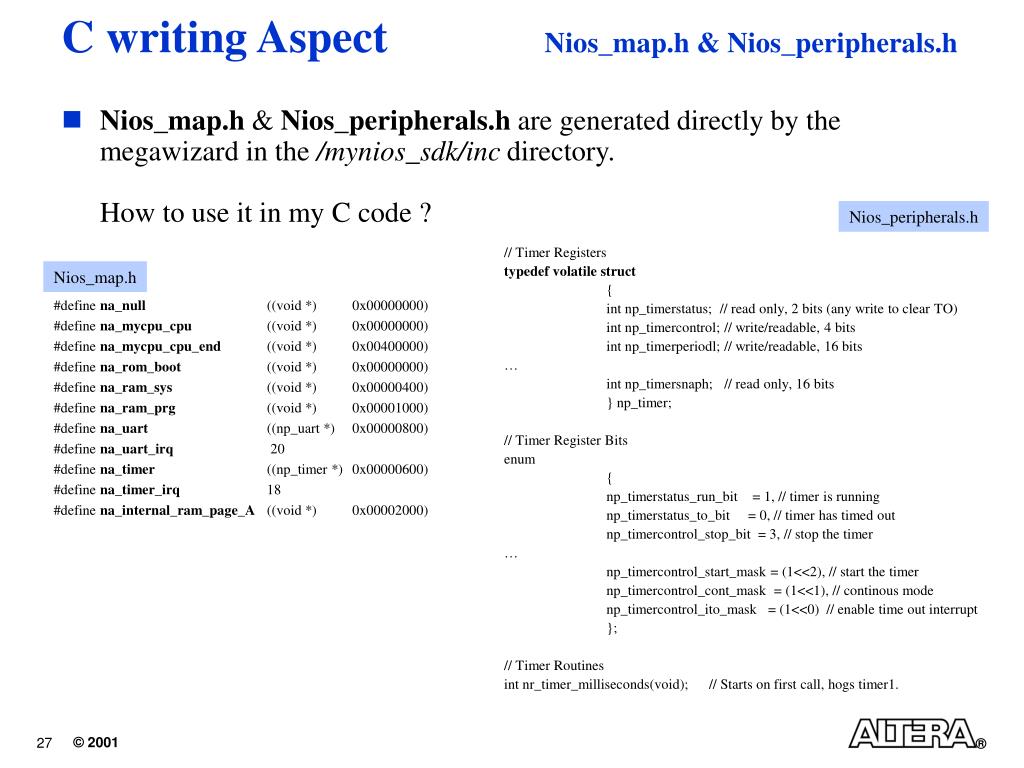

  27. C writing Aspect Nios_map.h & Nios_peripherals.h • Nios_map.h & Nios_peripherals.h are generated directly by the megawizard in the /mynios_sdk/inc directory. How to use it in my C code ? Nios_peripherals.h // Timer Registers typedef volatile struct { int np_timerstatus; // read only, 2 bits (any write to clear TO) int np_timercontrol; // write/readable, 4 bits int np_timerperiodl; // write/readable, 16 bits … int np_timersnaph; // read only, 16 bits } np_timer; // Timer Register Bits enum { np_timerstatus_run_bit = 1, // timer is running np_timerstatus_to_bit = 0, // timer has timed out np_timercontrol_stop_bit = 3, // stop the timer … np_timercontrol_start_mask = (1<<2), // start the timer np_timercontrol_cont_mask = (1<<1), // continous mode np_timercontrol_ito_mask = (1<<0) // enable time out interrupt }; // Timer Routines int nr_timer_milliseconds(void); // Starts on first call, hogs timer1. Nios_map.h #define na_null ((void *) 0x00000000) #define na_mycpu_cpu ((void *) 0x00000000) #define na_mycpu_cpu_end ((void *) 0x00400000) #define na_rom_boot ((void *) 0x00000000) #define na_ram_sys ((void *) 0x00000400) #define na_ram_prg ((void *) 0x00001000) #define na_uart ((np_uart *) 0x00000800) #define na_uart_irq 20 #define na_timer ((np_timer *) 0x00000600) #define na_timer_irq 18 #define na_internal_ram_page_A ((void *) 0x00002000)

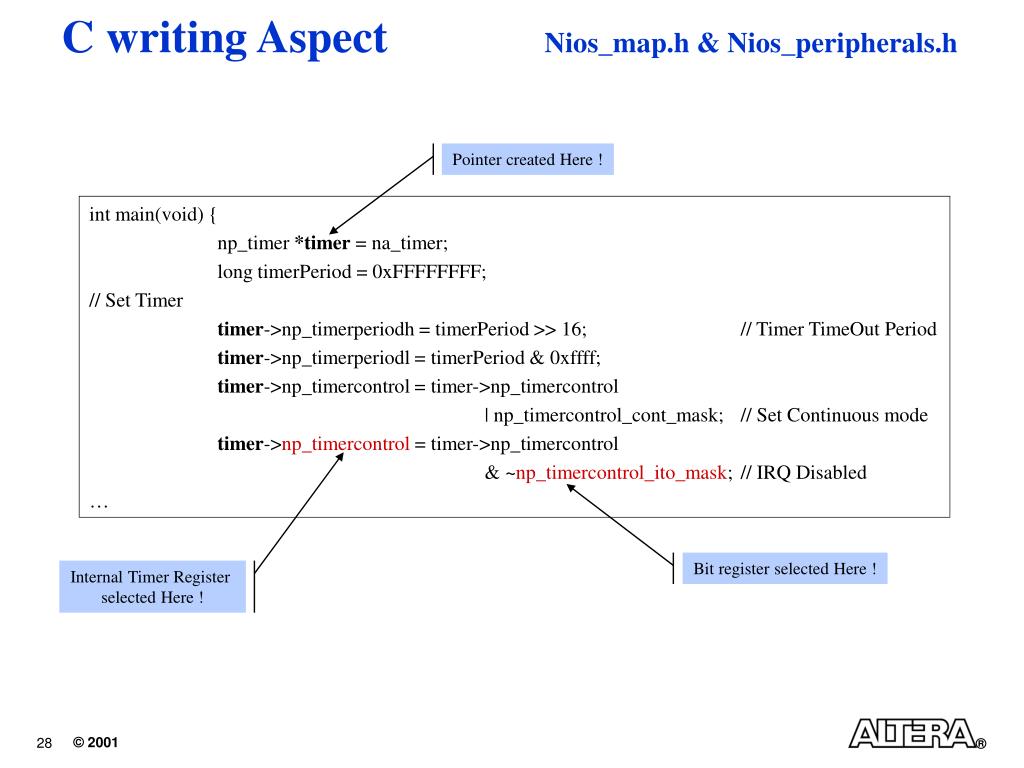

  28. C writing Aspect Nios_map.h & Nios_peripherals.h Pointer created Here ! int main(void) { np_timer *timer = na_timer; long timerPeriod = 0xFFFFFFFF; // Set Timer timer->np_timerperiodh = timerPeriod >> 16; // Timer TimeOut Period timer->np_timerperiodl = timerPeriod & 0xffff; timer->np_timercontrol = timer->np_timercontrol | np_timercontrol_cont_mask; // Set Continuous mode timer->np_timercontrol = timer->np_timercontrol & ~np_timercontrol_ito_mask; // IRQ Disabled … Bit register selected Here ! Internal Timer Register selected Here !

  29. NiosTM Advanced Training SESSION II Lab – Memory Accesses Measure

  30. Goals • Creating a Quartus II project • Generating a NiosTM System Variation • Writing, compiling C code application to support Page transfers in different modes Template will be provided • Simulating with Modelsim (verilog mode) • Compiling w/ Quartus II Pin-Out file will be provided • Configuring the Nios board • Downloading SREC and Measure the access time • Using the GDB debugger

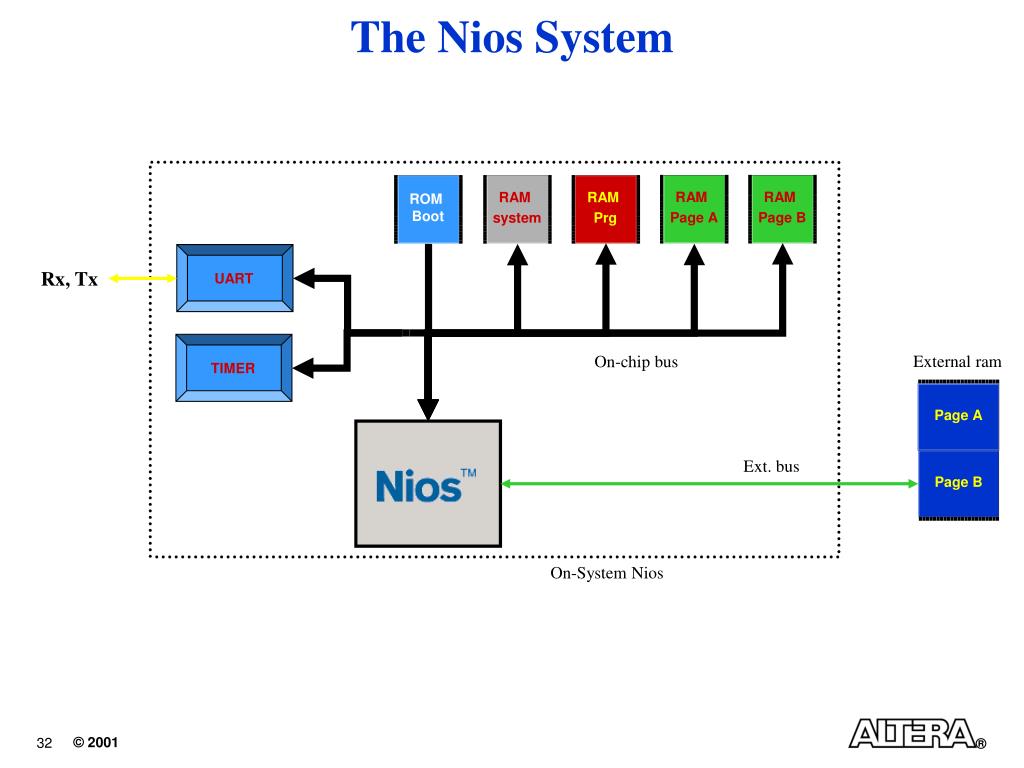

  31. The Nios System Page A ROM Boot RAM system RAM Prg RAM Page A RAM Page B UART TIMER Page B Rx, Tx External ram On-chip bus Ext. bus On-System Nios

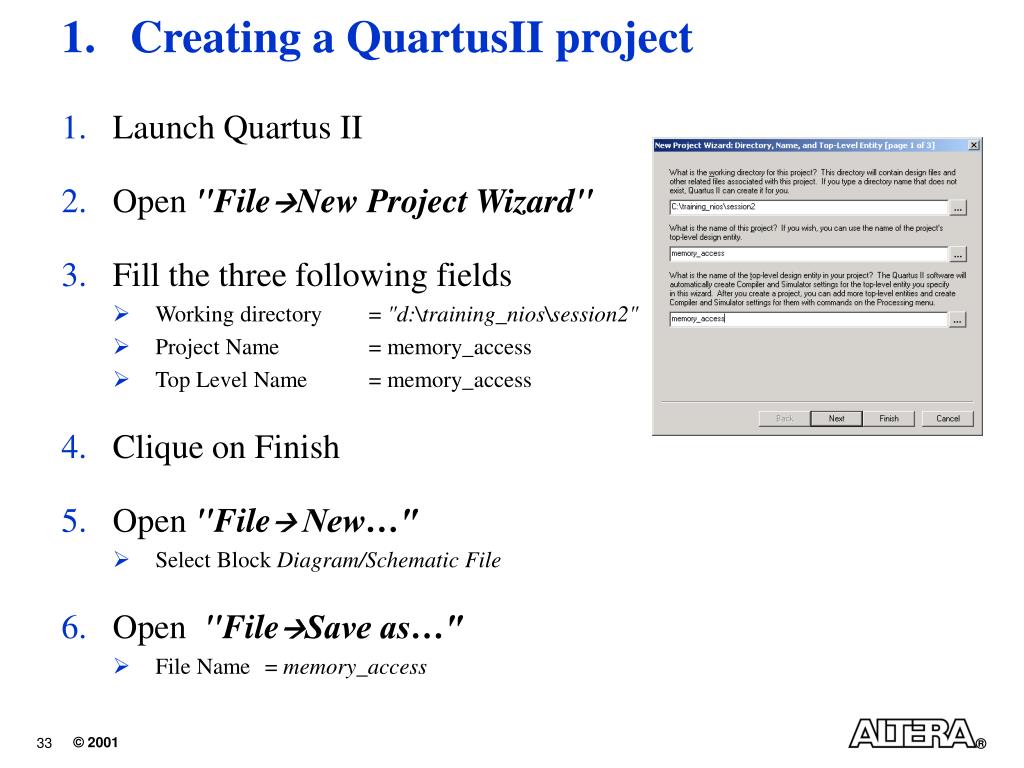

  32. Creating a QuartusII project • Launch Quartus II • Open "FileNew Project Wizard" • Fill the three following fields • Working directory = "d:\training_nios\session2" • Project Name = memory_access • Top Level Name = memory_access • Clique on Finish • Open "File New…" • Select Block Diagram/Schematic File • Open "FileSave as…" • File Name = memory_access

  33. Generating a Nios System Variation 1/2 • Launch the Nios Megawizard Plug-In Manager • Double click in the Schematic Window • Clique on the "MegaWizard Plug-In Manager…" button • Select "Create a new custom megafunction variation" • Select ALTERA Excalibur NiosTM megafunction • Select Verilog HDL output type • Give it the name mycpu • Do parameterise your core system • NIOS 32bits, 20bits @, 256 files reg., 3bits shifter, No MSTEP, No MUL

  34. Generating a Nios System Variation 2/2 • Nios system organisation • Main Prog Memory = ram_prg • Main Data Memory = ram_sys • Host Communication = uart • Debug Communication = uart • Boot ID Message = Free to fill • Boot Device = ram_prg For the simulation we will boot on the ram_prg which will be precharged. For real use, in the board, we will change the boot device to rom_germs • Interrupt Vector Table = ram_sys • Synthesis Target Familly = None For the simulation, we don't synthesis the core • Place the Nios system symbol in the schematic window • Save the schematic file as memory_access.bdf "mycpu.ptf" file is generated which describes your whole Nios system

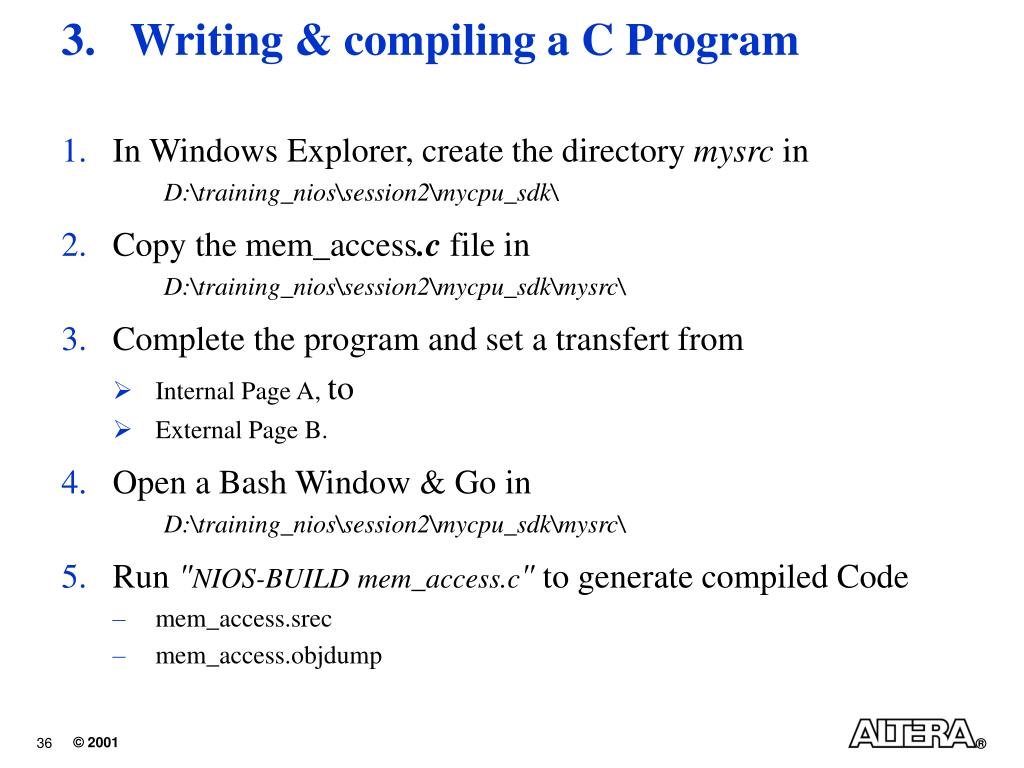

  35. Writing & compiling a C Program • In Windows Explorer, create the directory mysrc in D:\training_nios\session2\mycpu_sdk\ • Copy the mem_access.c file in D:\training_nios\session2\mycpu_sdk\mysrc\ • Complete the program and set a transfert from • Internal Page A, to • External Page B. • Open a Bash Window & Go in D:\training_nios\session2\mycpu_sdk\mysrc\ • Run "NIOS-BUILDmem_access.c" to generate compiled Code • mem_access.srec • mem_access.objdump

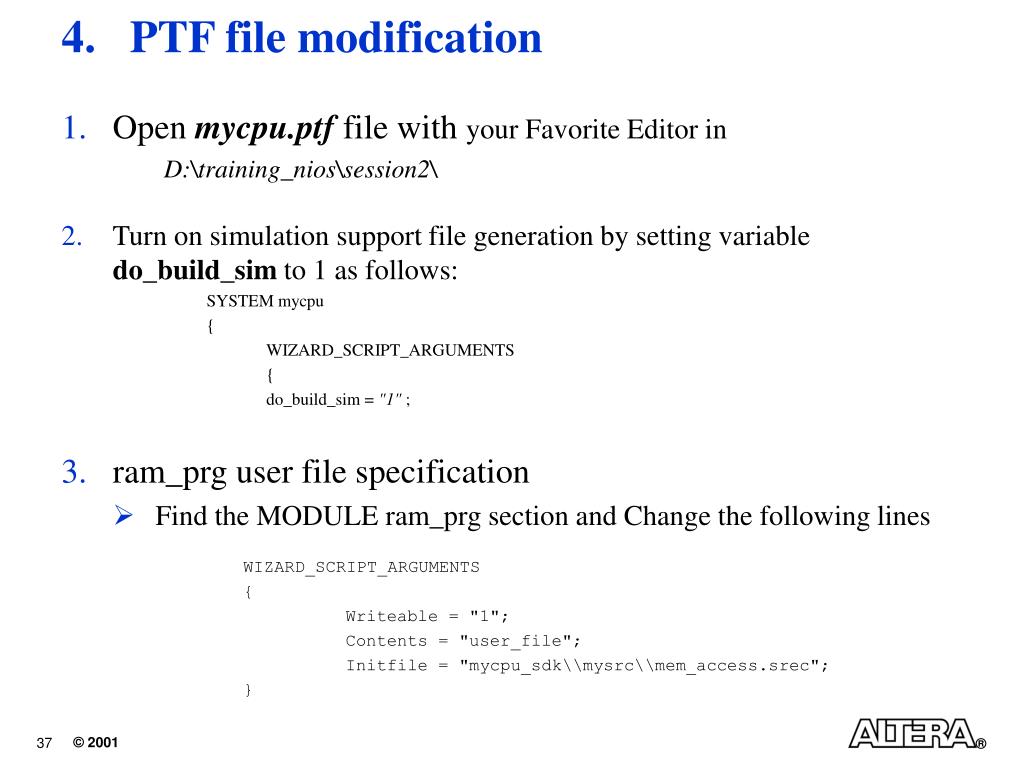

  36. PTF file modification • Open mycpu.ptf file with your Favorite Editor in D:\training_nios\session2\ • Turn on simulation support file generation by setting variable do_build_sim to 1 as follows: SYSTEM mycpu { WIZARD_SCRIPT_ARGUMENTS { do_build_sim = "1" ; • ram_prg user file specification • Find the MODULE ram_prg section and Change the following lines WIZARD_SCRIPT_ARGUMENTS { Writeable = "1"; Contents = "user_file"; Initfile = "mycpu_sdk\\mysrc\\mem_access.srec"; }

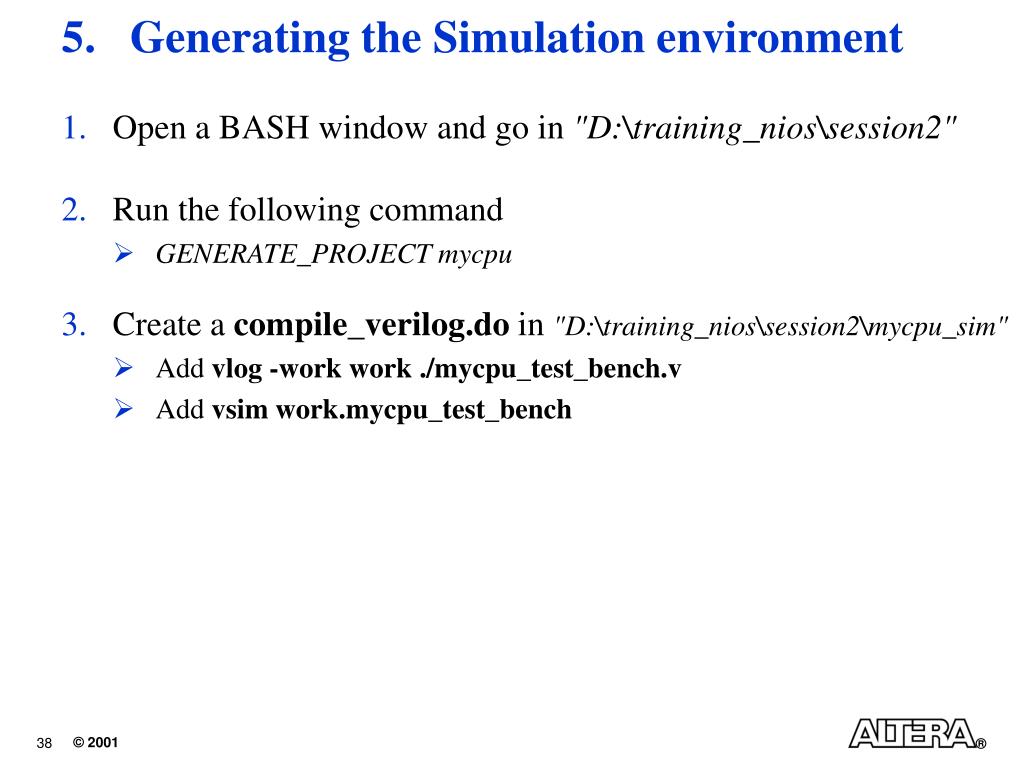

  37. Generating the Simulation environment • Open a BASH window and go in"D:\training_nios\session2" • Run the following command • GENERATE_PROJECT mycpu • Create acompile_verilog.do in"D:\training_nios\session2\mycpu_sim" • Add vlog -work work ./mycpu_test_bench.v • Add vsim work.mycpu_test_bench

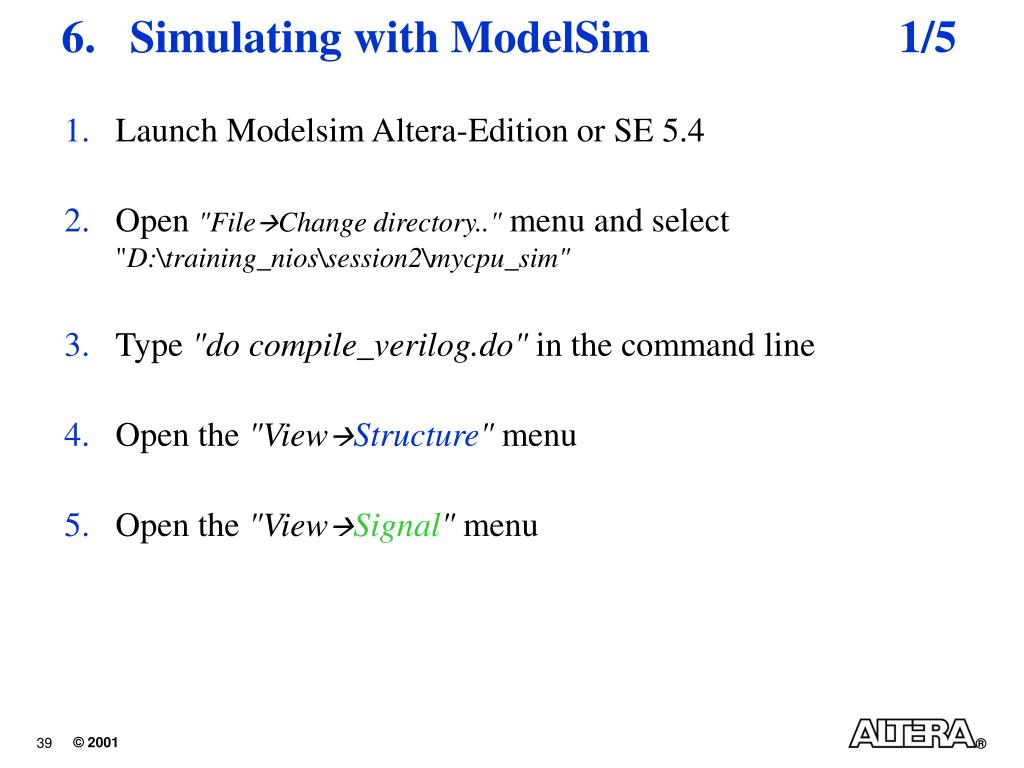

  38. Simulating with ModelSim 1/5 • Launch Modelsim Altera-Edition or SE 5.4 • Open "FileChange directory.." menu and select "D:\training_nios\session2\mycpu_sim" • Type "do compile_verilog.do" in the command line • Open the "ViewStructure" menu • Open the "ViewSignal" menu

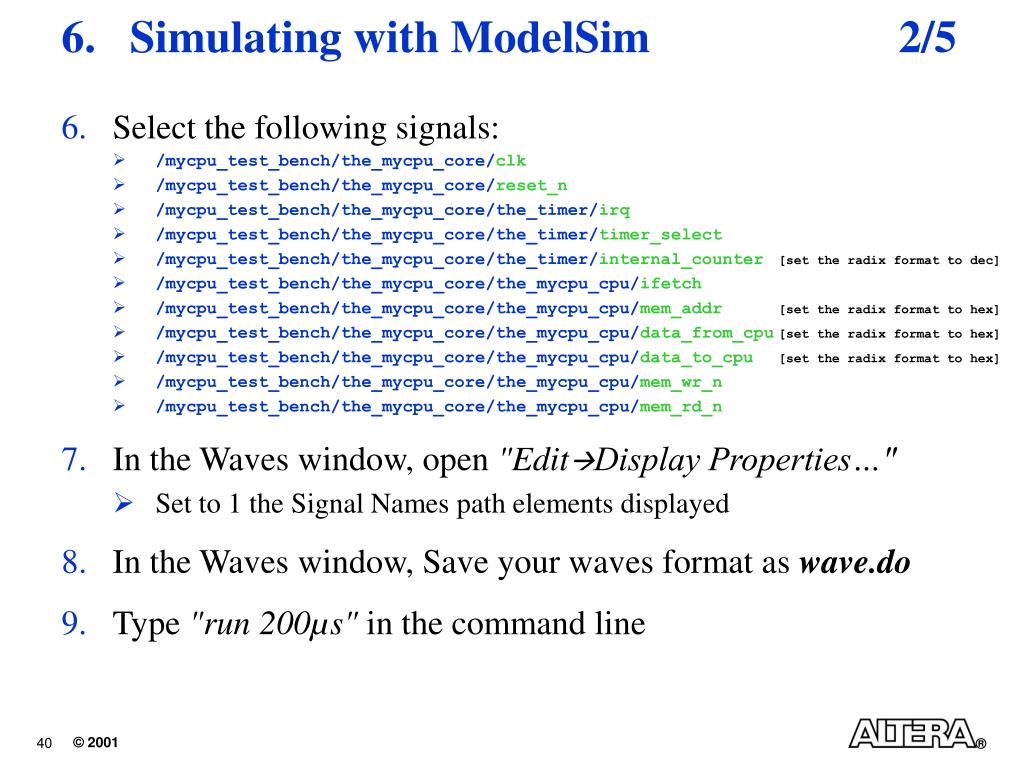

  39. Simulating with ModelSim 2/5 • Select the following signals: • /mycpu_test_bench/the_mycpu_core/clk • /mycpu_test_bench/the_mycpu_core/reset_n • /mycpu_test_bench/the_mycpu_core/the_timer/irq • /mycpu_test_bench/the_mycpu_core/the_timer/timer_select • /mycpu_test_bench/the_mycpu_core/the_timer/internal_counter [set the radix format to dec] • /mycpu_test_bench/the_mycpu_core/the_mycpu_cpu/ifetch • /mycpu_test_bench/the_mycpu_core/the_mycpu_cpu/mem_addr [set the radix format to hex] • /mycpu_test_bench/the_mycpu_core/the_mycpu_cpu/data_from_cpu [set the radix format to hex] • /mycpu_test_bench/the_mycpu_core/the_mycpu_cpu/data_to_cpu [set the radix format to hex] • /mycpu_test_bench/the_mycpu_core/the_mycpu_cpu/mem_wr_n • /mycpu_test_bench/the_mycpu_core/the_mycpu_cpu/mem_rd_n • In the Waves window, open "EditDisplay Properties…" • Set to 1 the Signal Names path elements displayed • In the Waves window, Save your waves format as wave.do • Type "run 200µs" in the command line

  40. Simulating with ModelSim 3/5 • Find the beginning of the transfert • Search for Value 0x2000 in the @ line • Count the number of clock cycles for the read access • Nb_read = _______ • Count the number of clock cycles for the write access • Nb_write = _______ • Find the @ or the instruction of the first read access and write access is fetched. How many clock cycles before the access is done ? • Pipe_length = ______

  41. Simulating with ModelSim 4/5 Re-Simulating each times the SW Has Been Modified • Open a Bash Window & Go in D:\training_nios\session2\mycpu_sdk\mysrc\ • Run "NIOS-BUILDmem_access.c" to generate compiled Code • Open a BASH window and go in "D:\training_nios\session2" • Run the following command • GENERATE_PROJECT mycpu • Under ModelSim, in the command line • Type "do compile_verilog.do" • Type "do wave.do" • Type "run 200 µs"

  42. Simulating with ModelSim 5/5 • Change the program in order to set the following transferts • From External Page A to Internal Page B • From External Page A to External Page B • From Internal Page A to Internal Page B • For every simulations, count the number of clock cycles.

  43. Re-Generating the Nios system & Producing an EDIF file • Edit file mycpu.ptf in "D:\training_nios\session2" • Enable the synthesis by putting "skip_synth" option to 0 • Change the boot device memory by"rom_boot" which contents the GERMS monitor • Find the topic reset_module in WIZARD_SCRIPT_ARGUMENT of the MODULE mycpu_cpu • Open BASH window and go in "D:\training_nios\session1" • Run the following command • GENERATE_PROJECT mycpu

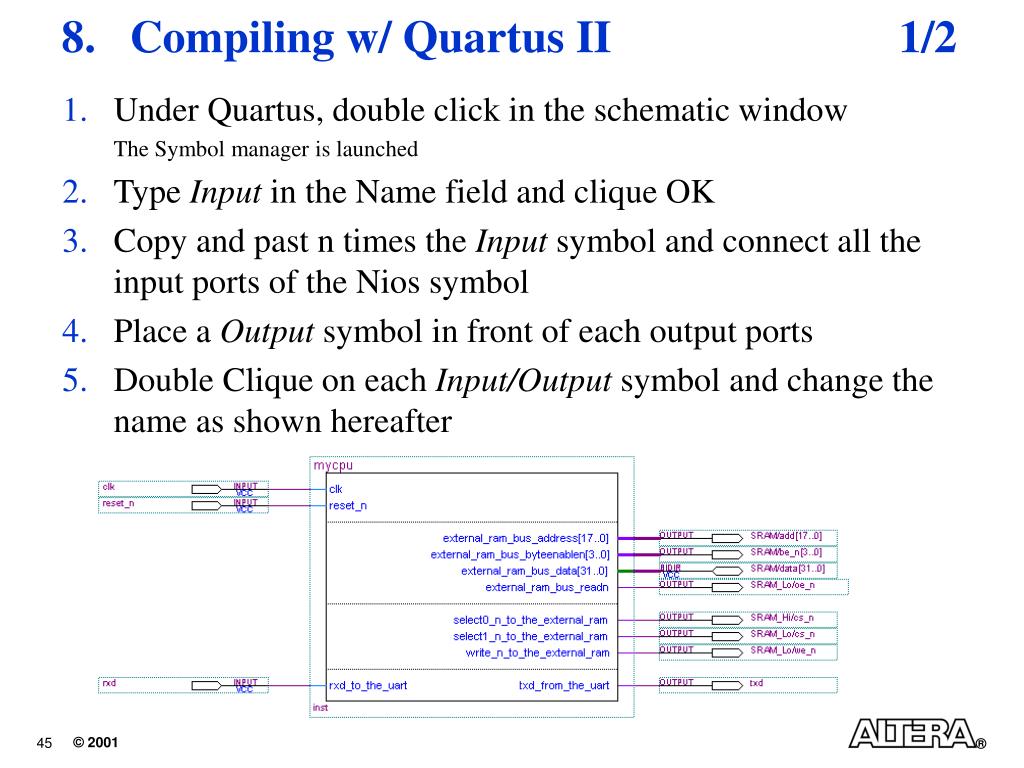

  44. Compiling w/ Quartus II 1/2 • Under Quartus, double click in the schematic window The Symbol manager is launched • Type Input in the Name field and clique OK • Copy and past n times the Input symbol and connect all the input ports of the Nios symbol • Place a Output symbol in front of each output ports • Double Clique on each Input/Output symbol and change the name as shown hereafter

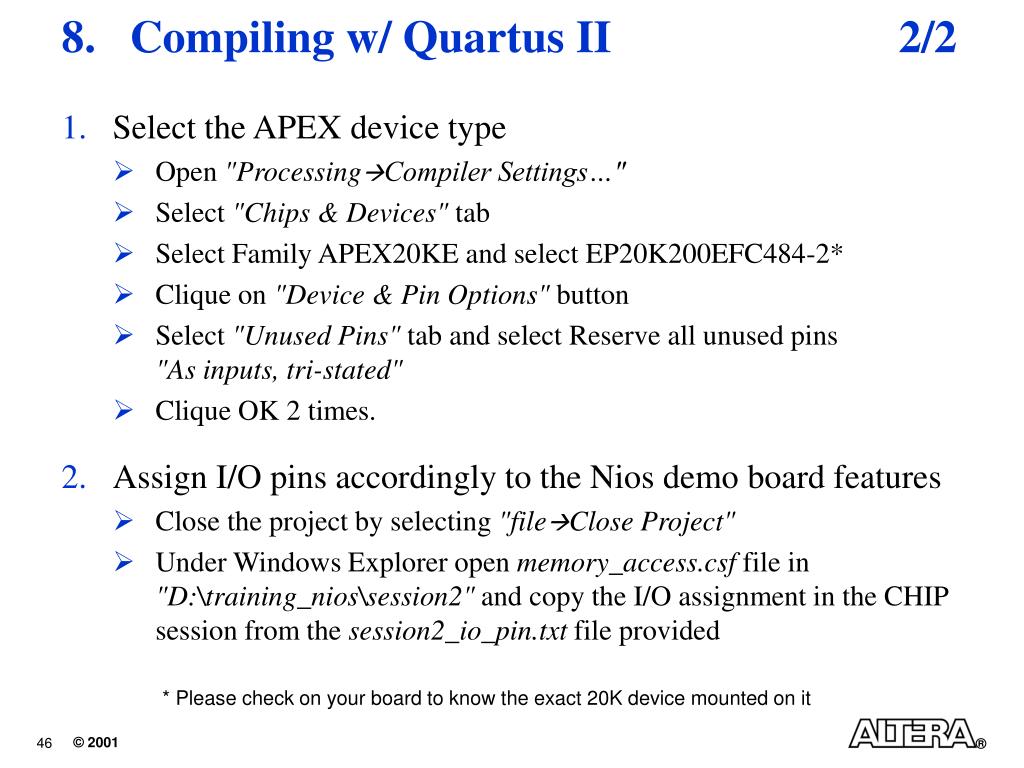

  45. Compiling w/ Quartus II 2/2 • Select the APEX device type • Open "ProcessingCompiler Settings…" • Select "Chips & Devices" tab • Select Family APEX20KE and select EP20K200EFC484-2* • Clique on "Device & Pin Options" button • Select "Unused Pins" tab and select Reserve all unused pins "As inputs, tri-stated" • Clique OK 2 times. • Assign I/O pins accordingly to the Nios demo board features • Close the project by selecting "fileClose Project" • Under Windows Explorer open memory_access.csf file in "D:\training_nios\session2" and copy the I/O assignment in the CHIP session from the session2_io_pin.txt file provided * Please check on your board to know the exact 20K device mounted on it

  46. Configuring the Nios board • Re-open the "memory_access" project • The I/O assignments are now taken into account • Start the compilation by selecting "ProcessingStart compilation" The compilation time takes about 6 minutes • Open "ProcessingOpen Programmer" menu • Clique "Add file" and select memory_access.sof file • Enable "Program/Configure" box • Start the configuration

  47. Question ? • Why your application is running although you didn't send any SREC file through the UART by using Nios-Run ?

  48. Downloading the code Nios soft Reset APEX hard Reset • Testing the connexion with the GERMS by • Going in BASH window, • Typing "NIOS-RUN –t" (terminal mode) • Reseting the Nios and typing ENTER (memory will be dumped) • Open a Bash Window & Go in D:\training_nios\session2\mycpu_sdk\mysrc\ • Download the SREC file by typing "NIOS-RUN mem_access.srec"

  49. Measuring the throughput • Change the program in order to set the following transferts • From Internal Page A to Internal Page B • From Internal Page A to External Page B • From External Page A to External Page B • From External Page A to Internal Page B • For every simulations • Note the number of clock cycles required to complet the loop, • divide by the number of transfers done (32000), • Multiple by 8 to get the throughput in bytes/s

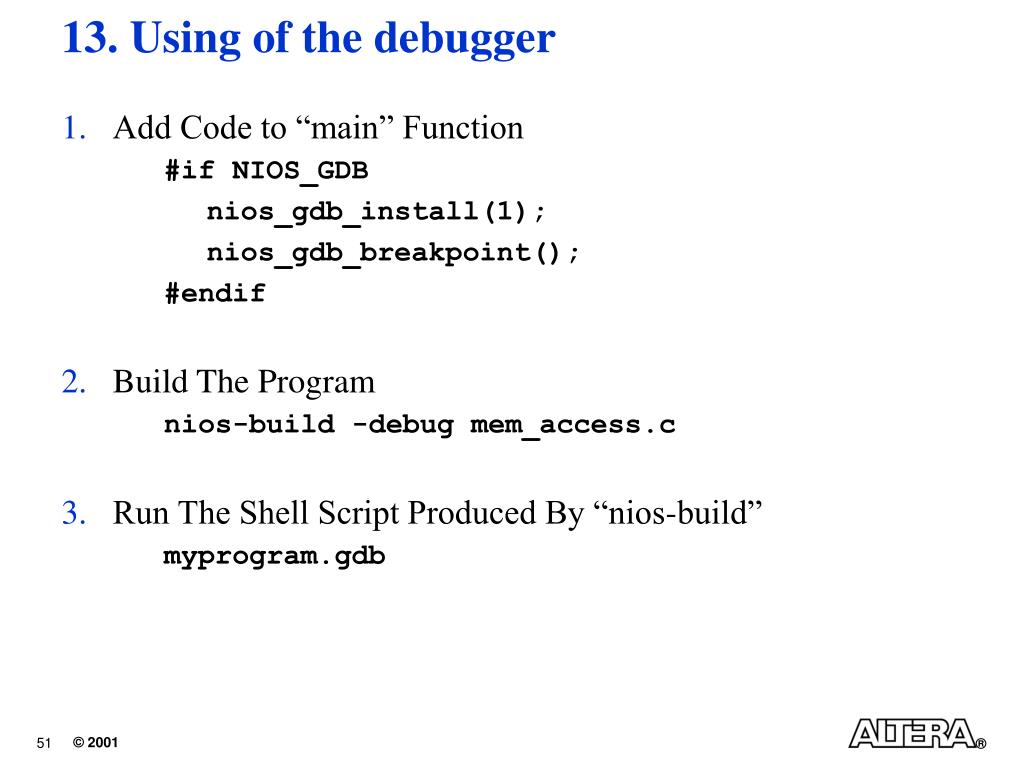

  50. Using of the debugger • Add Code to “main” Function #if NIOS_GDB nios_gdb_install(1); nios_gdb_breakpoint(); #endif • Build The Program nios-build -debug mem_access.c • Run The Shell Script Produced By “nios-build” myprogram.gdb
