  1. IEE 5644 Mixed-Signal IC Design and Laboratory (I) Team 1 Design Review – 2005/9/28

  2. Outline • High-Speed PAM Transceivers • Analog Circuit Elements for Digital Control • High-Speed A/D Conversion • High-Speed Clock/Phase Generation • Conclusions Pipelined ADC

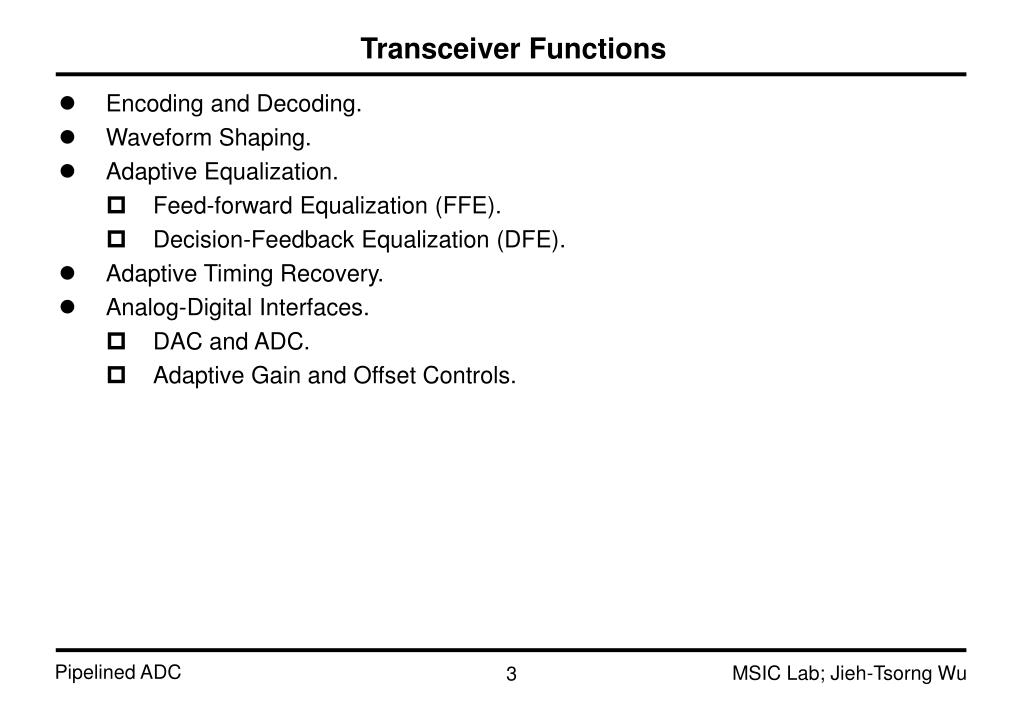

  3. Transceiver Functions • Encoding and Decoding. • Waveform Shaping. • Adaptive Equalization. • Feed-forward Equalization (FFE). • Decision-Feedback Equalization (DFE). • Adaptive Timing Recovery. • Analog-Digital Interfaces. • DAC and ADC. • Adaptive Gain and Offset Controls. Pipelined ADC

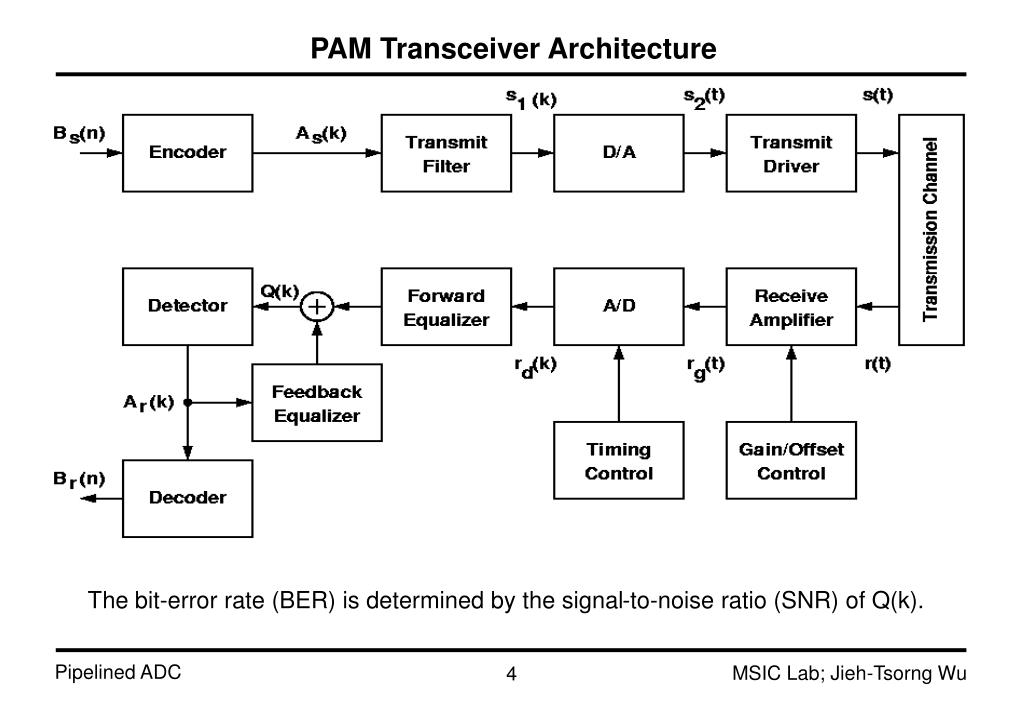

  4. PAM Transceiver Architecture The bit-error rate (BER) is determined by the signal-to-noise ratio (SNR) of Q(k). Pipelined ADC

  5. Eye Diagram Source: R. Walker, ISSCC short course, Feb. 2002. Pipelined ADC

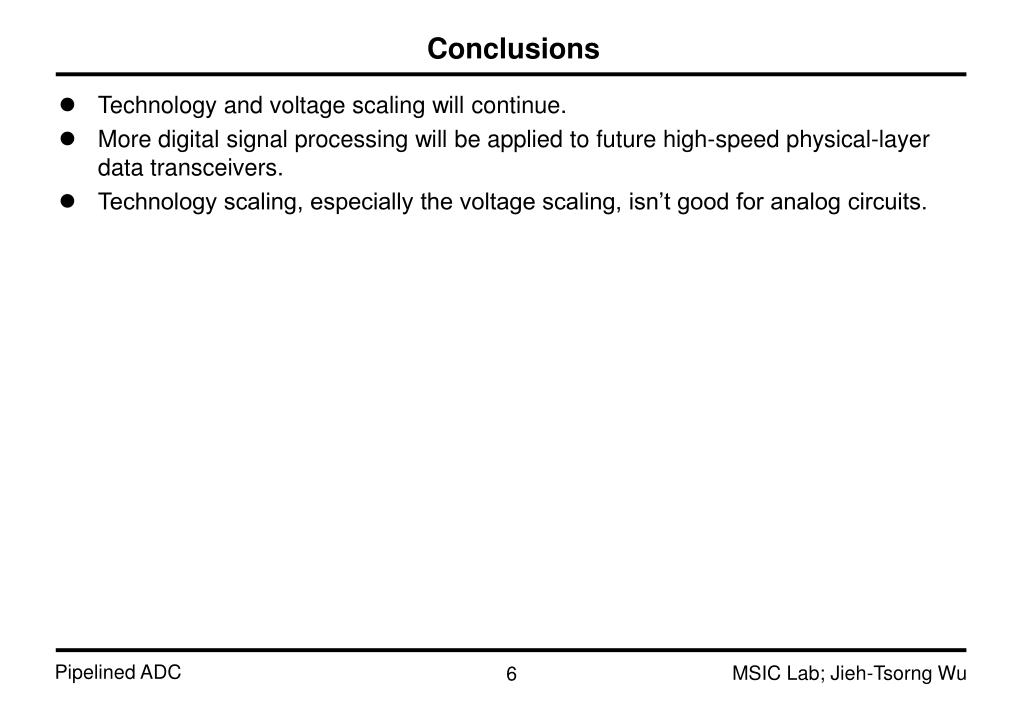

  6. Conclusions • Technology and voltage scaling will continue. • More digital signal processing will be applied to future high-speed physical-layer data transceivers. • Technology scaling, especially the voltage scaling, isn’t good for analog circuits. Pipelined ADC
