  1. CCNA 2 v3.1 Module 5

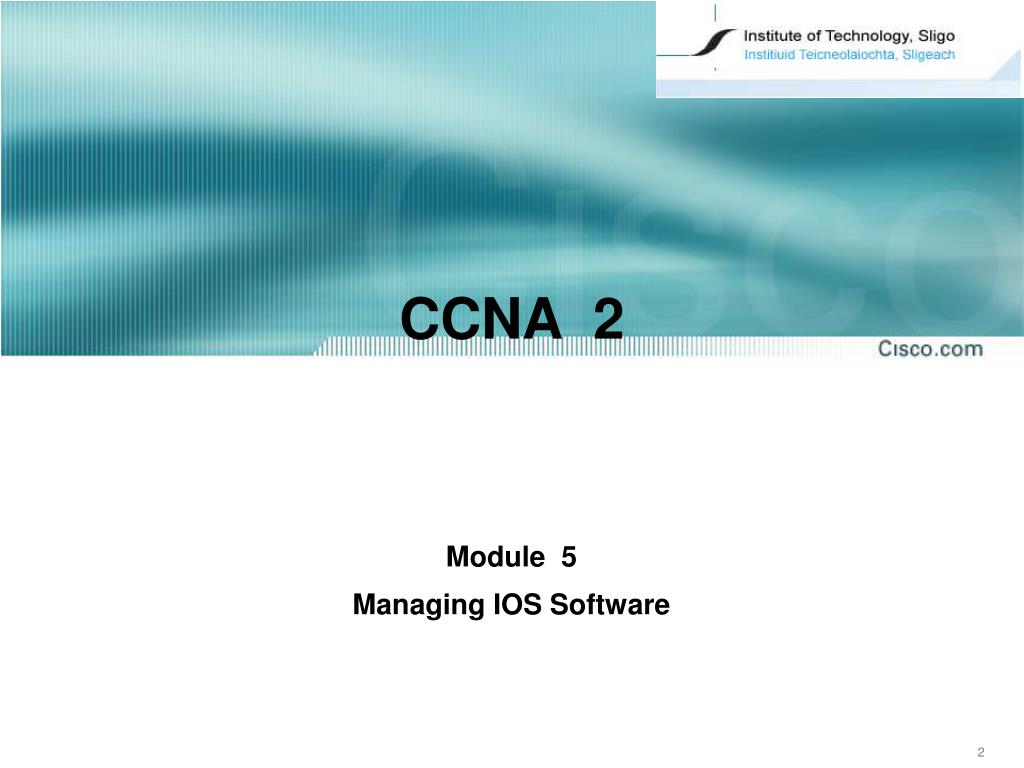

  2. CCNA 2 Module 5 Managing IOS Software

  3. Router Boot Sequence and Verification

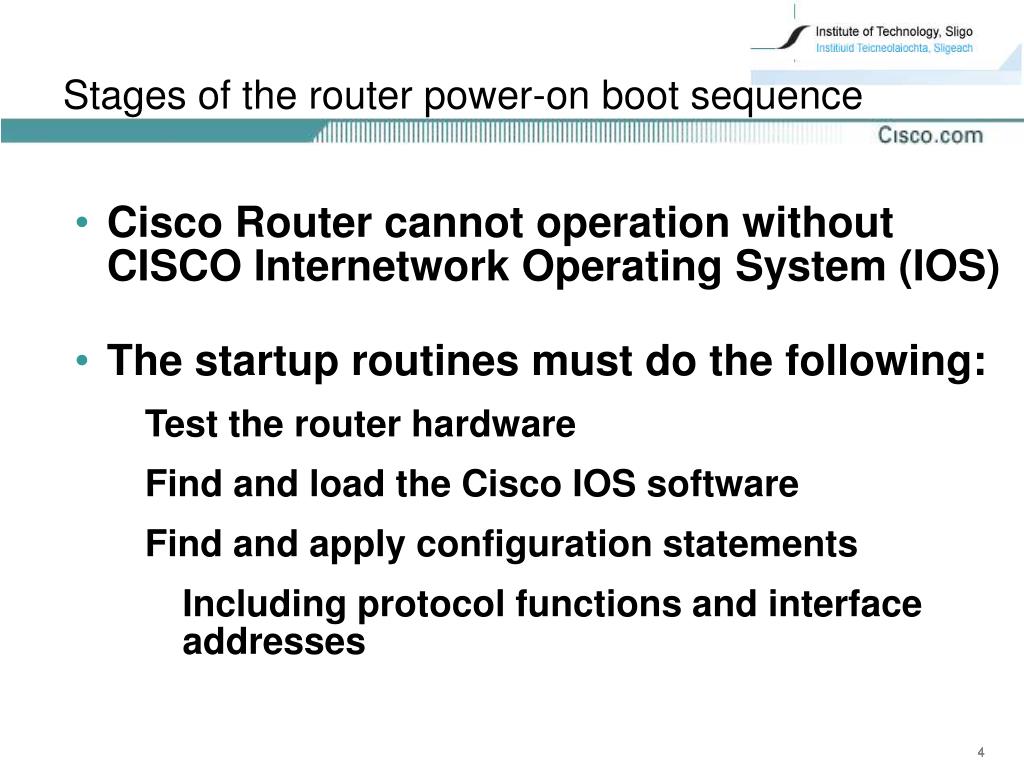

  4. Stages of the router power-on boot sequence • Cisco Router cannot operation without CISCO Internetwork Operating System (IOS) • The startup routines must do the following: • Test the router hardware • Find and load the Cisco IOS software • Find and apply configuration statements • Including protocol functions and interface addresses

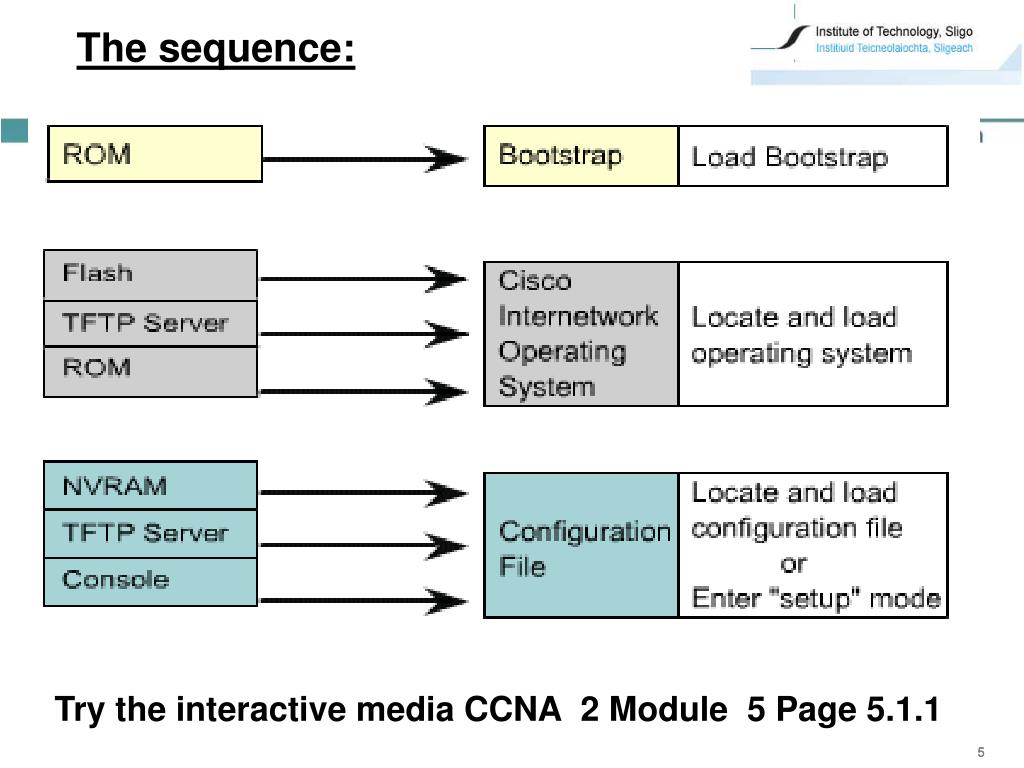

  5. The sequence: Try the interactive media CCNA 2 Module 5 Page 5.1.1

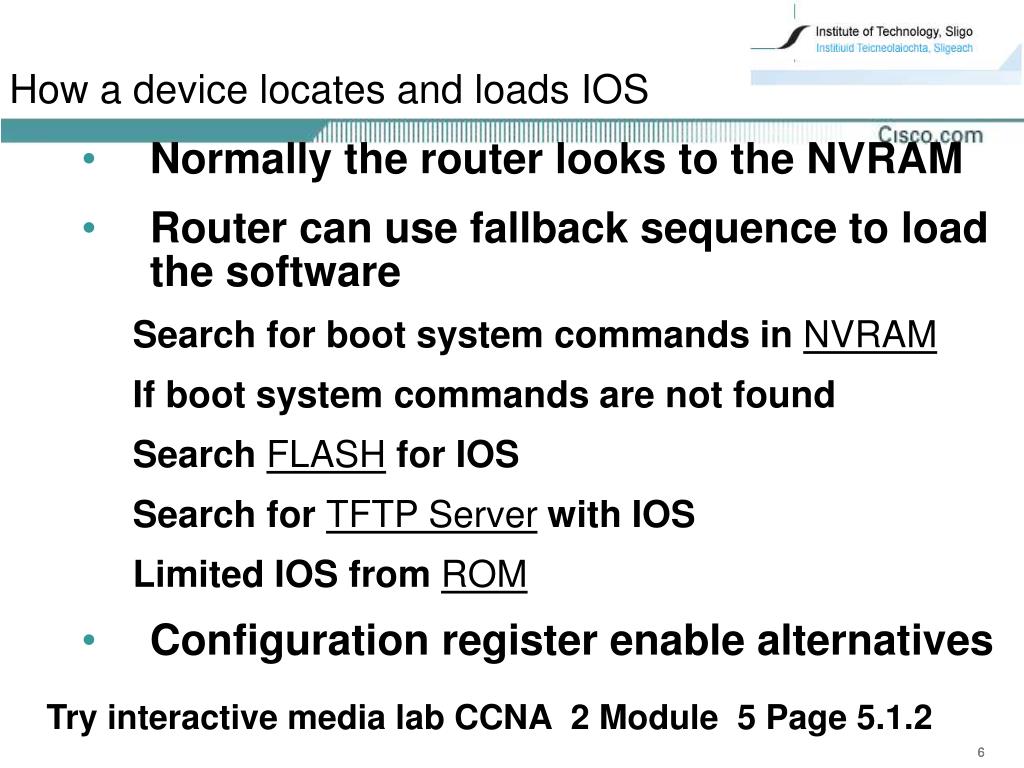

  6. How a device locates and loads IOS • Normally the router looks to the NVRAM • Router can use fallback sequence to load the software • Search for boot system commands in NVRAM • If boot system commands are not found • Search FLASH for IOS • Search for TFTP Server with IOS • Limited IOS from ROM • Configuration register enable alternatives Try interactive media lab CCNA 2 Module 5 Page 5.1.2

  7. Configuration Register • Saved in NVRAM • Identify where to boot the IOS image from • To set the configuration register manually • Router#config terminal • Router(config)#boot system flash ios-filename • Router(config)#boot system tftp ios-filename tftp-address • Router(config)#boot system ROM

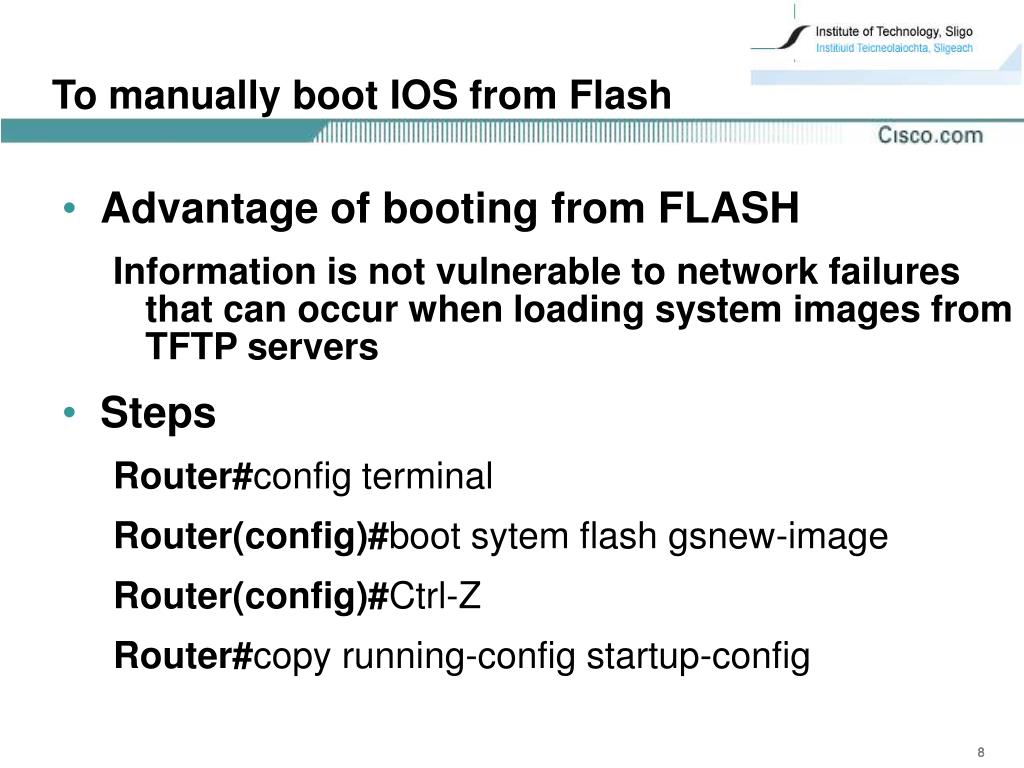

  8. To manually boot IOS from Flash • Advantage of booting from FLASH • Information is not vulnerable to network failures that can occur when loading system images from TFTP servers • Steps • Router#config terminal • Router(config)#boot sytem flash gsnew-image • Router(config)#Ctrl-Z • Router#copy running-config startup-config

  9. TFTP Network Server • Used in case flash memory becomes corrupted • Steps • Router#config terminal • Router(config)#boot system tftp IOS_image 172.16.13.111 • Router(config)#Ctrl-Z • Router#Copy running-config startup-config

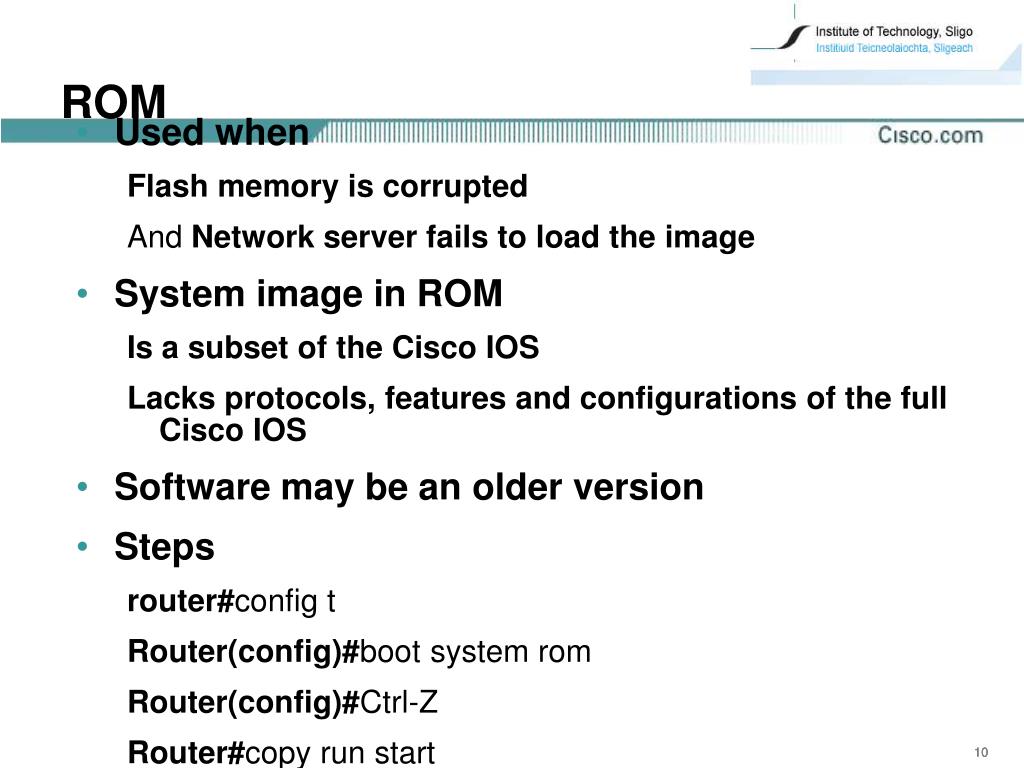

  10. ROM • Used when • Flash memory is corrupted • And Network server fails to load the image • System image in ROM • Is a subset of the Cisco IOS • Lacks protocols, features and configurations of the full Cisco IOS • Software may be an older version • Steps • router#config t • Router(config)#boot system rom • Router(config)#Ctrl-Z • Router#copy run start

  11. Configuration register • 16-bit register in NVRAM • The lowest four bits is for the boot field • To find the current configuration register values • Router#show version • To change the boot field in configuration register • Use config register command

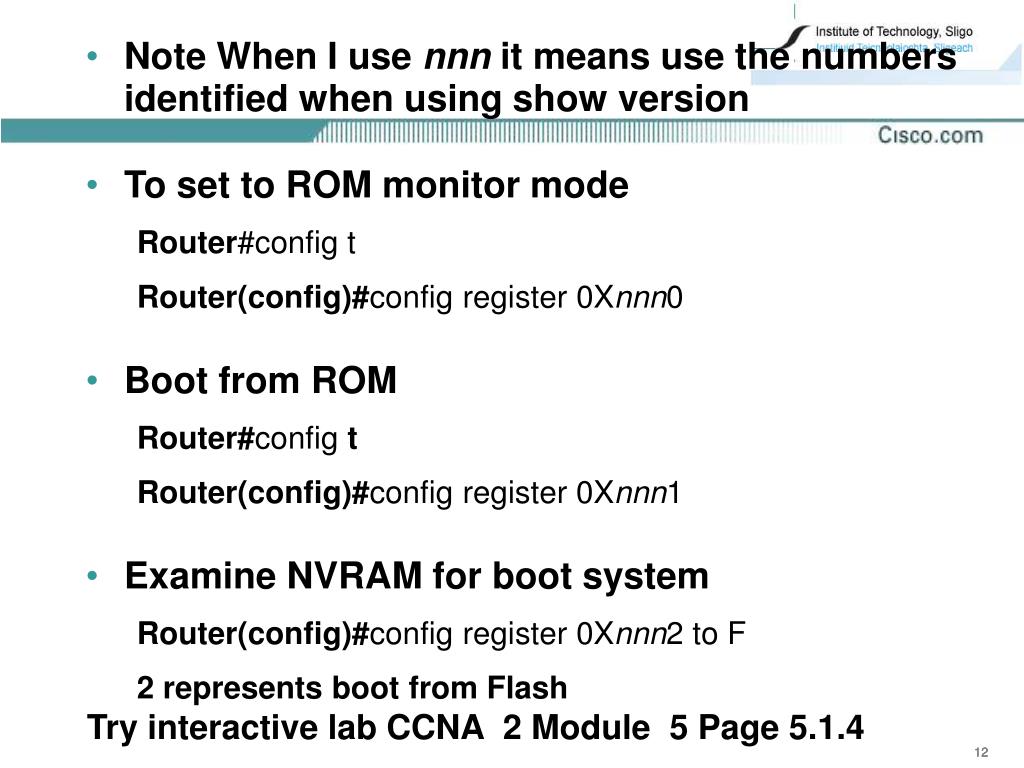

  12. Note When I use nnn it means use the numbers identified when using show version • To set to ROM monitor mode • Router#config t • Router(config)#config register 0Xnnn0 • Boot from ROM • Router#config t • Router(config)#config register 0Xnnn1 • Examine NVRAM for boot system • Router(config)#config register 0Xnnn2 to F • 2 represents boot from Flash Try interactive lab CCNA 2 Module 5 Page 5.1.4

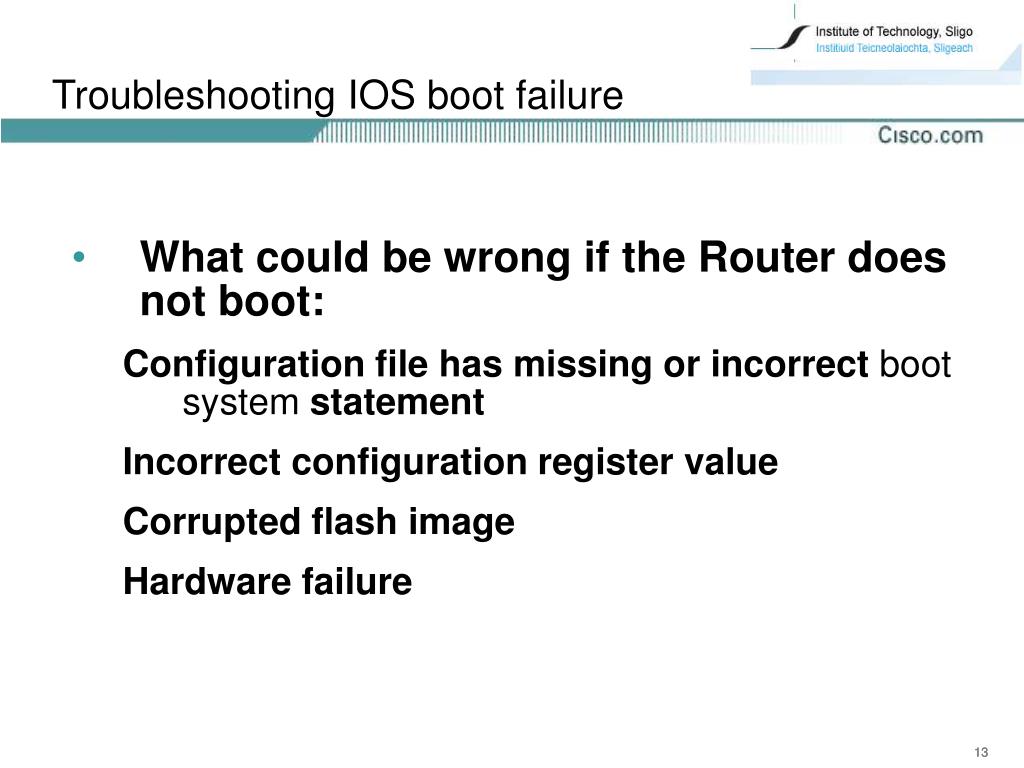

  13. Troubleshooting IOS boot failure • What could be wrong if the Router does not boot: • Configuration file has missing or incorrect boot system statement • Incorrect configuration register value • Corrupted flash image • Hardware failure

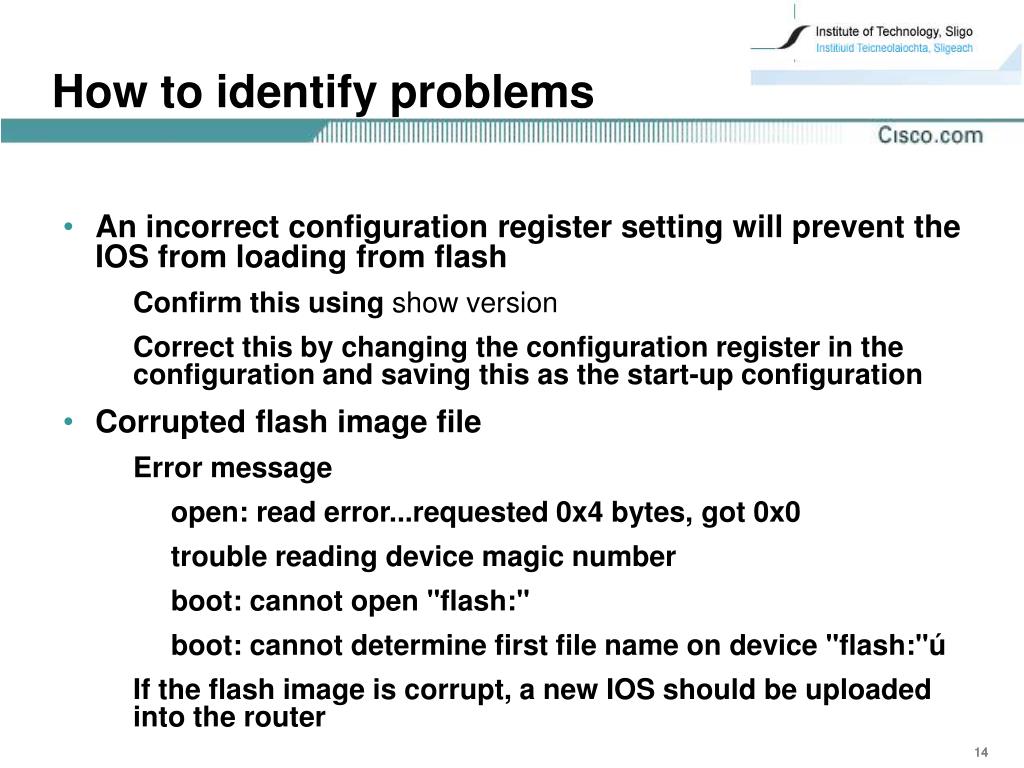

  14. How to identify problems • An incorrect configuration register setting will prevent the IOS from loading from flash • Confirm this using show version • Correct this by changing the configuration register in the configuration and saving this as the start-up configuration • Corrupted flash image file • Error message • open: read error...requested 0x4 bytes, got 0x0 • trouble reading device magic number • boot: cannot open "flash:" • boot: cannot determine first file name on device "flash:"ú • If the flash image is corrupt, a new IOS should be uploaded into the router

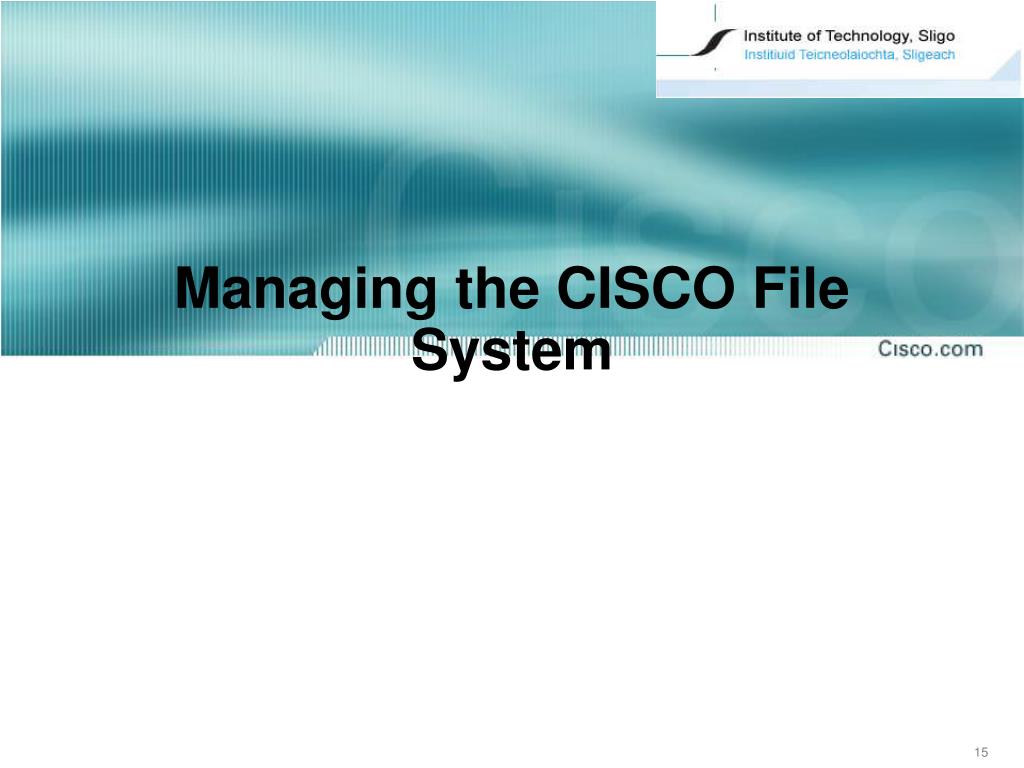

  15. Managing the CISCO File System

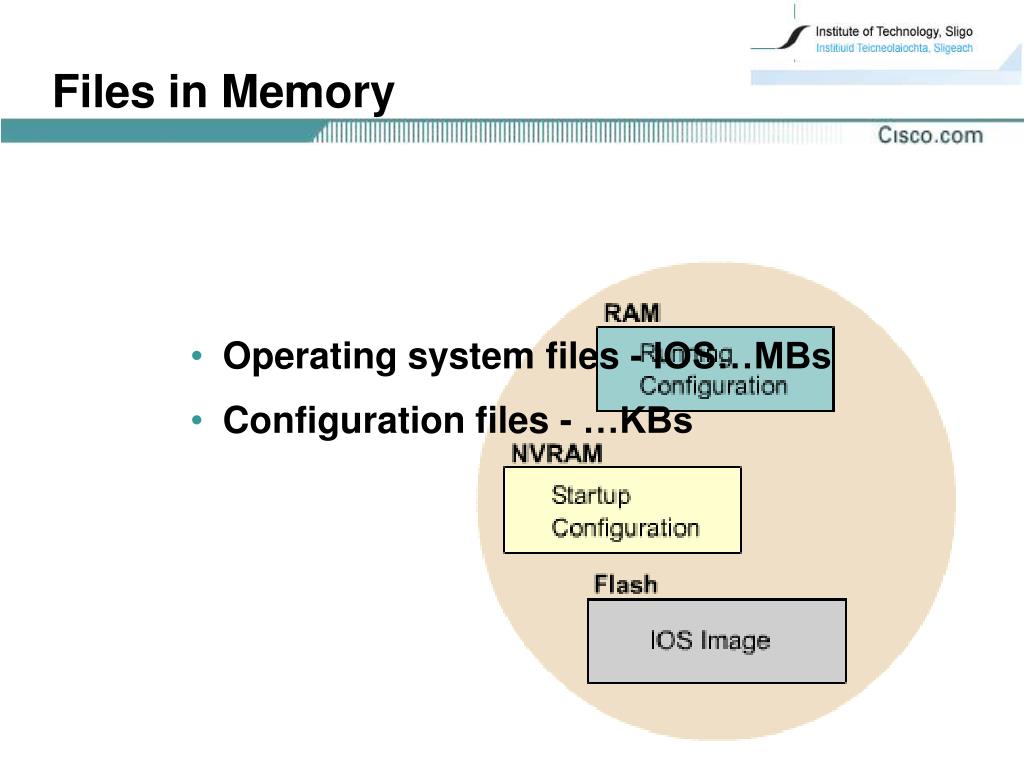

  16. Files in Memory • Operating system files - IOS…MBs • Configuration files - …KBs

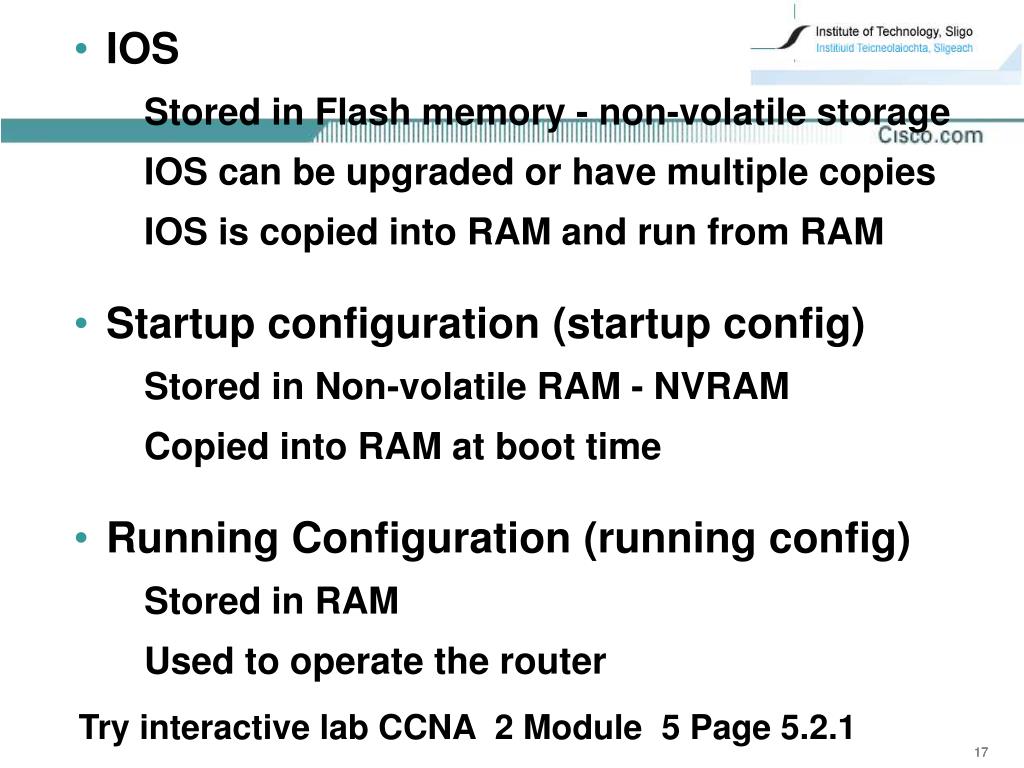

  17. IOS • Stored in Flash memory - non-volatile storage • IOS can be upgraded or have multiple copies • IOS is copied into RAM and run from RAM • Startup configuration (startup config) • Stored in Non-volatile RAM - NVRAM • Copied into RAM at boot time • Running Configuration (running config) • Stored in RAM • Used to operate the router Try interactive lab CCNA 2 Module 5 Page 5.2.1

  18. IOS naming conventions

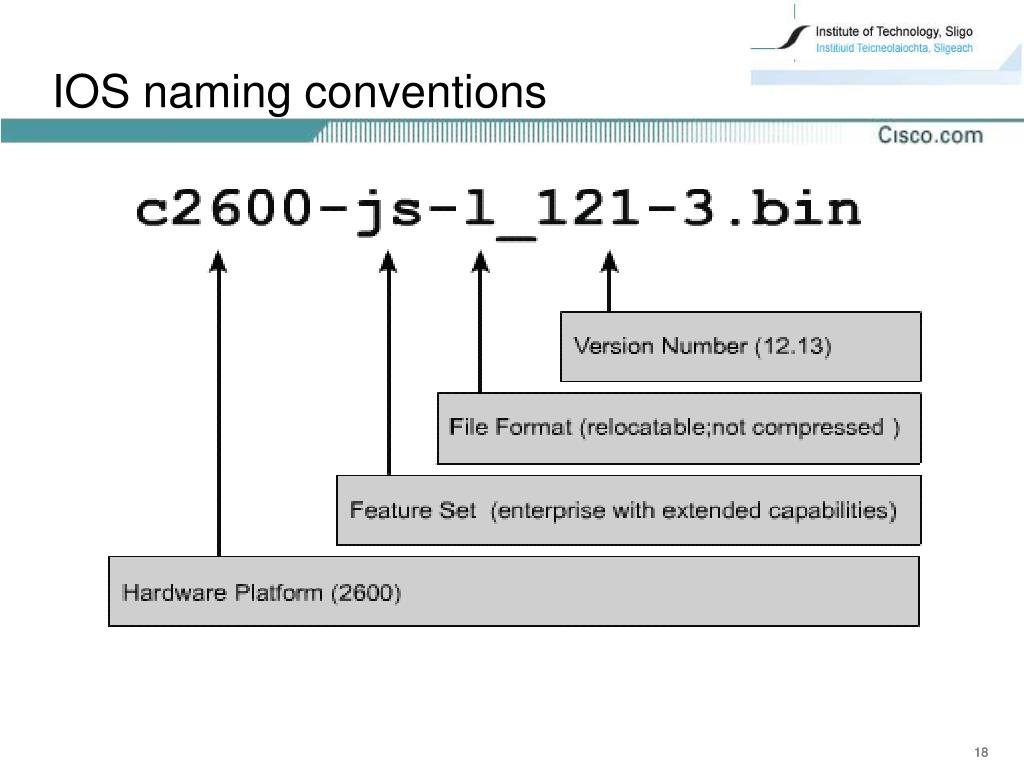

  19. First part identifies the hardware platform • Second part identifies the features the file contains • Basic – A basic feature set for the hardware platform, e.g.IP • Plus – Basic features ..IP/FW Plus, and Enterprise Plus • Encryption – • k8 > Less than or equal to 64-bit encryption in IOS version 12.2 and up • k9 > Greater than 64-bit encryption (on 12.2 and up) • Third part indicates the file format • Is the IOS is stored in flash in a compressed format or not • Is the IOS relocatable(can be copied into RAM) or not(run from flash) • Fourth part identifies the release of the IOS Try interactive media lab CCNA 2 Module 5 Page 5.2.2

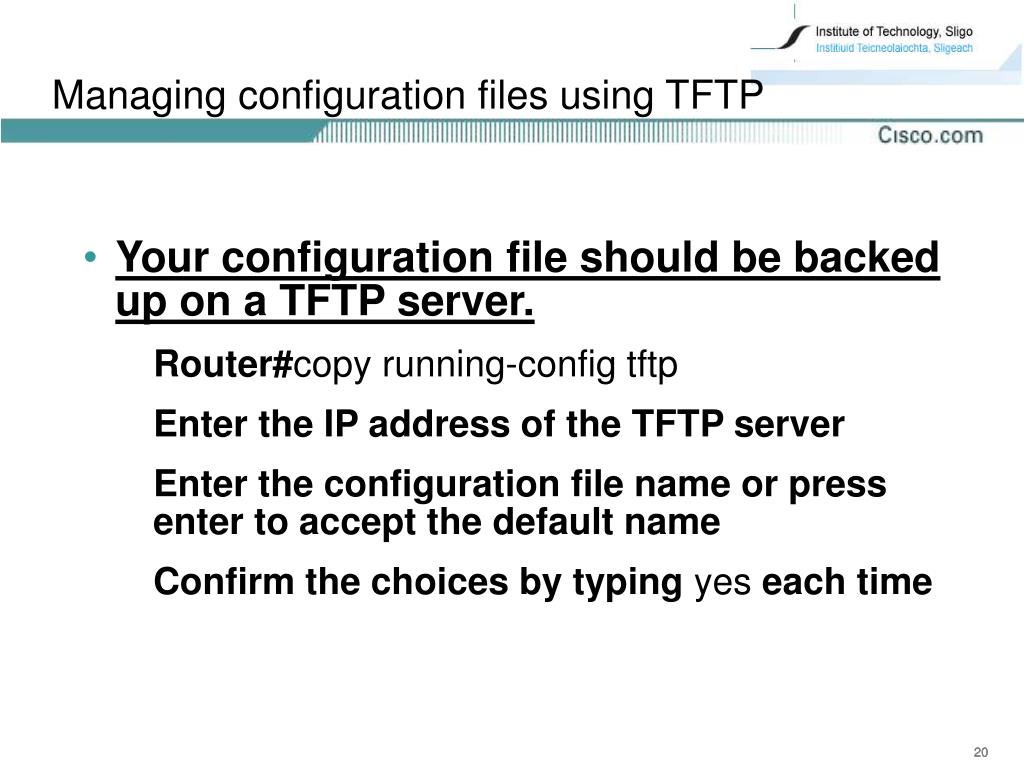

  20. Managing configuration files using TFTP • Your configuration file should be backed up on a TFTP server. • Router#copy running-config tftp • Enter the IP address of the TFTP server • Enter the configuration file name or press enter to accept the default name • Confirm the choices by typing yes each time

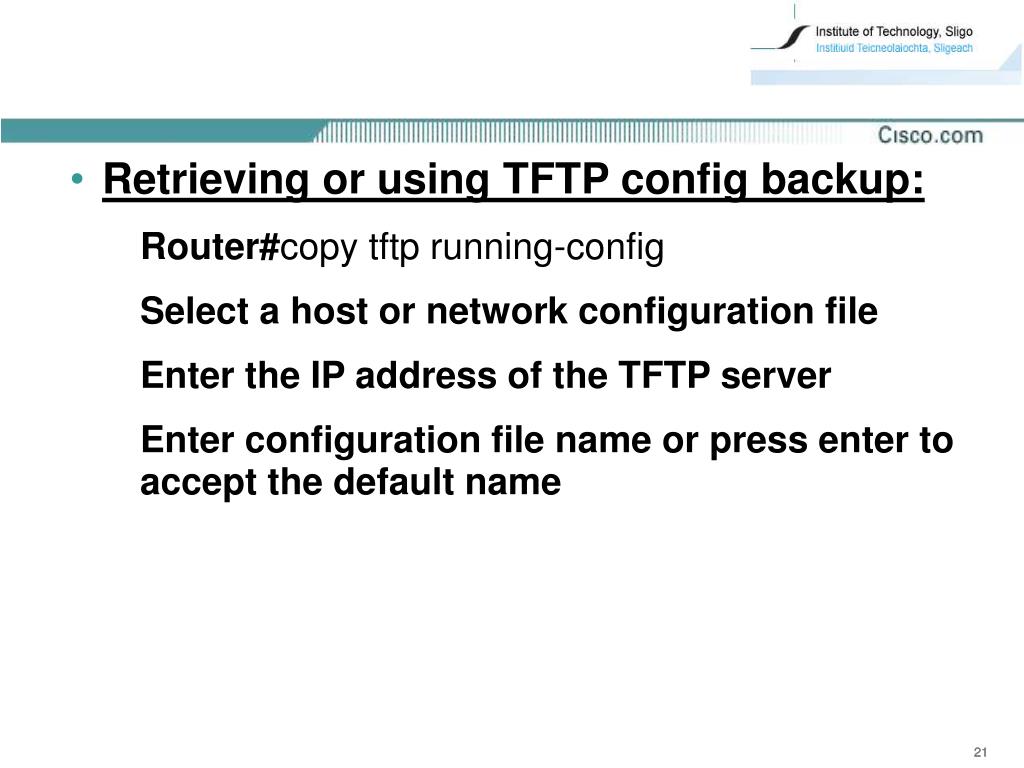

  21. Retrieving or using TFTP config backup: • Router#copy tftp running-config • Select a host or network configuration file • Enter the IP address of the TFTP server • Enter configuration file name or press enter to accept the default name

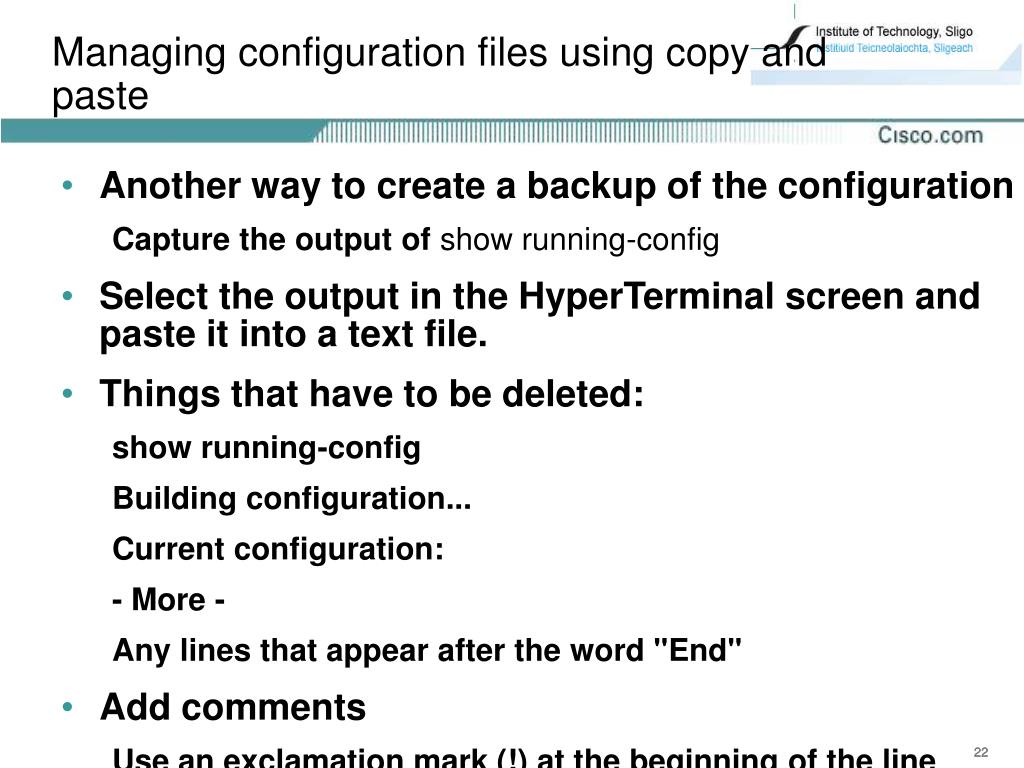

  22. Managing configuration files using copy and paste • Another way to create a backup of the configuration • Capture the output of show running-config • Select the output in the HyperTerminal screen and paste it into a text file. • Things that have to be deleted: • show running-config • Building configuration... • Current configuration: • - More - • Any lines that appear after the word "End" • Add comments • Use an exclamation mark (!) at the beginning of the line

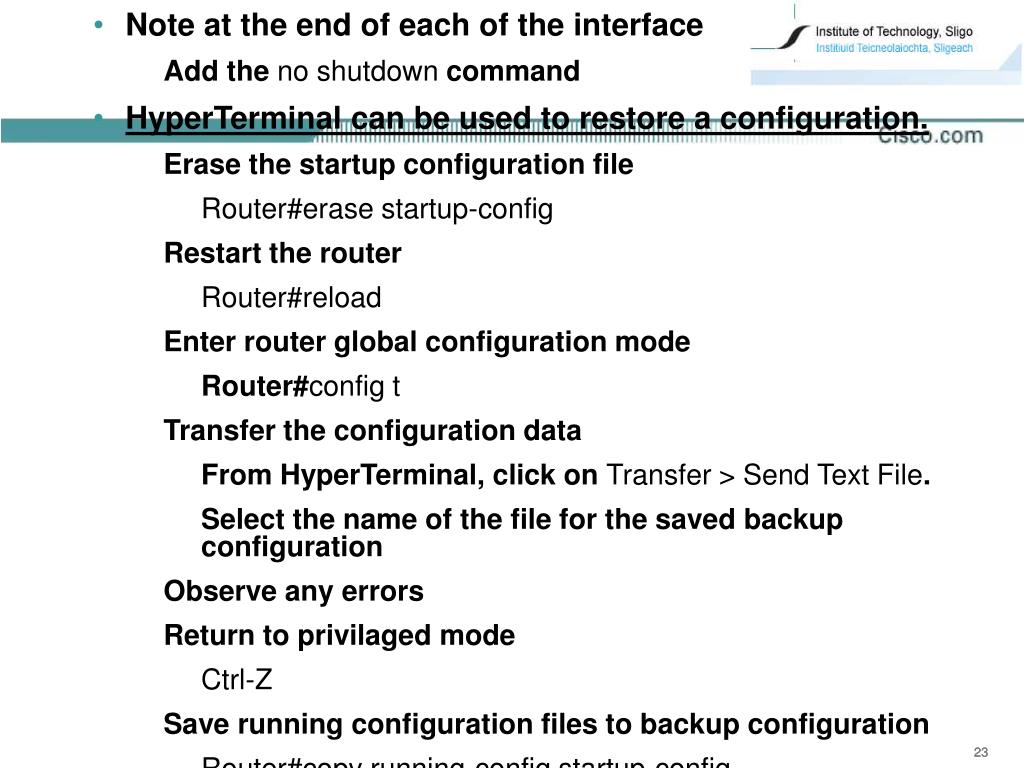

  23. Note at the end of each of the interface • Add the no shutdown command • HyperTerminal can be used to restore a configuration. • Erase the startup configuration file • Router#erase startup-config • Restart the router • Router#reload • Enter router global configuration mode • Router#config t • Transfer the configuration data • From HyperTerminal, click on Transfer > Send Text File. • Select the name of the file for the saved backup configuration • Observe any errors • Return to privilaged mode • Ctrl-Z • Save running configuration files to backup configuration • Router#copy running-config startup-config

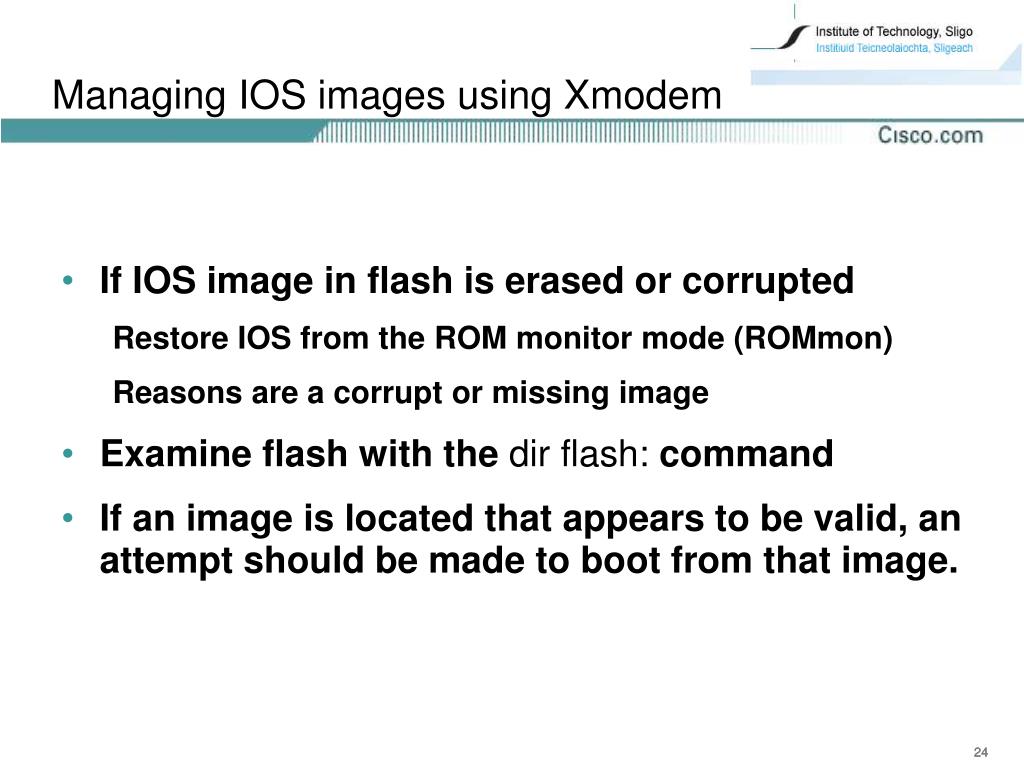

  24. Managing IOS images using Xmodem • If IOS image in flash is erased or corrupted • Restore IOS from the ROM monitor mode (ROMmon) • Reasons are a corrupt or missing image • Examine flash with the dir flash: command • If an image is located that appears to be valid, an attempt should be made to boot from that image.

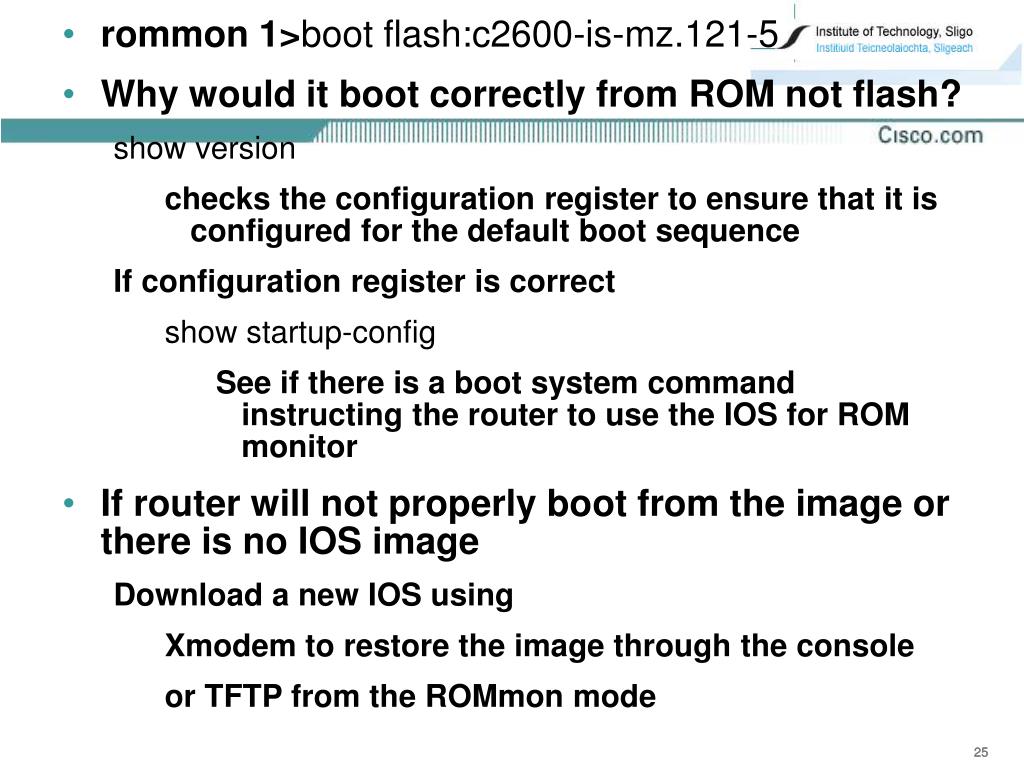

  25. rommon 1>boot flash:c2600-is-mz.121-5 • Why would it boot correctly from ROM not flash? • show version • checks the configuration register to ensure that it is configured for the default boot sequence • If configuration register is correct • show startup-config • See if there is a boot system command instructing the router to use the IOS for ROM monitor • If router will not properly boot from the image or there is no IOS image • Download a new IOS using • Xmodem to restore the image through the console • or TFTP from the ROMmon mode

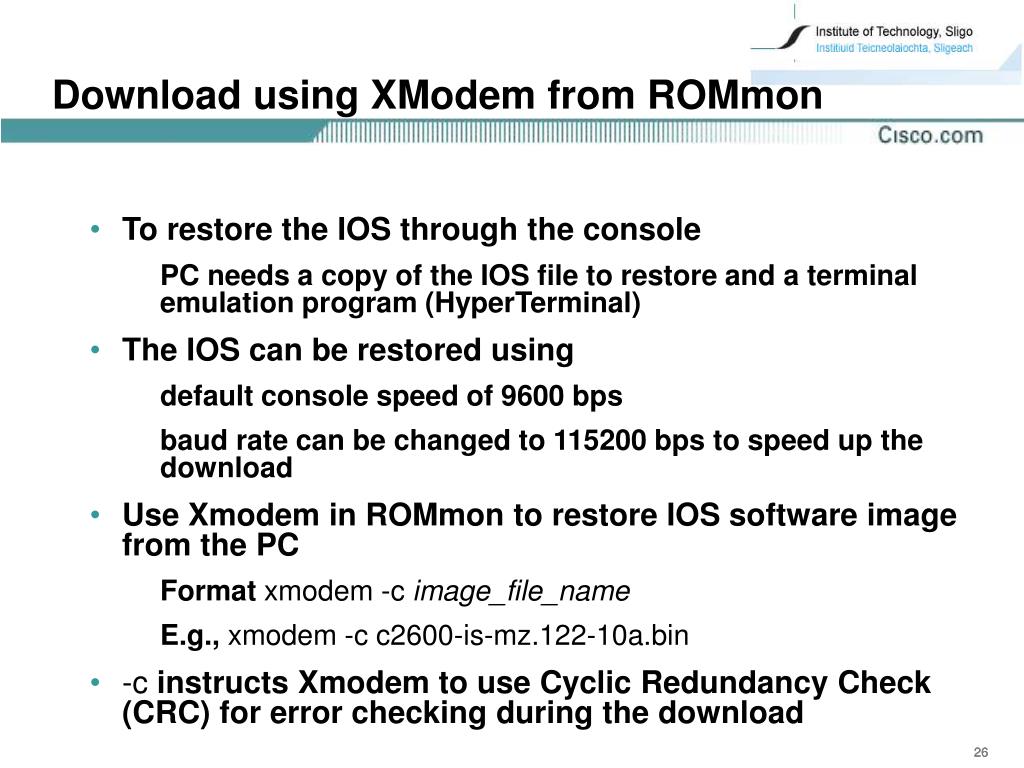

  26. Download using XModem from ROMmon • To restore the IOS through the console • PC needs a copy of the IOS file to restore and a terminal emulation program (HyperTerminal) • The IOS can be restored using • default console speed of 9600 bps • baud rate can be changed to 115200 bps to speed up the download • Use Xmodem in ROMmon to restore IOS software image from the PC • Format xmodem -cimage_file_name • E.g., xmodem -c c2600-is-mz.122-10a.bin • -c instructs Xmodem to use Cyclic Redundancy Check (CRC) for error checking during the download

  27. Environment variables • Fasted way to download IOS image • using TFTP from ROMmon • ROMmon has very limited functions • No configuration file loaded during boot • Set environmental variables (set) • IP_ADDRESS – The IP address on the LAN interface • IP_SUBNET_MASK – The subnet mask for the LAN interface • DEFAULT_GATEWAY – Default gateway for the LAN interface • TFTP_SERVER – The IP address of the TFTP server • TFTP_FILE – The IOS filename on the server • Use the tftpdnld command • When new image is written to flash restart router using i

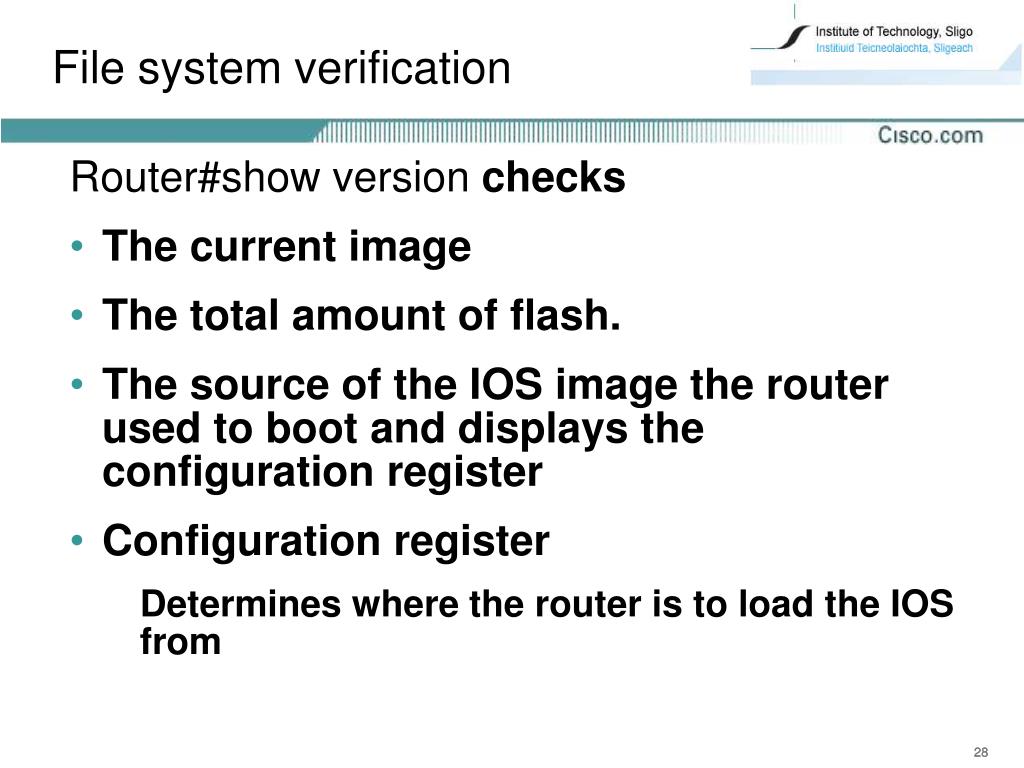

  28. File system verification Router#show version checks • The current image • The total amount of flash. • The source of the IOS image the router used to boot and displays the configuration register • Configuration register • Determines where the router is to load the IOS from

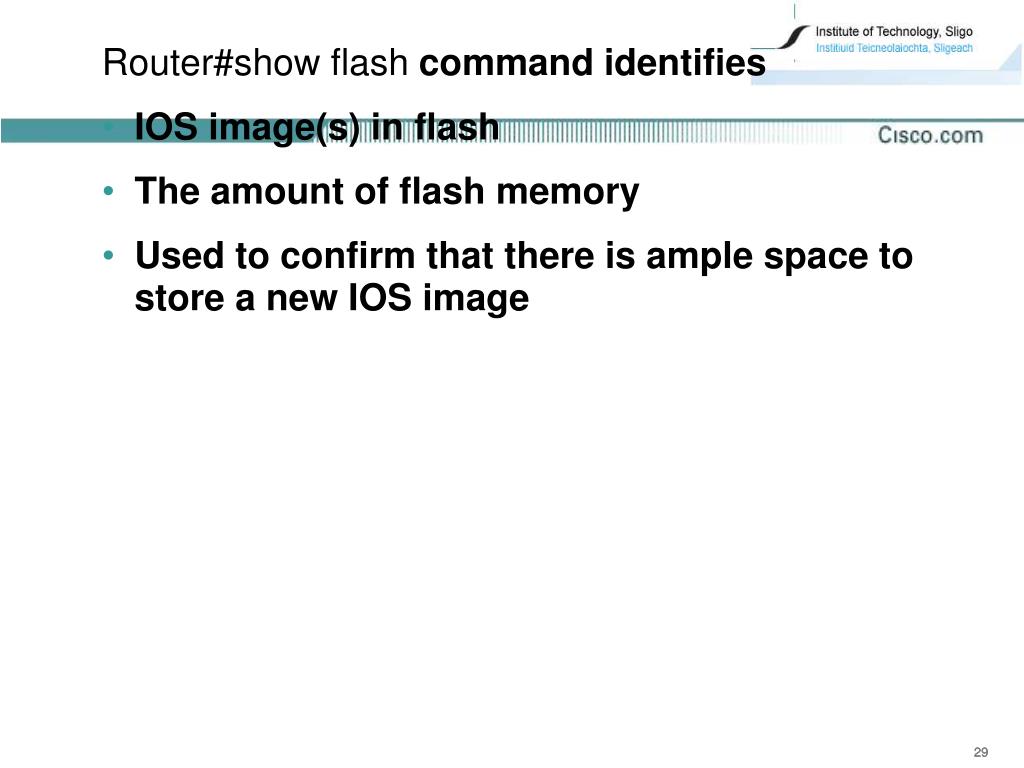

  29. Router#show flash command identifies • IOS image(s) in flash • The amount of flash memory • Used to confirm that there is ample space to store a new IOS image
