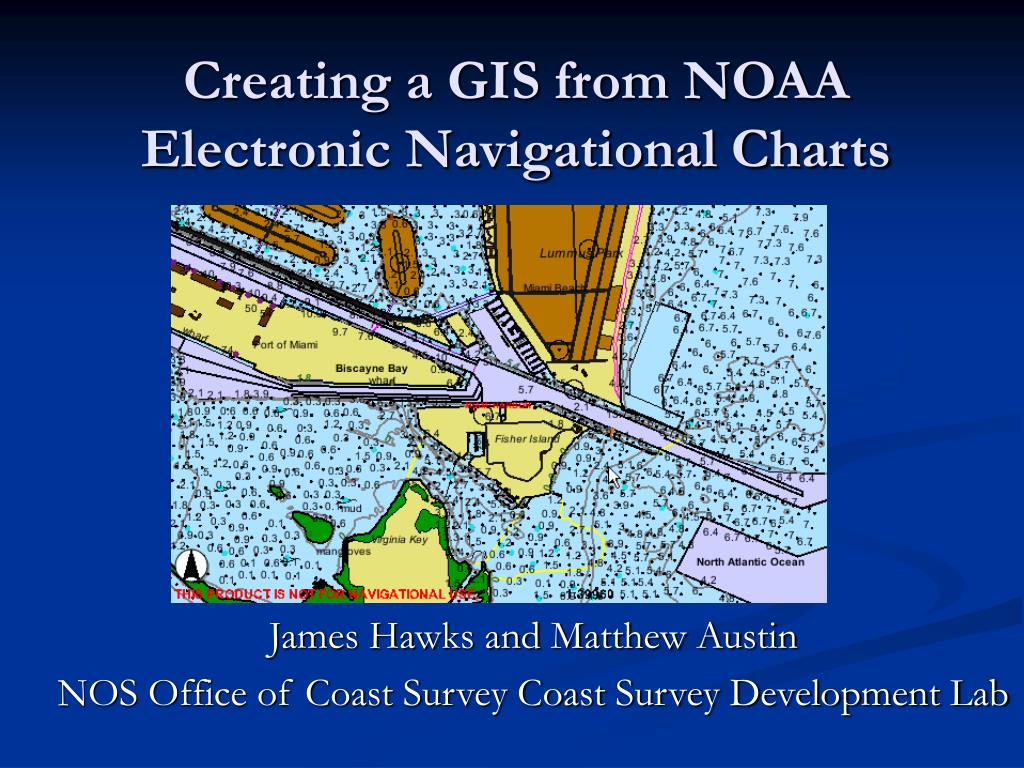

  1. Creating a GIS from NOAA Electronic Navigational Charts James Hawks and Matthew Austin NOS Office of Coast Survey Coast Survey Development Lab

  2. Introduction • Background-- Nautical Charts, ENCs, S-57 • ENC Direct to GIS Website • Users • Benefits • Web Services • Future Direction • Conclusion

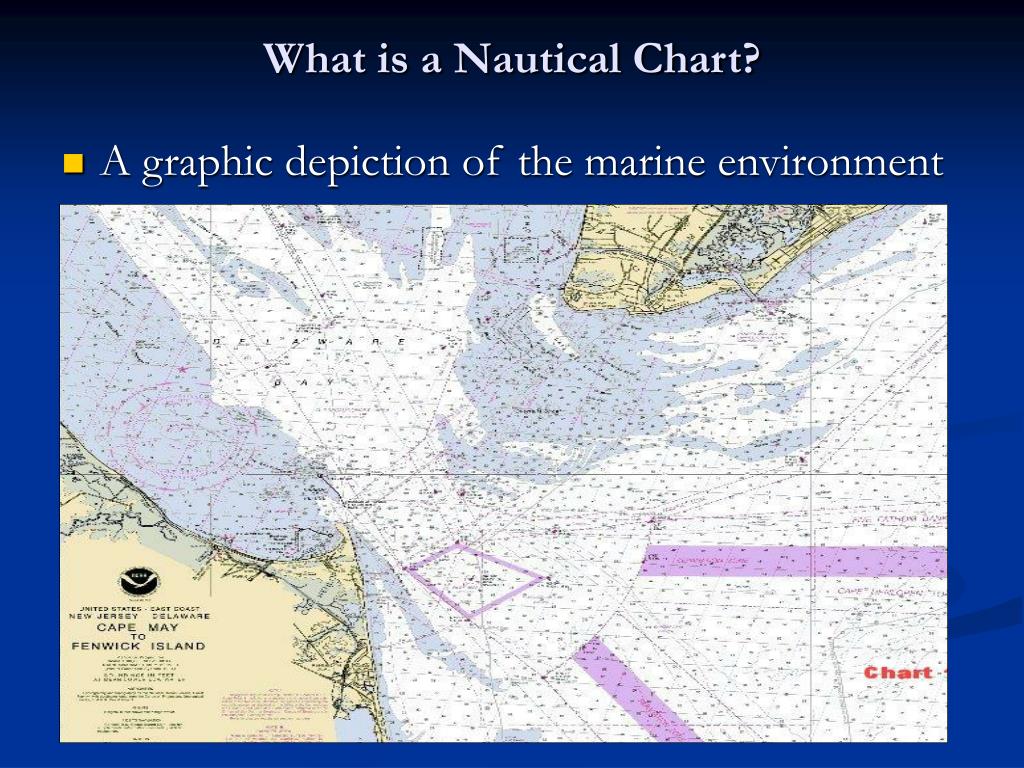

  3. What is a Nautical Chart? • A graphic depiction of the marine environment

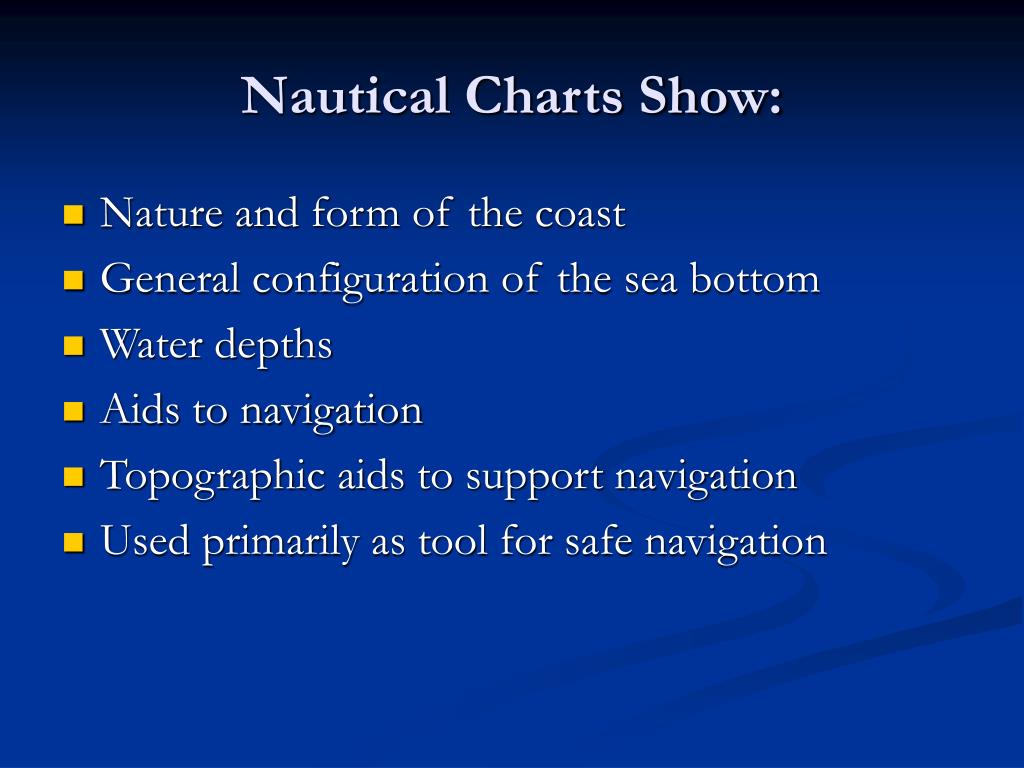

  4. Nautical Charts Show: • Nature and form of the coast • General configuration of the sea bottom • Water depths • Aids to navigation • Topographic aids to support navigation • Used primarily as tool for safe navigation

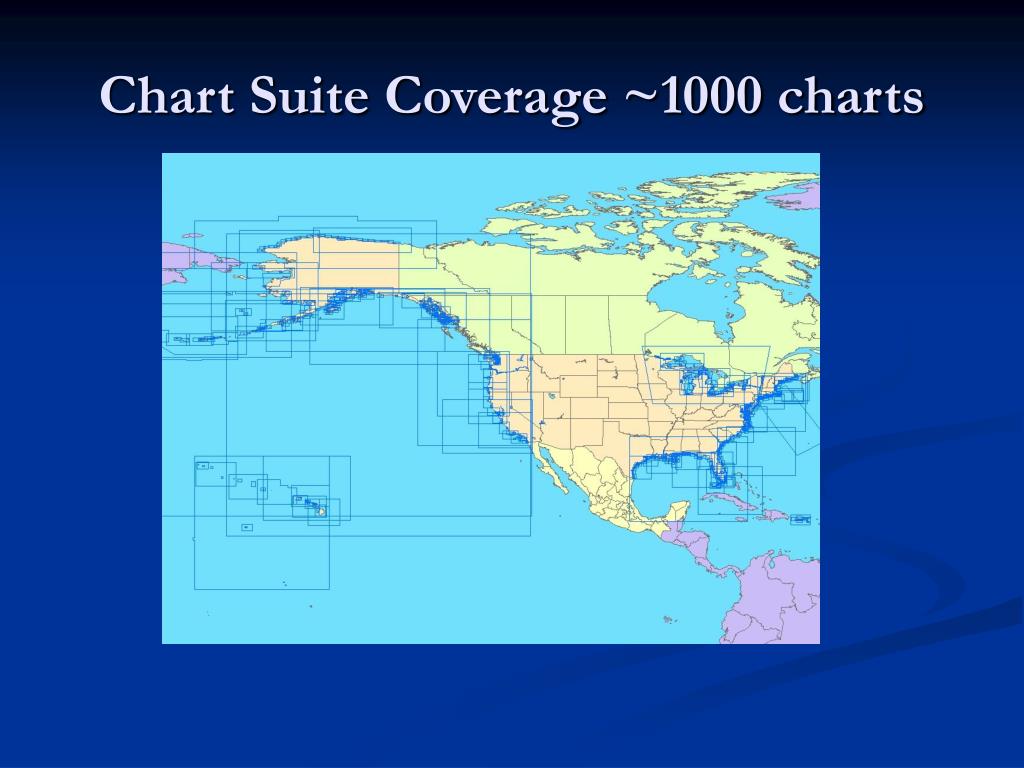

  5. Chart Suite Coverage ~1000 charts

  6. Navigation Product:Electronic Navigational Charts • Electronic Navigational Charts (ENC) are databases of chart features used by navigation systems to produce a chart-like display.

  7. What is S-57? • International Hydrographic Organization (IHO) for Transfer Standard for Digital Hydrographic Data • Uses International Standard Organization (ISO) 8211 file format • Platform independent structure • Provides a standard catalog for chart features • ENC is a product specification for S-57

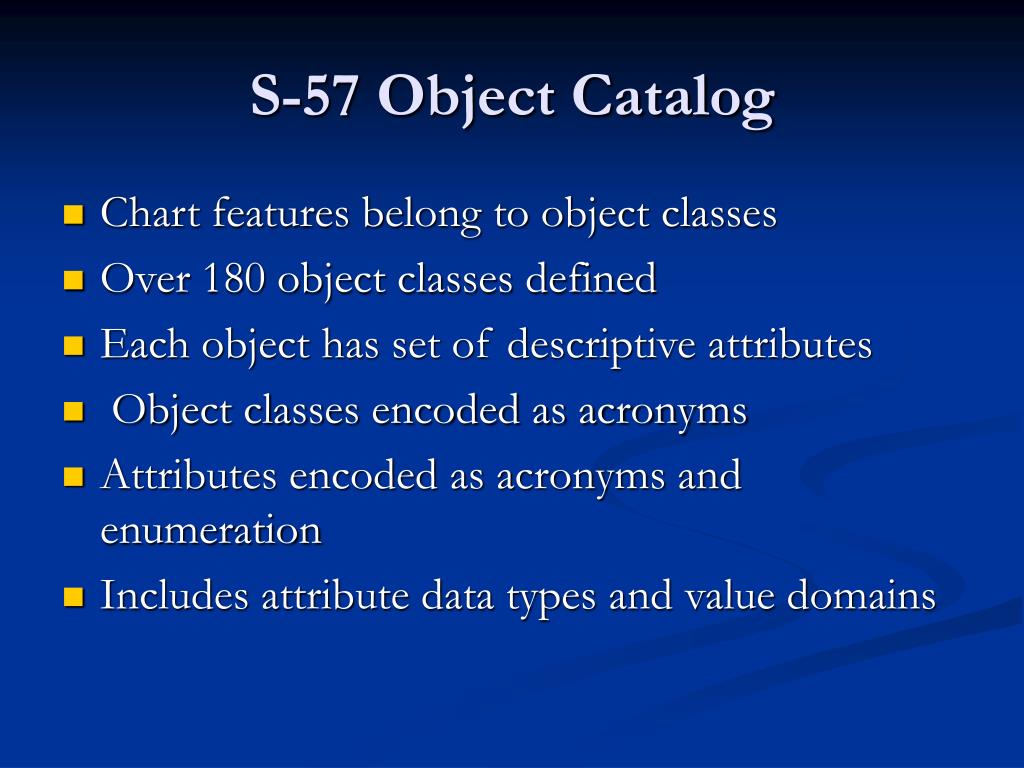

  8. S-57 Object Catalog • Chart features belong to object classes • Over 180 object classes defined • Each object has set of descriptive attributes • Object classes encoded as acronyms • Attributes encoded as acronyms and enumeration • Includes attribute data types and value domains

  9. Using ENCs in GIS • Rich structure of the object catalog requires the use of data decoders to make sense of information contained in S-57 • Off the shelf GIS software packages do not support ENC in native S-57 format • S-57 standard is complex and hard to fully integrate in GIS

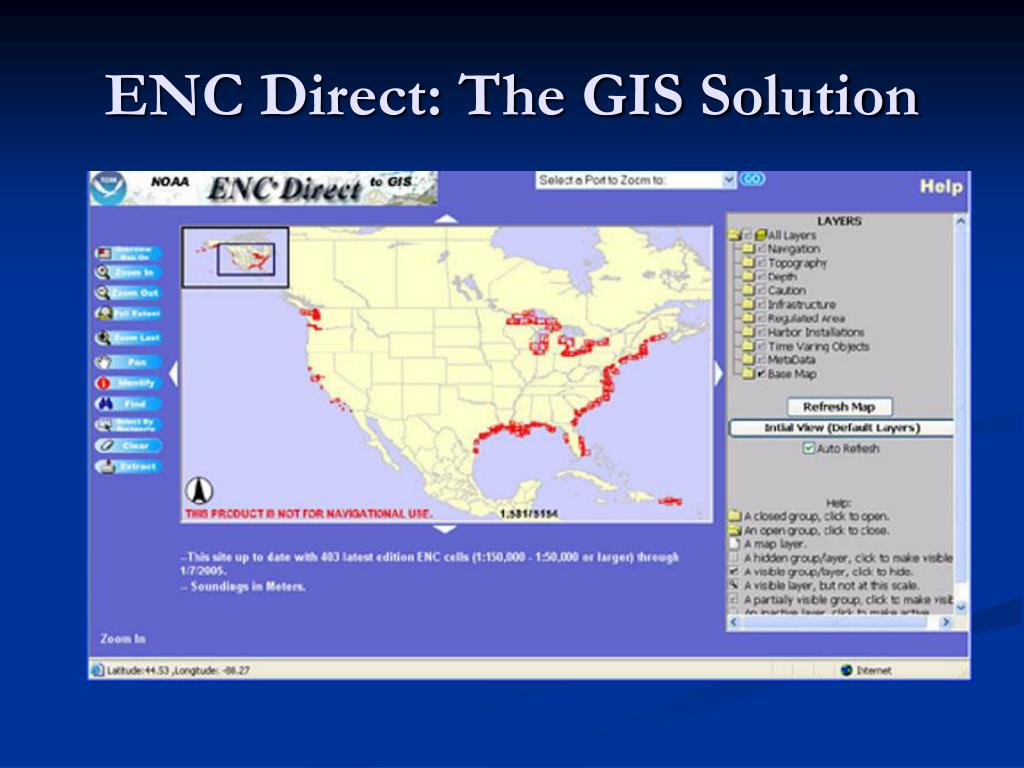

  10. ENC Direct: The GIS Solution

  11. ENC Direct • Provides NOAA ENC data as online GIS • Uses ESRI ArcIMS internet mapping service • Data is available for download in GIS multiple formats through Spatial Direct online data transformation • Download can be customized to fit user requirements • Large Scale ENCs currently available • Updated monthly to include new coverage and ENC updates

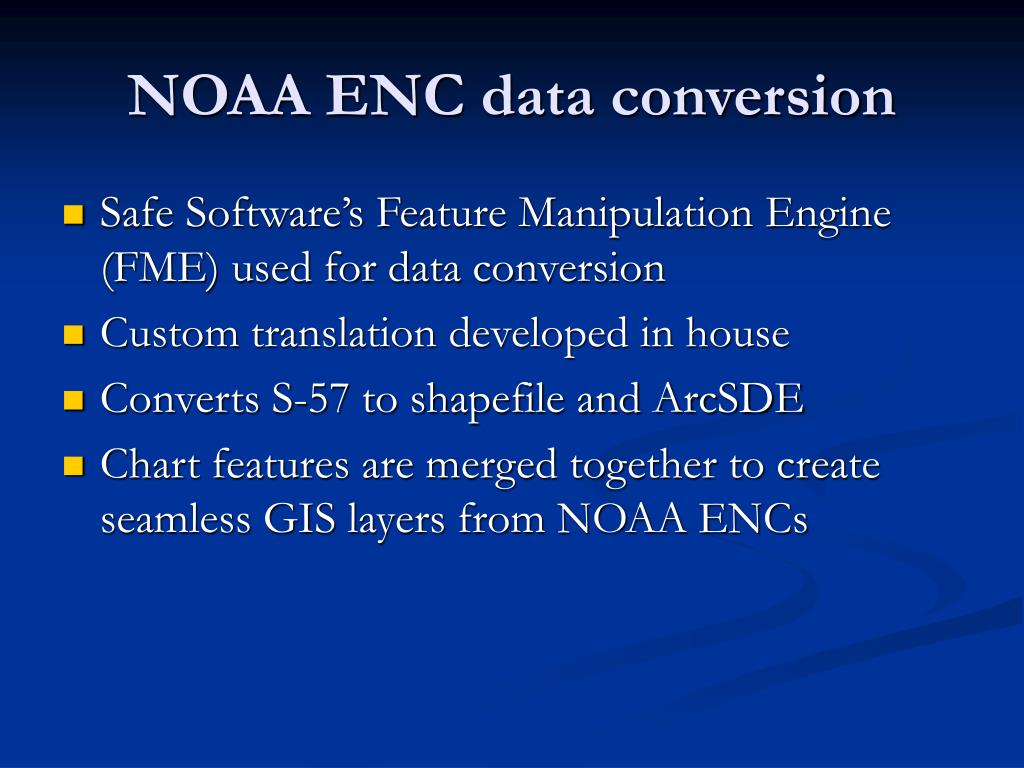

  12. NOAA ENC data conversion • Safe Software’s Feature Manipulation Engine (FME) used for data conversion • Custom translation developed in house • Converts S-57 to shapefile and ArcSDE • Chart features are merged together to create seamless GIS layers from NOAA ENCs

  13. GIS layers of aggregated nautical features covering US waters • Contiguous information about Nautical Chart features available in GIS layers • Example: ENC Direct coastline layer contains information from 400 ENCs of the same scale that have been glued together • Over 200 GIS layers available

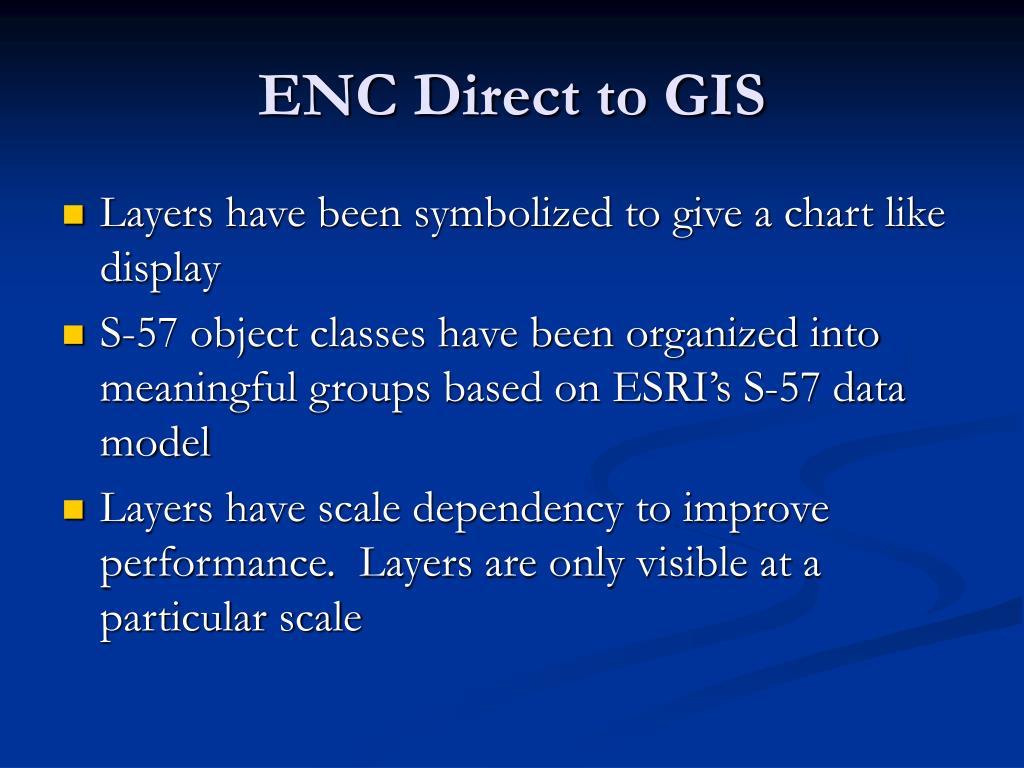

  14. ENC Direct to GIS • Layers have been symbolized to give a chart like display • S-57 object classes have been organized into meaningful groups based on ESRI’s S-57 data model • Layers have scale dependency to improve performance. Layers are only visible at a particular scale

  15. Data Download Choose data format, and spatial extent Zoom in Select Data Data is clipped, zipped and shipped

  16. Benefits • Streamlines and expands access to NOAA ENC data for non-navigational use • Visualization of NOAA ENCs online • Access to multiple cohesive chart features-Soundings, Shipwrecks, Harbors, Marine Sanctuaries, Coastline, Landmarks

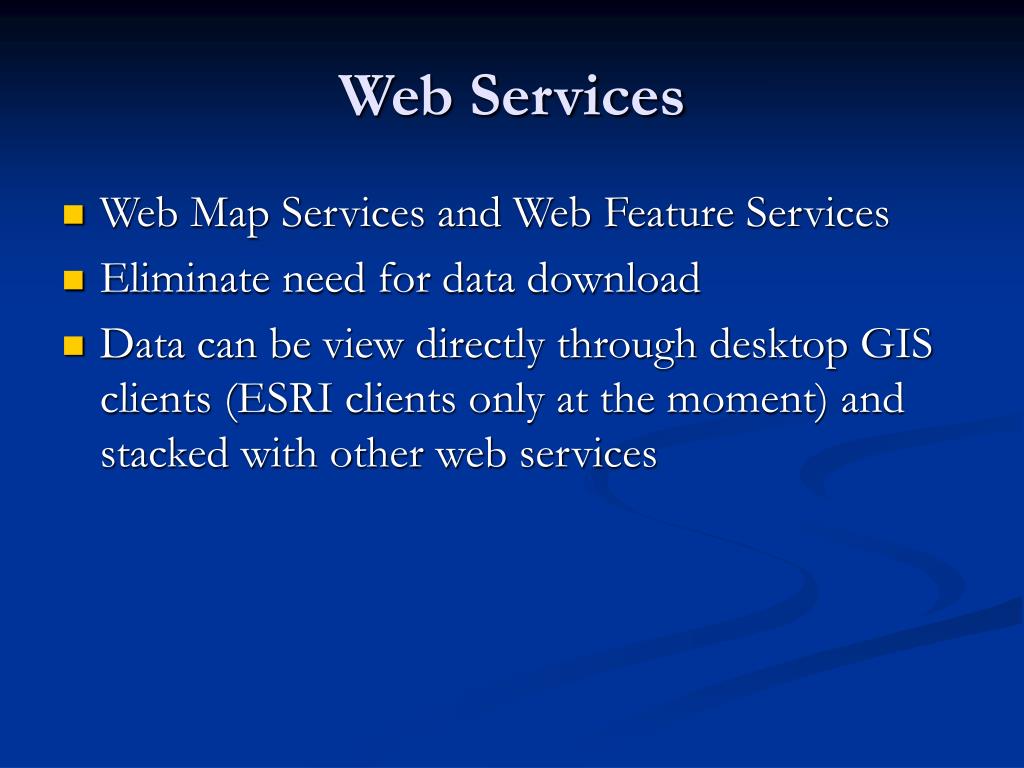

  17. Web Services • Web Map Services and Web Feature Services • Eliminate need for data download • Data can be view directly through desktop GIS clients (ESRI clients only at the moment) and stacked with other web services

  18. ENC Direct Web Service viewed in ArcMap

  19. ENC Direct Architecture • Web Server: Windows 2003, Apache, Tomcat, ArcIMS 9.1, Spatial Direct • Data Server: Red Hat Linux, ArcSDE 9.1, Oracle 10g

  20. Users • USGS National Map • US Coast Guard Homeland Security • Coastal Managers • Coastal Engineers • Marine Modelers • State and Local Government • Private Sector

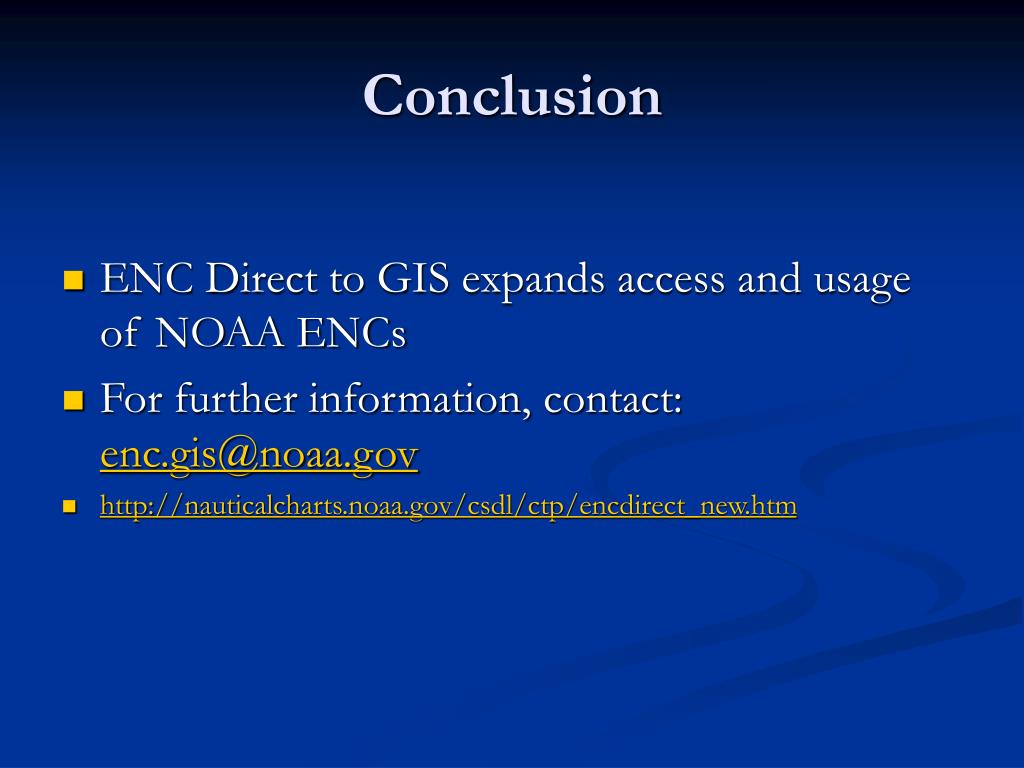

  21. Conclusion • ENC Direct to GIS expands access and usage of NOAA ENCs • For further information, contact: enc.gis@noaa.gov • http://nauticalcharts.noaa.gov/csdl/ctp/encdirect_new.htm
